Modular Hydraulic Concrete Foundation Pile Head Cutter Breaking Machine for Excavators
- Category: >>>
- Supplier: Zhengzhou Vantage Machinery Co. Ltd.
Share on (1601165306527):
Product Overview
Description
Product Overview
HYDRAULIC PILE BREAKING MACHINE

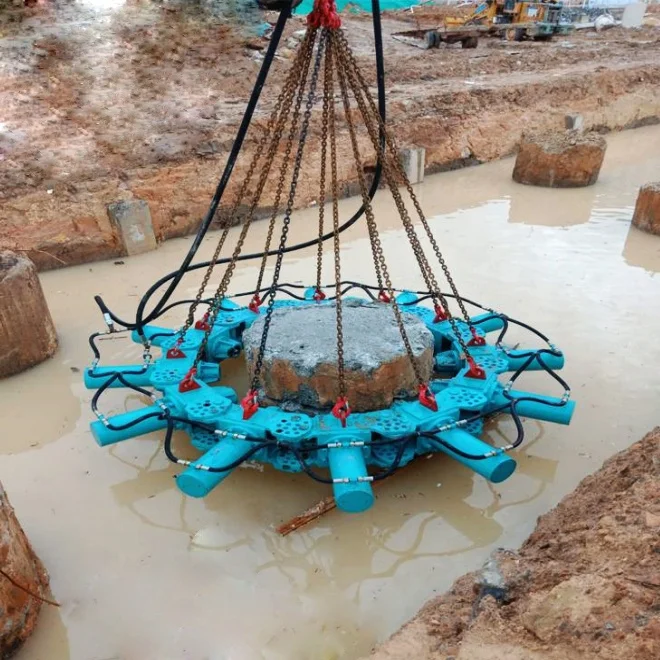

The hydraulic pile breaker provides pressure to multiple cylinders of the pile cutter through power source, and the cylinders directly drive the drill rod to squeeze the pile body at the same time, so that the pile head is cut off.

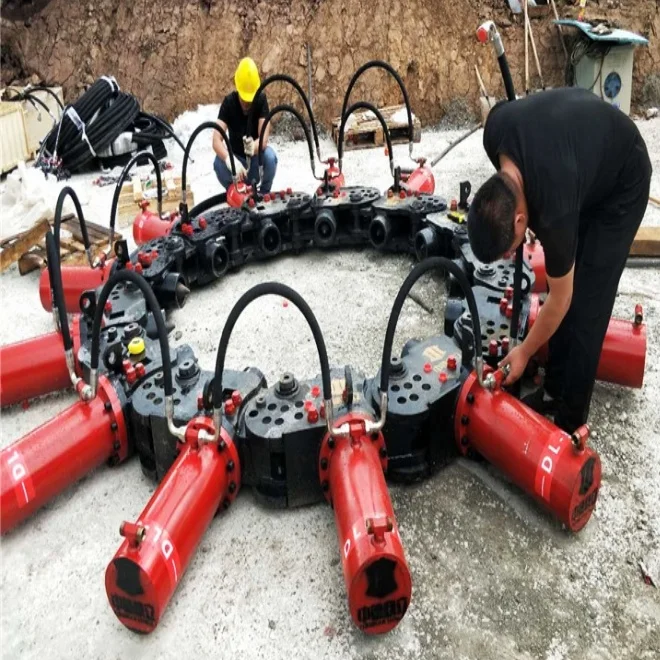

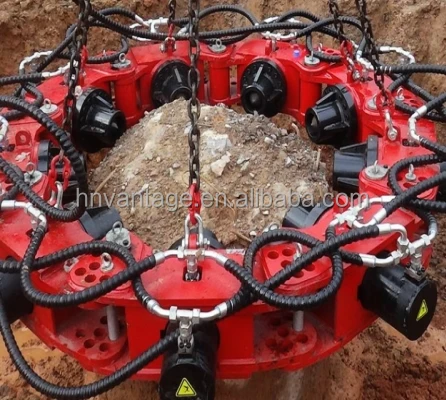

The pile breaker adopts a highly modular combination, and connects the module through the pin. It can cut off the diameter head within a certain range by combining the number of different modules. Hydraulic pile breaker cutting: such as cast-in-place pile, prefabricated pile, etc.;
According to the shape of pile cutting head, it can be divided into round pile breaker and square pile breaker.

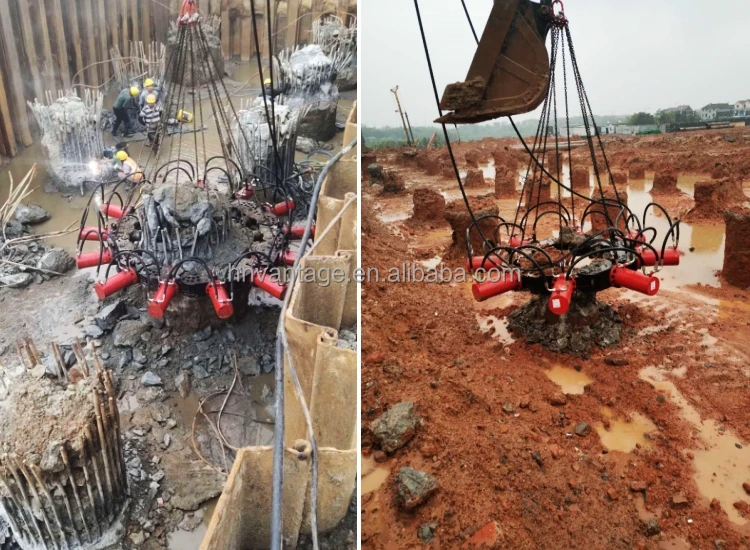

Pile breaker is widely used in high-speed railway Bridges and civil construction pile foundation projects, which can meet the requirements of various large-scale foundation construction.
FEATURES AT A GLANCE
ADVANTAGES:
High efficiencyFast speed and labor saving
Simple Operation
Low Noise and Less Cost

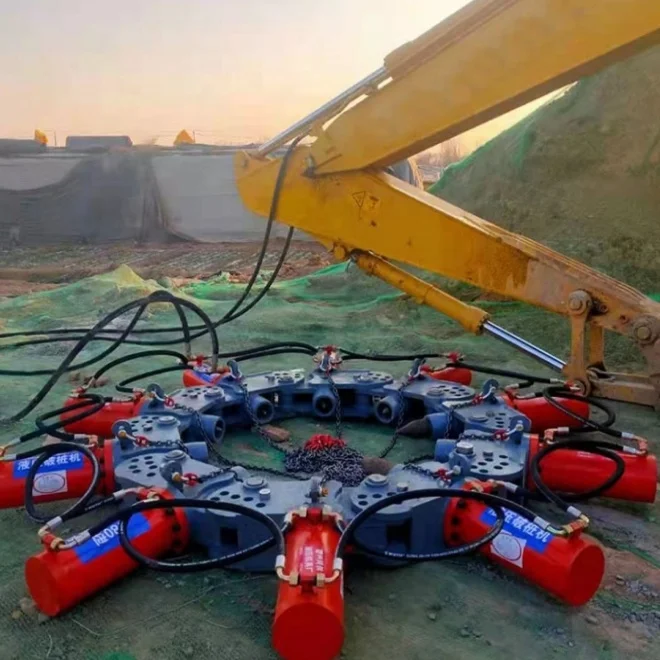

Circular pile cutter is suitable for pile diameter of 250mm-2500mm
Square pile cutter is suitable for pile side length 250-650mm
Modular design

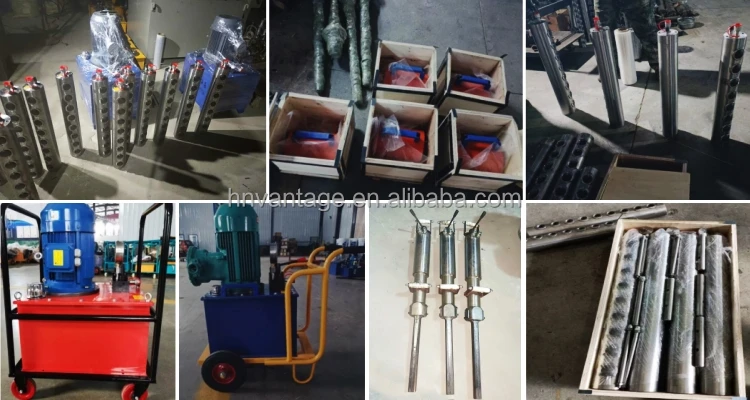

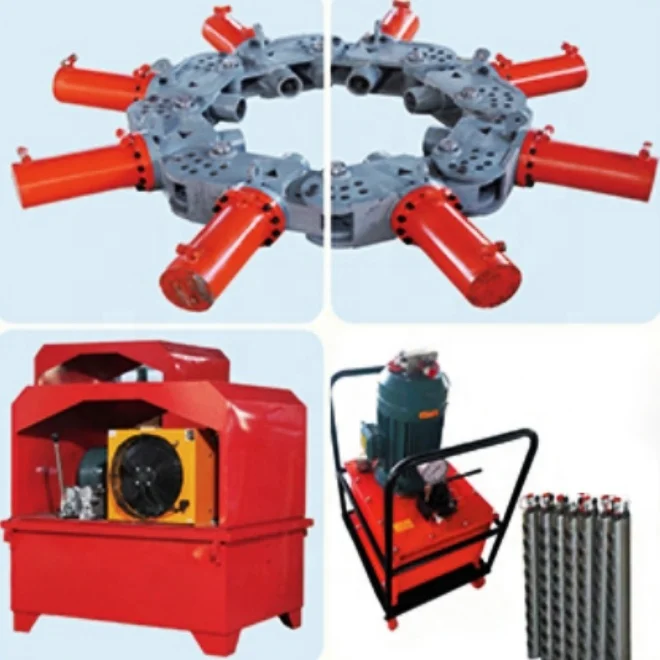

Electric Hydraulic Power Station
MOUDULE DESIGN
Modular design can be linked with a variety of construction machinery can be added or reduced according to the size of the pileModule, convenient and fast.

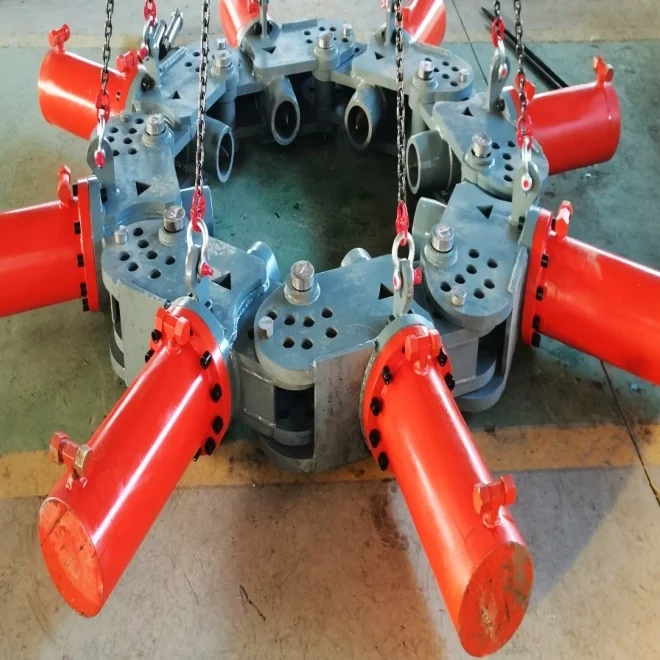

BREAKING UNIT
The tapered top design avoids the problem that soil will accumulate and get stuck in the guide flange steel , causing deflection and easy to break.
CHISEL BITS
The steel chisel that rotates at any time effectively prevents the internal production of the high-pressure cylinder, prevents the fracture of the joint, and plays a seismic effect.
CUSTOMIZATION SERVICE
We can customize the module according to the size and diemension of the Pile Dia. Round or Square Ones
OPERATION PROCESS
Unscrew the cover of the oil filling port, fill the hydraulic oil (ISOVG32, 46, 68 or equivalent hydraulic oil), and observe the oil level in the oil level gauge, please refuel if the oil is insufficient before use. Otherwise easy to cause system instability and pump damage) oil damage is not guaranteed.
CONNECTION PROCESS
Unscrew the fixing screw on the terminal box on the side of the motor, connect the wiring according to the wiring diagram shown on the motor nameplate, and ensure that the input voltage does not exceed the maximum allowable voltage of the motor.
START WORKING
Connect each hydraulic line and electrical control circuit.
start the motor and turn it off after about 1 second, observe whether the motor rotation direction is consistent with the pump marked rotation direction.
start the motor and turn it off after about 1 second, observe whether the motor rotation direction is consistent with the pump marked rotation direction.
FORBIDDENS
In the process of breaking the pile, it is forbidden to vigorously lifted and pulled if the chiel are not retracted to the Cylinder. (Above is the error operation
As a method, easy to break the drill rod and guide flange)
As a method, easy to break the drill rod and guide flange)
PRODUCT SPECIFICATIONS
Module | No. | 4 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | |||||||||
G.W of Combination | KG | 1600 | 2624 | 2952 | 3280 | 3608 | 3936 | 4264 | 4592 | |||||||||
Pile Dia. | mm | 200-600 | 600-800 | 800-1000 | 1000-1150 | 1150-1300 | 1300-1500 | 1500-1650 | 1650-1800 | |||||||||
Suitable Excavator Tonnage | T | 20T-30T | 30-40T | |||||||||||||||
Max. Pressure for Breaking Bit | 300KN | Single Cylinder Max. Pressure | 20L/Min. | |||||||||||||||
Max.Stroke for Cylinder | 300mm | Dia. of Breaking Bit | 110mm | |||||||||||||||
Technical Parameters of Hydraulic Electric Pump Station | ||||||||||||||||||
Motor Power | 22KW | Motor Speed | 1470rpm | Rated Discharge | 107L/min | |||||||||||||
Oil Tank Capacity | 400L | Weight | 480KG | Max. Pressure | 30Mpa | |||||||||||||

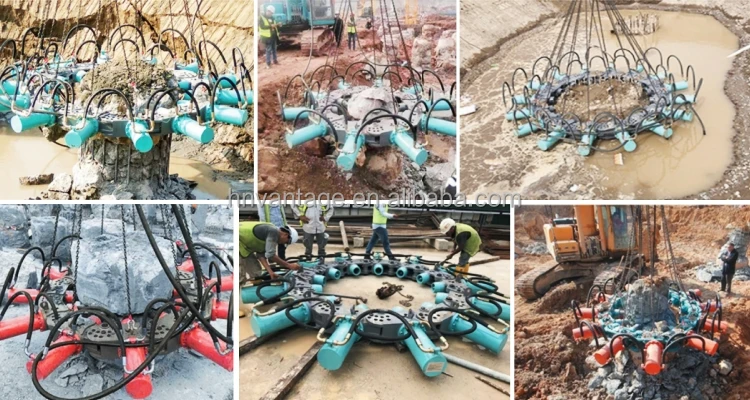

APPLICATION SCOPE

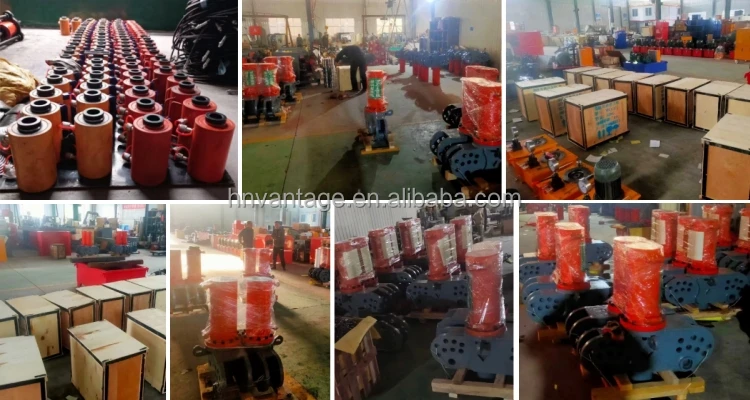

PACKING AND DELIVERY
ABOUT US
Zhengzhou Vantage Machinery Co.,ltd develops and produces high-grade construction and rock mining machinery, the main products are: hydraulic splitting machine, hydraulic pile breaking machine, copper bar cold extrusion machine, steel bar bending machine.
Our goal is to create value for customers, not only get the ideal construction solutions, but also create greater profit value.
Our company has always adhered to the "quality first, customer first, quality service, abide by the contract" purpose, with high quality products, good reputation, quality service, the products sell well in nearly 30 provinces, municipalities, autonomous
regions and exported to South America, Southeast Asia, West Asia, Africa and other countries. We are willing to work together with new and old friends, so as to create a brilliant future of China's mining, engineering construction, stone machinery and equipment, and sincerely looking forward to your re-inquiry, patronage!
Our goal is to create value for customers, not only get the ideal construction solutions, but also create greater profit value.
Our company has always adhered to the "quality first, customer first, quality service, abide by the contract" purpose, with high quality products, good reputation, quality service, the products sell well in nearly 30 provinces, municipalities, autonomous
regions and exported to South America, Southeast Asia, West Asia, Africa and other countries. We are willing to work together with new and old friends, so as to create a brilliant future of China's mining, engineering construction, stone machinery and equipment, and sincerely looking forward to your re-inquiry, patronage!
FAQ
Q: Are you a manufacturer or trading company?
A: We have our own factory established in 2007 and we have a professional international sales team.
Q: Can you provide customers’ design?
A: Sure, we can provide OEM and ODM service.
Q: What’s the MOQ and payment terms?
A: MOQ is 1set. Payment via T/T, or Alibaba Trade Assurance.
Q: What will be the Dlivery Time?
A: 7-10 work days after the payment, and also depend on your quantity and size.
Q: Do you give a warranty for this product?
A: Of Course, we are providing a 12 months warranty.
Q: Which country have you exported?
A: Vietnam, Saudi Arabia, Sri Lanka, Thailand, New Zealand, Canada, Australia, Peru, Chile, Brazil, Mexico,
A: We have our own factory established in 2007 and we have a professional international sales team.
Q: How to select the right hydraulic breaking unit for my job site?
A: Plz let us what shape of pile do you need to break and its dimensions. Then we will understand how many modules should be needed and then offer a practical quotation.
A: Plz let us what shape of pile do you need to break and its dimensions. Then we will understand how many modules should be needed and then offer a practical quotation.
Q: Can you provide customers’ design?
A: Sure, we can provide OEM and ODM service.
Q: What’s the MOQ and payment terms?
A: MOQ is 1set. Payment via T/T, or Alibaba Trade Assurance.
Q: What will be the Dlivery Time?
A: 7-10 work days after the payment, and also depend on your quantity and size.
Q: Do you give a warranty for this product?
A: Of Course, we are providing a 12 months warranty.
Q: Which country have you exported?
A: Vietnam, Saudi Arabia, Sri Lanka, Thailand, New Zealand, Canada, Australia, Peru, Chile, Brazil, Mexico,
