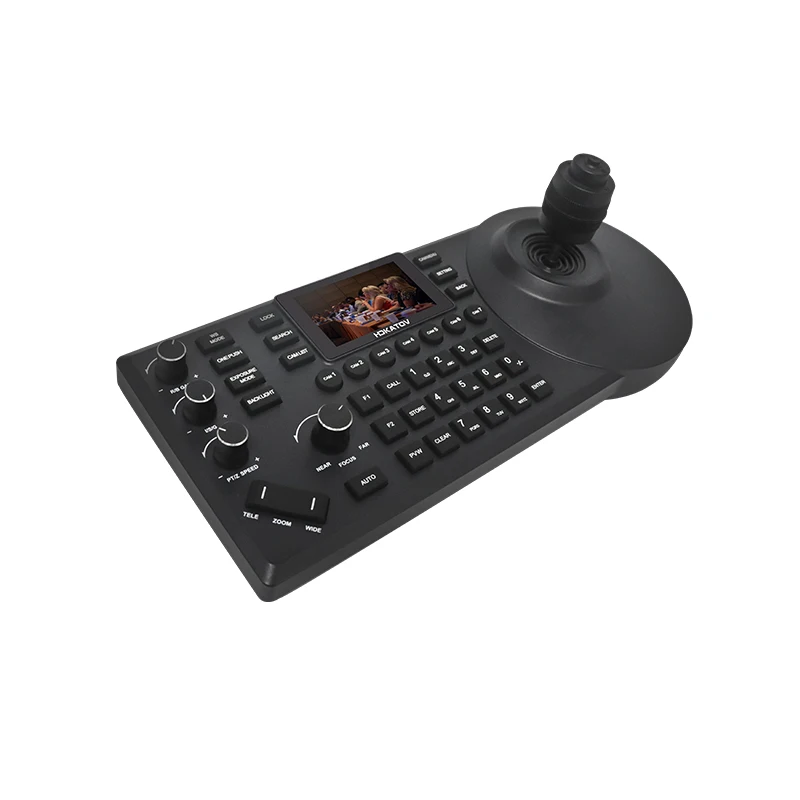

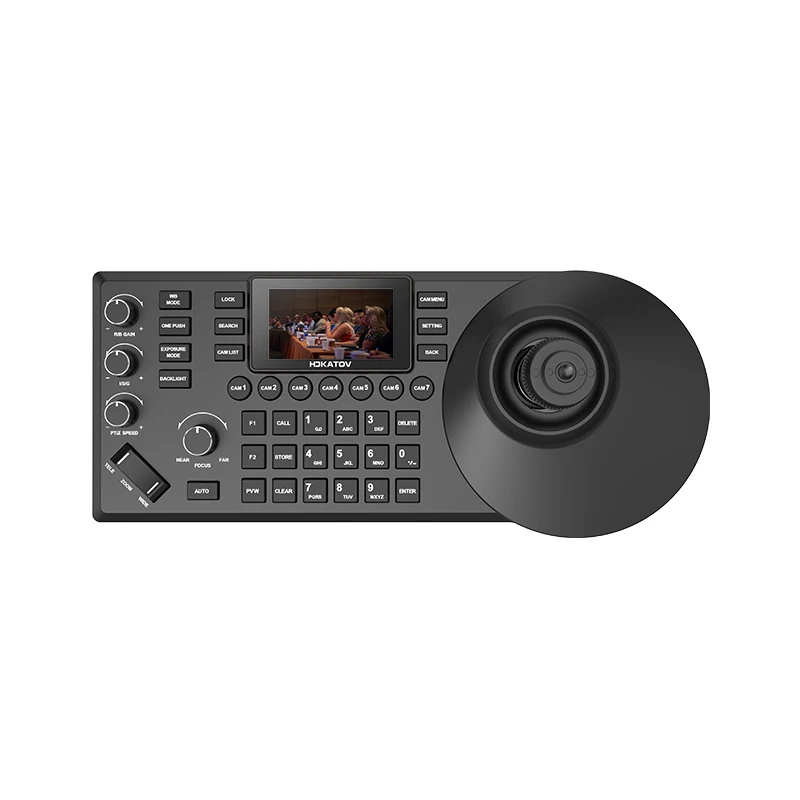

4D PTZ Keyboard Controller, 4D ptz joystick controller, ptz camera keyboard ip ptz controller for High Speed PTZ Dome IP Cameras
- Category: >>>
- Supplier: Shenzhen Jinjiutianshi Industry Co. Ltd.
Share on (1601166295234):
Product Overview
Description
Recommend Products

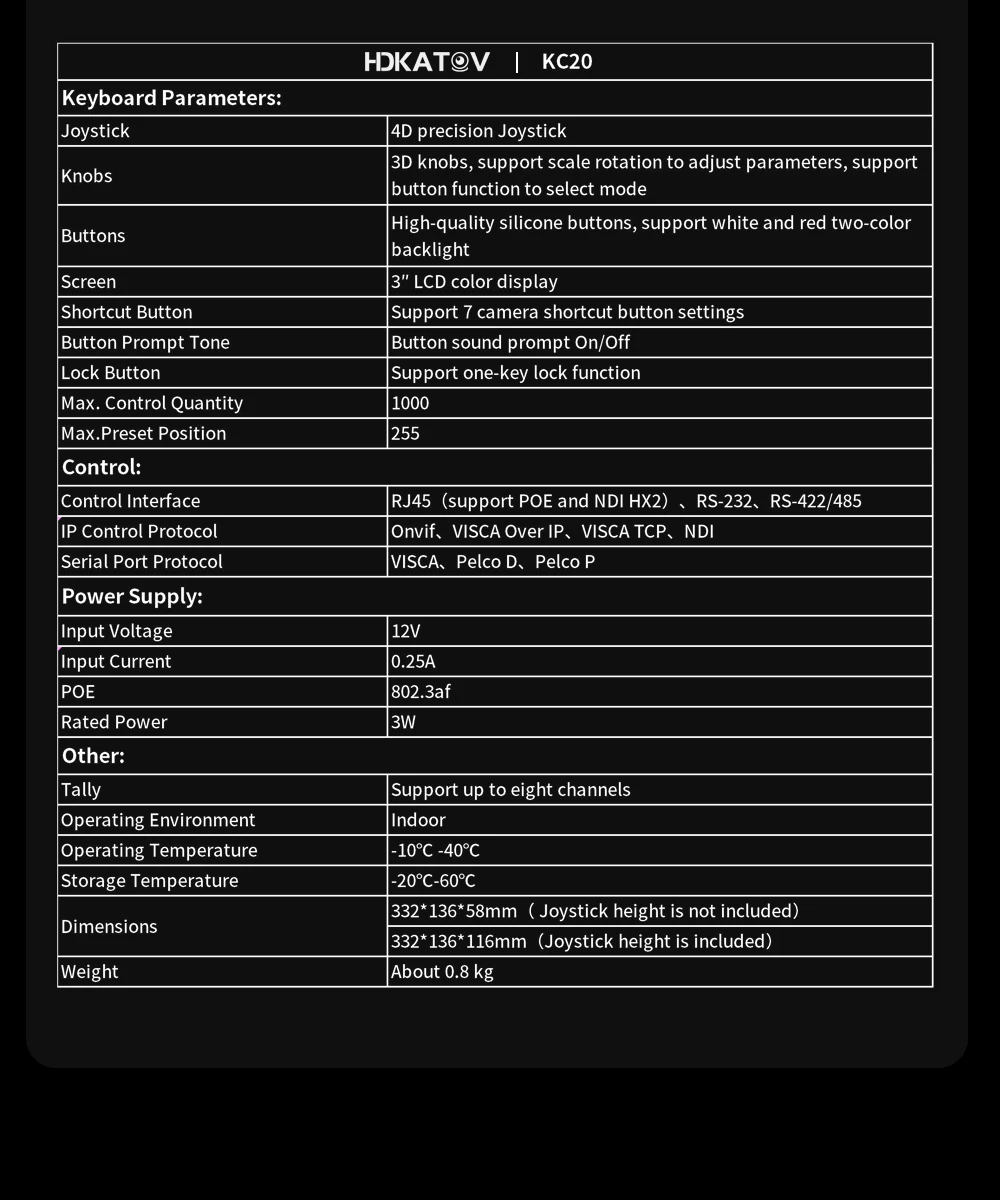

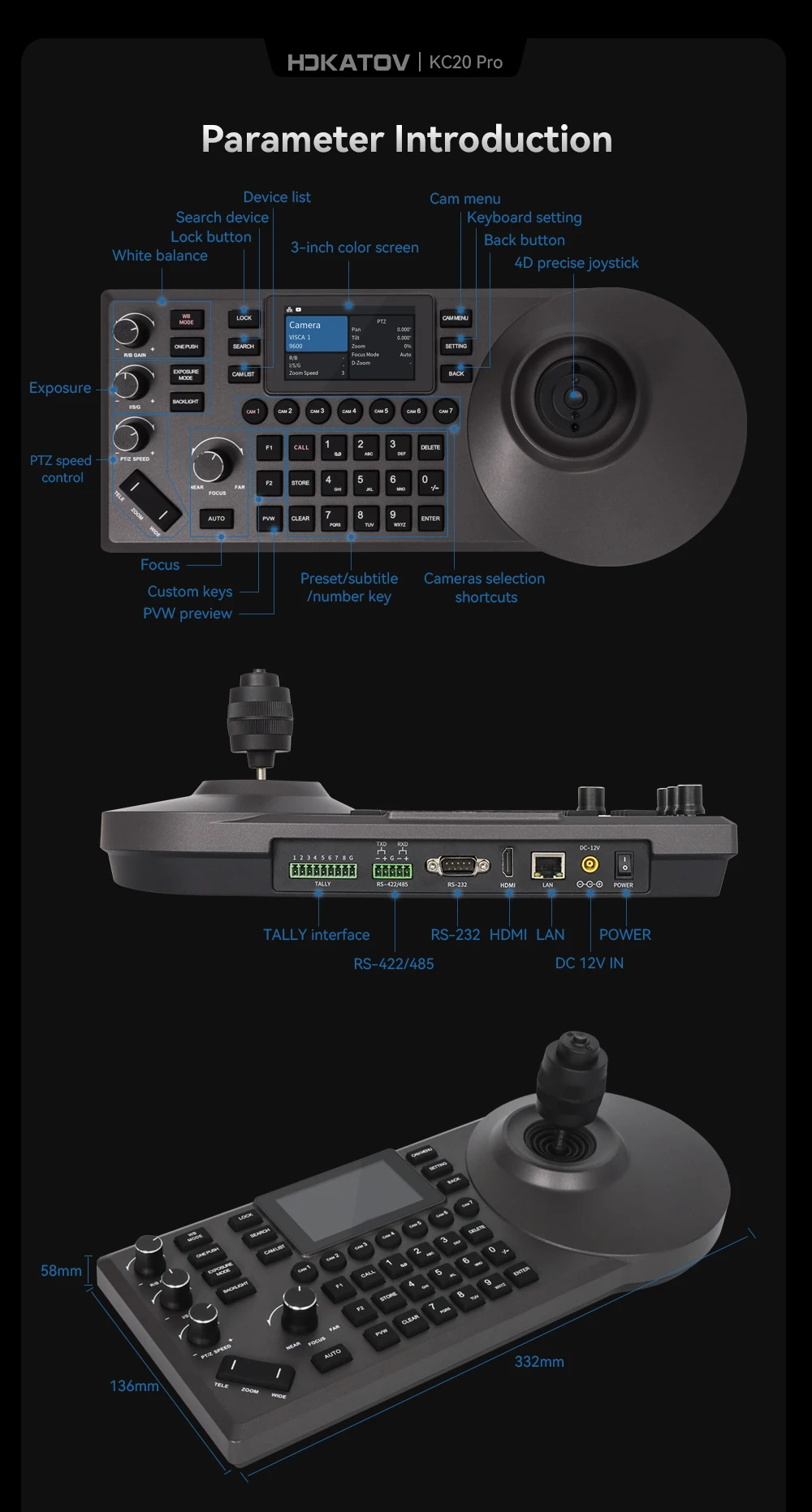

Keyboard Parameters | ||
Joystick | 4D precision Joystick | |
Knobs | 3D knobs, support scale rotation to adjust parameters, support button function to select mode | |
Buttons | High-quality silicone buttons, support white and red two-color backlight | |
Screen | 3″ LCD color display | |
Display | HDMI 4K@30 video output display | |
Shortcut Button | Support 7 camera shortcut button settings | |
Button Prompt Tone | Button sound prompt On/Off | |
Lock Button | Support one-key lock function | |
Max. Control Quantity | 1000 | |
Max.Preset Position | 255 | |
Control | ||

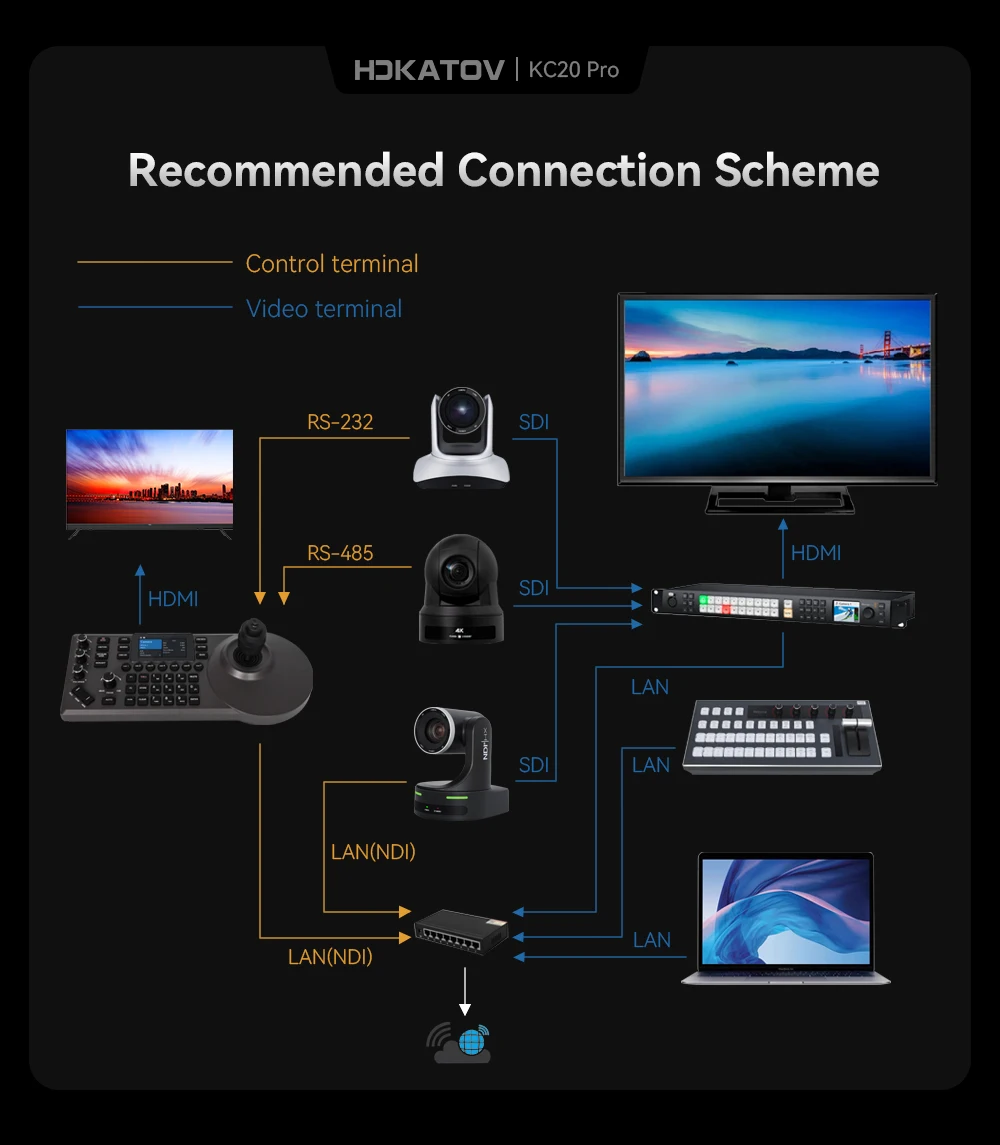

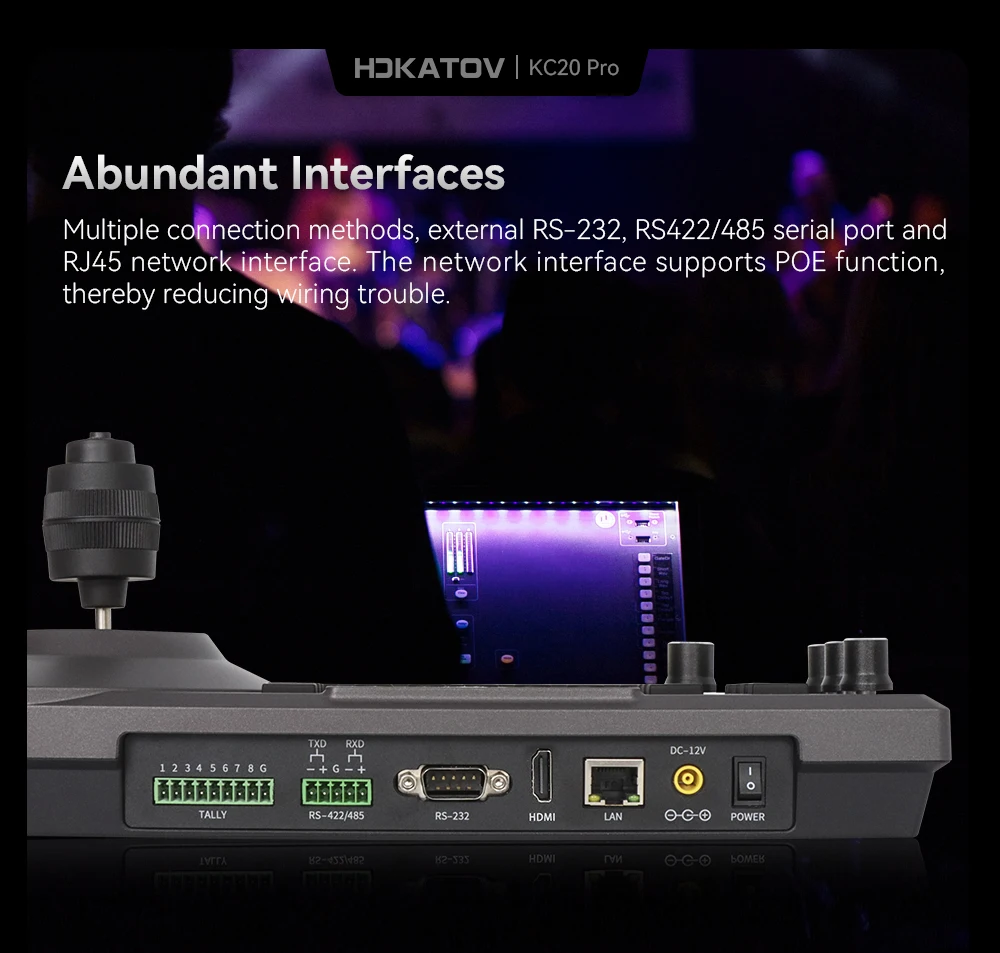

Control Interface | RJ45(support POE and NDI|HX2), RS-232, RS-422/485 | |

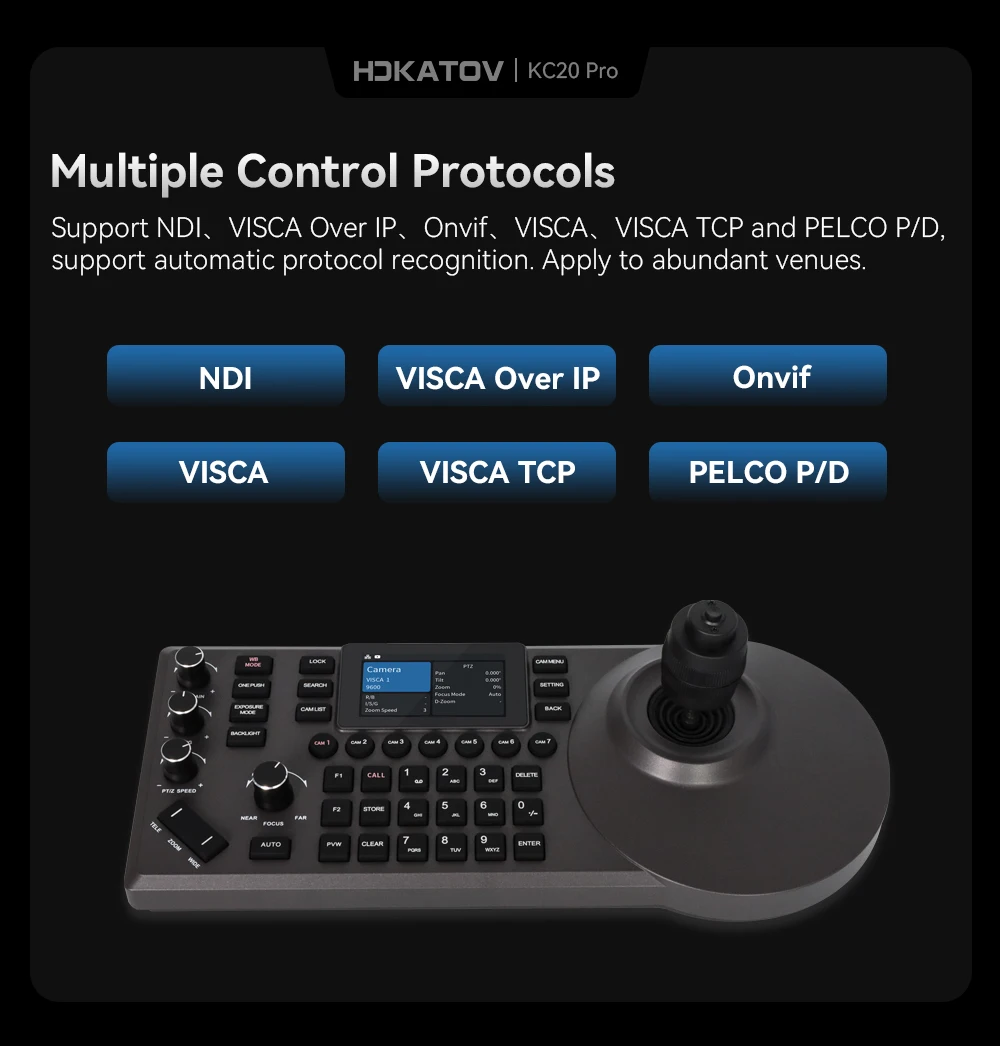

IP Control Protocol | Onvif, VISCA Over IP, VISCA TCP, NDI | |
Serial Port Protocol | VISCA, Pelco D, Pelco P | |
Power Supply | ||
Input Voltage | 12V | |
Input Current | 0.25A | |
POE | 802.3af | |
Rated Power | 3W | |
General Specifications | ||
Tally | Support up to eight channels | |
Operating Environment | Indoor | |
Operating Temperature | -10℃ -40℃ | |
Storage Temperature | -20℃-60℃ | |
Dimension | (W)332*(D)136*(H)58mm (Joystick height is not included) (W)332*(D)136*(H)116mm (Joystick height is included) | |
Weight | 0.8 kg | |
