Automatic Galvanized Steel Silo Production Line Grain Bin Silo Wall Roll Forming Machine for Roof Use
- Category: >>>
- Supplier: Cangzhou Zhongde Machinery Co. Ltd.
Share on (1601166304355):
Product Overview
Description
ZD Full Automatic Steel Silo granary Corrugated Panel making Roll Forming Machine
Steel Silo Roll Forming Machine is for producing silo wall panels which is corrugated and curved. Believe Industry have a full range machine for steel silos.
Product Description

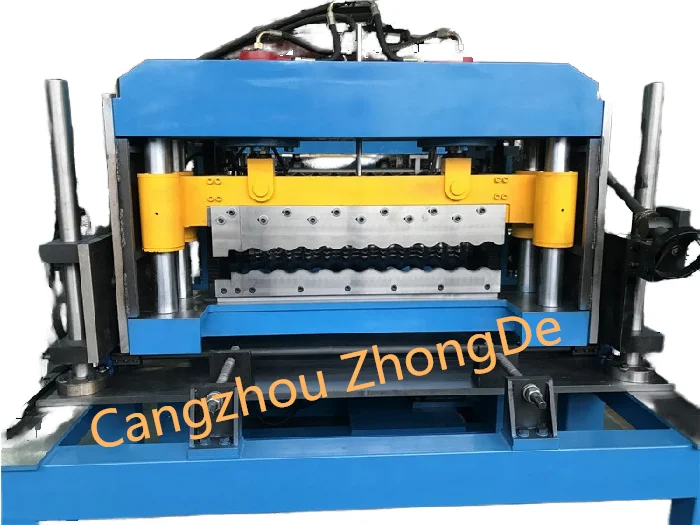

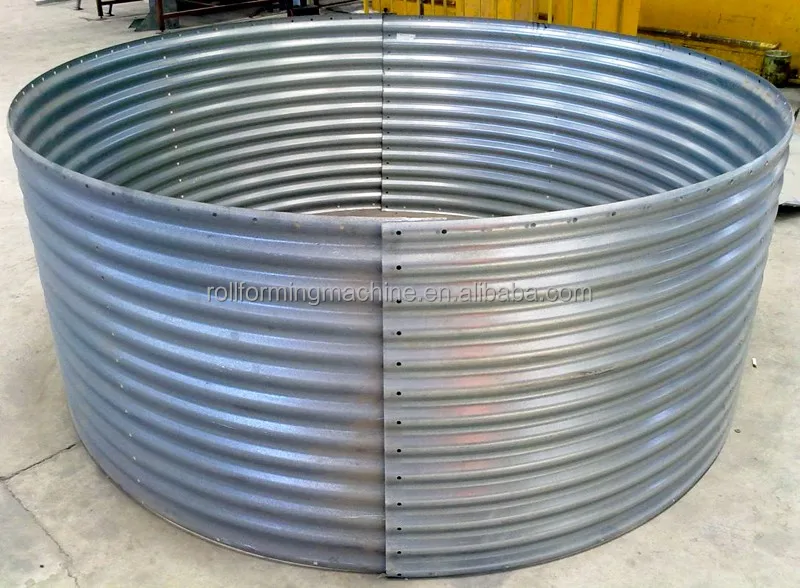

Photos of Grain Bin Corrugated steel granary silo Roll Forming Machine:

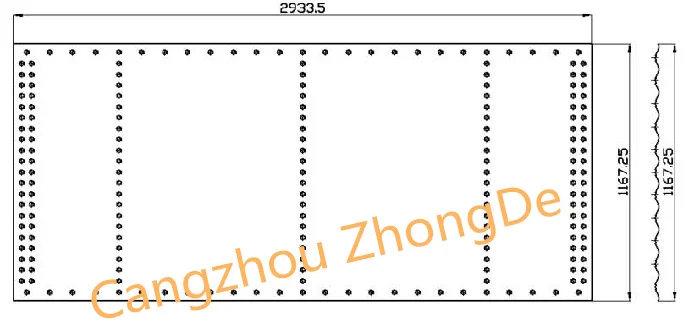

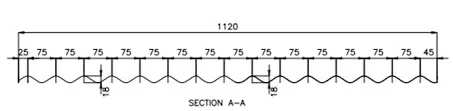

Profile drawing
Machine Paramenters

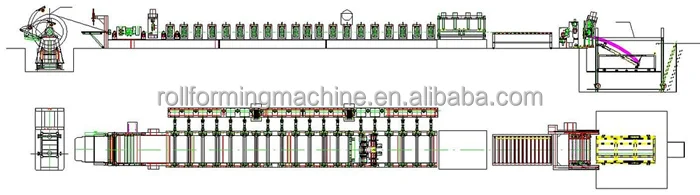

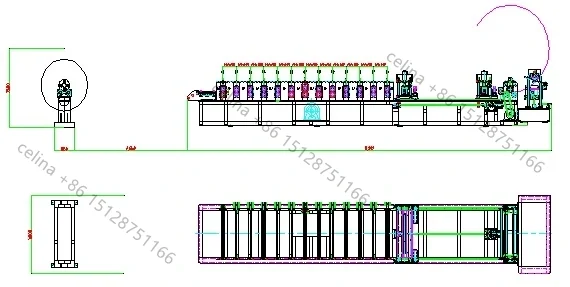

The Steel Silo Machine Layout: Uncoiling– Feeding and Guiding– Pre-cutting– Roll Forming– Punching Holes– Curving– Cutting
Item: | Specification: | Notes: | ||||
1.Information of coil | Suitable material: | Pre-paint galvanized sheet Galvanized sheet | ||||
Output Width: | 1220-1450mm | |||||
Thickness: | 1.5-3mm | |||||
Yield strength: | Q235 | |||||
2.Production specification | Detailed as the file | |||||
Length: | Any length, | Encoder to measure length | ||||
3.Power requirement: | Main power: | 18.5kw | ||||
Hydraulic power: | 7.5 kw | |||||
4.Forming Speed: | 8-12 meters/min | Not including cutting | ||||
5. Punching: | 1. one set of side hole punching device; 2. one set of middle hole punching device; | |||||
6. Curving: | Curving speed: | 2m/min | ||||
Curving Diameter: | 4-12m | |||||
Curving rollers | 5 stations | |||||
7.Hydraulic de-coiler: | Loading: | 10 tons | ||||
Inner diameter | 508mm | |||||
Type: | Hydraulic decoiler | |||||
8.Machine specification: | Structure: | 400 I beam welded | ||||
Roll stations: | 18 roll stations | |||||
Splint thickness: | 25mm | |||||
Diameter of shaft: | 110 mm(solid) | |||||
Sizes of chain: | 1.2 inch double chain | |||||
Type of cutting: | Hydraulic cutting | |||||
Material of cutter: | CR12 | |||||
Material of rollers | Carbon steel with heat-treatment, with hard chrome coating after precision lathe | |||||
Sizes of machine: | 7.1*1.7*1.2meters | |||||
Decoiler
1. Capacity: 5tons span.
2. Material coil inner diameter: 450mm-550mm
3. Max width: 1250mm
3. Max width: 1250mm
Guiding device
1. Advanced guiding device, ensure the steel roll in correct direction.
2. Two layers all equip with pre cutting, save steel roll, no waste
Main forming machine
Refer to main parameters
Hydraulic cutting
Hydraulic cutting system--Guide pillar type or Electric cutting. Speed more faster
Control system
1). Screen:Delta
2). PLC: Delta
3). Automatic length measurement
4). Automatic quantity measurement
2). PLC: Delta
3). Automatic length measurement
4). Automatic quantity measurement
Hydraulic station
1).Adopt advanced hydraulic system , with cooling fan.
2).Motor:4kw
3).Hydraulic oil: 46#
2).Motor:4kw
3).Hydraulic oil: 46#

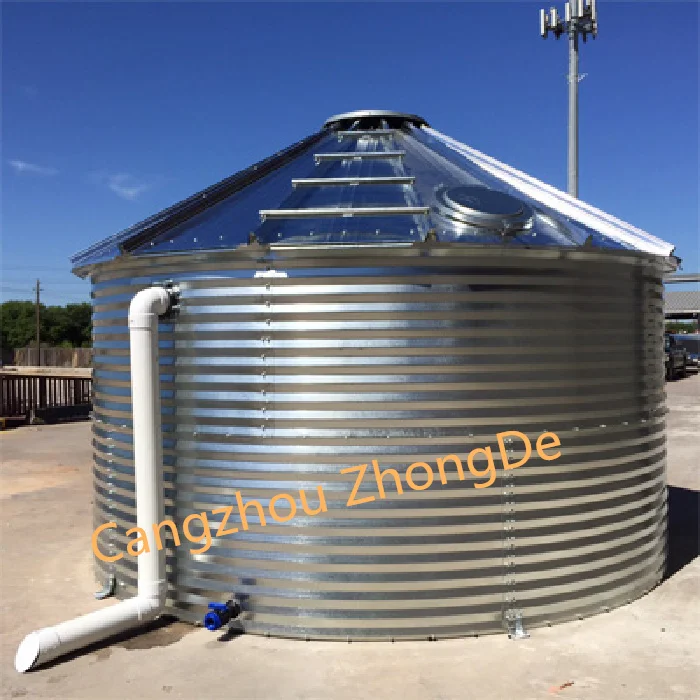

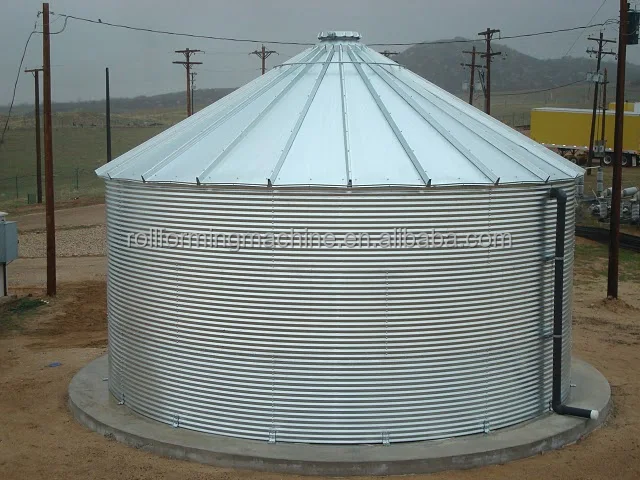

Application

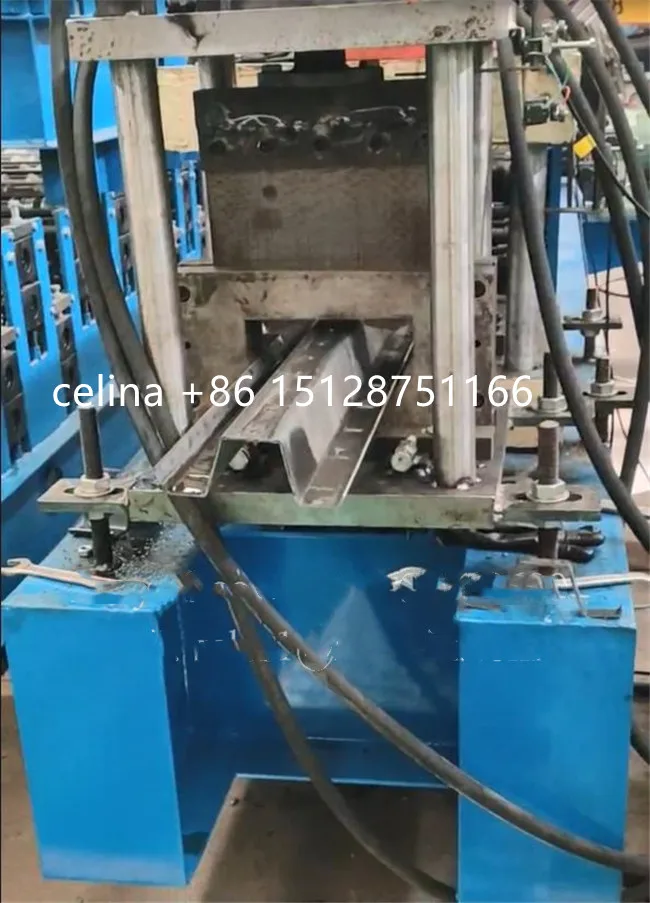

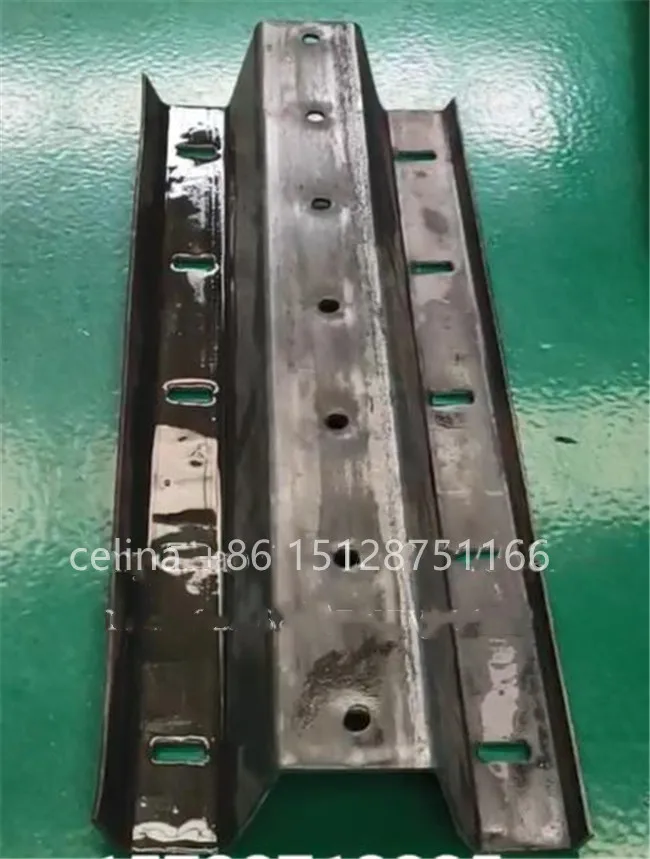

Steel silo upright column roll forming machine:

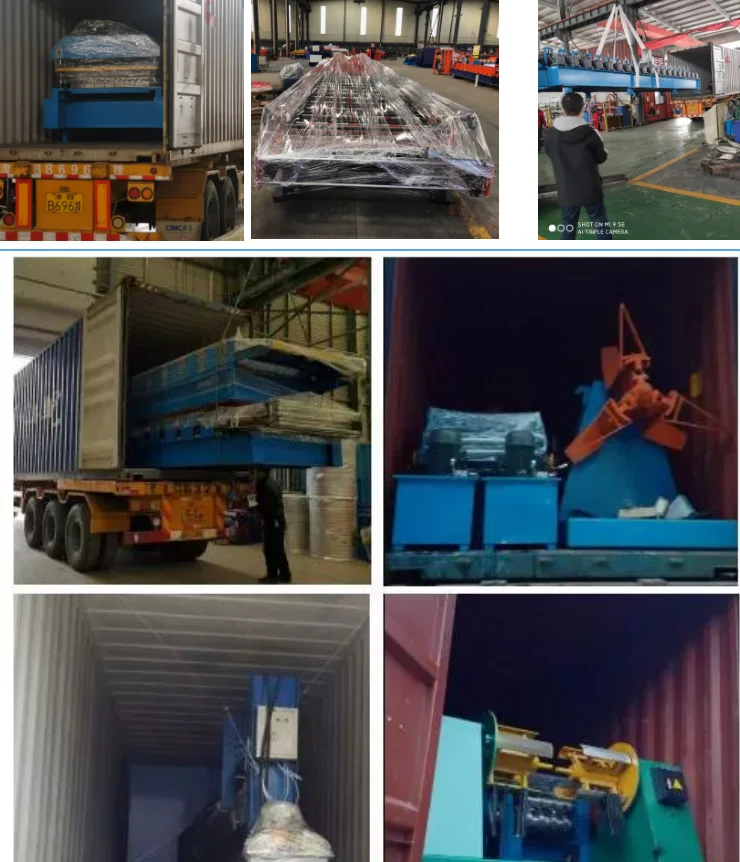

Packing & Shipping
After-sales
1. We provide a 2-year warranty for the machine .
2. During the warranty period, all non-human damaged parts will be replaced and repaired free of charge. After the warranty period
is exceeded, we will provide you with the accessories you need at the cost price.
3. Our engineers provide global door-to-door installation, commissioning and maintenance services.
4. The engineer provides 24-hour live broadcast guidance without time difference to assist in solving customer problems in time
5.So you don't worry if the machine has problem ,you don't know how to do.
2. During the warranty period, all non-human damaged parts will be replaced and repaired free of charge. After the warranty period
is exceeded, we will provide you with the accessories you need at the cost price.
3. Our engineers provide global door-to-door installation, commissioning and maintenance services.
4. The engineer provides 24-hour live broadcast guidance without time difference to assist in solving customer problems in time
5.So you don't worry if the machine has problem ,you don't know how to do.

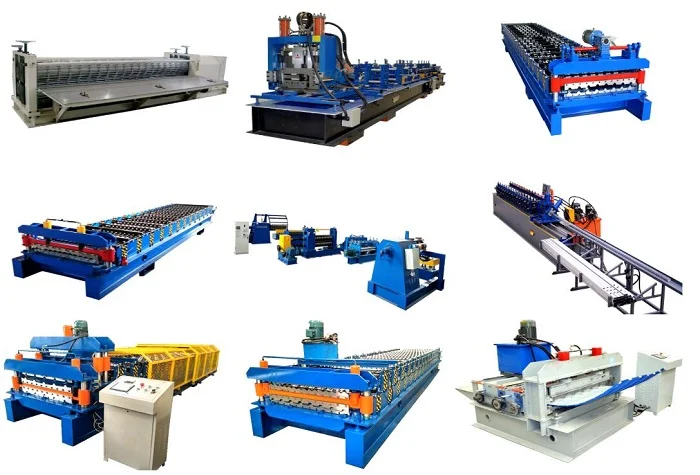

Other products
