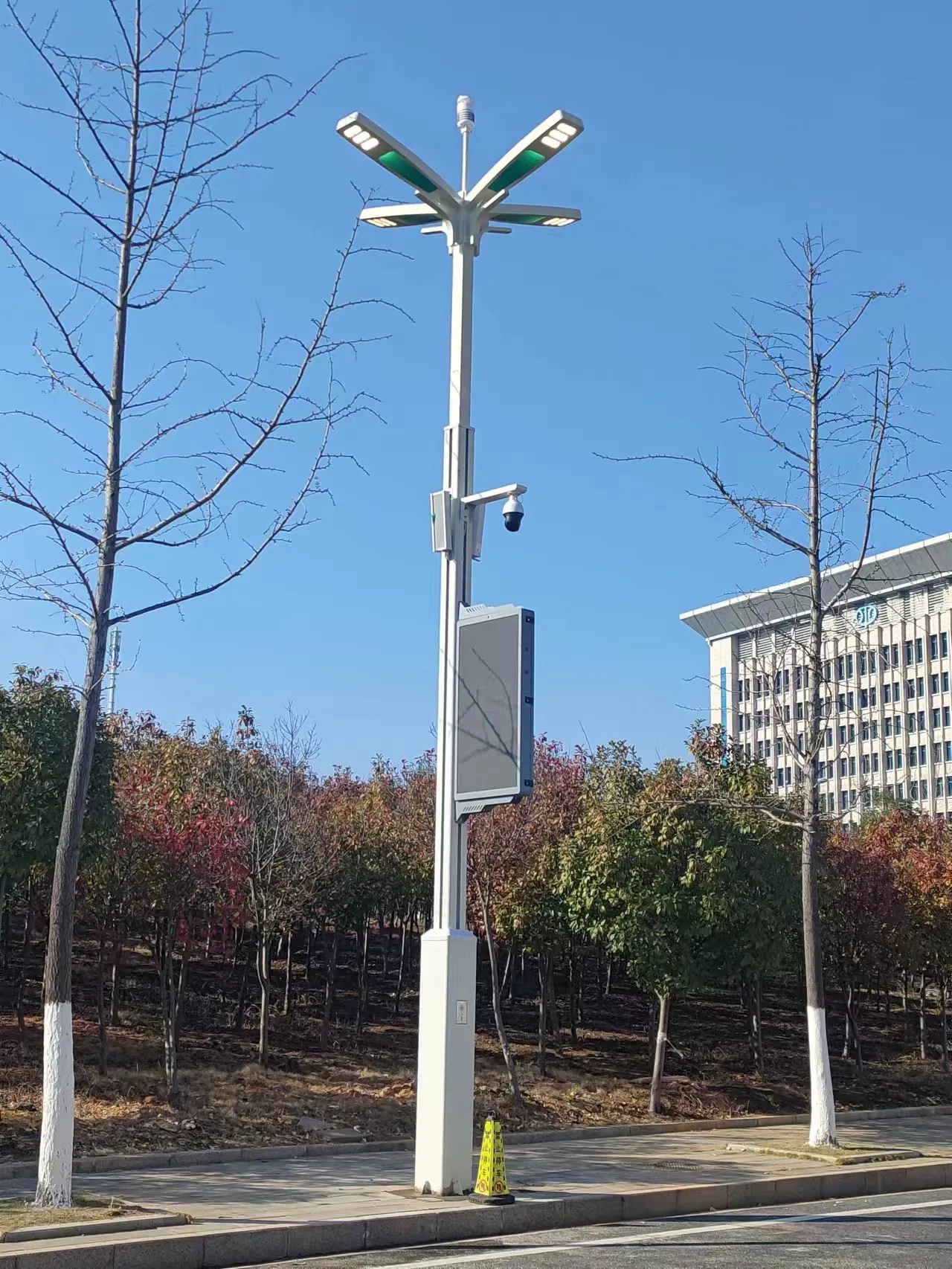

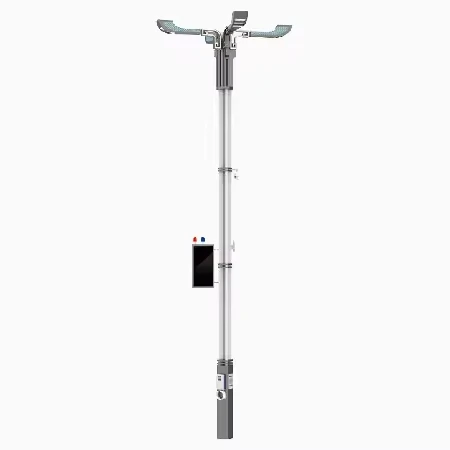

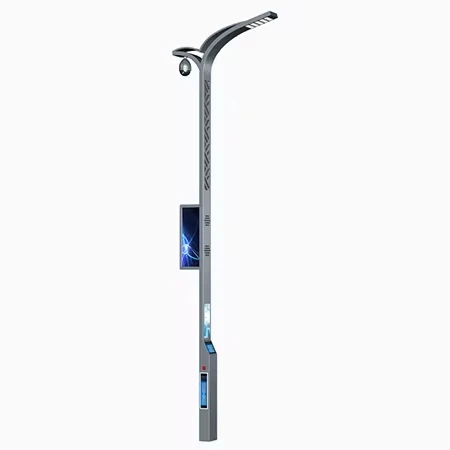

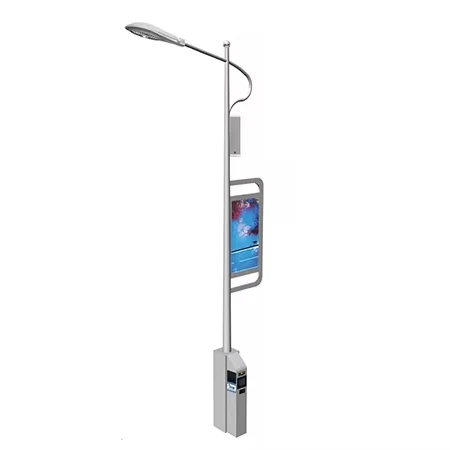

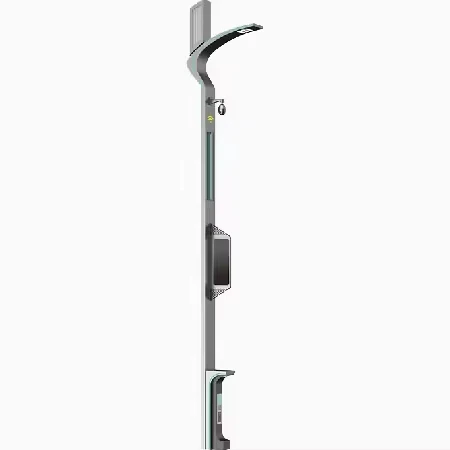

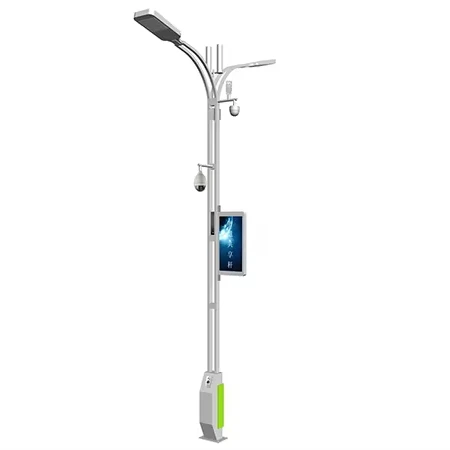

Wecloud smart city muti functional poles with CCTV camera supporting radar speed measurement with roadway lighting solution
- Category: >>>
- Supplier: Weclouds Technology Co. Ltd.
Share on (1601168869341):
Product Overview
Description
Main Specification | ||||
Pole | Material | steel and aluminum | ||
Surface | Electrostatic spray | |||
Dimmension | 2106mm*258mm*3700mm-5000mm | |||
Lamp | Power | 50W | ||
Color temperature | 3750~4250K | |||
Power factor | >0.9 | |||
CRI | ≥ Ra70 | |||
Hardware parameters | ||||
CCTV camera | 1. Max: 1920X1080@30fps HD screen output. 2. H.265 high efficiency compression algorithm, which can save storage space. 3. ultra-low illumination, 0.0004 Lux @ (F1.6, AGC ON), B/W: 0.0001 Lux @ (F1.6, AGC ON), 0 Lux with IR 4. 35x optical zoom, 400W pixels, IR irradiation distance: 250 m 5. 960p@60fps, 720p60fps high rate output | Optional | ||
IP sound column | 1. Rated power 30W, standby power consumption ≤ 2W 2.Manufacturers must provide CQC certification of the product. 3. Support remote playback and volume drop. 4. Real-time online status reporting of the equipment | |||
One-button call | 1. Supported network communication protocol: TCP/IP、UDP、ARP、ICMP、IGMP、HTTP 2. Wide-angle visiablity: 140~160 ° 3. Video resolution QVGA/VGA/720P/1080P 4. Signal noise ratio ≥60 5. Frequency response 20Hz~18KHz | |||
LED display | 1. Dot pitch P4, double-sided 2. Refresh rate greater than or equal to 3840HZ 3.Brightness> 5000CCD 4.Module size 320mm (W)x160mm(H) 5.Display screen size 480mm (W)x 960mm (H) | |||
Charging pile | Power：50W Interface：Type-C | |||
Weather station | Measure the temperature and humidity, noise, air quality, atmospheric pressure and luminance values | |||
Projector | 1. Power: 50W 2. Color temperature：neutral light(3300K-5000K) 3. CRI：≥80Ra 4. Working temperature：-40℃-60℃ | |||
WIFI AP | 1. WAN interface：no access port 2. LAN port: 100Mbps Etherbet port 3. Wireless protocol：Wi-Fi 4 4. Wireless rate：300M 5. Antenna：built-in antenna | |||
Touch screen tablet | 1.MTK MT6771 0cta-core processor Android 11 operating system 2.Supports 1D, 2D barcode reader, NFC, RFlD, fingerprint (optional) 3.Supports 4G, WLAN, BT, and GNSS Rich l/0 interfaces including: RS-232 4.RJ45 Ethernet, USB, HDMI 5.Removable high-capacity battery designelP67 and MIL-STD-810H certified | |||
FAQ
1. Who are we？
Our company is located in Shenzhen, Guangdong, China, established in 2016. We mainly produce products related to
road lighting, smart poles, smart parks, industrial lighting, software systems, etc.
2. How can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
3. What can you buy from us?
Light controller, smart gateway, digital power supply, multi-functional sensor, intelligent moulded case circuit breaker, smart air switch
4. Why should you buy from us not from other suppliers?
We are the source manufacturers with our own R & D team and factory for development and production of products to ensure that we can respond to technical product issues in a timely manner.
5. What services can we provide?
We can provide technical support services, installation guidance, remote debugging, product warranty of 3 years. We promise to repair the products free of charge within the warranty period, and if they cannot be repaired, we will replace them with new ones for free.
road lighting, smart poles, smart parks, industrial lighting, software systems, etc.
2. How can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
3. What can you buy from us?
Light controller, smart gateway, digital power supply, multi-functional sensor, intelligent moulded case circuit breaker, smart air switch
4. Why should you buy from us not from other suppliers?
We are the source manufacturers with our own R & D team and factory for development and production of products to ensure that we can respond to technical product issues in a timely manner.
5. What services can we provide?
We can provide technical support services, installation guidance, remote debugging, product warranty of 3 years. We promise to repair the products free of charge within the warranty period, and if they cannot be repaired, we will replace them with new ones for free.
