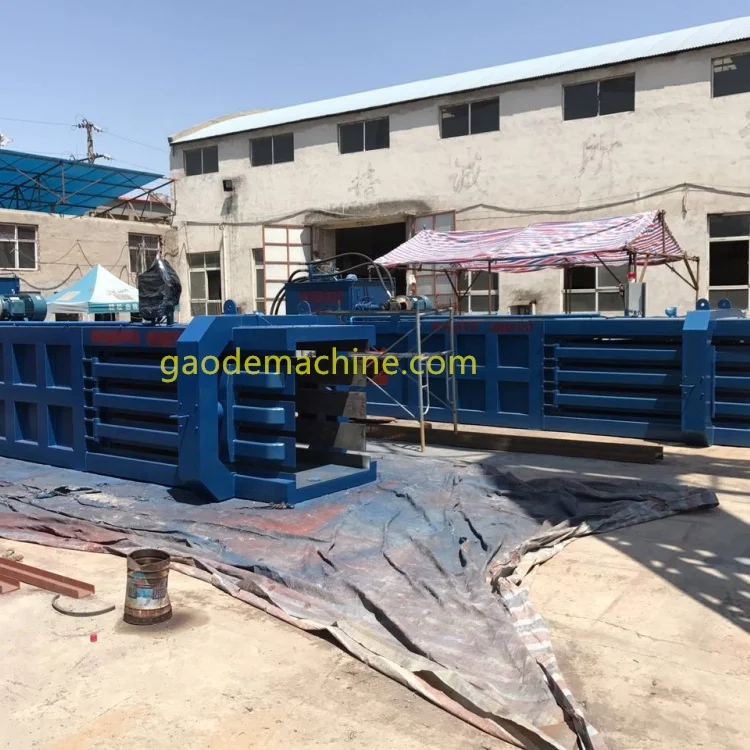

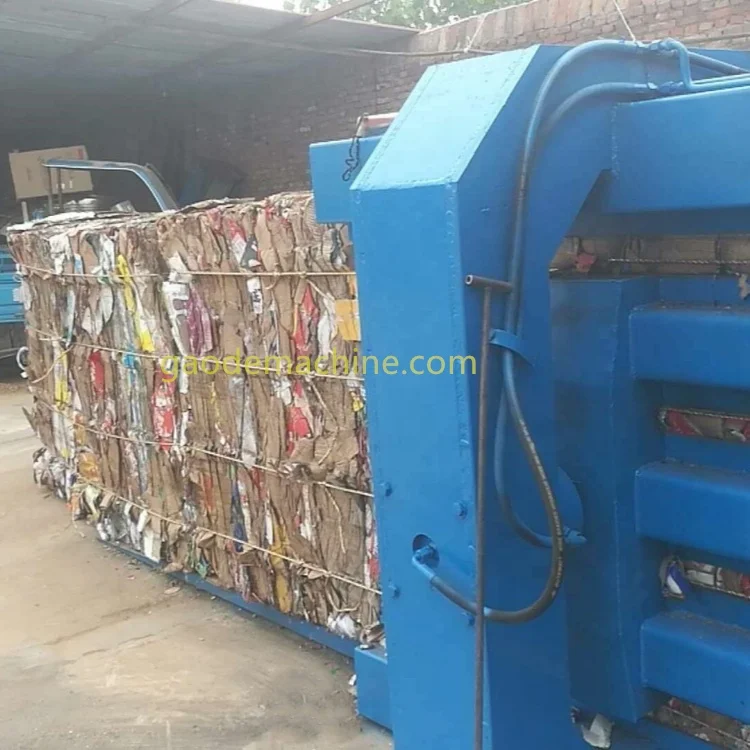

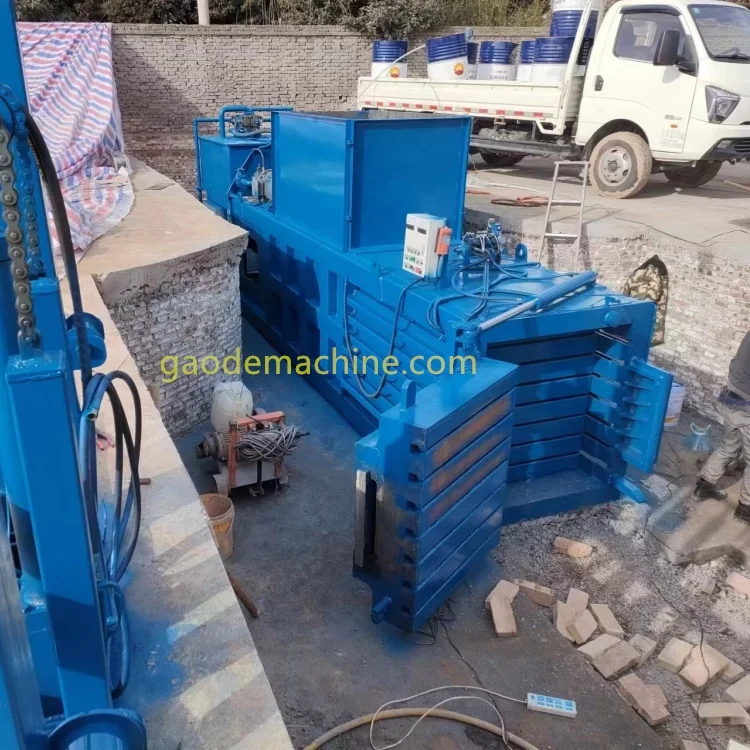

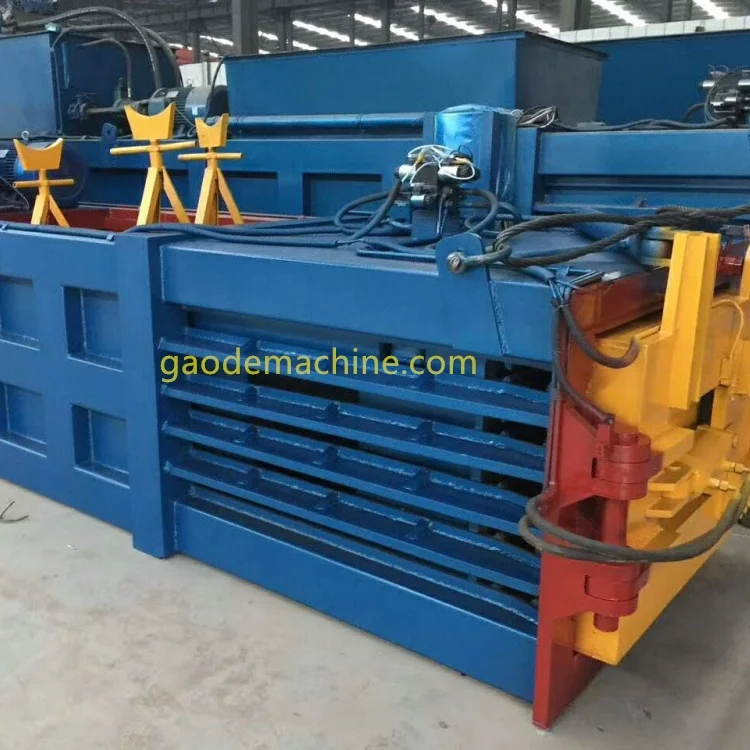

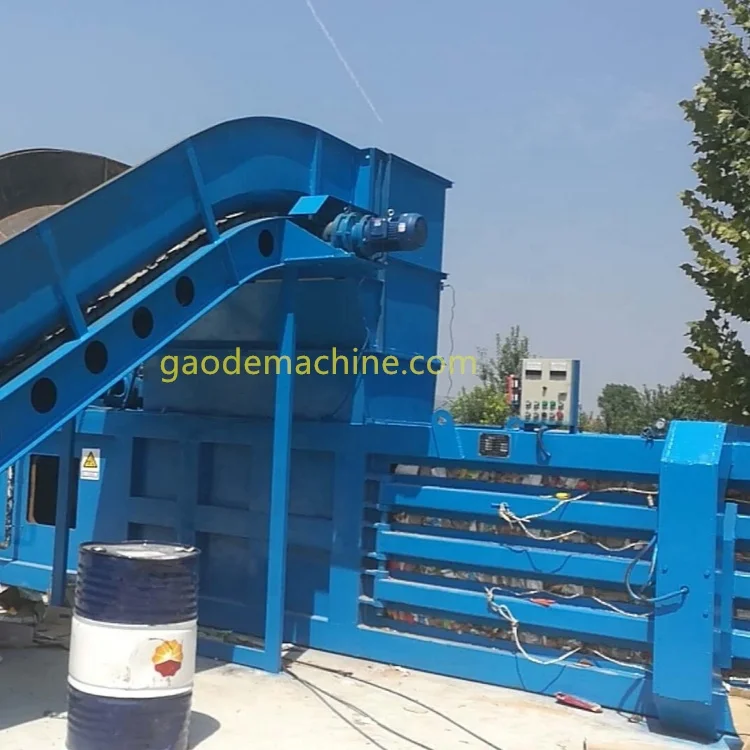

Used Clothes Recycling Compress Bale Machine horizontal press waste paper plastic bottles baler machine
- Category: >>>
- Supplier: Gaode Equipment Co. Ltd.
Share on (1601173468788):
Product Overview
Description
Products Description

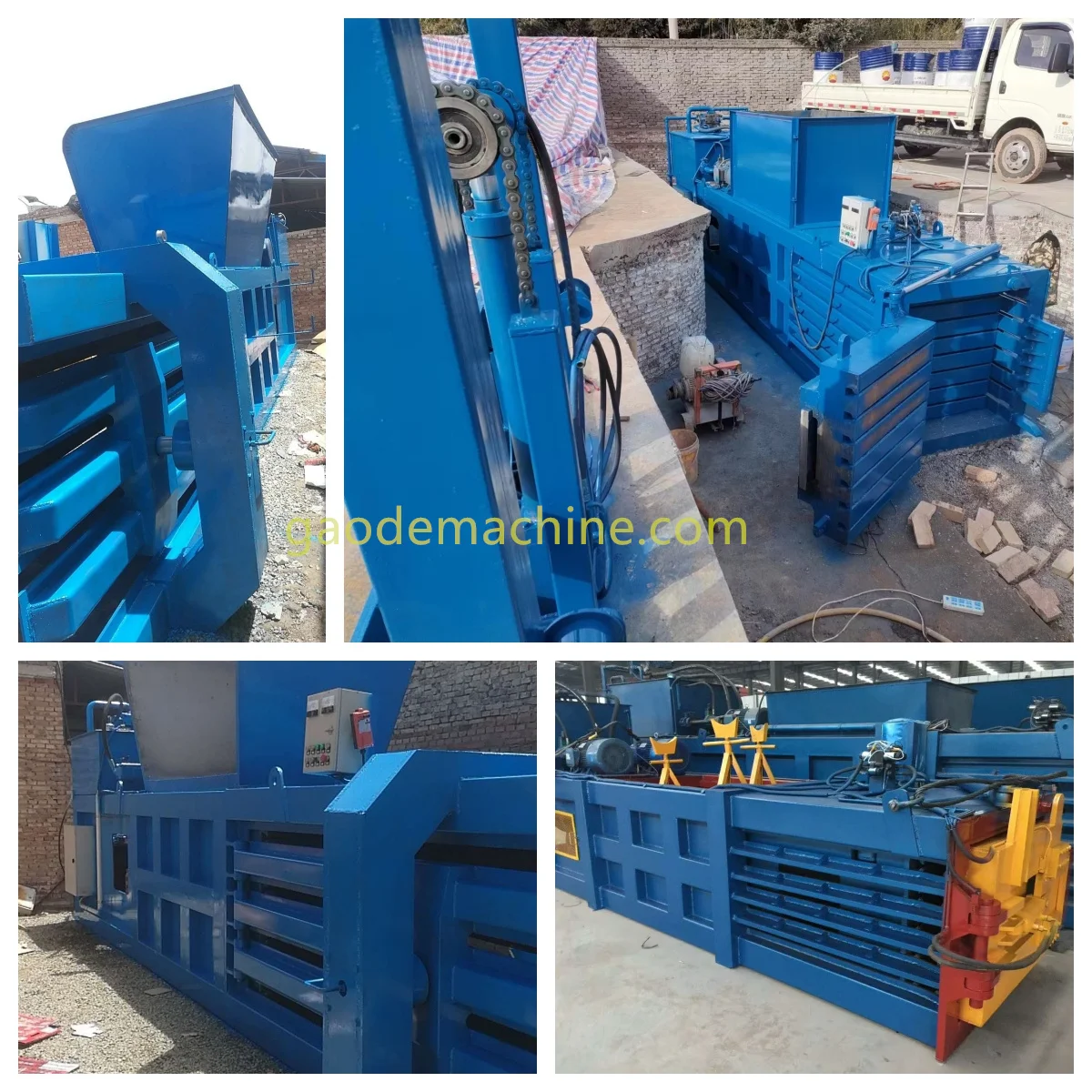

The hydraulic baler is a piece of equipment specialized in volume extrusion of solid compressible materials. Compressible materials include waste paper, degradable waste plastics, knitting and other renewable energy materials, domestic and industrial waste with combustion value, cotton and woven materials, straw feed and other products.
The hydraulic baler can be customized to different specifications according to user production needs, different compressed raw materials, compressed product specifications, and production space size.
Some vertical balers and small horizontal balers can be made mobile, and the power can be customized to be driven by a diesel engine.
Some vertical balers and small horizontal balers can be made mobile, and the power can be customized to be driven by a diesel engine.
Products Features
The compressed product has the advantages of small size, high density, easy material storage, reduced transportation costs, and easy transportation.
1. The advantages of manual hydraulic balers (mainly vertical hydraulic balers) are simple operation and low price.
2. Semi-automatic hydraulic baler (horizontal hydraulic baler with door and clamp arm) features electromagnetic hydraulic control and requires manual tying.
3. Fully automatic hydraulic baler (horizontal clamp arm hydraulic baler) features electromagnetic hydraulic control, which can realize automatic strapping.
2. Semi-automatic hydraulic baler (horizontal hydraulic baler with door and clamp arm) features electromagnetic hydraulic control and requires manual tying.
3. Fully automatic hydraulic baler (horizontal clamp arm hydraulic baler) features electromagnetic hydraulic control, which can realize automatic strapping.
Technical Parameters
Model | GD140TMZ |
System thrust | 1400KN |
Rated displacement | 463ML/r |
Rated pressure | 28MP |
System pressure | 24MP |
Motor power | 30KW (22KW6 level) + 18.5KW + 4KW (conveyor) |

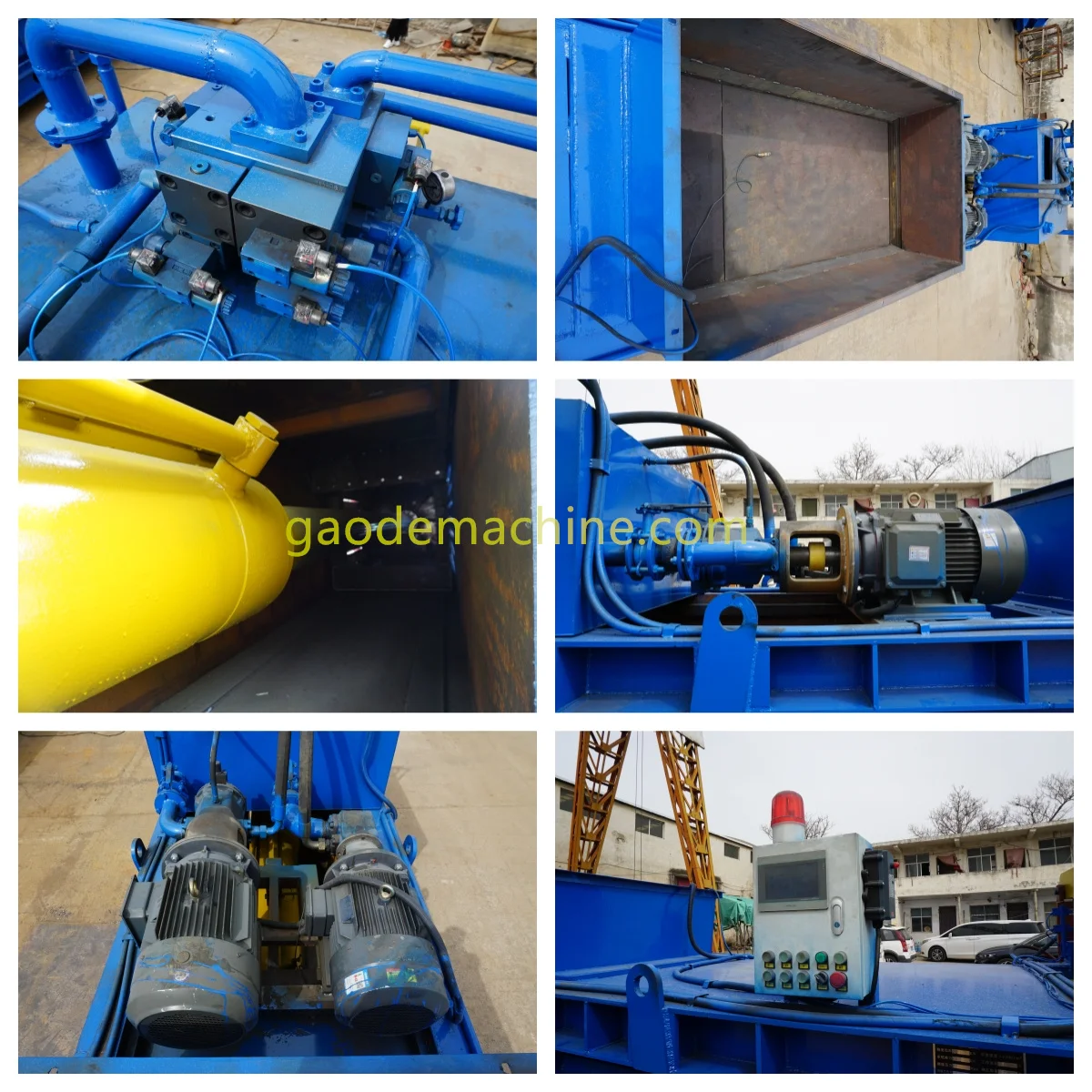

Hydraulic system | high and low pressure combination, plug-in valve circuit, differential circuit, double vane pump |
Electrical configuration | PLC control system. Material detection, manual/automatic/remote control |
Hopper | 2.1m long, 1.2 m wide |
Bale size | adjustable length, 1.1 m wide, 1.25 m high |

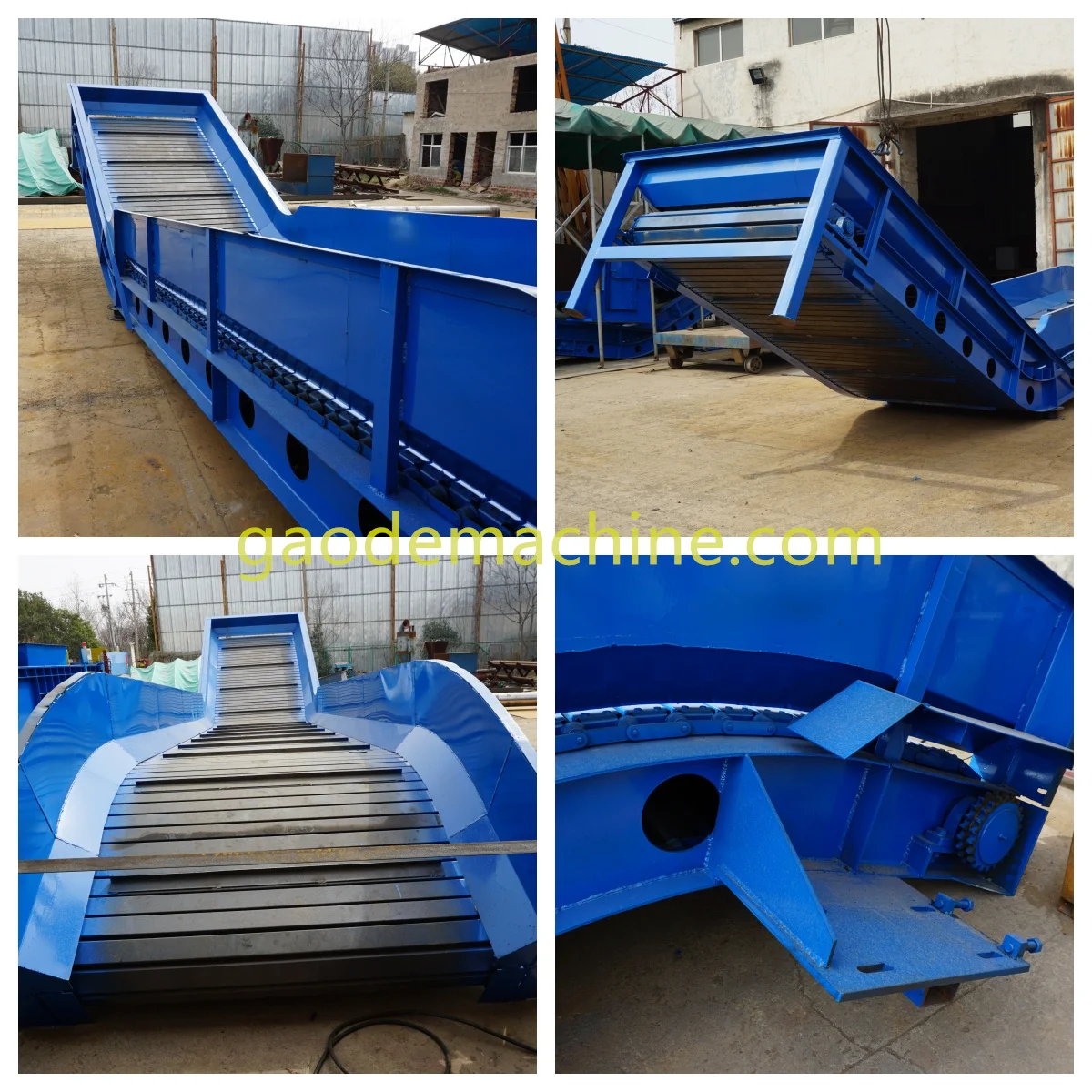

Conveyor | 2 m wide, 11 m long |
Conveyor guardrail | 600mm |
Bundling | 7 rope positions, golden rope or soft iron wire |
Oil pipeline | iron pipe thickness ≥6mm (material selection according to oil flow pressure) |
Hydraulic steel whip hose | withstand 32MP pressure, no hose cracking, oil leakage, etc. during use. |
Hydraulic cylinder oil seal | All imported high-quality oil seals are used, which have the characteristics of strong wear resistance and long service life. |

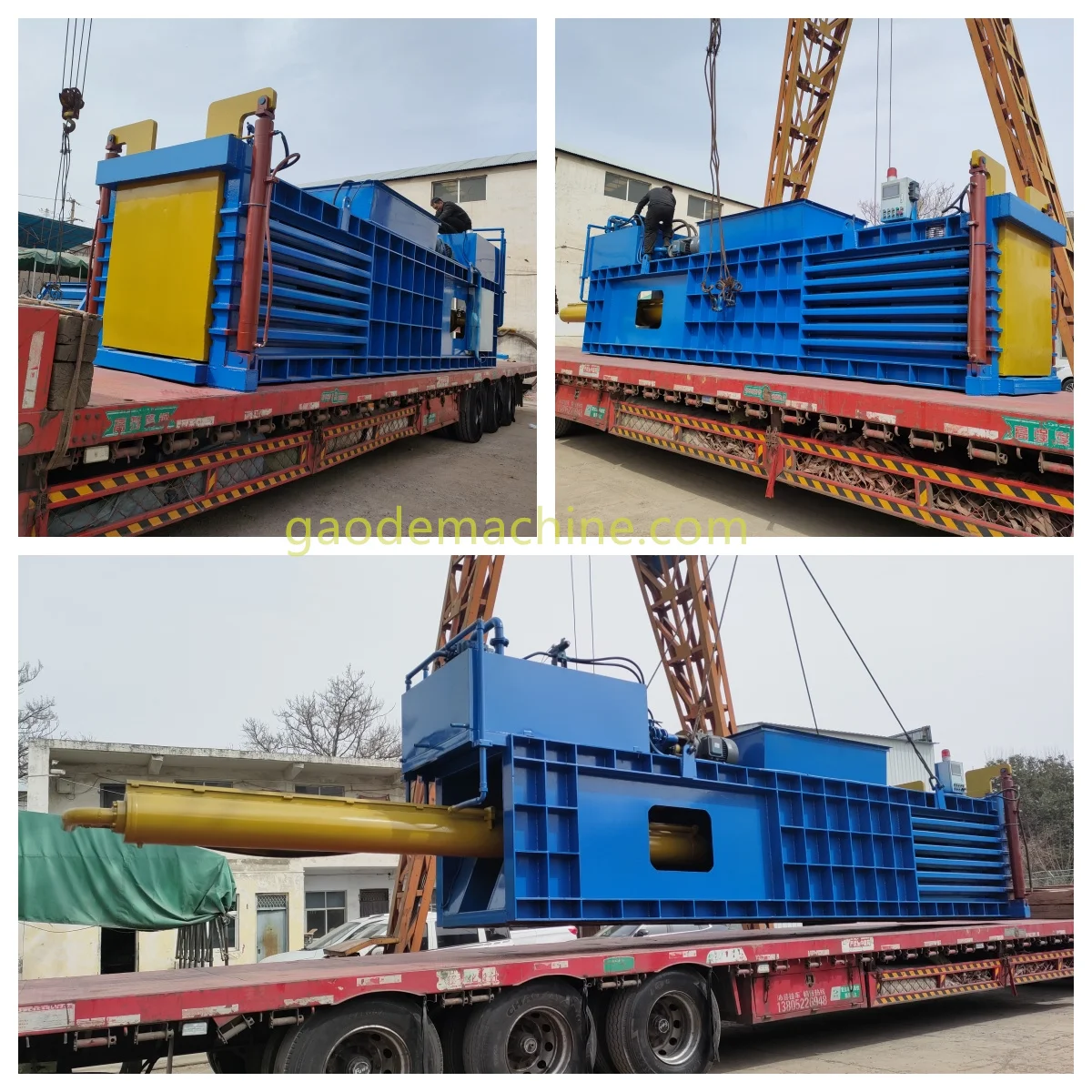

Packing&Shipping

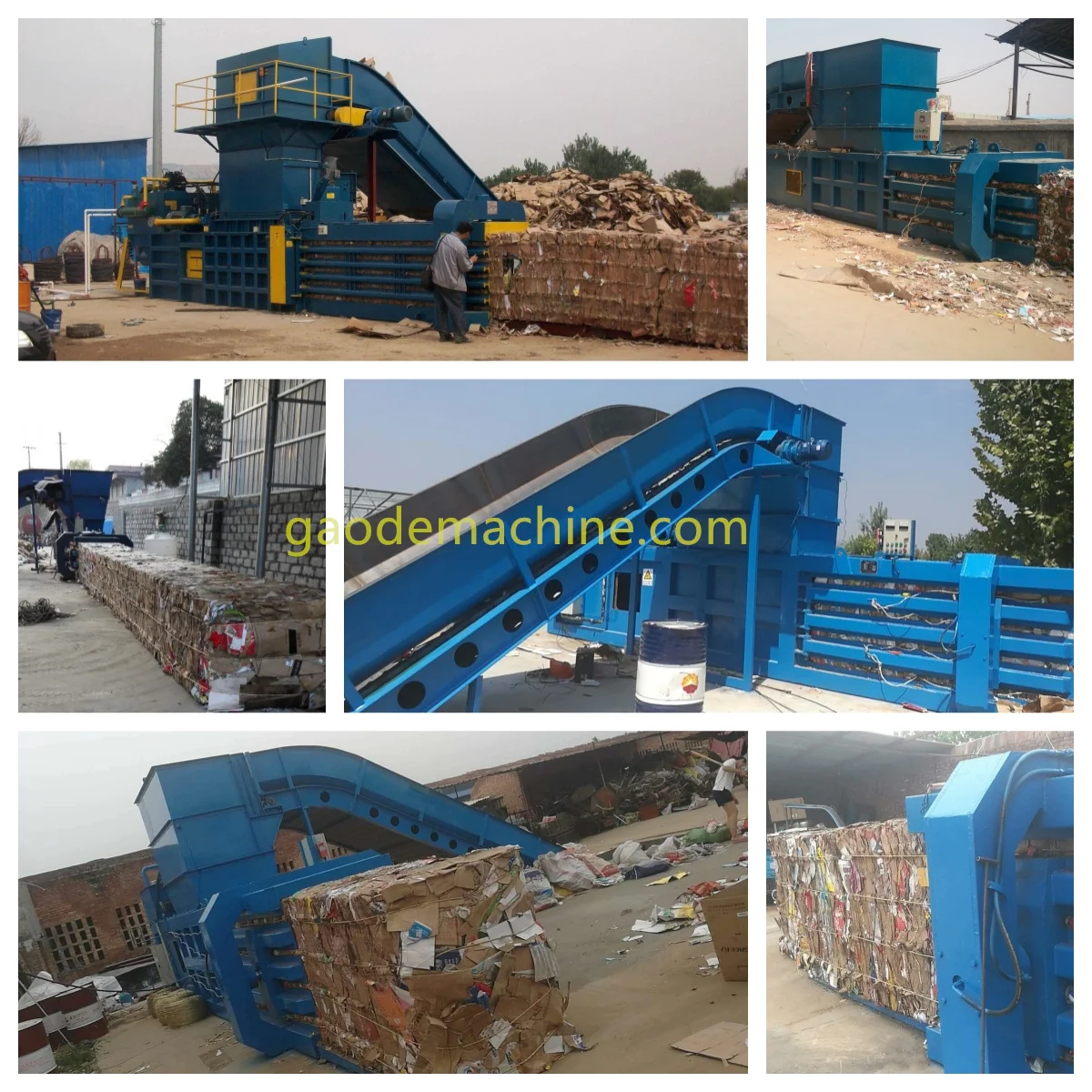

Application
It is widely used in renewable resources, domestic waste classification and processing, expansion product compression and bundling packaging, crop straw storage and other industries.

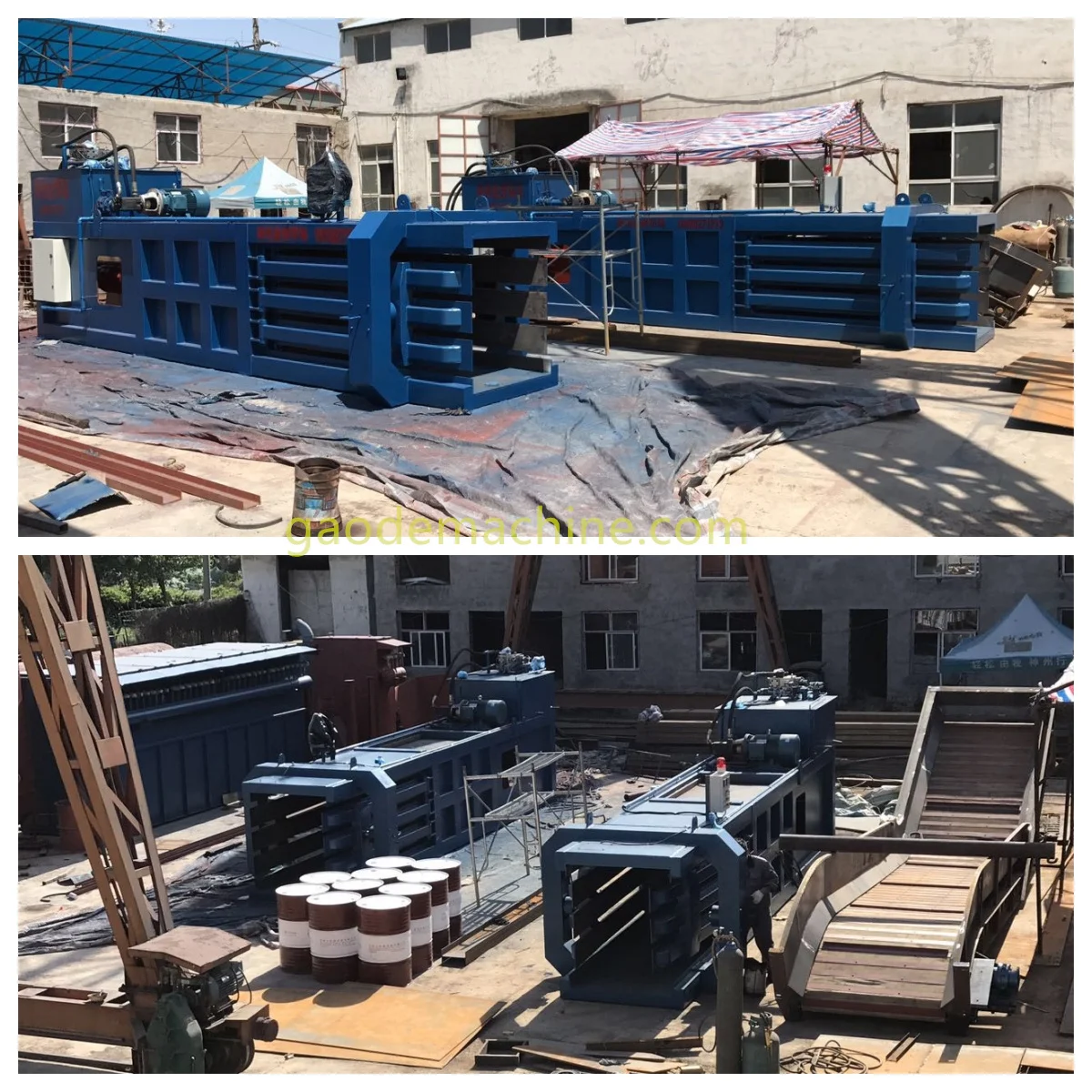

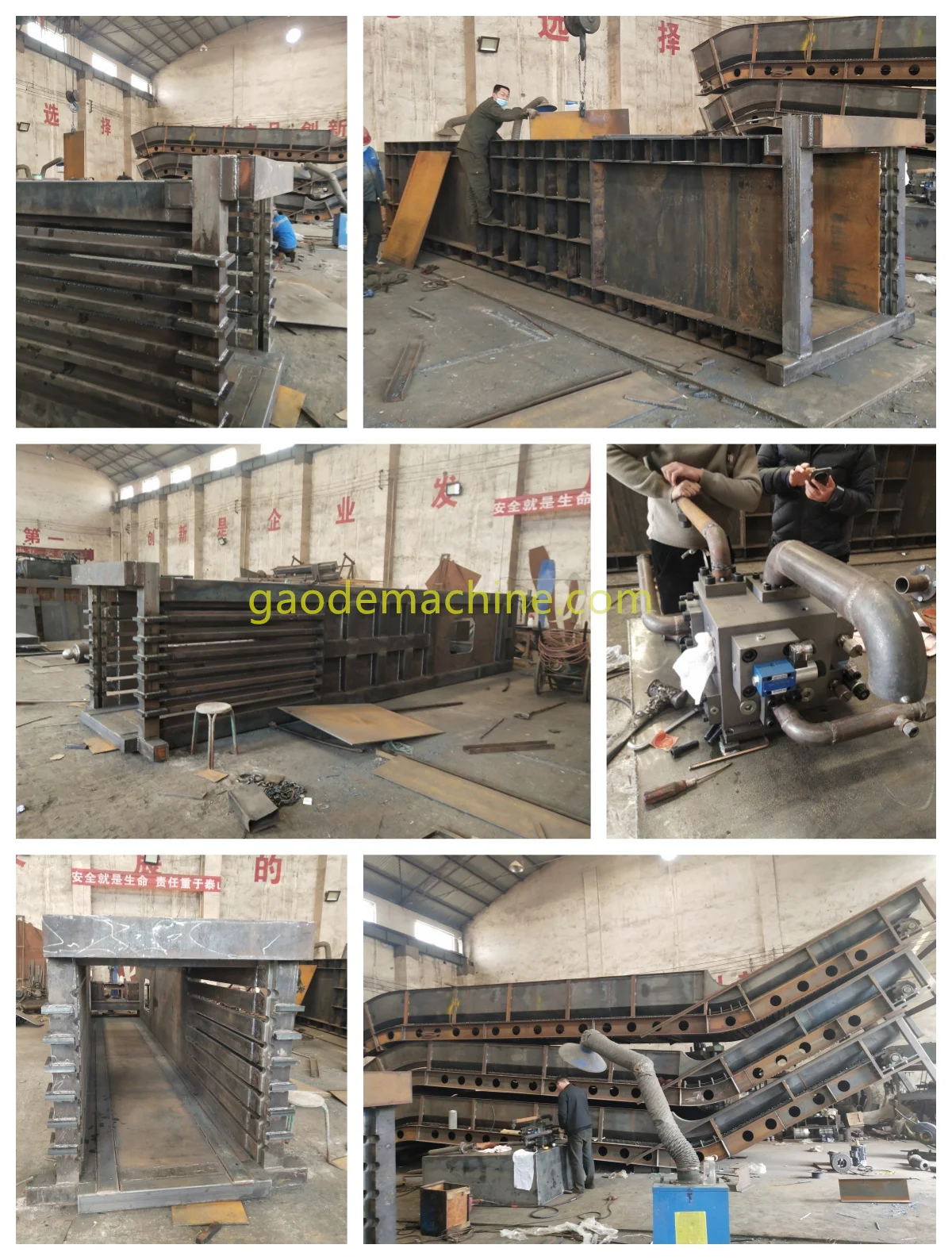

Factory Show
