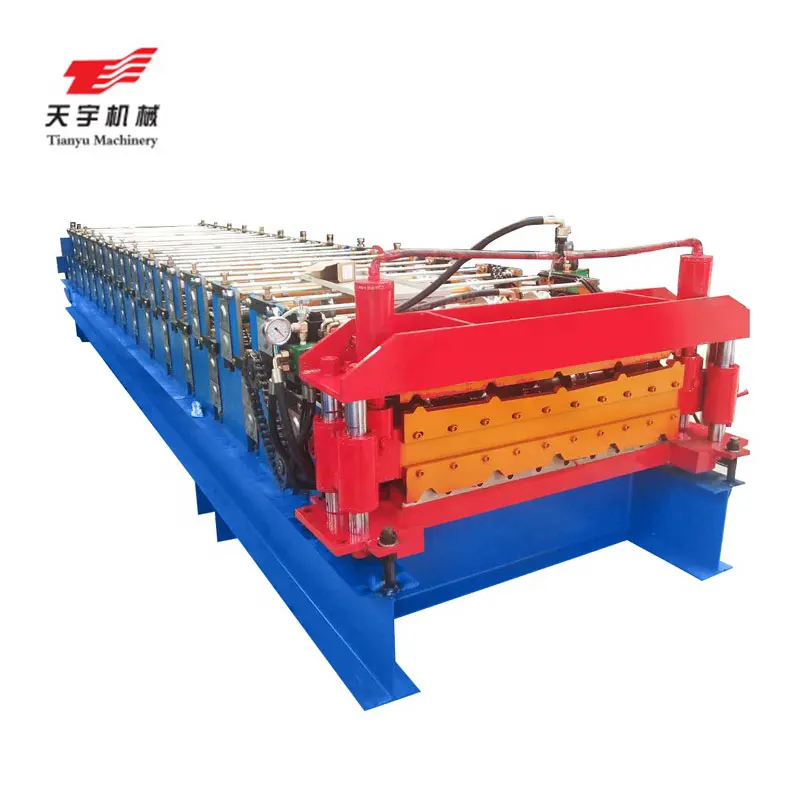

2024 Double Layer Roof Tile Roll Forming Machine Iron Sheet Machine Corrugated Sheet LENGTH SET CUTTING

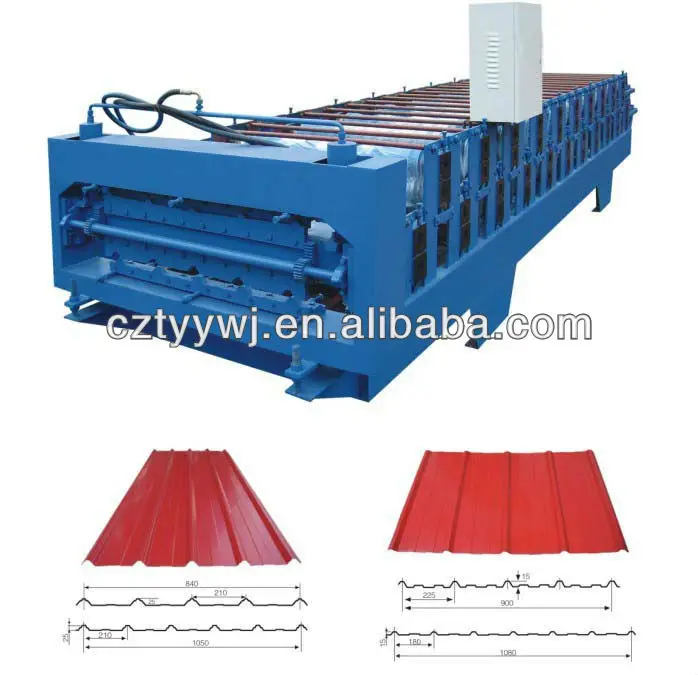

Roofing tile machine, double layer roof wall machine can produce two or three types profile sheets, It's more cost effective than
single layer machine and can save space and cost for you!
single layer machine and can save space and cost for you!
FEATURES AT A GLANCE
Strong 350H steel frame
Simple operation method
45# steel hard chrome plted and polished roller
Thickened Cr12 blade
Delta brand touchscreen operating panel

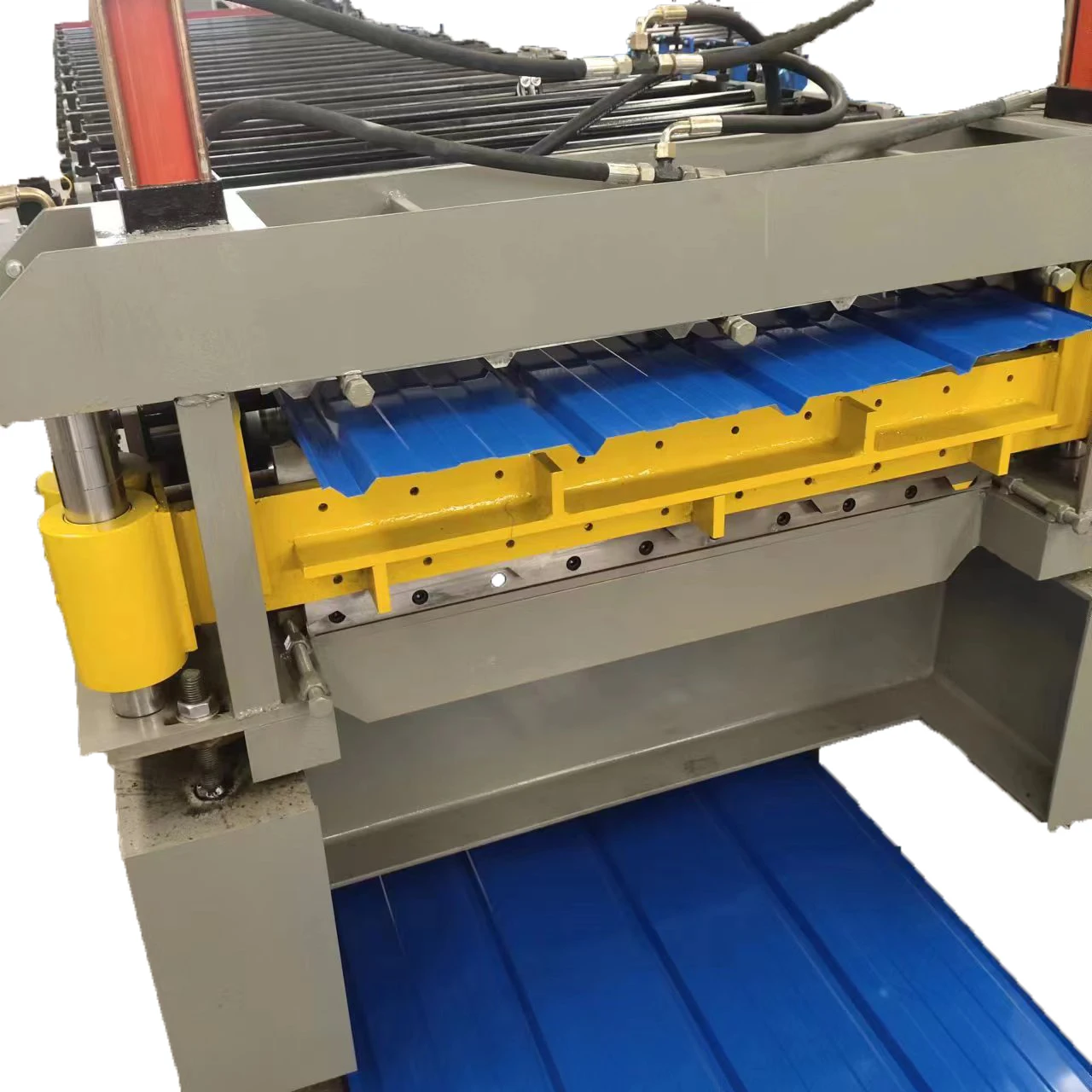

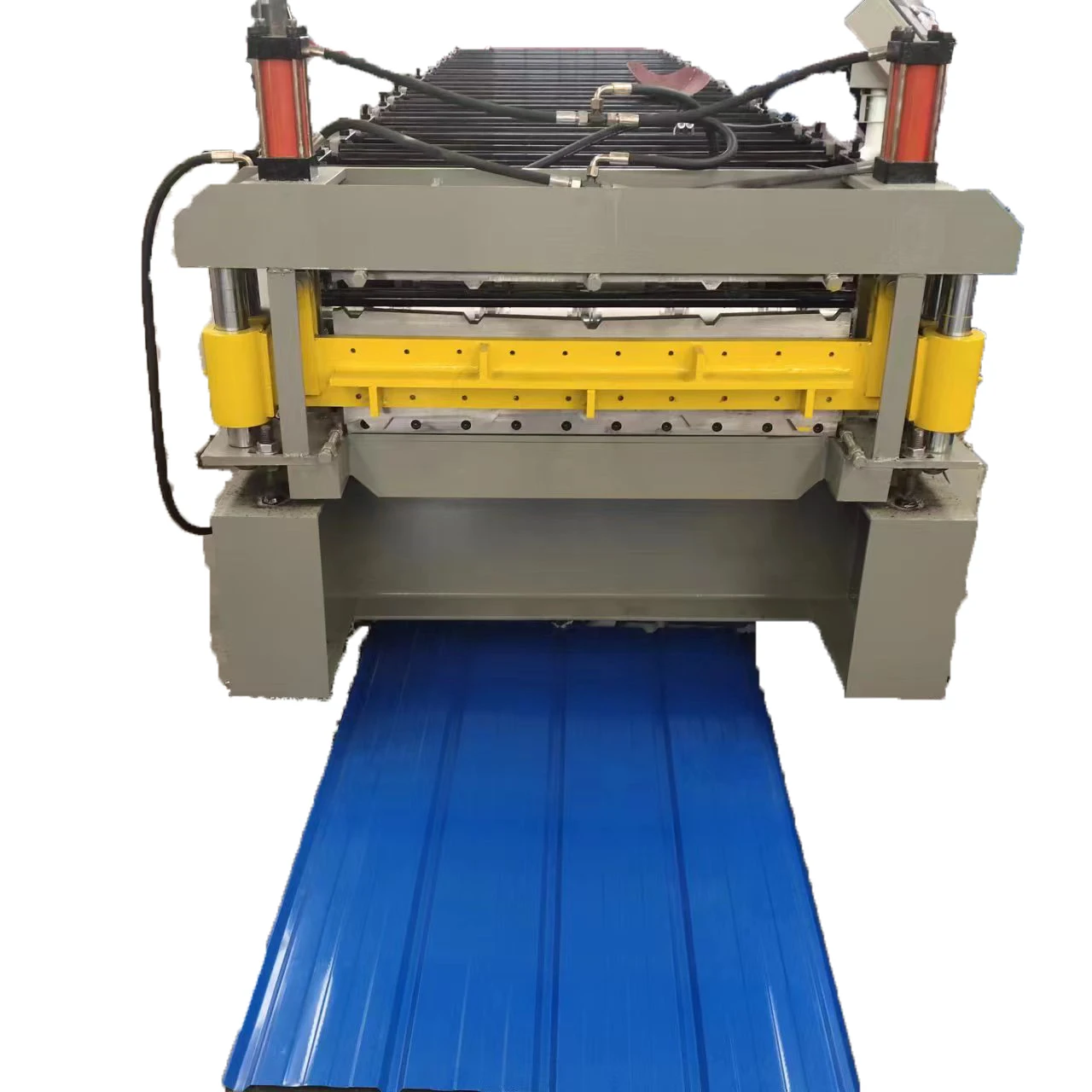

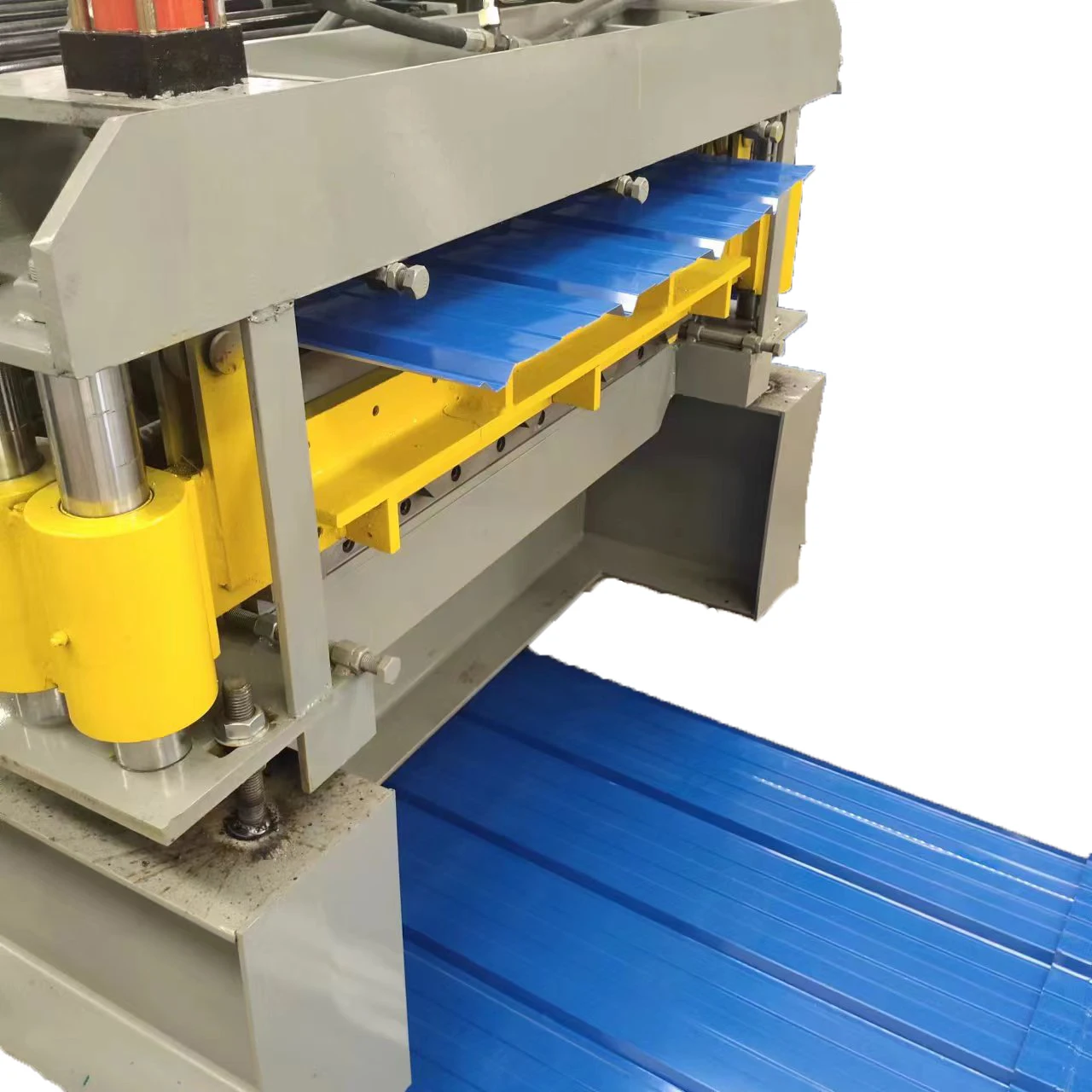

Machine exit details
PRODUCT SPECIFICATIONS
No | Item | Data |
1 | Thickness | 0.3-0.7mm |
2 | Width | 1000mm(customized) |
3 | Weight | 3.2T |
4 | Dimension(L*W*H) | 6000*1400*1500mm |
5 | Main frame | 350H beam structure |
6 | Material of rollers | 45# steel finishing, hard chrome plated surface after polishing |
7 | Forming stations | 11 stations + 9 stations |
8 | Diameter of shafts | Φ70mm (Guaranteed) |
9 | Material of shafts | 45# steel finishing and tempering treatment, hollow shaft |
10 | Forming speed | About 18-23m/min |
11 | Voltage | 220V |
12 | Transmission way | 1 inch chain, sprocket drive |
13 | Main motor | Hydraulic motor drive4KW |
14 | Cutting blade material | Cr12 Heat treatment, thickened, high wear-resistant blade |
15 | Driving method | By motor |
16 | Electronic control system | Split operation panel touch screen(Can set batch, length, quantity, etc.) |
PRODUCT CONFIGURATION
Thick wall pipe is used.
After chromed and quenched.
high quality and stable structure.
After chromed and quenched.
high quality and stable structure.
The large frame adopts 350H steel to be stable and strong
With cooling system for long service time
About our trust and feedback from foreign customers
FAQ
Q1: About delivery time
Depending on the tvpe of machine, duration of 1 to 60 davs from the date of order.
Depending on the tvpe of machine, duration of 1 to 60 davs from the date of order.
Q2: About after-sales support
We can give advice on line.
We also have skilled technicians available across the world.
We can give advice on line.
We also have skilled technicians available across the world.
Q3: About customized machines
Both standard and customized machines are available.
Both standard and customized machines are available.
Q4: About quality warranty
Our warranty period is 12 months.
If the broken parts can't repair within warranty period, we can provide free new part
(you need to pay the express cost)
If beyond warranty period, we can negotiate to solve the problem.
We supply the technical support for the whole life of the equipment.
Our warranty period is 12 months.
If the broken parts can't repair within warranty period, we can provide free new part
(you need to pay the express cost)
If beyond warranty period, we can negotiate to solve the problem.
We supply the technical support for the whole life of the equipment.
Q5: About transportation
FOB,CFR,CIFIt depends on your choice.
FOB,CFR,CIFIt depends on your choice.
Q6: About path to visit our company
#Fly to Beijing Airport-->By high speed train from Beijing Nan to Cangzhou Xi (1h)
#Fly to Shanghai Airport-->By high speed train from Shanghai Hongqiao to Cangzhou Xi(4.5h)
We can pick up you there.
#Fly to Beijing Airport-->By high speed train from Beijing Nan to Cangzhou Xi (1h)
#Fly to Shanghai Airport-->By high speed train from Shanghai Hongqiao to Cangzhou Xi(4.5h)
We can pick up you there.
