Automatic Steel Shutter Door Panel Roll Forming Machine Garage Shutter Door Slating Roll Forming Machine
- Category: >>>
- Supplier: Zhengzhou Hokang Machinery Co. Ltd
Share on (1601181010909):
Product Overview
Description
Products Overview

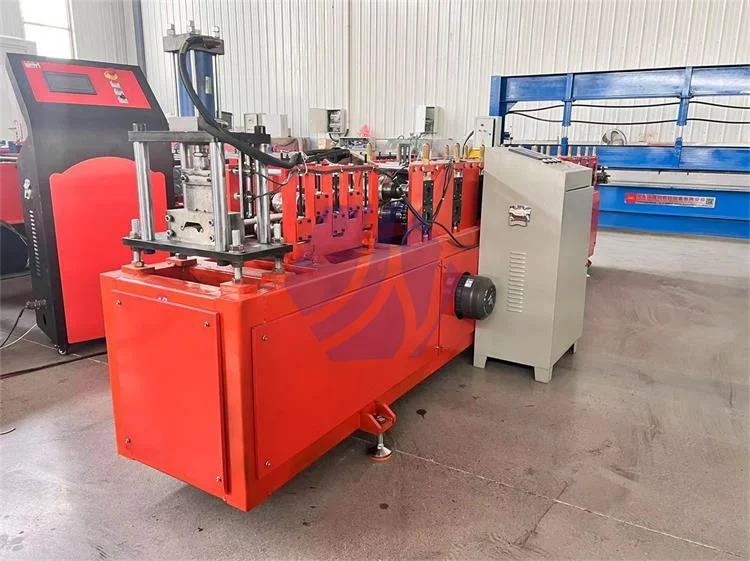

European Style Shutter Door Strip Production Line Roll Forming Machine
Hokang Machinery Co., Ltd. can provide all kinds of rolling shutter door production machines; rolling shutter door sheets are suitable for supermarkets,garages and various public areas, he can punch holes, punch LOGO, and produce your own brand, ODM,OEM and CE certification.
Our steel strips rolling shutter door roll forming machine for different models based on different designs or customer's samples.It is a new building material, the products are widely used as the roof and wall of factory, warehouse, garage, gymnasium,exhibition center.It has many advantages, such as easy installation, short building period, beauty, light weight but high strength.

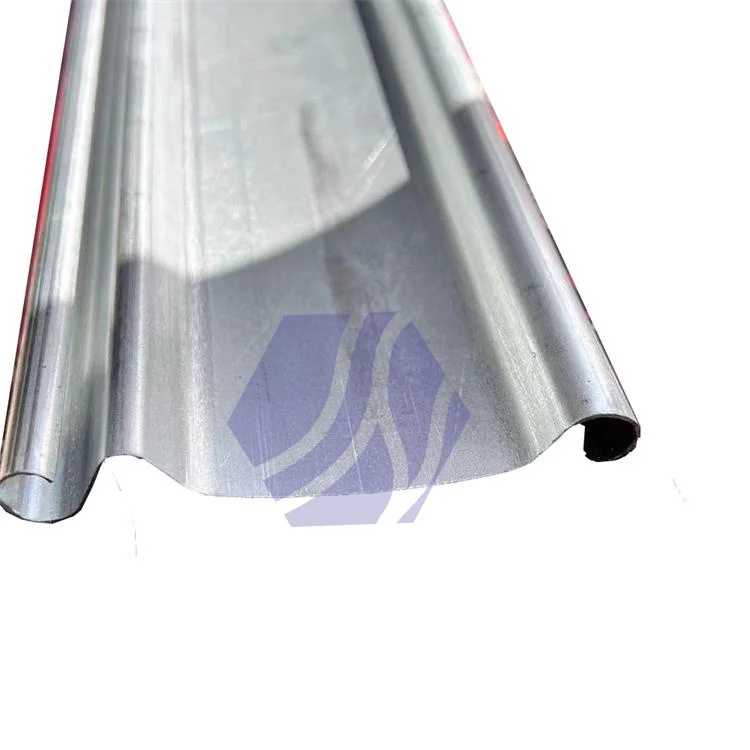

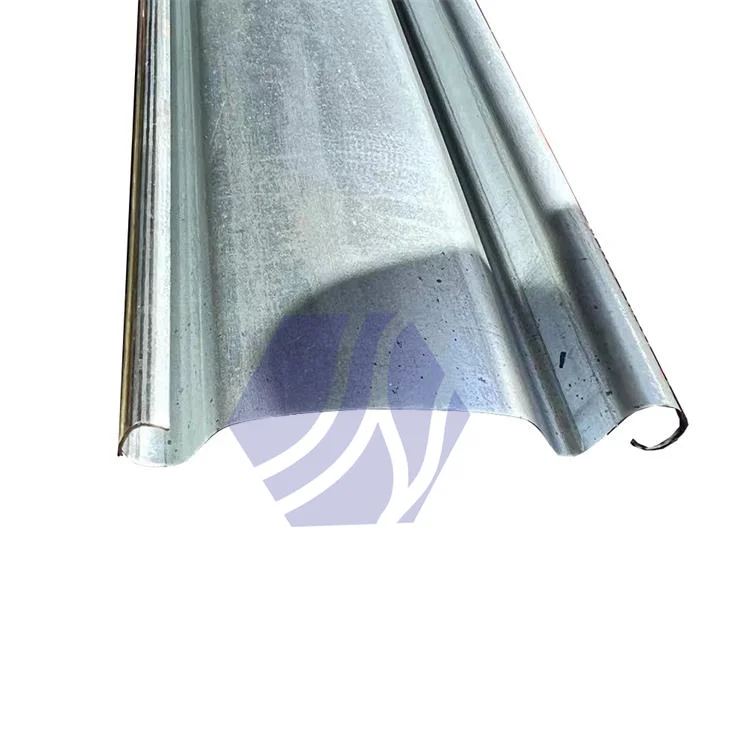

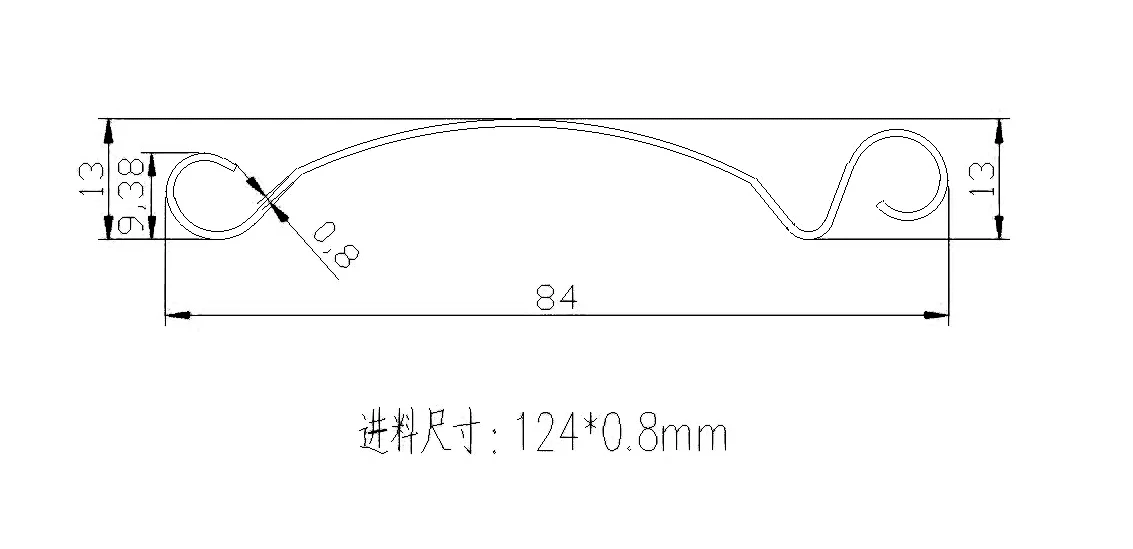

Finished Product
Working Process :
Decoiler—Roll Forming Machine——Hydraulic Press——Hydraulic cutter——Control System——Receiving table
Specification
item | value |
Voltage | 380v/220V/415V/440V |
Dimension(L*W*H) | 5900*900*1500 |
Weight | 3500kg |
Rolling thinckness | 0.8-2MM |
Feeding width | 124mm |
Raw material | GL GI PPGI PPGL |
Roller material | 45#steel Chrome Plated |
Shaft material | 45# Steel Outer Diameter: 70mm |
Cutting blade material | GCr 12 High Grade Steel |
Main frame | 350mm/400mm H-Beam |
Control system | PLC(imported Brand) |

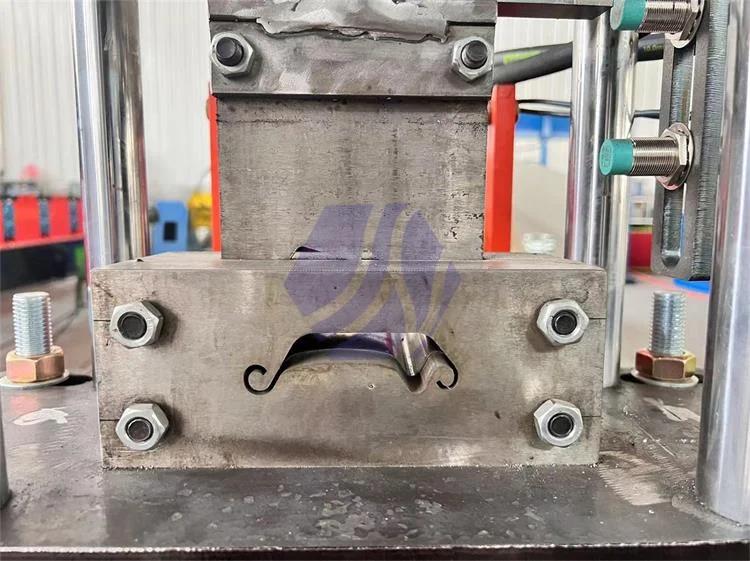

Cutting type | Automatic Hydraulic Cutting |
Decoiler | 5T Manual Decoiler(with braking function) |
Keywords | Slat Shutter Door Forming Machine |

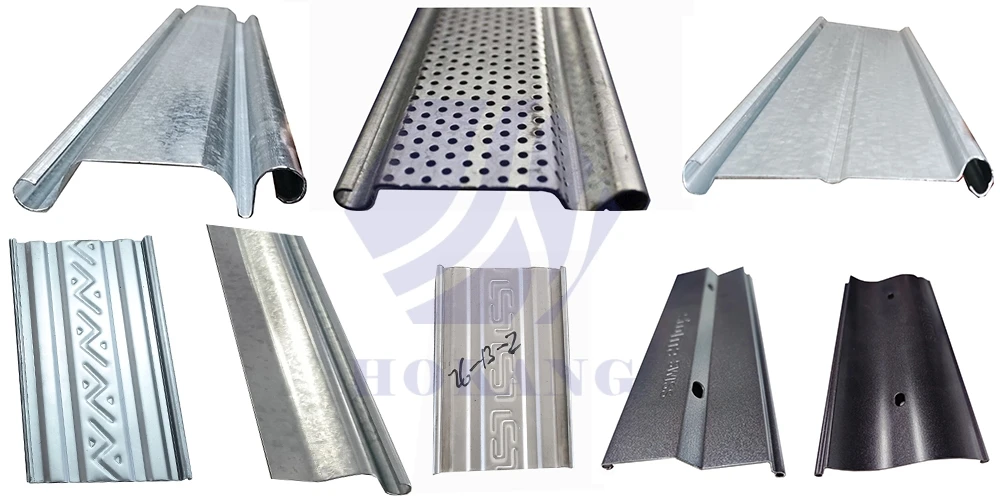

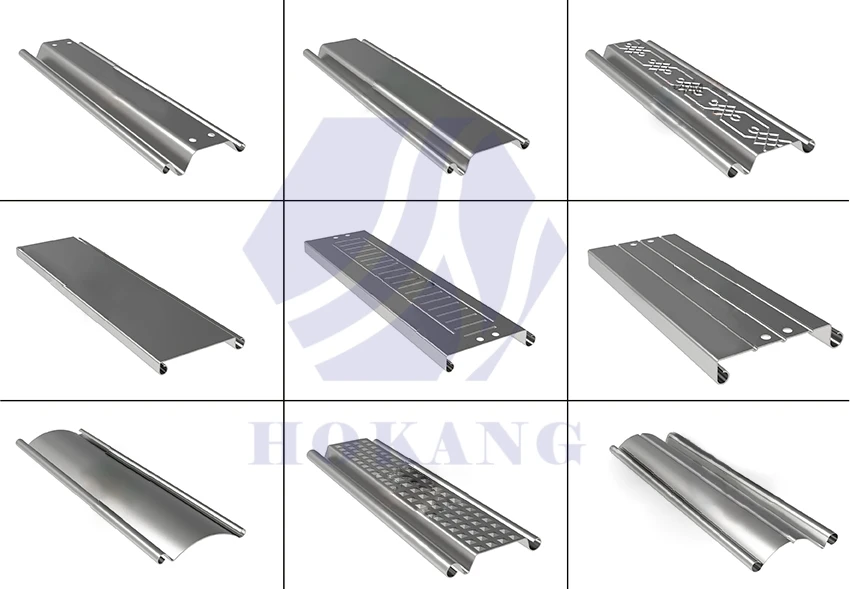

Various versions for you to choose from
Details Images

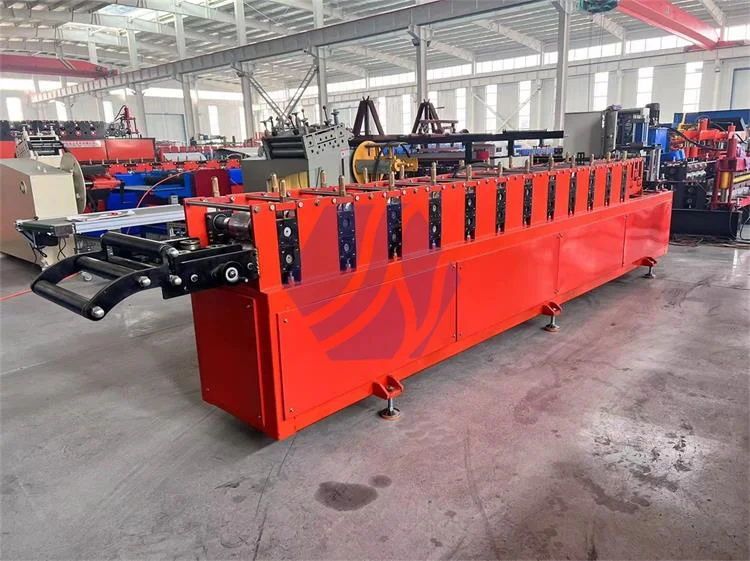

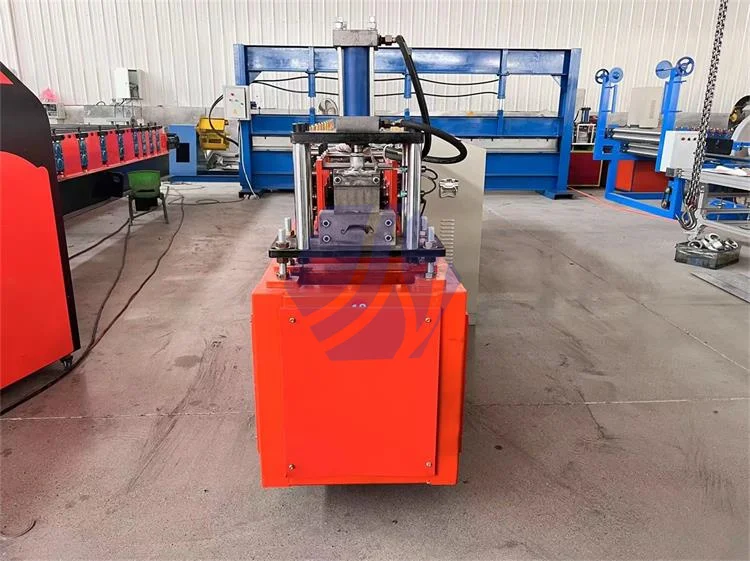

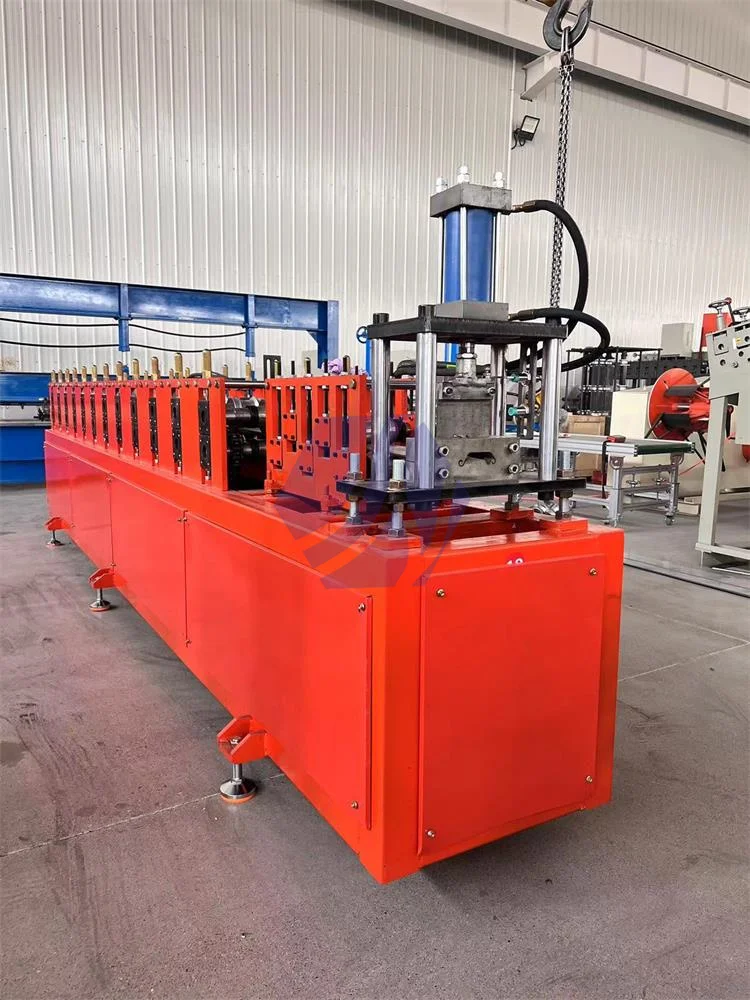

Machine Frame Of Rolling Door Roll Forming Machine
Rolling door roll forming machine adopts welded steel frame structure, it make sure roof sheet machine can operation more stable
AC frequency conversion motor reducer drive, chain transmission, roller surfaces polishing, hard plating, heat treatment and chrome coating.
AC frequency conversion motor reducer drive, chain transmission, roller surfaces polishing, hard plating, heat treatment and chrome coating.

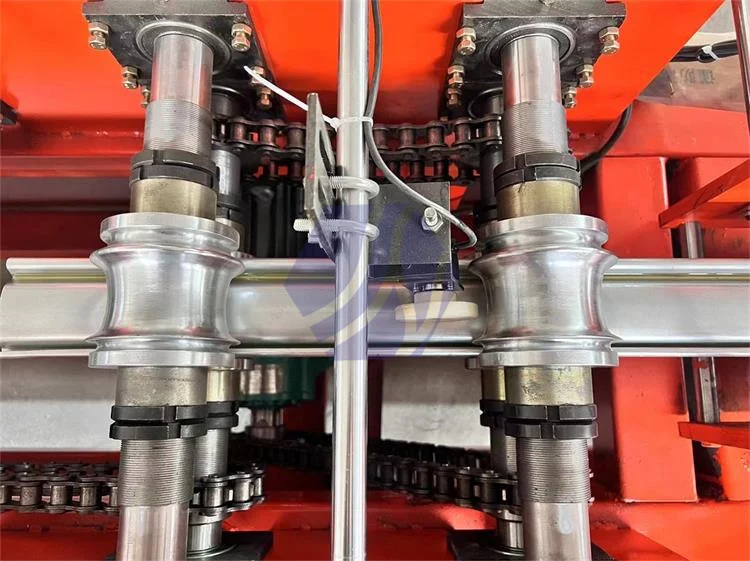

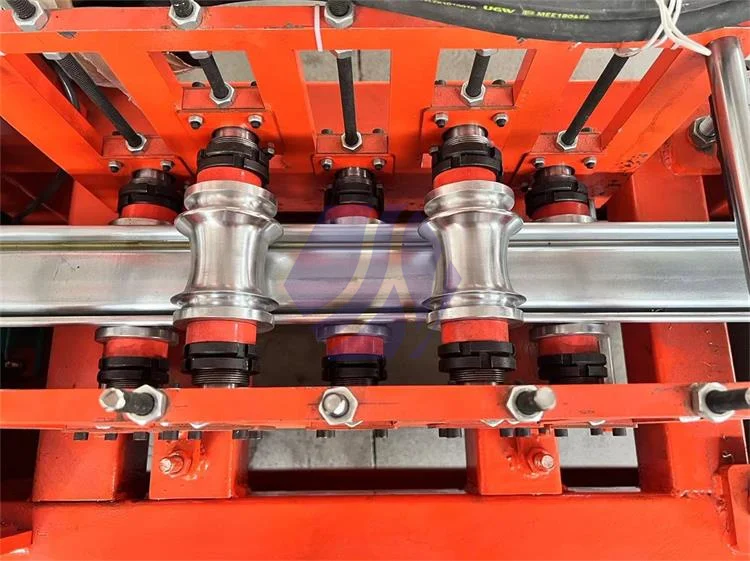

Forming Roller Of Rolling Door Roll Forming Machine
Roller Material: 45#steel
The roller material processing method :
1. Rough machining
2.Fine polishing
3.Heat treatment58 ℃-62 ℃
4.Cr12 hard chromium plating
The roller material processing method :
1. Rough machining
2.Fine polishing
3.Heat treatment58 ℃-62 ℃
4.Cr12 hard chromium plating
The roller and shaft won't scratch the board. It is long service life and durable.

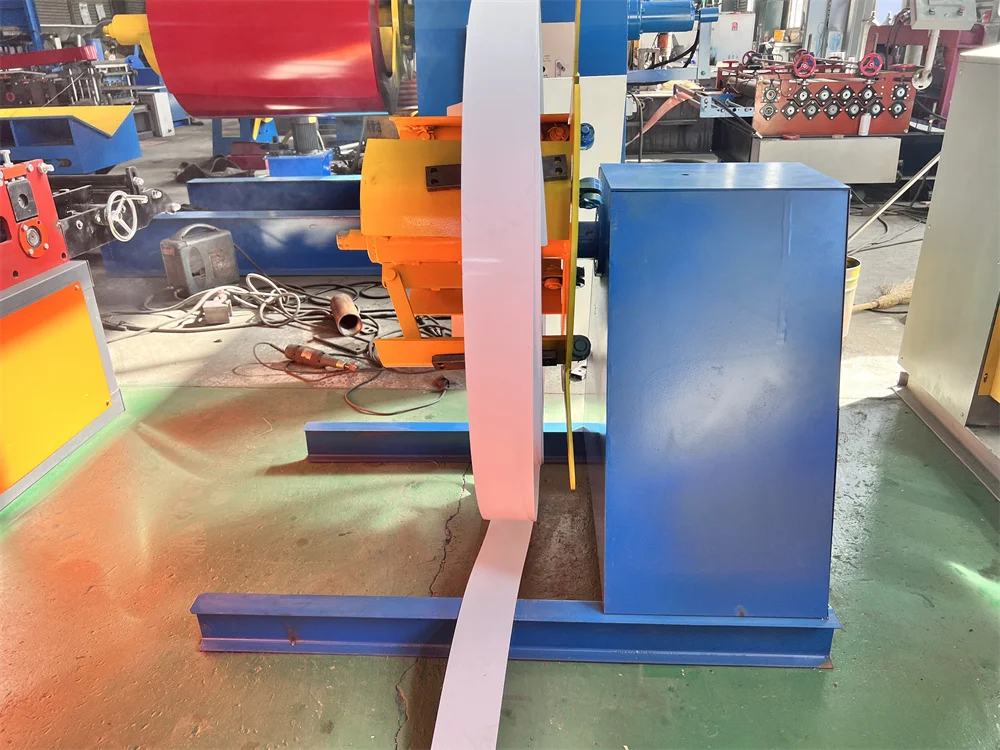

Decoiler Of Rolling Door Roll Forming Machine
Capacity：3T,
Inner Diameter: 507mm-510mmone set is free and deliver with the machine,
Also ,if you need more accurate decoiler, we also have electric decoiler and hydraulic decoiler, want to learn more. click avatar and contact me!!
Also ,if you need more accurate decoiler, we also have electric decoiler and hydraulic decoiler, want to learn more. click avatar and contact me!!

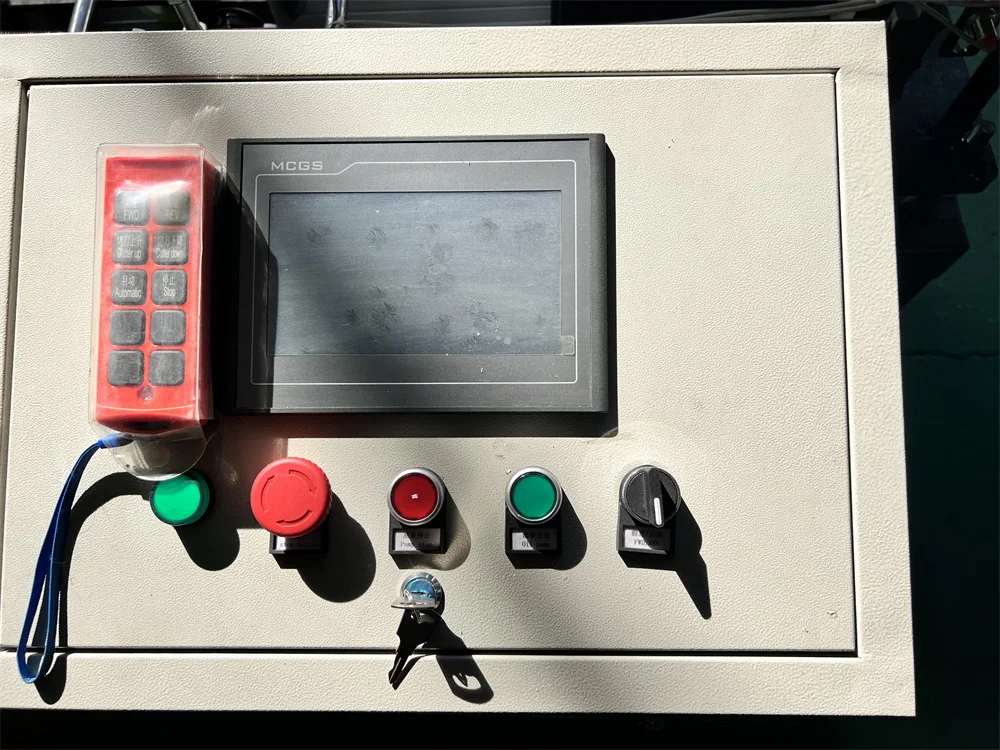

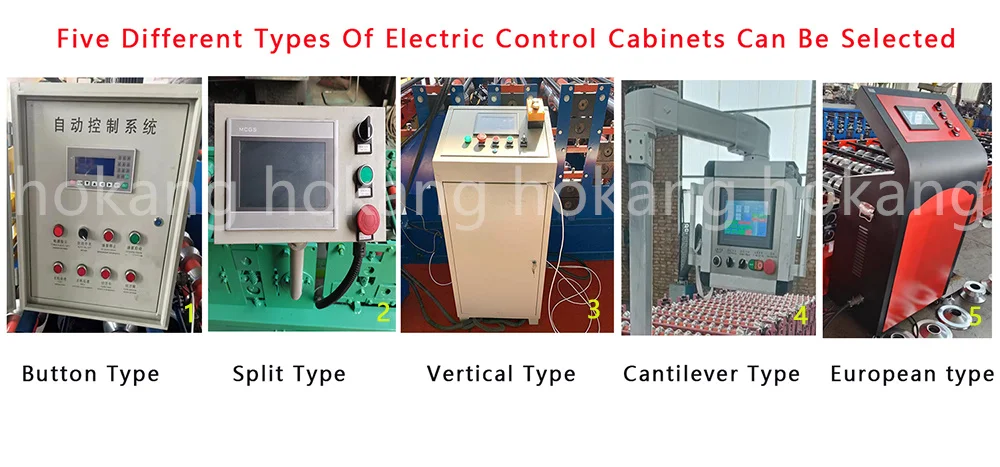

Control Part Of Rolling Door Roll Forming Machine
Rolling door roll forming machine control parts have different types, standard type are button control, through press buttons to realize different function.
PLC touch screen type can setting data on the screen, its price is little higher, but is more intelligent and automatic.
PLC touch screen type can setting data on the screen, its price is little higher, but is more intelligent and automatic.
Delta PLC(or according to customer's inquirement) Touch Screen:Delta Frequency system:Delta Chinese/English /Russian/Portuguese Or Spanish
Why Choose Us
♥ Over 20 years of experience.
♥ Customized according to customer requirements with OEM ODE Services.
♥ Favorable price and easy operation.
♥ For many years, we have always adhered to quality first and service foremost, and have developed high- quality agents in Chile,Brazil, the Philippines, Malaysia, India, and other countries
♥ Professional technical team strictly controls every step of production to ensure the quality of each equipment.
♥ Provide technical guidance, production, installation, commissioning and maintenance services for our customers.
Our Technical Personnel Provide On-Site Services Overseas:
Our technical personnel arrive at the customer's site in Malaysia for technical guidance and training,If a customer encounters technical problems that are difficult to solve during use, we usually send professional and technical personnel to foreign customer sites for guidance and training. Therefore, if you want to do business in cold bending forming equipment, please feel free to contact our customer service personnel at any time.
Our technical personnel arrive at the customer's site in Malaysia for technical guidance and training,If a customer encounters technical problems that are difficult to solve during use, we usually send professional and technical personnel to foreign customer sites for guidance and training. Therefore, if you want to do business in cold bending forming equipment, please feel free to contact our customer service personnel at any time.
