Drywall Ceiling Main Channel C Channel Roll Forming Machine Line
- Category: >>>
- Supplier: Henan Wadjay Machinery Co. Ltd.
Share on (1601181734395):
Product Overview
Description
Description

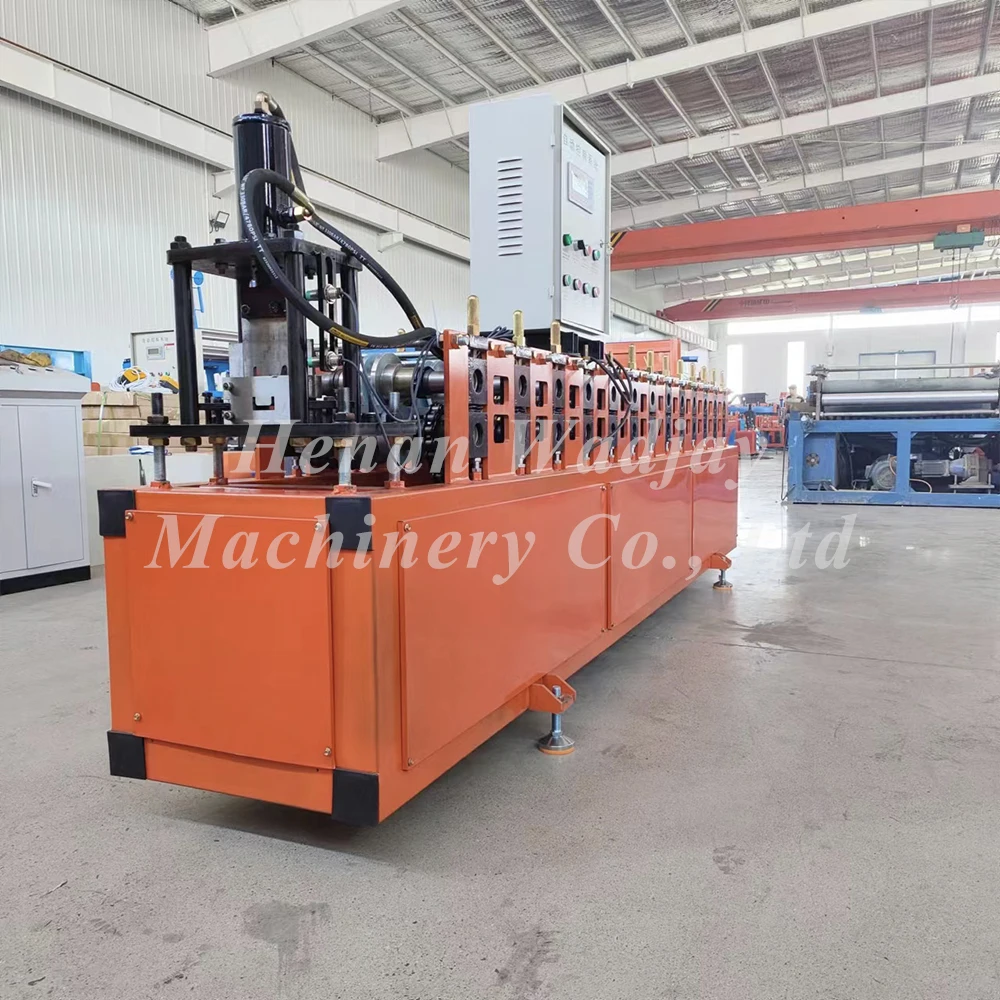

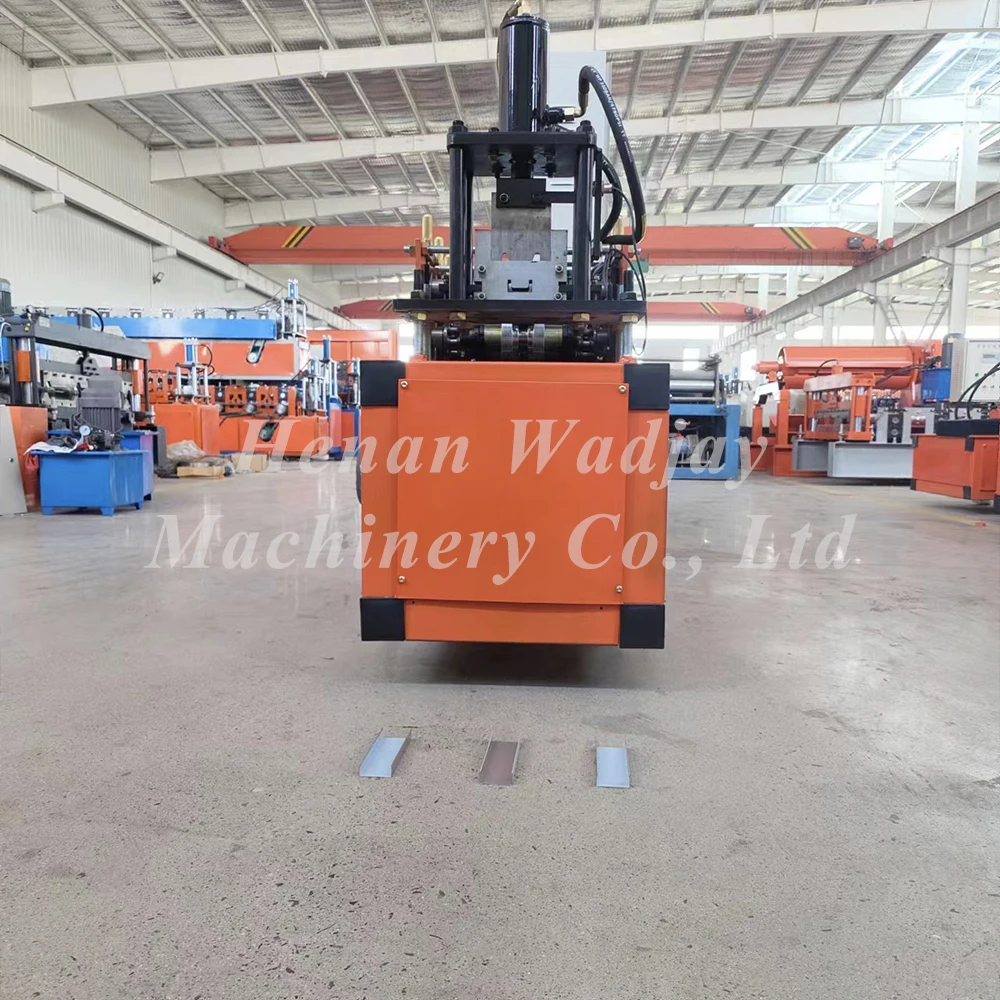

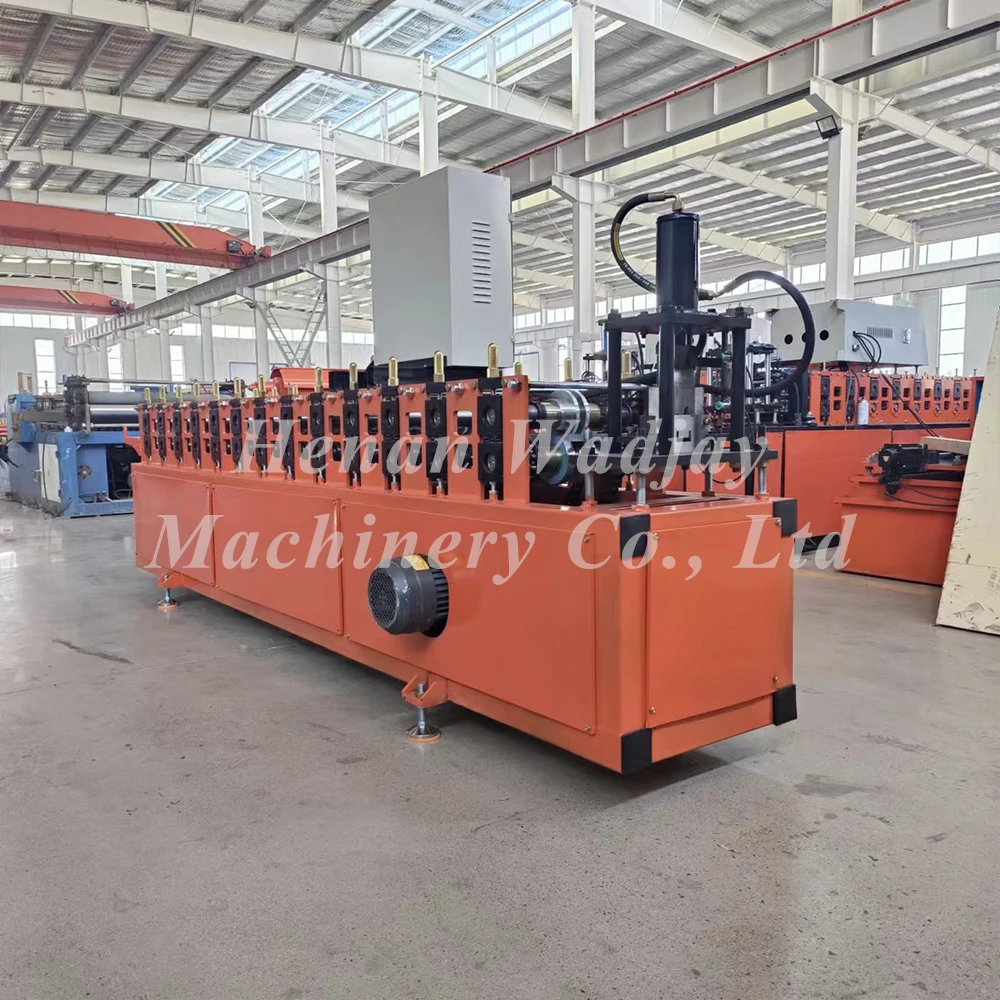

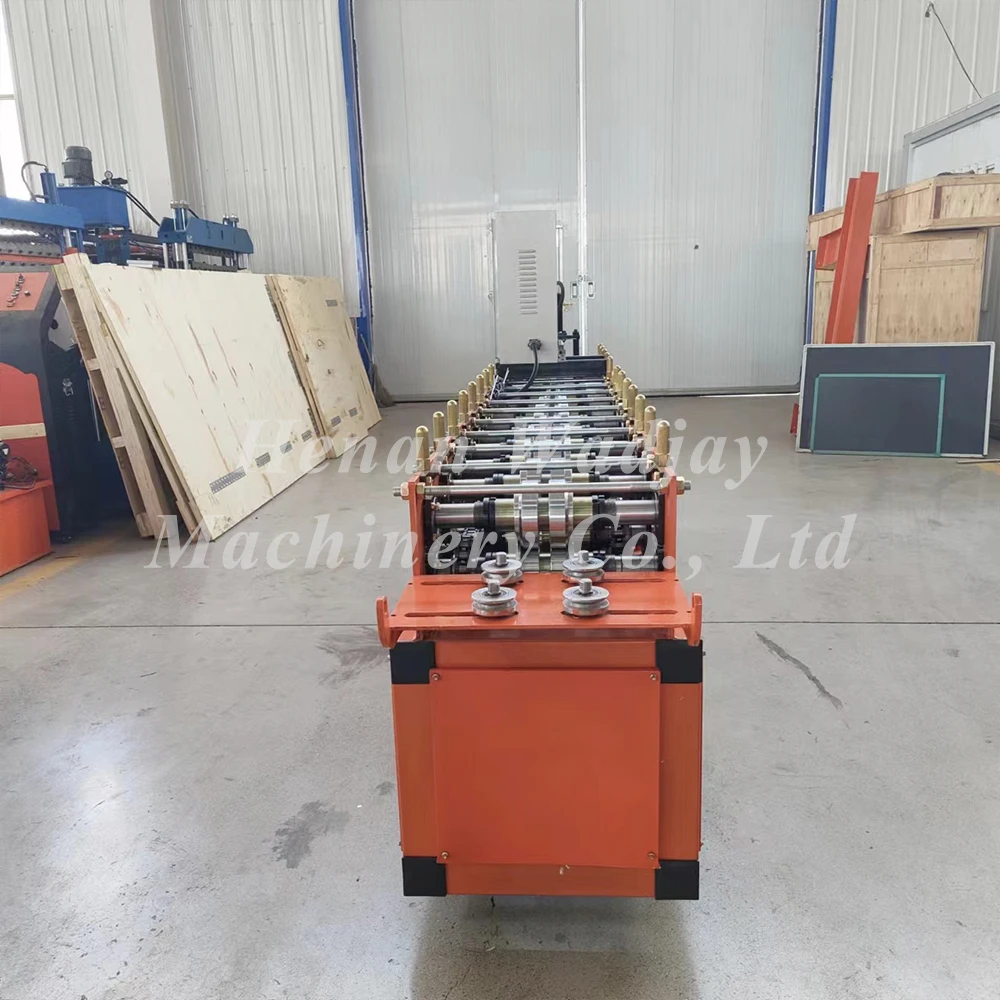

Roll Forming Machine

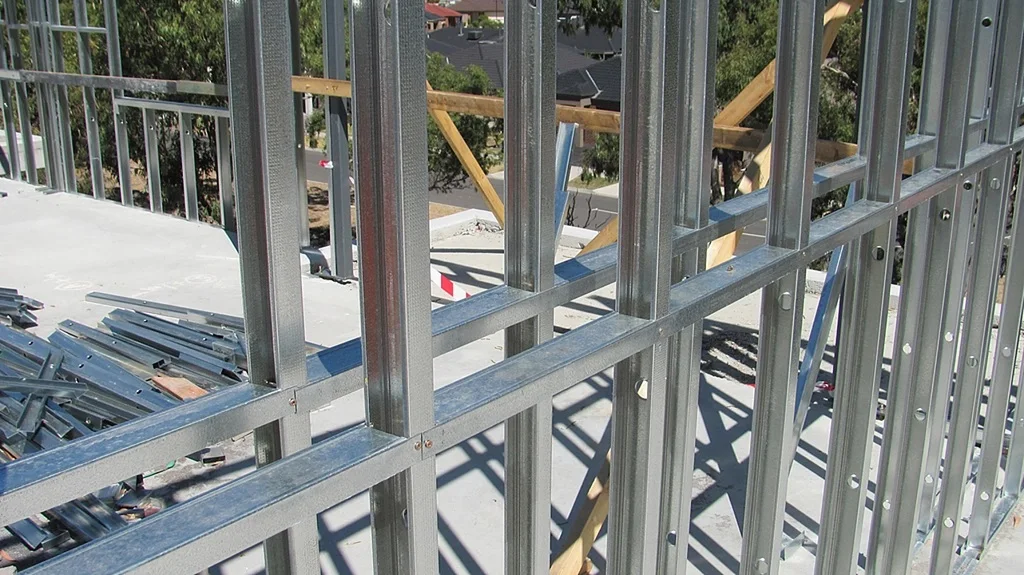

Drywall Ceiling Channel Forming

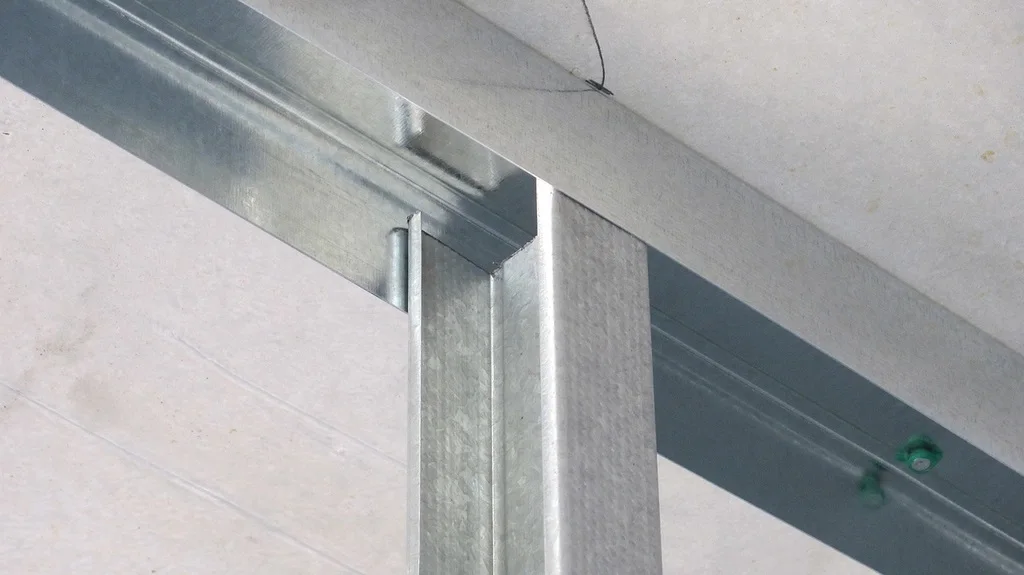

Some custom designs such as embossing for Wall Angle and C makes drywall frame harder and thicker.
Wadjay also makes a machine that forms both C Stud (Track) and Wall Angle to help you save cost and space.
Some custom designs such as embossing for Wall Angle and C makes drywall frame harder and thicker.
Wadjay also makes a machine that forms both C Stud (Track) and Wall Angle to help you save cost and space.
Specification
Machine specification | |
Electric power | 3.7-5.5kw |
Rolling speed | 14-16 m/min (Standard) |
10-12 m/min (ECO) | |
40-55 m/min (Super Hi-speed, depending on profiles) | |
Machine Weight | ≈ 3.0-6.0 tons |

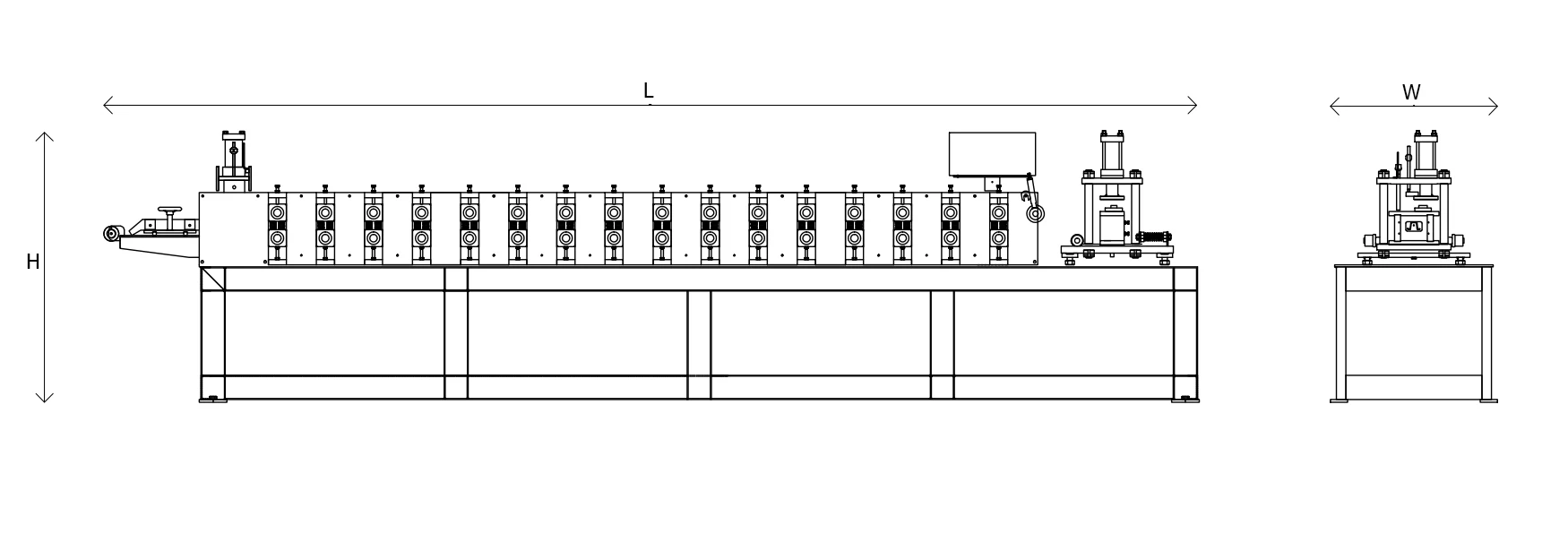

Dimensions (L x W x H) | (4.0-7.0)m x 0.85m x 1.5m |
Station quantity | 12-16 stations |
Raw material | |
Steel Thickness | 0.3 mm-0.7 mm |
Material | GI, GL, PPGI, PPGL |
Max. Material Strength | G300-G550 |
Production specification | |
Profile of roofing | Follow customized drawing |
Control system | Automatic operation with Relay system or PLC, Touch Screen HMI |
Rolling transmission | Hydraulic or Gear motor driven by Inverter |
Cutting and punching system | Hydraulic |
Length Tolerance | ± 1 mm |
Details Image

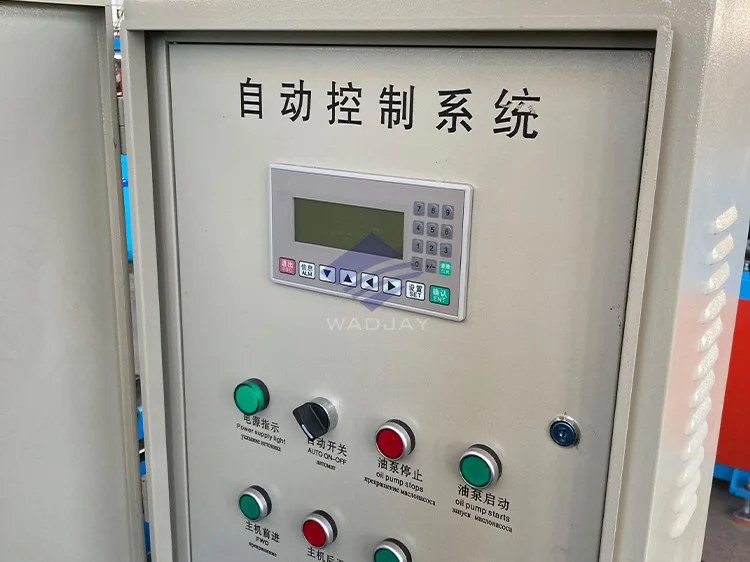

Data Input:
Input processing details, such as length, profile type, and desired quantity into the PLC for automatic production initiation.
Coil Processing:
Specifically designed for coil processing, our machine handles coils with a maximum capacity of 2 tons, ensuring smooth operation and precise profile creation.

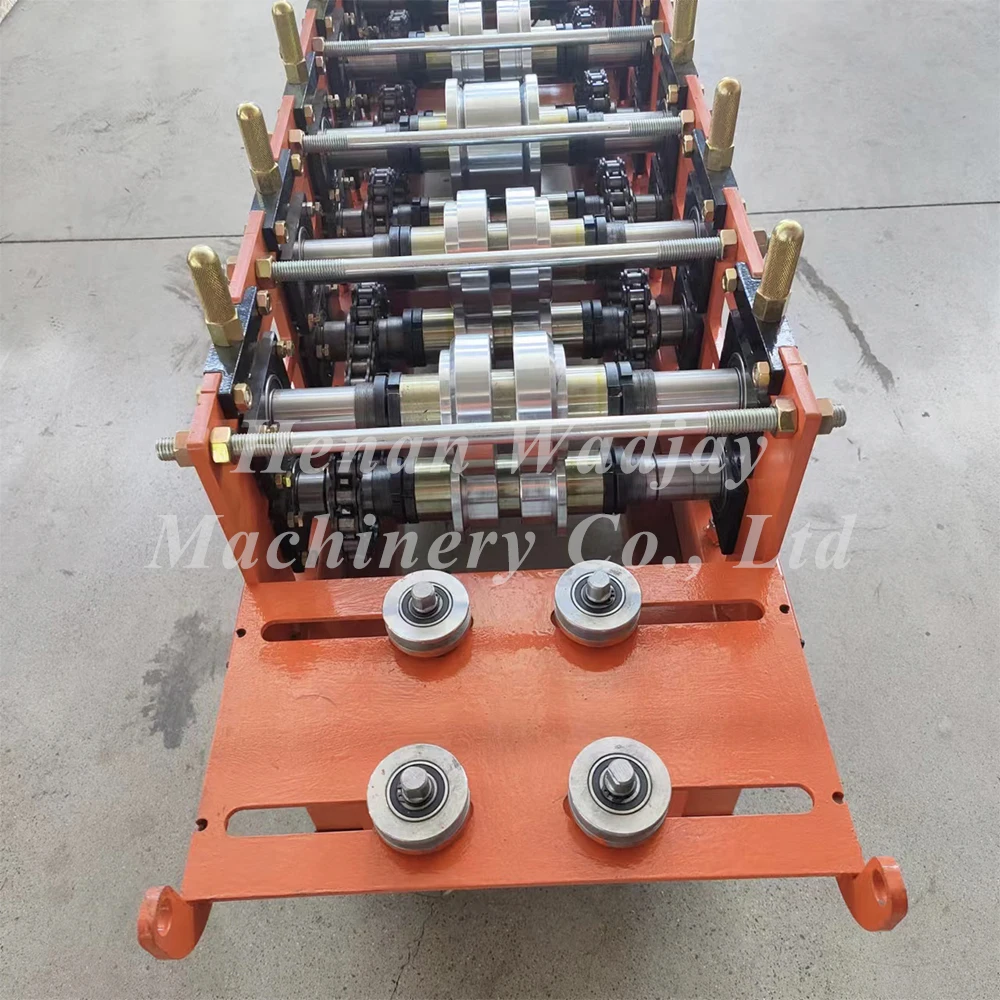

Precision Profiling:
The centering system ensures accurate profiling, adjusting the tape’s position relative to the rollers as needed. A straightening unit corrects any deformations, guaranteeing consistently sized products.

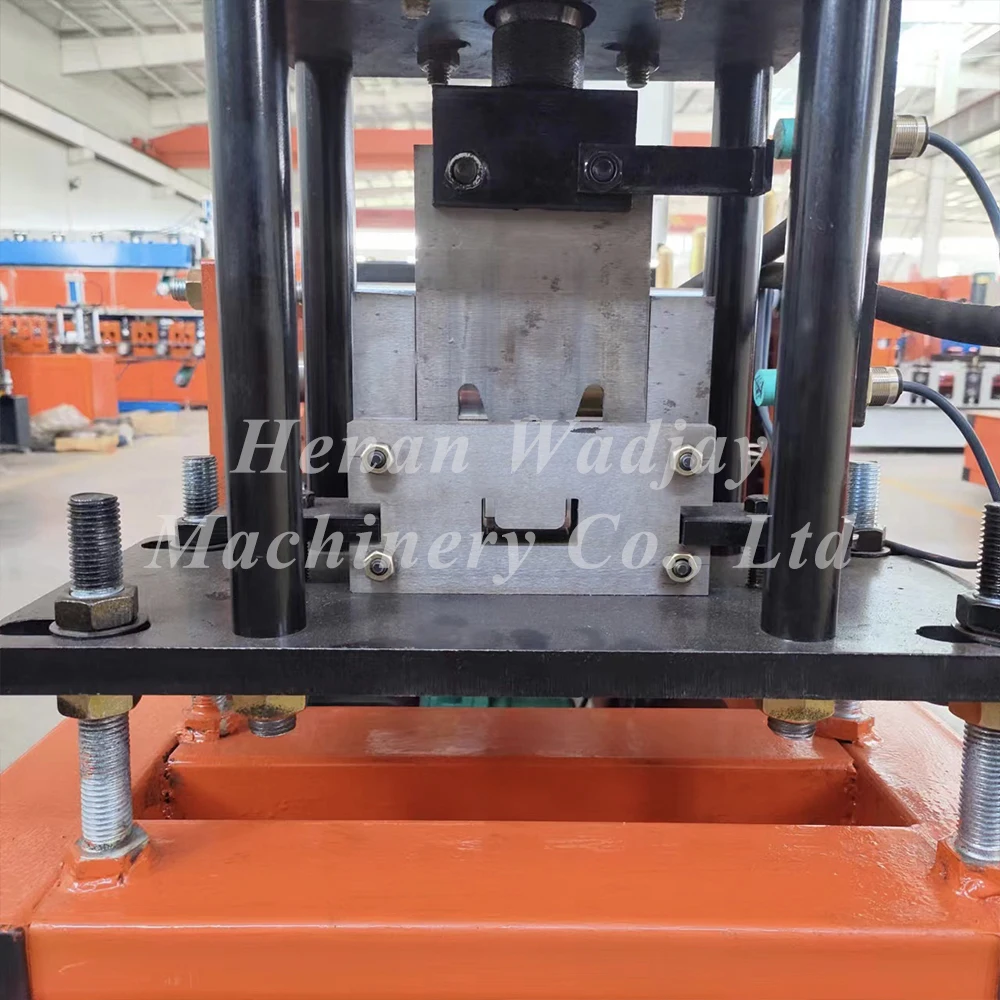

Efficient Cutting:
The dedicated cutting unit ensures precise cutting with standard advancement stop. Optionally, a flying cut can be employed to further reduce cycle time.
Company Profiles
Our Factory Workshop
√. WADJAY factory is located in Hebei, China. The factory has a complete set of machines and equipment for processing services.
√. The company is committed to controlling the entire production process and providing you with the best quality and after-sales service.
√. Professional operation management team with experienced engineering and technical personnel.
√. One of the global manufacturers of high quality and excellent customer service.
√. More than 10 years of machinery production experience.
√. The company's products are exported to more than 50 countries and regions around the world.
Customer Visit
Packing & Delivery
FAQ
Q1: How long is the warranty?
A1: We guarantee a 18-month after-sale service. Any problem when using, call or mail us, we will advise on technically sound methods. If needed, we will provide free accessories.
Q2: Can I have my own customized product?
A2: Yes, your are welcome customized requirements for color, logo, design, package, carton mark, etc.
Q3: How can I get sample and how long will it take?
A3: Sample policy is different for different items. Please kindly contact us to get details.
Q4: What's the MOQ?
A4: MOQ is different for different items, please kindly contact us for confirming.
Q5: How do I pay for my purchase order?
A5: T/T, L/C at sight, Western Union, MoneyGram.
Q6: What is your terms of payment?
A6: For regular order, T/T 30% as deposit, and 70% before Shipment. We'll show you the photos of the products and packages before you pay the balance.
Q7: How about your delivery time?
A7: Generally, It will take about 35 days to send goods out. The specific delivery time depends on the items and the quantity of your order.
A2: Yes, your are welcome customized requirements for color, logo, design, package, carton mark, etc.
Q3: How can I get sample and how long will it take?
A3: Sample policy is different for different items. Please kindly contact us to get details.
Q4: What's the MOQ?
A4: MOQ is different for different items, please kindly contact us for confirming.
Q5: How do I pay for my purchase order?
A5: T/T, L/C at sight, Western Union, MoneyGram.
Q6: What is your terms of payment?
A6: For regular order, T/T 30% as deposit, and 70% before Shipment. We'll show you the photos of the products and packages before you pay the balance.
Q7: How about your delivery time?
A7: Generally, It will take about 35 days to send goods out. The specific delivery time depends on the items and the quantity of your order.
