Product Overview
Description
Product Description

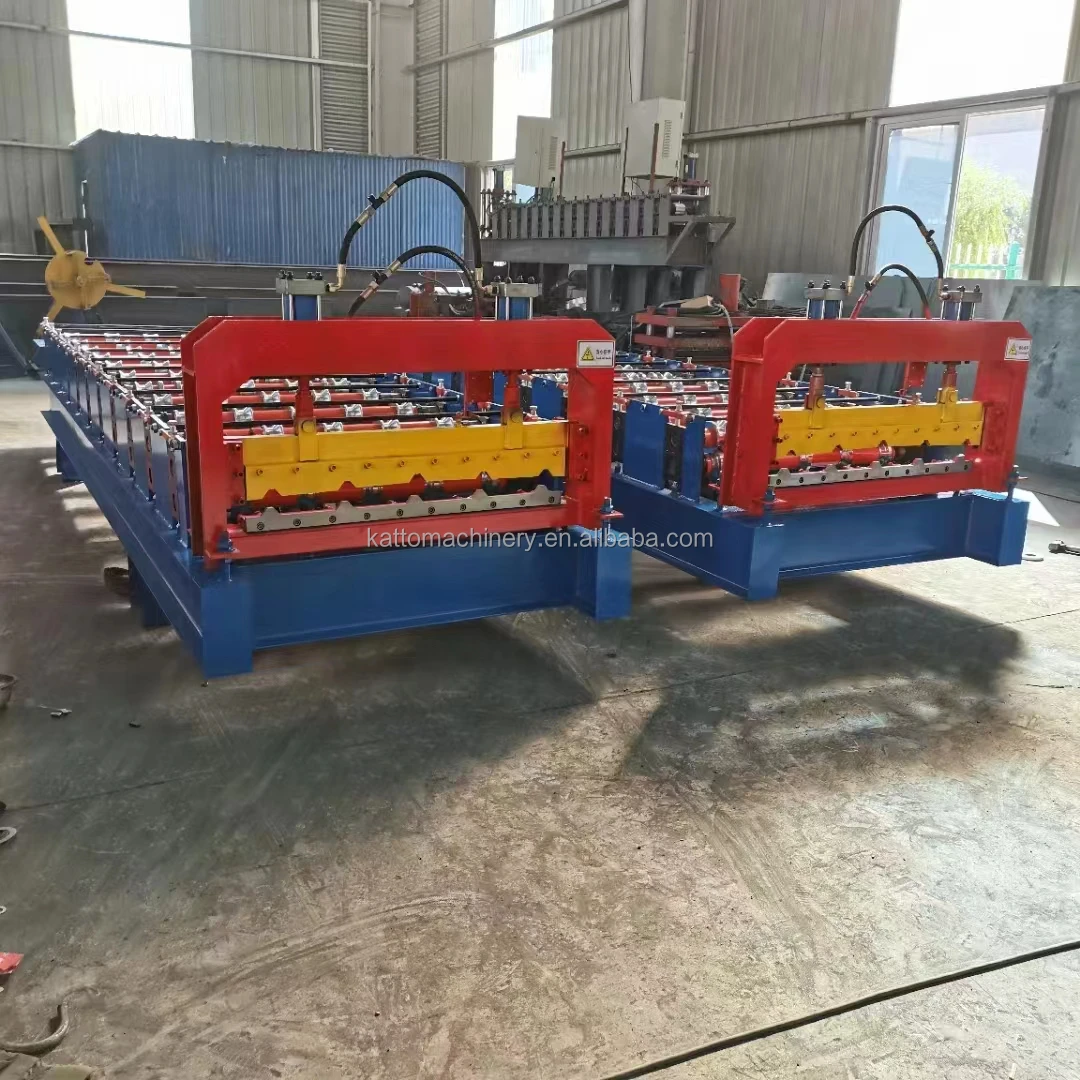

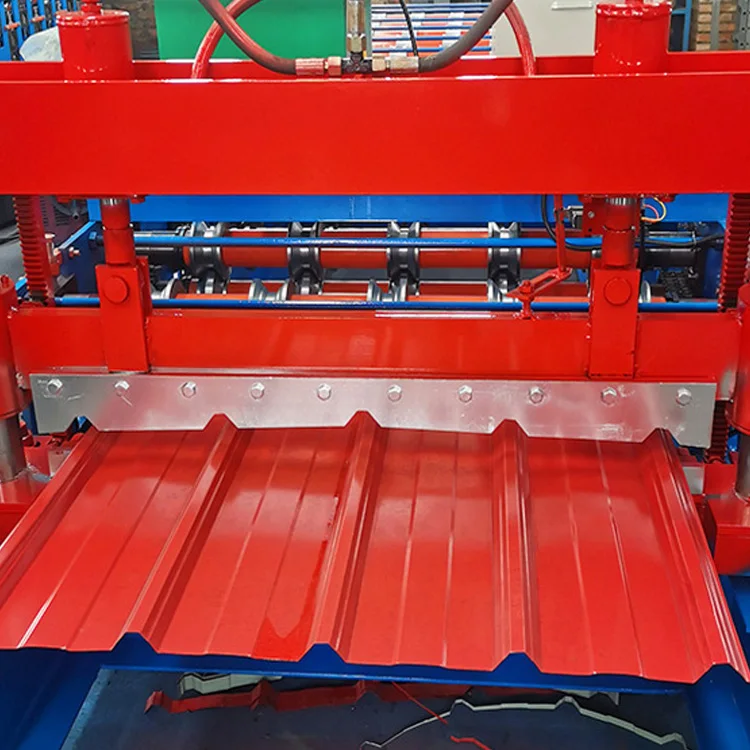

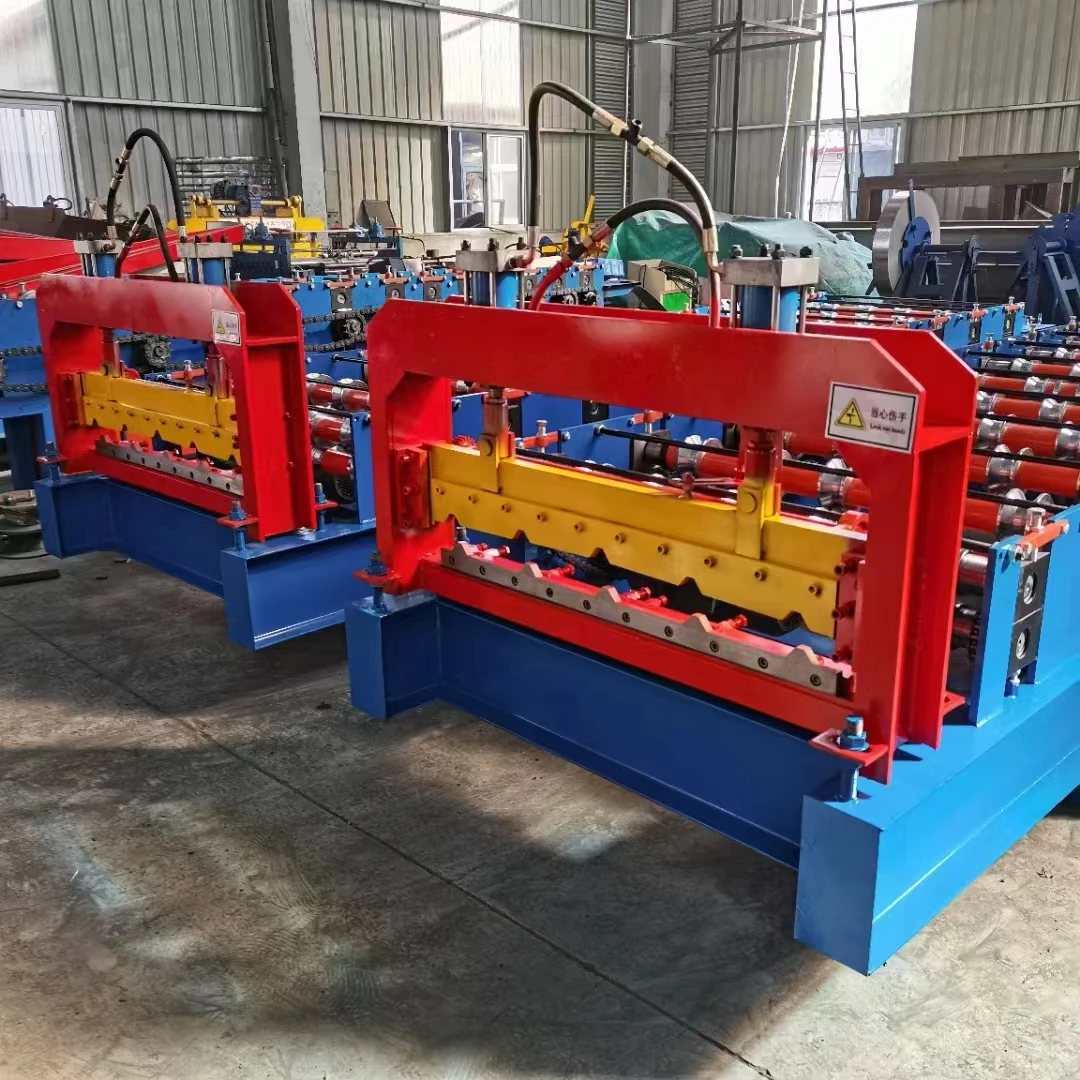

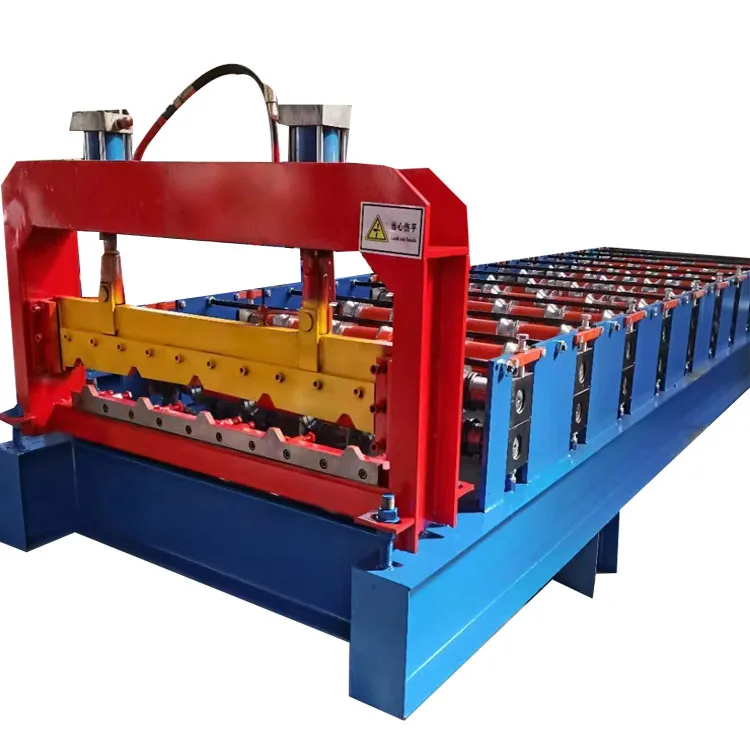

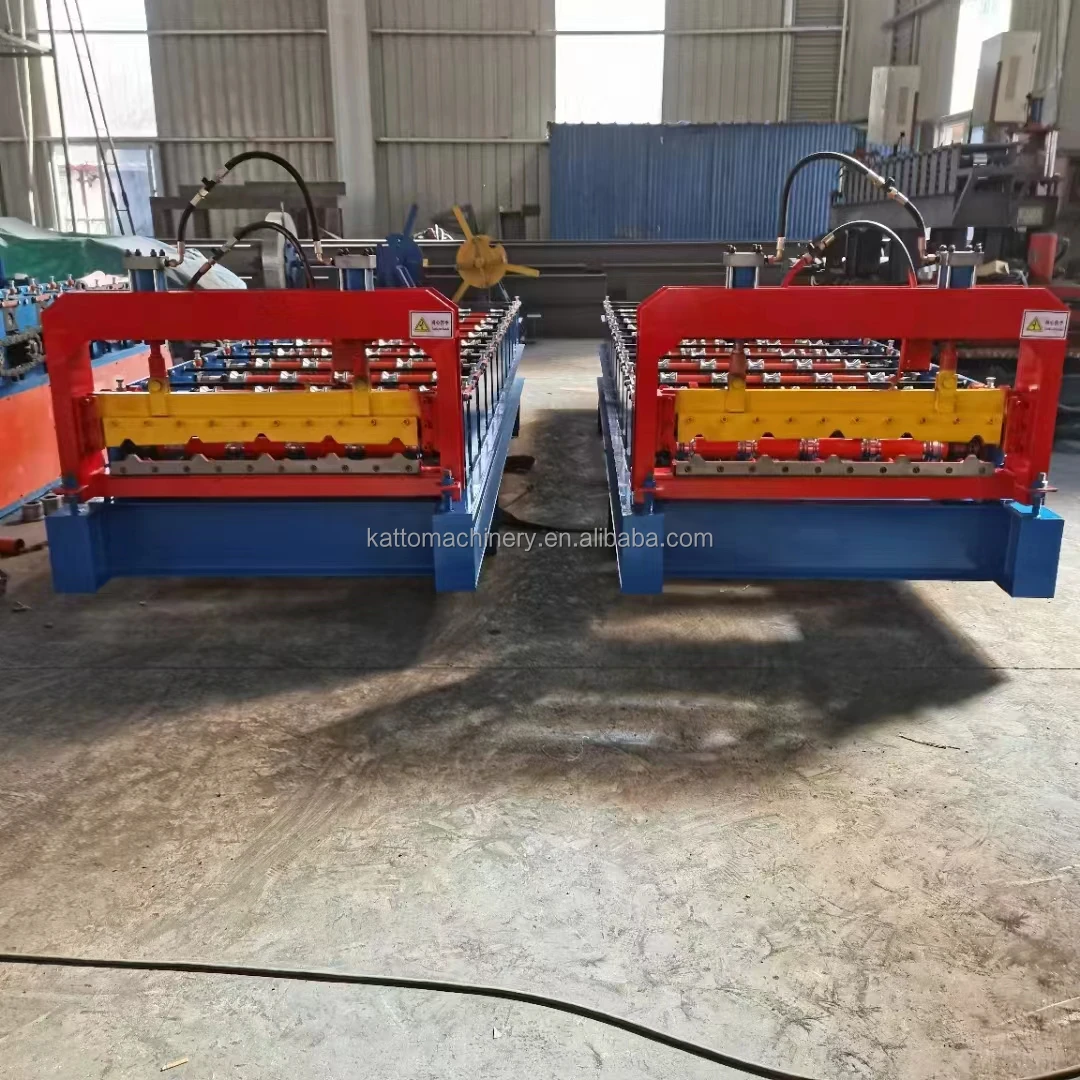

Automatic trapezoidal roofing sheet making machine tile forming machine

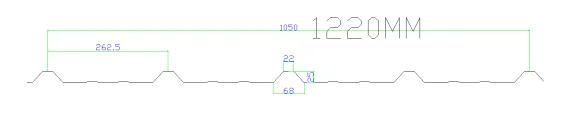

Different roof panel forming machines can produce different shapes of steel roof wall sheets according to the client’s profile drawings and requirements. The steel roof, wall sheets are new building materials with various thickness and colors. The finished products are used as the roof and walls of gymnasiums, airports, theatres, factories, warehouses, garages, exhibition centers etc.
Specification
Roller station | 13 Steps |
Under Frame | 300H-beam, Welded structure |
Shaft diameter(Solid) | 75mm-0.01~-0.03(with key-way) |
Shaft material(Hard) | High grade 45# steel,heated and quenched,cylindrical grinding, |
Roller material(Hard) | Cr12,heated and Quenched,polishing |
Bearing Type | Standard |
Transmission Gear | Heat treatment |
Motor Power | 4KW(Lichao,Shanghai) |
Forming Speed | 10-15m/min(Non-Stop) |
Hydraulic Cutting | Stop To Cut |
Pump power | 4 KW |
Hydraulic pressure | 20 Mpa |
Voltage Standard | 380V/3Phases/50Hz |
Cutting die | Cr12Mov, Quenched processed |
Details
The complete machine includes the following products

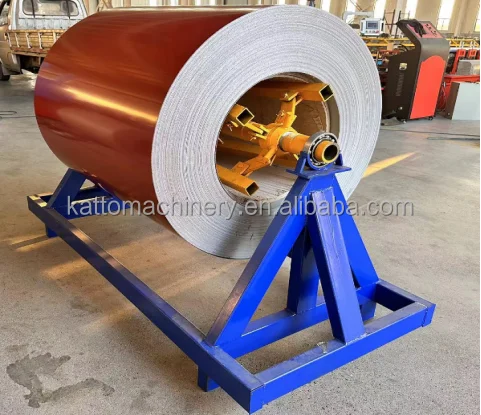

1:5t uncoiler,
2:main forming machine, 3:computer controlling system

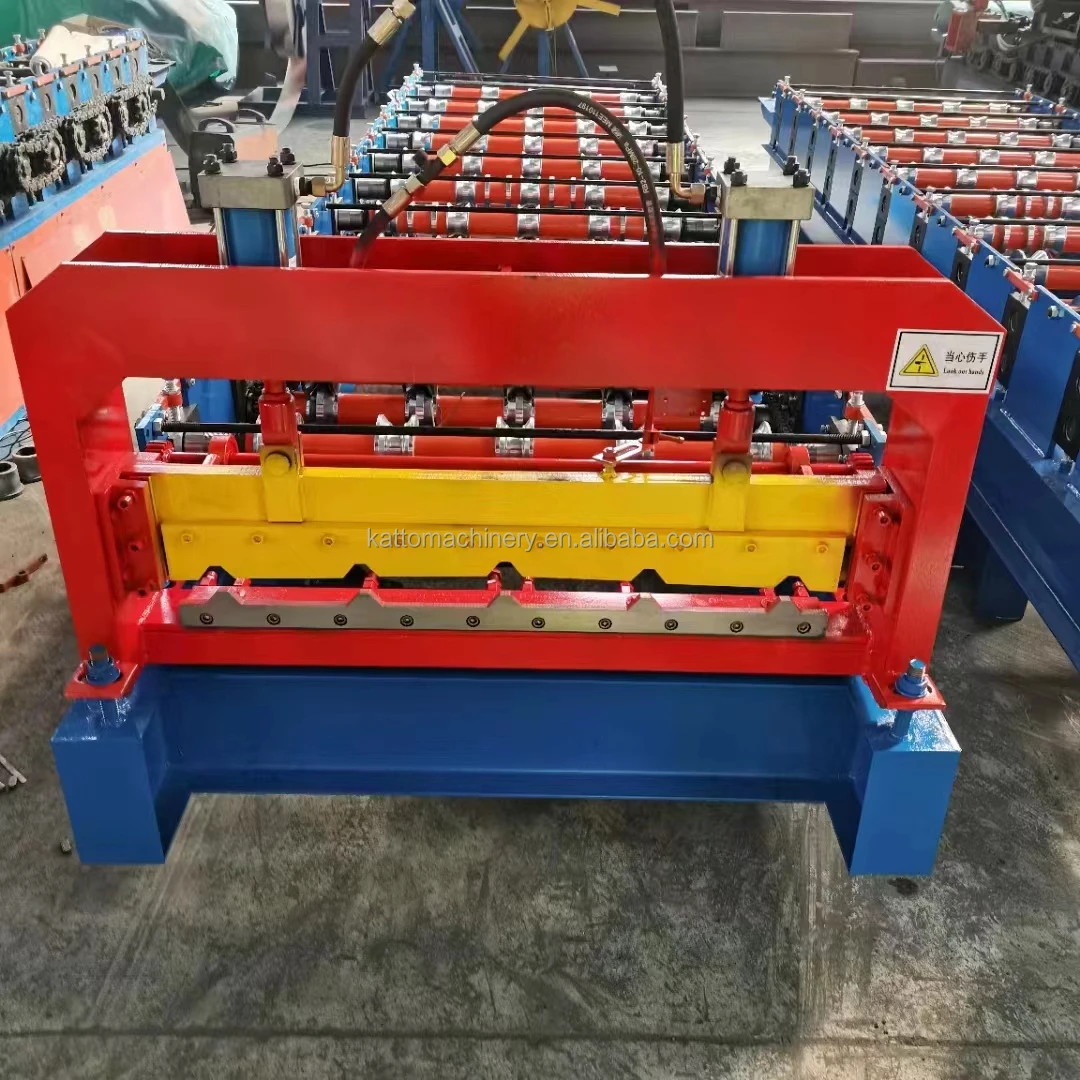

4:hydraulic cutting system
5:run out tables.

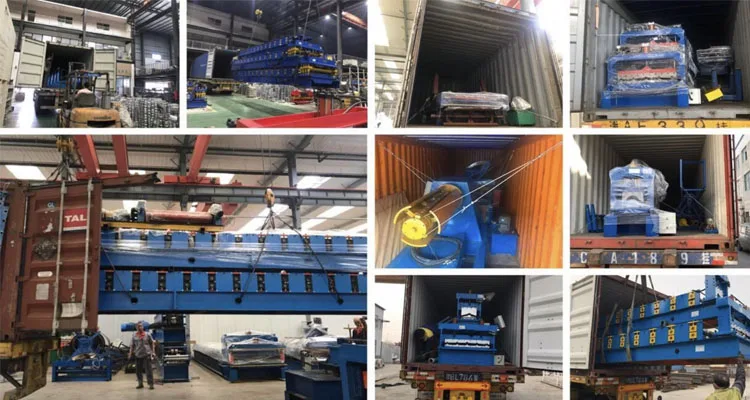

Packing & Delivery
