Runpu KBD2070 10.1 inch Large LCD Screen Touch Screen IP PTZ Joystick controller tops control 200 pcs cameras Keyboard

KBD2070 is a new generation of Android system network touch keyboard. 10.1-inch capacitive touch screen with simple and friendly UI design. Real-time preview can be started on the keyboard touch screen, and the images can be projected on the external display through HDMI interface. Support H.265 single channel 4K@30fps; H.264 single channel 1080P@60fps；; 4-channel 720P@30fps decoding, 4-dimensional control rocker is used to control the pan/tilt of the ball machine and quickly locate the target.

Features:

● 10.1-inch capacitive touch screen with a resolution of 1280*800.

● Support Android6.0 operating system.

● Support H.265/H.264/ decoding, with maximum 4-picture segmentation. 1) support h264/h265；; 2) Maximum support for h264 1x1080p@60fps, 3) Maximum support for h264 4x720p@30fps；; 4) The maximum support is h265 1x4k@30fps

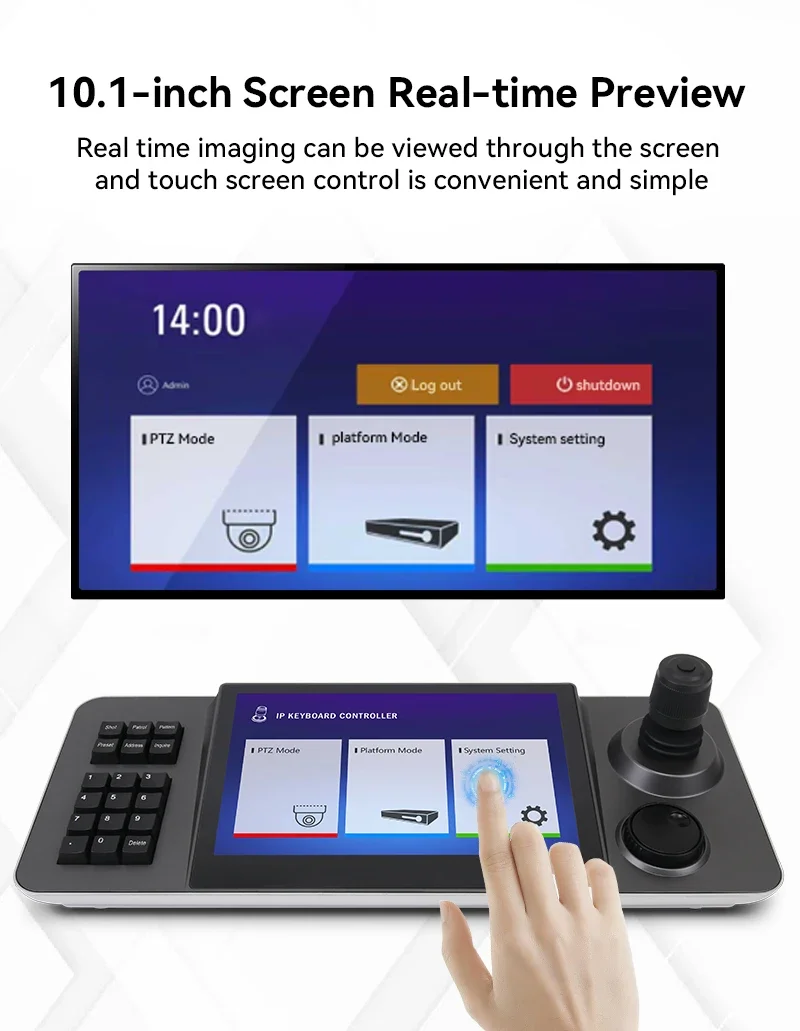

● Support to view images on the touch screen or project images on the display through HDMI.

● Support network access to the company's full range of ball machines.

● Support Yuntai control, setting and calling of preset points, cruise and trajectory.

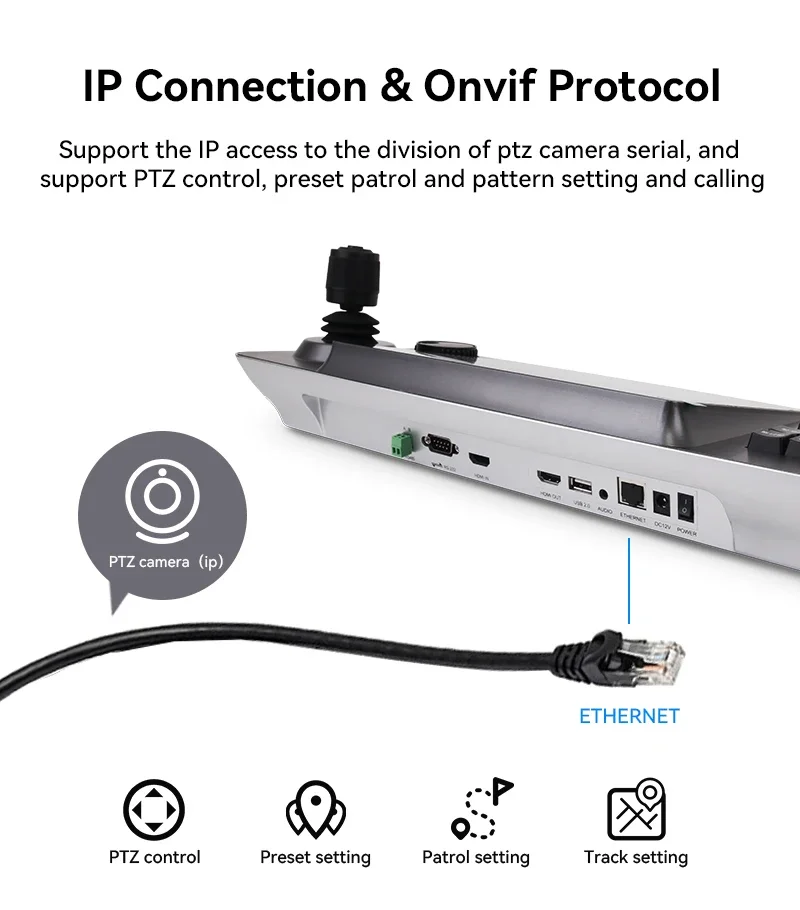

● Access devices that support ONVIF protocol.

● Support the addition of up to 1024 devices.

● Support upgrading through USB flash drive and external mouse.



Technical parameters:

Parameter/model: KBD2070
Operating system: Android 6.0
Screen size IPS：10.1 inch screen, capacitive touch screen with resolution of 1280*800.
Display: HDMI 4K@30fps is supported
Decoding ability: 1) supporting H264/H265; 2) The maximum support is h264 1x1080p@60fps；;
3) The maximum support is h264 4x720p@30fps；; 4) The maximum support is h265 1x4k@30fps
Protocol: Onvif2.4 version 2.4 is supported, and customization is supported.
Function: 1) Support the addition of up to 1024 devices
2) Support Yuntai control.
3) Support preset bits.
4) Support cruise
5) Support pattern scanning
System settings: language settings are supported; Support password modification; Support USB flash drive upgrade
Standard 5.5/2.1 power interface, DC 12V2A 10%

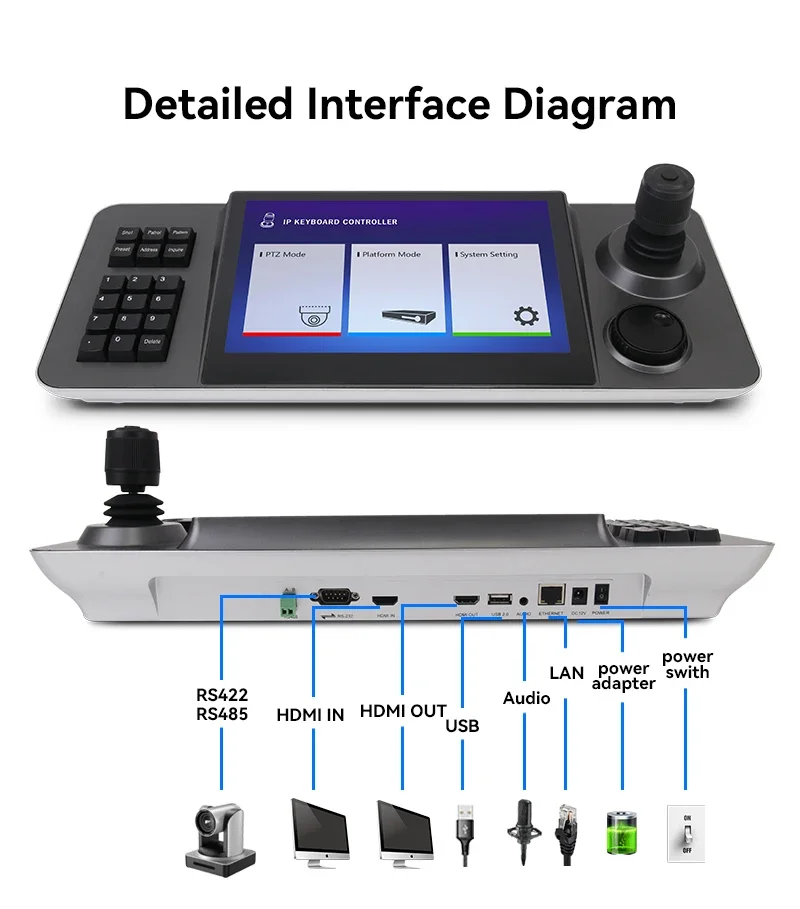

Interface: one RJ45 (network)
A Phoenix Mouth (RS485)
One RS232
One HDMI output, version 1.4
A USB2.0
A standard 3.5MM headphone jack
Operation: Support 4-D joystick and keys.
Power consumption: < ＜15W
Standby current: < ＜100mA
Mean time between failures: > 30000 hours
Working humidity: 10%-90%RH (no frosting)
Operating temperature:-10 C-40 C
Storage temperature:-40 C-60 C
Packing size: 517*221*151mm (inner size)
Net weight: 1400g/ set
