Product Overview
Description
Product Description

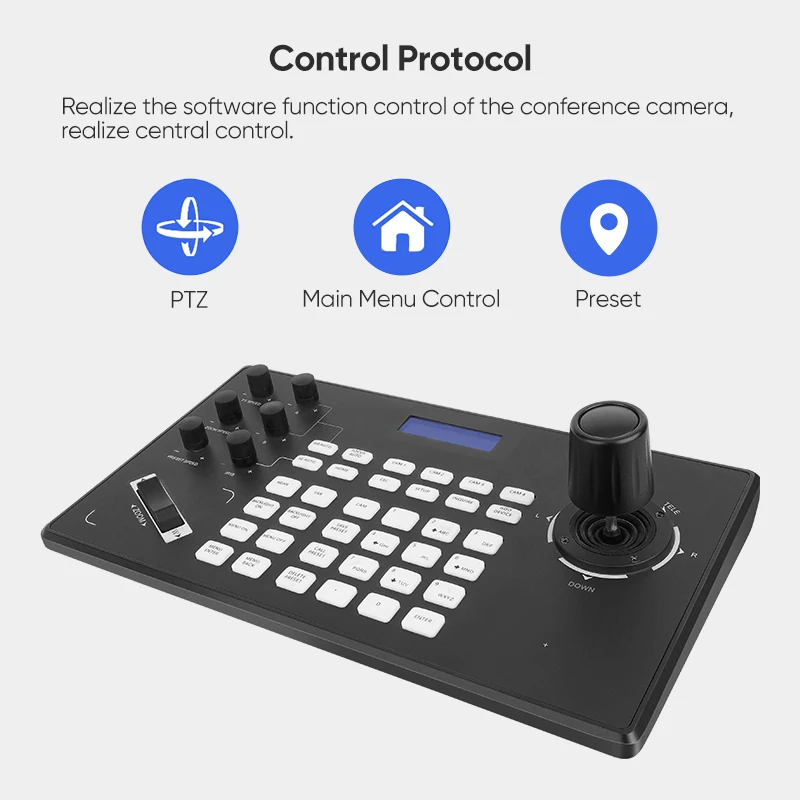

The RC50 control keyboard is an essential device in the integrated monitoring system.All-round control can be realized by controlling the keyboard, and the operation is simple and convenient. Also set on the control keypad, There is a liquid crystal display for displaying working status and interactive information.
Technology Parameter
Model | K50 |
Name | PTZ Camera Controller With Joystick |
Protocols | |

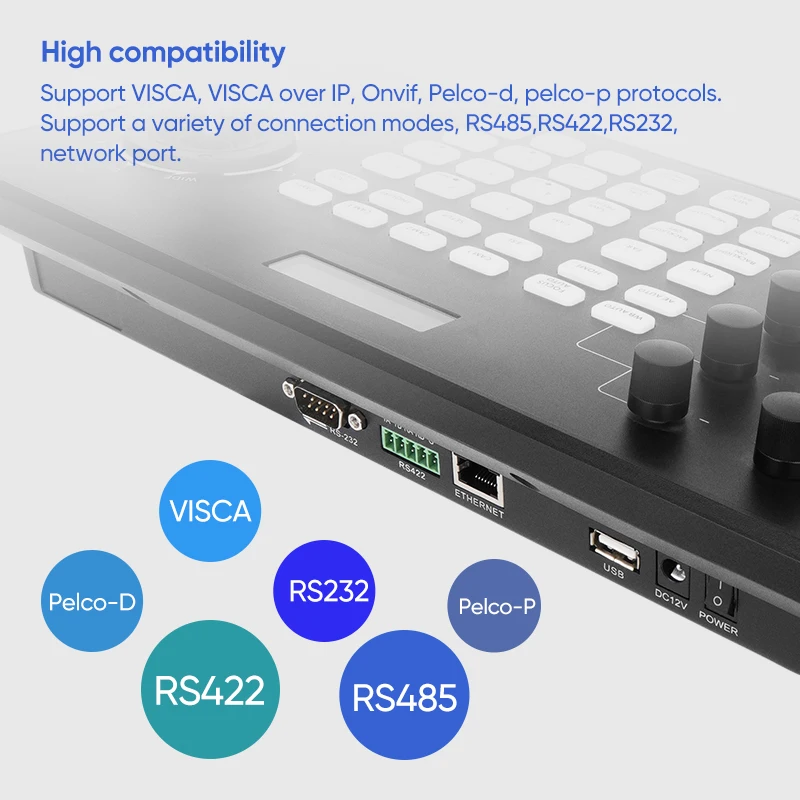

Protocol | Pelco-D,Pelco-P,VISCA,VISCA over IP,Onvif,TCP,NDI |

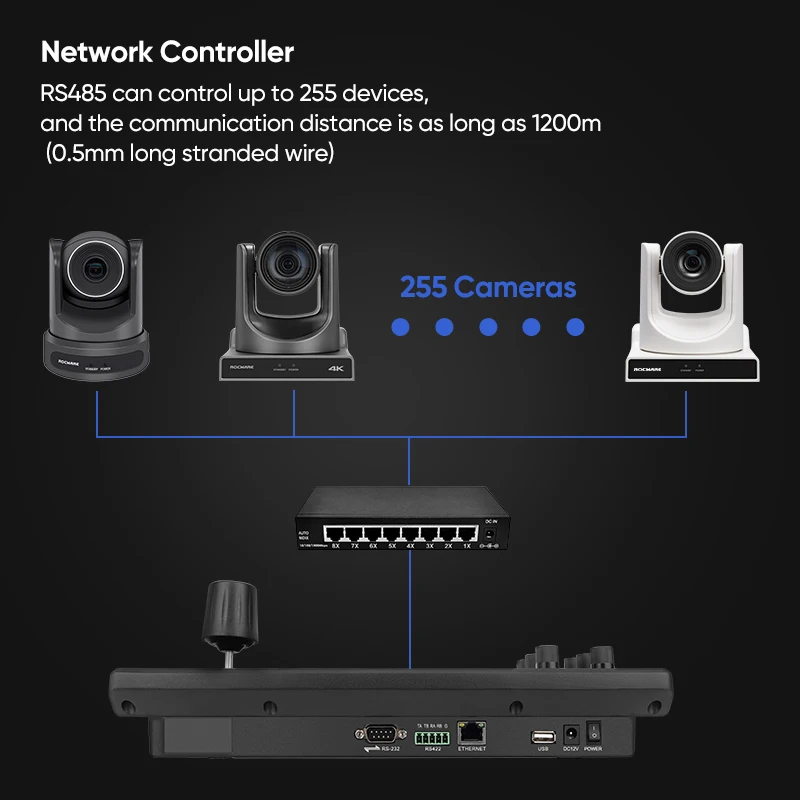

Number of Connection | VISCA233:7 / VISCA422:7 / VISCAIP:64 / ONVIF:110 |

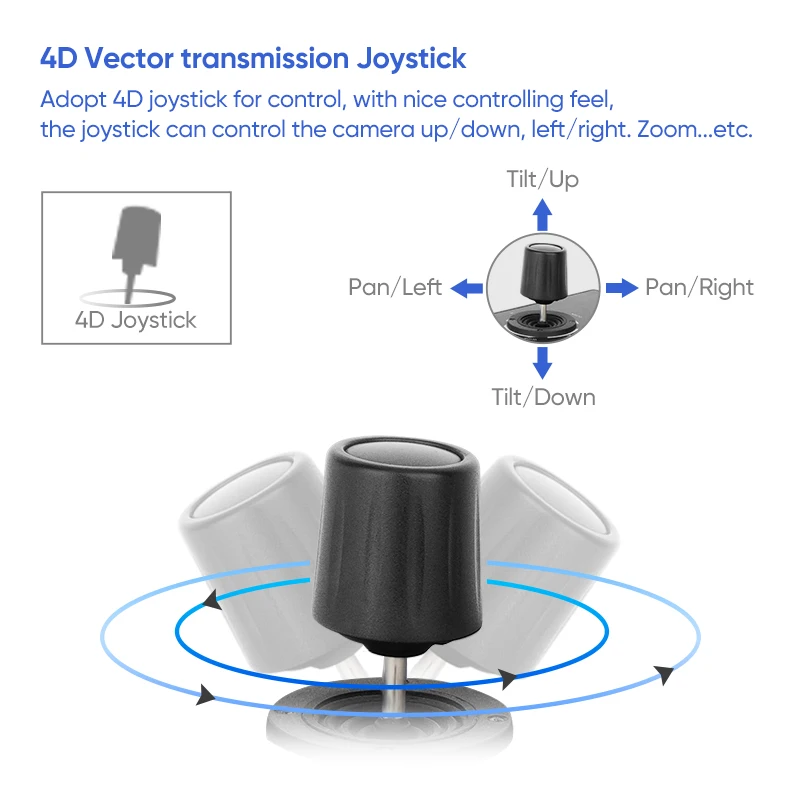

Knob/Button function | Menu switch; Backlight compensation on/off; Auto exposure mode, auto white balance mode, auto focus mode; Manual focus adjustment; Preset set, recall, delete; Aperture value adjustment; Red and blue gain adjustment |

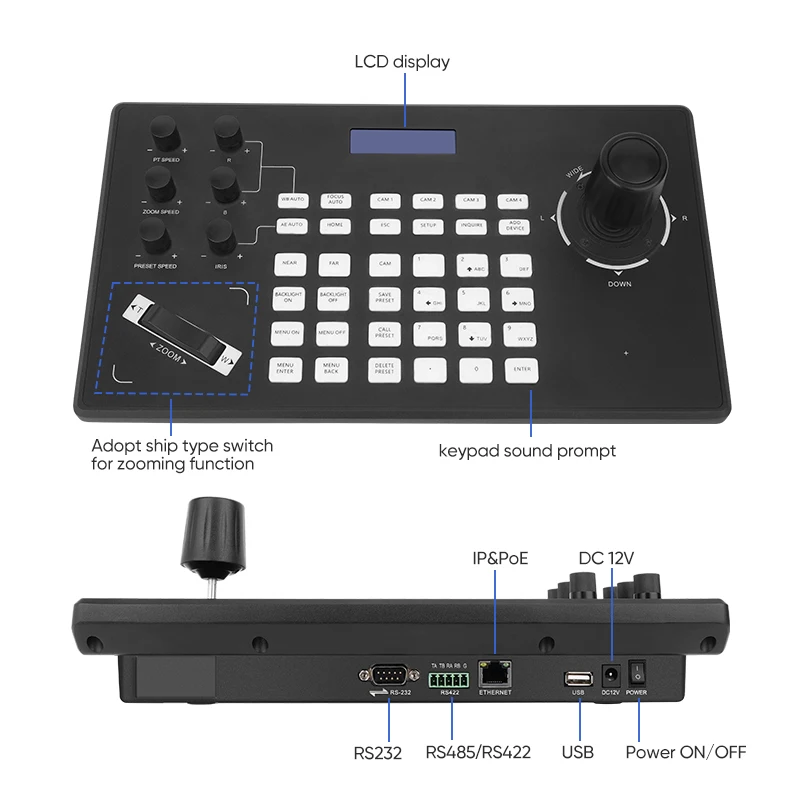

Interface | 1 x RS232, 30m (max.); 1 x RS485/RS422, 1200m (max.); 1 x RJ45, support PoE power supply; 1 x USB (reserved); 1 x DC 12V |
General Specifications | |
Input Voltage | DC 12V / PoE(802.3af) |
Input Current | 0.5A(Max.) |
Operating Temperature | 0° C ~ 50° C |
Storage Temperature | -20° C ~ 70° C |
Power Consumption | 0.6W(Max.) |
Dimension | 320mmX180mmX100mm |
Net Weight | 1.74Kg |
Certifications
Packaging & Shipping
Company Information
One of the first AV productions Suppliers
We have been designing and producing a wide range of AV products, including PTZ Cameras, USB Webcams, Video Soundbars, and Microphones. ROCWARE has the products to meet your Educational, Video conferencing, Live streaming, and medical-video resolution needs. For any audio/video application, Rocware has the product you need at the highest quality and price.
Rocware's products have been widely used in important events like The G20 Summit and Beijing 2022 Winter Olympics.

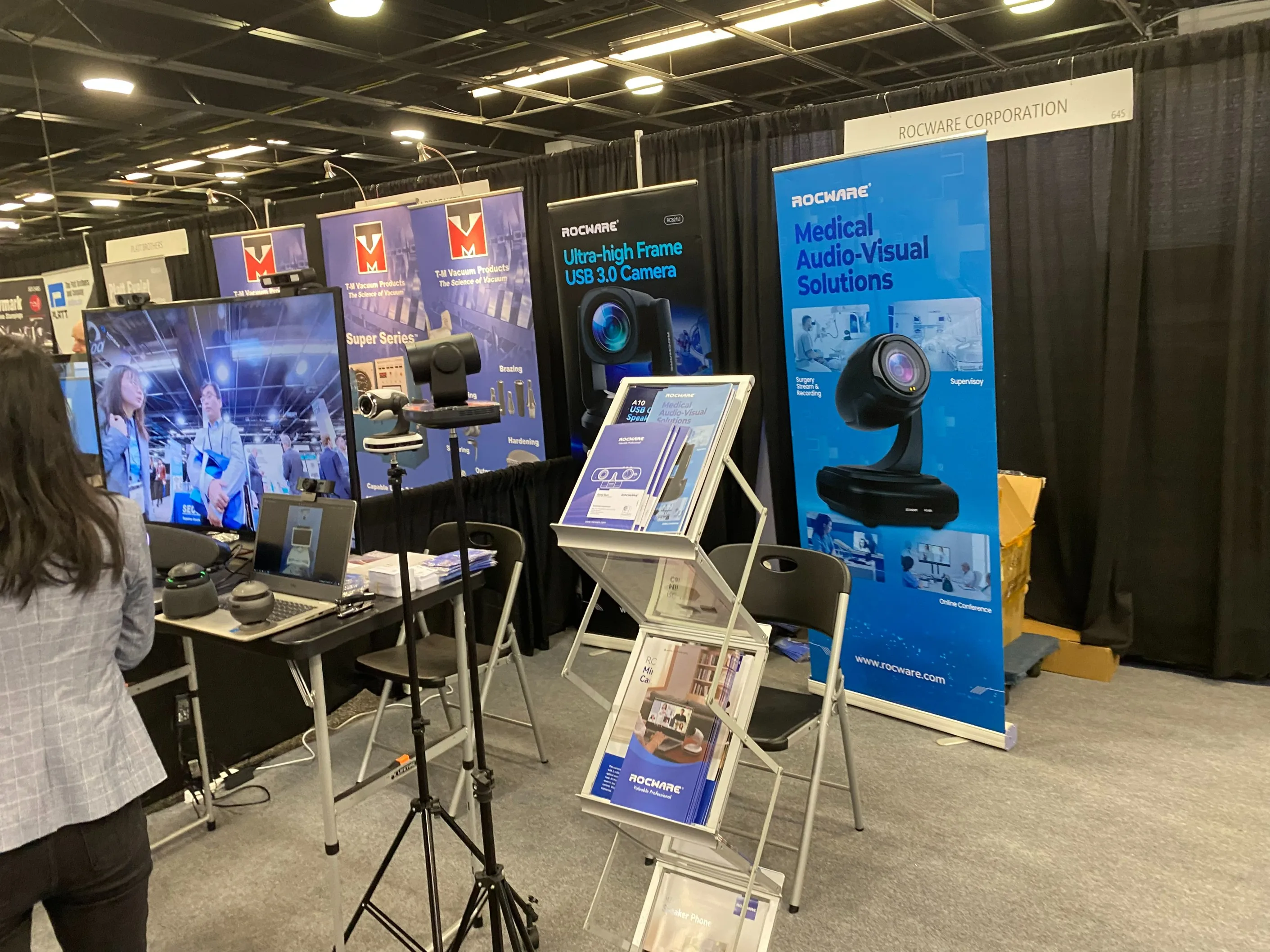

Trade Shows
