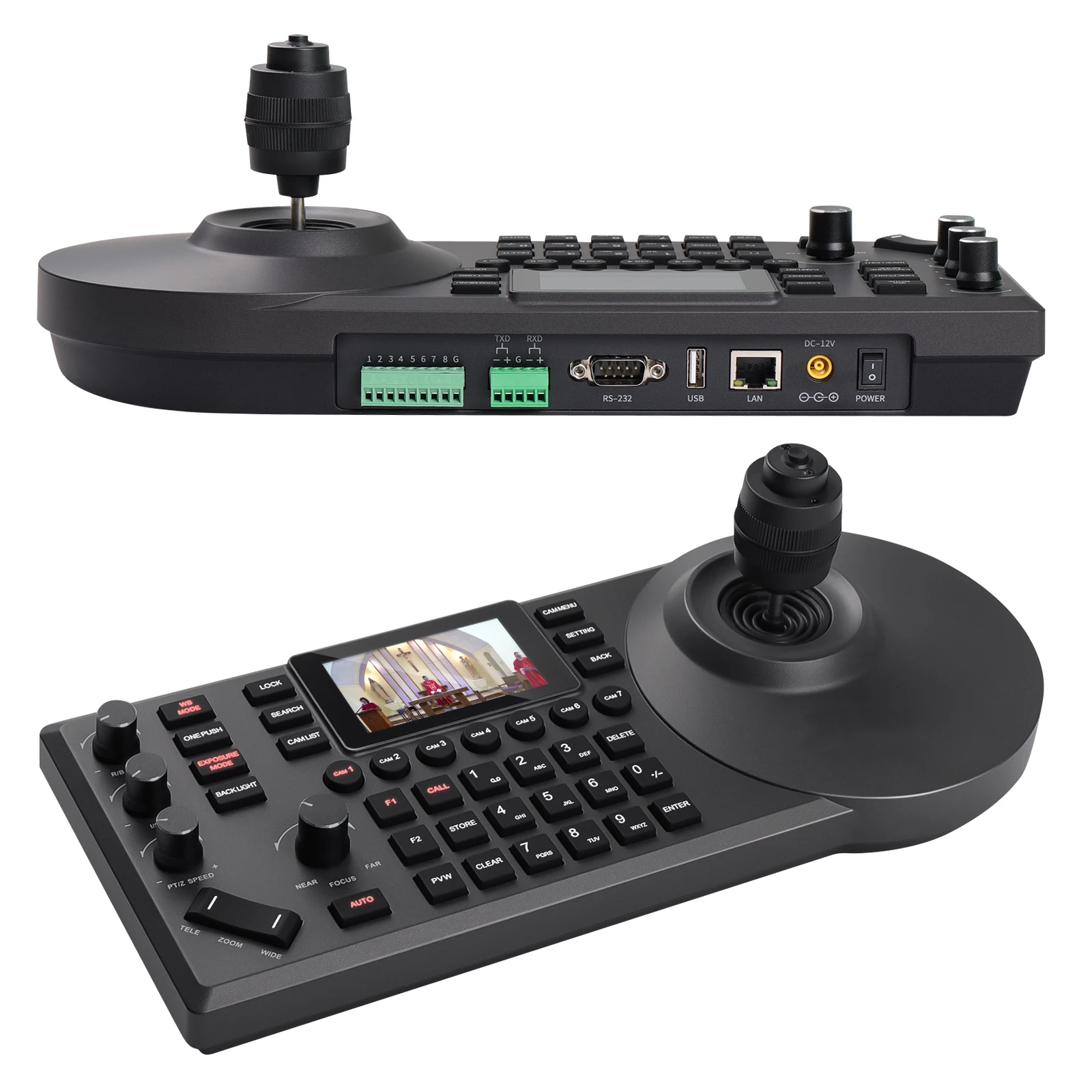

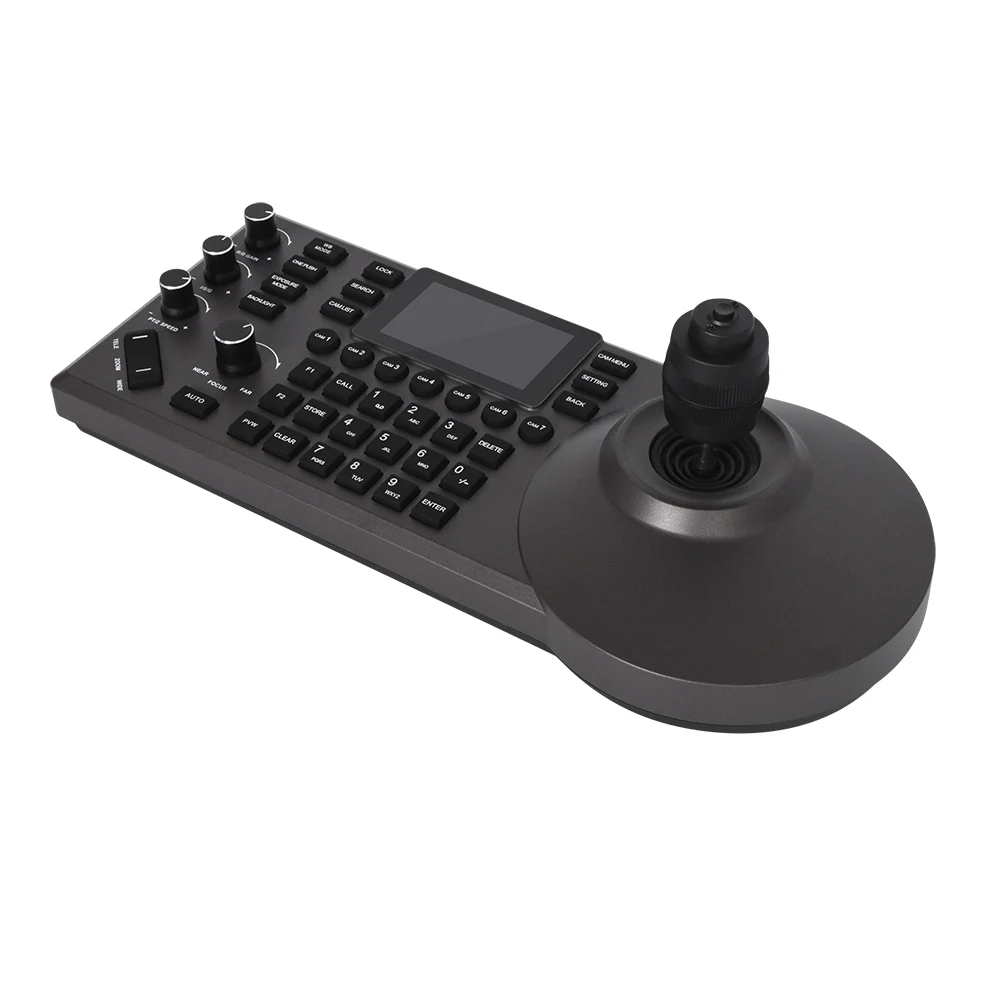

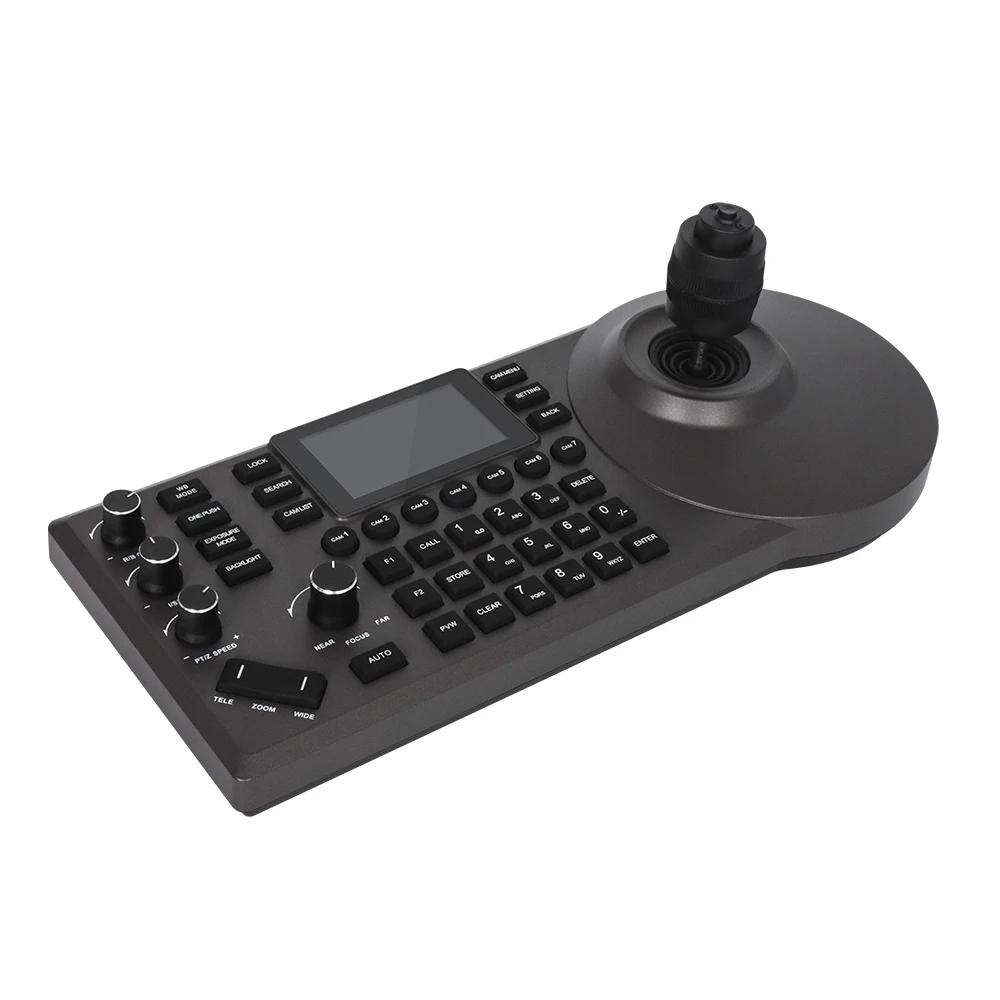

PTZ Camera Controller Keyboard with 4D Joystick for Live Streaming PTZ Network Keyboard Visca PELCO D/P RS232 RS485 3 Inch LCD
ZMK20 - PTZ Controller PoE PTZ IP Controller Keyboard with 4D Joystick for Church & Worship, Education, Teaching Broadcast, Conference, Esports, Events etc. , completely compatible with VISCA, PELCO- P & D protocol , Supports RS232, RS422, RS485 and Ethernet IP connections.
Control over IP POE supported, very easy to use, just one cable to connect to your LAN.

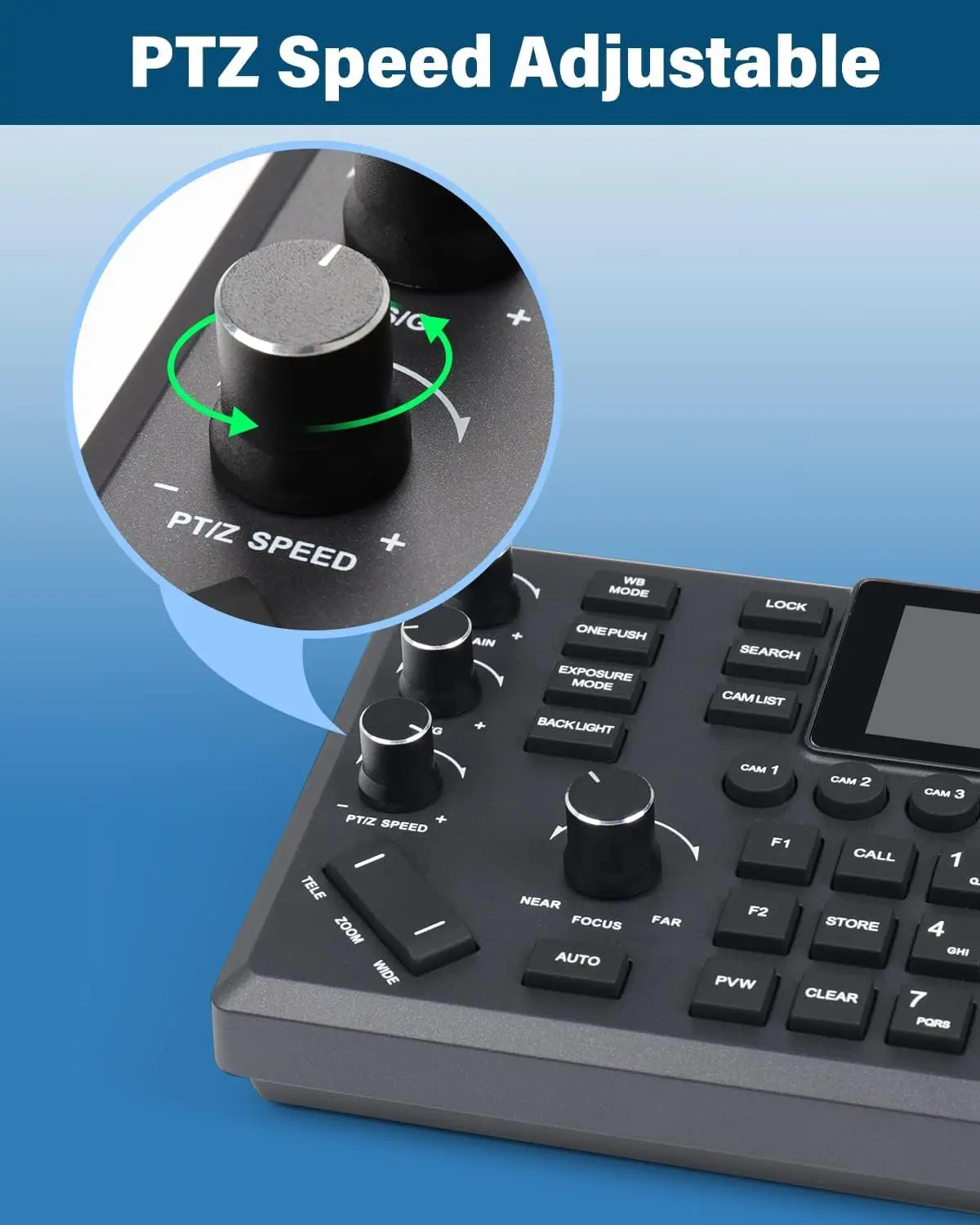

Easy and professional to control PTZ Cameras, Pan, Tilt, Zoom, focus, Iris, backlight, presets, PTZ Speed, quick PTZ Camera select & more.
Support 7 cameras quick select,control Up to 255 PTZ Cameras.
Ethernet IP connection control the IP Streaming PTZ Cameras in your LAN only by one network cable.
A Controller for Multi-Camera and Multi-angle control Video Production and Live Streaming.

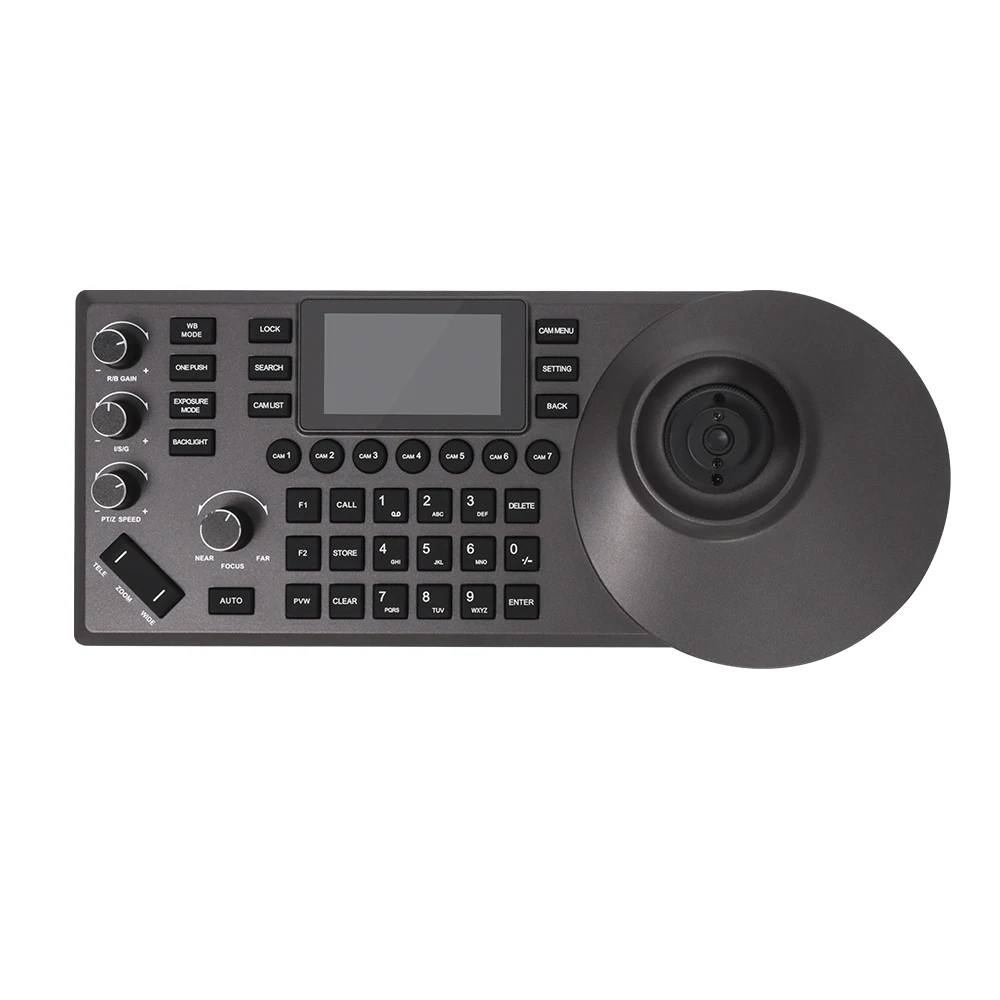

Product Description
Keyboard Parameters | |
Joystick | 4D precision Joystick |
Knobs | 3D knobs, support scale rotation to adjust parameters, support button function to select mode |
Buttons | High-quality silicone buttons, support white and red two-color backlight |

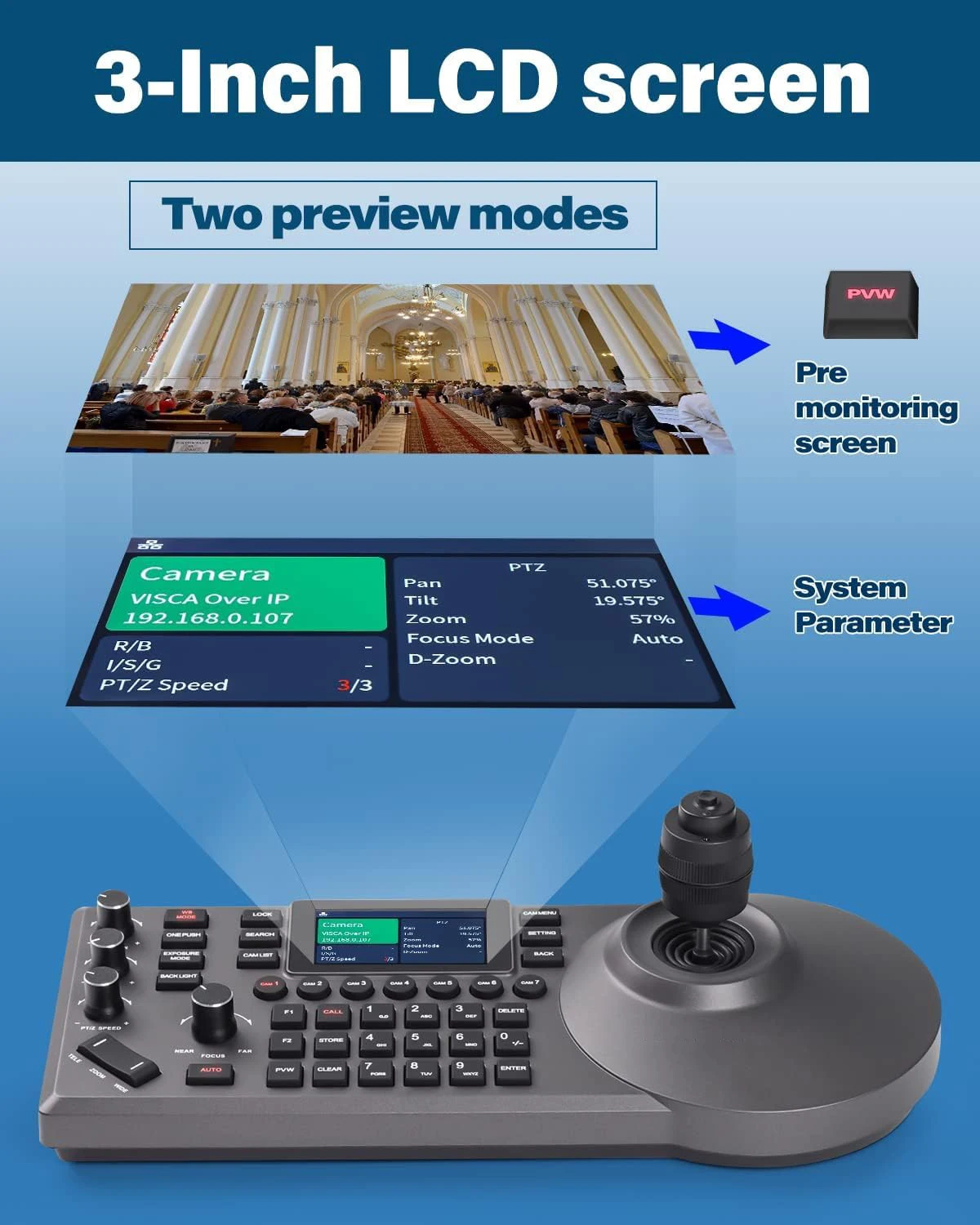

Screen | 3″ LCD color display |
Shortcut Button | Support 7 camera shortcut button settings |
Button Prompt Tone | Button sound prompt On/Off |
Lock Button | Support one-key lock function |
Max. Control Quantity | 1000 |
Max.Preset Position | 255 |
Control: | |

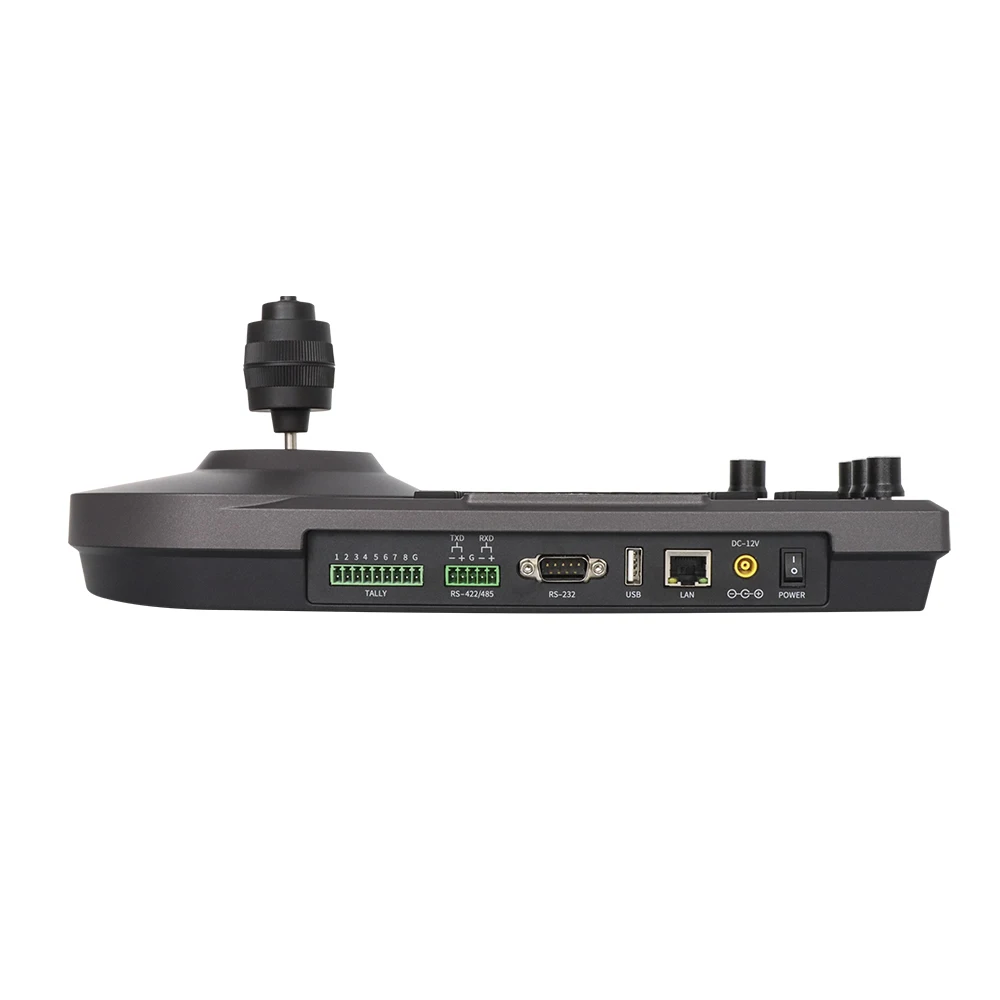

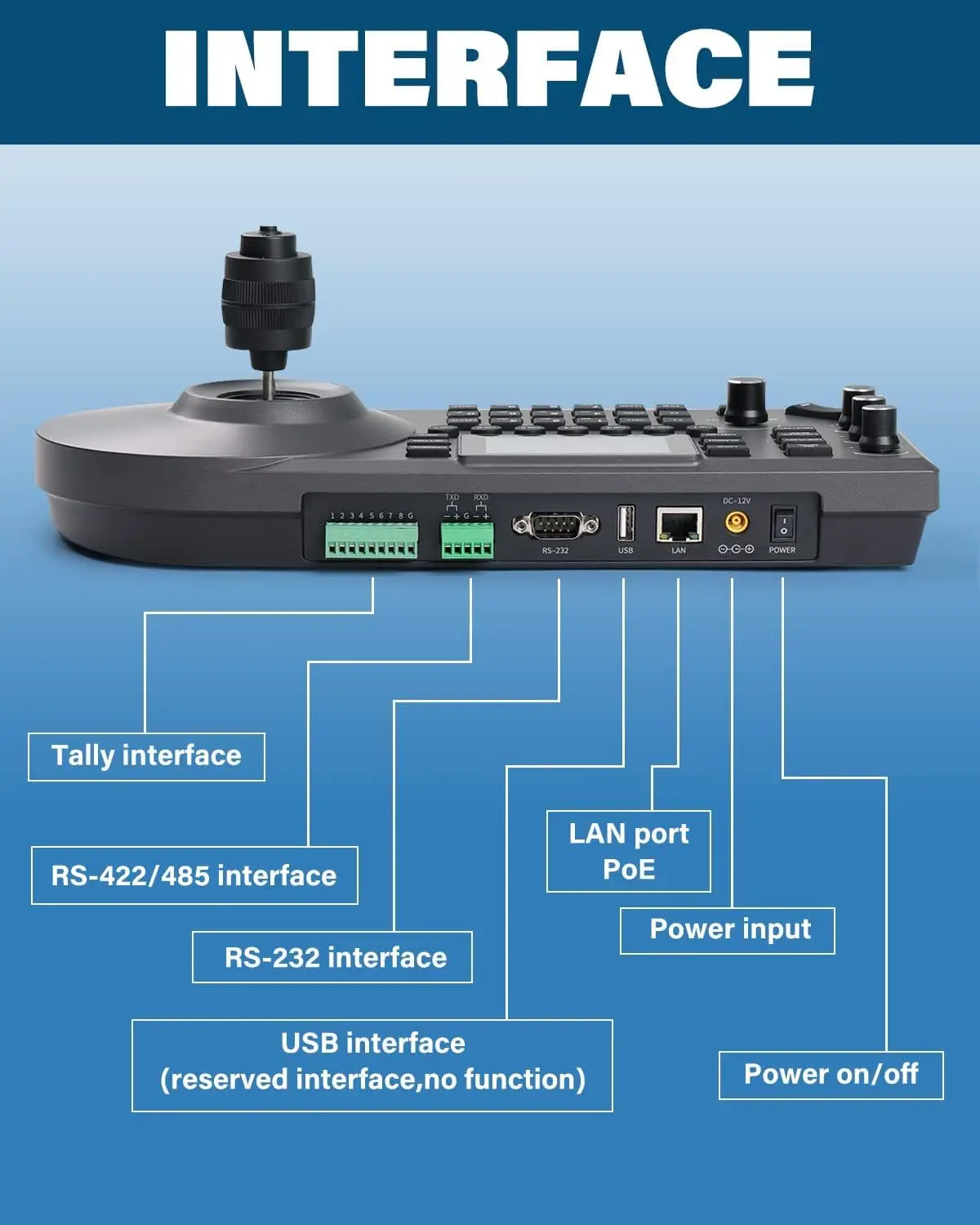

Control Interface | RJ45(support POE and NDI HX2),RS-232,RS-422/485 |
IP Control Protocol | Onvif,VISCA Over IP,VISCA TCP,NDI |
Serial Port Protocol | VISCA,Pelco D,Pelco P |
Power Supply: | |
Input Voltage | 12V |
Input Current | 0.25A |
POE | 802.3af |
Rated Power | 3W |
Other: | |
Tally | Support up to eight channels |
Operating Environment | Indoor |
Operating Temperature | -10℃ -40℃ |
Storage Temperature | -20℃-60℃ |
Dimensions | 332*136*58mm( Joystick height is not included) 332*136*116mm(Joystick height is included) |
