European Seamless Y6 Half Round Rain Drip Edge Gutter Guard and Water Downspout K Span Roll Forming Making Machine
- Category: >>>
- Supplier: Zhengzhou Linran Equipment Co. Ltd.
Share on (1601193336040):
Product Overview
Description
Products Description

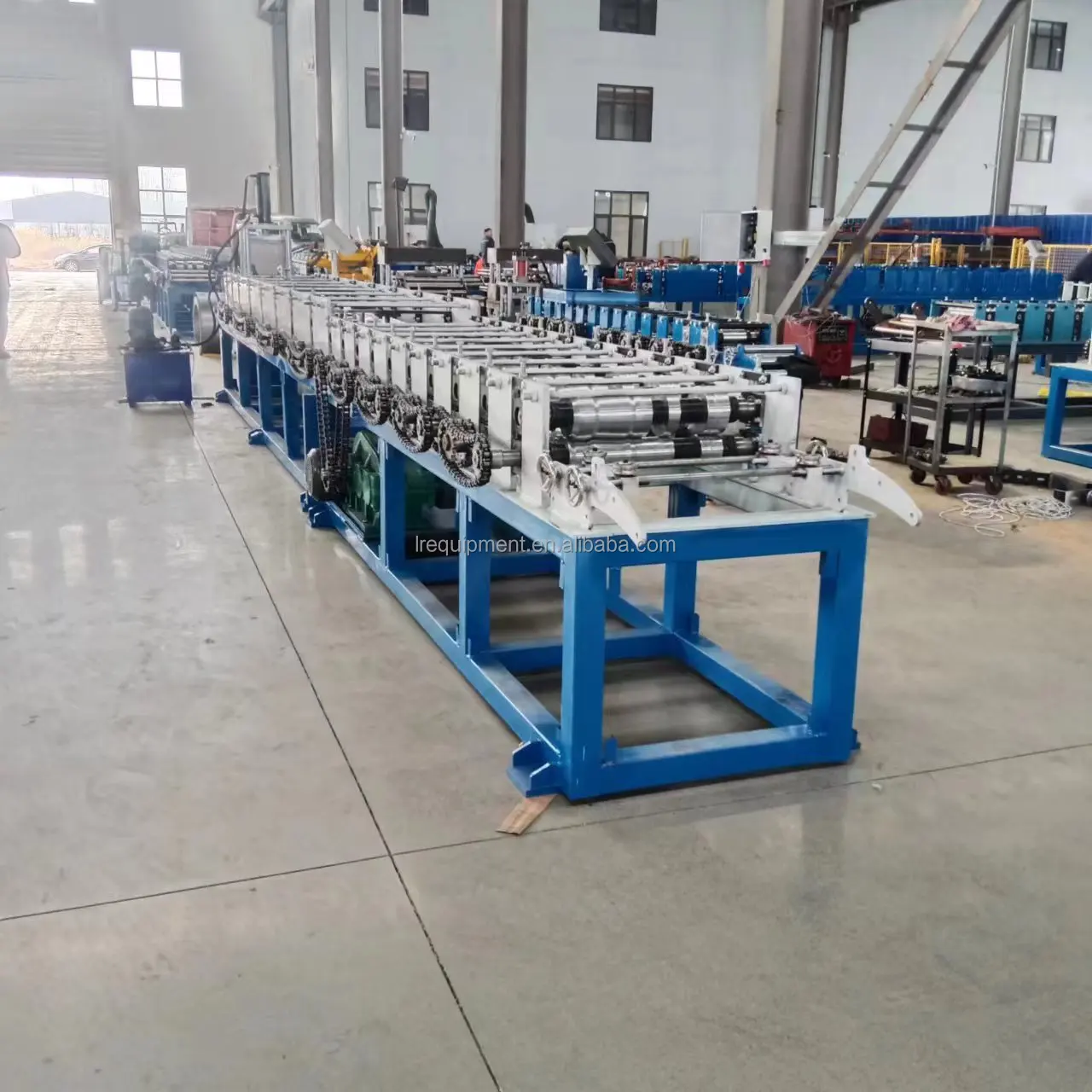

European Seamless Y6 Half Round Rain Drip Edge Gutter Guard and Water Downspout K Span Roll Forming Making Machine

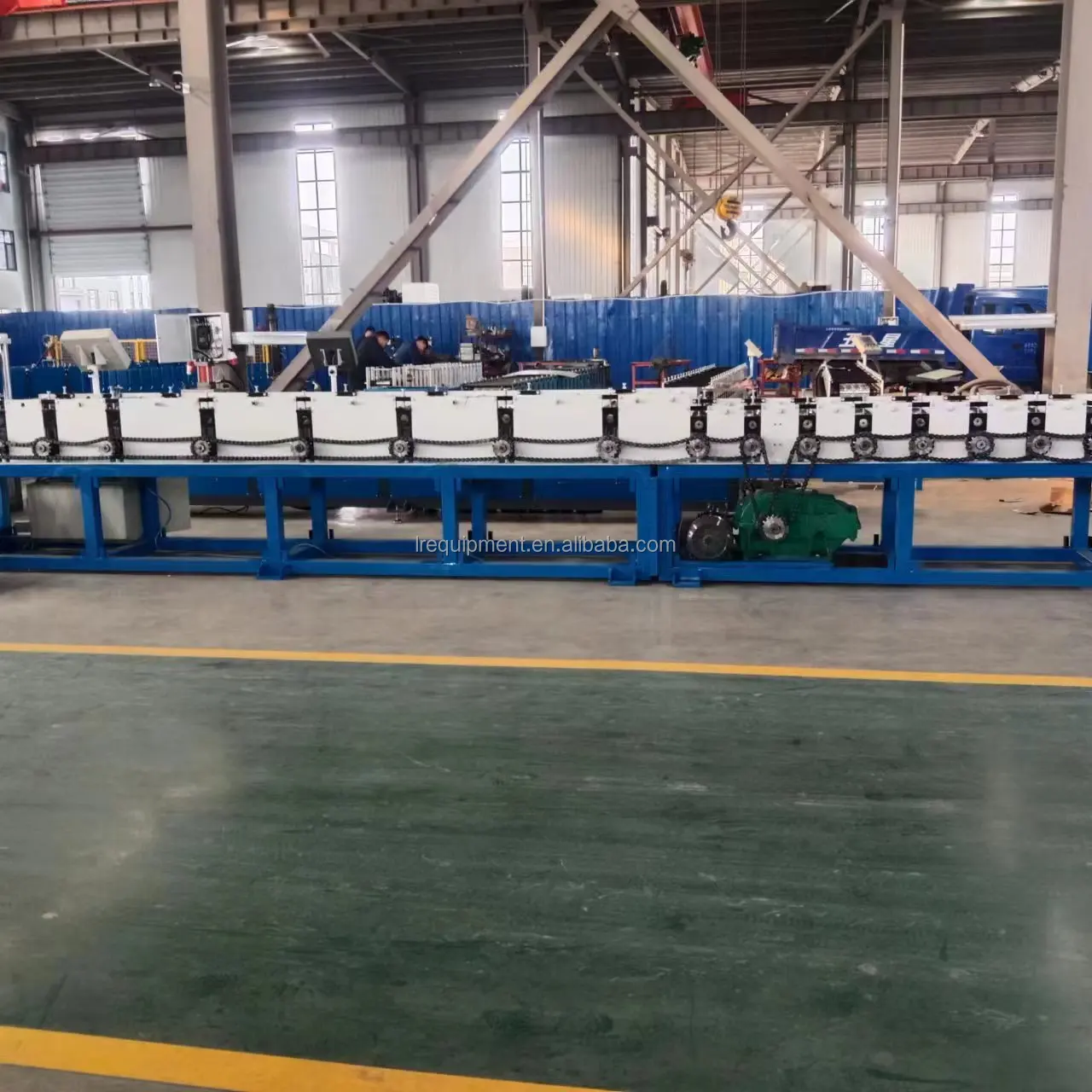

Rain gutter forming machine
European Seamless Y6 Half Round Rain Drip Edge Gutter Guard and Water Downspout K Span Roll Forming Making Machine can bend the roll formed pipe, and let the drainpipe and the bending connect to be the whole.The product after roll forming has long working time than the tranditional ppc pipe, and not aging. It can make the project more integrate, and help to enhance the image of the all project.

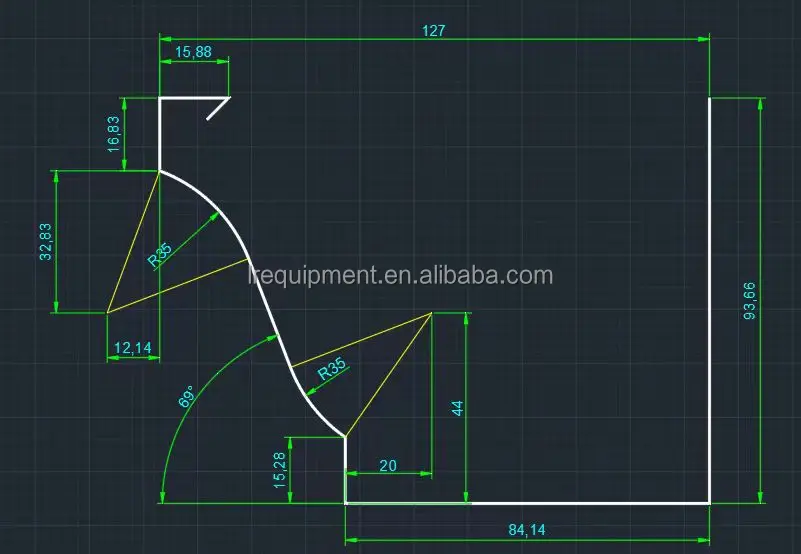

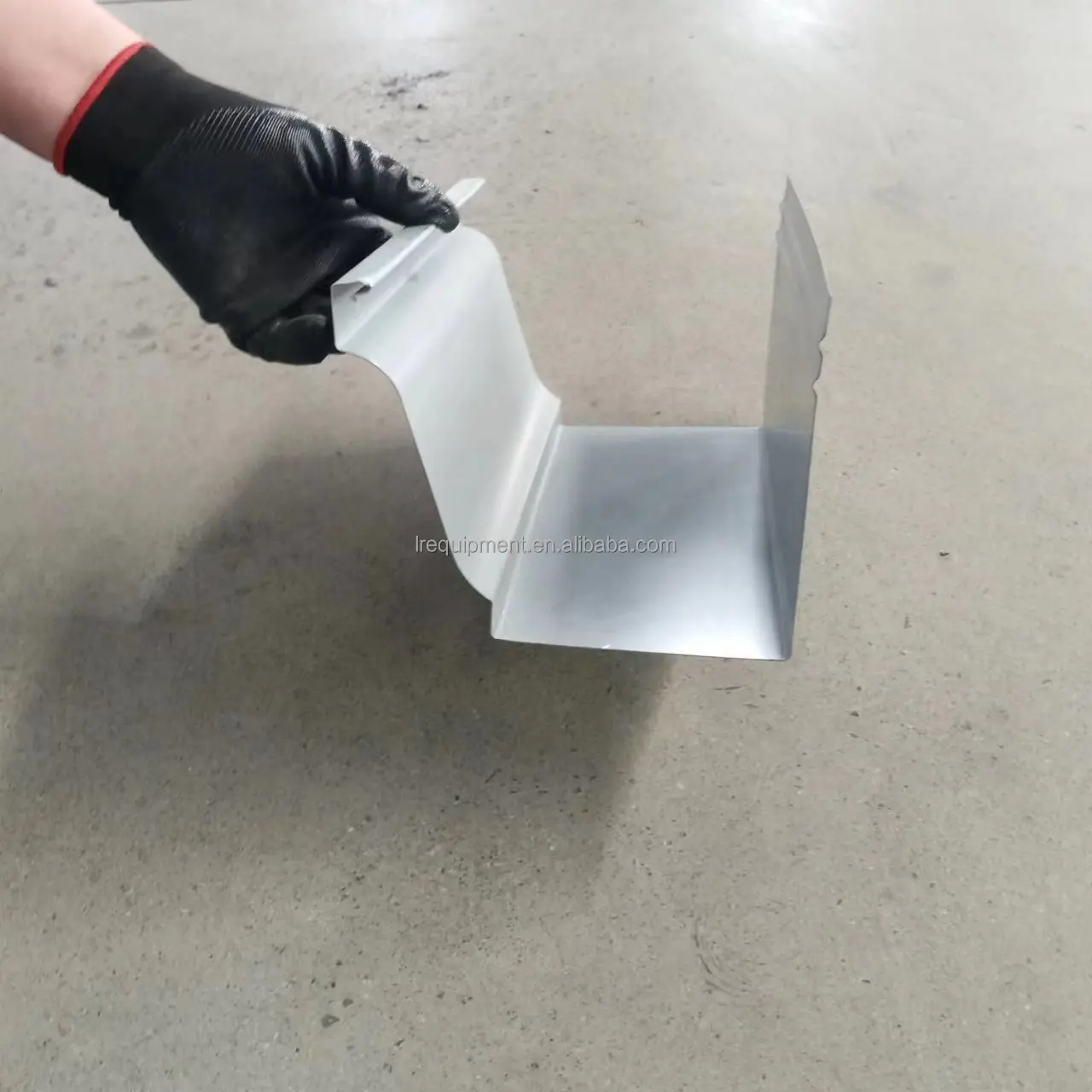

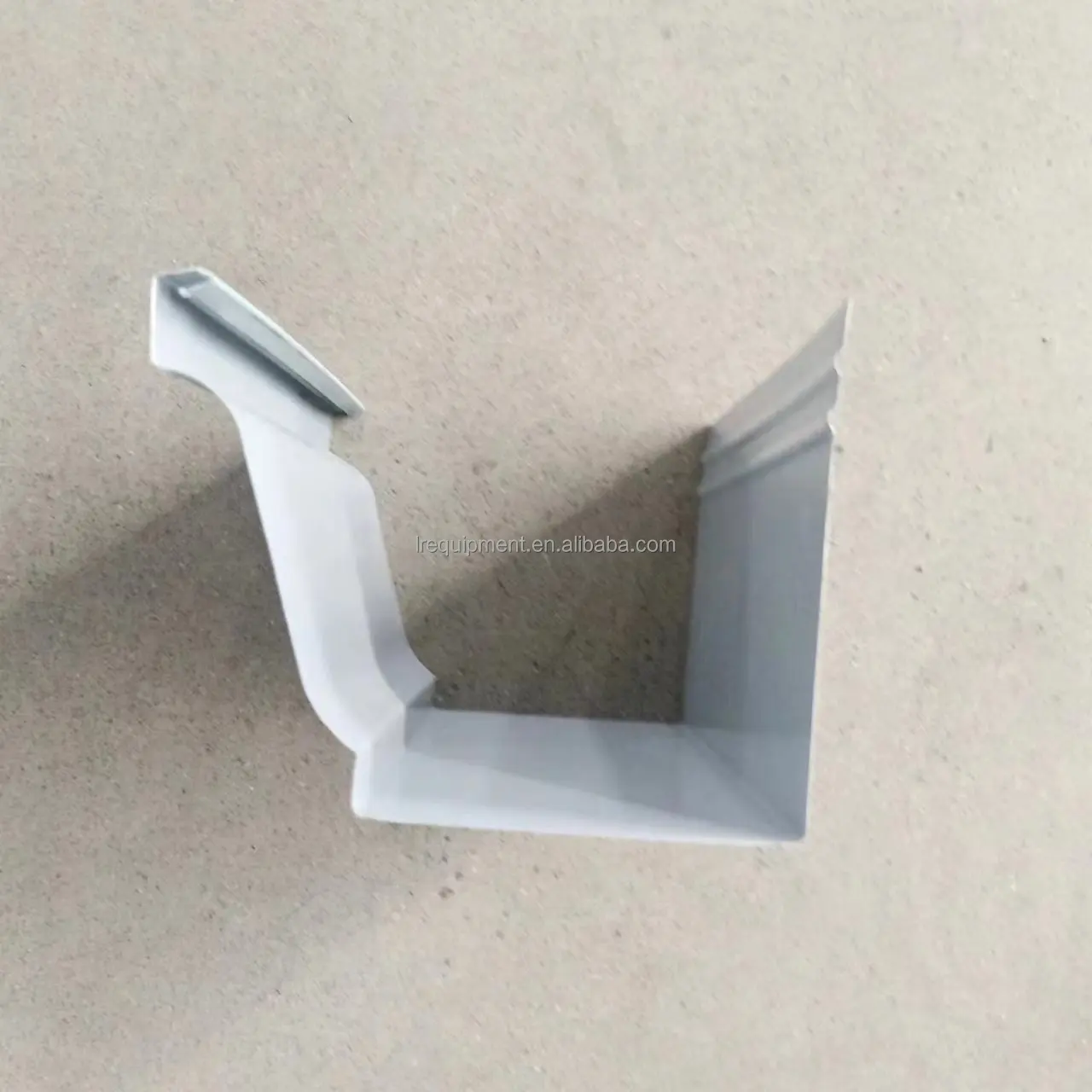

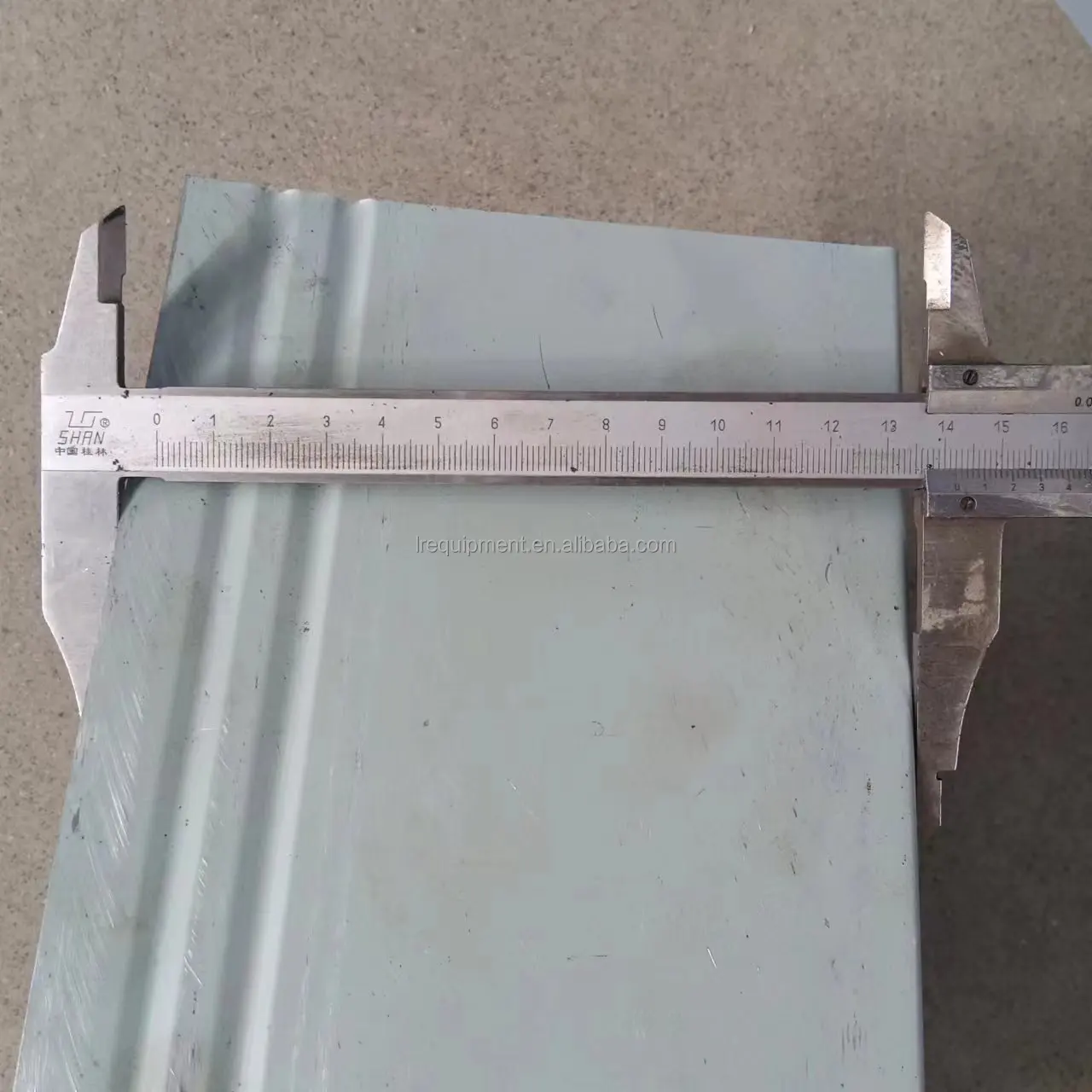

Forming profile show
Work flow
Rain gutter forming line process: 3T decoiler-- Feeding system--Forming system--Cutting system--Receiving system
Product Paramenters
1 | Raw material | PPGI /PPGL | Material thickness | 0.25-0.8mm |
2 | Feeding device | Platform, the width is adjustable | Roller stations | 22 stages |
3 | Roller shaft | 45# steel | Shaft diameter | φ70 mm |
4 | Roller | 45# steel | Work speed | 25m/min |
5 | Main structure | Middle plate weld with structure | Motor power | 5.5KW, SHANGHAI LICHAO BRAND |
6 | Transmission | 1.0 INCH CHAINS | Machine basic frame | 400# H steel welded with diagonal bracing inside |
7 | Bearing | Chinese famous brand: Harbin | PLC brand | Delta (original) |
8 | Hydraulic system | 4.0KW | Driving type | By pillar type cylinder |
Configuration
1.5/3ton Feeding rack
Coil Width: Max. 800mm
Coil Inner Diameter: 450-550mm
Structure: Welded by The Steel Plates and Profiled Bar.
Size: ~1800×1600×1500mm(L×W×H)
Feature:
The Shrink and Expand of The Core is Manually, with Manual Brake;
The Coil Moving Forward or Recerse is Pulled Passively by Roll Forming Machine.
Founction: It is used to support the steel coil and uncoil it in a turnable way.
Coil Inner Diameter: 450-550mm
Structure: Welded by The Steel Plates and Profiled Bar.
Size: ~1800×1600×1500mm(L×W×H)
Feature:
The Shrink and Expand of The Core is Manually, with Manual Brake;
The Coil Moving Forward or Recerse is Pulled Passively by Roll Forming Machine.
Founction: It is used to support the steel coil and uncoil it in a turnable way.
The feeding guide device at the main entrance of the machine during work,Raw materials on both sides of the plate the enter into
the machine by the guiding device,make the raw materials and roll forming system to maintain the correct position.The guiding
position can be adjusted by the manual screw mechanism,and the feeding guide width can be adjusted independently.
We add water cooling system in the feeder,it is can reduce coil material when the weather very hot.
the machine by the guiding device,make the raw materials and roll forming system to maintain the correct position.The guiding
position can be adjusted by the manual screw mechanism,and the feeding guide width can be adjusted independently.
We add water cooling system in the feeder,it is can reduce coil material when the weather very hot.

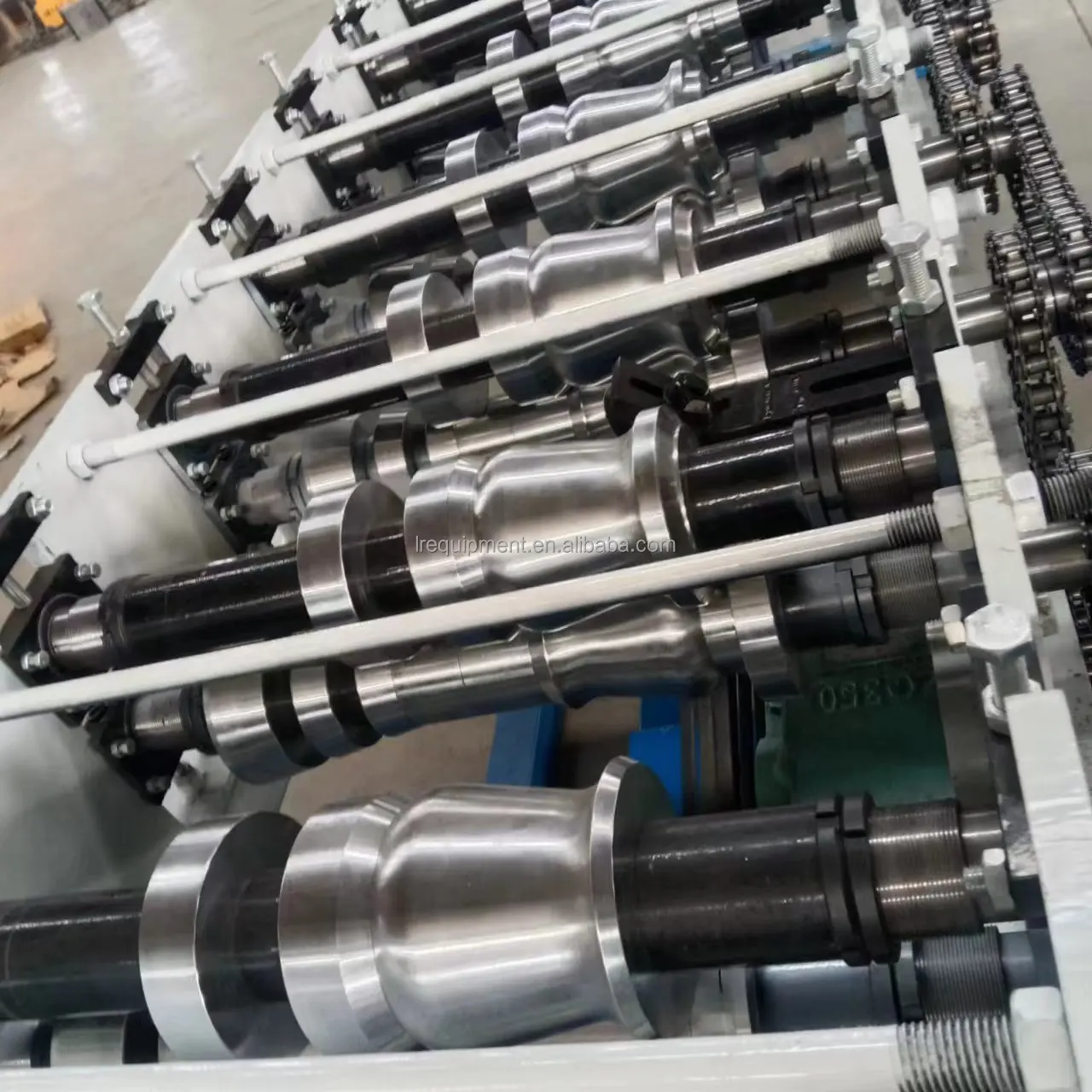

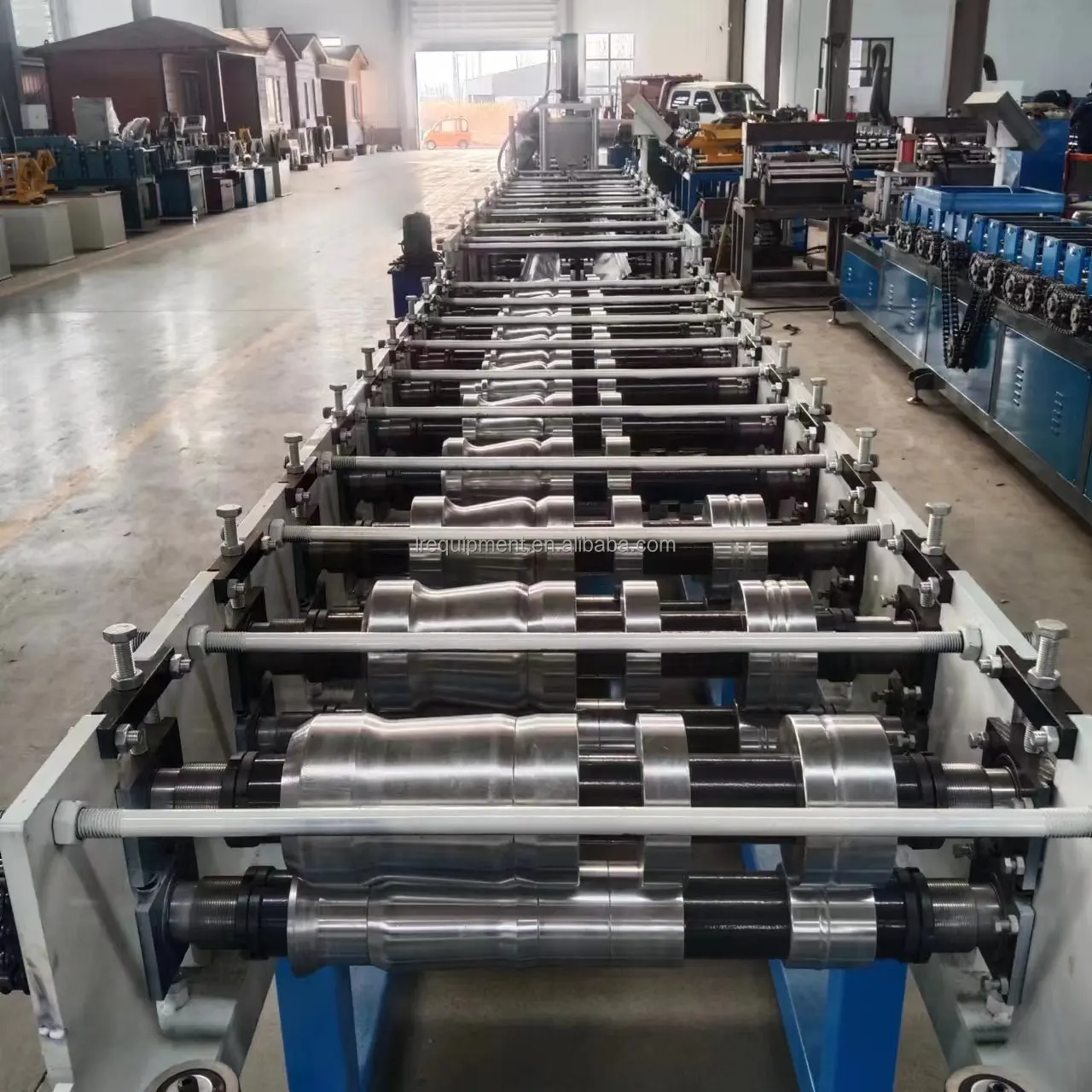

Forming mold: Cr12 molding steel, through vacuum quenching heat treatment to HRC60-62 °then grinding the inner Hole and the end face.
The precision machining roller surface with CNC lathe
Shafts material:40Cr steel,CNC lathes,Heat Treatment,hard Chrome Coated With thickness 0.04mm,surface with mirror treatment(for longer life and anti-rust)
Shafts material:40Cr steel,CNC lathes,Heat Treatment,hard Chrome Coated With thickness 0.04mm,surface with mirror treatment(for longer life and anti-rust)

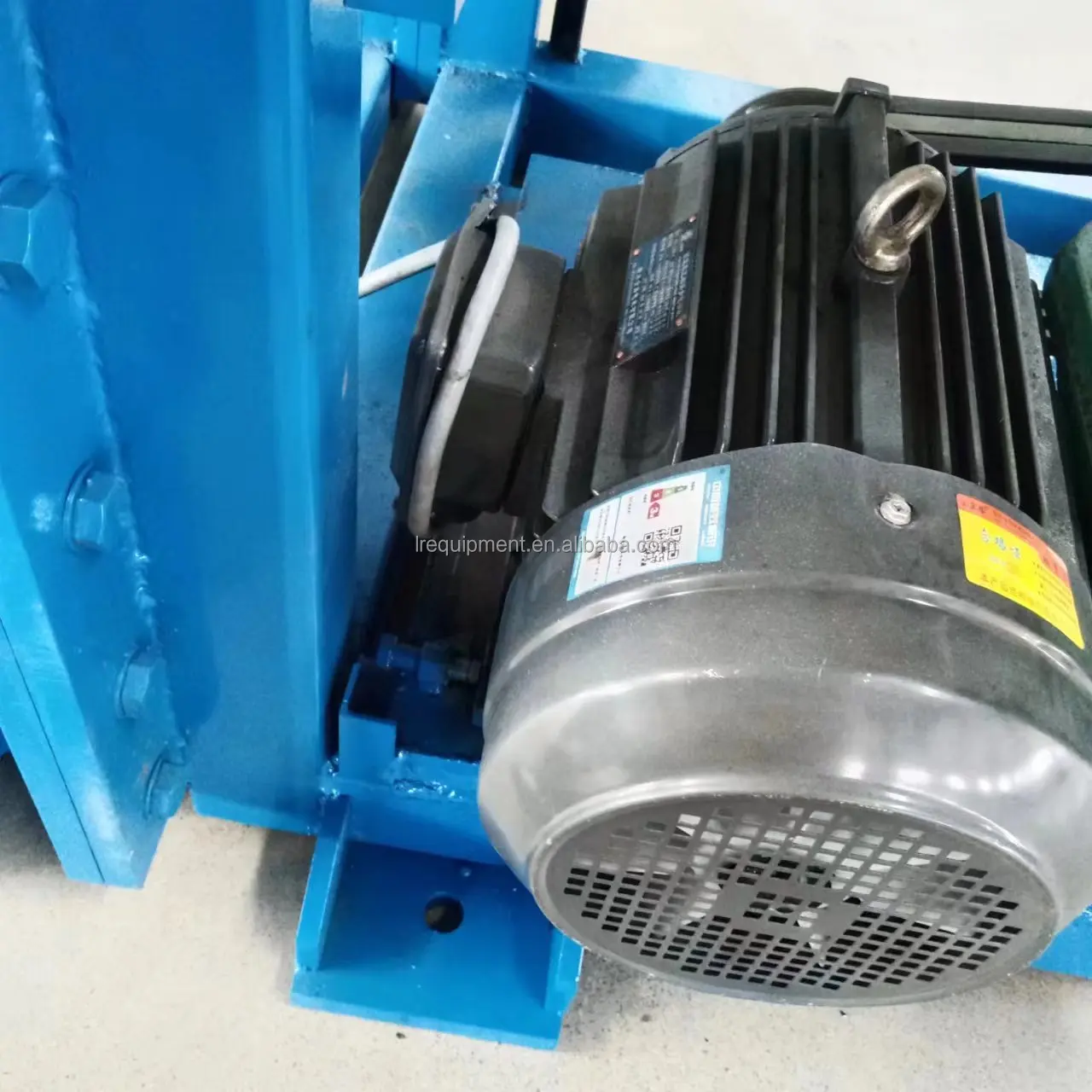

Main motor and 14 reducers combination driving,about 12-step to form Main Motor =5.5KW, Frequency speed control

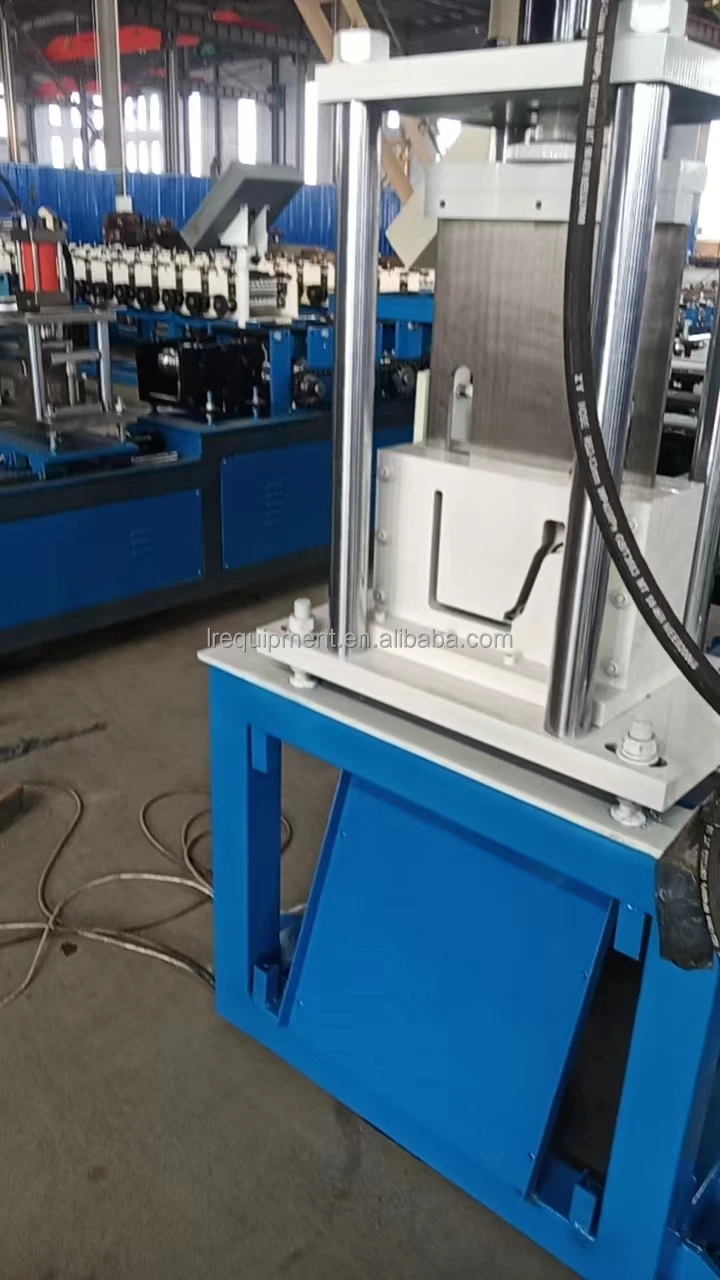

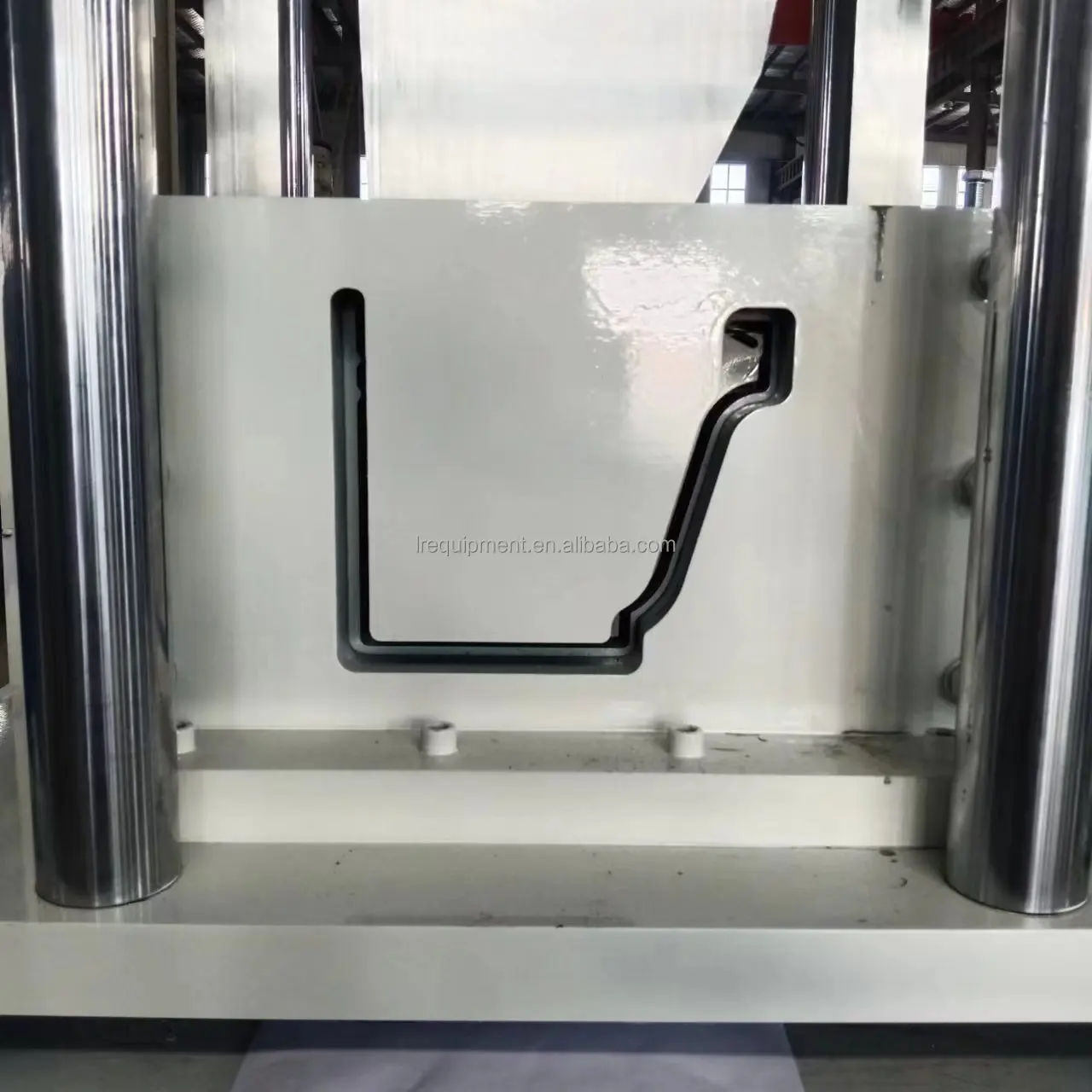

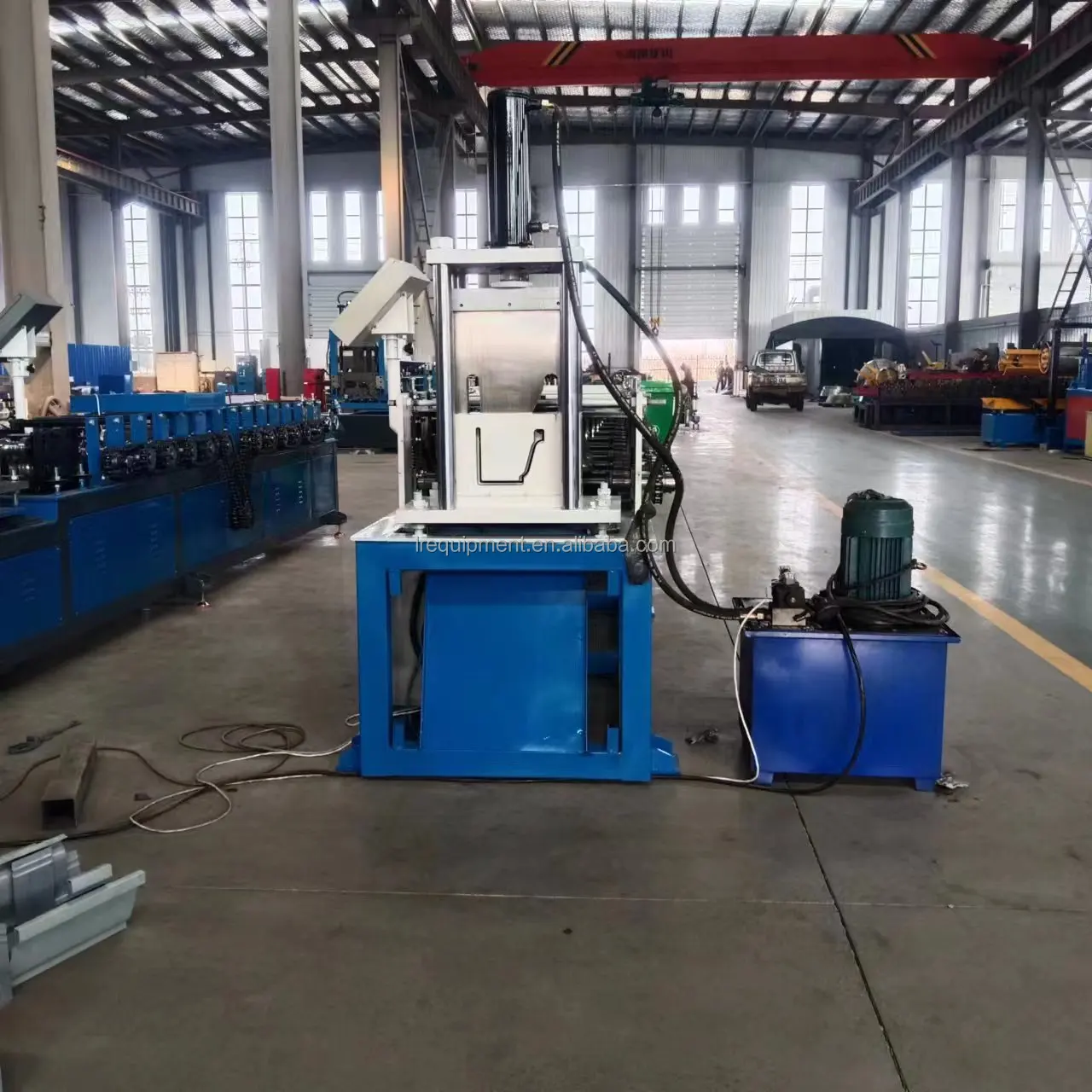

Cutter stype: Hydraulic stop cutting
The length of tolerance:±1.0mm(3m)
Cutter motor:Hydraulic
Servo motor power:4KW
The length of tolerance:±1.0mm(3m)
Cutter motor:Hydraulic
Servo motor power:4KW

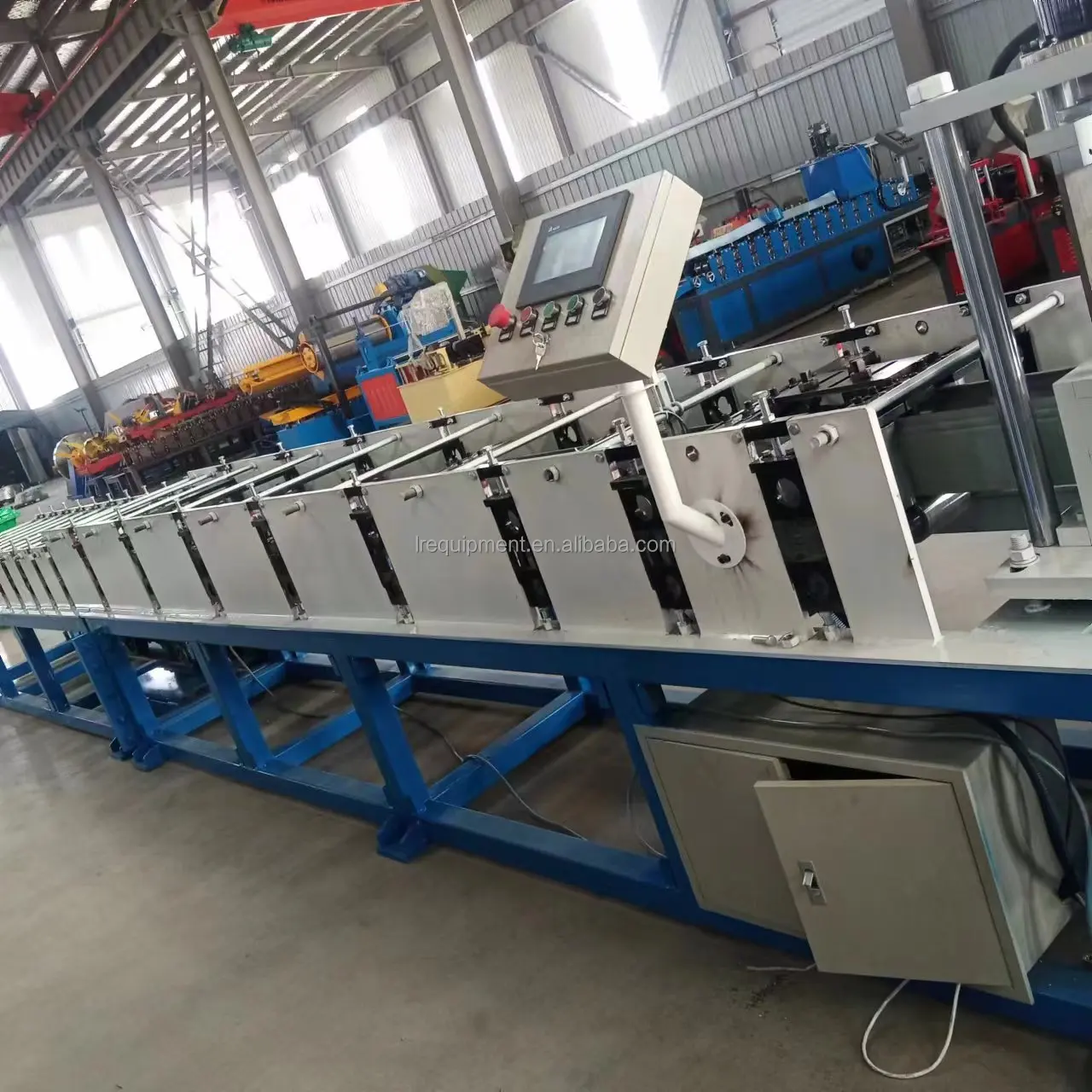

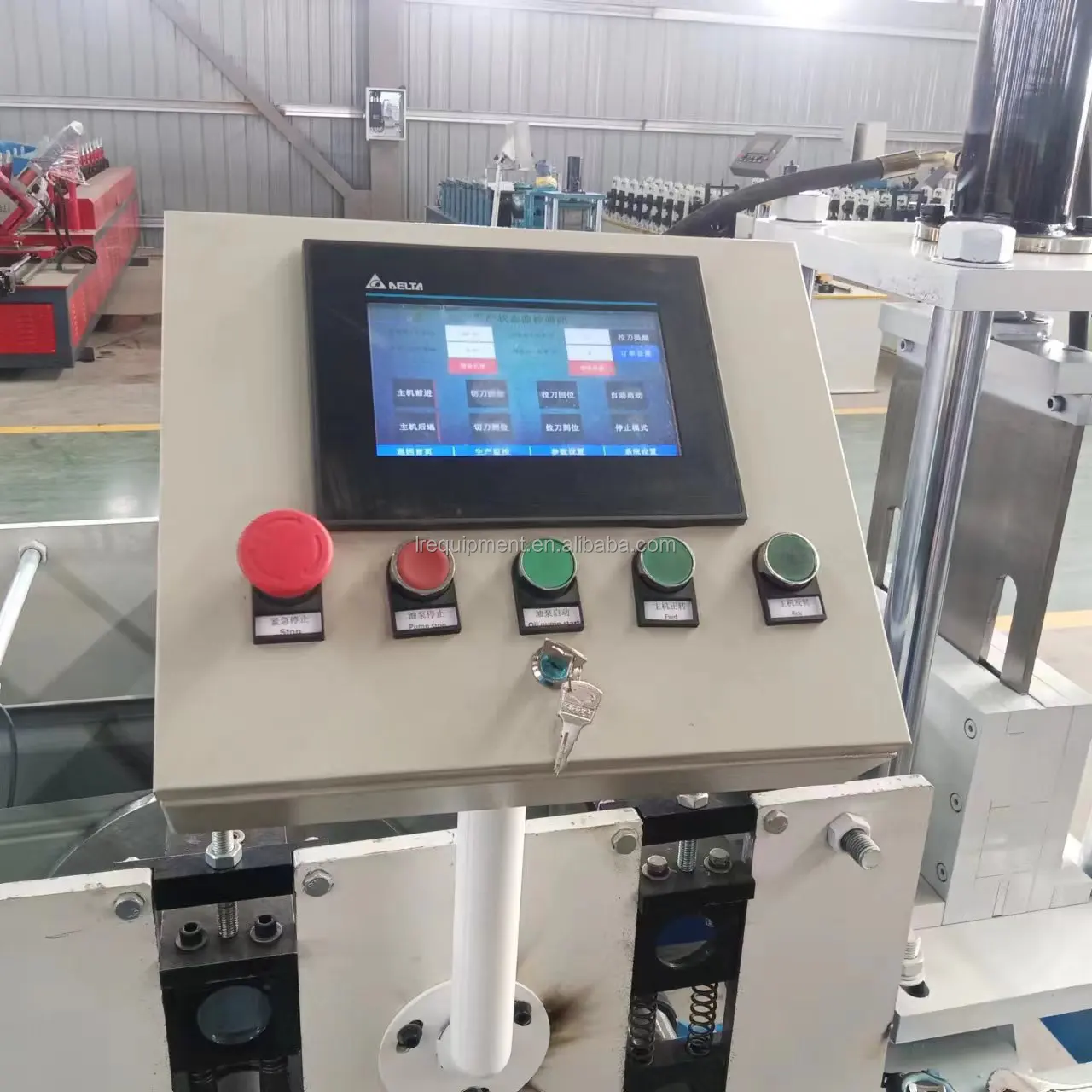

Control The Quantity And Cutting Length Automatically
Input The Production Data(Production Batch,pcs,Length,etc.)On The Touch Screen ,
It Can Finish The Production Automatically.

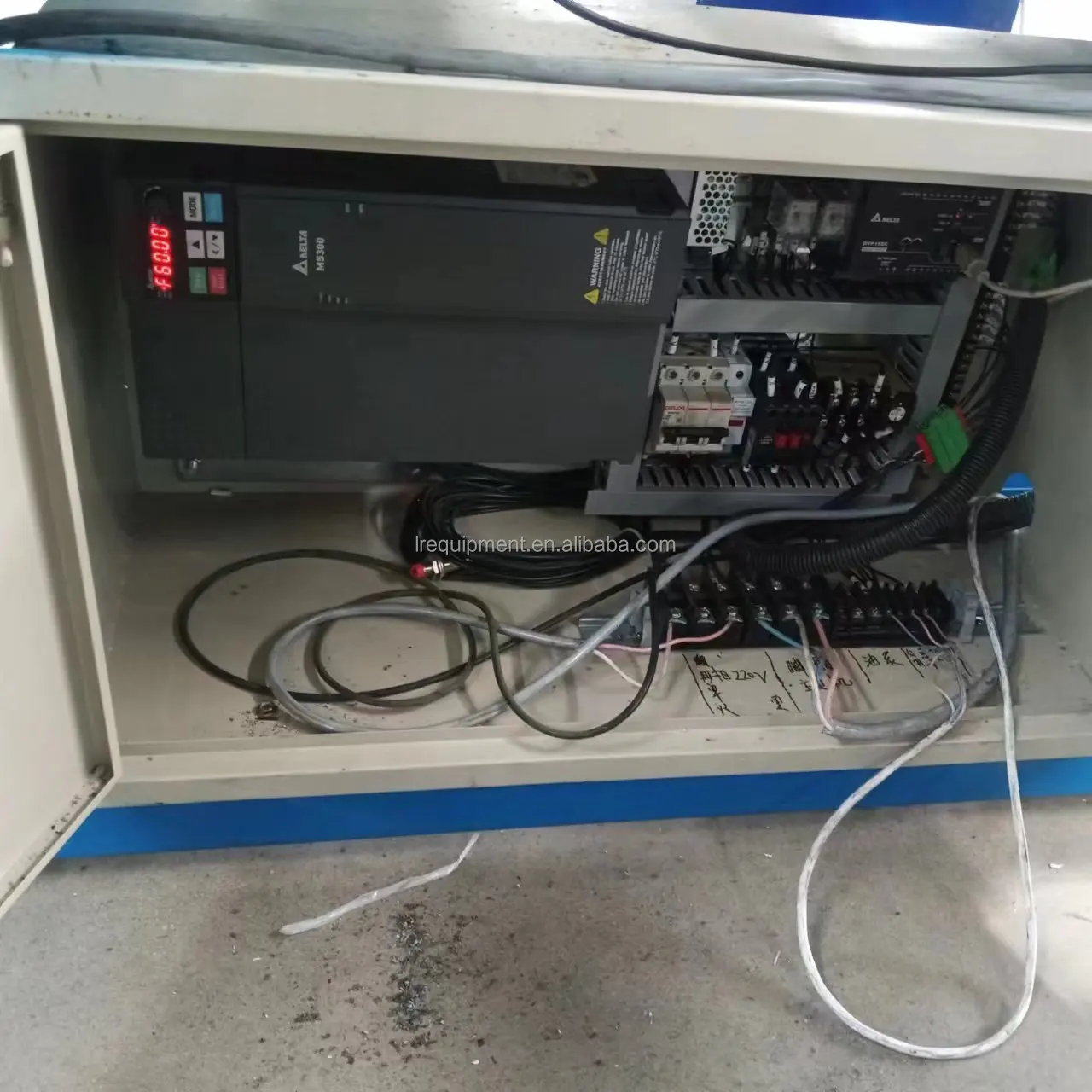

Combined With: PLC, Inverter, 10 Inch Touch Screen, Encoder, etc
Input The Production Data(Production Batch,pcs,Length,etc.)On The Touch Screen ,
It Can Finish The Production Automatically.
Combined With: PLC, Inverter, 10 Inch Touch Screen, Encoder, etc

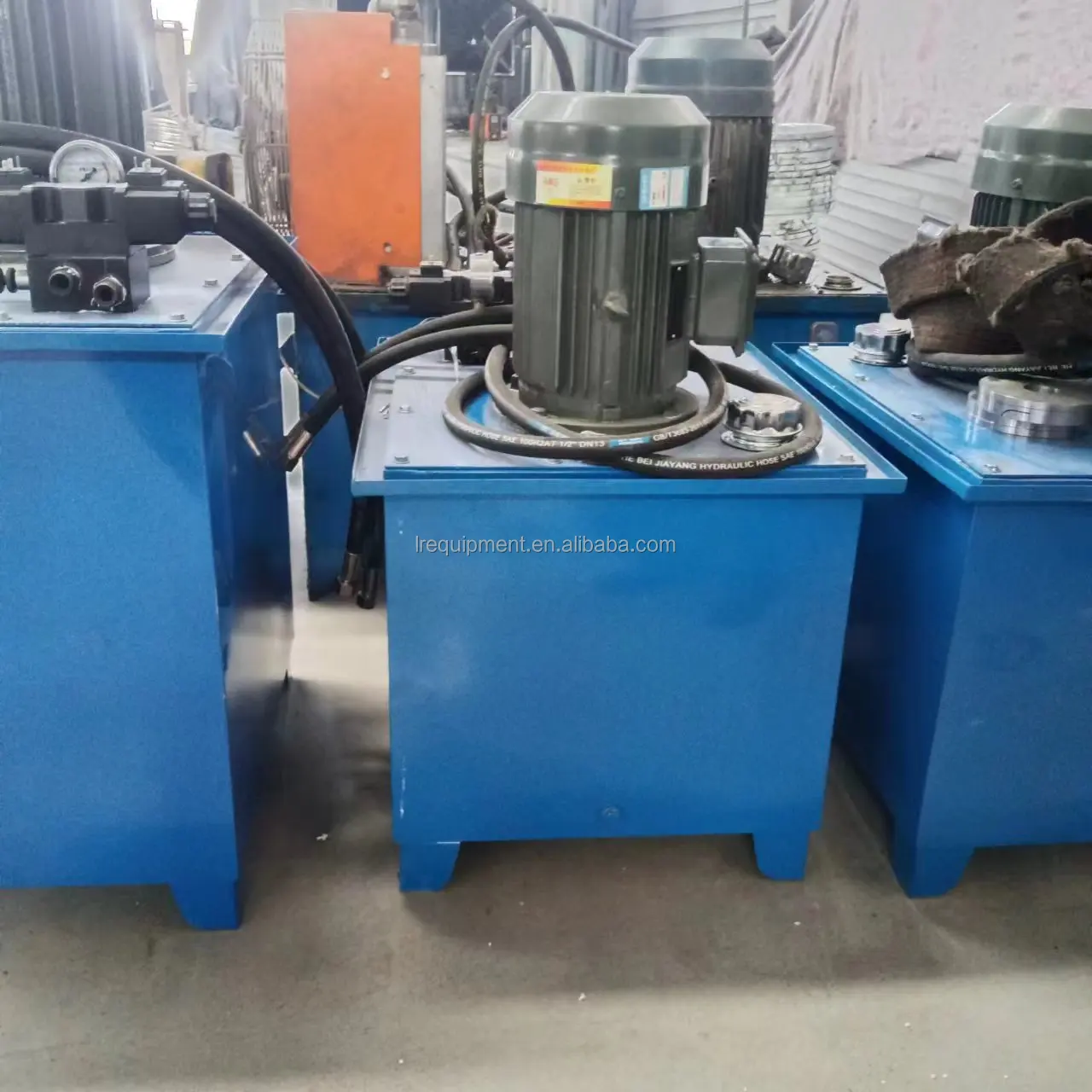

Hydraulic oil pump with fan cooling system
Power:4kw+4kw
Gear pump
Power:4kw+4kw
Gear pump

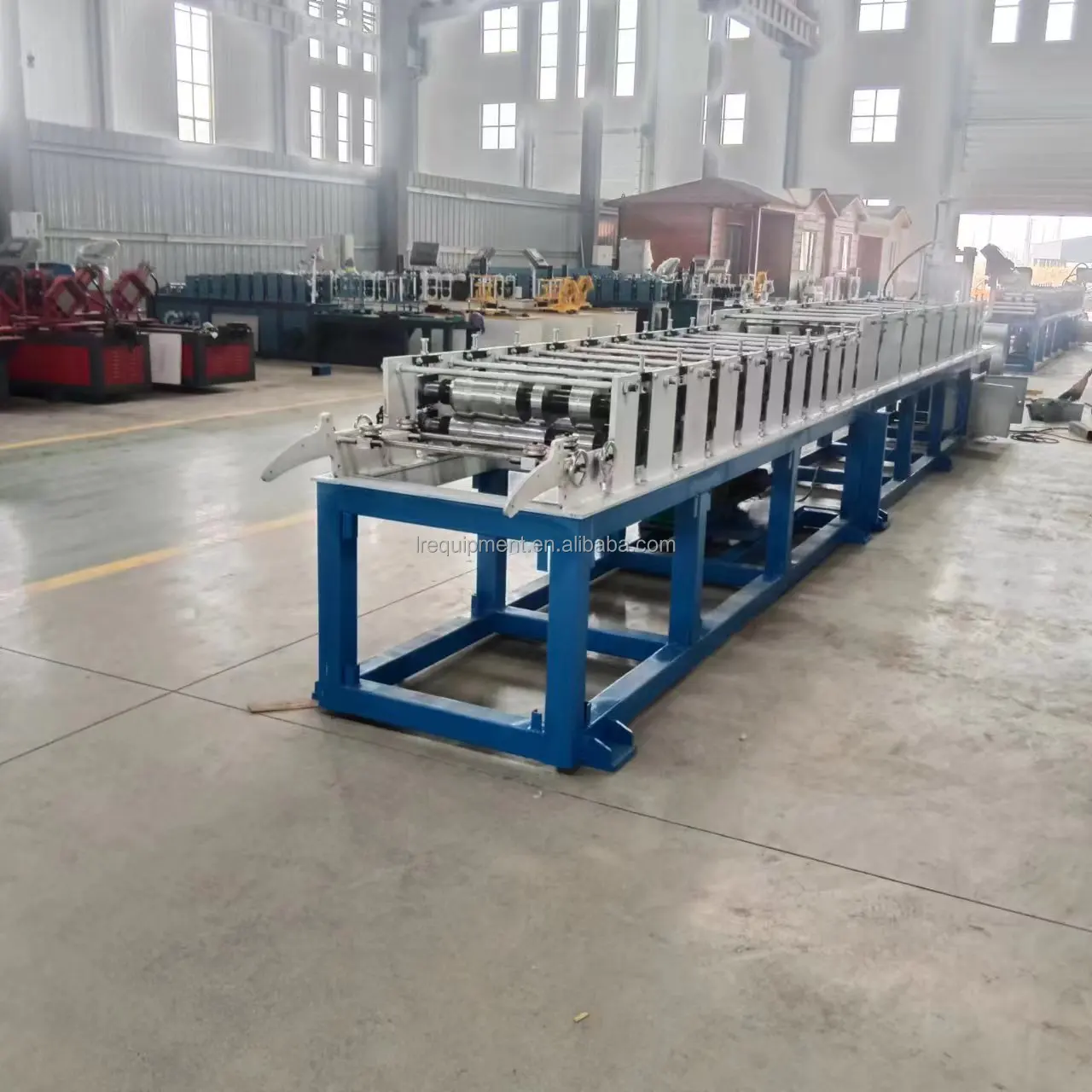

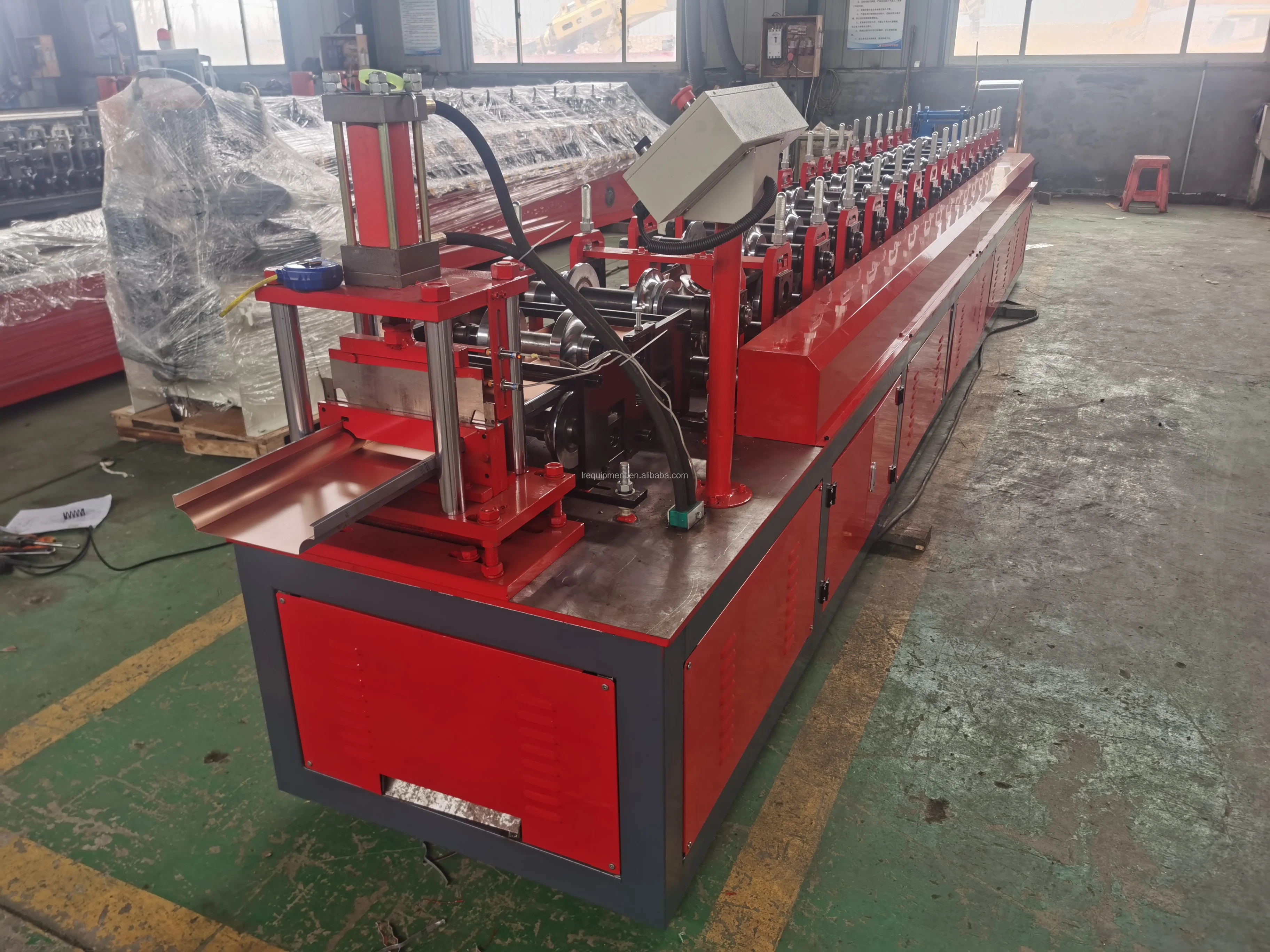

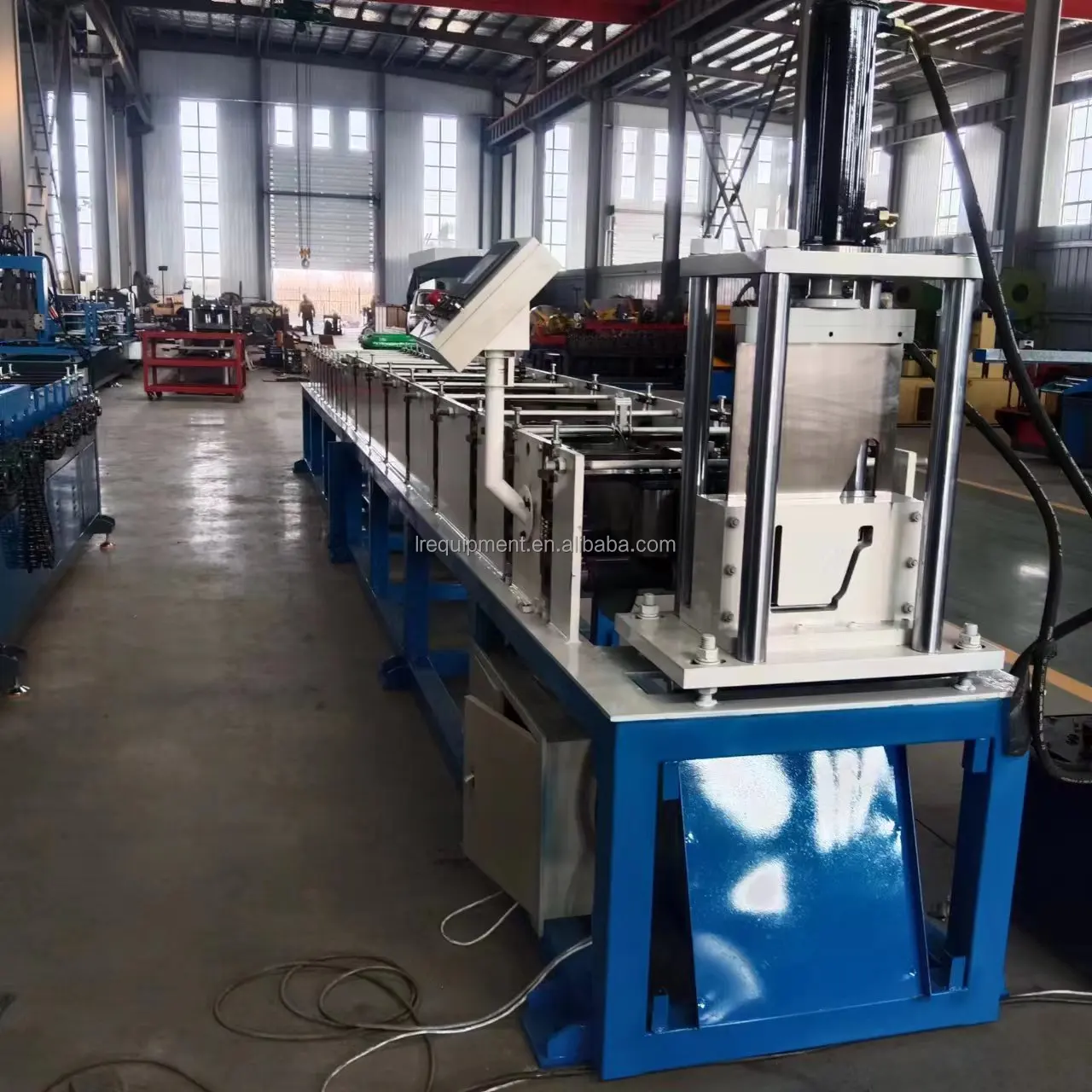

Details Images
Our Advantages
Packing & Delivery
1.Packing:
1)Machine is nude loaded in the container
2)The electric controlling box is packed by protect film
3)All the spare parts are put in the wooden box
2.Delivery:
1)Sea shipping
2)Air shipping for sampling
3)Train shipping for landlocked countries serviced by CRExpress Europeblock train
1)Machine is nude loaded in the container
2)The electric controlling box is packed by protect film
3)All the spare parts are put in the wooden box
2.Delivery:
1)Sea shipping
2)Air shipping for sampling
3)Train shipping for landlocked countries serviced by CRExpress Europeblock train
