Automatic Hanger Square Plate Wind Deflector Roofing Panels Ceiling Board Roll Forming Machine
- Category: >>>
- Supplier: Zhengzhou Linran Equipment Co. Ltd.
Share on (1601194155285):
Product Overview
Description

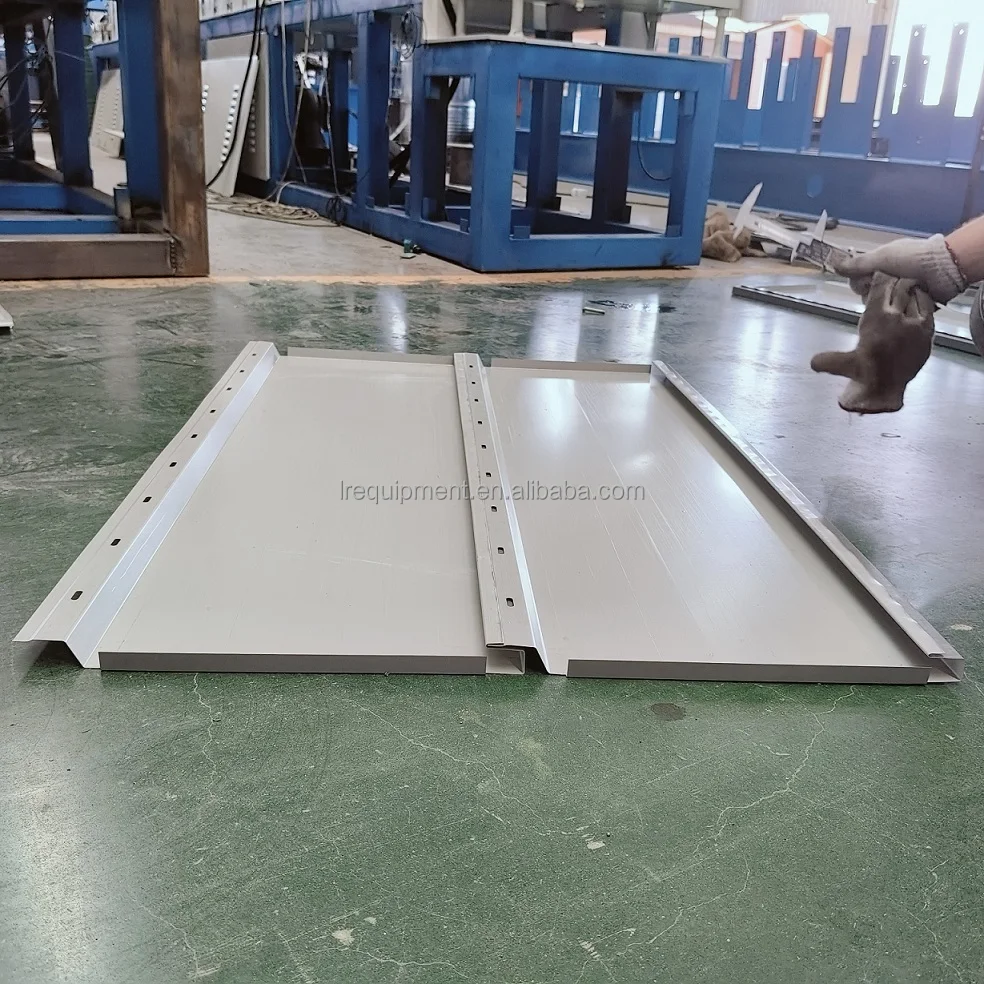

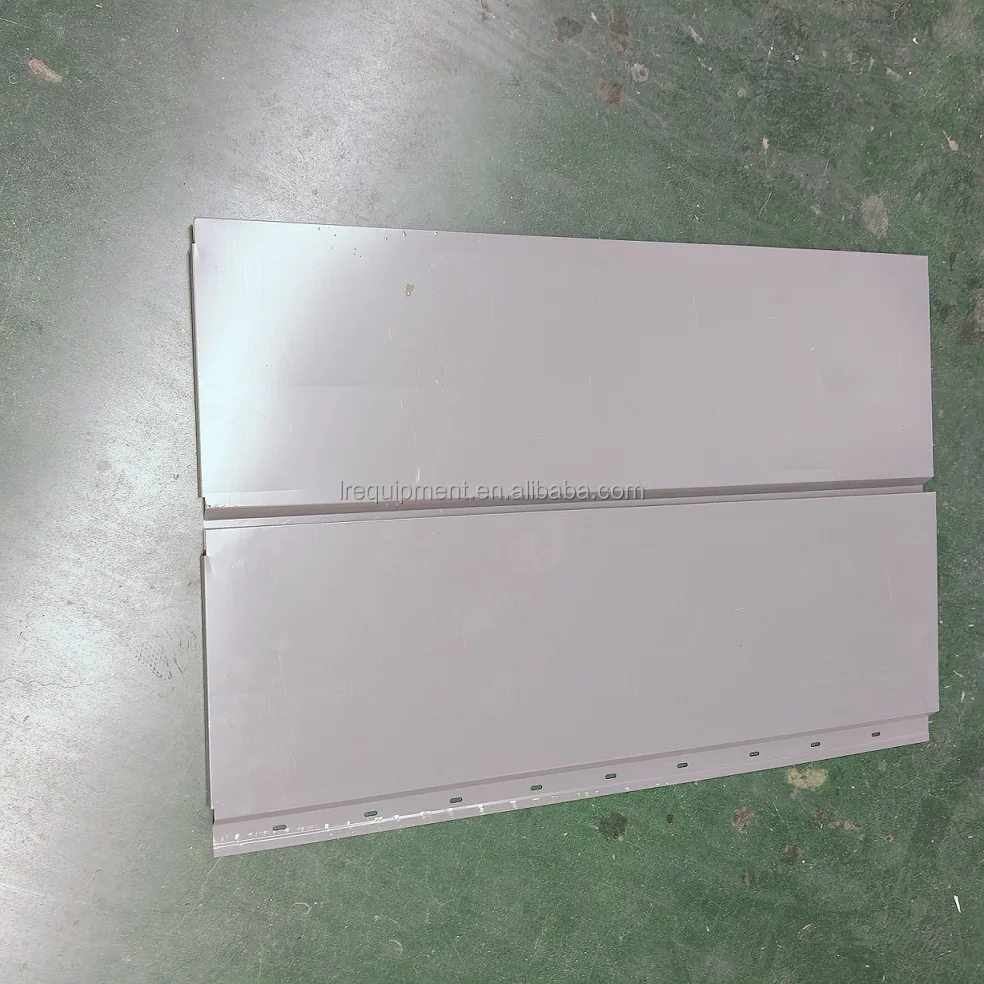

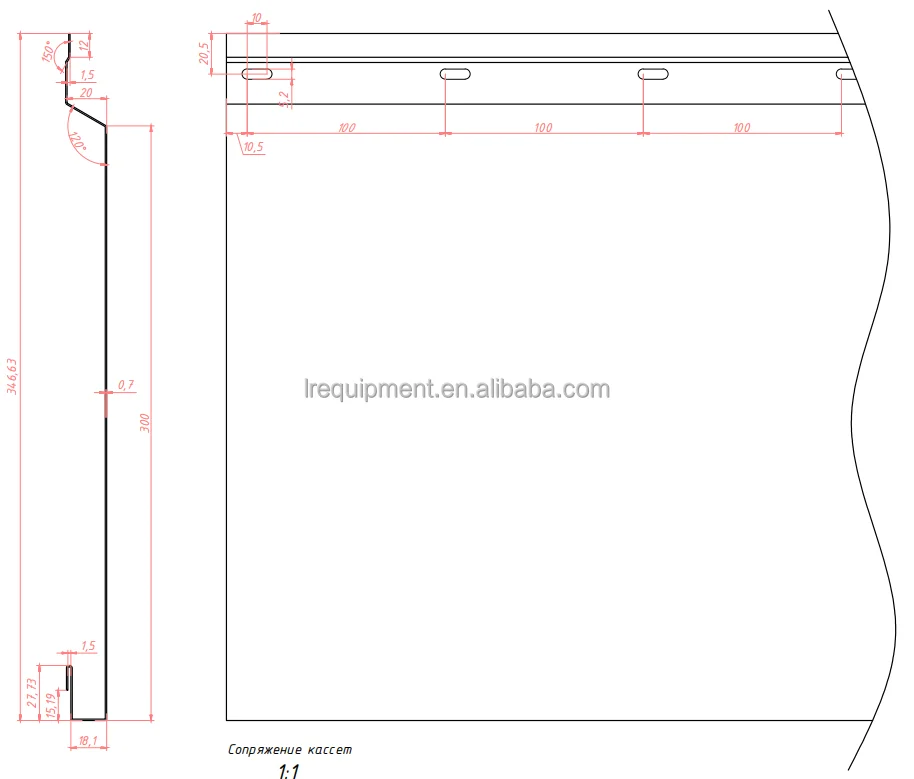

Profile drawing
Products Description
Automatic Hanger Square Plate Wind Deflector Roofing Panels Ceiling Board Roll Forming Machine belong to Cold roll forming industry, Linran have special technical and research team, as per customer's different requirements to offer most economic and good solution, specialized in Roof panel roll forming machine, glazed tile roll forming machine, IBR sheet forming machine, corrugated sheet forming machine, double layer sheet forming machine, roller shutter door forming machine, C U Z purlin machine, high speed guardrail forming machine, floor deck roll forming machine etc. This Square panel forming customized for Middle Asia customer, welcome your inquirying at any time!
Processing line

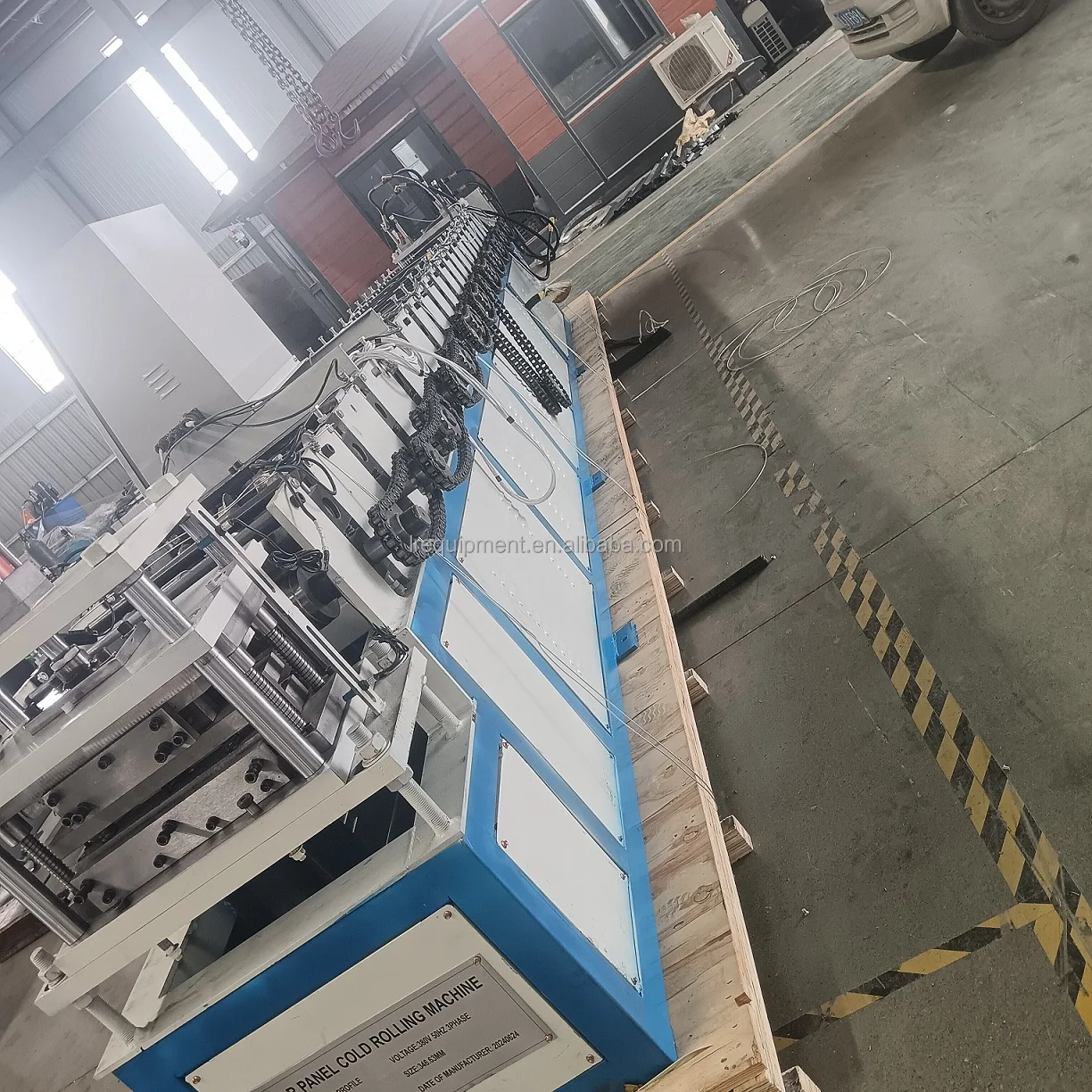

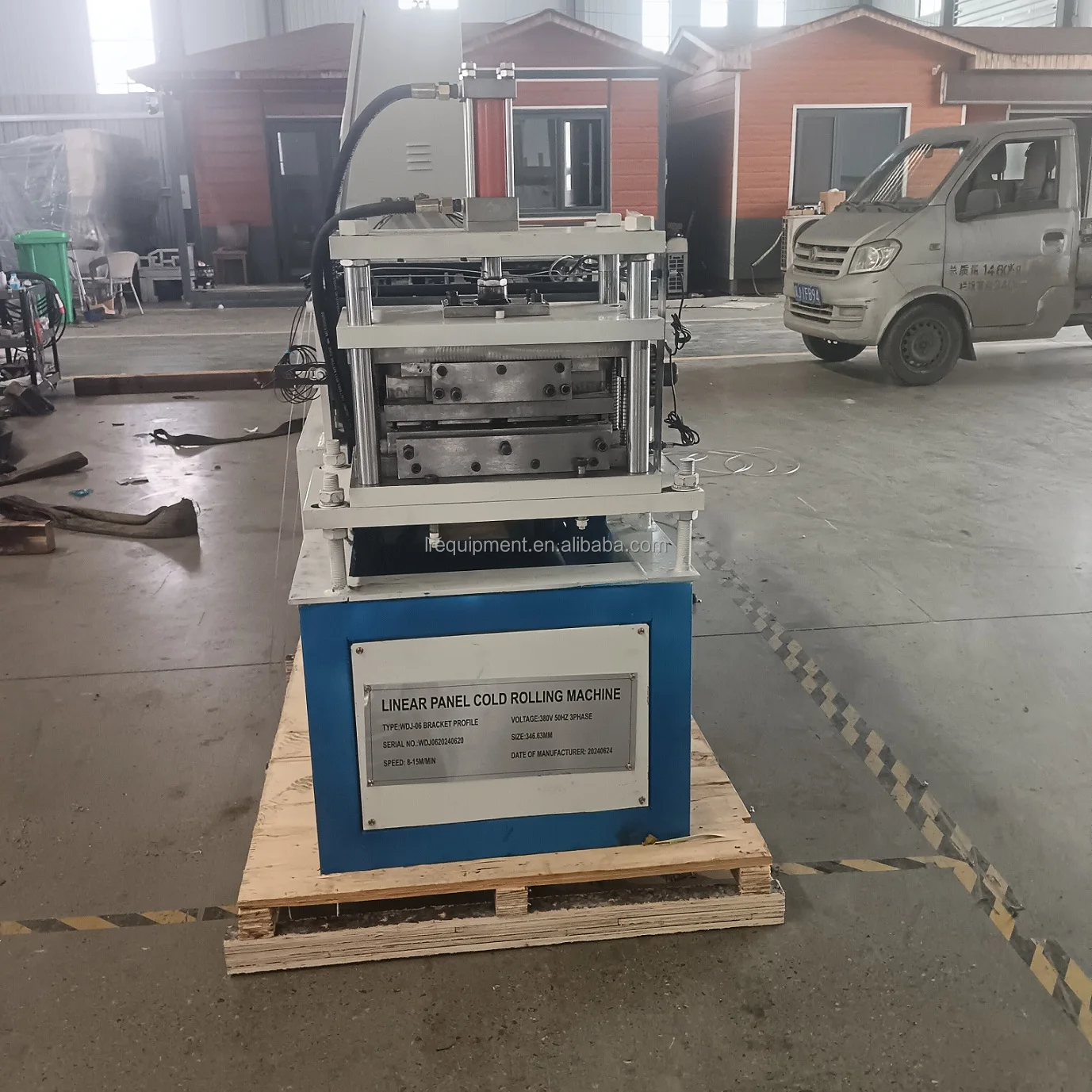

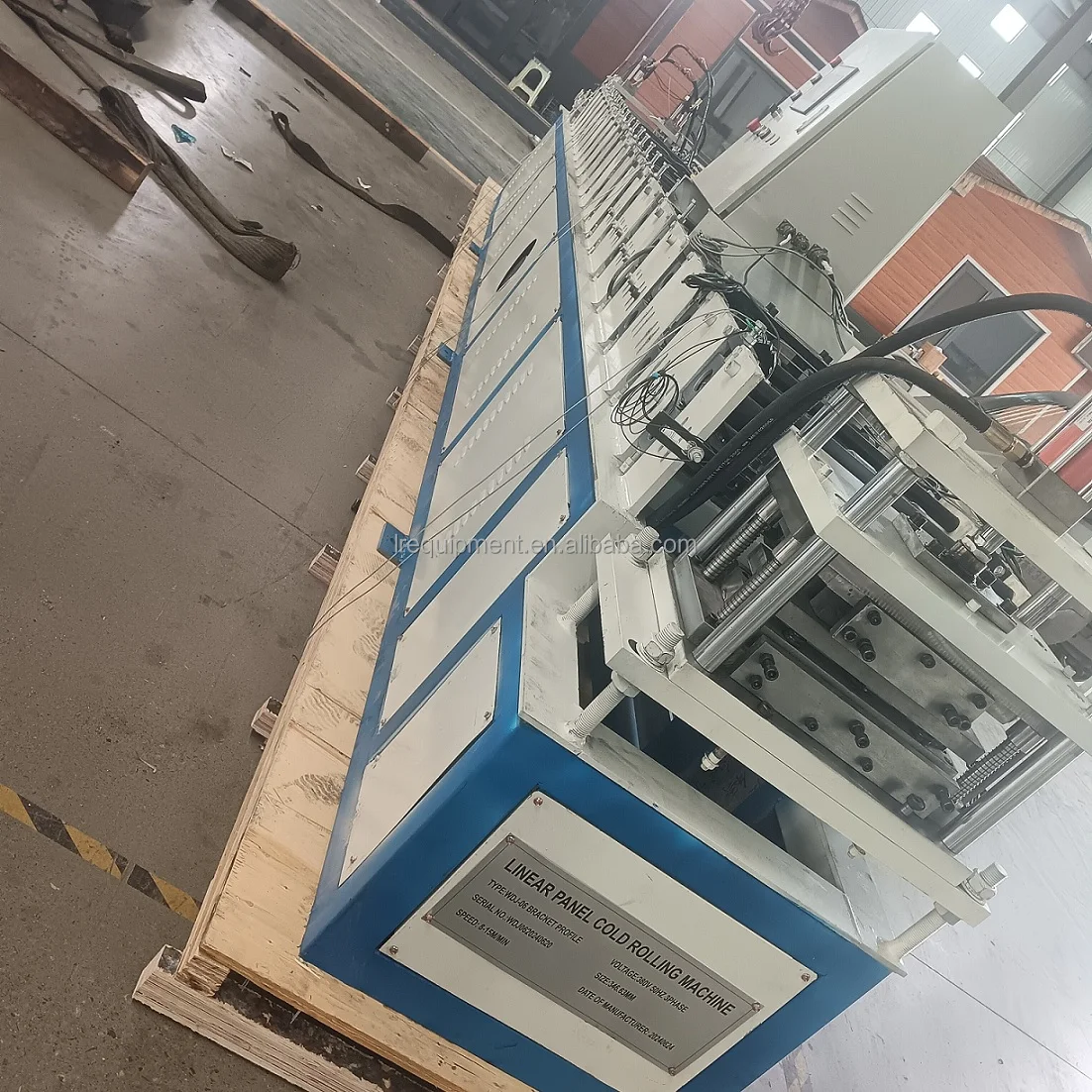

Automatic Hanger Square Plate Wind Deflector Roofing Panels Ceiling Board Roll Forming Machine processing

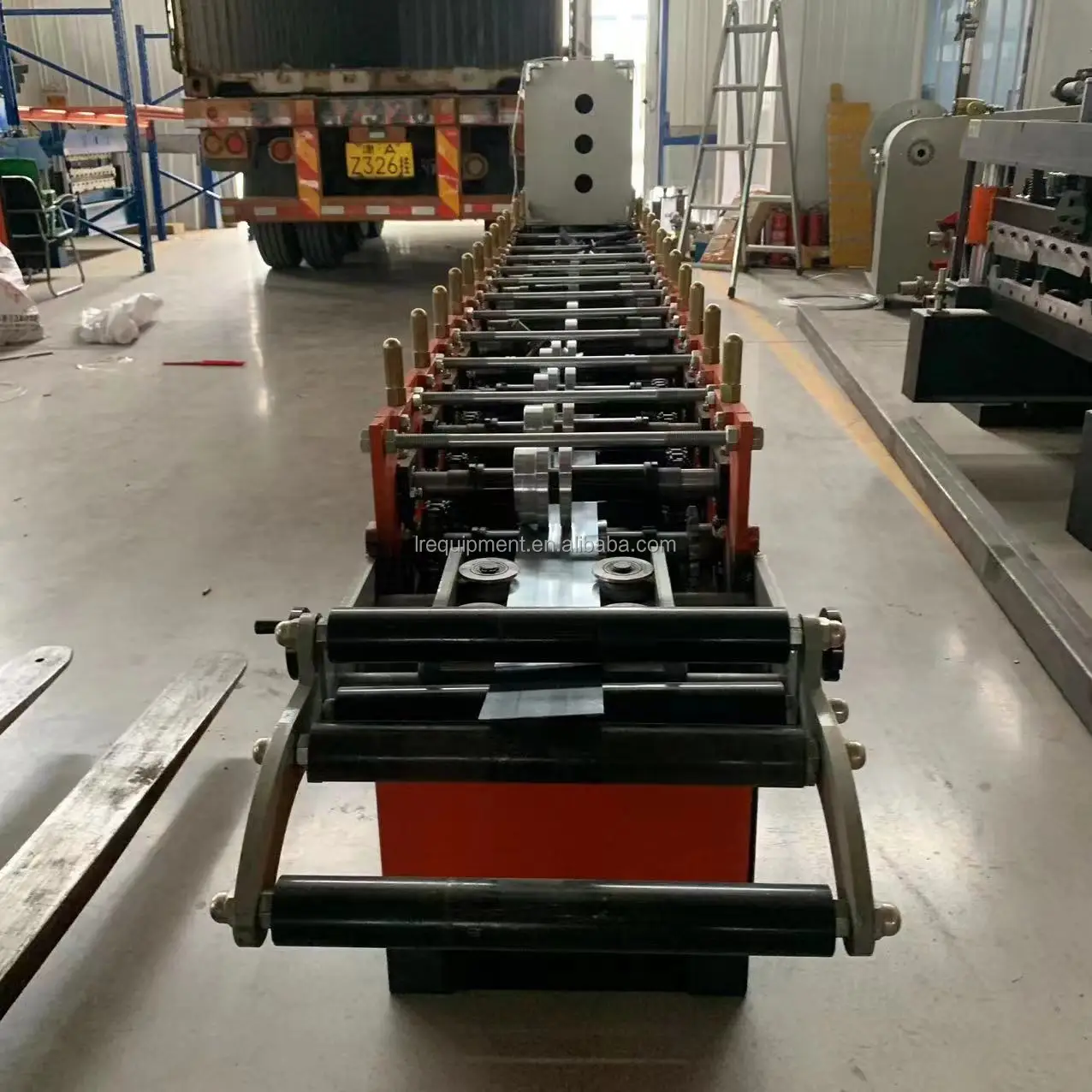

3T Feeding rack---Mold punching system---4 wheels feeding system---Forming machine---Cutting&Bending system---Receiving system
Manufacturing Technique
1 | Type | Square panel rolling | Thickness | 0.7-1mm |
2 | Board tolerance | ±0.5mm | No. of rows | 20 |
3 | Dia. of shaft | 50mm | Middle plate | 16mm |
4 | Chain | 1inch | Frame | 80*80 square tube welded |
5 | Motor | 7.5KW | Oil pump | 5.5KW |
6 | Cutter | Stop bending cutting | Cutter material | Gr12 |
7 | Control | Delta PLC | Feeding rack | 3Ton |
Details Images

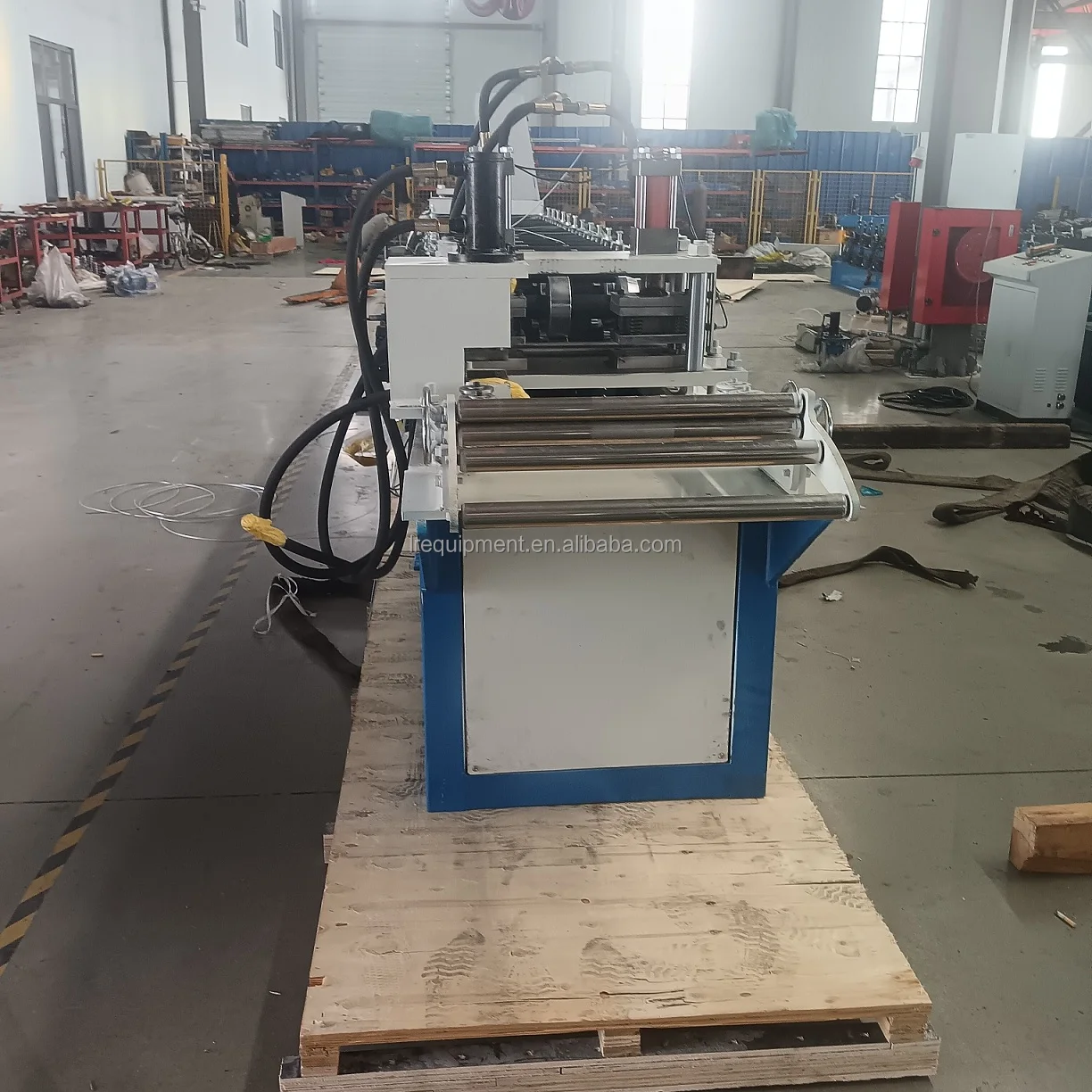

1.5/3ton Feeding rack
Coil Width: Max. 800mm
Coil Inner Diameter: 450-550mm
Structure: Welded by The Steel Plates and Profiled Bar.
Size: ~1800×1600×1500mm(L×W×H)
Feature:
The Shrink and Expand of The Core is Manually, with Manual Brake;
The Coil Moving Forward or Recerse is Pulled Passively by Roll Forming Machine.
Founction: It is used to support the steel coil and uncoil it in a turnable way.
Coil Inner Diameter: 450-550mm
Structure: Welded by The Steel Plates and Profiled Bar.
Size: ~1800×1600×1500mm(L×W×H)
Feature:
The Shrink and Expand of The Core is Manually, with Manual Brake;
The Coil Moving Forward or Recerse is Pulled Passively by Roll Forming Machine.
Founction: It is used to support the steel coil and uncoil it in a turnable way.
Feeding Guide Device
The feeding guide device at the main entrance of the machine during work,Raw materials on both sides of the plate the enter into
the machine by the guiding device,make the raw materials and roll forming system to maintain the correct position.The guiding
position can be adjusted by the manual screw mechanism,and the feeding guide width can be adjusted independently.
We add water cooling system in the feeder,it is can reduce coil material when the weather very hot.
the machine by the guiding device,make the raw materials and roll forming system to maintain the correct position.The guiding
position can be adjusted by the manual screw mechanism,and the feeding guide width can be adjusted independently.
We add water cooling system in the feeder,it is can reduce coil material when the weather very hot.
Forming mold: Cr12 molding steel, through vacuum quenching heat treatment to HRC60-62 °then grinding the inner Hole and the end
face. The precision machining roller surface with CNC lathe
Shafts material:40Cr steel,CNC lathes,Heat Treatment,hard Chrome Coated With thickness 0.04mm,surface with mirror treatment(for
longer life and anti-rust)
Main motor and 14 reducers combination driving,about 12-step to form Main Motor =5.5KW, Frequency speed control
face. The precision machining roller surface with CNC lathe
Shafts material:40Cr steel,CNC lathes,Heat Treatment,hard Chrome Coated With thickness 0.04mm,surface with mirror treatment(for
longer life and anti-rust)
Main motor and 14 reducers combination driving,about 12-step to form Main Motor =5.5KW, Frequency speed control
Cutting: Stop bending cutting
Gr12 hydraulic shear single guide post double cylinder
After forming the stepless cutting system, cutting without changing the tool. Manual change.
Gr12 hydraulic shear single guide post double cylinder
After forming the stepless cutting system, cutting without changing the tool. Manual change.

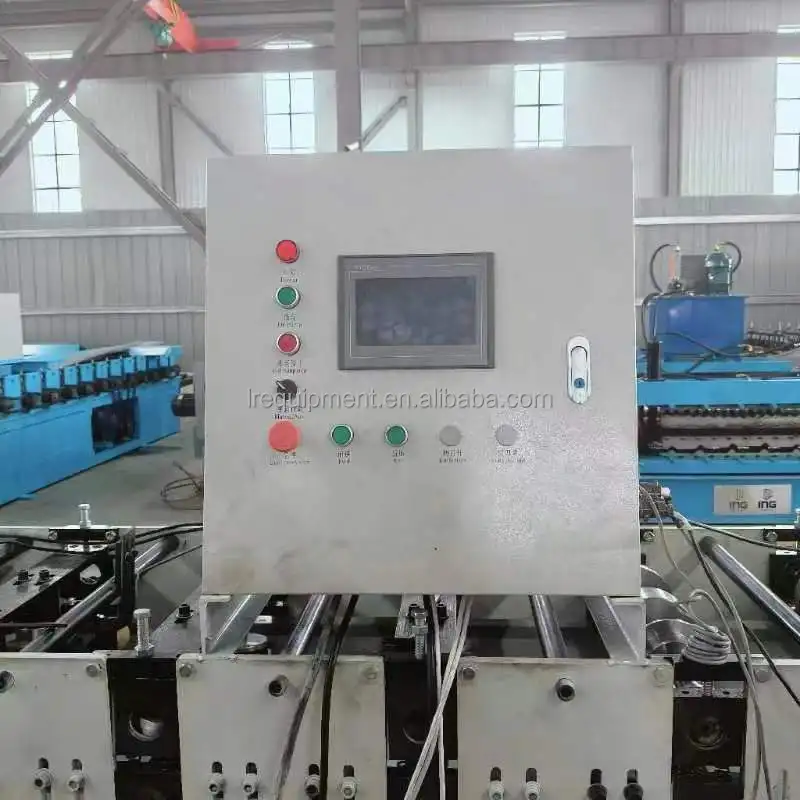

Control The Quantity And Cutting Length Automatically
Input The Production Data(Production Batch,pcs,Length,etc.)On The Touch Screen ,
It Can Finish The Production Automatically.
Combined With: PLC, Inverter, 10 Inch Touch Screen, Encoder, etc
Input The Production Data(Production Batch,pcs,Length,etc.)On The Touch Screen ,
It Can Finish The Production Automatically.
Combined With: PLC, Inverter, 10 Inch Touch Screen, Encoder, etc

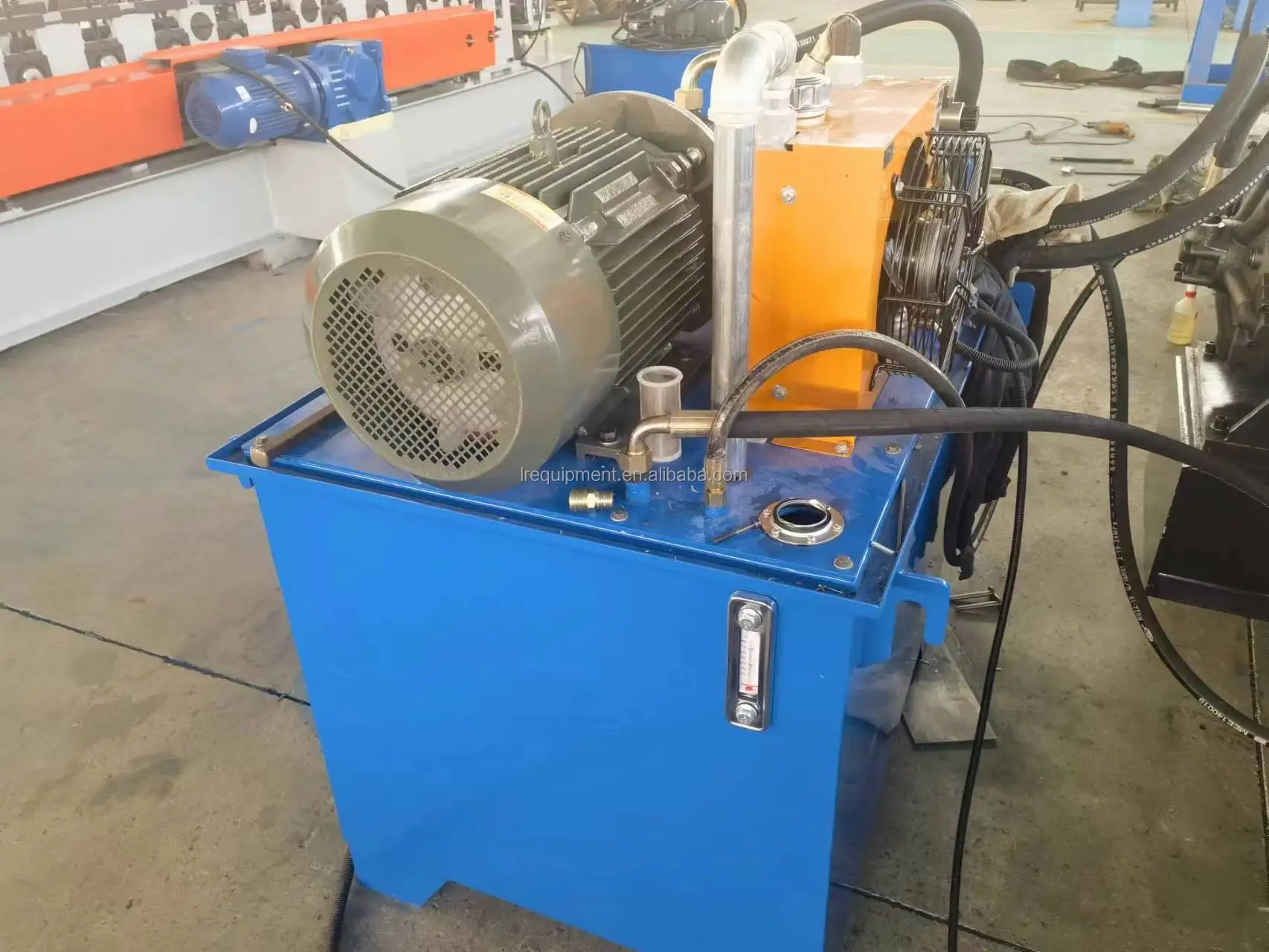

Hydraulic oil pump with fan cooling system
Power:5.5kw+4kw
Gear pump
Power:5.5kw+4kw
Gear pump
Product packaging

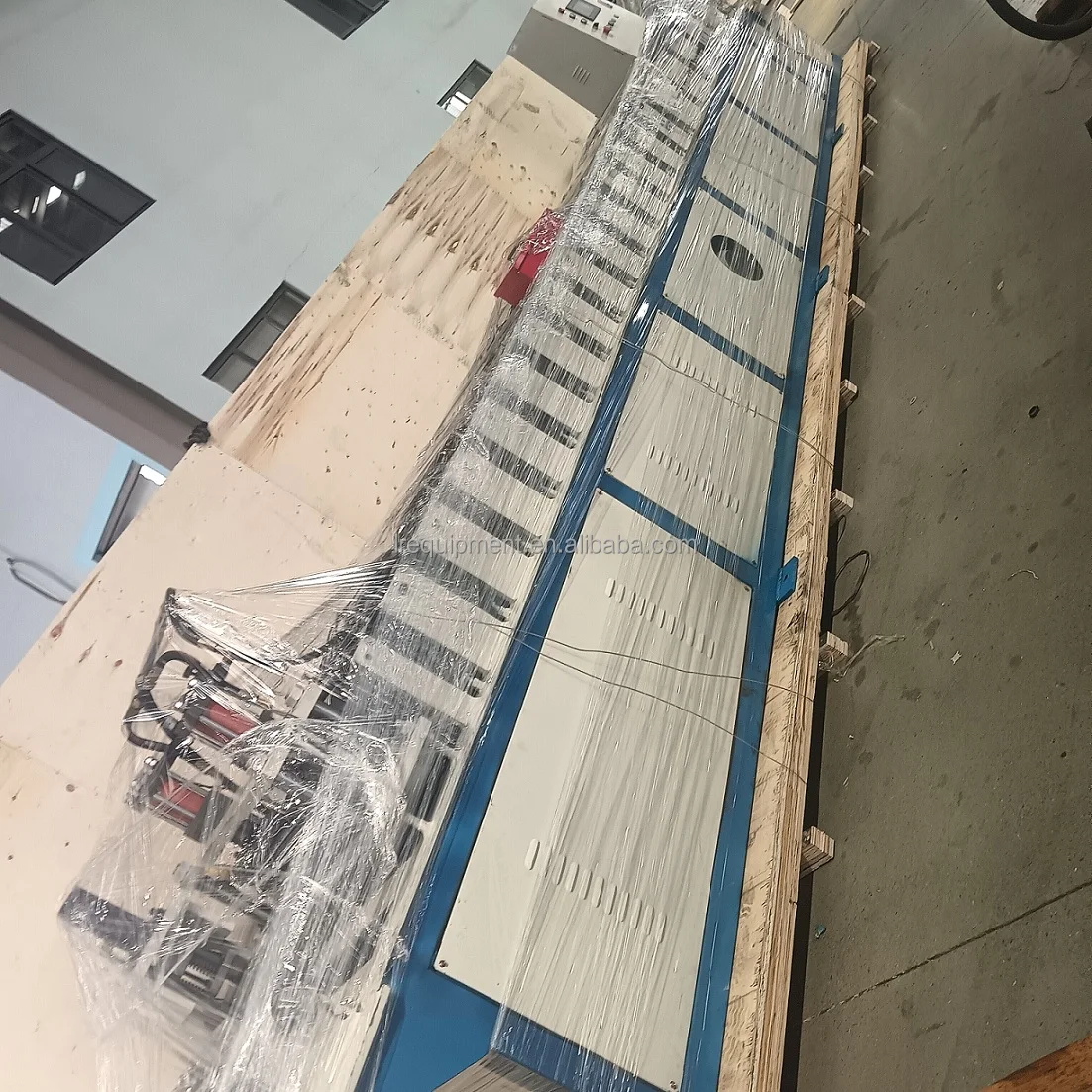

1.Packing:
1)Machine is nude loaded in the container
2)The electric controlling box is packed by protect film
3)All the spare parts are put in the wooden box
2.Delivery:
1)Sea shipping
2)Air shipping for sampling
3)Train shipping for landlocked countries serviced by CRExpress Europeblock train
1)Machine is nude loaded in the container
2)The electric controlling box is packed by protect film
3)All the spare parts are put in the wooden box
2.Delivery:
1)Sea shipping
2)Air shipping for sampling
3)Train shipping for landlocked countries serviced by CRExpress Europeblock train
