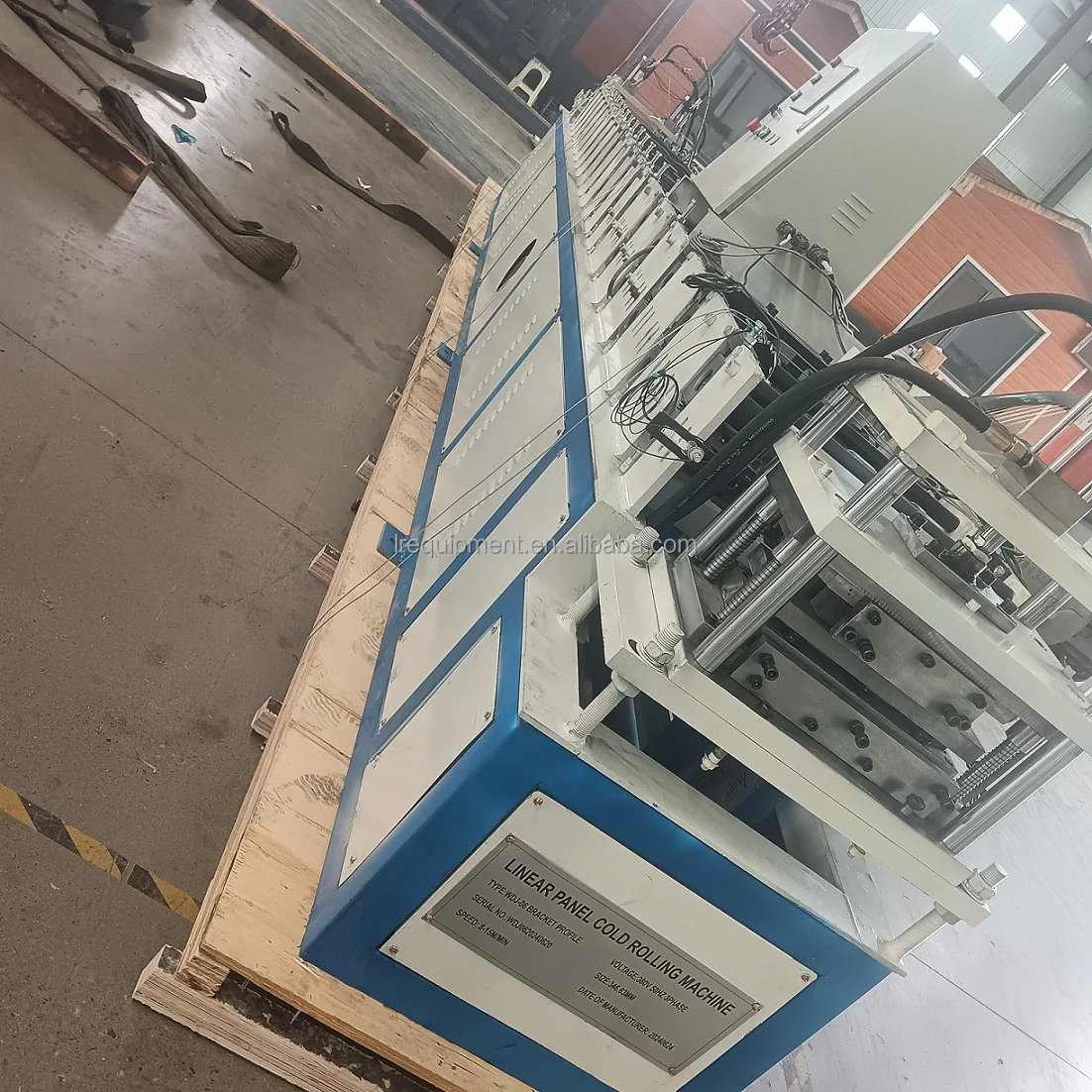

High Effective Metal Adversting Tile Roll Forming Machine Ceiling Board Former Machinery For Sale
- Category: >>>
- Supplier: Zhengzhou Linran Equipment Co. Ltd.
Share on (1601194535266):
Product Overview
Description

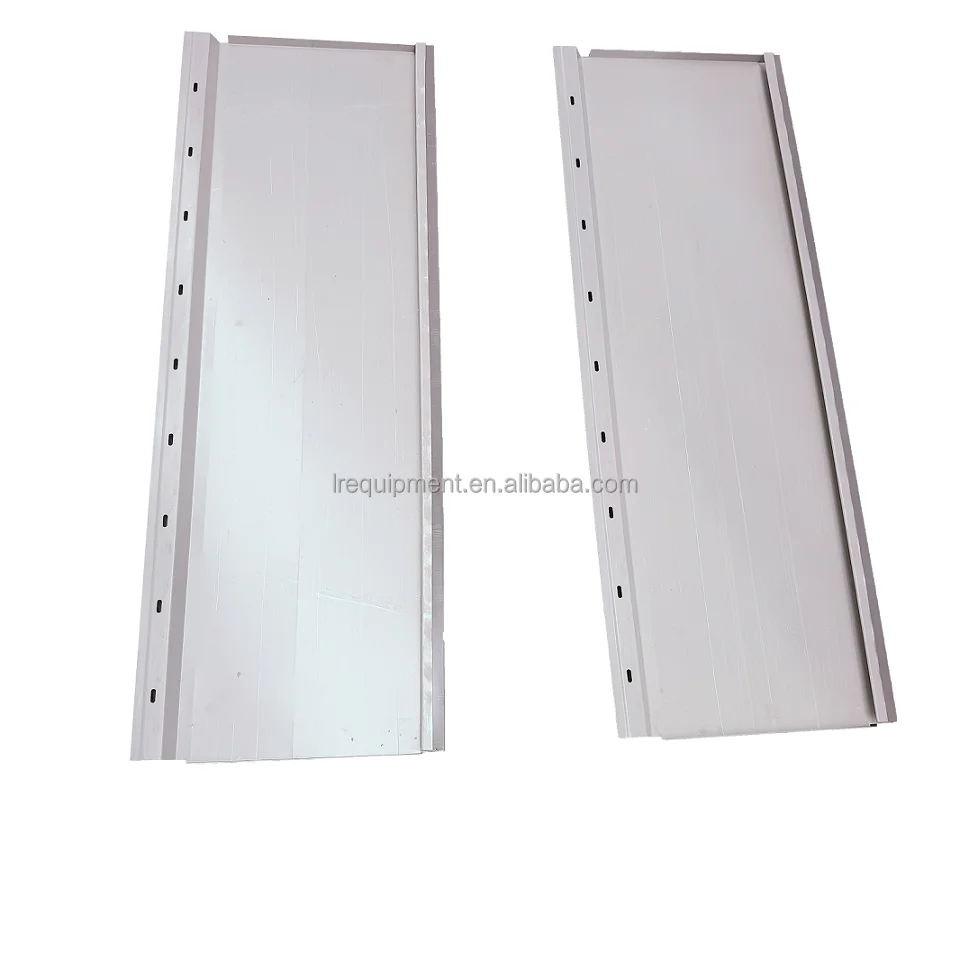

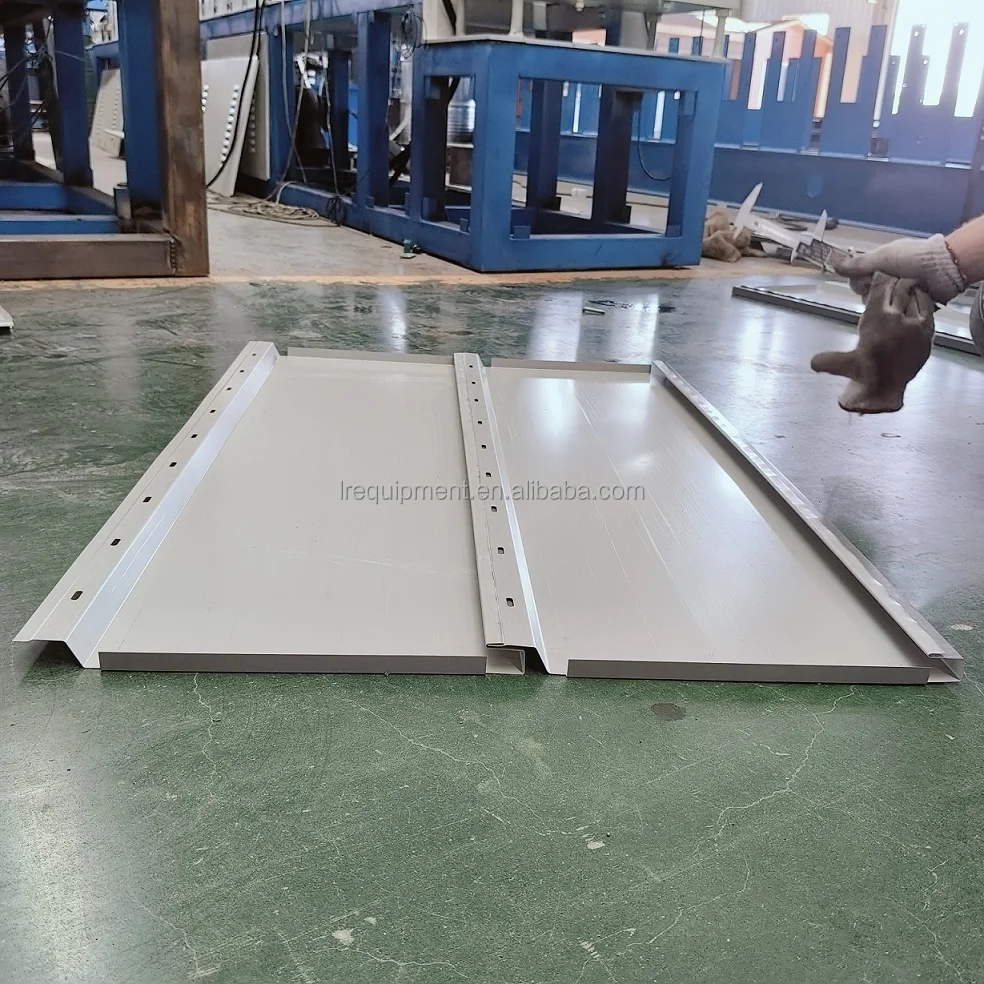

Profile drawing
Products Description
High Effective Metal Adversting Tile Roll Forming Machine Ceiling Board Former Machinery belong to Cold roll forming industry, Linran have special technical and research team, as per customer's different requirements to offer most economic and good solution, specialized in Roof panel roll forming machine, glazed tile roll forming machine, IBR sheet forming machine, corrugated sheet forming machine, double layer sheet forming machine, roller shutter door forming machine, C U Z purlin machine, high speed guardrail forming machine, floor deck roll forming machine etc. This Square panel forming customized for Middle Asia customer, welcome your inquirying at any time!
Processing line
High Effective Metal Adversting Tile Roll Forming Machine Ceiling Board Former Machinery processing
3T Feeding rack---Mold punching system---4 wheels feeding system---Forming machine---Cutting&Bending system---Receiving system
Manufacturing Technique
High Effective Metal Adversting Tile Roll Forming Machine Ceiling Board Former Machinery processing | ||||||||
1 | Type | Square panel rolling | Thickness | 0.7-1mm | ||||
2 | Board tolerance | ±0.5mm | No. of rows | 20 | ||||
3 | Dia. of shaft | 50mm | Middle plate | 16mm | ||||
4 | Chain | 1inch | Frame | 80*80 square tube welded | ||||
5 | Motor | 7.5KW | Oil pump | 5.5KW | ||||
6 | Cutter | Stop bending cutting | Cutter material | Gr12 | ||||
7 | Control | Delta PLC | Feeding rack | 3Ton | ||||
Details Images
1.5/3ton Feeding rack
Coil Width: Max. 800mm
Coil Inner Diameter: 450-550mm
Structure: Welded by The Steel Plates and Profiled Bar.
Size: ~1800×1600×1500mm(L×W×H)
Feature:
The Shrink and Expand of The Core is Manually, with Manual Brake;
The Coil Moving Forward or Recerse is Pulled Passively by Roll Forming Machine.
Founction: It is used to support the steel coil and uncoil it in a turnable way.
Coil Inner Diameter: 450-550mm
Structure: Welded by The Steel Plates and Profiled Bar.
Size: ~1800×1600×1500mm(L×W×H)
Feature:
The Shrink and Expand of The Core is Manually, with Manual Brake;
The Coil Moving Forward or Recerse is Pulled Passively by Roll Forming Machine.
Founction: It is used to support the steel coil and uncoil it in a turnable way.

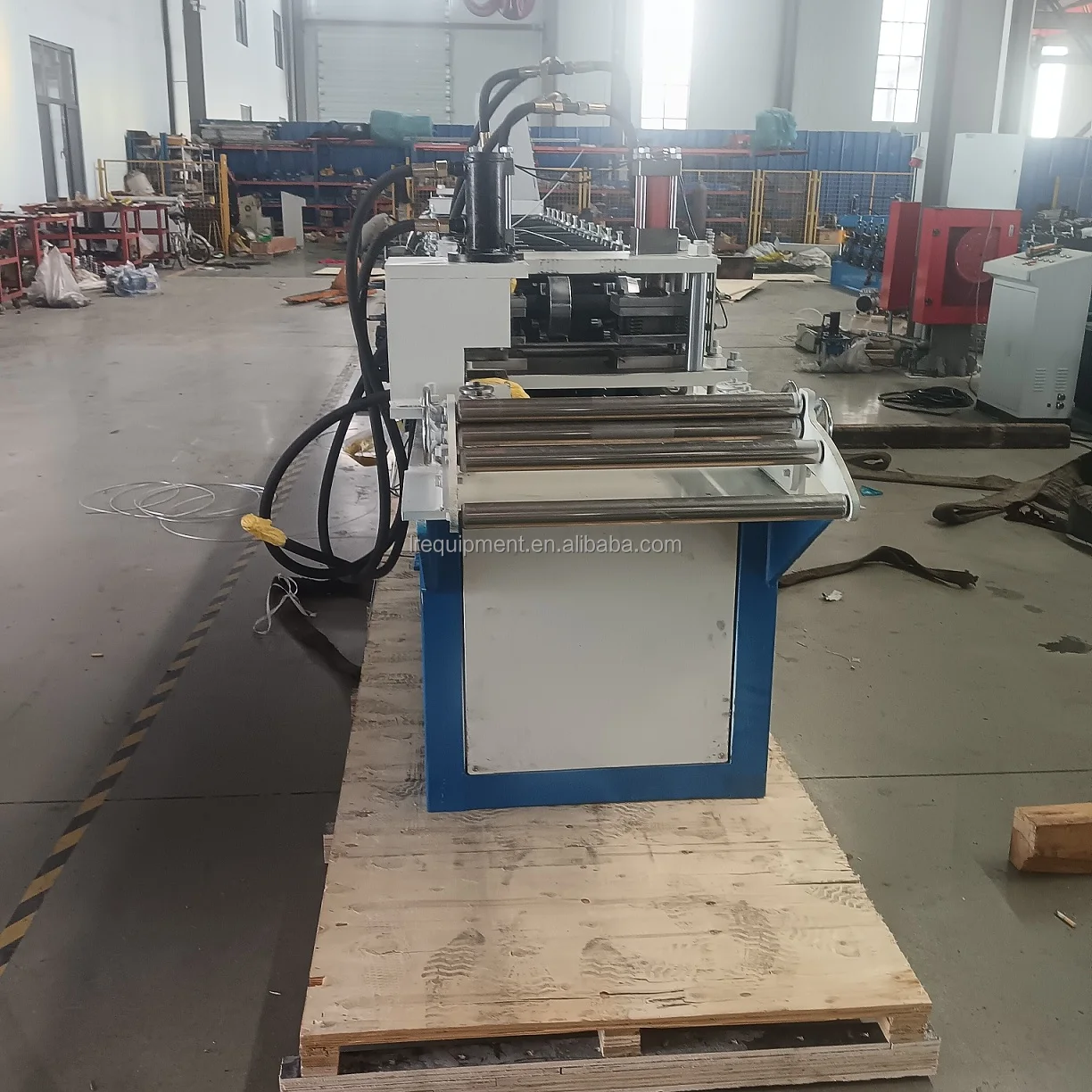

Feeding Guide Device
The feeding guide device at the main entrance of the machine during work,Raw materials on both sides of the plate the enter into
the machine by the guiding device,make the raw materials and roll forming system to maintain the correct position.The guiding
position can be adjusted by the manual screw mechanism,and the feeding guide width can be adjusted independently.
We add water cooling system in the feeder,it is can reduce coil material when the weather very hot.
the machine by the guiding device,make the raw materials and roll forming system to maintain the correct position.The guiding
position can be adjusted by the manual screw mechanism,and the feeding guide width can be adjusted independently.
We add water cooling system in the feeder,it is can reduce coil material when the weather very hot.
Forming mold: Cr12 molding steel, through vacuum quenching heat treatment to HRC60-62 °then grinding the inner Hole and the end
face. The precision machining roller surface with CNC lathe
Shafts material:40Cr steel,CNC lathes,Heat Treatment,hard Chrome Coated With thickness 0.04mm,surface with mirror treatment(for
longer life and anti-rust)
Main motor and 14 reducers combination driving,about 12-step to form Main Motor =5.5KW, Frequency speed control
face. The precision machining roller surface with CNC lathe
Shafts material:40Cr steel,CNC lathes,Heat Treatment,hard Chrome Coated With thickness 0.04mm,surface with mirror treatment(for
longer life and anti-rust)
Main motor and 14 reducers combination driving,about 12-step to form Main Motor =5.5KW, Frequency speed control

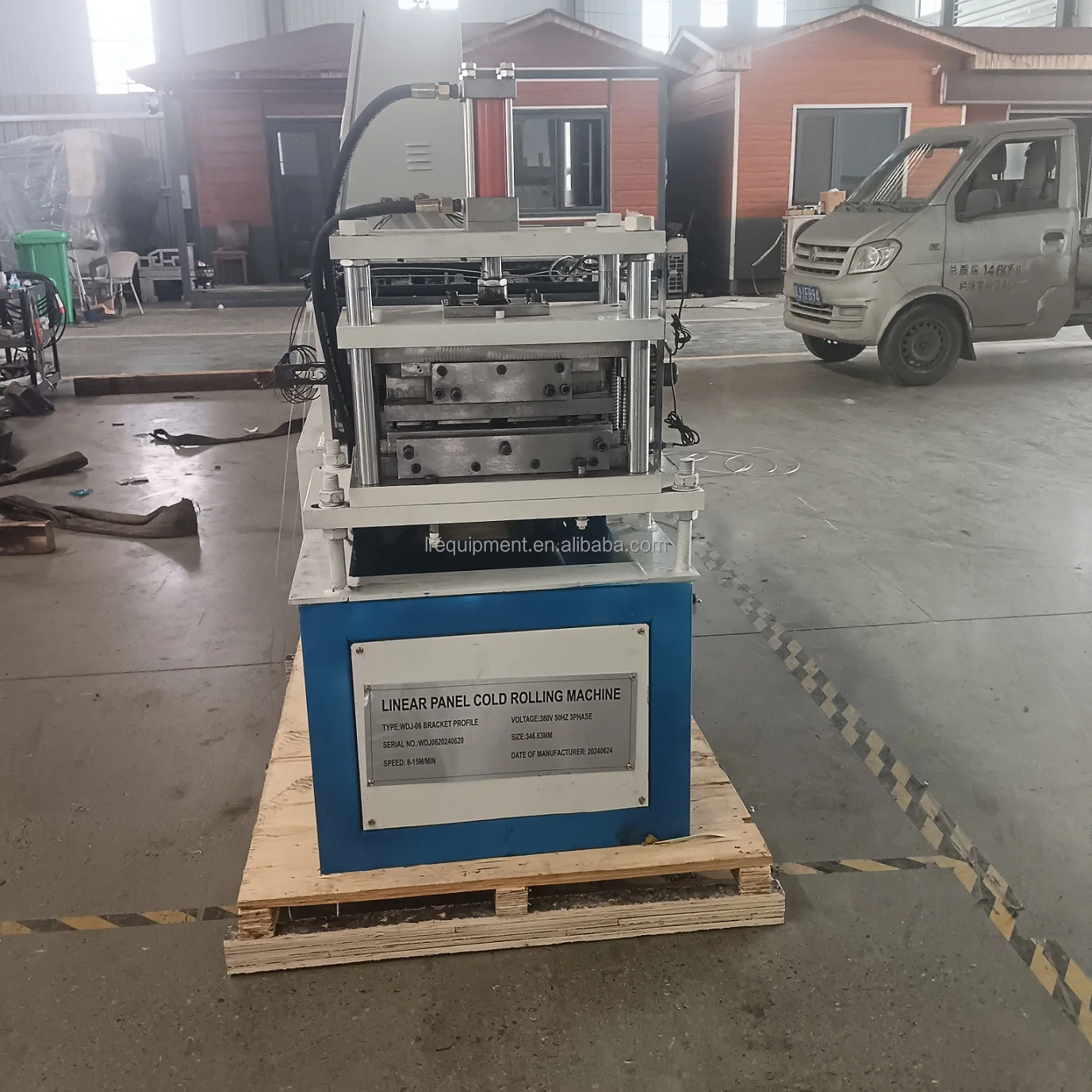

Cutting: Stop bending cutting
Gr12 hydraulic shear single guide post double cylinder
After forming the stepless cutting system, cutting without changing the tool. Manual change.
Gr12 hydraulic shear single guide post double cylinder
After forming the stepless cutting system, cutting without changing the tool. Manual change.
Control The Quantity And Cutting Length Automatically
Input The Production Data(Production Batch,pcs,Length,etc.)On The Touch Screen ,
It Can Finish The Production Automatically.
Combined With: PLC, Inverter, 10 Inch Touch Screen, Encoder, etc
Input The Production Data(Production Batch,pcs,Length,etc.)On The Touch Screen ,
It Can Finish The Production Automatically.
Combined With: PLC, Inverter, 10 Inch Touch Screen, Encoder, etc
Hydraulic oil pump with fan cooling system
Power:5.5kw+4kw
Gear pump
Power:5.5kw+4kw
Gear pump
LINRAN Cold roll fomring machine Accessories matched
1)Standard matched for free with machine
✾Limit switch*2
✾Encoder*1
✾Relay*1
2)Charged for spare parts
✾ Shaft
✾Chain
✾Cutter
1)Standard matched for free with machine
✾Limit switch*2
✾Encoder*1
✾Relay*1
2)Charged for spare parts
✾ Shaft
✾Chain
✾Cutter
Recommend Products

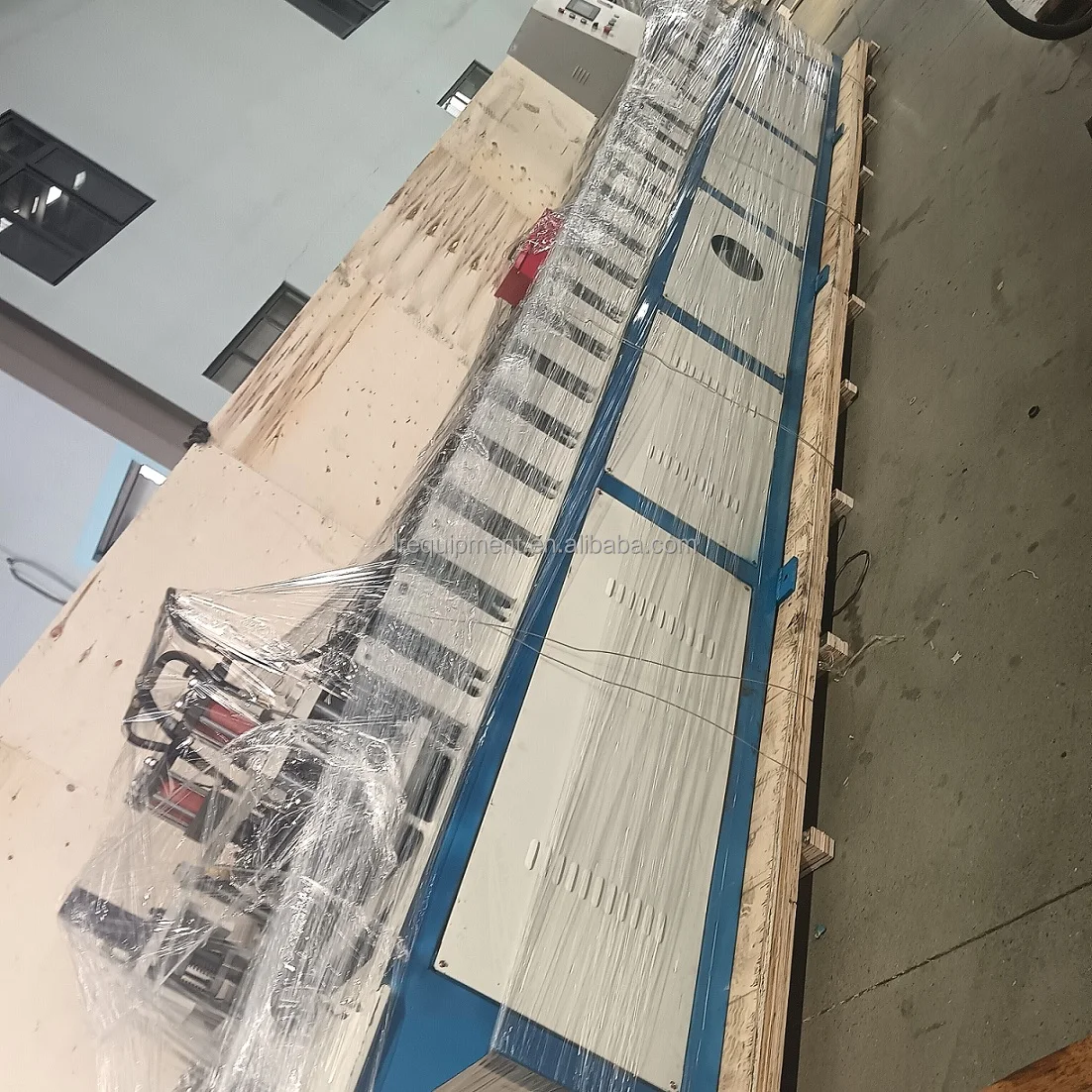

Product packaging
1.Packing:
1)Machine is nude loaded in the container
2)The electric controlling box is packed by protect film
3)All the spare parts are put in the wooden box
2.Delivery:
1)Sea shipping
2)Air shipping for sampling
3)Train shipping for landlocked countries serviced by CRExpress Europeblock train
1)Machine is nude loaded in the container
2)The electric controlling box is packed by protect film
3)All the spare parts are put in the wooden box
2.Delivery:
1)Sea shipping
2)Air shipping for sampling
3)Train shipping for landlocked countries serviced by CRExpress Europeblock train
Zhengzhou Linran Equipment Co., Ltd. established in the year 2003, manufacturing and exporting Metal Roll Forming Machines.All efforts are devoted to the research and development of how to provide customers with high-quality and durable molding machines.Our main product Metal Roll Forming Machine, such as C/Z Purlin Roll Forming Machine, Cold Sheet Forming Machine,Metal Deck Roll Forming Machine,Omega profile roll forming machine, Guardrail roll forming machine, Downspout roll forming machine, Rain gutter roll forming machine etc. have been exported more than 100countries like USA, Mexico, Canada, Spain, Russia, Singapore, Thailand, India etc.Our company has successfully established and passed the ISO9001 quality insurance system, also had been approved with CE certificate.For our roll former, 36 month free warranty, and our company promises that we will provide product service life maintenance service.
Our company occupies an area over 86000m² acres and has standardized industrial workshop 66000m²,A variety of
large and medium-sized processing equipment more than 100 sets, advanced processing technology.It is a green construction equipment manufacturing base.
large and medium-sized processing equipment more than 100 sets, advanced processing technology.It is a green construction equipment manufacturing base.
Why Choose Us
Why choose LINRAN?
1. Unique coil processing solutions for metalworking?
ZHENGZHOU LINRAN EQUIPMENT is aimed at providing our customers with the best quality metal rolling automation solutions and after-sales service.
2. Equipment research and developing.
Our company commits to providing customized coil processing solutions according to each customer's specific metalworking process.
With an experienced technical team and continuous research investment, we are capable to offer coil handling solutions that meet higher international standards.
3. Manufacturing quality control.
With precision machine tools and skilled workers, from spare parts preparation to equipment assembly, our machine can offer real-time manufacturing updates for our valued customers.
From raw material control, spare parts inspection, and machine assembly, our factory implements a strict quality control process.
We commit to offering coil performance. Our work is just for making sure all the products of machines are qualified.
ZHENGZHOU LINRAN EQUIPMENT is aimed at providing our customers with the best quality metal rolling automation solutions and after-sales service.
2. Equipment research and developing.
Our company commits to providing customized coil processing solutions according to each customer's specific metalworking process.
With an experienced technical team and continuous research investment, we are capable to offer coil handling solutions that meet higher international standards.
3. Manufacturing quality control.
With precision machine tools and skilled workers, from spare parts preparation to equipment assembly, our machine can offer real-time manufacturing updates for our valued customers.
From raw material control, spare parts inspection, and machine assembly, our factory implements a strict quality control process.
We commit to offering coil performance. Our work is just for making sure all the products of machines are qualified.
