25T J23 mechanical c type crank fast pattern 63t 100t 125t punching punch press machine for hole
- Category: >>>
- Supplier: Botou Kaiyite Cold Bending Machinery Co. Ltd.
Share on (1601196266274):
Product Overview
Description
Product Description

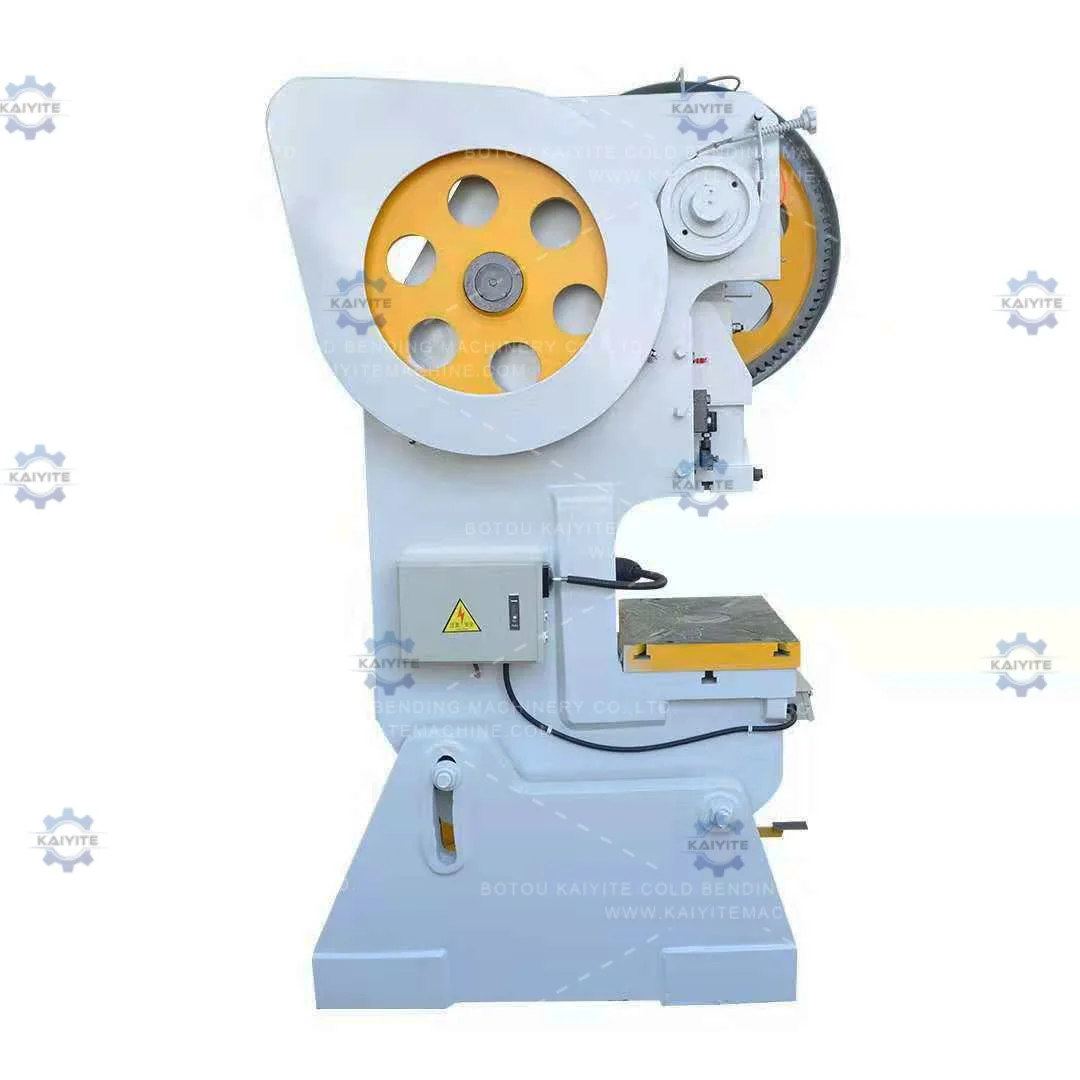

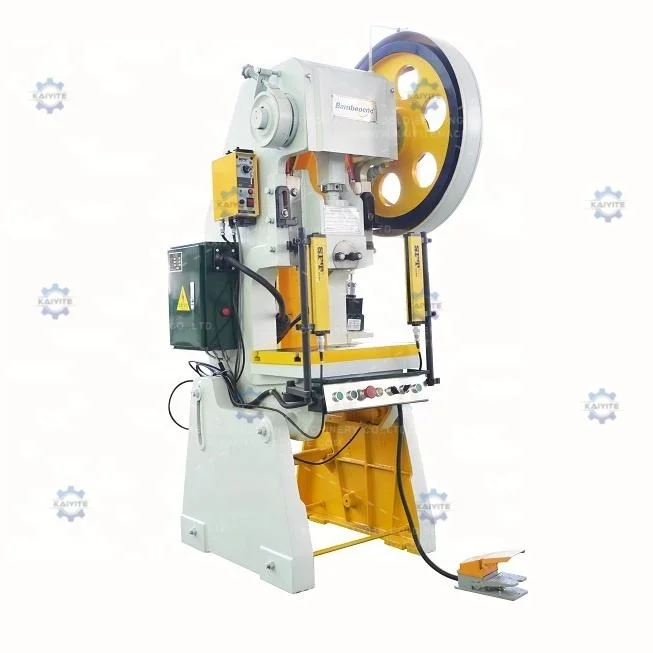

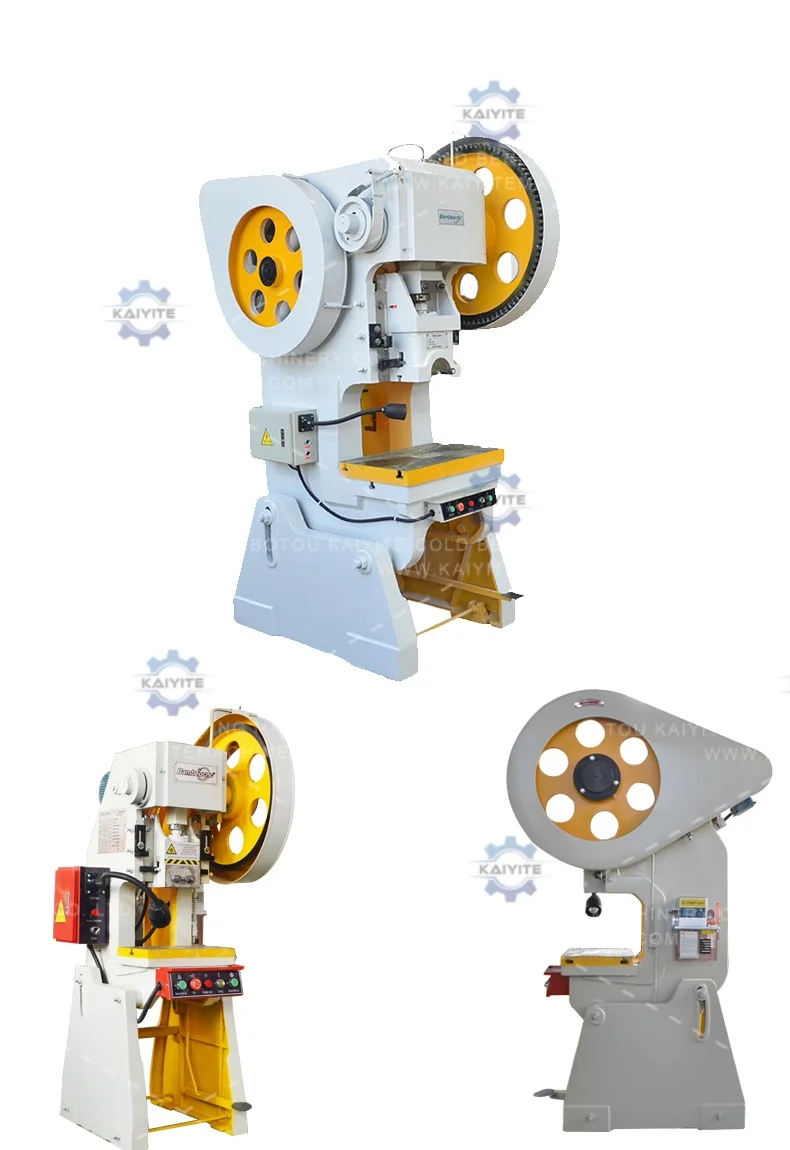

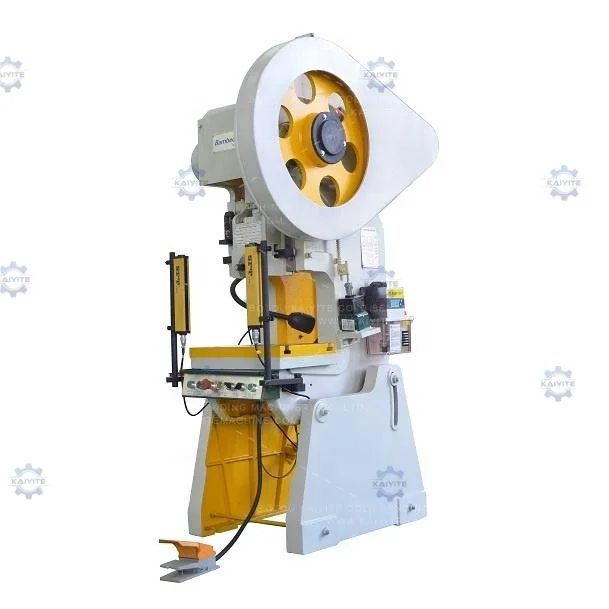

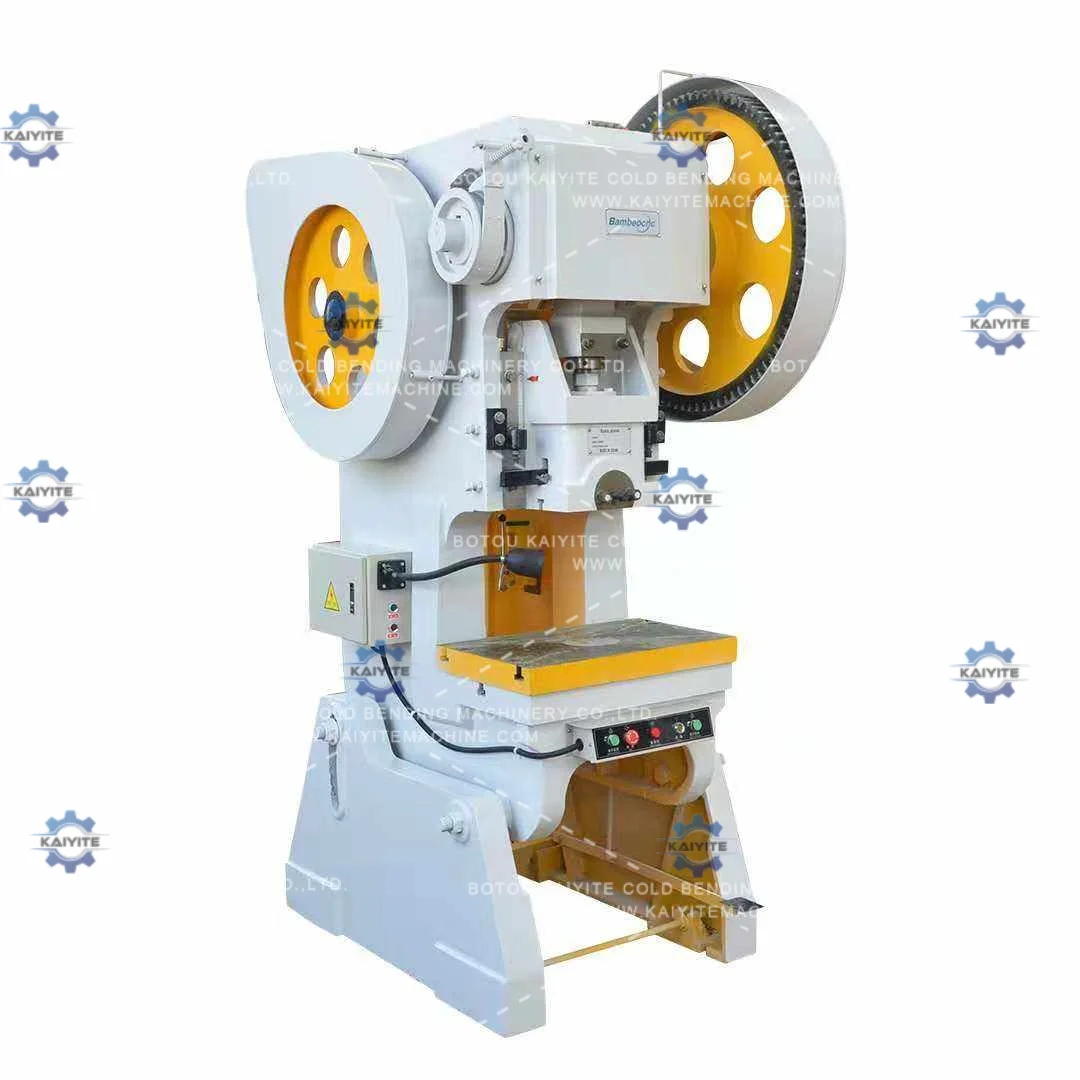

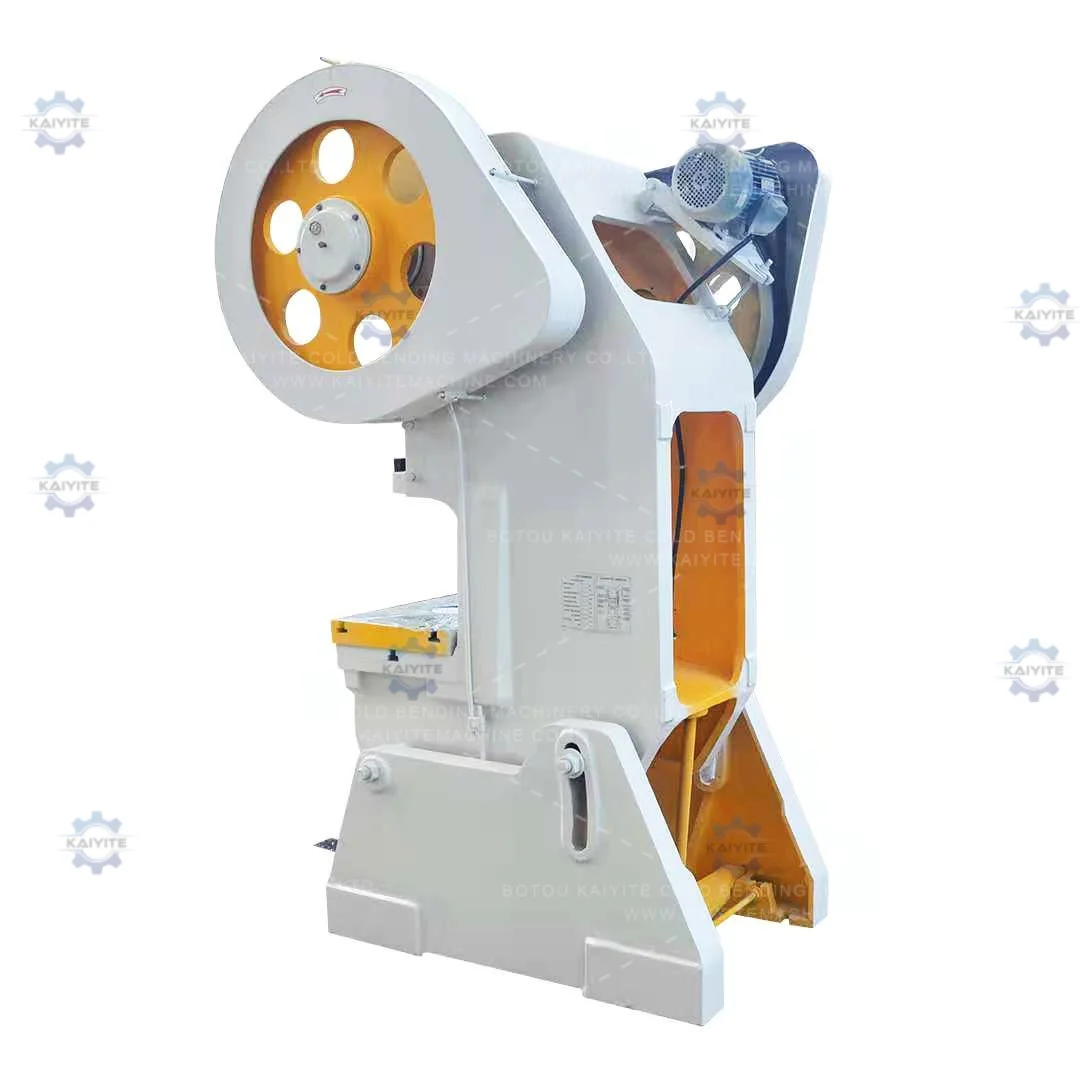

Mechanical C-Frame Power Press J23 Series
Large hydraulic bending machine/bending machine/bending machine structure:
The J23 series open eccentric press is a general-purpose press suitable for cold stamping processes such as forming, blanking, punching, and bending.
1. C-frame cast body, maximum rigidity and minimum deflection, precise parts and long tool life. The fuselage can be tilted, has high rigidity, small deformation and compact structure. Thick plates and large columns give you the stable platform you need for demanding applications.
2. The wide-body frame eliminates vibration, improves product life and machine life, and is economical and practical. The operating space is wide, and the movable workbench can be moved out of the frame to place the mold. The structure is simple and the appliance is beautiful.
3. High precision, high efficiency, simple and convenient operation, excellent performance, favorable price and best service.
The J23 series open eccentric press is a general-purpose press suitable for cold stamping processes such as forming, blanking, punching, and bending.
1. C-frame cast body, maximum rigidity and minimum deflection, precise parts and long tool life. The fuselage can be tilted, has high rigidity, small deformation and compact structure. Thick plates and large columns give you the stable platform you need for demanding applications.
2. The wide-body frame eliminates vibration, improves product life and machine life, and is economical and practical. The operating space is wide, and the movable workbench can be moved out of the frame to place the mold. The structure is simple and the appliance is beautiful.
3. High precision, high efficiency, simple and convenient operation, excellent performance, favorable price and best service.
Specification
Item | Unit | J23-6.3T | J23-10T | J23-16T | J23-25T | J23-40T | J23-63T | J23-80T | J23-100T |
Nominal force | KN | 63 | 100 | 160 | 250 | 400 | 630 | 800 | 1000 |
Slide stroke | mm | 35 | 50 | 60 | 70 | 100 | 110 | 115 | 130 |
Number ofstroke | times/min | 150 | 140 | 100 | 70 | 50 | 50 | 45 | 38 |
Closed height | mm | 200 | 200 | 250 | 290 | 380 | 380 | 410 | 590 |
Closed height adjustment | mm | 30 | 40 | 40 | 40 | 60 | 60 | 60 | 100 |
Throat depth | mm | 130 | 130 | 180 | 200 | 250 | 280 | 280 | 320 |
Column distabce | mm | 160 | 170 | 200 | 230 | 320 | 350 | 360 | 400 |
Table size fiont and back | mm | 140 | 100 | 130 | 170 | 190 | 220 | 250 | 280 |
Table sizeleft and rioht | mm | 140 | 145 | 180 | 200 | 250 | 310 | 300 | 425 |
Shouk dimension diameter | mm | 30 | 30 | 35 | 40 | 50 | 50 | 60 | 60 |
Shouk dimension depth | mm | 45 | 50 | 60 | 60 | 100 | 100 | 100 | 100 |
Dimension firont and back | mm | 700 | 740 | 900 | 1000 | 1400 | 1500 | 1600 | 1800 |
Dimension left and richt | mm | 550 | 600 | 780 | 830 | 1100 | 1200 | 1300 | 1300 |
Dimension height | mm | 1450 | 1500 | 1720 | 1950 | 2300 | 2400 | 2600 | 2650 |
Motor | kw | 1.1 | 1.5 | 2.2 | 2.2 | 3.0 | 4.0 | 7.5 | 7.5 |
Weight | kg | 300 | 350 | 700 | 1100 | 2400 | 3100 | 4000 | 5000 |
Packing&Shipping
1.We will wipe anti rust oil for the whole machine .
2.Plc controller will be covered by foam film
2.Plc controller will be covered by foam film
3.Spare parts are some small parts are packed in a wodden case.
4.All componenets are fixed well by steel wire with container.
4.All componenets are fixed well by steel wire with container.
Choose product

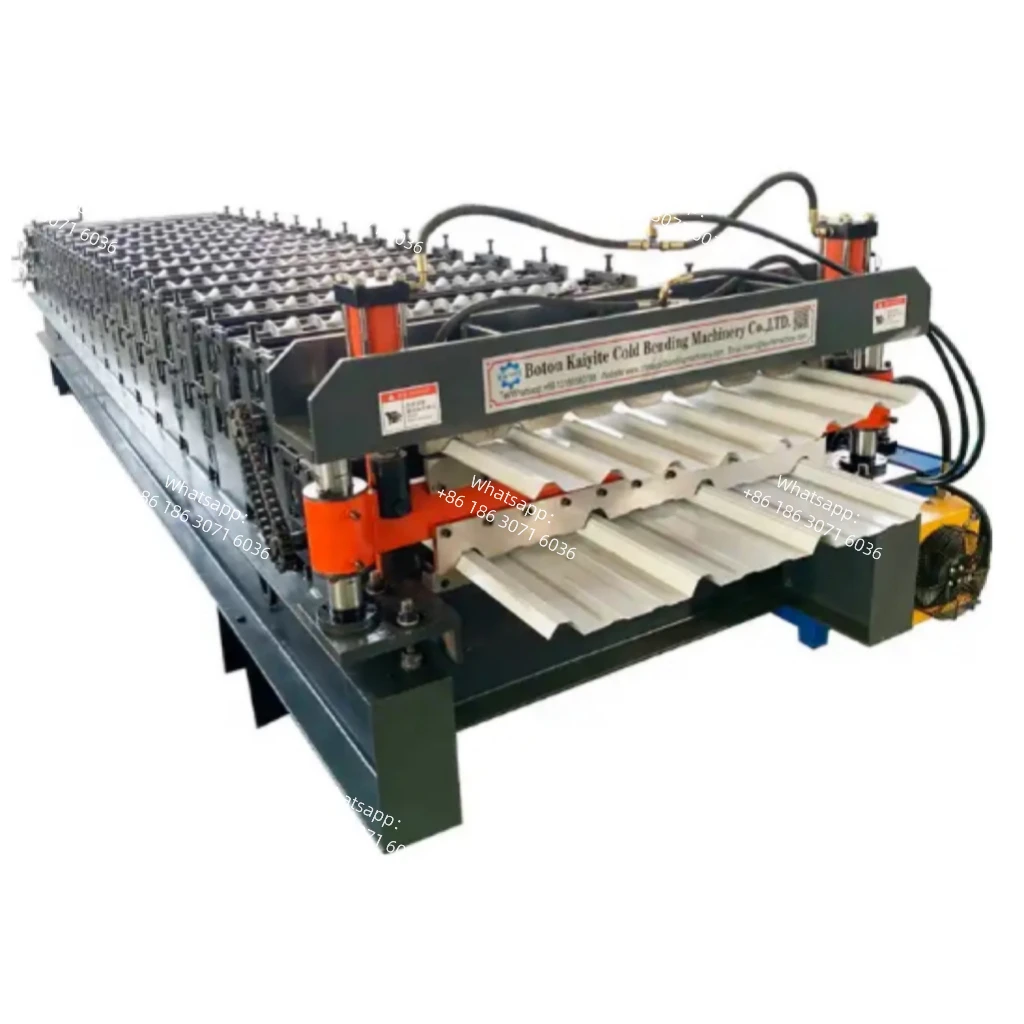

High quality and cost-effective double Layer Roof Tile Roll Forming Machine
