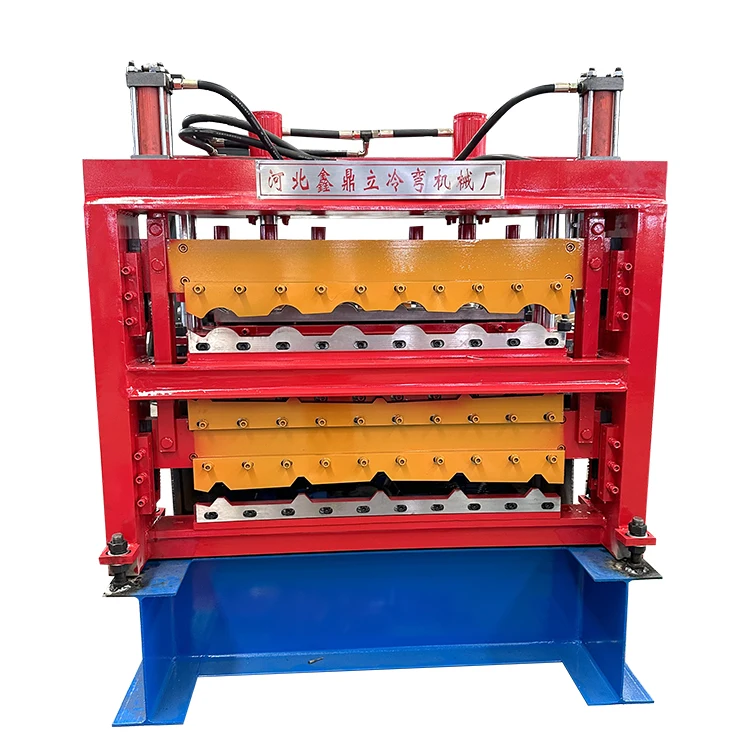

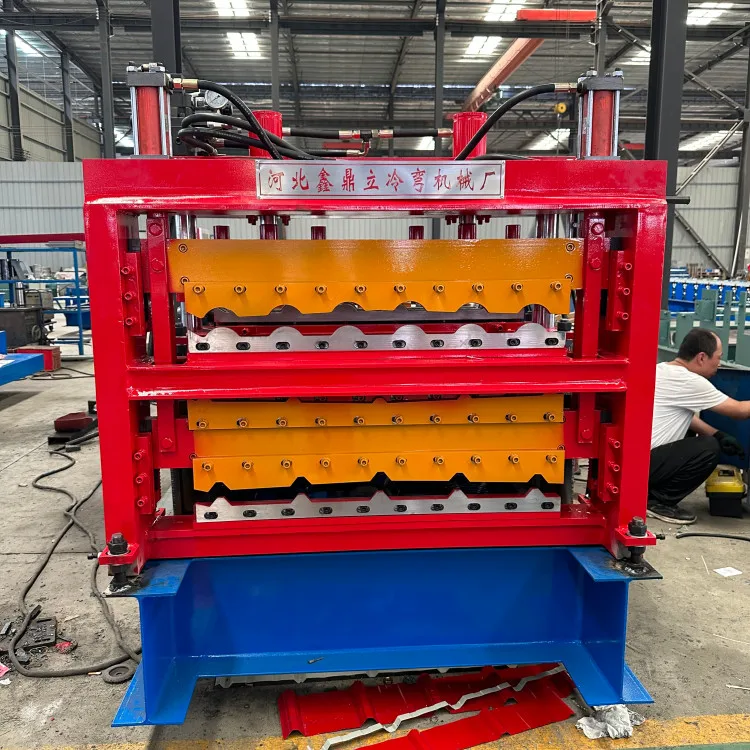

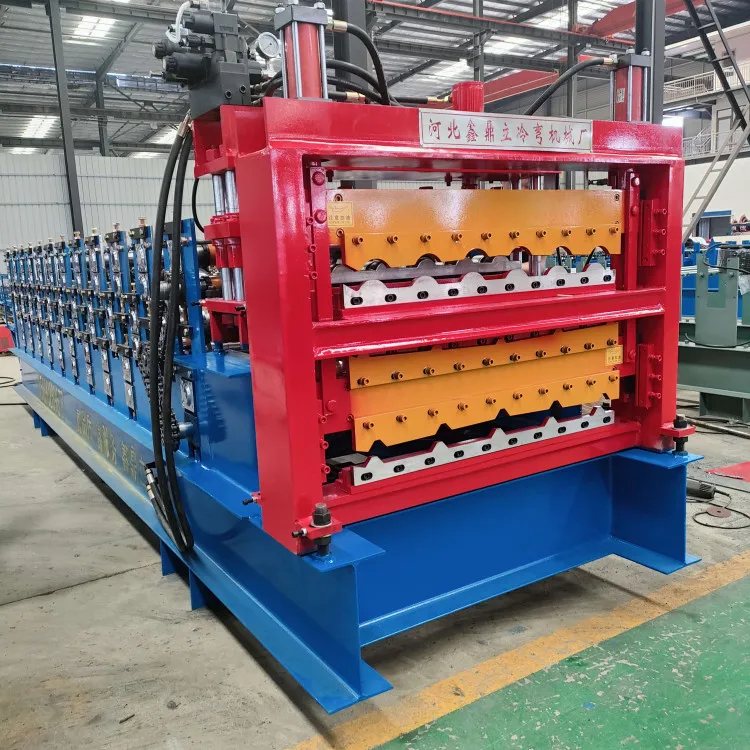

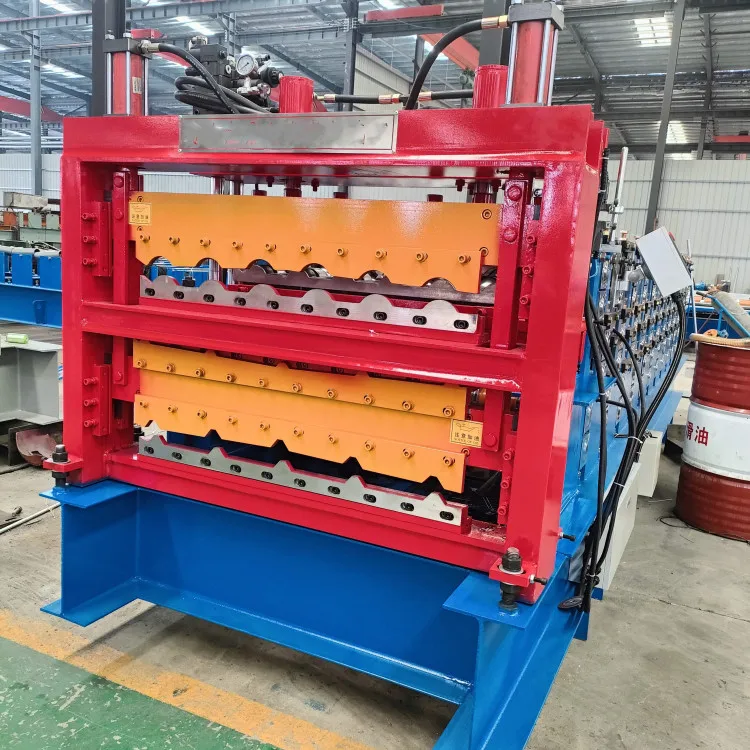

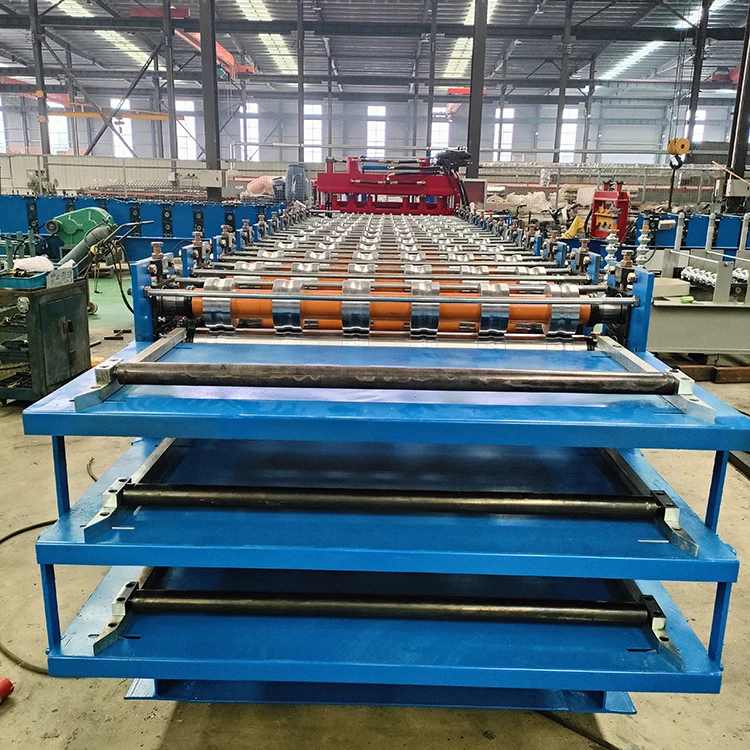

Direct Selling Three Layer Roll Forming Machine 3 Layers Roofing Machine
- Category: >>>
- Supplier: Cangzhou Xindingli Cold Bending Machinery Co. Ltd.
Share on (1601197348073):
Product Overview
Description
Raw material | ||
material spec | GI,GL,PPGI,PPGL | |
Thickness of coil sheet | 0.25-0.7 mm | |
Machine details | ||

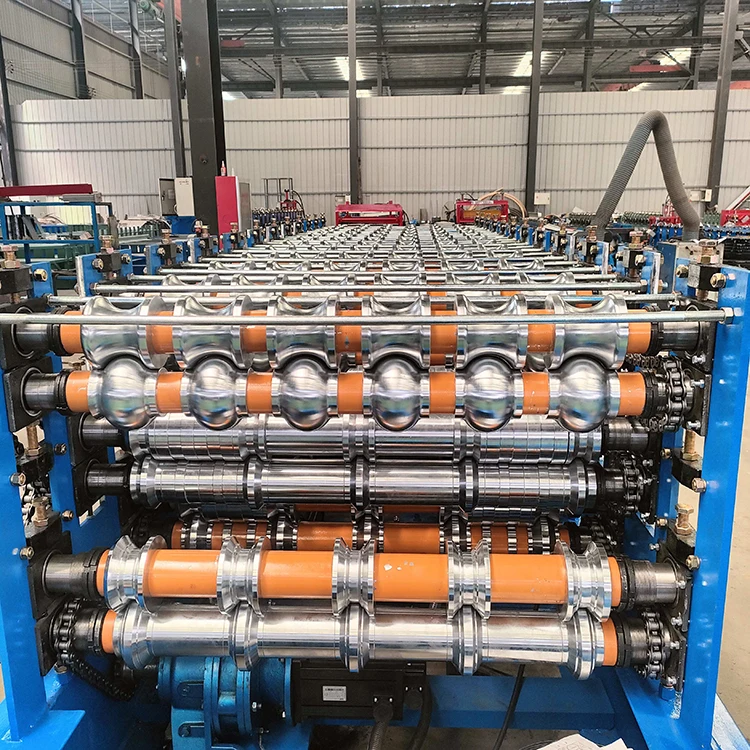

Roller material | The forming roller is made of 45# steel, which is hard chromium plated after carburizing. Carburizing treatment can increase the hardness and wear resistance of the roller, and increase its performance and service life. The rollers are highly precision ground, polished and hard chromium plated. Ensure the smoothness of the chamfer, reduce friction between the plate and the roller, and reduce wear. Will not scratch the painted surface of the steel coil. | |
Shaft material | Shafts of forming adopt 45# steel,after balance correction,are grinded,polished with high precision. Stainless steel dust shield is mounted on the outside of the bearings. | |
Diameter of shaft | 70mm | |
Main frame | 350 H steel | |
Forming steps | 15+13+13 rows | |
Productivity | 20-25m/min 3-5m/min | |
Middle panel | 16mm | |
Chain | 1 inch | |
Hydraulic station power | 7.5 KW | |

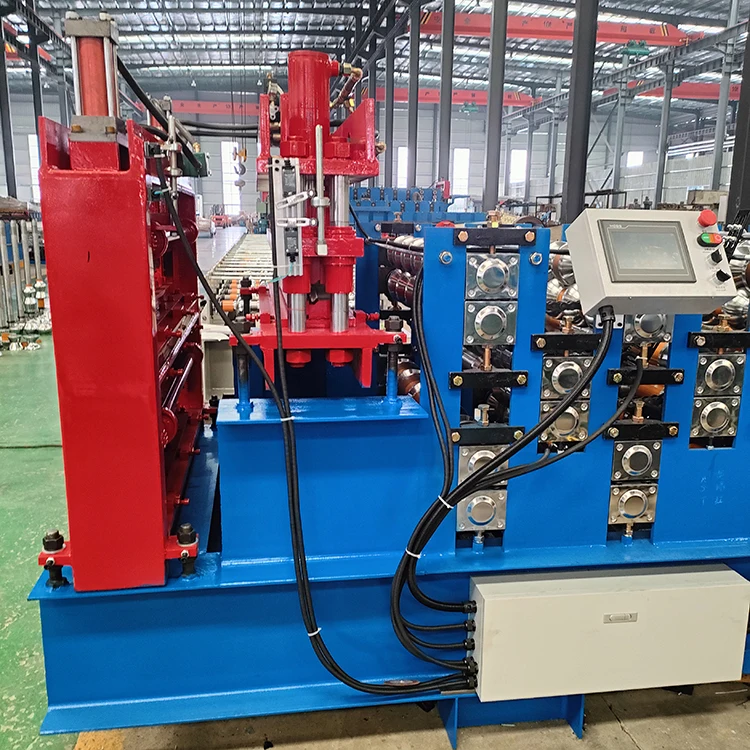

Controlling system | famous PLC computer control | |
Material of cutting table | Cr 12 mould steel with quenched treatment | |
Appearance size | 7800mm*1300mm*1200mm | |
Hydraulic oil | 46# hydraulic oil | |
Voltage | 380V 60Hz 3 Phase or as your requirements | |
Weight | About 8.5T | |
CangZhou Xindingli Cold Bending Machinery CO., LTD is a professionally managed company engaged in manufacturing and exporting a wide array of quality high speed roll forming machines for building and construction industries.
Our first class infrastructure is equipped with the latest manufacturing, and inspection facilities， For example, the molding roller is made of 45# steel, CR12 heat treatment, Gcr15 heat treatment, and 45# carburizing treatment and is plated with hard chromium after carburizing，Hydraulic motor drive，Cr12Mov cutter material and so on, that make us assure high standards of quality.
Our success lies not only in the high standard of quality but also in the emphasis on customer service such as professional communication, timely delivery, perfect after-sales.
Our network is spread all around the world, enabling us to respond to the needs of worldwide market centered around Europe, America, Latin America, Asia, Africa, Middle East
1. Can the machine only produce one size or shape?
Not quite. We have standard configuration and customized machines. For machinecustomization, you need to contact us to provide relevant information.
2. Do you have after-sales support?
Yes, we are happy to provide suggestions. If necessary, we also have skilled technicians to guide the maintenance of the machine via video.
3. Can you be responsible for transportation?
Yes, please tell us the port of destination or address. We have rich experience intransportation and will choose the most economical and reliable transportation company for you.
4. Do you provide customized services?
Of course, we can design the equipment according to the drawing parameter data provided by you. We are a professional machinery manufacturer.
