Mold processing Milling Machine Center Vmc850 Five axis Rotary High Speed Metal Moulding CNC Vertical Machine Center
- Category: >>>
- Supplier: Shandong Yijin Cnc Machine Tool Co. Ltd.
Share on (1601197857398):
Product Overview
Description

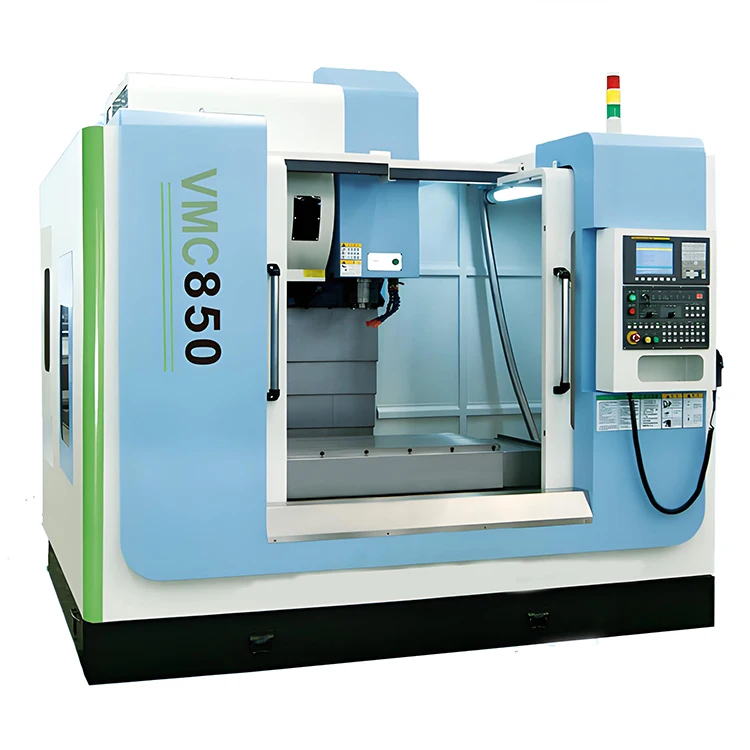

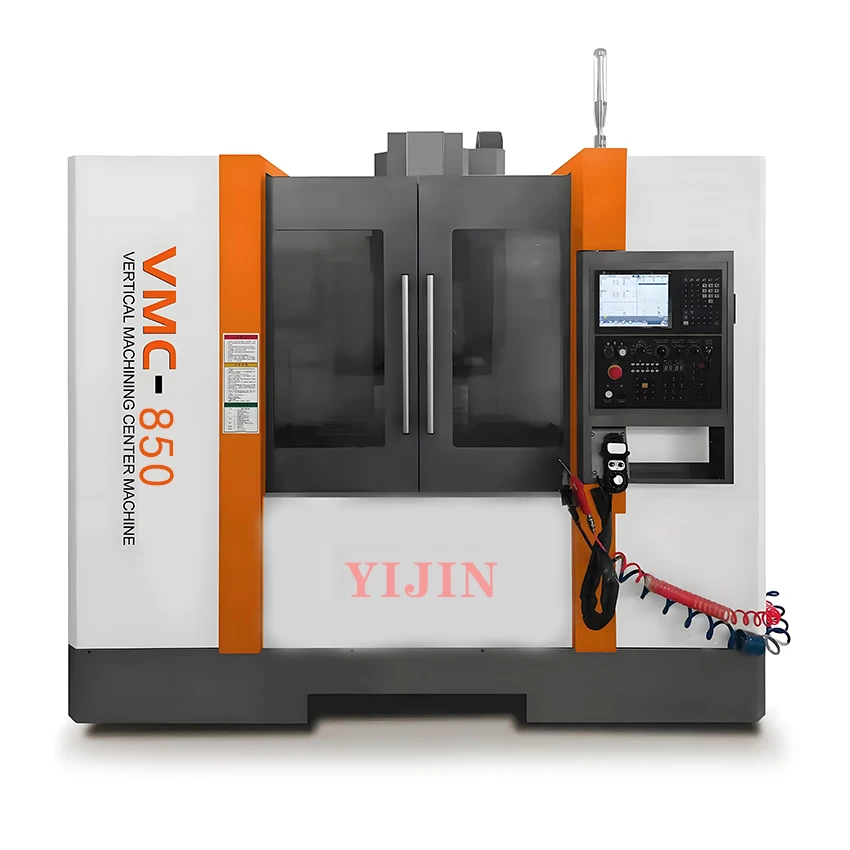

Mold processing Milling Machine Center Vmc850 Five-axis Rotary High Speed Metal Moulding CNC Vertical Machine Center
This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling ,tapping ,boring ,etc.CNC machine 4-axis 5-axis VMC850 GSK218M 8000 rpm Machines Milling Vertical Machining CNC Milling Machine Center
Specification
Specification | 单位 | VMC7124 | VMC650 | VMC850 | VMC855 | |||
X-axis | mm | 500 | 600 | 800 | 800 | |||
Y-axis | mm | 320 | 500 | 500 | 550 | |||
Z-axis | mm | 430 | 500 | 500 | 550 | |||
Table size | mm | 260*800 | 500*800 | 500*1000 | 550*1000 | |||
Max.table load | kg | 200 | 400 | 500 | 600 | |||
T-slot | mm | 3-16*75 | 4-14*84 | 5-18*90 | 5-18*90 | |||
Spindle center ti column surface | mm | 400 | 550 | 570 | 595 | |||
Spindle taper | BT40 | |||||||
Spindle Speed | rpm | 8000 /10000/12000 | ||||||
Spindle motor | kw | 5.5 | 5.5 | 7.5 | 7.5 | |||
XYZ axis rapid traverse | M/ min | 36/36/36 (48/48/48) | 36/36/36 (48/48/48) | 36/36/36 (48/48/48) | 36/36/36 (48/48/48) | |||
XYZ axis cutting feed rate | M/ min | 1--10 | ||||||
Magazine type | T | 12 | 24 | |||||
Max.Tool length | mm | 300 | ||||||
Max.Tool weight | kg | 8 | ||||||
Positioning accuracy | mm | 0.005/300 | ||||||
Repositioning accuracy | mm | 0.003/300 | ||||||
Machine dimensions(L*W*H) | mm | 1650*1390*1950 | 1650*1390*1950 | 2600*2340*2600 | 2800*2340*2600 | |||
item | value |
Condition | New |
Spindle Taper | BT40 |
No. of Spindles | Single |
Type | VERTICAL |
Dimension(L*W*H) | 2400*2200*2500mm |
Weight (T) | 4.9T |
Table Size (mm) | 1000*500 |
CNC Control System | GSK, FANUC, MITSUBISHI, KND, Siemens, DELEM |
Number of Axes | 3, 4, 5 |
Table Travel (X) (mm) | 800 |
Table Travel (Y) (mm) | 500 |
Table Travel (Z) (mm) | 500 |
Positioning Accuracy (mm) | ±0.005/300mm |
Repeatability (X/Y/Z) (mm) | ±0.003mm |
Range of Spindle Speed(r.p.m) | 100r.p.m - 8000r.p.m |
Spindle Motor Power(kW) | 7.5/11 |
Max. Table Load(kg) | 500kg |
Feed Speed(mm/min) | 1mm/min - 5000mm/min |
Rapid Feed Speed(m/min) | 24/24/20 |
Min. Time of Tool Change(s) | 2 |
Tool Magazine Capacity | 16, 24, 32 |
Key Selling Points | Automatic |
Warranty | 3 years |
Place of Origin | China |
Shandong | |
Brand Name | Yijin cnc milling machine |
Voltage | 380v-50hz;220v |
Applicable Industries | Hotels, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Retail, Printing Shops, Construction works , Energy & Mining, Other, Advertising Company |
Showroom Location | None |
Marketing Type | Customized according to customer needs |
Machinery Test Report | Provided |
Video outgoing-inspection | Provided |
Warranty of core components | 3 years |
Core Components | PLC |
Spindle end face to workbench | 120-620mm |
Spindle center to column guide rail | 560mm |
Cutting feed | 1-8000mm/min |
Table size | 1000*500mm |
t-slot | 5-18-90mm |
Spindle diameter | 140mm |
vmc milling machine types | disc type |
CNC system | FANUC, Siemens, Mitsubishi,GSK,Syntec |
Product name | CNC Vertical Machining Center |
Keywords | desktop metal cnc machine |
Company Profile
Features:
1. Resin sand castings.
2. Taiwan's three-axis ball screw. (Taiwan)
3. Precision lock nut. (Shanghai Yu Kai) (standard)

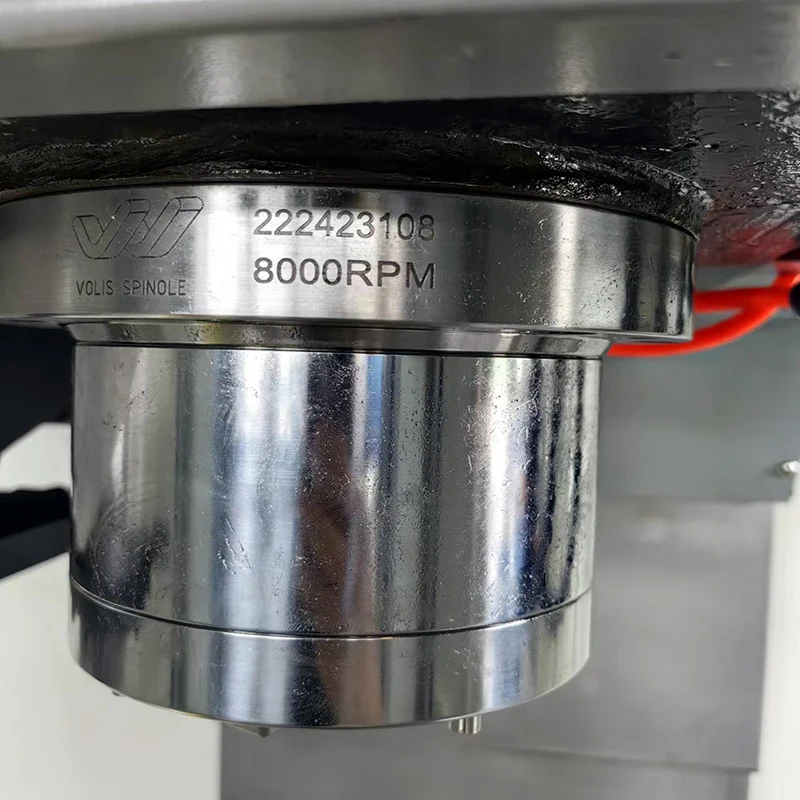

4. Taiwan-made spindle, Japan NSK bearing, spindle pulley and belt.
(Taiwan Health) 8000 rpm
5. Taiwan-made pressurized cylinder. (Taiwan Hao Orange) (standard)
6. Imported bearings (P4 grade). (standard)
7. Domestic high quality coupling. (Tianjin Longchuang) (standard)

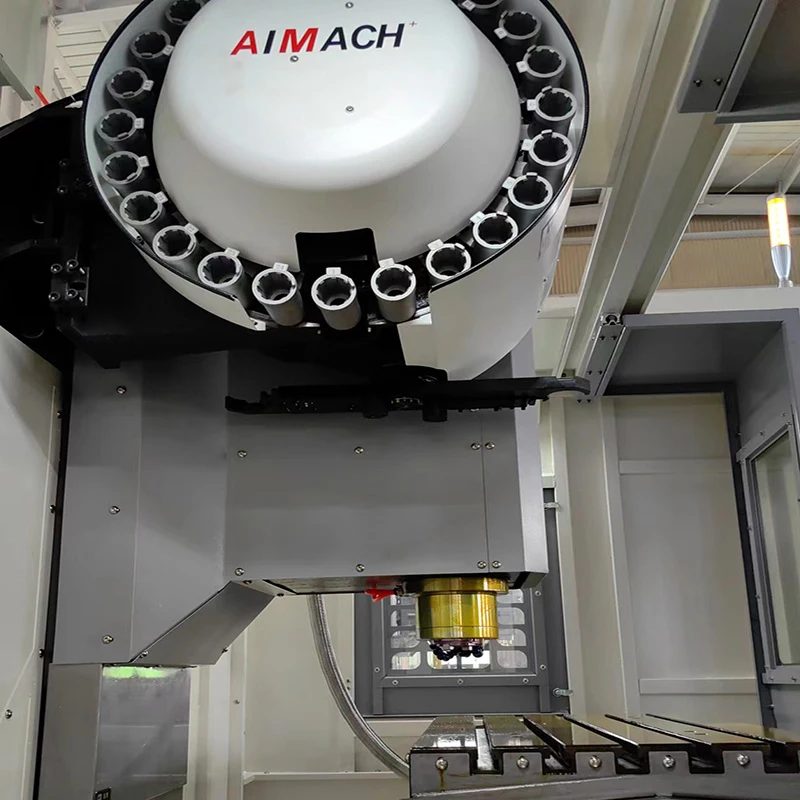

8. Tool magazine 24 bucket knives (Tokyo, Taiwan)
9. X, Y, Z (bottom) stainless steel rail protection. (standard)
10. Imported electronic lubrication pump. (standard)
11. Domestic cooling system water pump, water tank. (standard)
12. Pneumatic components, . (standard)
13. Headstock weight. (standard)

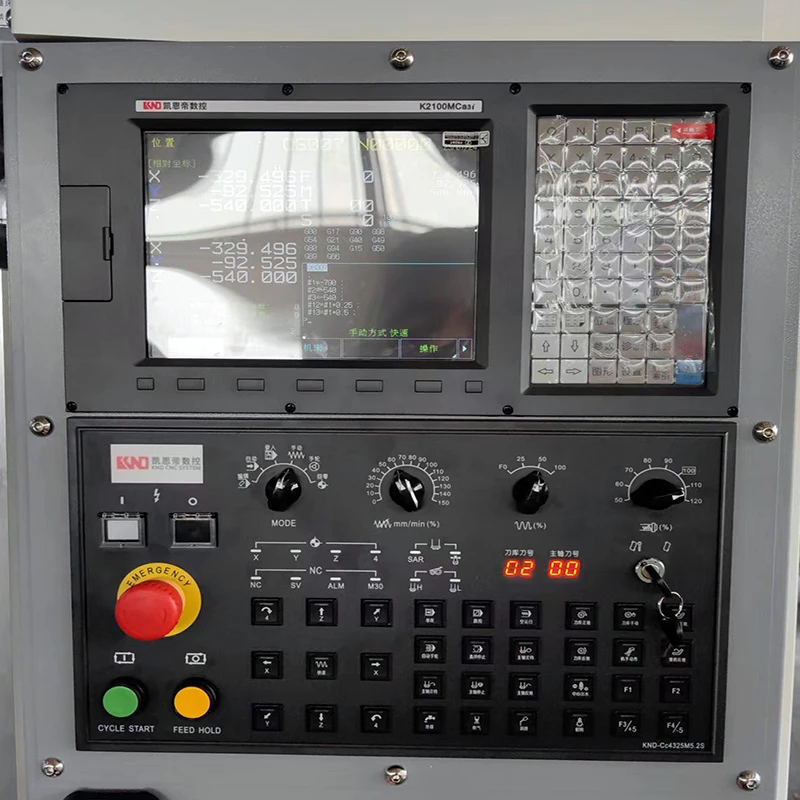

14. System.Siemens 828D, FANUC, Mitsubishi M80A.
15. Machine alarm light (standard)
The machine is equipped with an anti-impact device, which can absorb the vibration caused by the impact caused by the worker's
operation error, so as to minimize the damage of the impact and ensure the original accuracy;
The oil and water separation design can effectively separate the lubricating oil from the cutting fluid, and prevent the cutting
fluid from deterioration, affecting the processing quality.
1. Resin sand castings.
2. Taiwan's three-axis ball screw. (Taiwan)
3. Precision lock nut. (Shanghai Yu Kai) (standard)
4. Taiwan-made spindle, Japan NSK bearing, spindle pulley and belt.
(Taiwan Health) 8000 rpm
5. Taiwan-made pressurized cylinder. (Taiwan Hao Orange) (standard)
6. Imported bearings (P4 grade). (standard)
7. Domestic high quality coupling. (Tianjin Longchuang) (standard)
8. Tool magazine 24 bucket knives (Tokyo, Taiwan)
9. X, Y, Z (bottom) stainless steel rail protection. (standard)
10. Imported electronic lubrication pump. (standard)
11. Domestic cooling system water pump, water tank. (standard)
12. Pneumatic components, . (standard)
13. Headstock weight. (standard)
14. System.Siemens 828D, FANUC, Mitsubishi M80A.
15. Machine alarm light (standard)
The machine is equipped with an anti-impact device, which can absorb the vibration caused by the impact caused by the worker's
operation error, so as to minimize the damage of the impact and ensure the original accuracy;
The oil and water separation design can effectively separate the lubricating oil from the cutting fluid, and prevent the cutting
fluid from deterioration, affecting the processing quality.

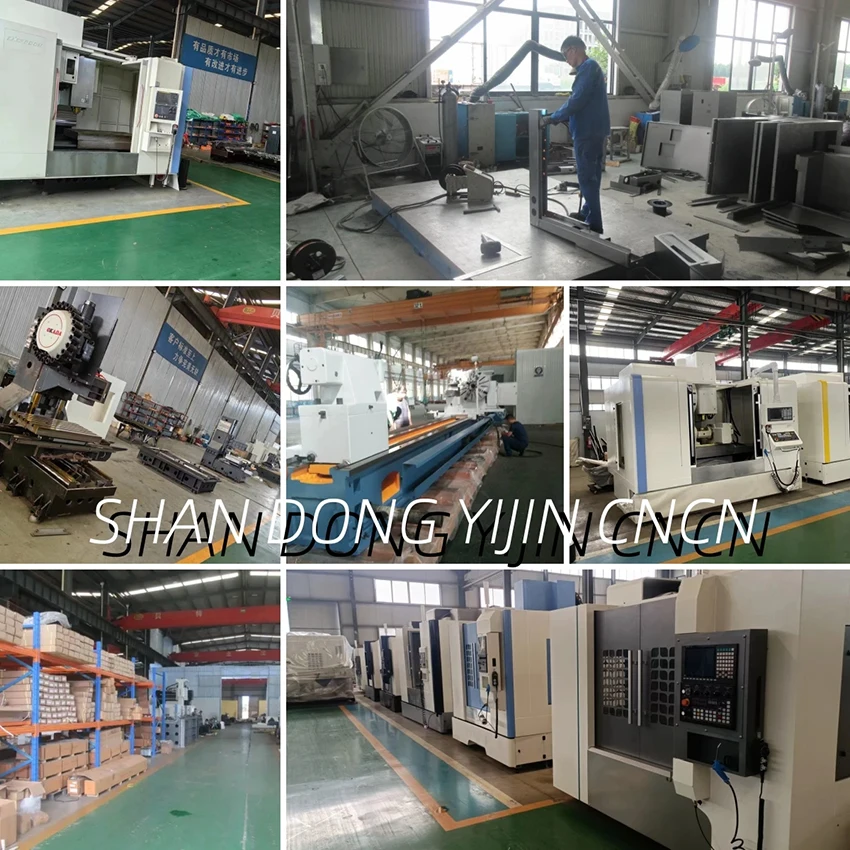

Shandong Yijin CNC Machine Tool Co., Ltd. is an enterprise that integrates professional production, research and development, and sales of CNC machine tools and accessories. It has always focused on the research and development and production of CNC machine tools and equipment, and has a complete and scientific quality management system. The company mainly produces small CNC machining centers, CNC machining centers, vertical machining centers, small CNC lathes, CNC lathes, and related accessories. The company has a strong design team, which can complete the composition and design of automatic production lines. With advanced design concepts and experience, it helps customers solve more problems. The company always adheres to the business philosophy of customer first and continuous innovation, constantly optimizing its own products while thinking about what customers want, and improving quality and efficiency. Quality is the lifeblood of an enterprise. The company is willing to work with its customers and strategic partners to create a better future.
Exhibition
FAQ
Q1: How can I choose the most suitable machines ?
A1: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
Q2: What's your main products of your company?
A2: We specialized in CNC Milling Machine ,Vertical Machining Center ,Lathe Machines , Drilling Machine, Tapping Machine and so on.
Q3: What's the Payment Terms ?
A3: T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight.
Q4: What's the MOQ?
A4: 1set
Q5: What's the warranty?
A5: One year.
A1: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
Q2: What's your main products of your company?
A2: We specialized in CNC Milling Machine ,Vertical Machining Center ,Lathe Machines , Drilling Machine, Tapping Machine and so on.
Q3: What's the Payment Terms ?
A3: T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight.
Q4: What's the MOQ?
A4: 1set
Q5: What's the warranty?
A5: One year.
