US Wheeler LM 2015 CNC 6 Axis Gantry Type Milling Machine High Capacity Machining Center
- Category: >>>
- Supplier: Hangzhou Qianshang Machinery Co. Ltd.Hangzhou Ltd.
Share on (1601355676166):
Product Overview
Description
US Wheeler Vertical Machining Center
Contact: Jodie
What's app&wechat: +8615869162884
About us
HANGZHOU WHEELER GENERAL MACHINERY INCORPORATED CO., LTD. is a national high-tech enterprise specialized in the design and manufacturing of CNC machining equipment, machine tool loading and unloading automation lines, digital factory, and non-standard fixtures. The company was established in January 2015, with its operation center Located in Linping Economic Development region, Hangzhou City. The company currently has over 300 employees and an efficient professional technical research and development team, including more than 60 professional technical personnel with various intermediate and senior technical titles (engineers). The company has an R&D center of 5000 square meters and a production and commissioning base of 43000 square meters, with more than 50 patented technologies. It has offices and after-sales service outlets in Shanghai, Jiangsu, Anhui, Shandong, Henan, Jilin, Chongqing, Ningbo, Taizhou, Wuhan, Xi'an, Zhengzhou and other places. Our products have been
exported to Turkey, Egypt, South Africa, Brazil, Australia, Singapore, Malaysia, Thailand and other countries
exported to Turkey, Egypt, South Africa, Brazil, Australia, Singapore, Malaysia, Thailand and other countries

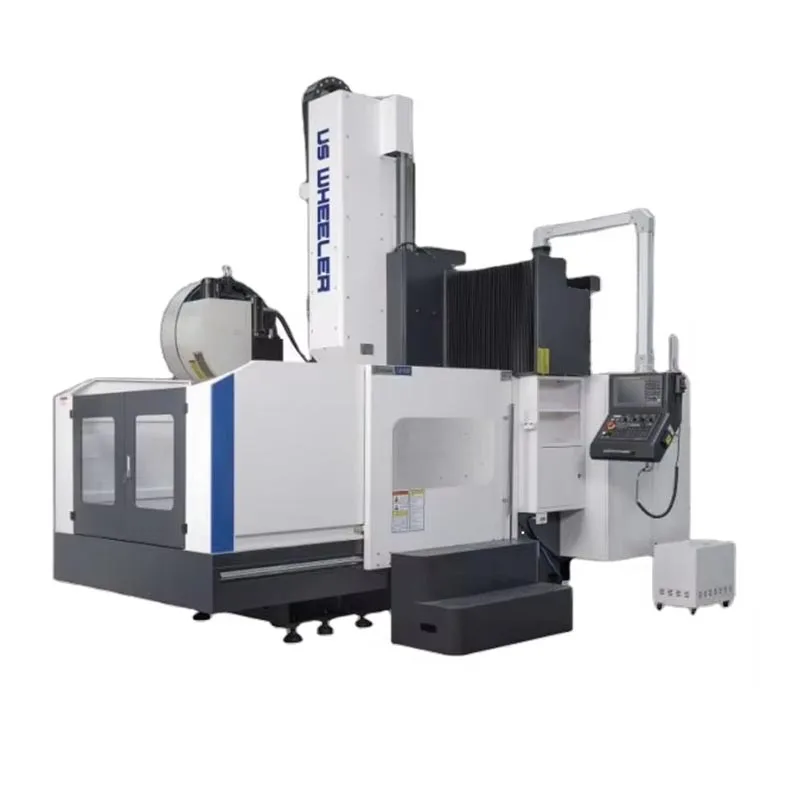

LM series gantry machining center is a high-end technology-intensive product of high
quality, high precision and high performance carefully designed and manufactured by US
WHEELER. The machine tool is novel in design, beautiful in overall structure, stable in
precision, reliable in performance, and flexible and convenient in operation.
quality, high precision and high performance carefully designed and manufactured by US
WHEELER. The machine tool is novel in design, beautiful in overall structure, stable in
precision, reliable in performance, and flexible and convenient in operation.
Specification
Item | Gantry Machining Center LM2015 | Specifications |
Travel | X-axis travel | 2000mm |
Y-axis travel | 1500mm | |
Z-axis travel | 800mm | |
Distance from spindle end face to worktable | 105-905mm | |
Gantry passing height | 1030mm | |
Gantry width | 1500mm | |
Worktable | Worktable size | 2100*1200mm |
T-slot quantity/size/spacing | 7*22*150 | |
Maximum loading capacity | 3500kg | |
Spindle | Spindle speed | 50-12000rpm |
Drive mode | Direct drive | |
Spindle motor torque (rated/maximum) | 52.5/118Nm | |
Main motor power | 11/15kw | |
Servo axis | X/Y/Z rapid traverse speed | 15/15/15m/min |
Cutting feed rate | 1-10000mm/min | |
Counterbalance method | Nitrogen counterbalance | |
Minimum feed | 0.001mm | |
Tool/tool magazine | Tool magazine type | ATC tool magazine (optional) |
Shank specification | BT-40 | |
Max tool length | 300mm | |
Main accuracy | Positioning accuracy（X/Y/Z） | 0.015/0.012/0.012mm |
Repeatability（X/Y/Z） | 0.01/0.008/0.008mm | |
Others | Machine footprint and height | 5365*4065*3700 |
Machine weight (apx.) | 13500kg | |
CNC system | FANUC 0iMF PLUS |
