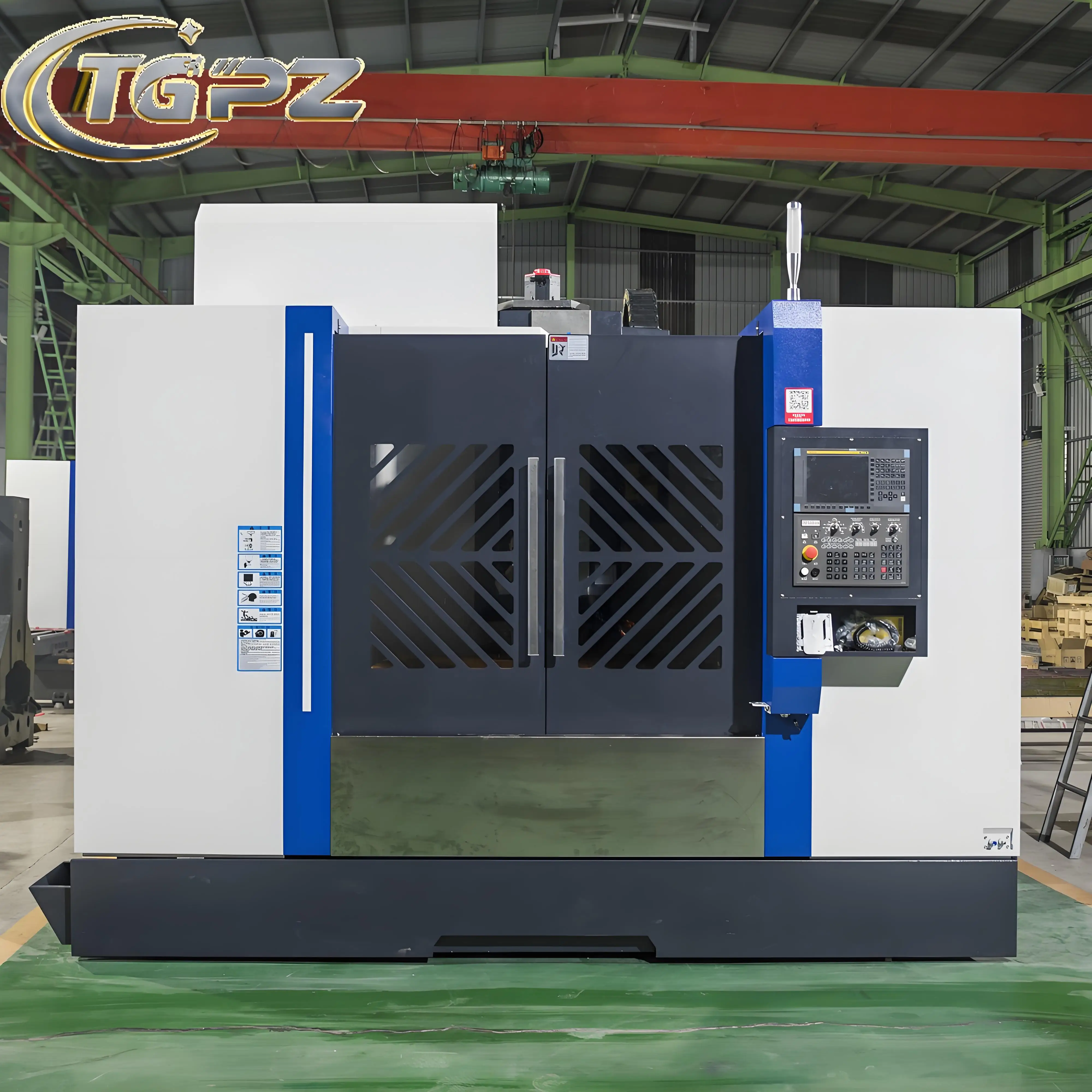

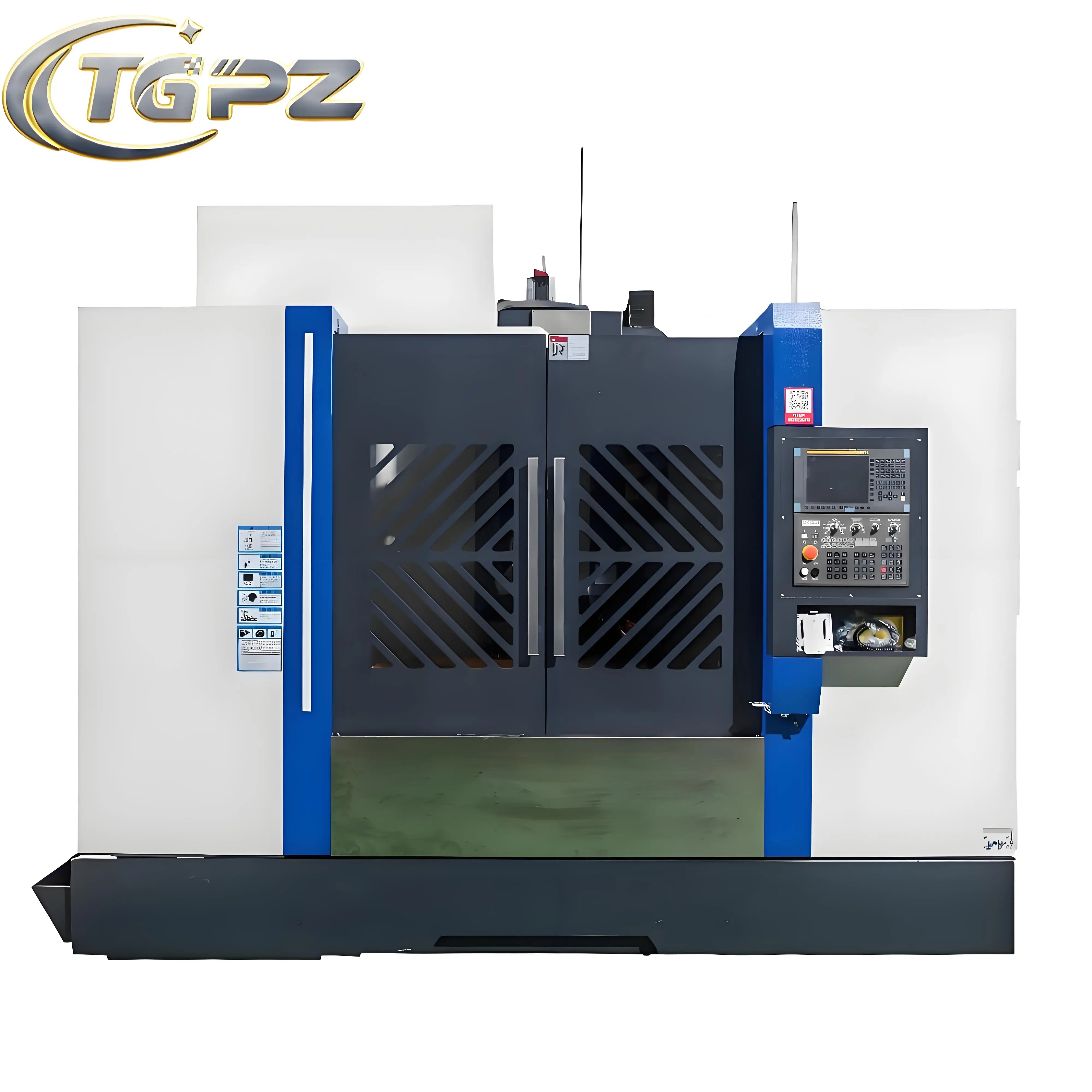

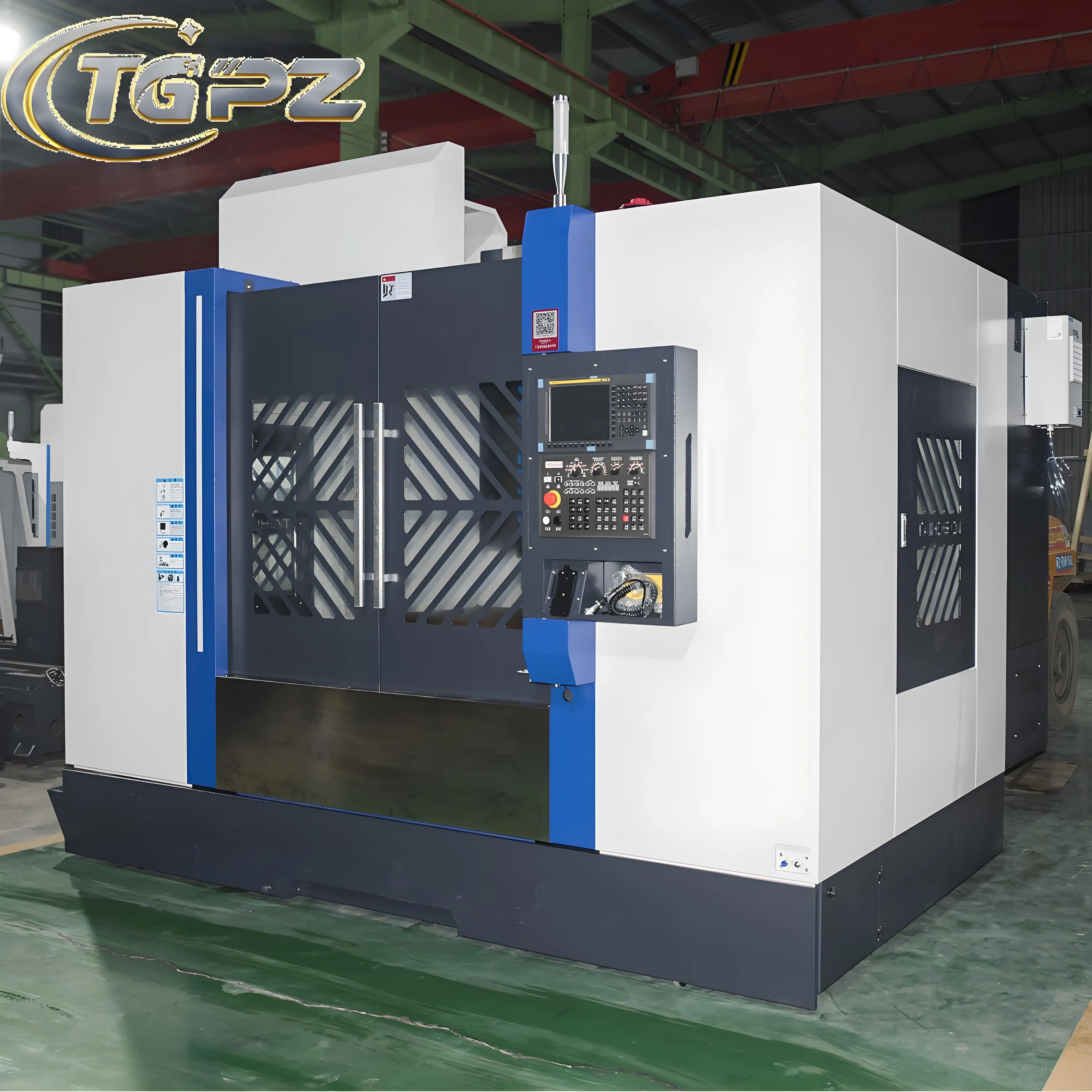

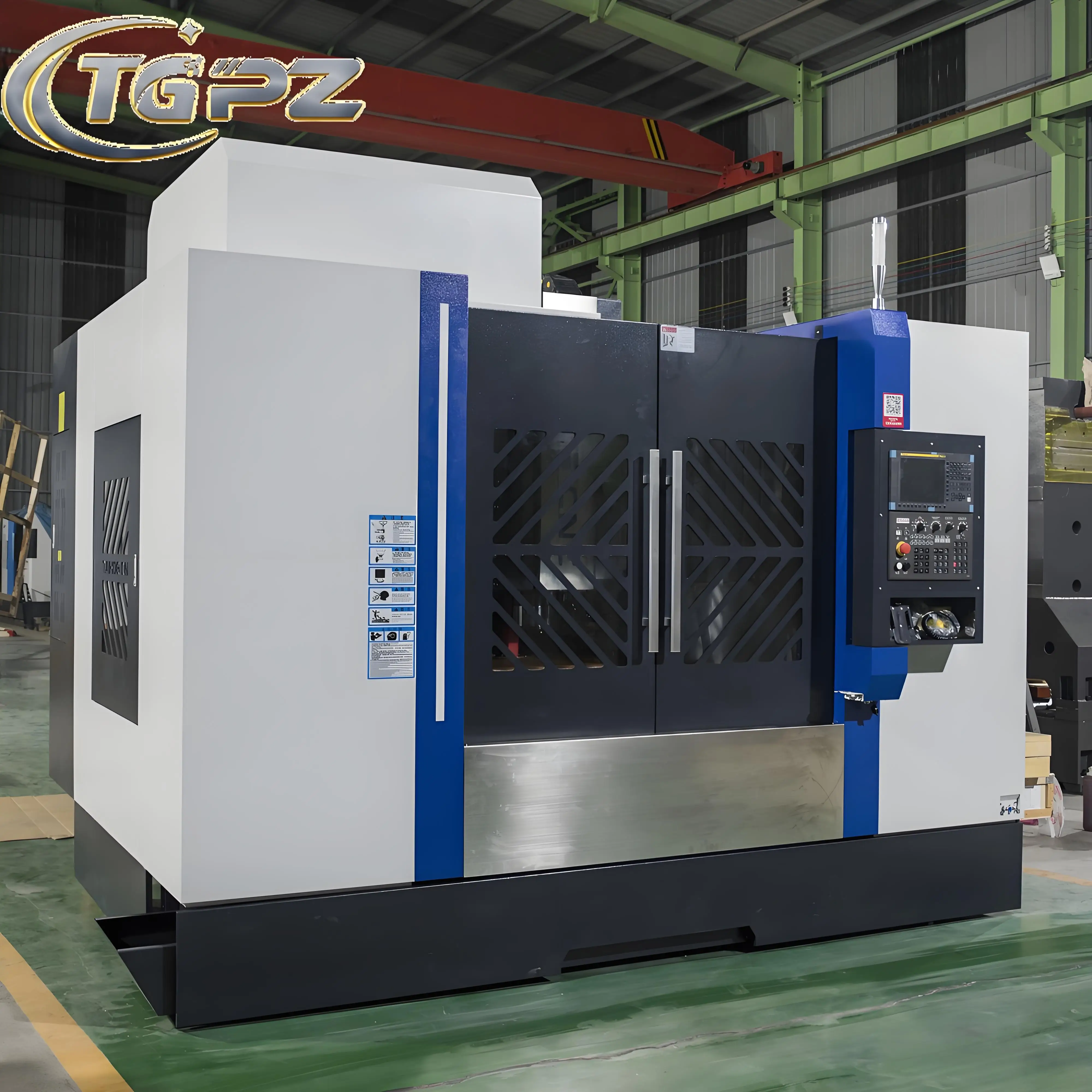

Precision VMC1370 CNC Milling Machine gsk Controller System Vertical Machining Centre
- Category: >>>
- Supplier: Shandong Pengzheng Numerical Control Machine Tool Co. Ltd.Shandong Ltd.
Share on (1601357983979):
Product Overview
Description
Product Paramenters
Standard Configuration
KND2100/GSK25i control system
BT40 taiwan 8000 RPM spindle
Taiwan screw
Taiwan 3 axis roller linear rails
Taiwan 24 arm tool magazine
Electrical cabinet air conditioner
BT40 taiwan 8000 RPM spindle
Taiwan screw
Taiwan 3 axis roller linear rails
Taiwan 24 arm tool magazine
Electrical cabinet air conditioner
Optional Configuration
Direct drive spindle
Spindle oil cooler
Coolant through spindle
Chain type chip conveyor
Screw type chip conveyor
Fourth axis
Fifth axis

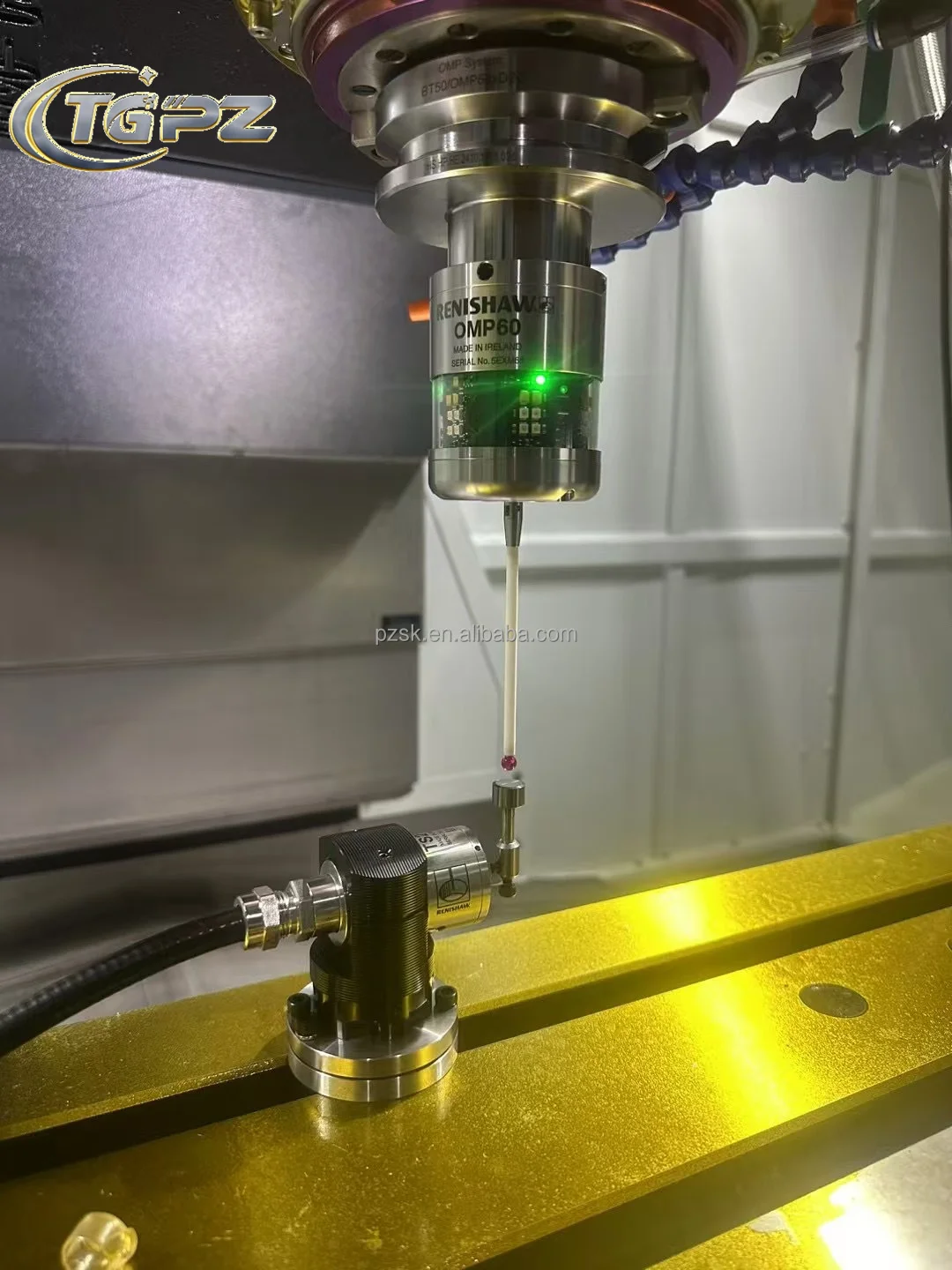

Tool setting probe
Workpiece measuring probe
Siemens, FANUC, Mitsubishi, Syntec
Direct drive spindle
Spindle oil cooler
Coolant through spindle
Chain type chip conveyor
Screw type chip conveyor
Fourth axis
Fifth axis
Tool setting probe
Workpiece measuring probe
Product Paramenters
model | VMC1370 | ||
X axis | 1300mm | ||
Y-axis | 700mm | ||
Z-axis | 700mm | ||
Work surface size | 1400x700mm | ||
Maximum weight | 1000kg | ||
Taper specification | BT40 | ||
Belt spindle speed (direct connection) | 8000 (12000) rpm | ||
Spindle motor | 11/15kw | ||
Maximum tool length | 300mm | ||
Maximum tool weight | 6kg | ||
X, Y axis fast moving speed | 20m/min | ||
Z-axis fast moving speed | 18m/min | ||
Cutting feed rate | 1-10000mm/min | ||
Positioning accuracy | ±0.005mm | ||
Repeated positioning accuracy | ±0.003mm | ||
Overall dimensions of the machine (depth × about × height) | 3800×2750×2800mm | ||
The net weight of the machine | 8200Kg | ||
Details Images

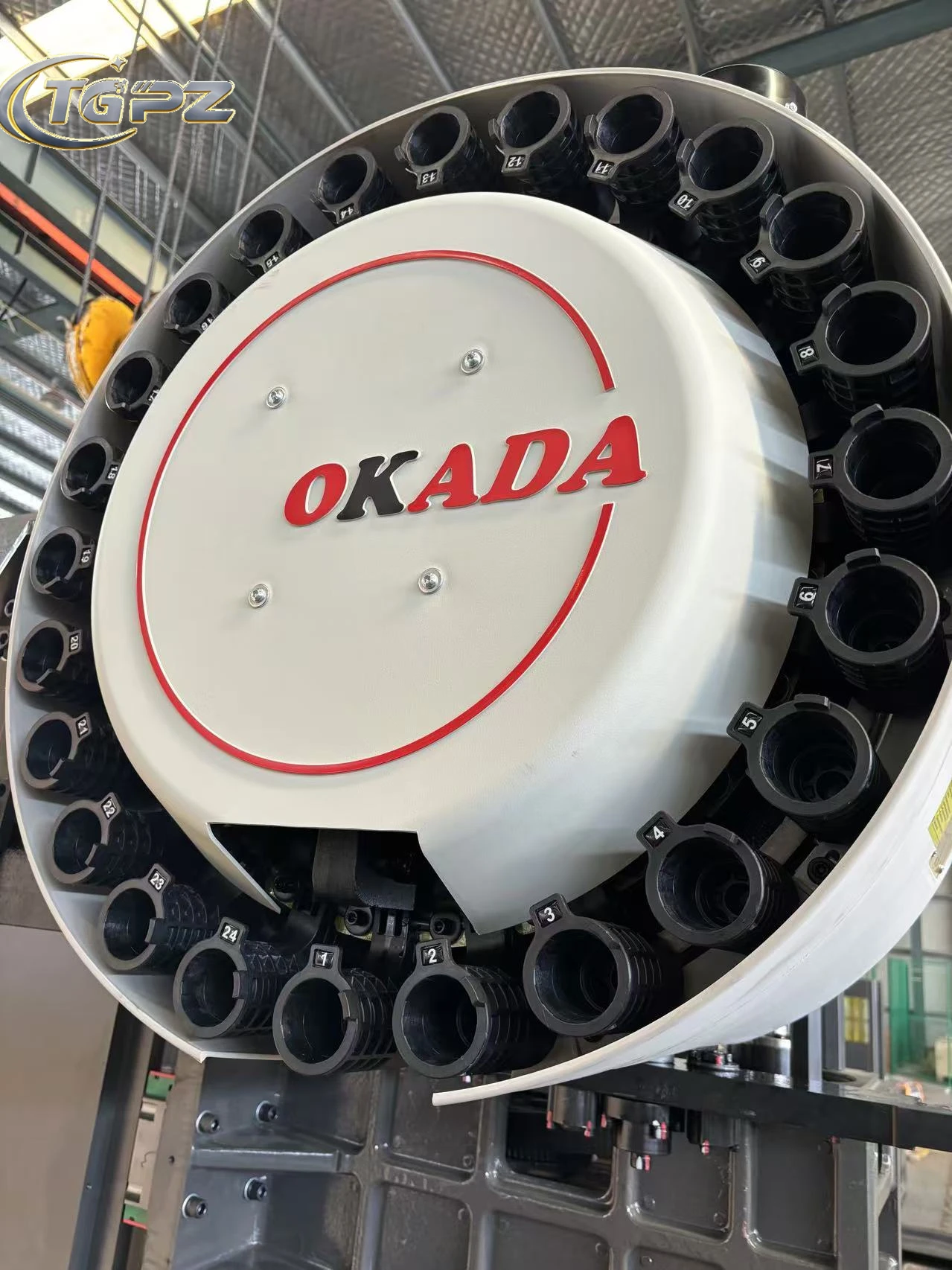

TAIWAN TOOL MAGAZINE
1. Standard with Taiwan 24 Arm tool magazine
2. tool change time only 2-3 seconds.
PNEUMATIC COMPONENTS
Standard with AirTAC Pneumatic Components
SCHNEIDER ELECTRICAL COMPONENTS
1. with Schneider safety electrical components
2. Quick plug as standard
CONTROL SYSTEM
Standard: GSK/KND controlOptional : Siemens , FANUC, Syntec ect.
TAIWAN PRECISION LINEAR RAILS
1. Taiwan high speed roller linear guide rail, positioningaccuracy can reach um class
2. Brand: HIWIN Or PMI
LEAD SCREW AND COUPLING
1 China famous brand lead screw,
2. lead screw bearing using SKF or NACHl bearing,
3. coupling Yc directly connected
LUBRICATION SYSTEM
HERG Automatic centralized lubrication device
AIR CONDITIONER
Standard with Industrial electrical cabinet air conditioner. Cooling the electric box better
TAIWAN PRECISION SPINDLE
1. Taiwan spindle BT40 8000rpm
2. Passed dynamic balance ISO rating test

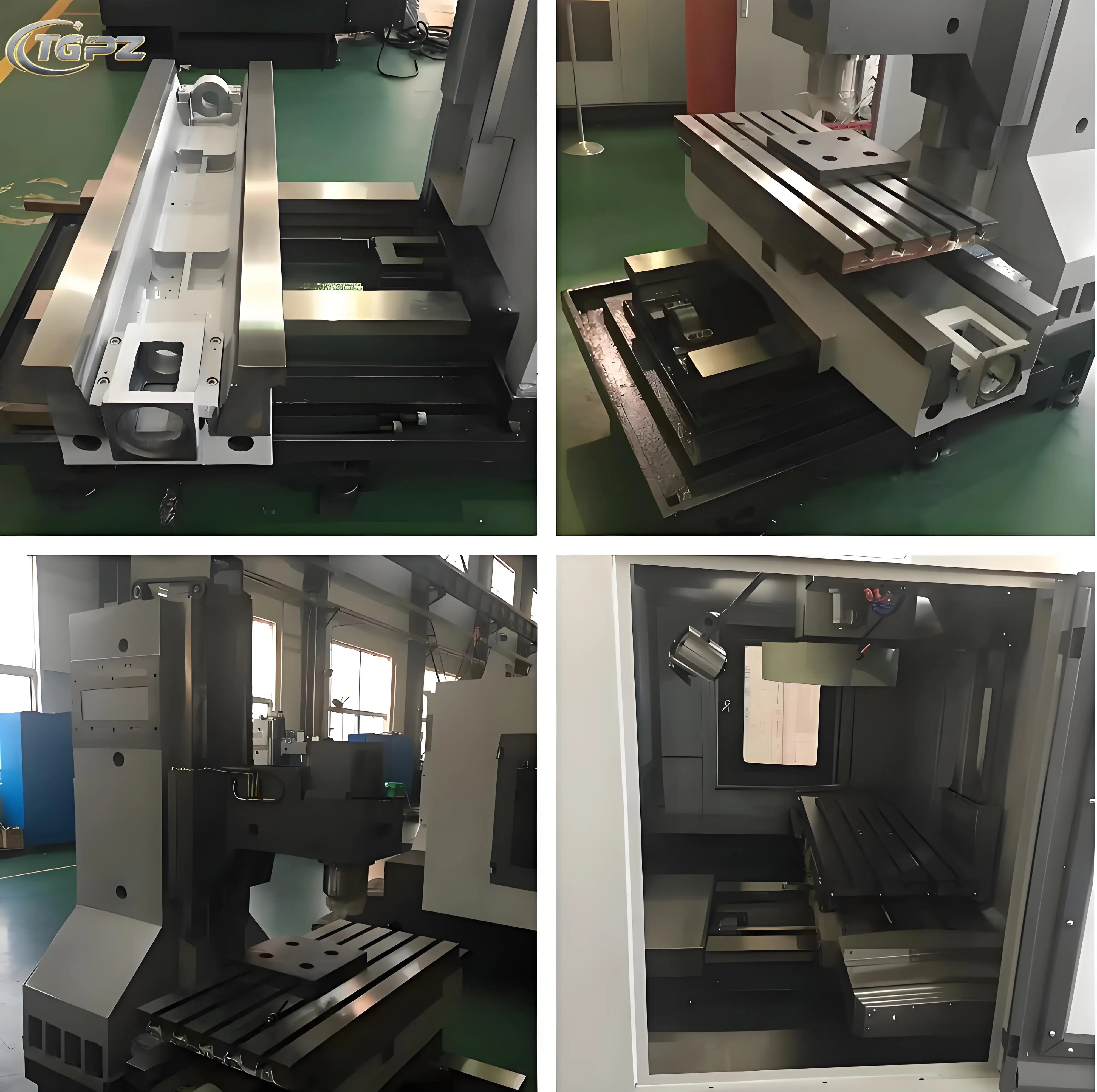

MACHINE CONSTRUCT
High strength high quality HT300 cast iron
Recommend Products

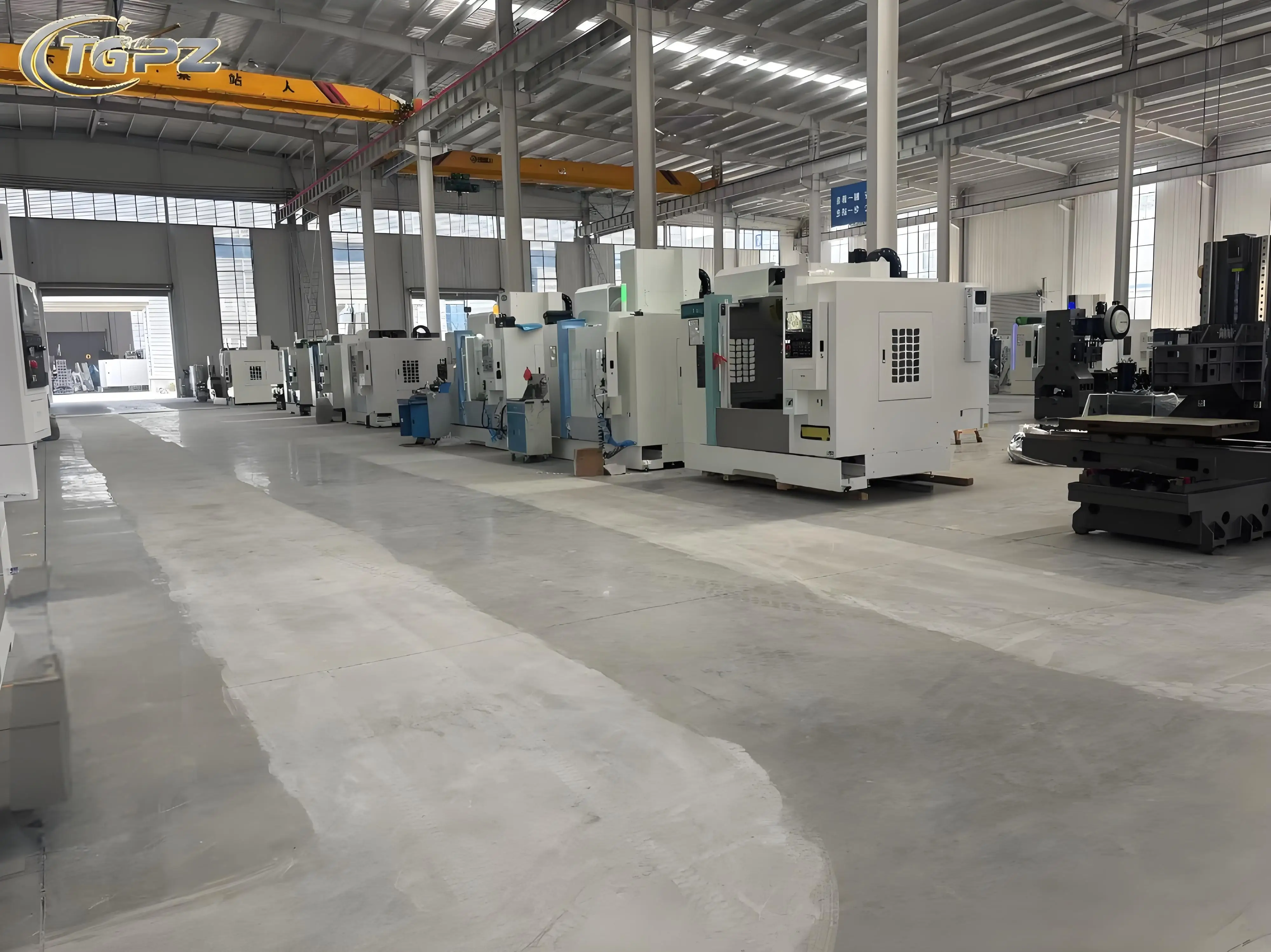

Company Profile

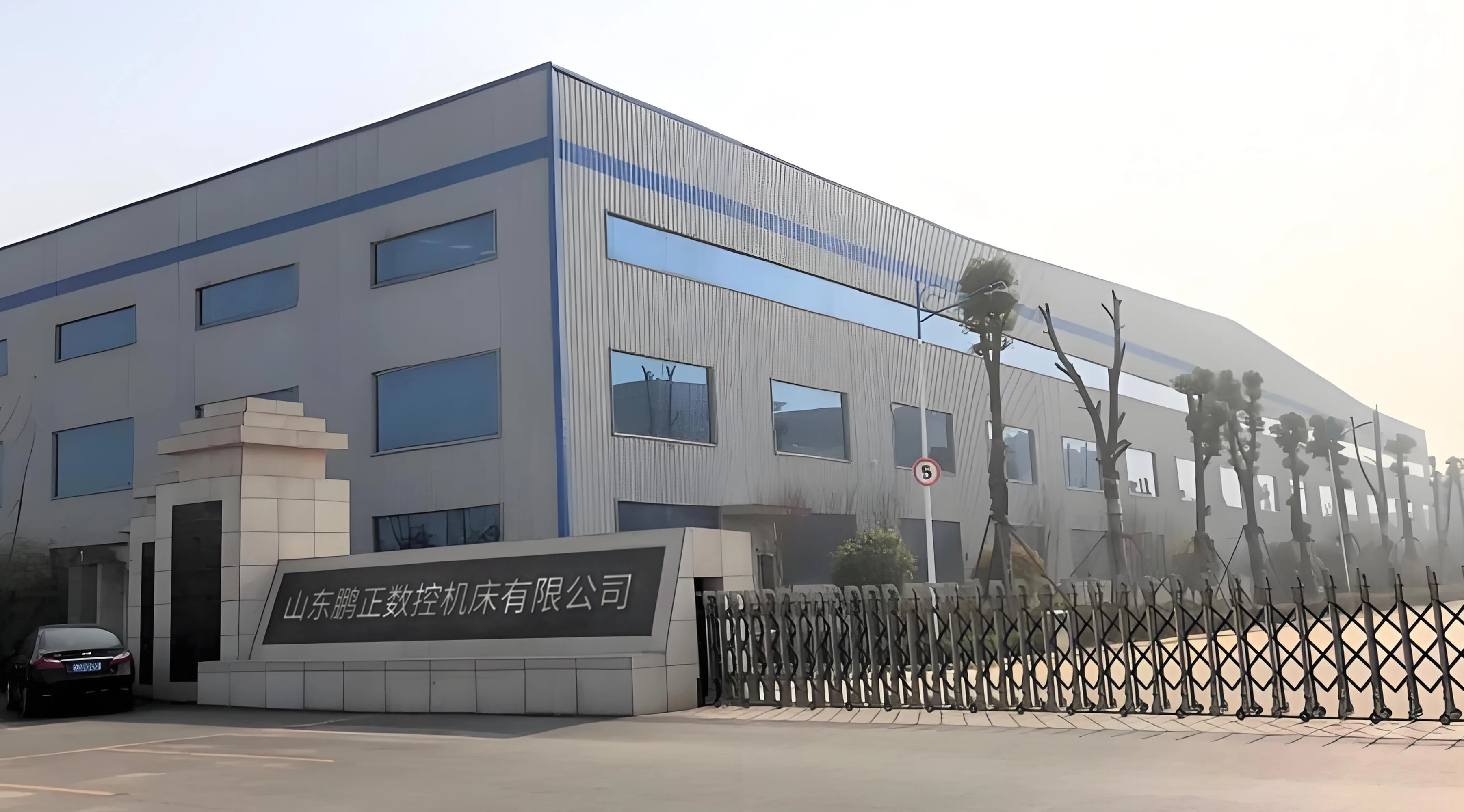

Pengzheng CNC Machine Tool Co., Ltd.
