Product Overview
Description
Product Description
The components of the include: decoiler---- roll forming machine body---- hydraulic cutting----plc control system---- main motor----pump station---- receving table
CU type purlin roll forming machine used in the production of steel structure industry.The finished product produced by machinery and equipment is CU steel, which is mostly used for the support of beams and wall beams in housing construction and factory buildings,applicable materials are "strip steel"galvanized steel coil etc.
After-sale service of U purlin roll forming machine:
1. The warranty of c purlin roll forming machine is two years after the client receives the machine, Within the two years, we will courier the replacement parts to the client free of charge.
2. We offer technical support for the entire life of our machines.
3. We can send our technicians to install and train the workers in the clients' factories with extra cost.
2. We offer technical support for the entire life of our machines.
3. We can send our technicians to install and train the workers in the clients' factories with extra cost.
Our technical personnel arrive at overseas customer sites for technical training and guidance:
Purlin Roll Forming Machine Main Components:
Uncoiler 1. Type: Mechanical Uncoiler, Hydraulic Uncoiler
2. Load capacity: 6T
Purlin Machine
1. Roller material: GCr15 with heat treatment, polishing and galvanizing.
2. Main motor: hydraulic motor or servo motor drive
3. CU Interchange: interchange between C and U purlins controlled by PLC and set through touch panel.
4. Size Change: size change also controlled by PLC and set through touch panel, continuously adjustable.
Uncoiler 1. Type: Mechanical Uncoiler, Hydraulic Uncoiler
2. Load capacity: 6T
Purlin Machine
1. Roller material: GCr15 with heat treatment, polishing and galvanizing.
2. Main motor: hydraulic motor or servo motor drive
3. CU Interchange: interchange between C and U purlins controlled by PLC and set through touch panel.
4. Size Change: size change also controlled by PLC and set through touch panel, continuously adjustable.
Details Images
Un-coiler
This component holds the raw material coil and feeds it into the roll forming machine.
This component holds the raw material coil and feeds it into the roll forming machine.

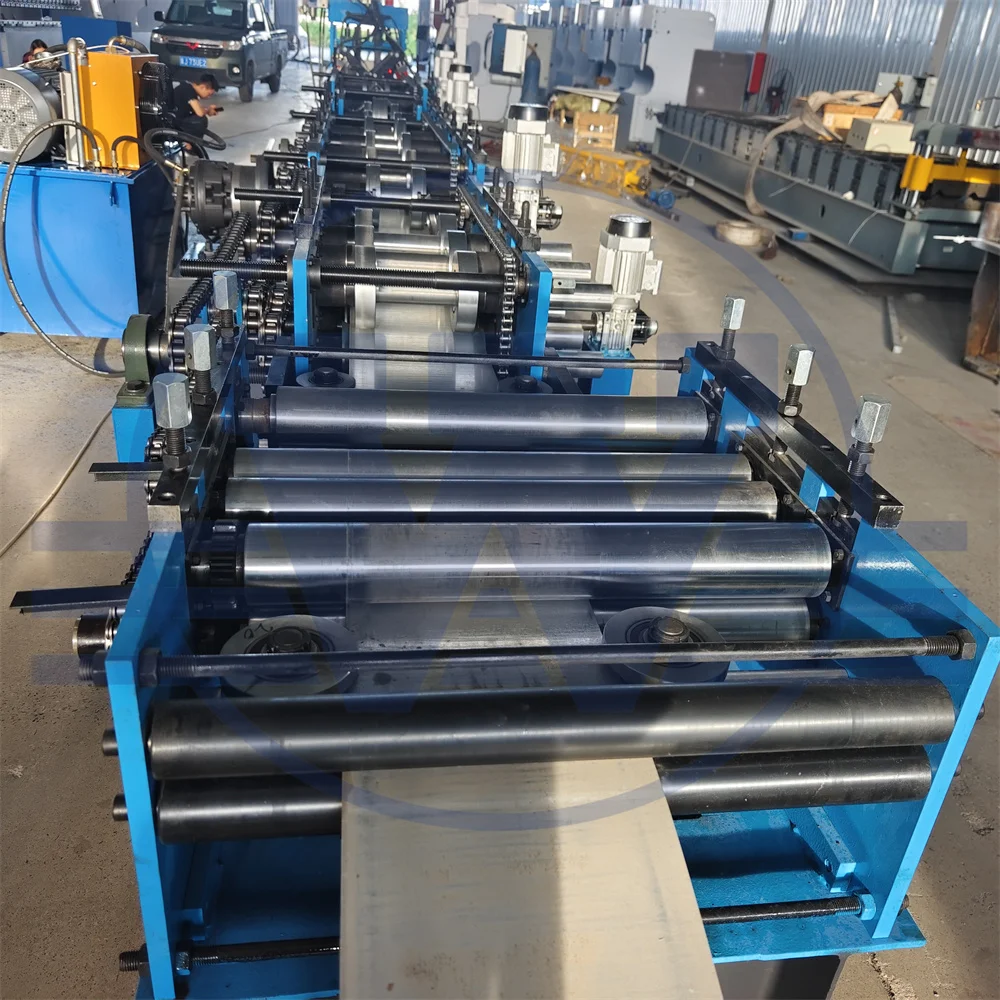

Pre-feed Coils with Leveling
A 75mm solid shaft is used, and the H shaped steel is used as the base frame, so that the machine can withstand long-term production without deformation of the machine, thereby ensuring long-term production of quality purlins ;
A 75mm solid shaft is used, and the H shaped steel is used as the base frame, so that the machine can withstand long-term production without deformation of the machine, thereby ensuring long-term production of quality purlins ;
Punching Hole
The rollers are GCR15 material and processed by CNC machine tools to ensure the accuracy of the rollers, and thus the accuracy of the final purline.
The rollers are GCR15 material and processed by CNC machine tools to ensure the accuracy of the rollers, and thus the accuracy of the final purline.

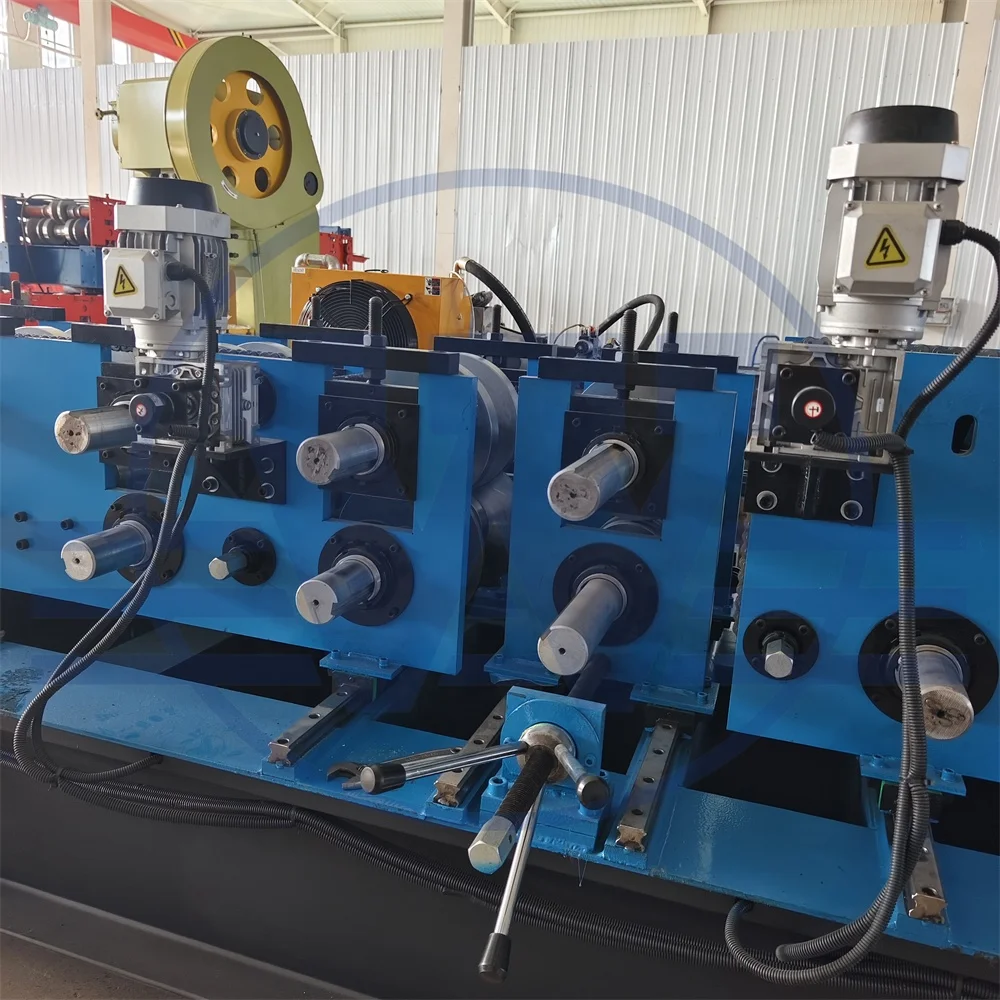

Roll Forming
Our cut frames are stress-relieved to ensure that they are not deformed during the long-term production process, making c purlin smoothly.

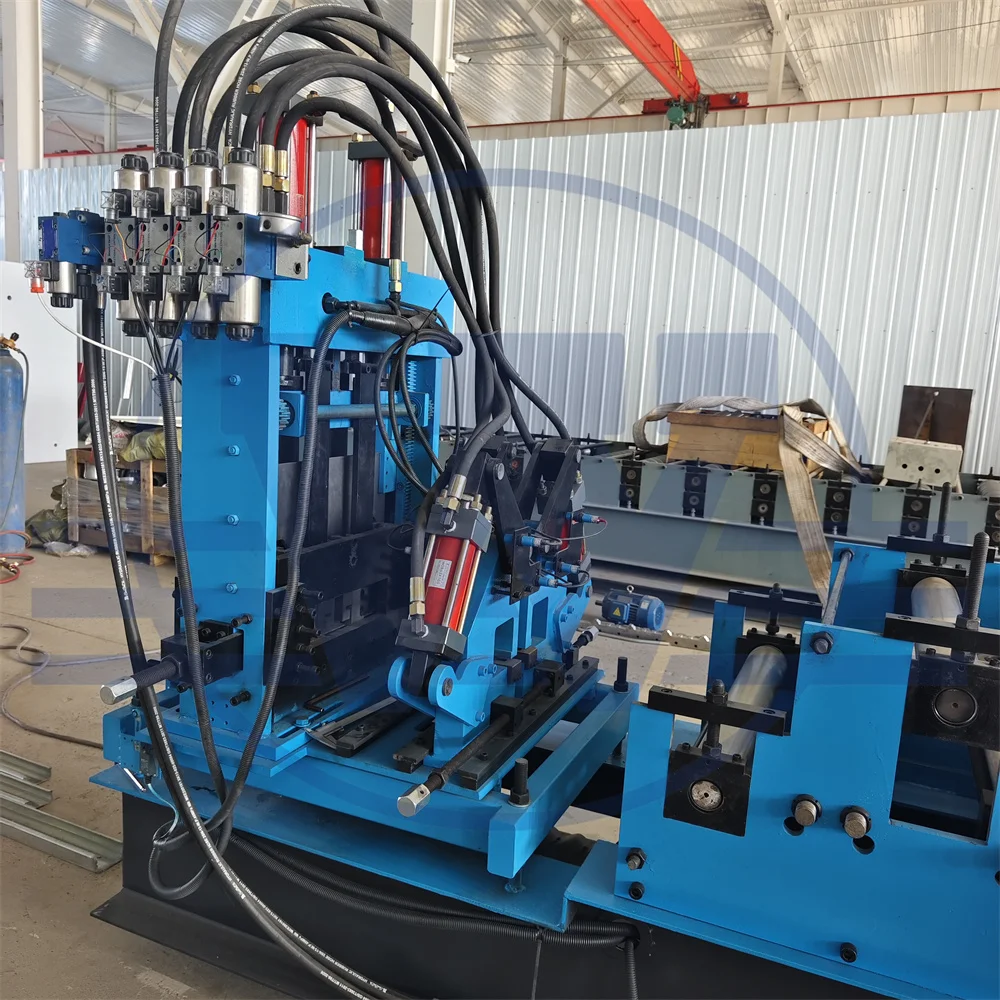

Auto Cutting
The machine may include a cutting mechanism to trim the purlins to the desired length.
Hydraulic pump station
It is suitable for various hydraulic machines where the main engine and hydraulic device can be separated. The motor drives the oil pump to rotate. The pump sucks oil from the oil tank and pumps oil, converting mechanical energy into the pressure energy of hydraulic oil.
Packing & Delivery
1.Standard export wooden box packaging or 20ft or 40ft container;
2.Fit for ocean shipping;
3.The main body of the roll forming machine will be naked packing into the container,covered with plastic film.
4.Steel wire fix the machine into the container, in case any damage when shaking on the sea.
5.The spare parts will be packed into the carton box.
6.The received goods table put into carton box .
7.Manual decoiler naked package.
