Spot supply of 4 meter high pole with a load capacity of 10 50kg communication pole steel manual telescopic mast light
- Category: >>>
- Supplier: Yixing Huahong Electrical Appliance Manufacturing Co. Ltd.
Share on (1601198544895):
Product Overview
Description
Product Paramenters
Name | Mast |

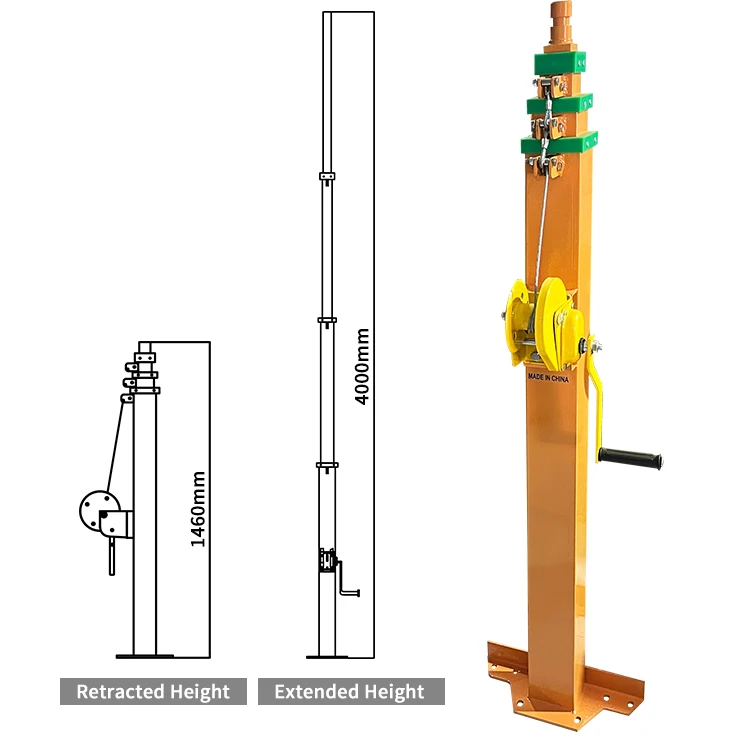

Extended Height | 4000mm |
Retracted Height | 1460mm |
Top tube size | 50×50mm〔Square tube〕 |
Base tube size | 100×100mm〔Square tube〕 |
Number of sections | 4 sections |
Lifting Driver | Manual |
Load | 10～50kg |
Net weight | 26kg |
Manual Winch | 1200Lbs |
Wind Resistance Rating | 120km/h |
Winch function | Self-locking |
Material quality | Q235 steel pipe |
Tensioning Ropes | φ3mm～φ6mm |
Anti-corrosion Treatment | Powder Coat |
Brand | JSUHUAHONG |
Products Description

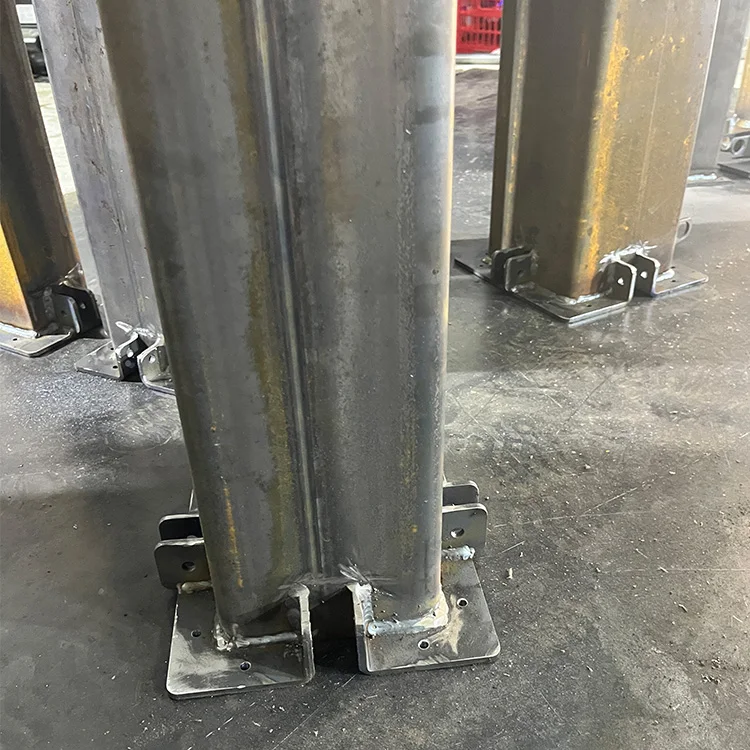

1. Base: The foundational structure that provides stability to the mast.
2. Telescoping Sections: Multiple nested sections that can extend or retract to adjust the height of the mast.These sections are
made of durable square steel pipes

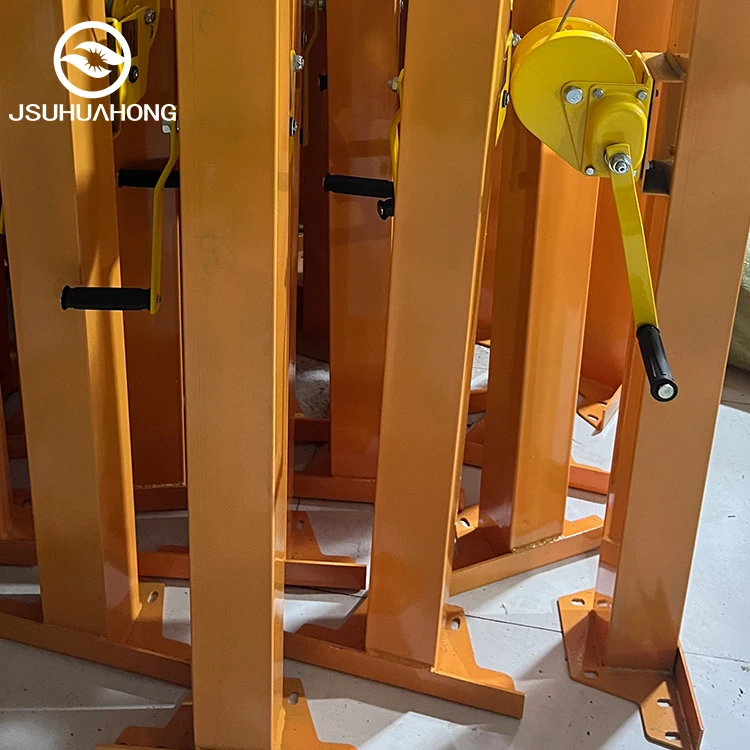

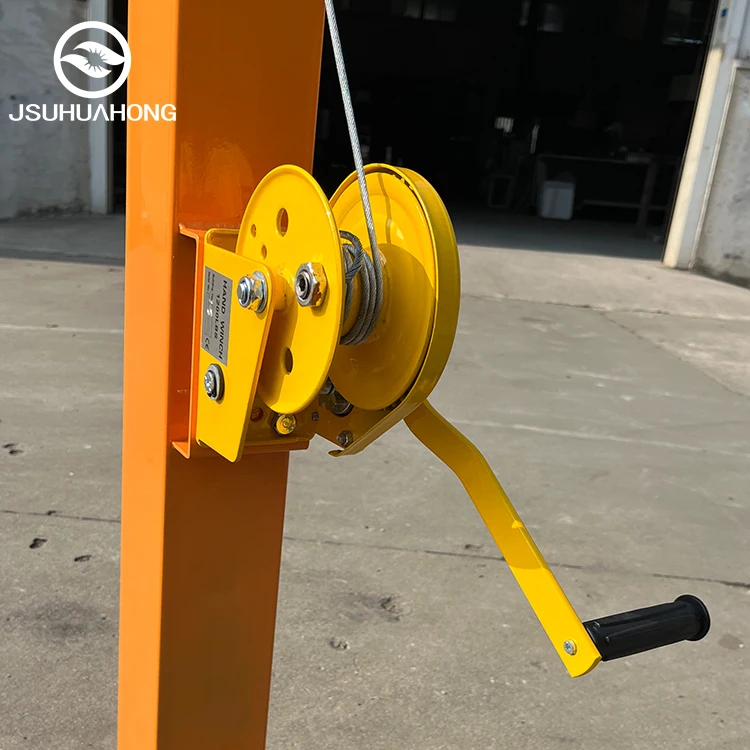

3. Winch/Crank Mechanism: A manual winch or crank system used to extend and retract the telescoping sections. This mechanism
converts the user’s manual effort into lifting power.
4. Steel wire rope: Connect the winch mechanism to the telescoping sections, facilitating the movement of the mast.
5. Load Attachment Point: The top of the mast where the load is secured. This could be a platform, bracket, or another fixture
depending on the specific application.
2. Telescoping Sections: Multiple nested sections that can extend or retract to adjust the height of the mast.These sections are
made of durable square steel pipes
3. Winch/Crank Mechanism: A manual winch or crank system used to extend and retract the telescoping sections. This mechanism
converts the user’s manual effort into lifting power.
4. Steel wire rope: Connect the winch mechanism to the telescoping sections, facilitating the movement of the mast.
5. Load Attachment Point: The top of the mast where the load is secured. This could be a platform, bracket, or another fixture
depending on the specific application.

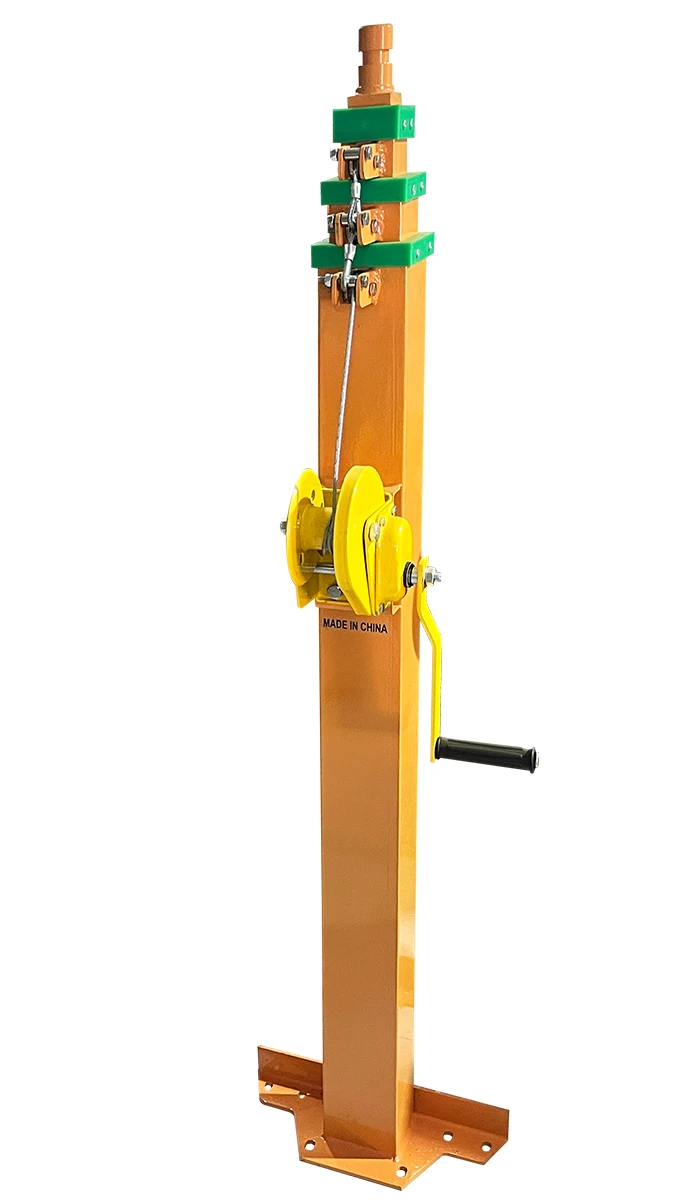

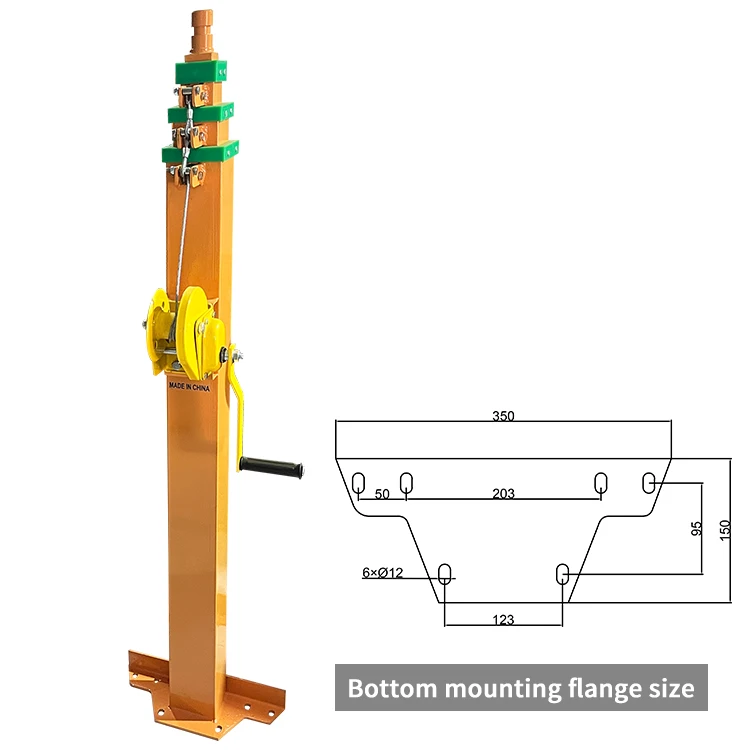

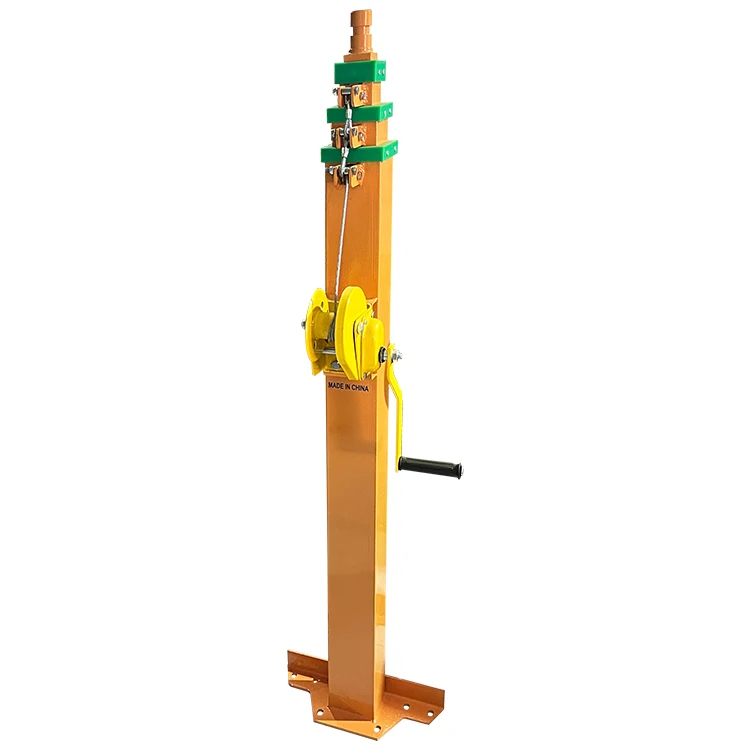

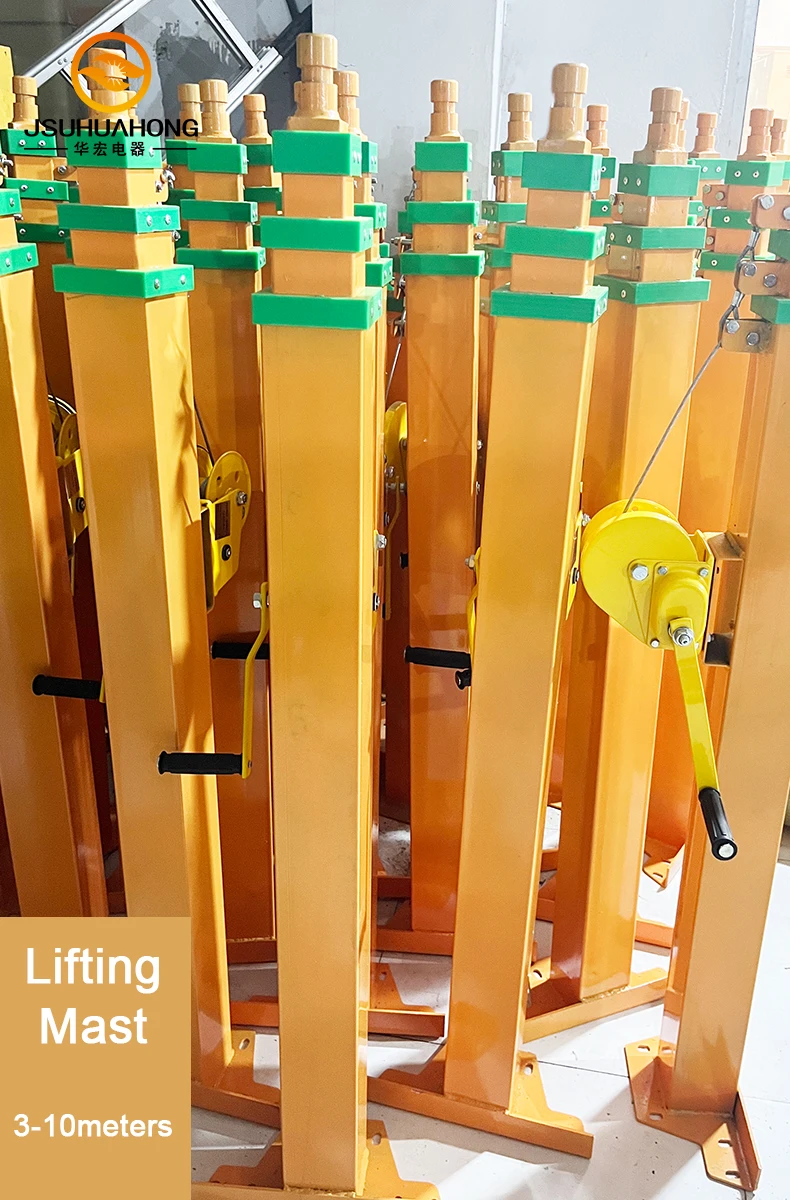

Manual lifting mast
Lifting height: 4 meters high
A hand-cranked lifting mast is a mechanical device designed to raise and lower loads using manual effort.
Recommend Products

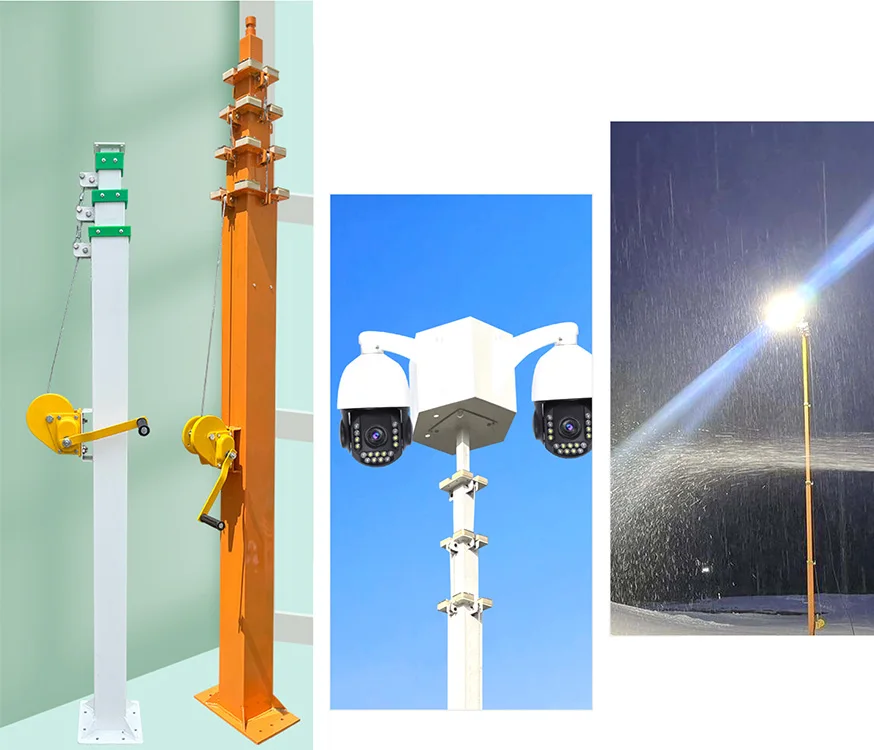

Applications
used to elevate equipment such as antennas, cameras, lighting, or sensors to a higher vantage point.
These masts are commonly used in fields like telecommunications, broadcasting, surveillance, and emergency response, where temporary or adjustable height is essential.
These masts are commonly used in fields like telecommunications, broadcasting, surveillance, and emergency response, where temporary or adjustable height is essential.

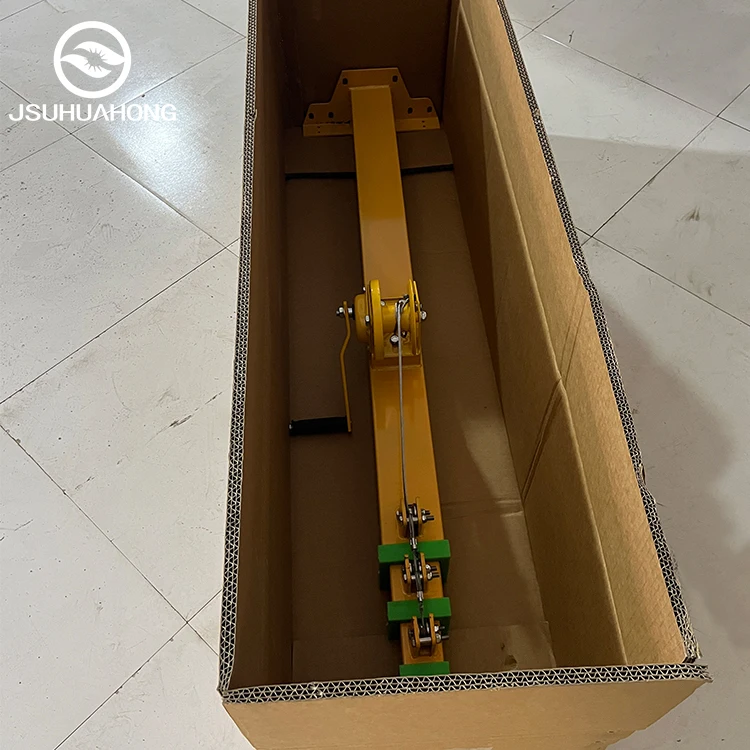

Product packaging
Plastic film or wooden case packaging according to customer requirements

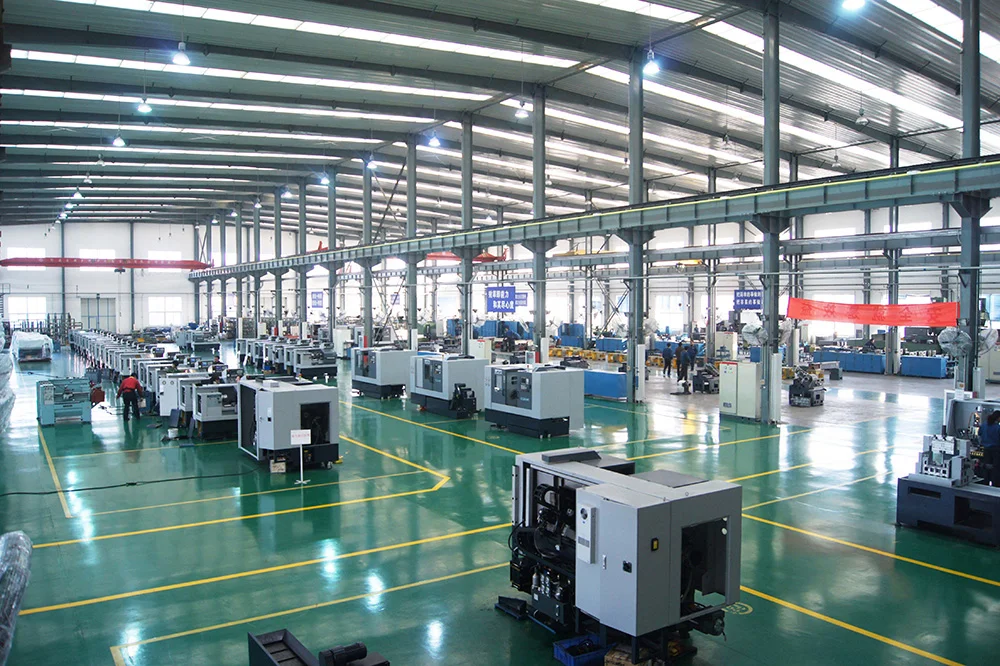

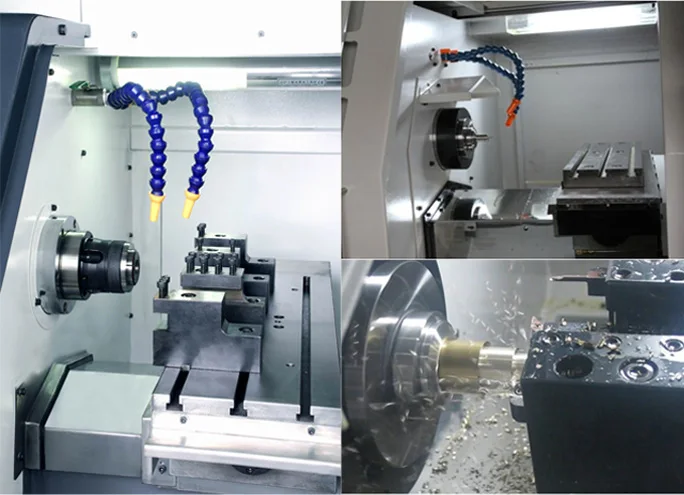

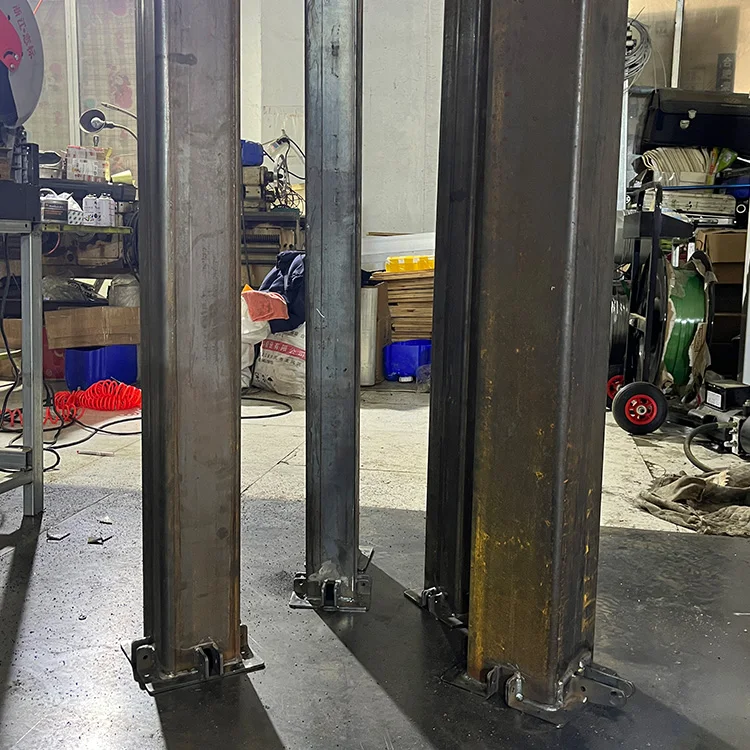

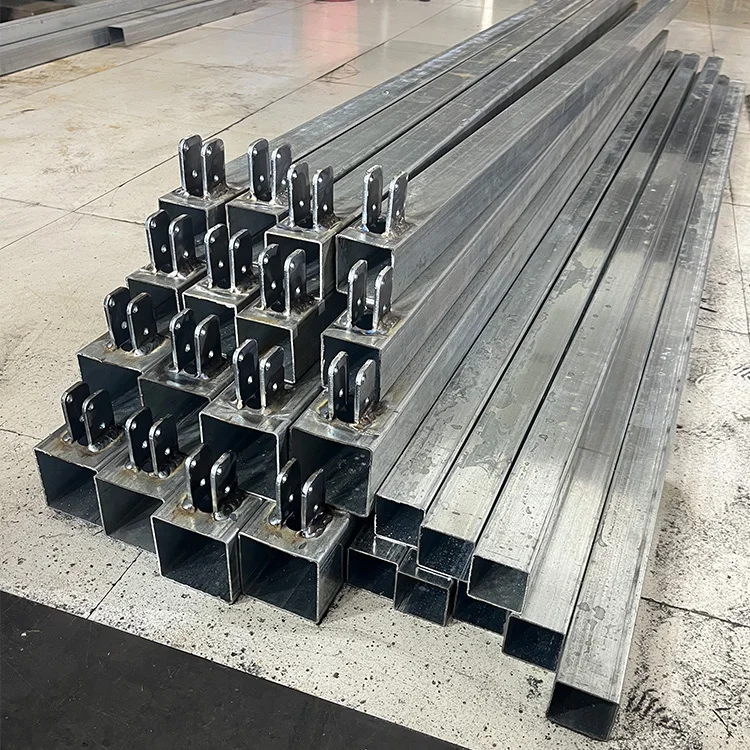

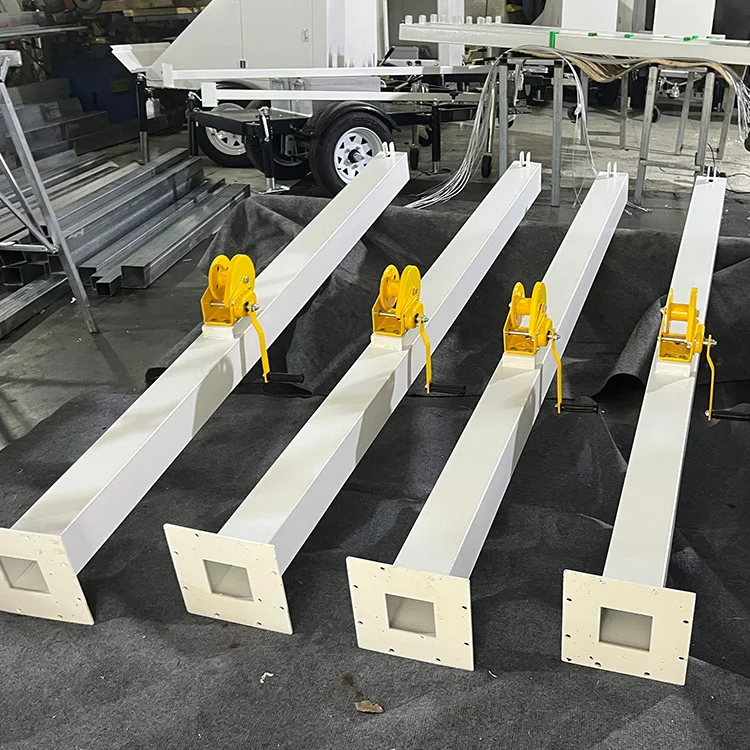

Manufacturing Technique
Company Profile
Yixing Huahong Electrical Appliance Manufacturing Co., Ltd
Yixing Huahong Electrical Appliance Manufacturing Co., Ltd is a real manufacturing factory established in 2010, producing lighting lighthouses, solar lights, lifting masts, and more.
We support processing and customization, and have a strong design team and production line to supply quickly and effectively. With a reputation for service and integrity, Huahong products feature superb functionality, unique features, versatility and dependability.
Certifications
FAQ
Q1：Are you manufacturer?
A：Yes, we are.We have more than 13 years experience in this field and welcome to our factory for field trips.
A：Yes, we are.We have more than 13 years experience in this field and welcome to our factory for field trips.
Q2：Can I get one set free sample?
A：Free sample is not available before we have build up deep business relationship.
A：Free sample is not available before we have build up deep business relationship.
Q3：Is OEM & ODM available?
A：1). We can do the product according your design
2). We can provide customized solutions according your requirements.
A：1). We can do the product according your design
2). We can provide customized solutions according your requirements.
Q4：What's your MOQ?
A: 1 set.
A: 1 set.
Q5：What's your warranty?
A：1 year.
A：1 year.
Q6：Do you have after-sales service?
A：Yes, we have.
A：Yes, we have.
