Product Overview
Description
Products Description
0.3-0.8 Color Painted Sheets Tile Making Machine
Tile making machine is used in building constructions, which can using in roof and wall of Housing Construction ,Villa ,Factory, Warehouse, Theater, Hangar, Gymnasium, Exhibition hall.
Workflow: (send blank) uncoiling - guide feeding - roll forming - cut to length - finished product out of the board
Manually fix the workpiece, manually roll it up, enter the PLC operation page - press the "start" button - the plate will automatically enter - start to follow the set program - cut off automatically after reaching the set size, the automatic Platen forming is completed.
Manually fix the workpiece, manually roll it up, enter the PLC operation page - press the "start" button - the plate will automatically enter - start to follow the set program - cut off automatically after reaching the set size, the automatic Platen forming is completed.
Details parameters of tile making machine :
0.3-0.8 Color Painted Sheets Tile Making Machine | ||||||||
1. Total length of equipment: 6.5m width 1.3m height 1.5m 2. Motor power: 4Kw+5Kw working voltage 380V 3. Production speed: 8--15m/min 4. Transmission mode: chain transmission 5. Forming shaft of the whole machine: 11 rows,9rows, 9 rows. Big frame: 300H steel, vertical plate 12mm 6. Adjustment sleeve: 45# steel seamless steel pipe is used for finishing 7. Wheel material: 45# steel hard chrome plating 8. Shaft material: 45# steel Shaft diameter: 70mm 9. Forming part: It is divided into Seiko type wheel rotary forming, which has good forming effect, reduces the friction between the wheel and the raw material, and is convenient and fast to debug. 10. Numerical control system: PLC panel, KEL-320 display 11. Counter: Adopt domestic photoelectric rotary encoder, A40S6-600-2-12-ACP 12. Cutting method: hydraulic cutting power 3.5KW, blade Cr12 quenching, Rc62, no flash. 13. Forming part: Seiko-type wheels are rotationally formed, with good forming effect, reducing friction between the wheels and raw materials, convenient and quick debugging, and can control the deviation to the maximum extent. | ||||||||

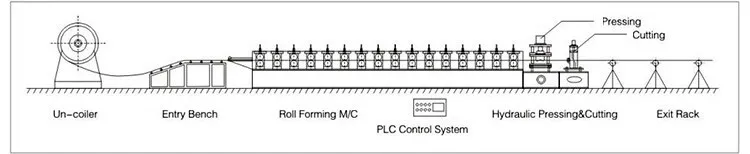

Layout of Machine
Details Images

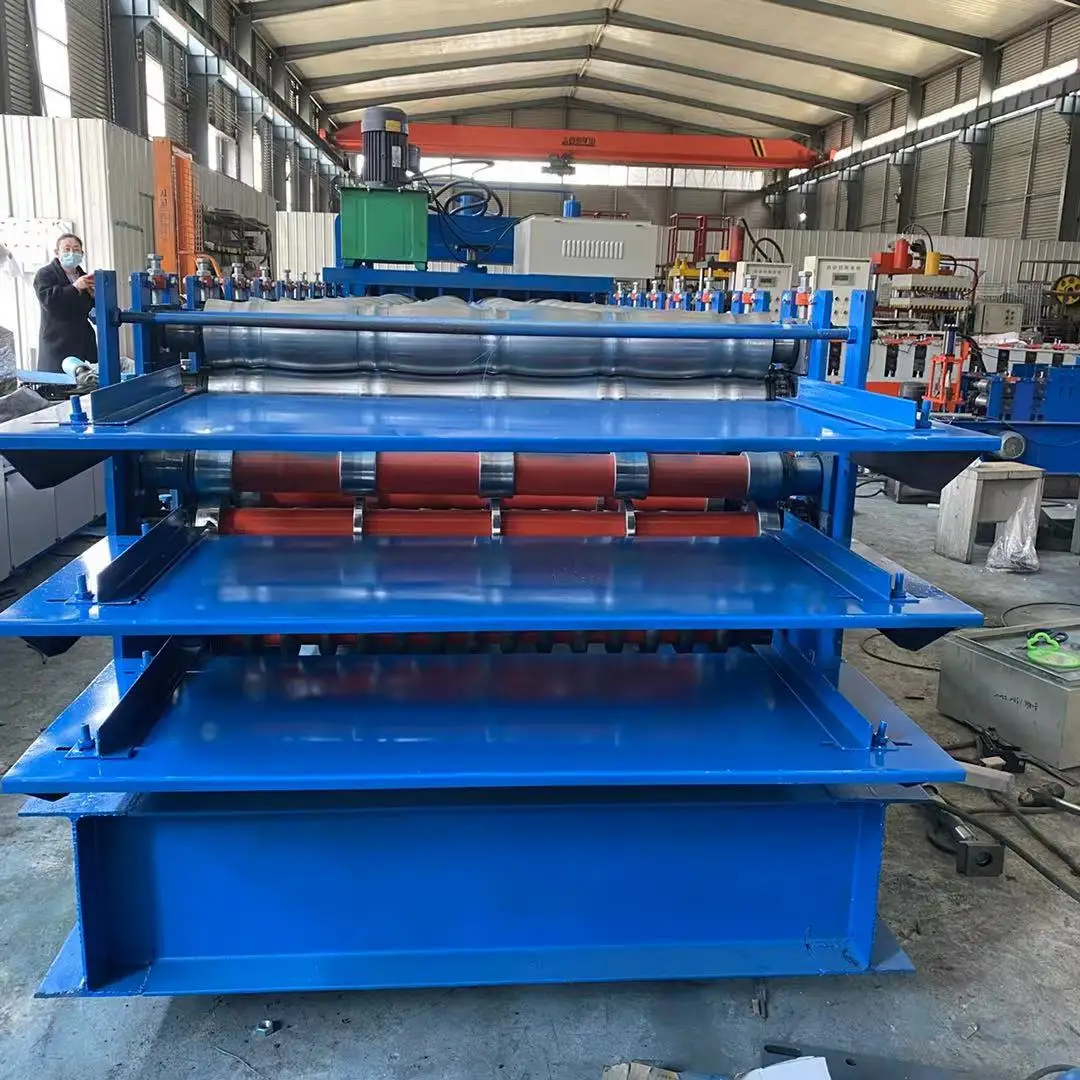

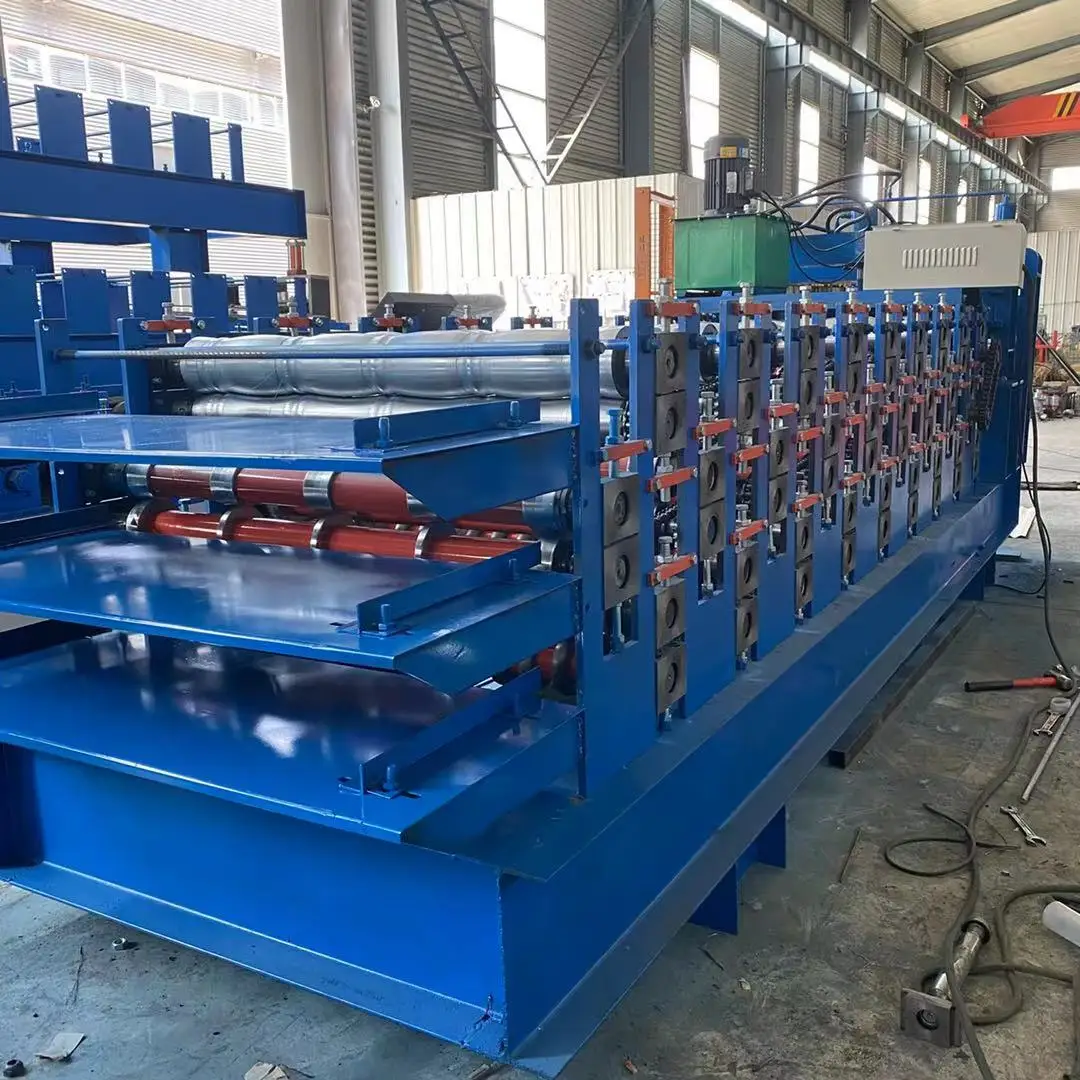

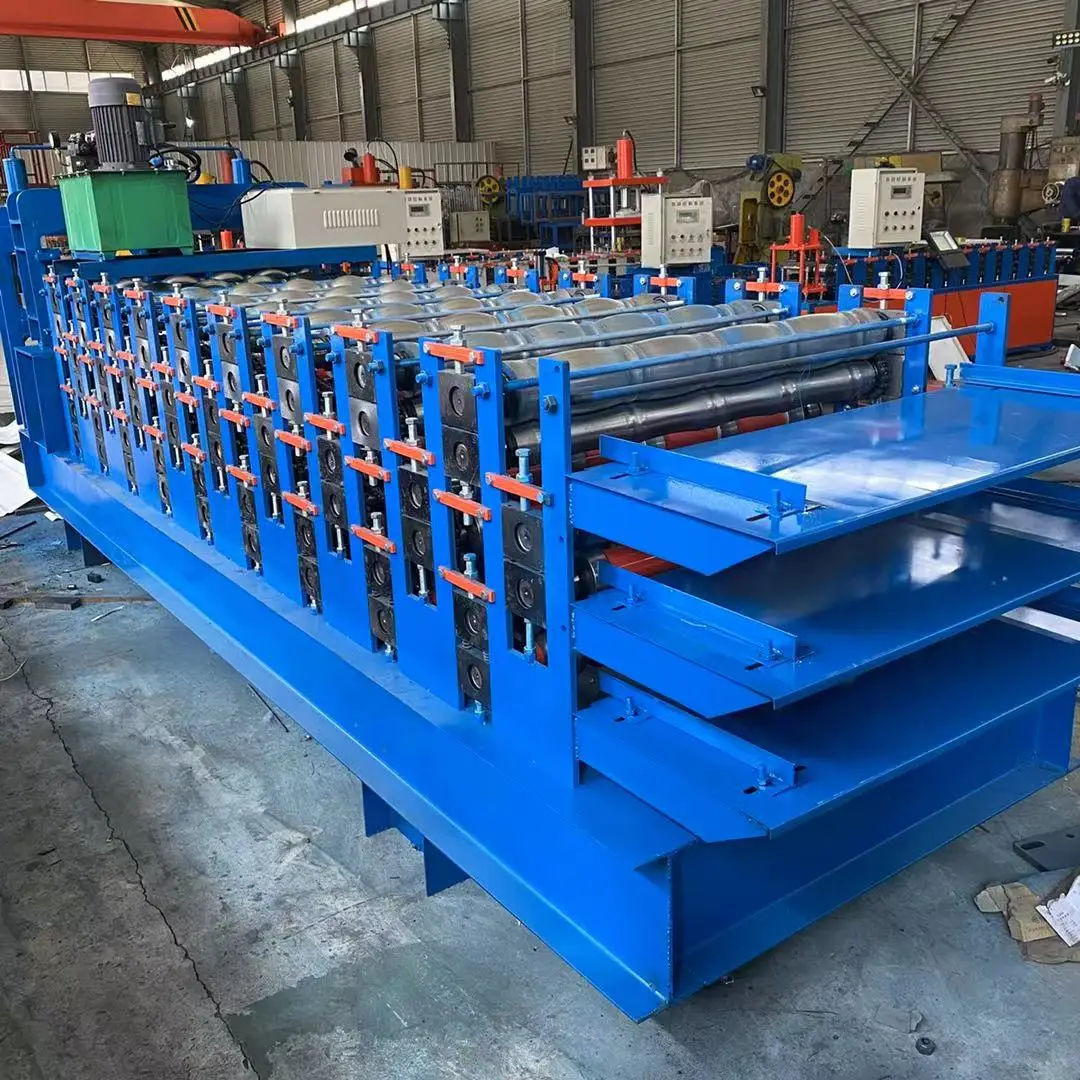

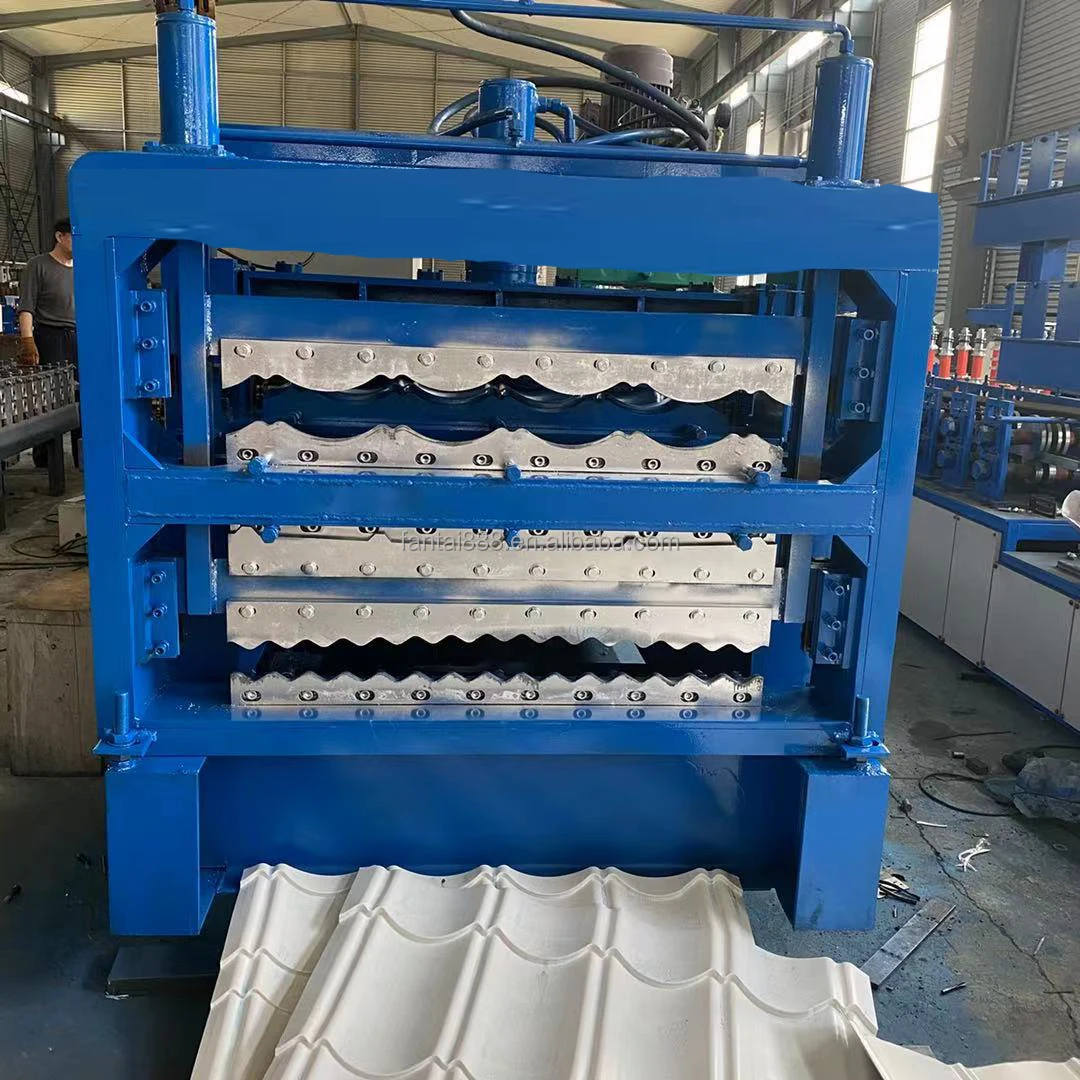

Whole machine body of tile making machine
For the machine color, we all can customized as your prefer color.
For the red part, which can make machine looks more beauty.

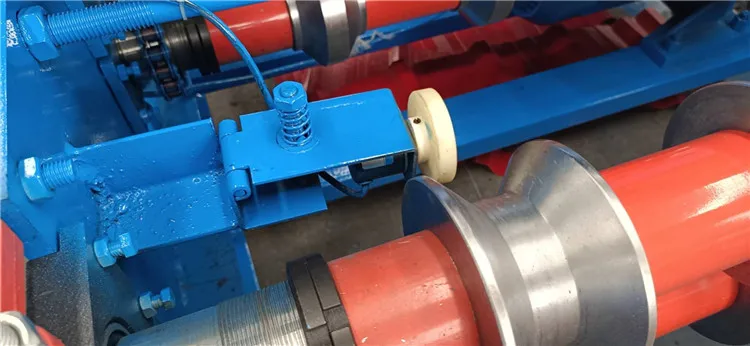

Counter of tile making machine
Each machine has a counter, which can accurately calculate how many sheets, which is convenient to use.

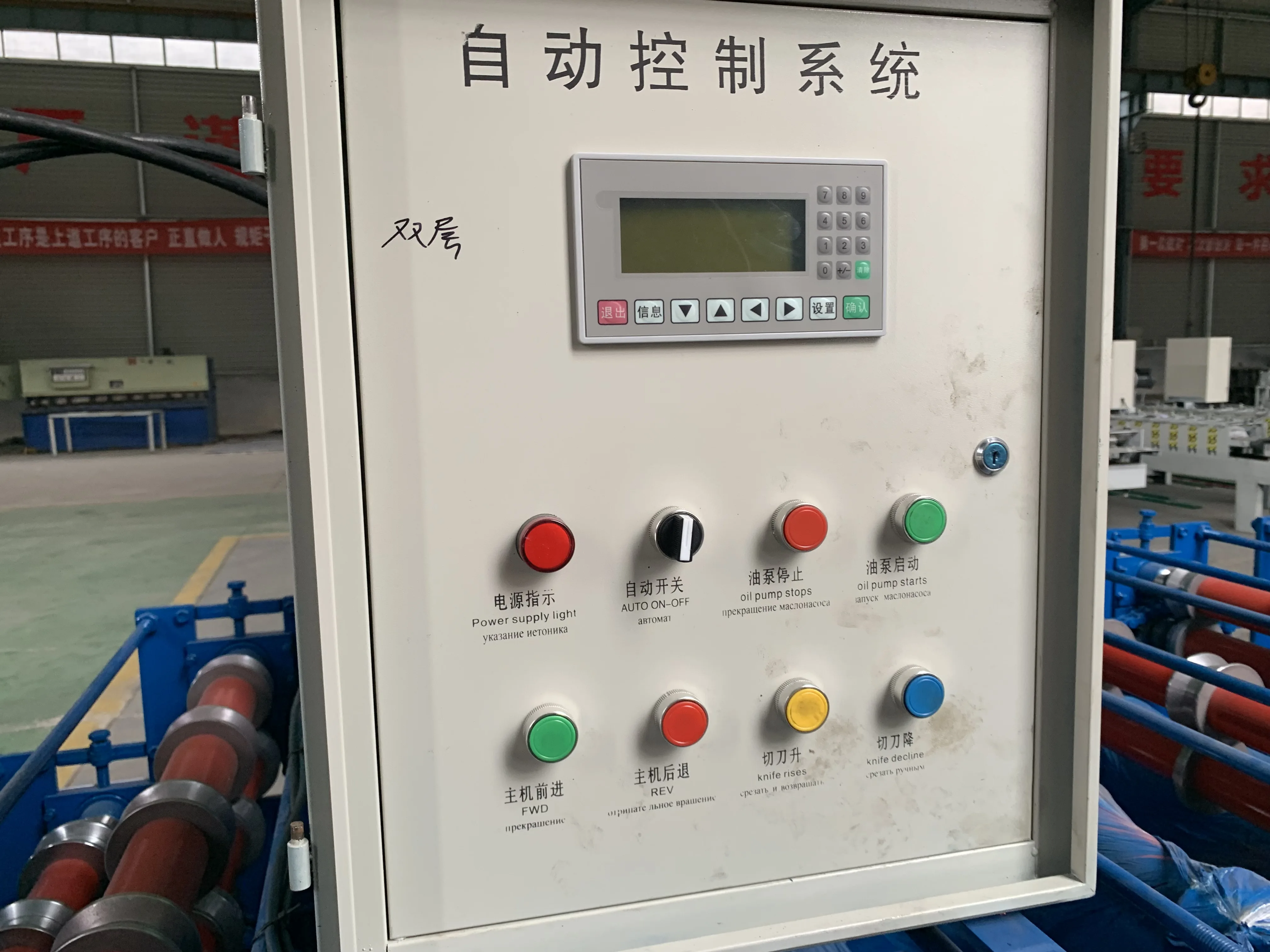

Brand PLC control of tile making machine
The tile making machine is with PLC control ,which will be more convenient for you using, and easy to operate.
The PLC is using English and Chinese. If you have other demands, such as Poland, Spanish, Russia, we also can customized for you.

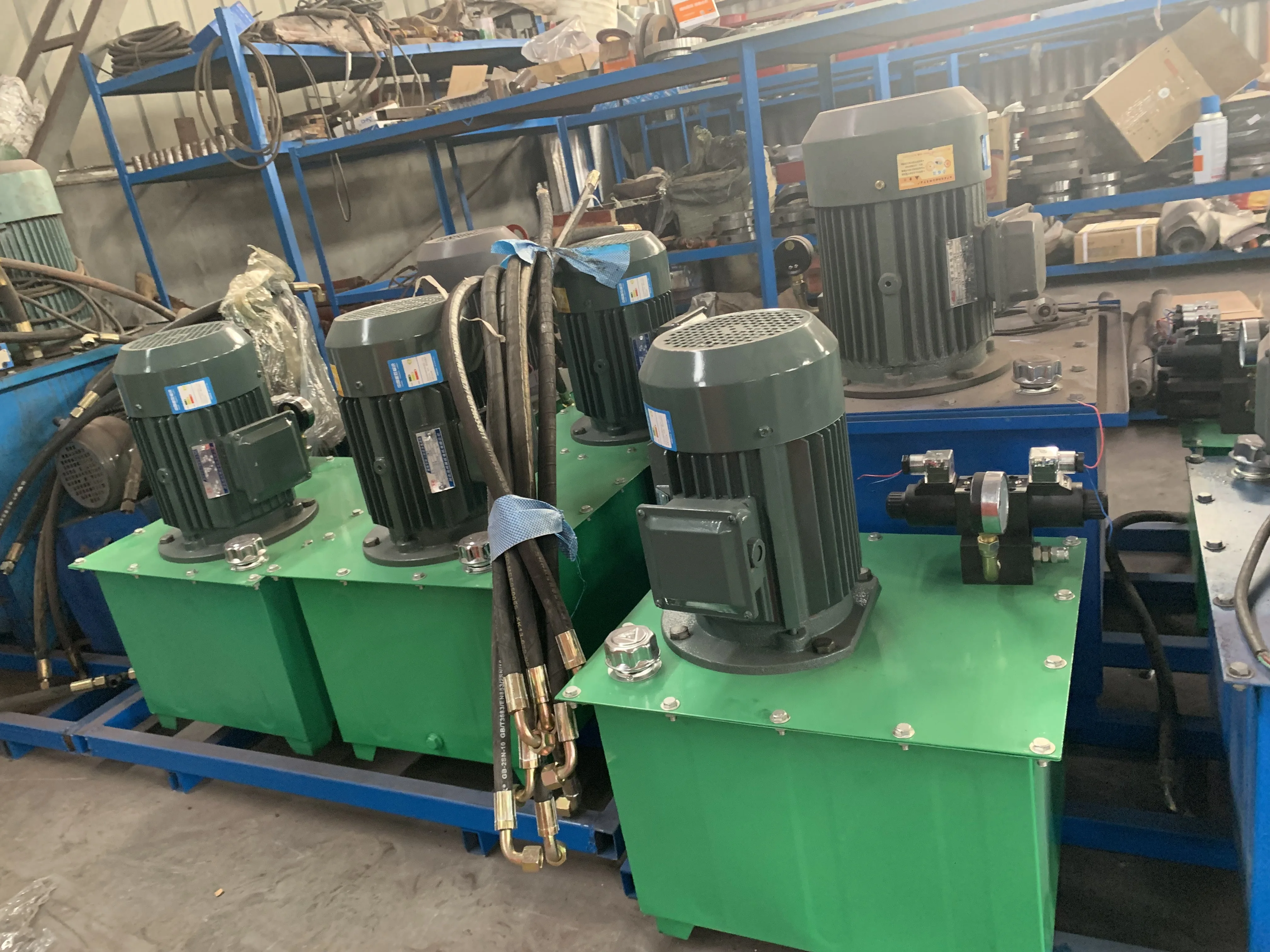

Large pump of tile making machine
It can ensure the machine could using more powerful.

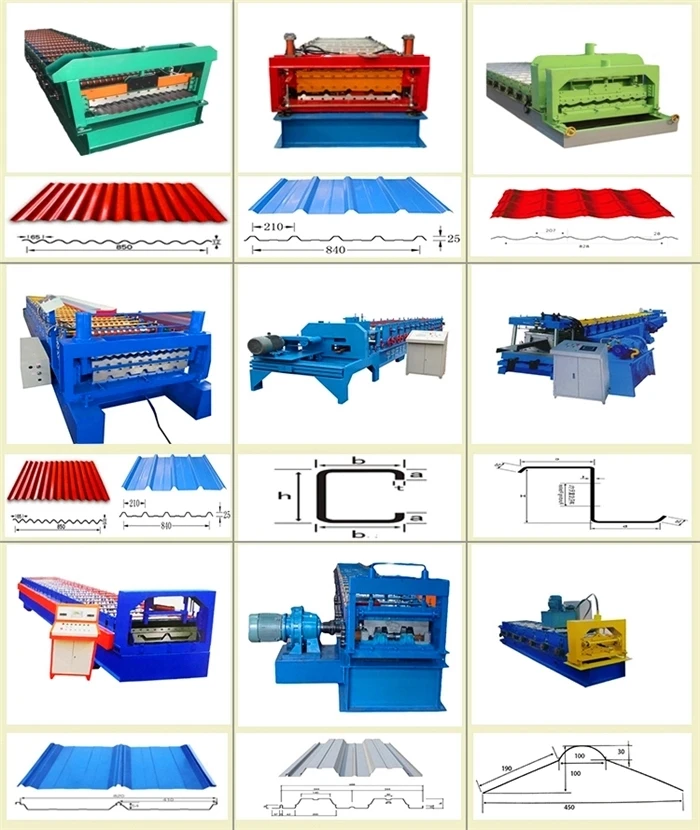

Other design for common using
Certifications

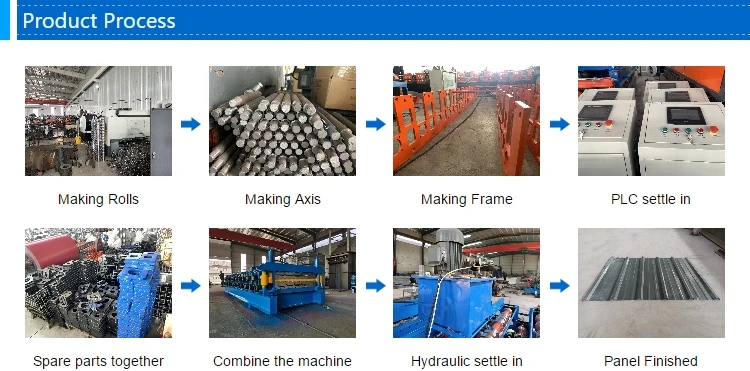

Product Process
