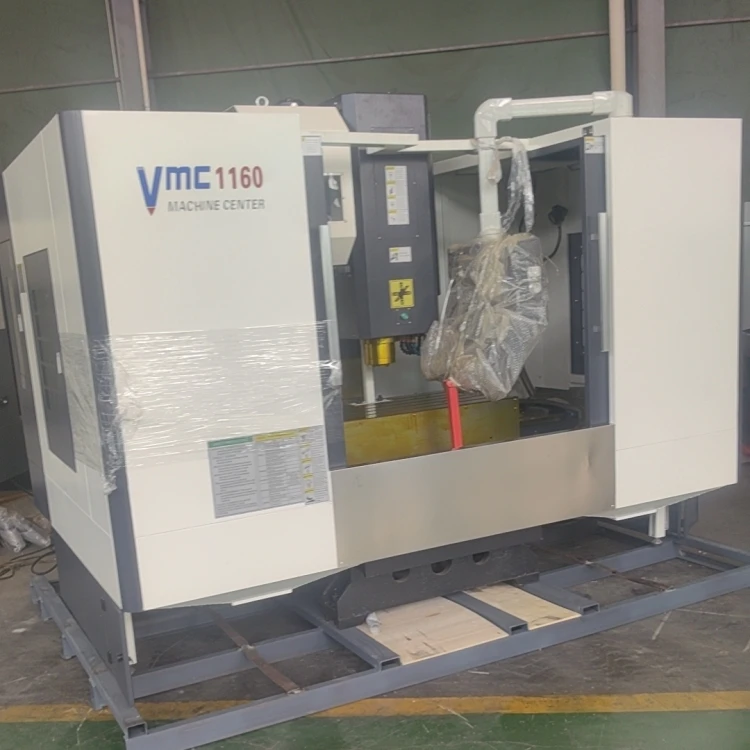

aerospace manufacturing 1160 cnc vertical milling machine for sale
- Category: >>>
- Supplier: Henan Rowdai Machinery Equipment Co. Ltd.
Share on (1601199727053):
Product Overview
Description
Product Overview

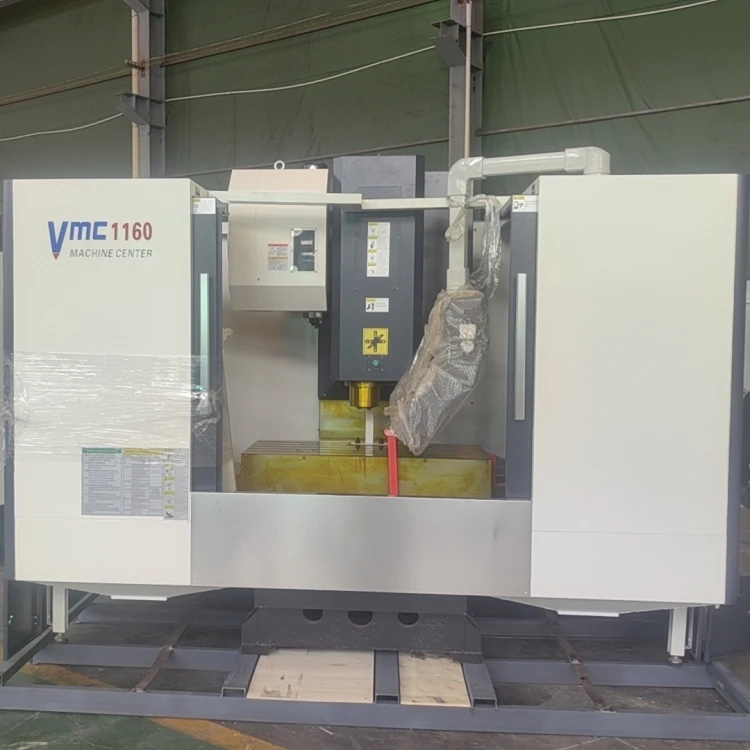

High precision metal processing 3 axis vertical cnc vmc machine
1. Innovative bed structure design
Adopt triangular force structure, high rigidity and high shock resistance. Guarantee the long-lasting and stable accuracy of machine tools and longer life
2. Labyrinth protection
Better sealing, high reliability, effectively prevent the intrusion of cutting fluid and dust
3. Screw rail
Using advanced dust-proof sealing technology, it can be used for graphite dust processing, and it can run safely and stably for 20,000 kilometers
Adopt triangular force structure, high rigidity and high shock resistance. Guarantee the long-lasting and stable accuracy of machine tools and longer life
2. Labyrinth protection
Better sealing, high reliability, effectively prevent the intrusion of cutting fluid and dust
3. Screw rail
Using advanced dust-proof sealing technology, it can be used for graphite dust processing, and it can run safely and stably for 20,000 kilometers
FEATURES AT A GLANCE
3 axis vertical cnc vmc machine product characteristics
1.Suitable for heavy cutting and high speed machining
2.High stability, high rigidity structure design

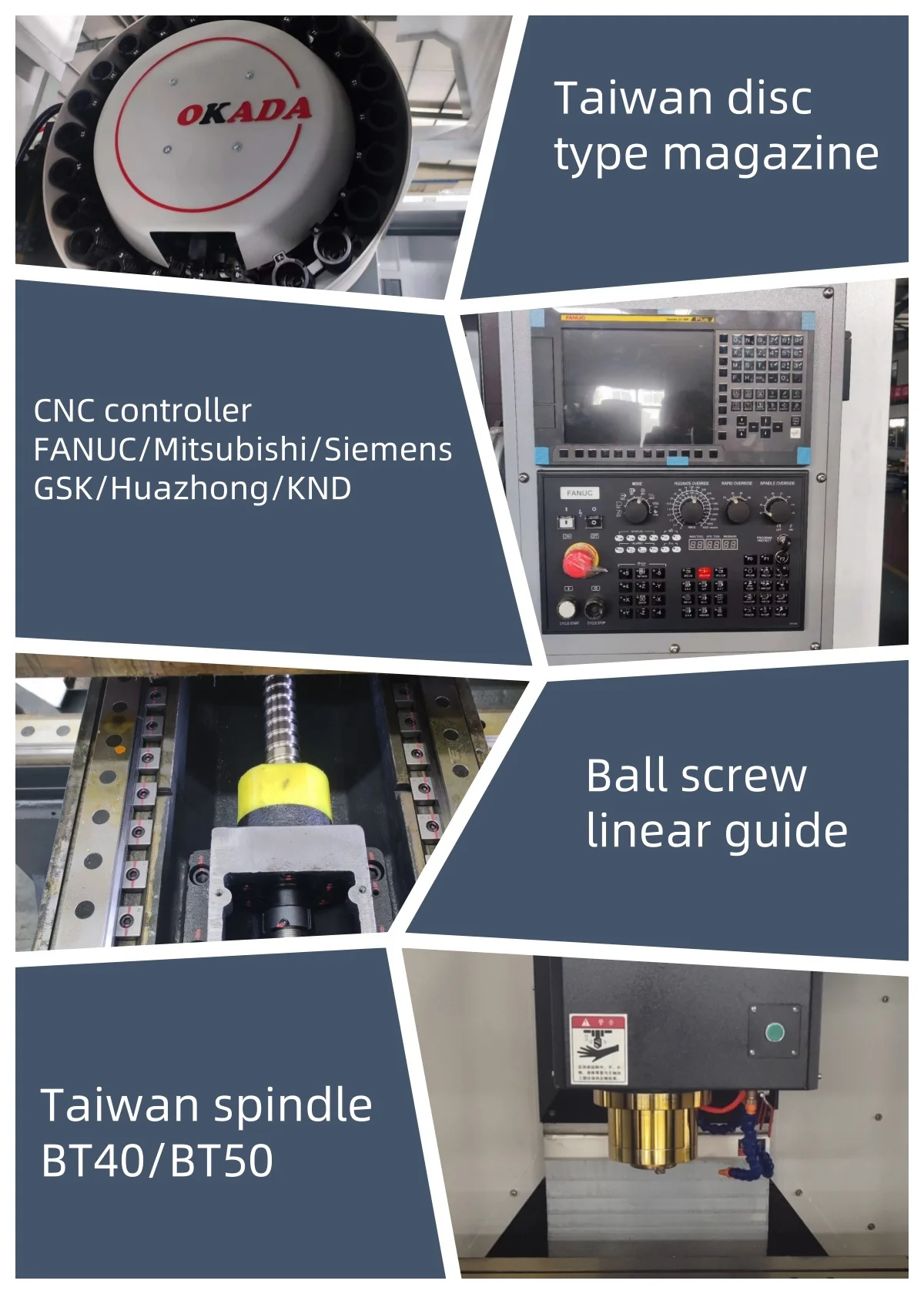

3.Equipped with high-speed robotic arm tool magazine
4.Casting optimized by finite element analysis
5.High performance CNC control system
6.High Rigidity Precision Line Rail Screw Set
2.High stability, high rigidity structure design
3.Equipped with high-speed robotic arm tool magazine
4.Casting optimized by finite element analysis
5.High performance CNC control system
6.High Rigidity Precision Line Rail Screw Set
Water & gas separation device
Spindle

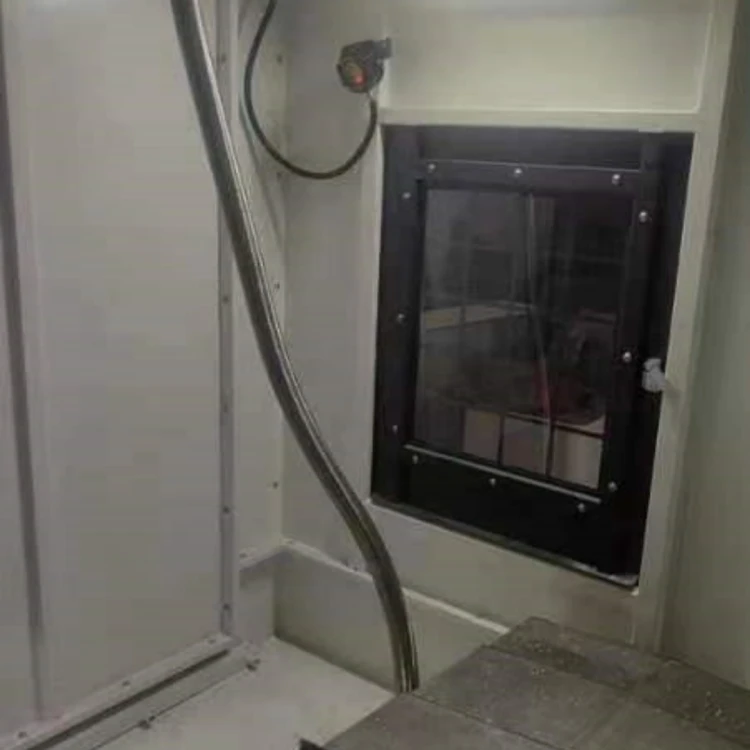

internal components
PRODUCT SPECIFICATIONS
Specification | Unit | VMC1160 |
Distance from spindle head to table | mm | 100-700 |
Distance from spindle center to column track | mm | 646 |
T--slot | 5-18-125 | |
Spindle taper | mm | BT40-150 |
Spindle speed | rpm/min | 8000 |
X Y Z travel | mm | 1100/600/600 |
X/Y/Z axis rapid move speed | m/min | 32/32/32 |
Tool capacity | tools | 24 |
mmPositioning accuracy(JIS) | mm | ±0.008/300 |
Repeat accuracy(JIS) | mm | ±0.005/300 |
Motor | kw | 11kw |

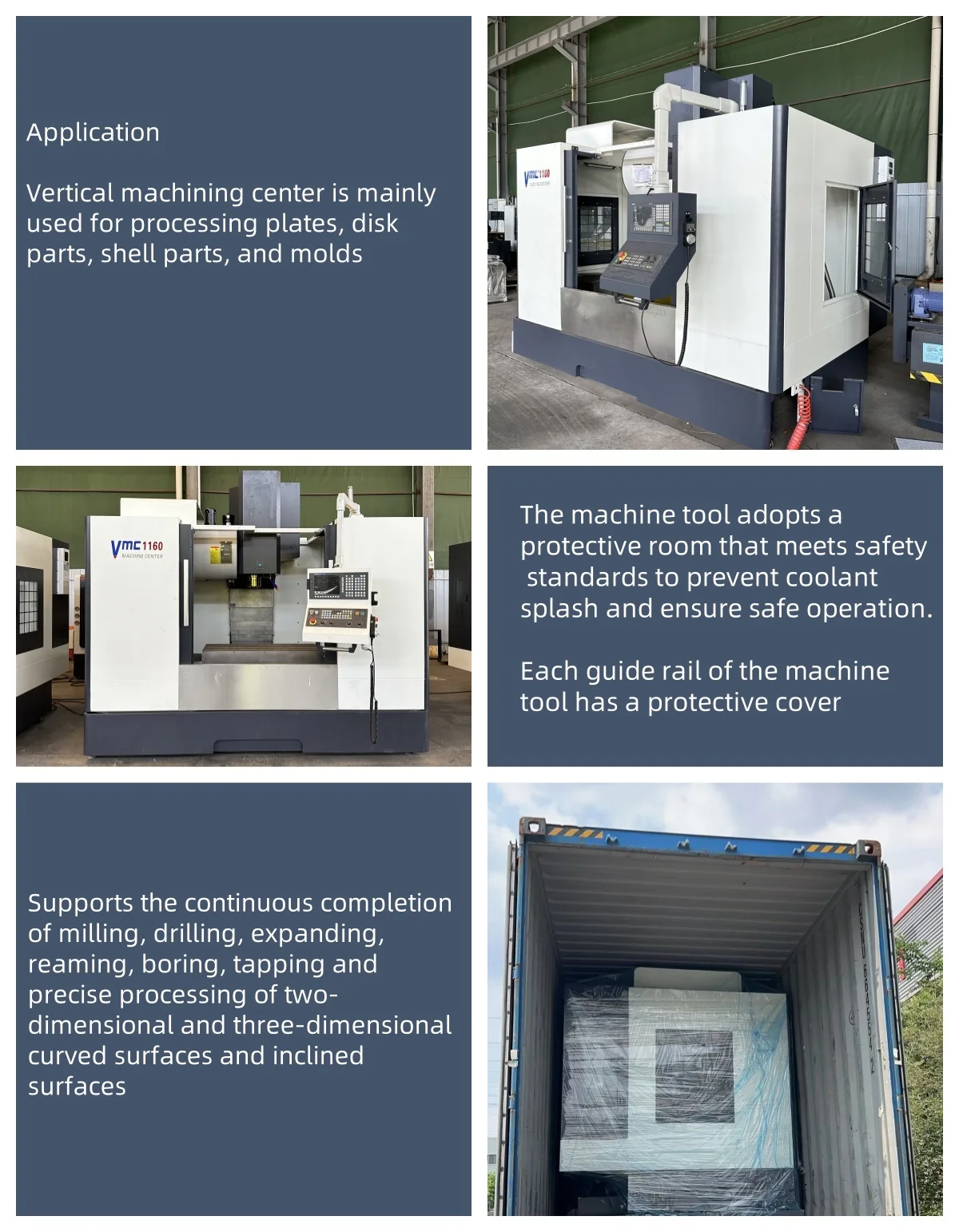

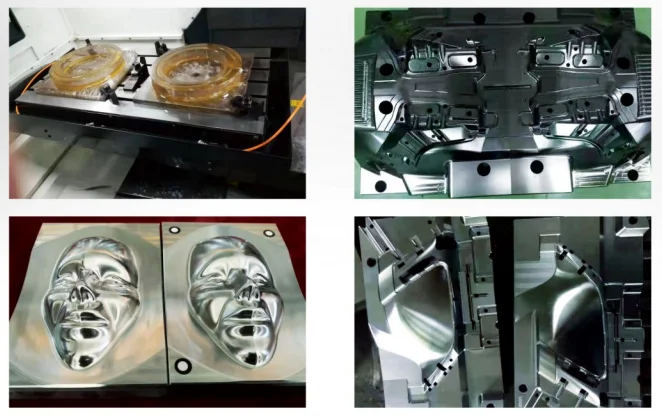

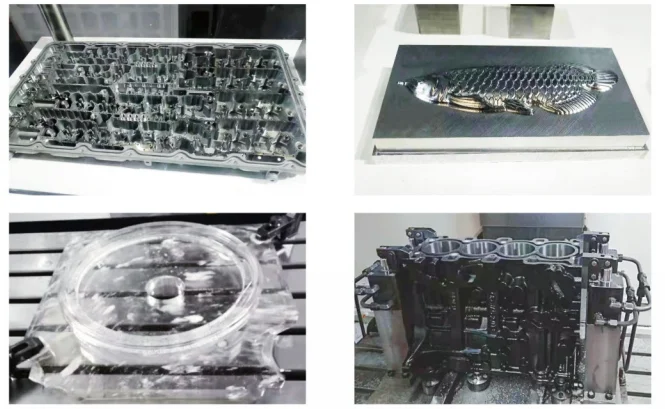

Product application

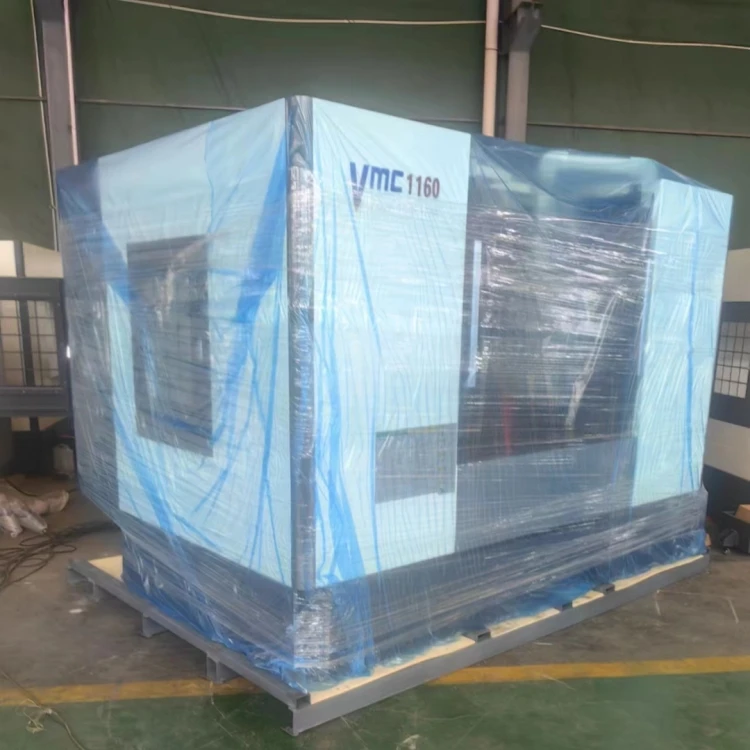

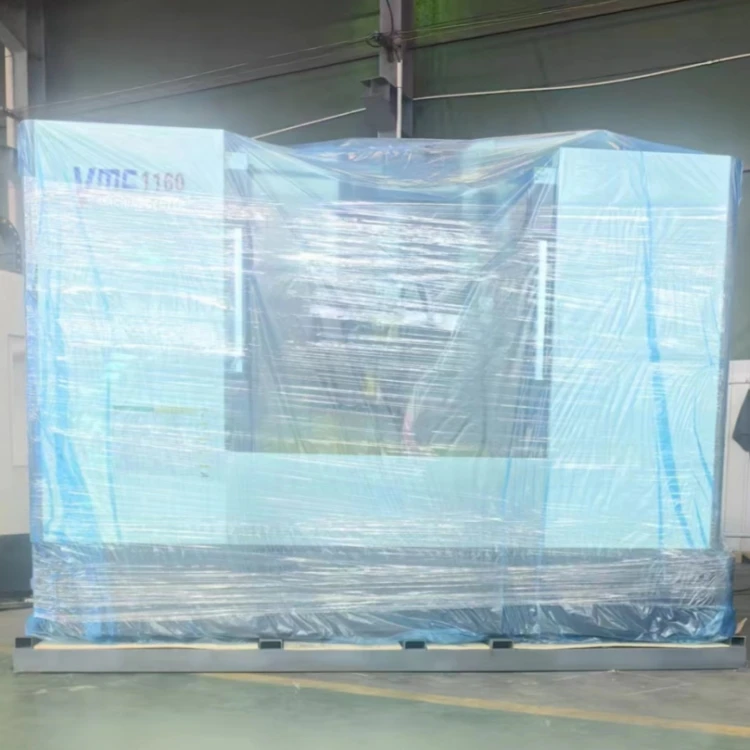

Packing & Delivery
Optional accessories
Feedback
SALES AND SERVICE NETWORK
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Machining Center ,Grinding Machines，Milling Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: What about the quality of the machine?and after-sales service?
A : Our machine warranty period is 1 years，and we provide free technical service.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
A: Please tell me your specifications ,we can choose the best model for you , or you choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Machining Center ,Grinding Machines，Milling Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: What about the quality of the machine?and after-sales service?
A : Our machine warranty period is 1 years，and we provide free technical service.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
