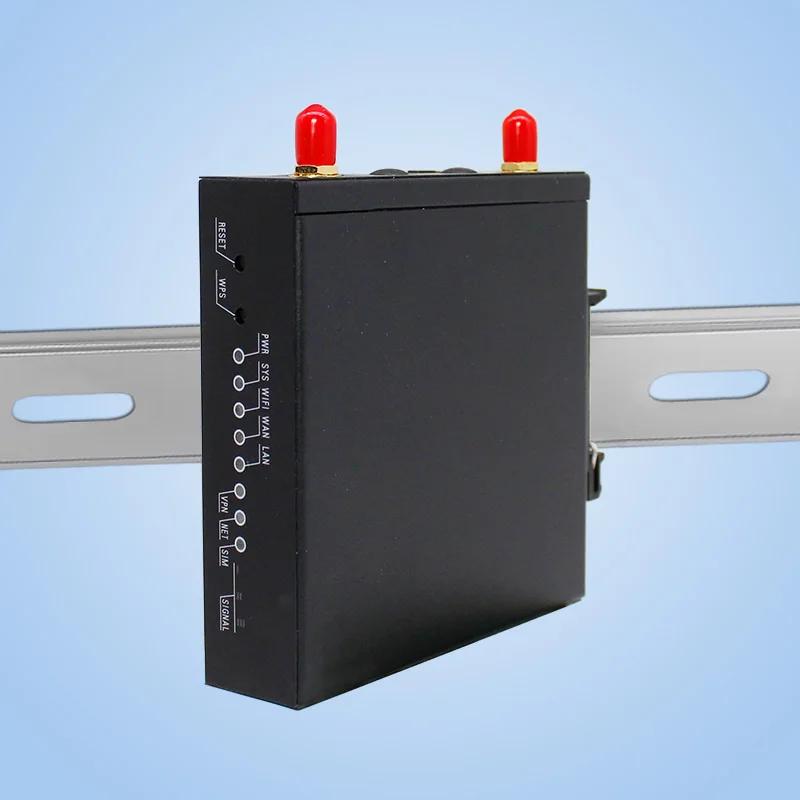

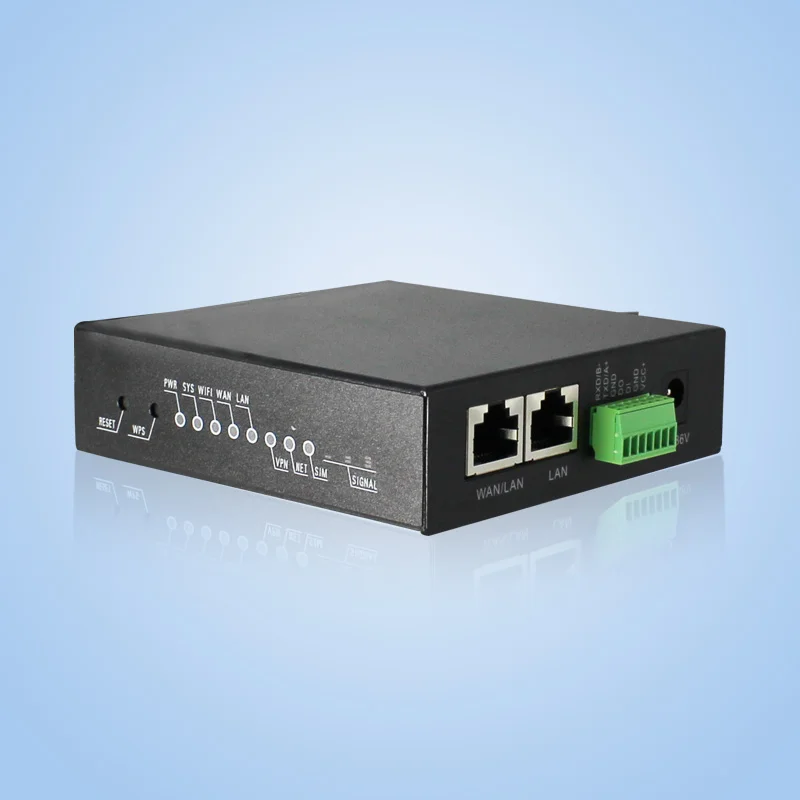

Model | ComIn I2100 | ||
CPU | 32-bit MIPS 24KEc Industrial Grade Chipset, Core Frequency 575/580MHz | ||
System Memory | 64MB / Optional 128MB DDR2 RAM | ||
Flash | 8MB / Optional 16MB SPI Flash | ||
Wi-Fi | Wi-Fi 4 (802.11n) | ||
2.4GHz IEEE 802.11n MIMO up to 150Mbps | |||
Detachable High Gain WIFI Antennas | |||

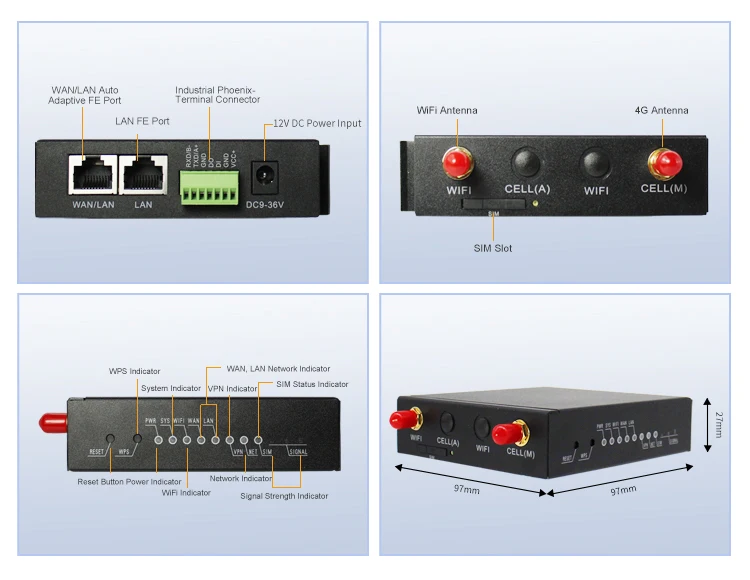

Interfaces | WAN | 1 x 10/100Mbps FE RJ45 Port, auto MDI/X, with 1.5KV magnetic isolation protection | |
LAN | 1 x 10/100Mbps FE RJ45 Port, auto MDI/X, with 1.5KV magnetic isolation protection | ||

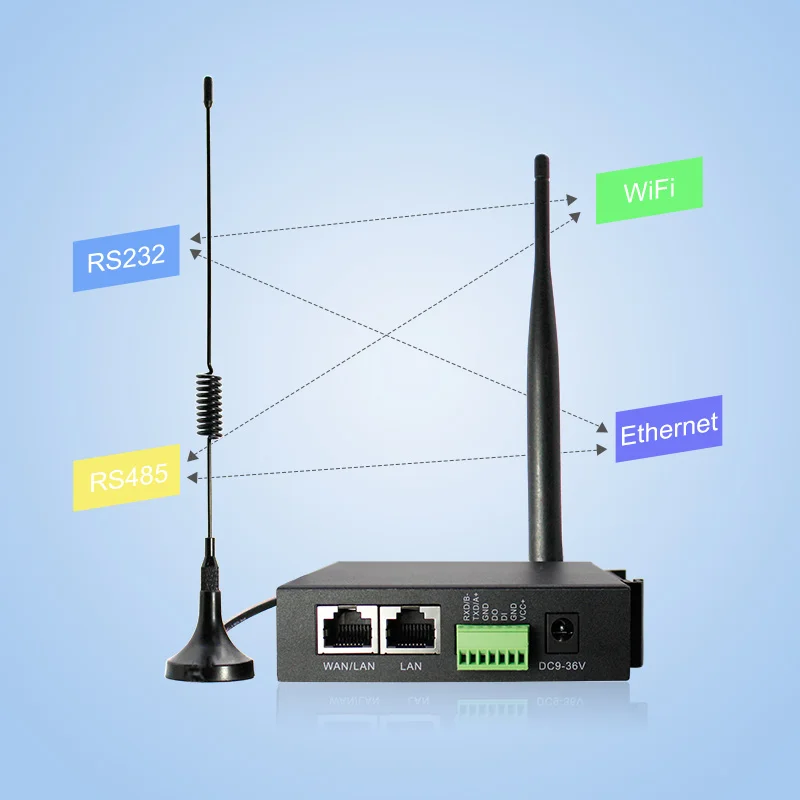

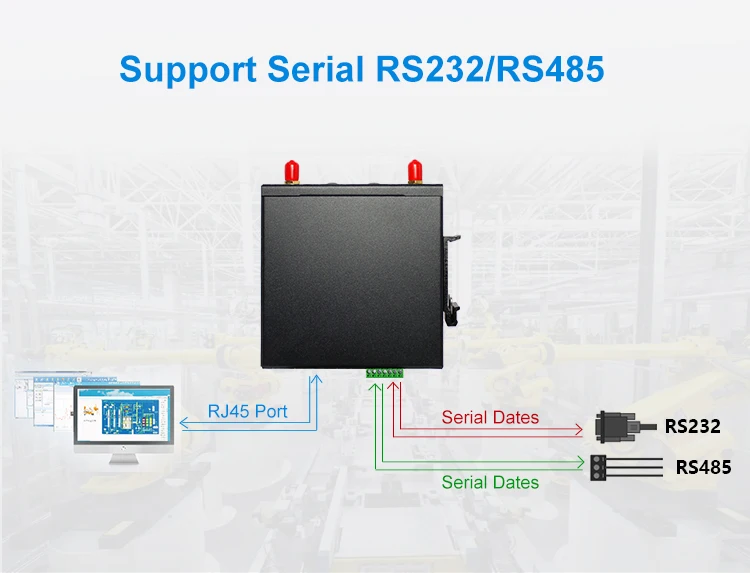

SERIAL | 2.54 Standard Phoenix Style terminal Block Connector, Support RS232/RS485 Serial Connection. Include DC power Input Pin DI, DO | ||
SIM | 1 x Drawer-Type SIM Card Holder, Support Standard 1.8V/3V USIM/SIM Card, 15KV ESD Protection | ||
Power | Standard DC Power Input Jack, reverse-voltage protection and surge protection | ||
Reset | 1 x Reset Button | ||
WPS | 1 x WPS Button | ||
Antenna | 2 x Standard SMA Antenna Connector, 50 ohm (Cellular) | ||
2 x Standard RP-SMA Antenna Connector, 50 ohm (WiFi) | |||
Indicators | PWR LED Indicator x 1 | ||
SYS LED Indicator x 1 | |||
WIFI LED Indicator x 1 | |||
WAN LED Indicator x 1 | |||
LAN LED Indicator x 1 | |||
VPN LED Indicator x 1 | |||
NET LED Indicator x 1 | |||
SIM Card Status LED Indicator x 1 | |||
CELLULAR Signal Strength LED Indicator x 3 | |||
EMC | EN61000-4-2, Level4 | ||
EN61000-4-3, Level4 | |||
EN61000-4-4, Level4 | |||
EN61000-4-5, Level3 | |||
EN61000-4-6, Level4 | |||
EN61000-4-8, Horizontal/Vertical 400A/m (>Level 4) | |||
EN61000-4-12, Level4 | |||
Power Input | Power Type | 12VDC/1A | |
Power Range | 9~36VDC Wide Power Input | ||
Power Consumption | <450mA (12V), Average 170mA@12V | ||
Hardware Watchdog | Support Device Operation Self-Check Technology, Auto Recovery From Device Failure (Optional) | ||
Enclosure | Ruggedized Metal Casing. The Casing and The System Are Safely Isolated, Especially Suitable for Industrial Control Field Applications. | ||
Product Dimensions | 97mm x 112mm x 24mm (Excluding Antenna and Mounting Sets) | ||
Weight | Approx. 280g (Excluding Antenna and Mounting Sets) | ||

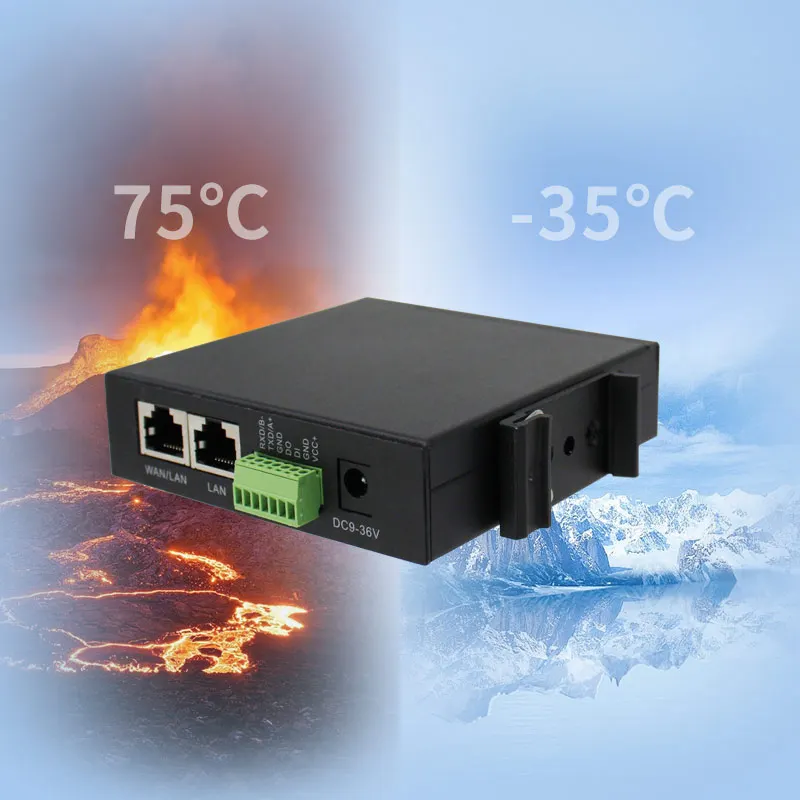

Environment | Operating Temperature: -35°C to 75°C | ||
Storage Temperature: -40°C to 85°C | |||
Operating Humidity: 10% to 95% RH Non-condensing | |||
Storage Humidity: 5% to 95% RH Non-condensing | |||
Firmware | Linux SDK | ||
