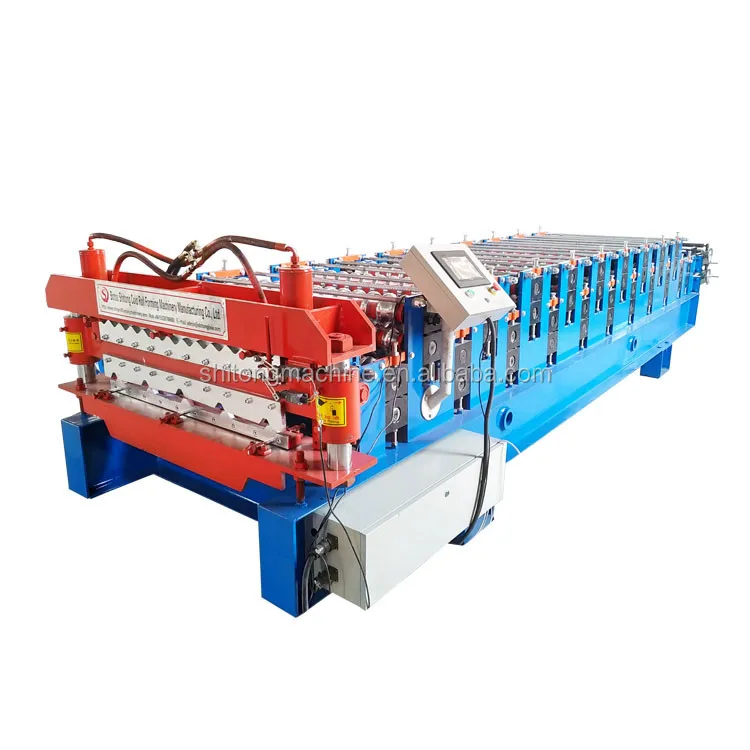

988 1000 corrugated sheet double layer roll forming machine automatic profile grape trellis roll forming machine
- Category: >>>
- Supplier: Botou Shitong Cold Roll Forming Machinery Manufacturing Co. Ltd.
Share on (1601199933786):
Product Overview
Description

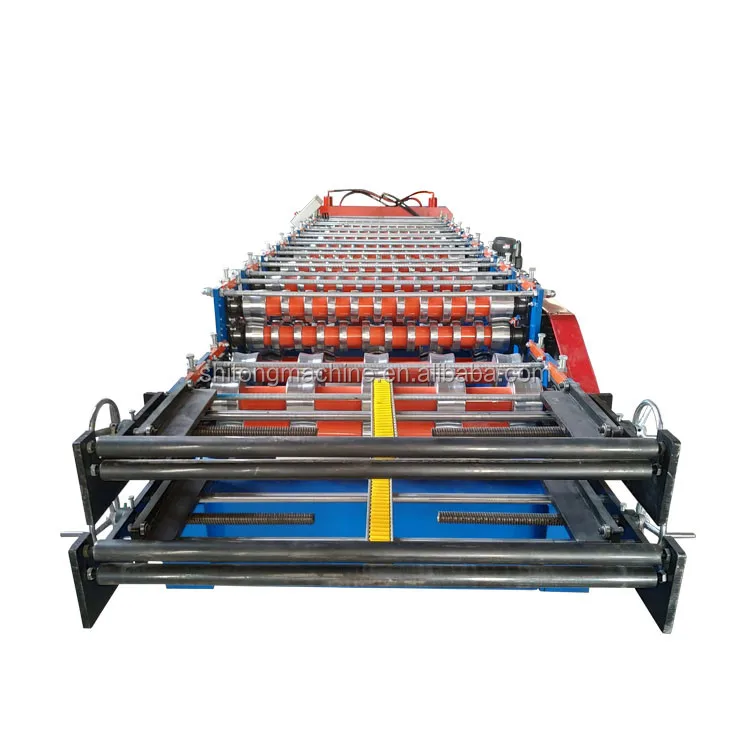

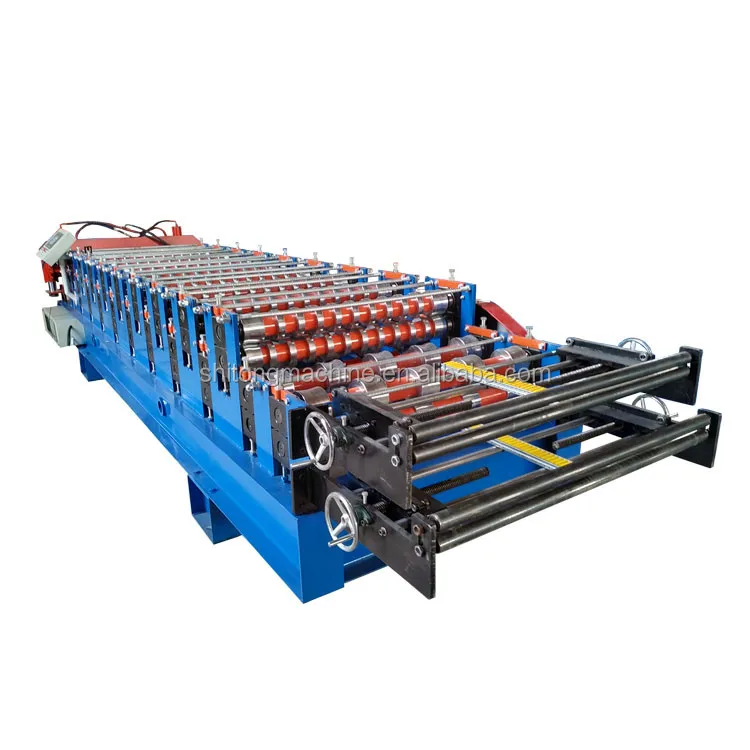

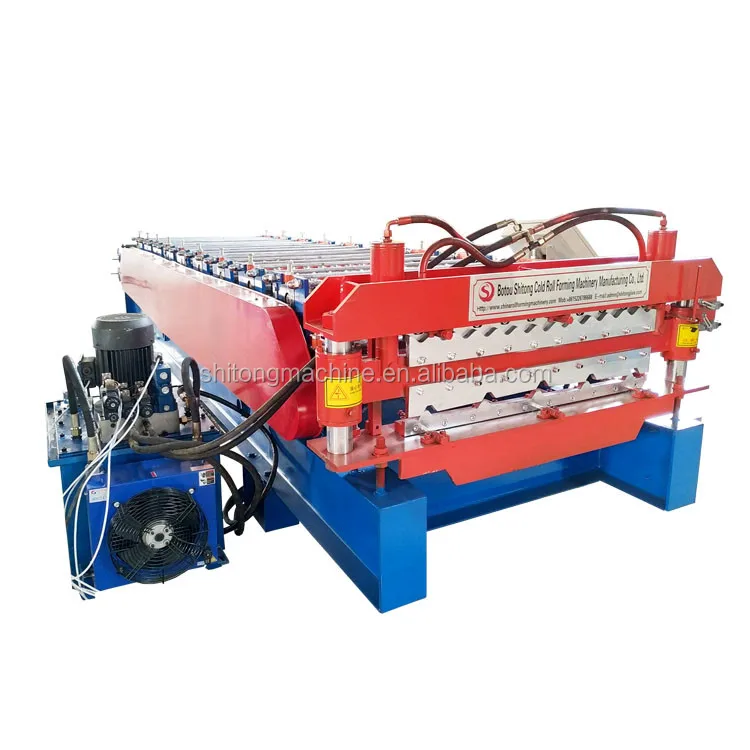

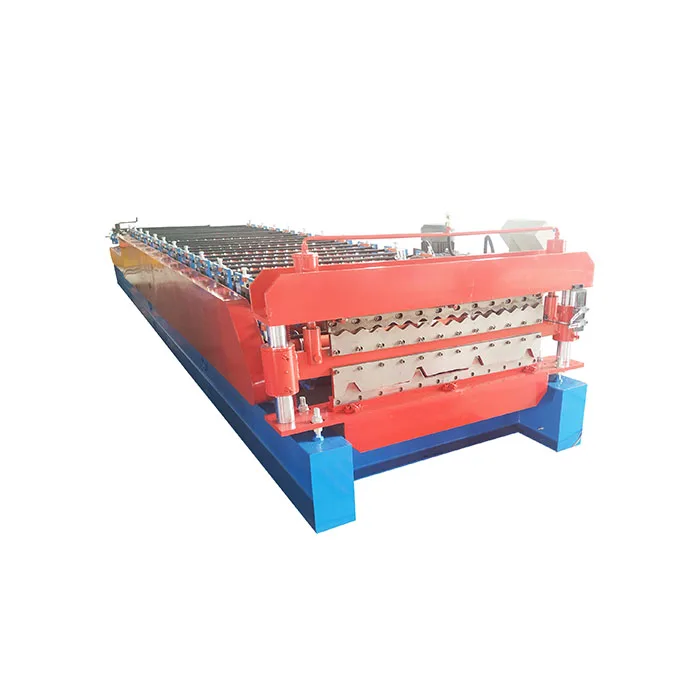

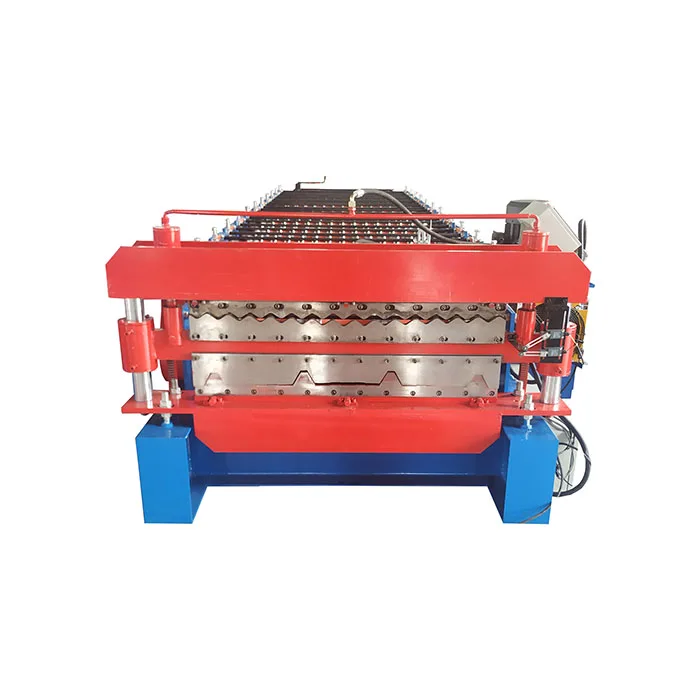

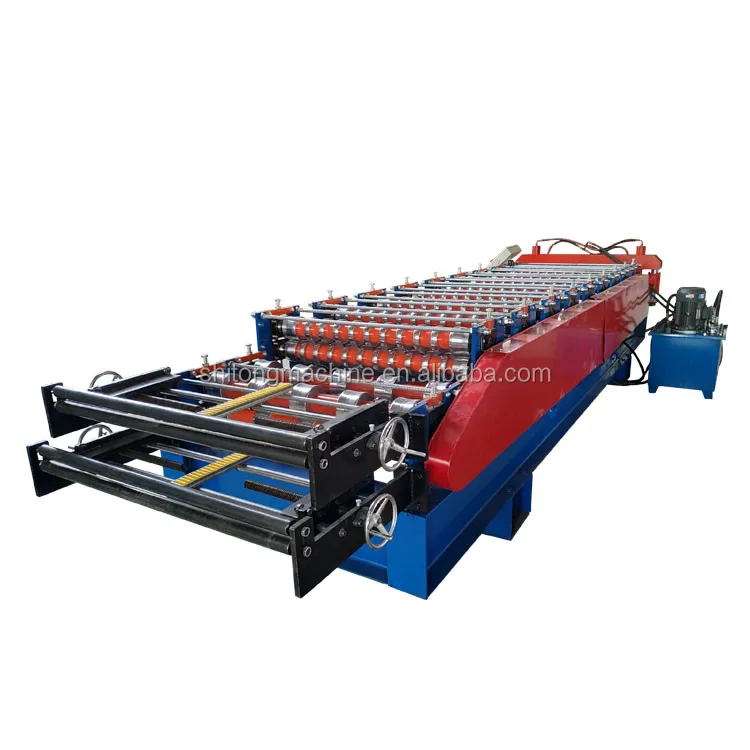

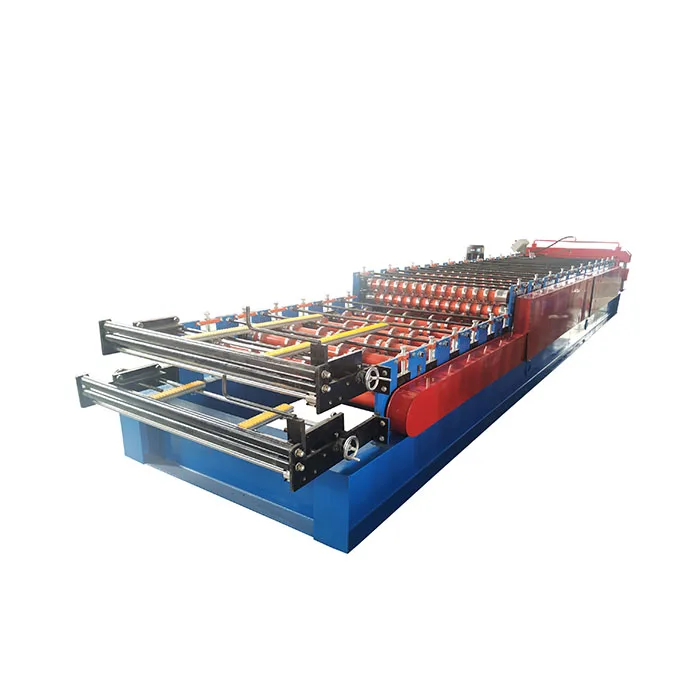

988-1000 corrugated sheet double layer roll forming machine
——————— PRODUCTION PARAMETER ——————
Raw material | ||
material spec | colored steel sheet, galvanized steel sheet, aluminum sheet | |
thickness of coil sheet | 0.3-0.7 mm | |
material expand width | 1200 mm | |
Efficiency width | 988mm/1000mm | |
Machine details | ||
roller material | high grade NO. 45 forged steel with 0.05mm hard chrome plating | |
shaft material | high grade NO. 45 carbon wrought steel | |
cutting blade | Cr12 mould steel with quenched treatment | |
diameter of shaft | 70mm or as your requirement | |
main frame | 300 H steel | |
forming steps | 11rows 17rows | |
hydraulic station power | 4 KW | |
controlling system | Delta PLC computer control | |
material of cutting table | Cr 12 mould steel with quenched treatment | |
hydraulic oil | 46# hydraulic oil | |
After sale-services | ||
Delivery time | 40 workdays after receiving the deposit | |
Payments | 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment | |

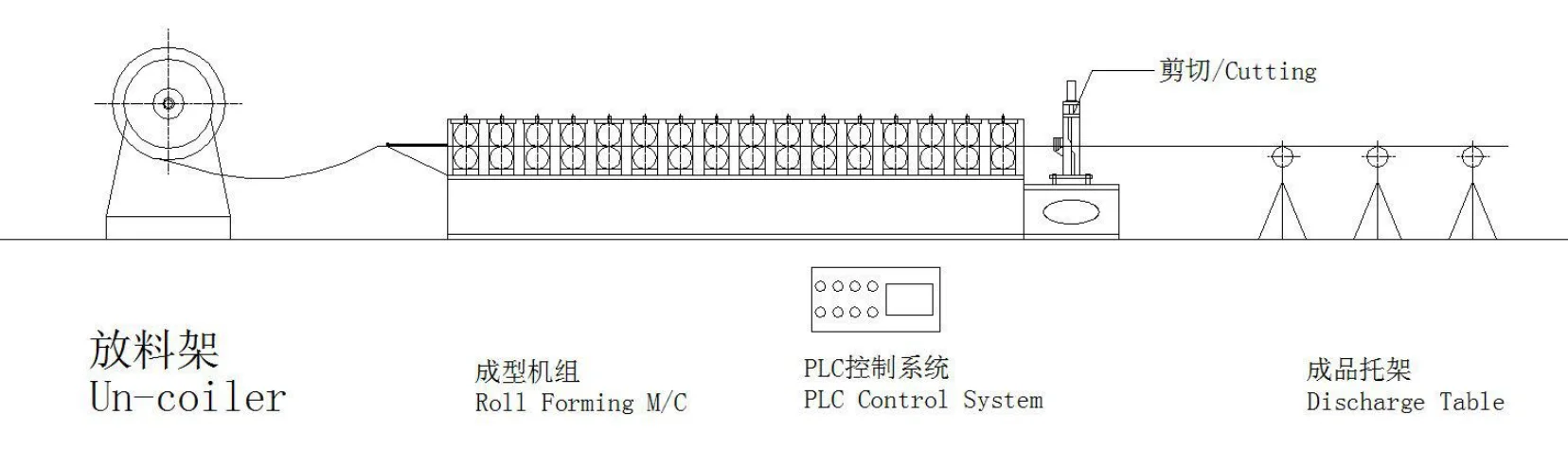

—————— EQUIPMENT PROCESS SKETCH ——————
