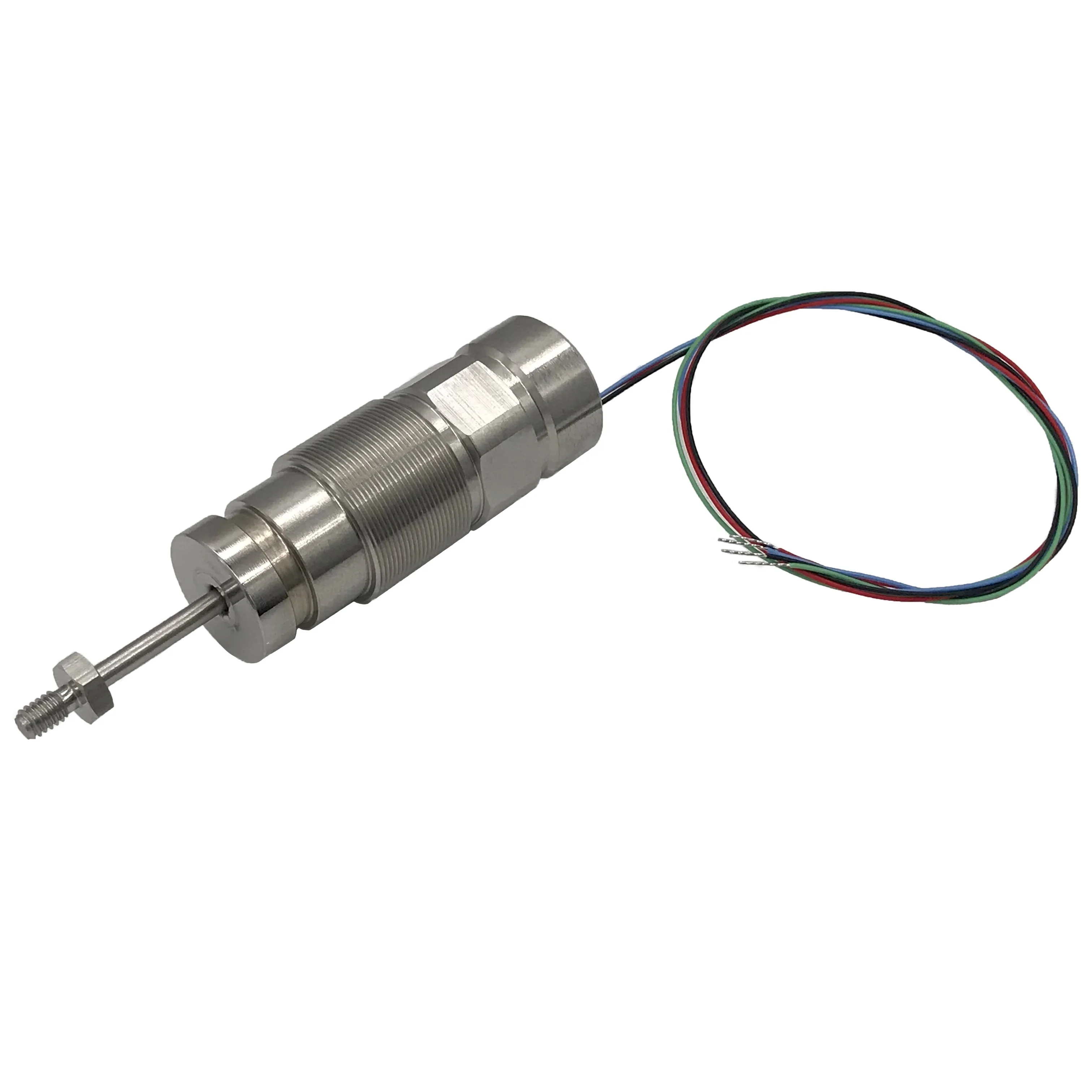

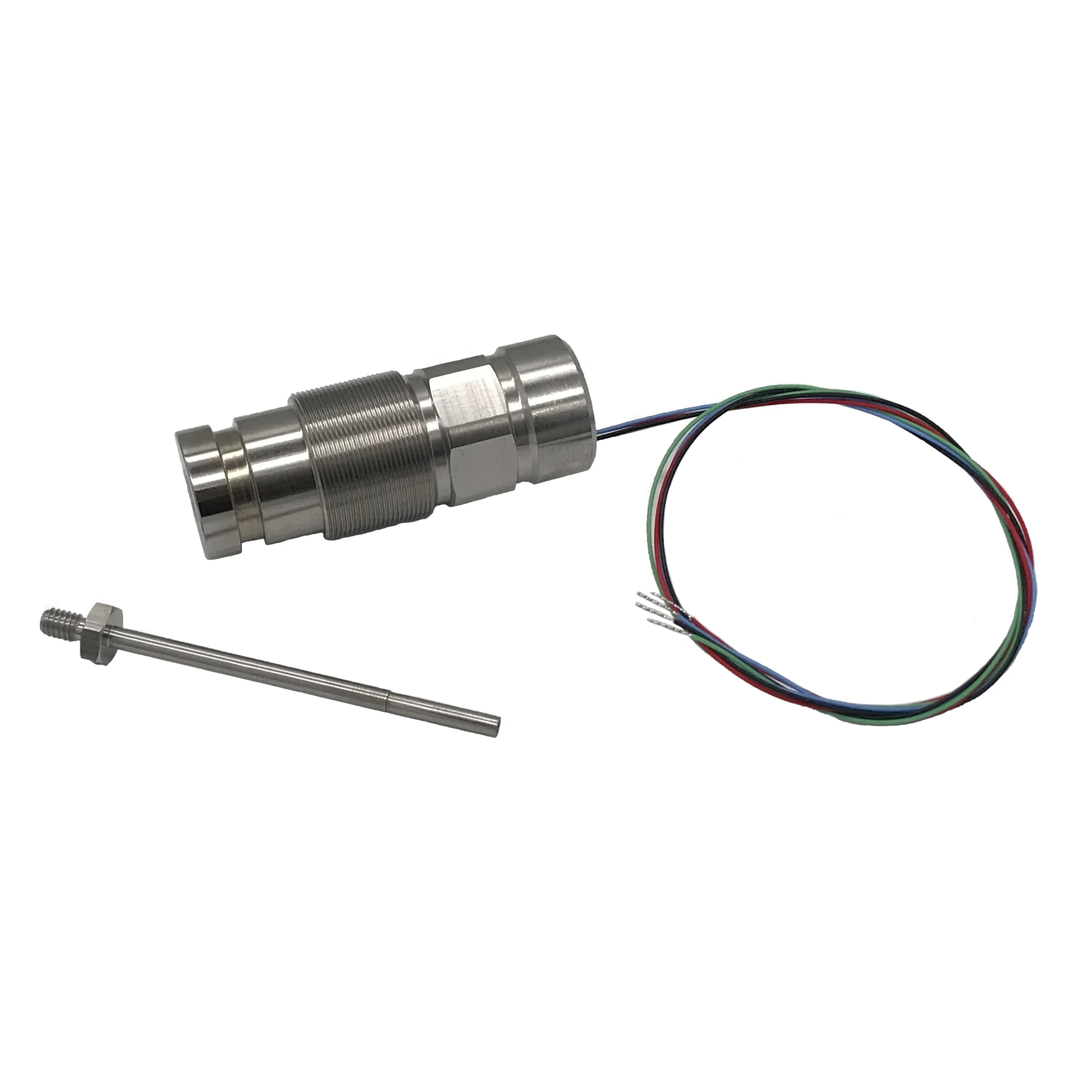

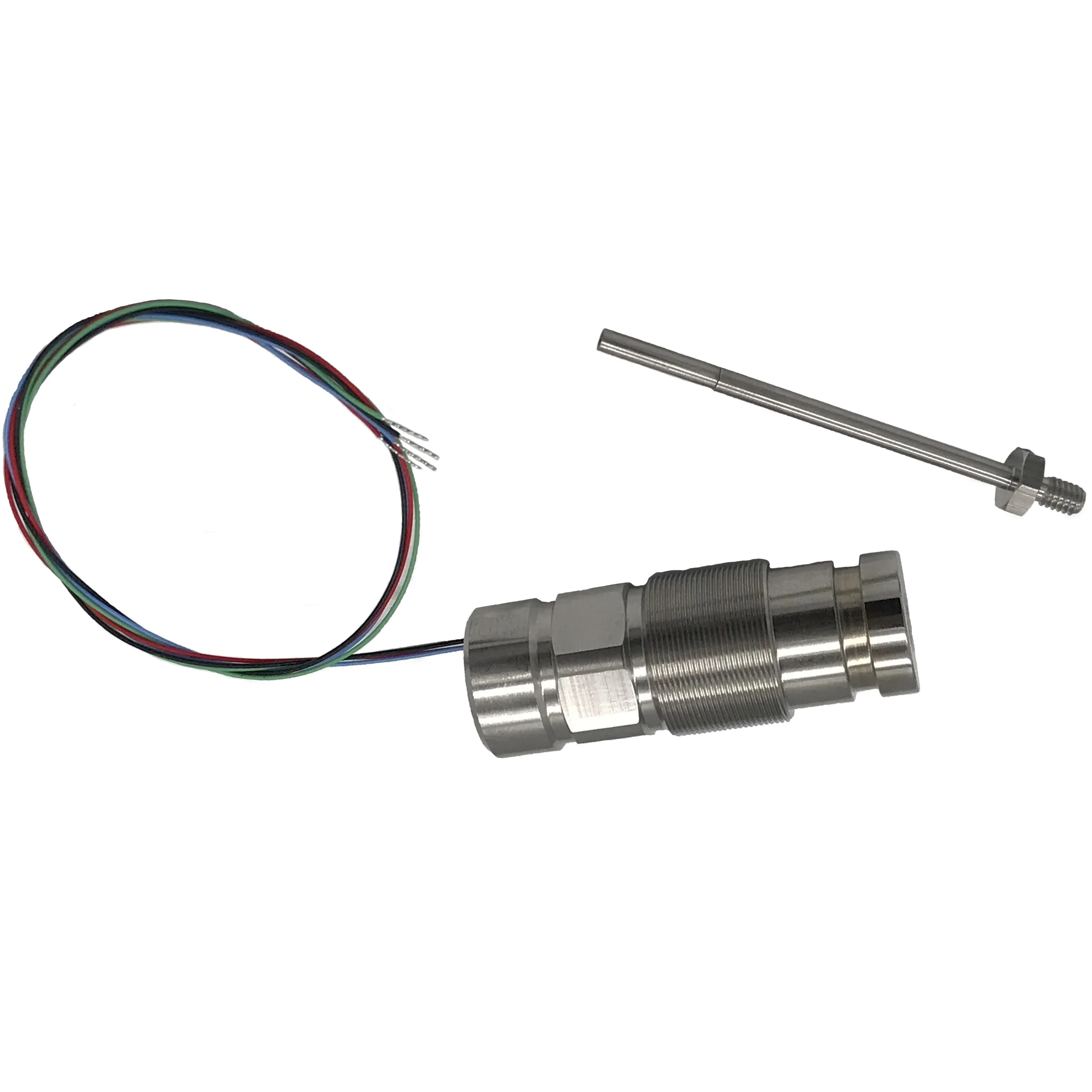

10MM stroke AC LVDT linear position sensor stand alone
- Category: >>>
- Supplier: Shanghai Utmost Electronics Co. Ltd.
Share on (1601200317972):
Product Overview
Description
Product Description
LVDT (Linear Variable Differential Transformer) is an abbreviation for linear variable differential transformer. As show in below picture, It consists of a primary coil, two secondary coils, and a core. The electromagnetic coupling between the primary coil and the secondary coil causes a linear relationship between the amount of change in the position of the core and the output voltage of the secondary coils. This principle is widely used to measure various physical quantities that are previously converted into linear displacements, such as tensile, expansion, diameter, taper, thickness, eccentricity, differential pressure, liquid level, force, weight, etc., with feature of no sliding contact, low power consumption, high resolution, long service life, and can be used under harsh conditions such as high temperature, high humidity and dust.
Range | ±5mm |
Output | ±1.43V AC |
Non-Linearity | ±0.5%FRO |
Electrical connection | Direct cable(4 wires) |
Power supply | 3V rms sine wave |
Features
* Small size
* Customizable range and output
* Can withstand high pressure to 32MPa
* Linearity error is better than ±0.5%FRO
* Customizable range and output
* Can withstand high pressure to 32MPa
* Linearity error is better than ±0.5%FRO

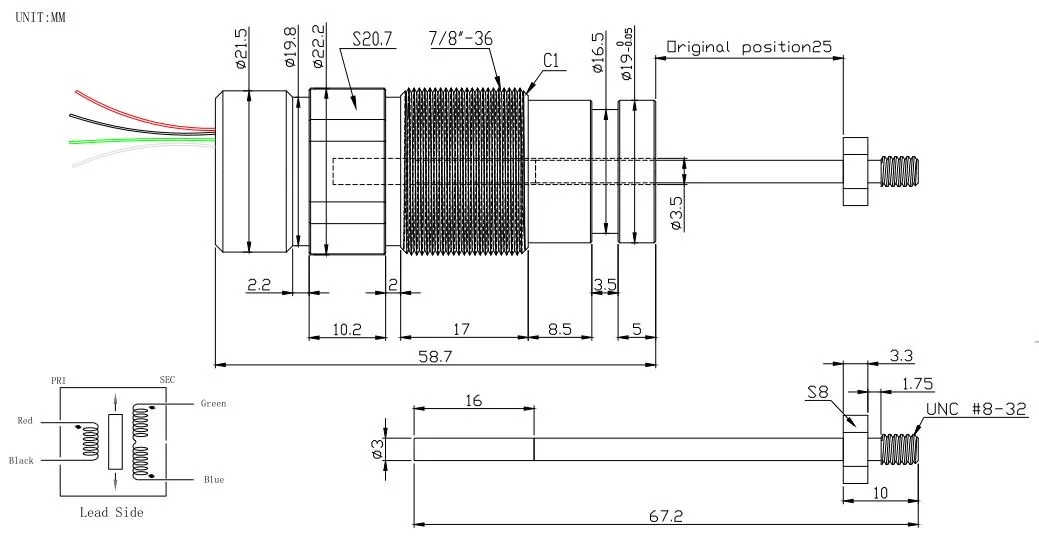

Structure&wiring diagram

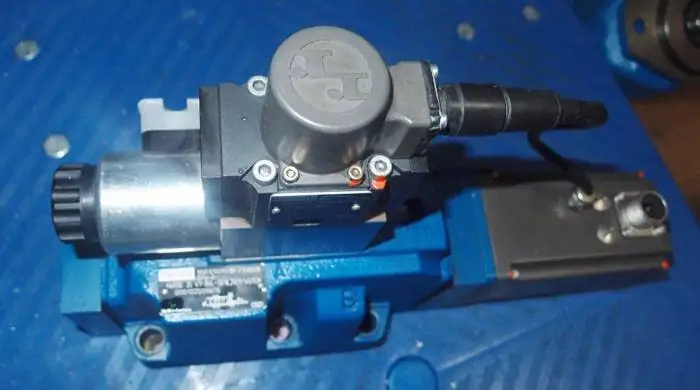

Application for Servo valve
