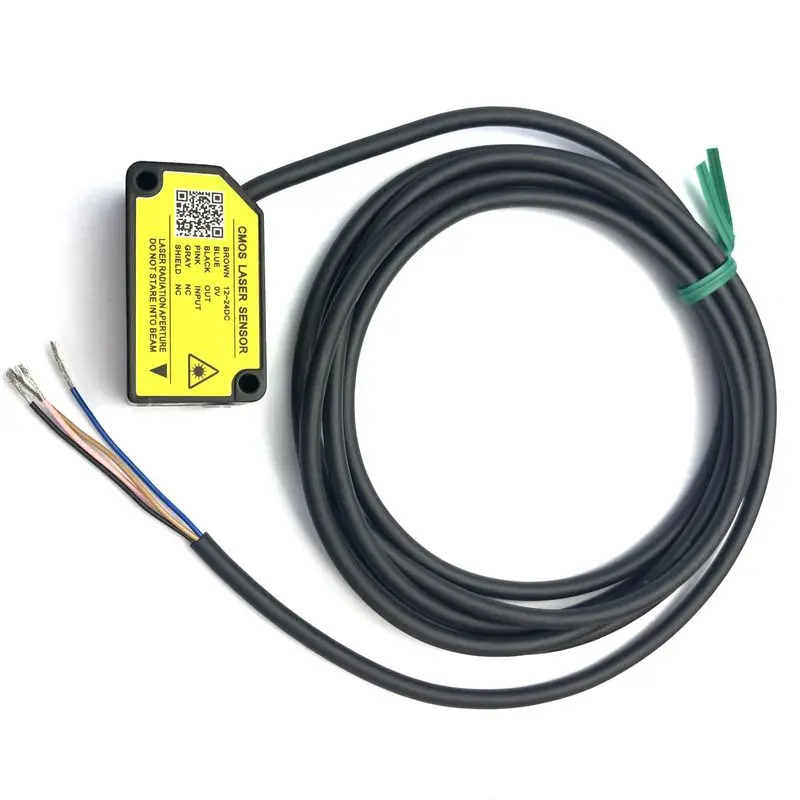

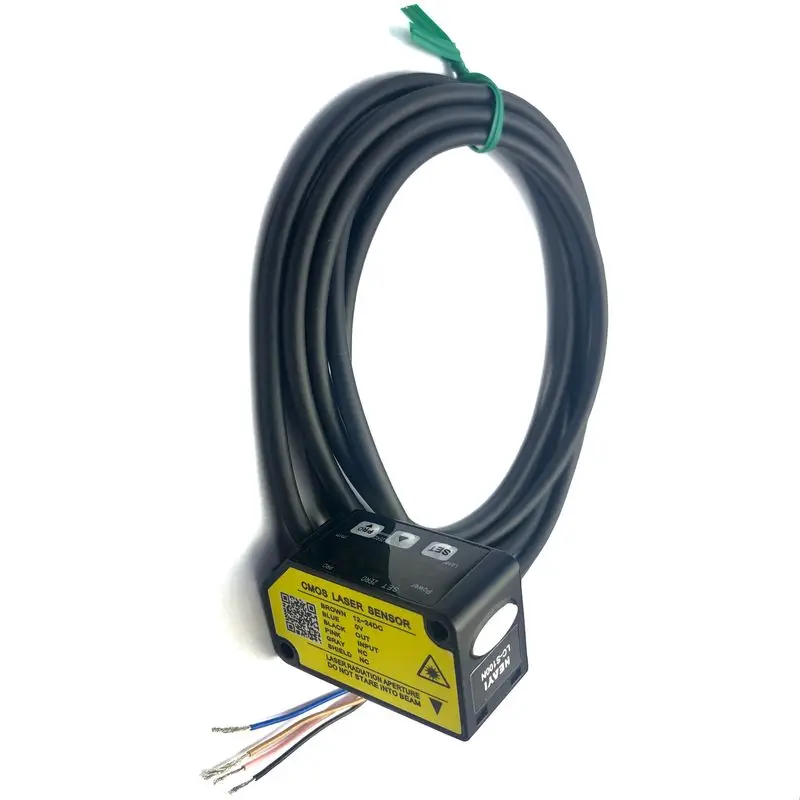

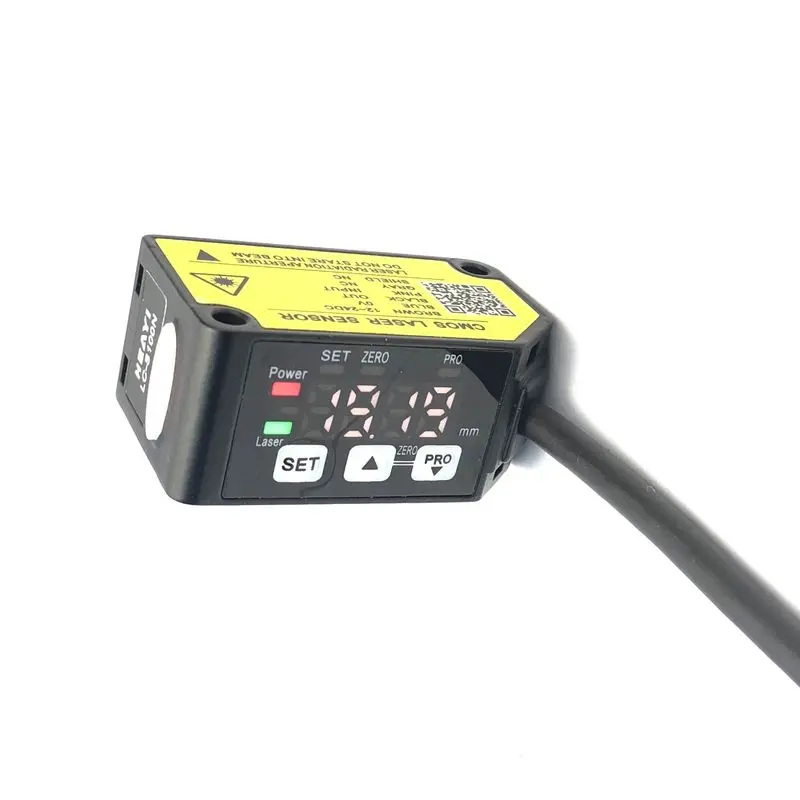

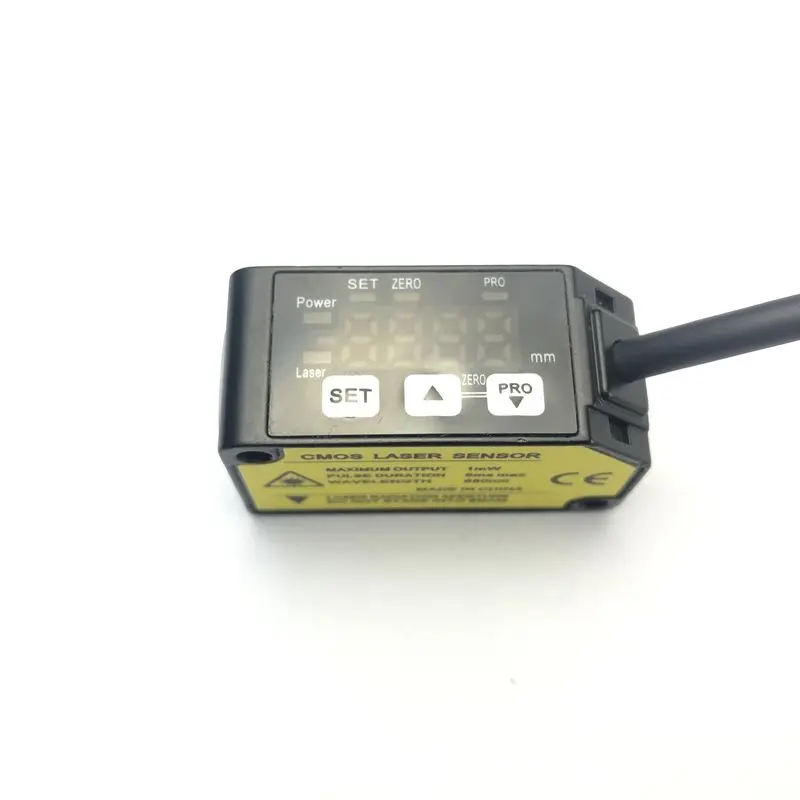

Laser sensor LC S100N induction displacement for HG C1100
- Category: >>>
- Supplier: Yueqing Yijia Electric Co. ltd
Share on (1601270977922):
Product Overview
Description

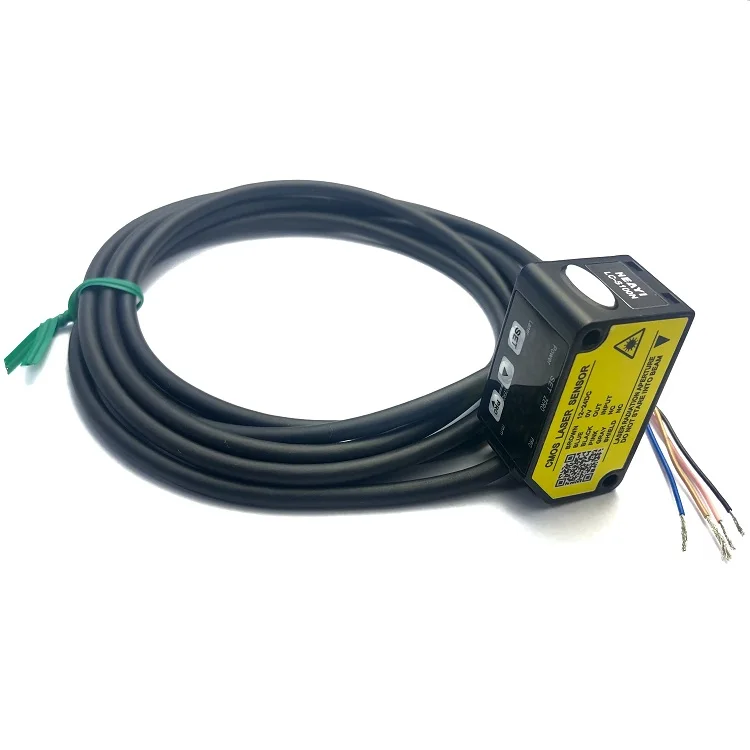

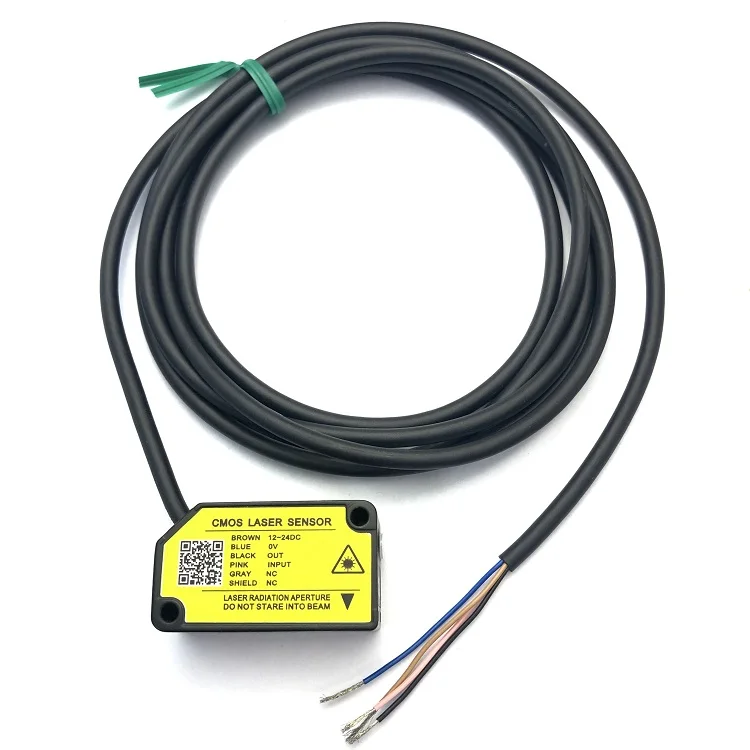

Laser distance sensor LC-S100MP inductive displacement sensor slot sensor for HG-C1100
Product Description
| Model | LC-S100MP |
| Brand | YIJA TOPV |
| Usage | High precision object detection sensor |
| Control output | Max.load current:50mA Light ON/,Dark ON,Switchable |
| Enclosure rating | IP67(IEC) |
| Repeatability accuracy | 70m |
| Linearity | ±0.1%F.S. |
| Temperature characteristic | 0.03%F.S./°C |
| Light source | Red laser,class 2,Max.output:1mW,Wavelength of light-emitting beam:655nm |
| Theory | optical sensor |
| Output | 0-5VDC/4-20mA analog output and switching output |
| Sensing Range | 65-135mm |
| Sensing Object | opaque object |
| Application | food/medical/chemical/robotics/electronics/industry/packaging/plastic machinery industry/textile machinery industry/lithium battery/semiconductor industry |
| Output mode | swithching output |

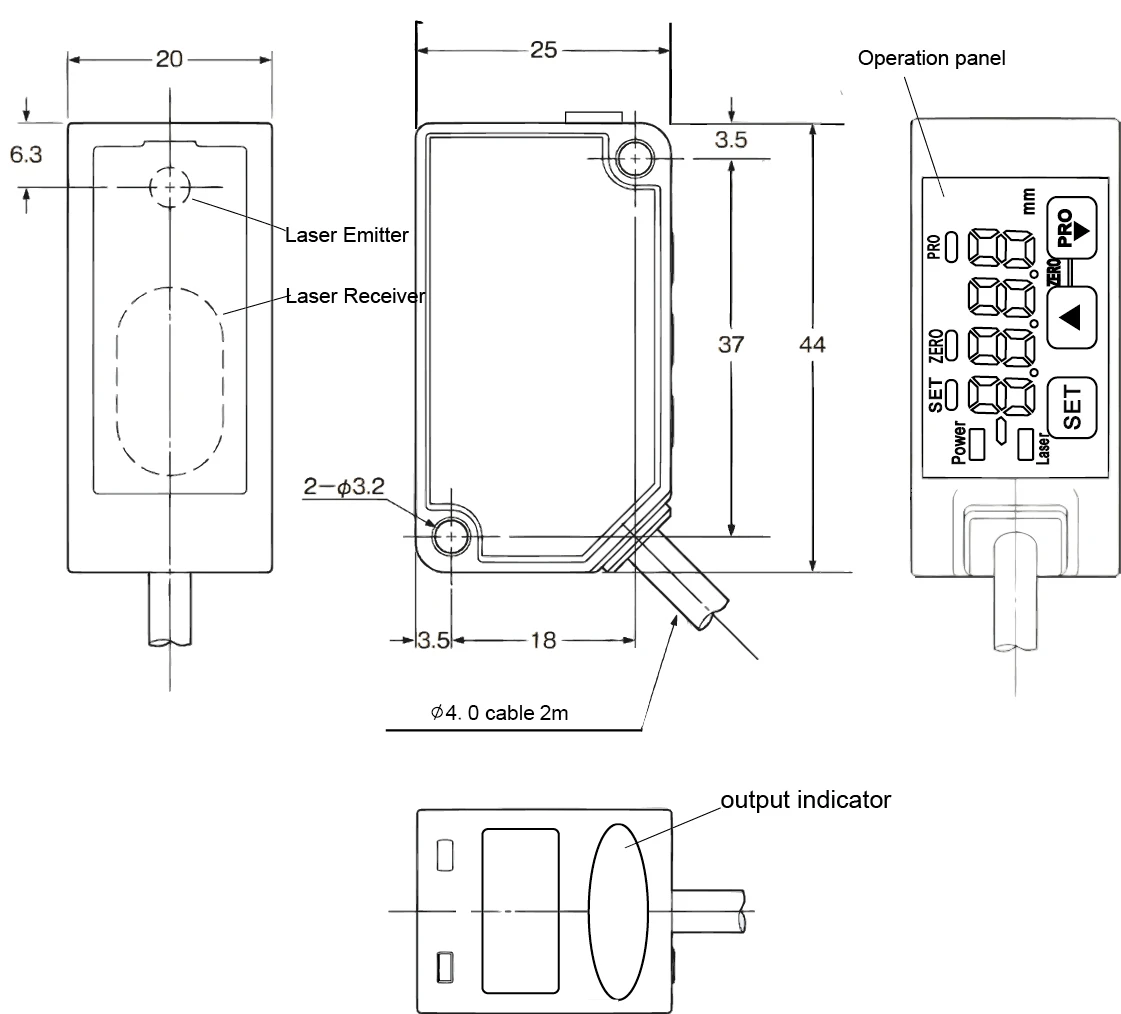

SIZE SPECIFICATION
