Taidacent 5/10/20cm Linear Position Sensor Thin film Trimmer Potentiometer Sensor Flex/Bend Inductive Linear Position Transducer
- Category: >>>
- Supplier: Shenzhen Taida Century Technology Co. Ltd.
Share on (1601274954326):
Product Overview
Description
Taidacent 5/10/20cm Linear Position Sensor Thin film Trimmer Potentiometer Sensor Flex/Bend Inductive Linear Position Transducer
Product Description

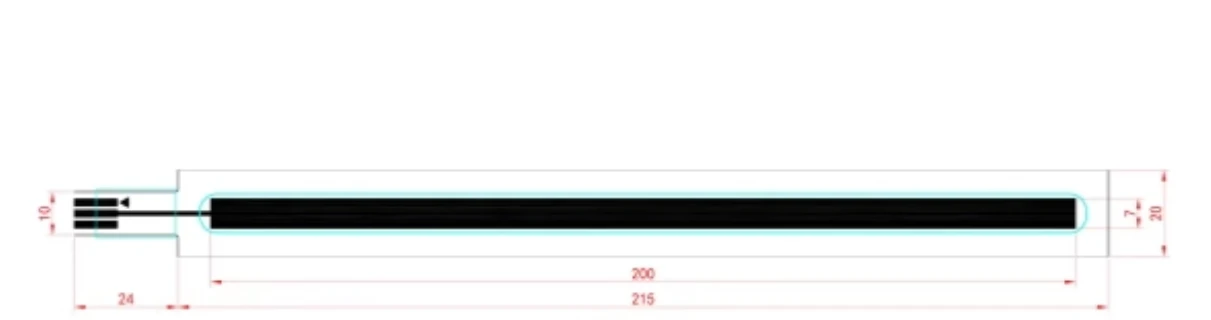

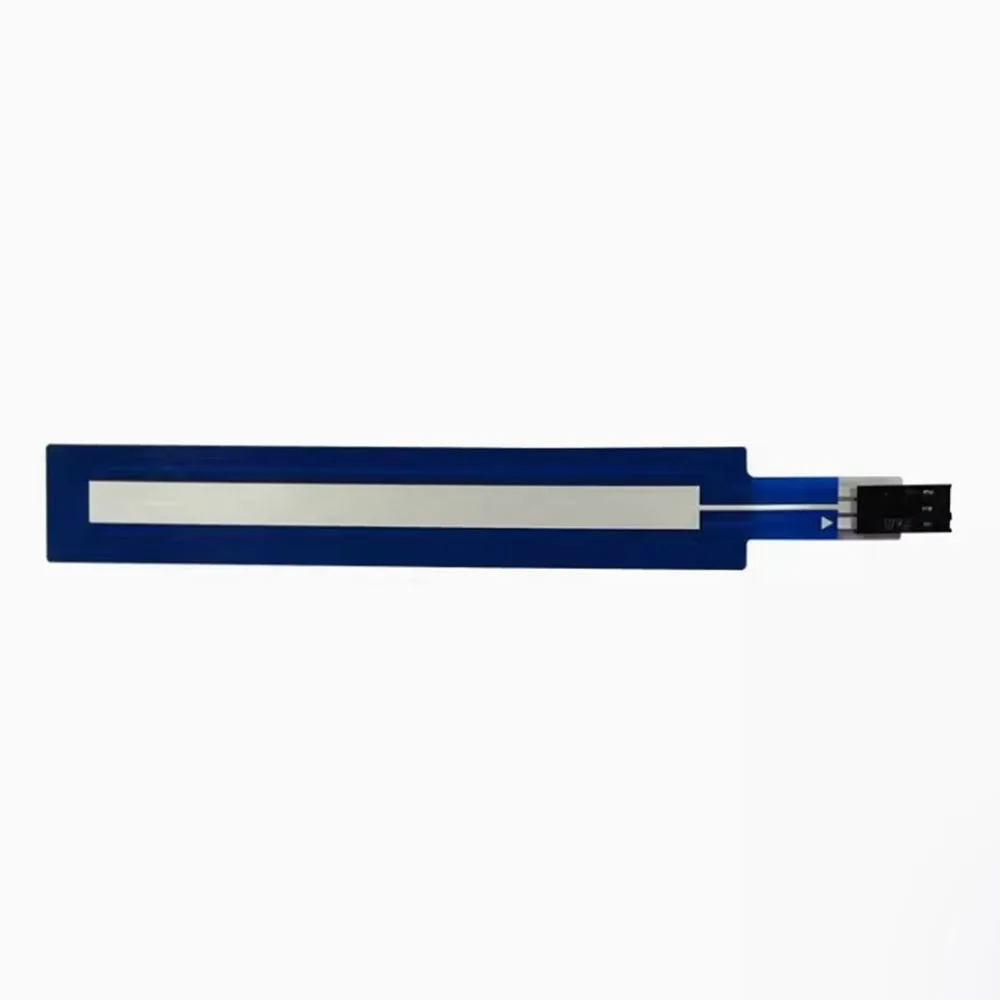

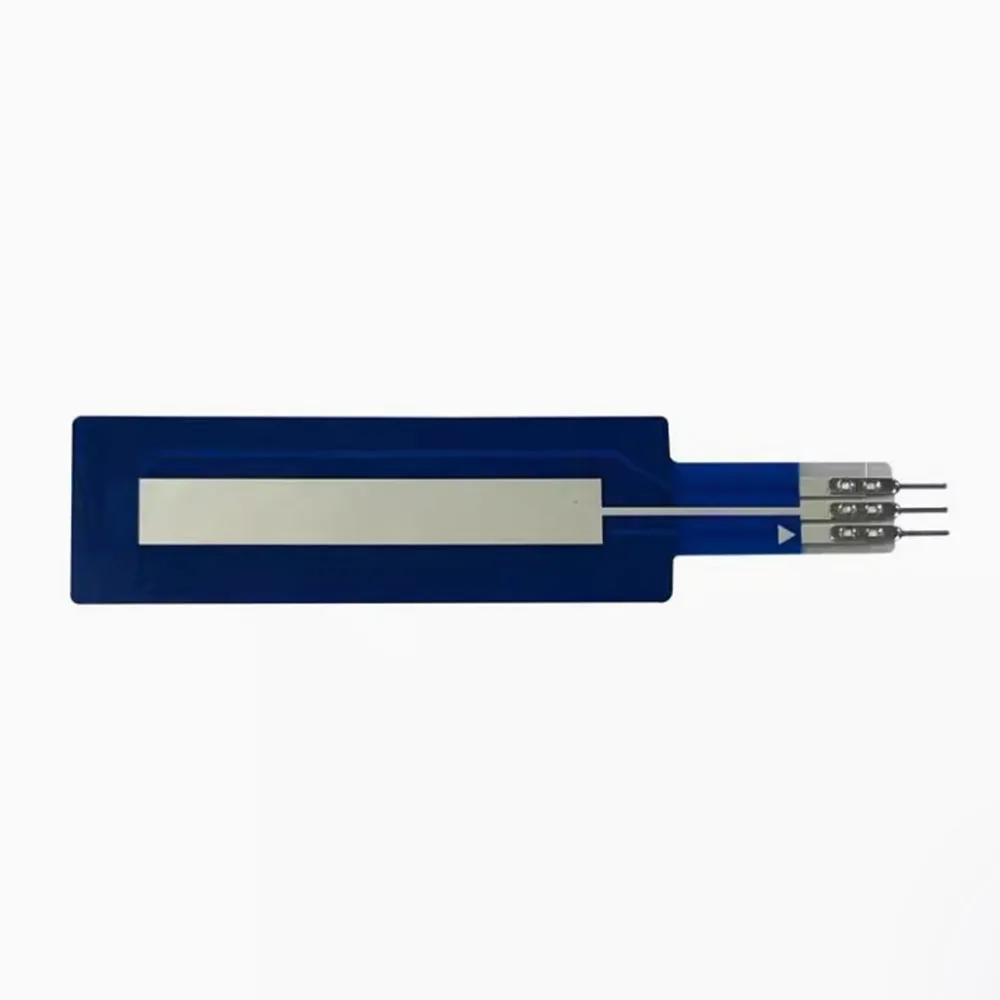

L-200-103 is a flexible, ultra-light, ultra-thin strip thin film position sensor with low power consumption and linear output characteristics, which is very suitable for many application scenarios of position sensors. L in the model: refers to the bar shape; 200 refers to the effective area length of the potentiometer 200 mm; :103 refers to the fixed resistance of the potentiometer is 10 kilo-ohms
Features
The output resistance is linearly related to the distance from the pressing position to the starting point
IP65 dustproof, waterproof (splashing water)
IP65 dustproof, waterproof (splashing water)
Specification
item | value |
Mounting Type | paste |
Description | flexible position sensor |
Model Number | TDJL-L0012030 |
Type | Linear Displacement Sensor |
Use | Industrial |
Features | IP65 waterproof |
Output | Linear output |

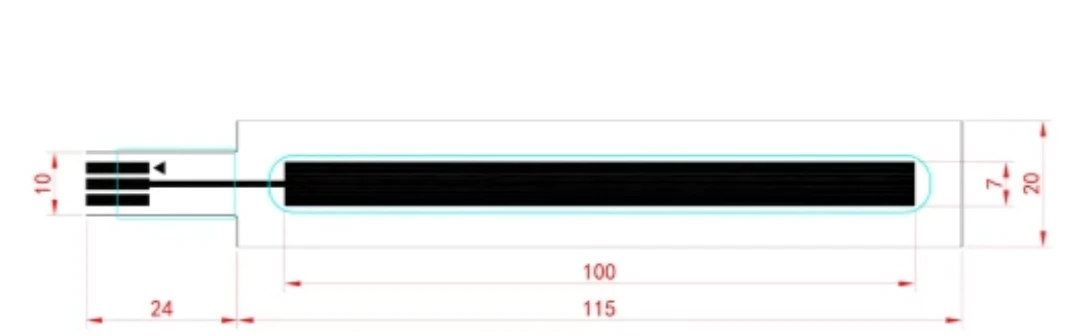

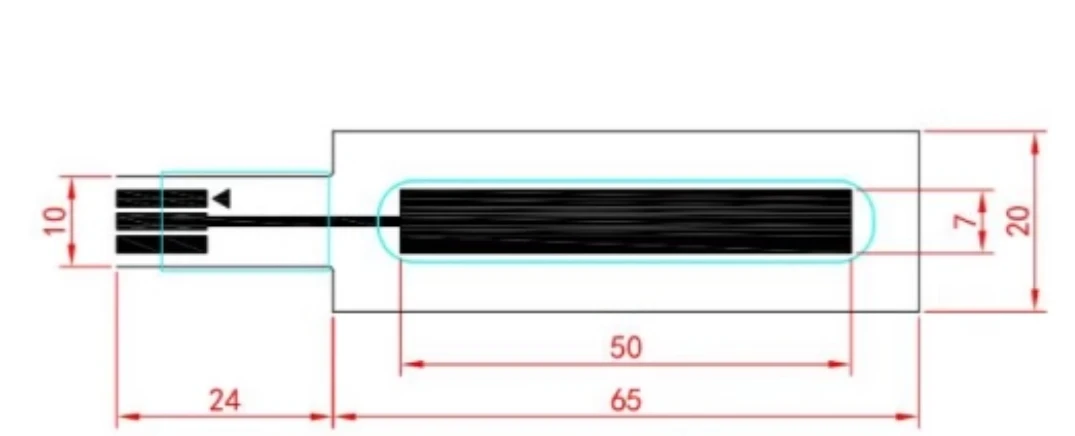

Linear travel effective area | 5cm/10cm/20cm |
Thickness | 0.5mm |
Interface | Male/female |
Potentiometer resistance | 10k ohm |
Resistance deviation | 20% |
Linearity | +3% |
Activation pressure | more than 100 grams |
Working mode
The fixed resistance between pins 1 and 3 is the bottom circuit, with a typical value of 10 kilo-ohms. Among them, pin 1 is the signal close to the interface position, and pin 3 is the signal far from the interface position. When there is no pressure on the silver electrode of the top circuit, the resistance between pin 2 and pins 1 and 3 is infinite. When there is a pressure of more than 100 grams on the silver electrode of the top circuit, there is a 0~10 The resistance value is between kilo-ohms. When the pressure acts on the end far away from the interface position, the resistance between pin 2 and pin 3 is around 0 ohms, and the resistance between pin 2 and pin 1 is around 10 kilo-ohms. When the pressure acts on the end close to the interface position, the resistance between pin 2 and pin 3 is around 10 kilo-ohms, and the resistance between pin 2 and pin 1 is around 0 ohms. When the pressure acts on the middle of the top circuit, the resistance between pin 2 and pins 1 and 3 is around 5 kilo-ohms.
The different resistance values between pin 2 and pin 1 or 3 can tell the pressure position on the top circuit
The different resistance values between pin 2 and pin 1 or 3 can tell the pressure position on the top circuit
