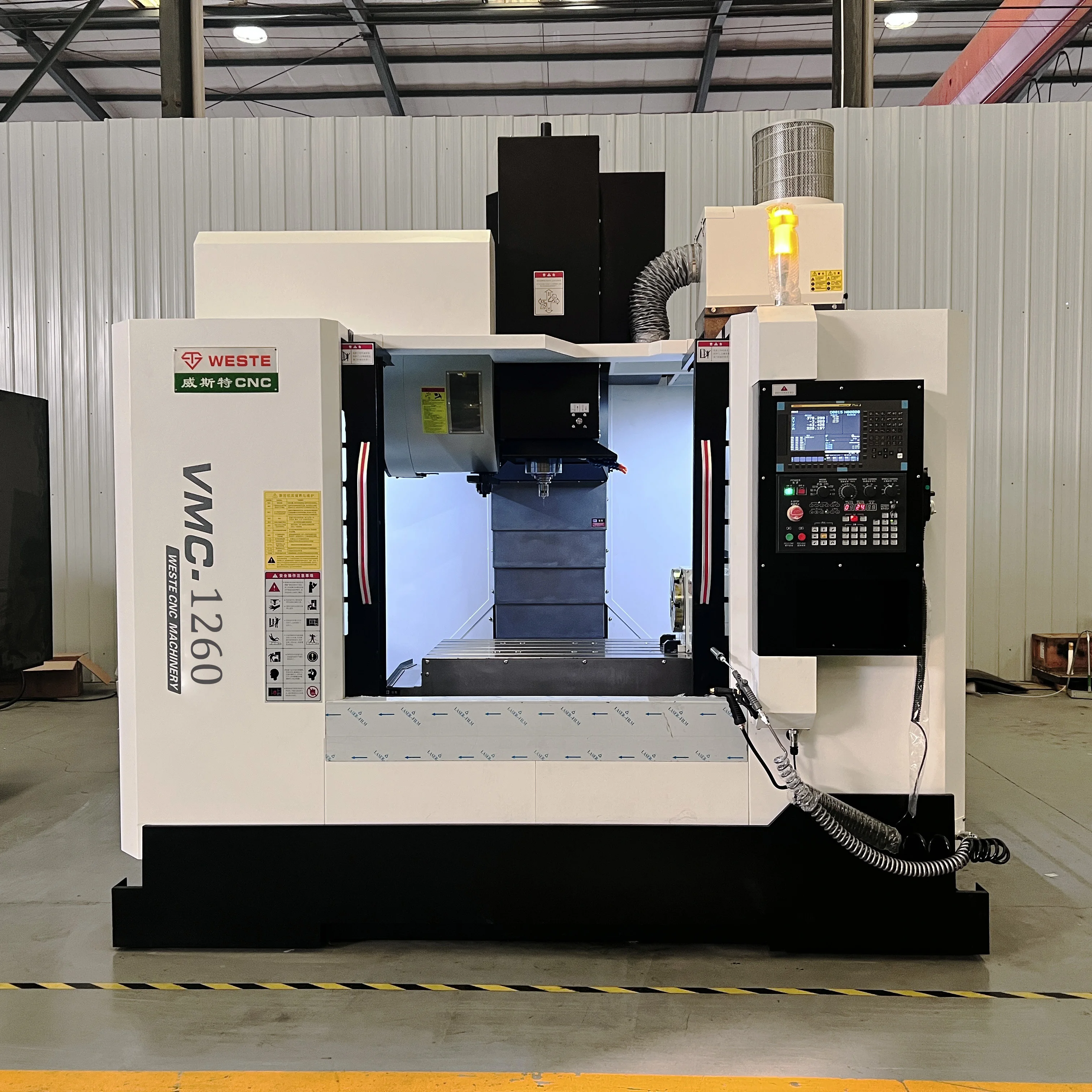

VMC1260 horizontal machining center cnc vertical 5 axis cnc machining center Frame
- Category: >>>
- Supplier: Shandong Weste Cnc Machine Tool Co. Ltd.
Share on (1601200370351):
Product Overview
Description
PRODUCT OVERVIEW:
The feed axis of the machining center is controlled by X, Y, and Z coordinates, and the spindle is driven by servo motor power.The tool magazine has a capacity of 24 circular tool magazines. It can achieve one-time clamping of various complex parts such as discs, plates, shells, cams, molds, etc., and complete various processes such as drilling, milling, boring, expansion, hinge,tapping, etc. It is suitable for the production of multiple varieties, small and medium-sized batch products, and can demonstrate its superiority in the processing of complex and high-precision parts.
MAIN FEATURE- MACHINE CENTER vmc1160
1. Machine mainly for AUTO/AEROSPACE/MEDICAL/3C/MOLD/MILITARY/SHIP/RAILWAY Industry
2.Whole Cast Iron Machine Base HT300; Heat treatment
3. Z axis long travel design suitable for 4th-5th Rotary Table and Tailstock
4.Z axis with Safety Brake device to avoid Tool Dropping Accident

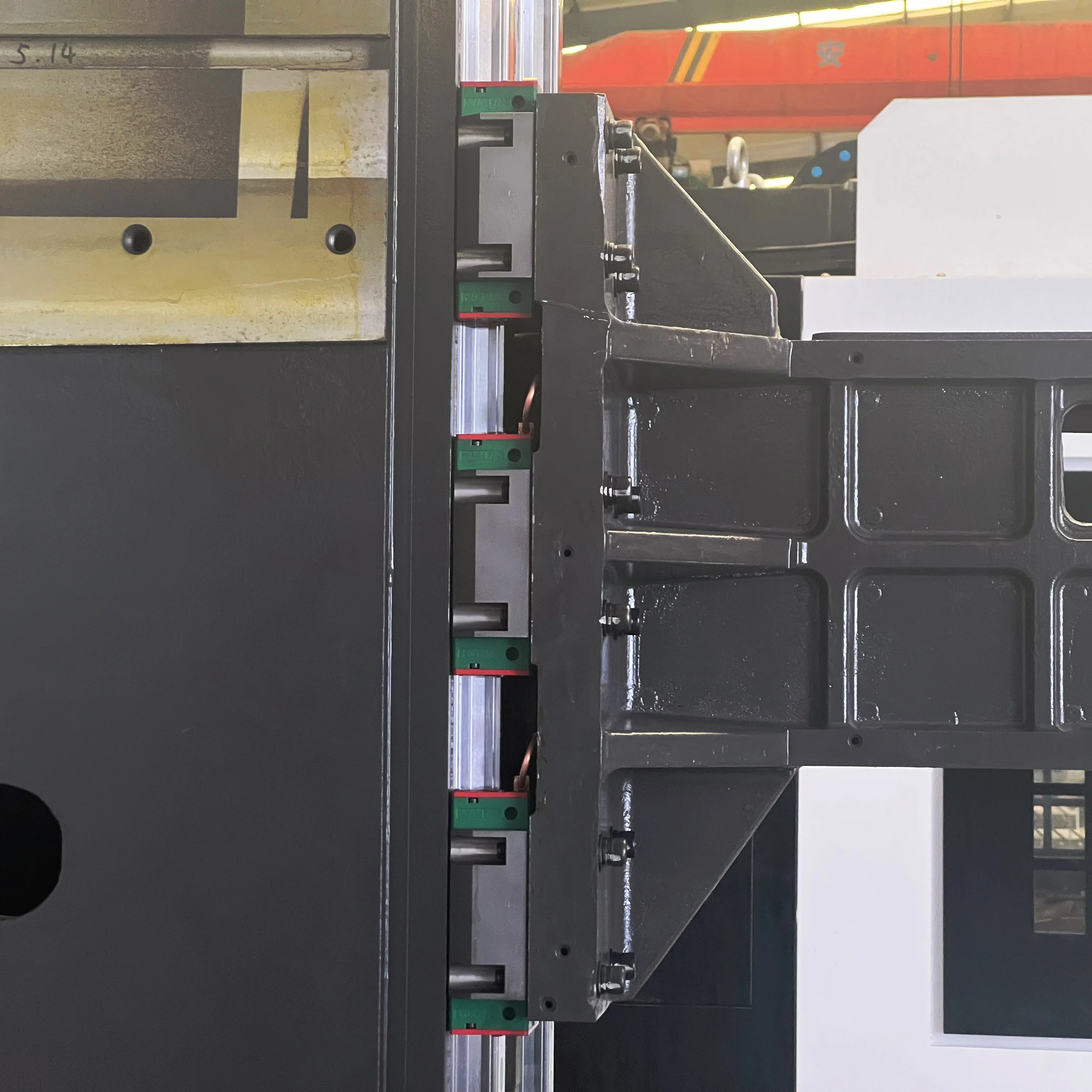

5. XYZ axes adopts TAIWAN Brand High Accuracy Linear Guide Way and 25mm Ball Screw- V430
6. XYZ axes adopts Whole Set Servo Motor and Driver with GSK/FANUC/SIEMENS/SYNTECH
7. XYZ axes Linear Rail enhance High Accuracy Machinery
8. Whole High Rigidity Custom BT40 Spindle with Good quality bearing to improve Anti-Vibration and Service life
9. Special Large Torque Design improve Max.Tapping to M22 and 30mm drill hole on Steel
10. TAIWAN Brand High Quality Armless ATC 12Tools ensure Tools changing in high precision in Quick Timing
11. 4th Dividing Head or Rotary table as Option
12.Tools Alignment and Measurement Device as Option
13. Various Type of Chip Rinse/Chip Remover system make chips collection easily
specifications | unit | VMC1260 |
Table size | mm | 1200*600 |
Max.table load | kg | 800 |
X axis travel | mm | 1200 |
Y axis travel | mm | 600 |
Z axis travel | mm | 600 |
Distance between spindle center and column surface | mm | 697 |
Distance between spindle nose and table surface | mm | 120-720 |
T slot | mm | 5-18-100 |
Spindle taper | BT40 | |
Max. spindle speed | rpm | 8000-12000 |
Main motor power | kw | 11-15 |
X/Y/Z axis servo motor torque | N.M | 22/22/22B |
X/Y/Z motor connection | direct | |
X/Y/Z guide rail form | 3 axis linear guide rail | |
Automatic tools changer | 24 arm type | |
X/Y/Z axis rapid traverse | M/min | 30/30/24 |
Cutting feed speed | mm/min | 1-10000 |
Position accuracy | mm | 0.005 |
Repeat positioning accuracy | mm | 0.003 |
Machine dimension | mm | 2850*2450*2550 |
Machine weight | T | 6.8 |

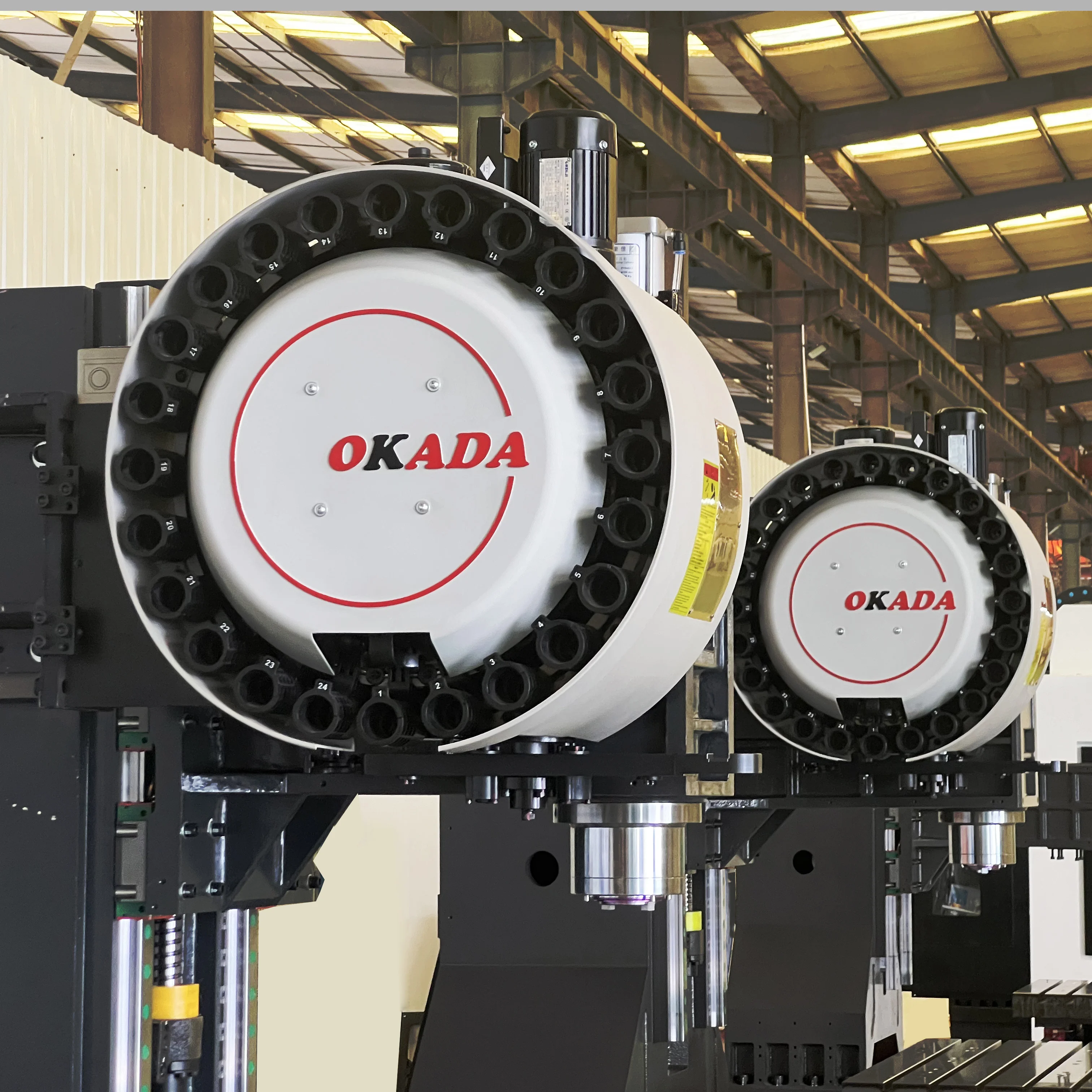

TAIWAN TOOL MAGAZINE
1. Standard with Taiwan 24 Arm tool magazine, double arm clamping to make a fast exchange.
tool change time only 3 seconds.
tool change time only 3 seconds.

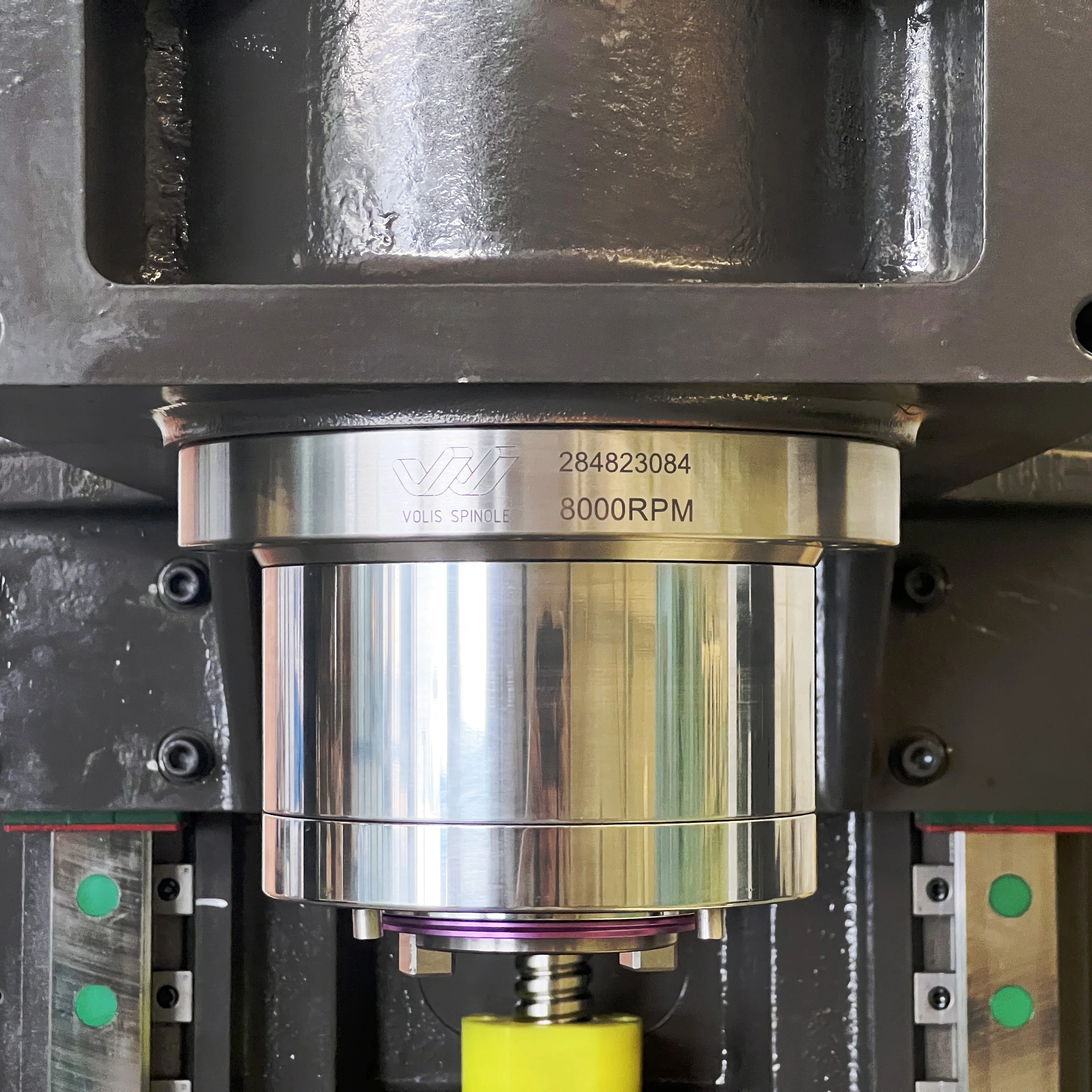

TAIWAN PRECISION SPINDLE
1. Spindle taper is BT40;
2. Spindle speed 8000rpm , can enlarge to 10000rpm or 12000rpm
3. Taiwan Spindle passed dynamic balance ISO rating test
2. Spindle speed 8000rpm , can enlarge to 10000rpm or 12000rpm
3. Taiwan Spindle passed dynamic balance ISO rating test
SCHNEIDER ELECTRICAL
1. with Schneider safety electrical components
2. quick plug as standard
Taiwan gold MINDMANpneumatic components
1,This product uses polytetrafluaro-ethylene
,polyurethane.nitnle rubber seals, durable
2Brand:Taiwan gold MINDMAN
AIR CONDITIONER
Standard with Industrial electrical cabinet airconditioner.
Cooling the electric box better
Cooling the electric box better
TAIWAN LEAD SCREW
Adopting well-known Taiwanese brand high-speed, high-precision, and high rigidity spindle units, with strong axial and radial bearing capacity, and a speed of up to 8000/10000rpm;
LUBRICATION SYSTEM
Adopting advanced centralized automatic lubrication device, timed and quantitative automatic intermittent lubrication, stable and reliable operation
CONTROL SYSTEM
The machine tool is equipped with a Japanese FANUC 0i MF PLUS control system, which has complete functions, easy operation, stable accuracy, and reliability
Application Areas
This VMC is suitable for mechanical processing and mold making ,And itcan asapt to the processingrequirement from roughScope of application: Milling, drilling, boring, twisting,tapping andother multi-program wage efficient processing.Suitable for processing plates, plates, shells, abrasives, etc.Batch processing of parts with high precision, multiple processes andcomplex shapes.
It can effectively improve the processing efficiency.
It can effectively improve the processing efficiency.
Shandong Weste CNC Machine Tool Co., Ltd. is a CNC machine tool manufacturing company that integrates design,manufacturing, sales,and service, covering an area of more than 5000 square meters. The company has been developing for five years, and its main products include vertical machining centers, horizontal machining centers, gantry machining centers, five axis machining centers,CNC inclined bed lathes, CNC milling machines, ordinary milling machines, drilling machine series, and other CNC equipment.
After more than five years of development, the company has a stable supply chain to provide guarantees for the supply of raw materials. The precise quality inspection equipment and modern management mode have laid a solid foundation for producing high-quality products. All factory equipment will go through strict quality control processes such as quality inspection, copying, and re inspection, ensuring that each equipment is of high quality. At the same time, each machine tool has complete quality control records, a comprehensive after-sales service system, and experienced engineers to ensure fast after-sales service.
Adhering to the "Best Machine by WESTE" purposes, We provides better quality machines.more efficient and thoughtful after -sales services to customers. Sincerely hope to communi-cate with friends from various countries, and get win-win cooperation.
Transportation
Packing: standard export packing, or customizedpacking as your request.
Professional goods shipping forwarder.
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe
Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
