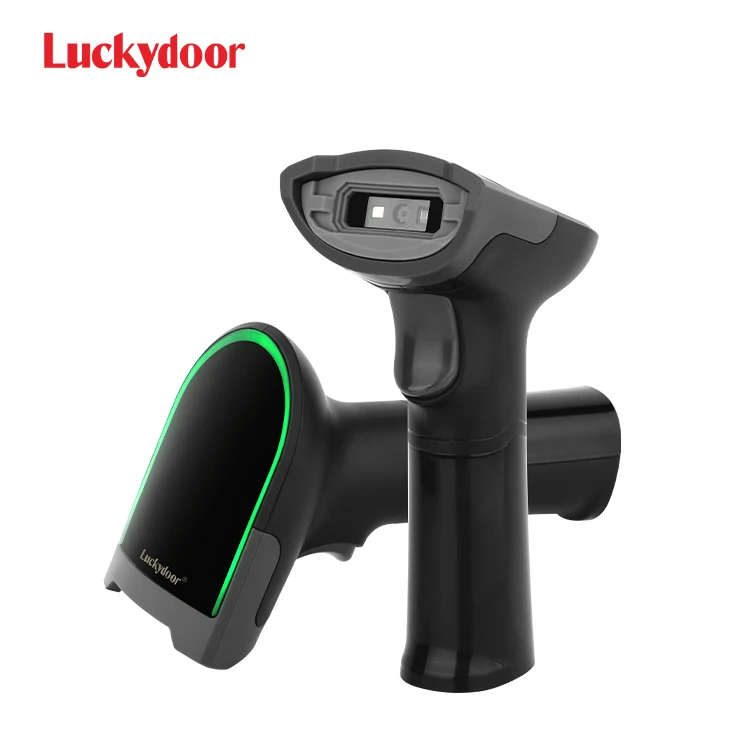

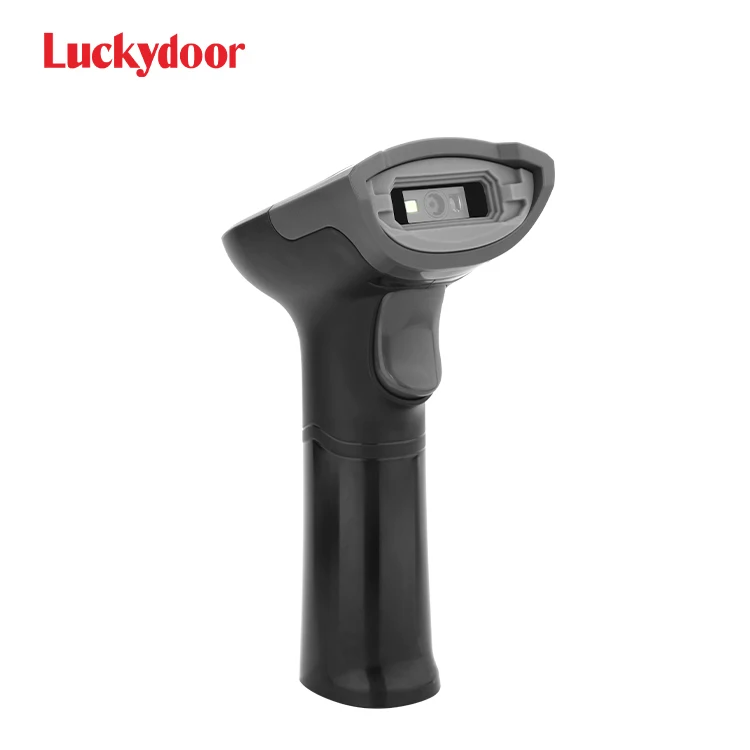

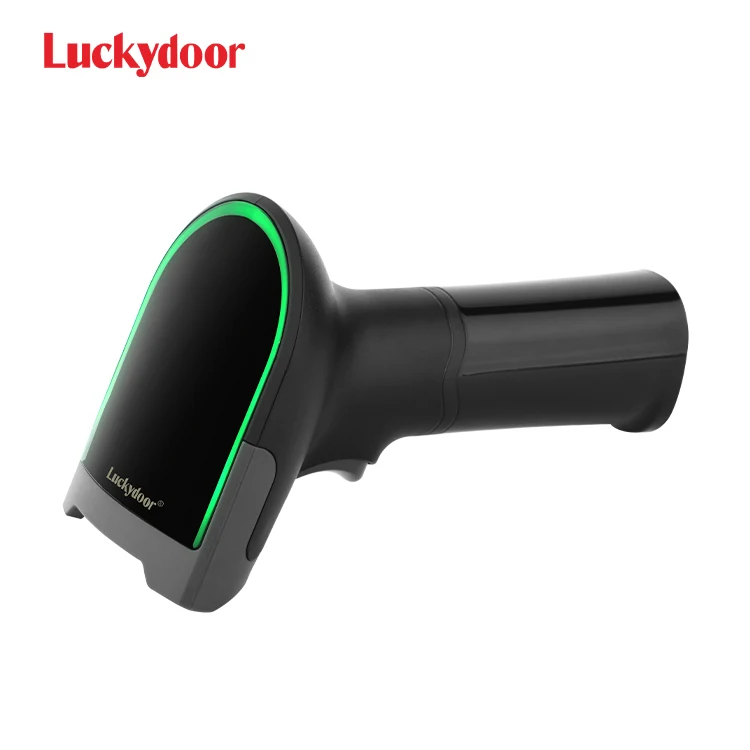

Luckydoor L500 Wired Android Bar Code Reader Handheld Qr Code 1D 2D Barcode Scanner for Supermarket Warehouse
- Category: >>>
- Supplier: Guangzhou Luckydoor Electronic & Equipment Co. Ltd.
Share on (1601200691995):
Product Overview
Description
Product Description
Handheld USB 1D/2D QR Code Barcode Scanner,2D Barcode Scanner For Retail And Warehouse
A global provider of complete POS hardware solutions, Luckydoor is proud to present this new developed durable and high-performance 1D/2D handheld barcode scanner. Equipped with a high-power CPU, this scanner effortlessly captures high-density,high-volume, and distorted barcodes printed on paper or displayed on screen.
Product Features
• Cost efficient (2D scanning capabilities for the price of a 1D scanner)
• Fashion design and easy to set up
• Reading both 1d ,2d ,QR codes from paper as well as from mobile screen
• Working with windows ,linux,android operating systems
• Fashion design and easy to set up
• Reading both 1d ,2d ,QR codes from paper as well as from mobile screen
• Working with windows ,linux,android operating systems
Product Specifications
Performance Parameters | ||||||||||||||
Light Sources | 617nm LED Aimer, White LED | |||||||||||||
Supported Symbologies | 1D: CODE128,EAN-13, ISBN,ISNN, EAN-8, UPC-A, UPC-E, Code 39, Code 39 Full ASCII, Codabar, Code 93, Interleaved 2 of 5, Industrial 2 of 5, IATA 2 of 5, Matrix 2 of 5, Code 11, MSI Plessey, GS1 128, code32 2D: QR Code, Data Matrix, PDF417, Micro PDF417, Aztec Code, Micro QR, Direct Chinese | |||||||||||||
Scan Type | Image CMOS | |||||||||||||
Resolution | 640*480 | |||||||||||||
Scan Method | Manual/Continuous/Automatic scanning | |||||||||||||
Scan angle | Yaw 60°,Rotation 360°,Pitch 60° | |||||||||||||
Precision | ≥4mil | |||||||||||||
Depth of scan field | 30mm-230mm (EAN13 13mil 90%PCS) | |||||||||||||
Error Rate | Less than 1/5million | |||||||||||||
Interface | USB-HID, USB-COM, RS232 | |||||||||||||
Physical Parameters | ||||||||||||||
Dimensions | 70.5mm*86.2mm*165.2mm | |||||||||||||
Weight | 100g | |||||||||||||
Material | ABS+PC | |||||||||||||
Cable Length | 2m | |||||||||||||
Environmental Parameters | ||||||||||||||
Operating Temperature | -20℃ ~ 50℃ | |||||||||||||
Storage Temperature | -40℃ ~ 70℃ | |||||||||||||
Relative Humidity | 5%~95% RH(Non-condensing) | |||||||||||||
Ambient lighting | 0~100000LUX | |||||||||||||
Drop/Shock Resistance | Withstands multiple times 1.5 meters drops to concrete | |||||||||||||
Electrical Parameters | ||||||||||||||
Working Voltage | DC5V±5% | |||||||||||||
Operating Current | 120mA | |||||||||||||
Product Images
Product Advantages
• Compact and lightweight design
• Scan barcodes on the screens of mobile devices
• Long life cycle trigger design: Up to 10,000,000 times.
• Versatile scanning modes: supports both manual and presentation scanning
• Scan barcodes on the screens of mobile devices
• Long life cycle trigger design: Up to 10,000,000 times.
• Versatile scanning modes: supports both manual and presentation scanning
Product Application:
• Point of sales system• Shopping mall and center
• Chain and convenience stores
• Health care and pharmacy
• Library and warehouse
Related Products:
2D wireless barcode scanner
2D handheld barcode scanner
2D bar code scanner
2D Hands-Free barcode scanner
2D desktop barcode scanner
qr code scanner
80mm thermal printer
thermal pos printer
label printer
FAQ of L500 2D wired usb qr code hanheld scanner barcode reader:
1. Are QR codes 1D or 2D?
Types of 2D codes include QR code, PDF417, and Data Matrix. In addition to holding more data, 2D barcodes can encrypt images, website addresses, and other binary data, which means that the codes can work independently of a database.
2. Can a 2D barcode scanner scan QR codes?
QR codes are best read by 2D barcode scanners. These codes cannot be read by standard or 1D barcode scanners. The 2D scanner will take a picture of the entire image of the barcode at once.
3. What is the difference between 1D and 2D barcode scanners?
1D barcodes can be scanned with traditional laser scanners, or using camera-based imaging scanners. 2D barcodes, on the other hand, can only be read using imagers.That data could be easily encoded on very small 2D barcodes.
1. Are QR codes 1D or 2D?
Types of 2D codes include QR code, PDF417, and Data Matrix. In addition to holding more data, 2D barcodes can encrypt images, website addresses, and other binary data, which means that the codes can work independently of a database.
2. Can a 2D barcode scanner scan QR codes?
QR codes are best read by 2D barcode scanners. These codes cannot be read by standard or 1D barcode scanners. The 2D scanner will take a picture of the entire image of the barcode at once.
3. What is the difference between 1D and 2D barcode scanners?
1D barcodes can be scanned with traditional laser scanners, or using camera-based imaging scanners. 2D barcodes, on the other hand, can only be read using imagers.That data could be easily encoded on very small 2D barcodes.
Company Profile
Contact us
FAQ
Q1. Are you manufacturing company or a trading company?
We are the manufacturer of Barcode Scanner, Thermal Receipt Printer, POS in China.
We are the manufacturer of Barcode Scanner, Thermal Receipt Printer, POS in China.
All of our barcode scanners are compatible with Wins/IOS/Android/Linux.
With good quality and pretty factory price.
With own profesional factory engineer and R&D to meet any of your requirement.
Q2. Can I get a sample from you?
Yes. We offer sample service for your testing.
Yes. We offer sample service for your testing.
Q3. What's the MOQ for your products?
MOQ for most of our products is 1 Unit. Big quantity, big discount.
MOQ for most of our products is 1 Unit. Big quantity, big discount.

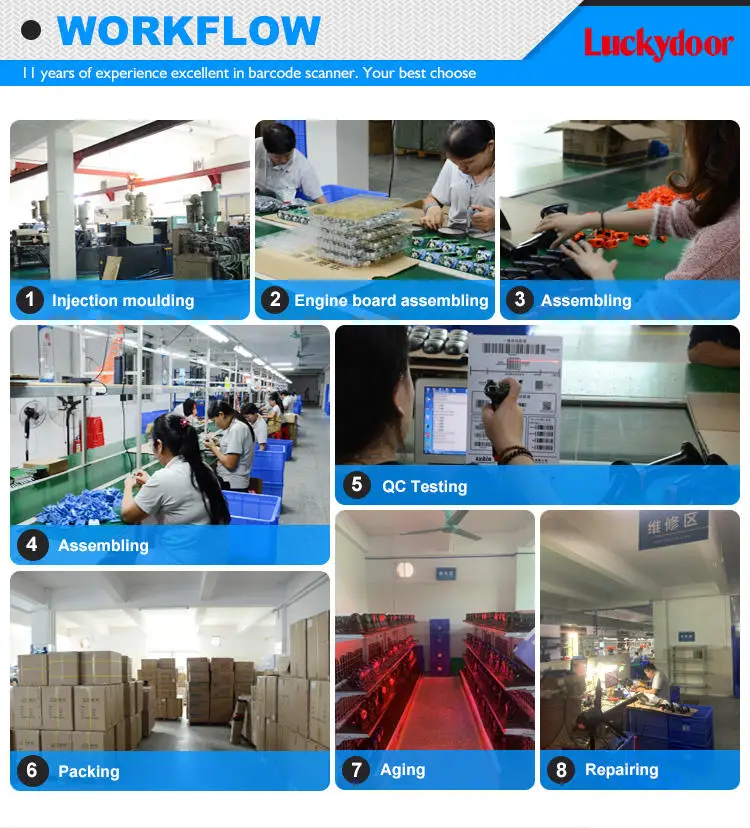

Q4. How can we guarantee quality?
With our own criteria include: inspection of all raw materials, physical check processing until the final factory inspection.
With our own criteria include: inspection of all raw materials, physical check processing until the final factory inspection.
Always a pre-production sample before mass production; With final Inspection before shipment.
Q5. Why should you buy from us not from other suppliers?
6 years factory experience, cooperate with many big brands, much experience in OEM and ODM orders.
6 years factory experience, cooperate with many big brands, much experience in OEM and ODM orders.
We can say for sure that we is your all in one station.
With own profesional factory engineer and R&D to meet any of your requirement.
With pre-sales and after-sales value-added services.
Q6. Can I get some technical supports from you?
Sure. Our technical team always gets ready at any time. Good pre-sales and after-sales service.
Sure. Our technical team always gets ready at any time. Good pre-sales and after-sales service.
Q7. What's the payment term?
We accept Alibaba online orders, PayPal, T /T, LC, Western Union, MoneyGram.
We accept Alibaba online orders, PayPal, T /T, LC, Western Union, MoneyGram.
Q8. What's delivery and transportation?
The Date of Delivery: 3-7 working days.
DHL, UPS, Fedex, TNT and post air mail etc.
With our own shipping agent or with your shipping agents you cooperated.
