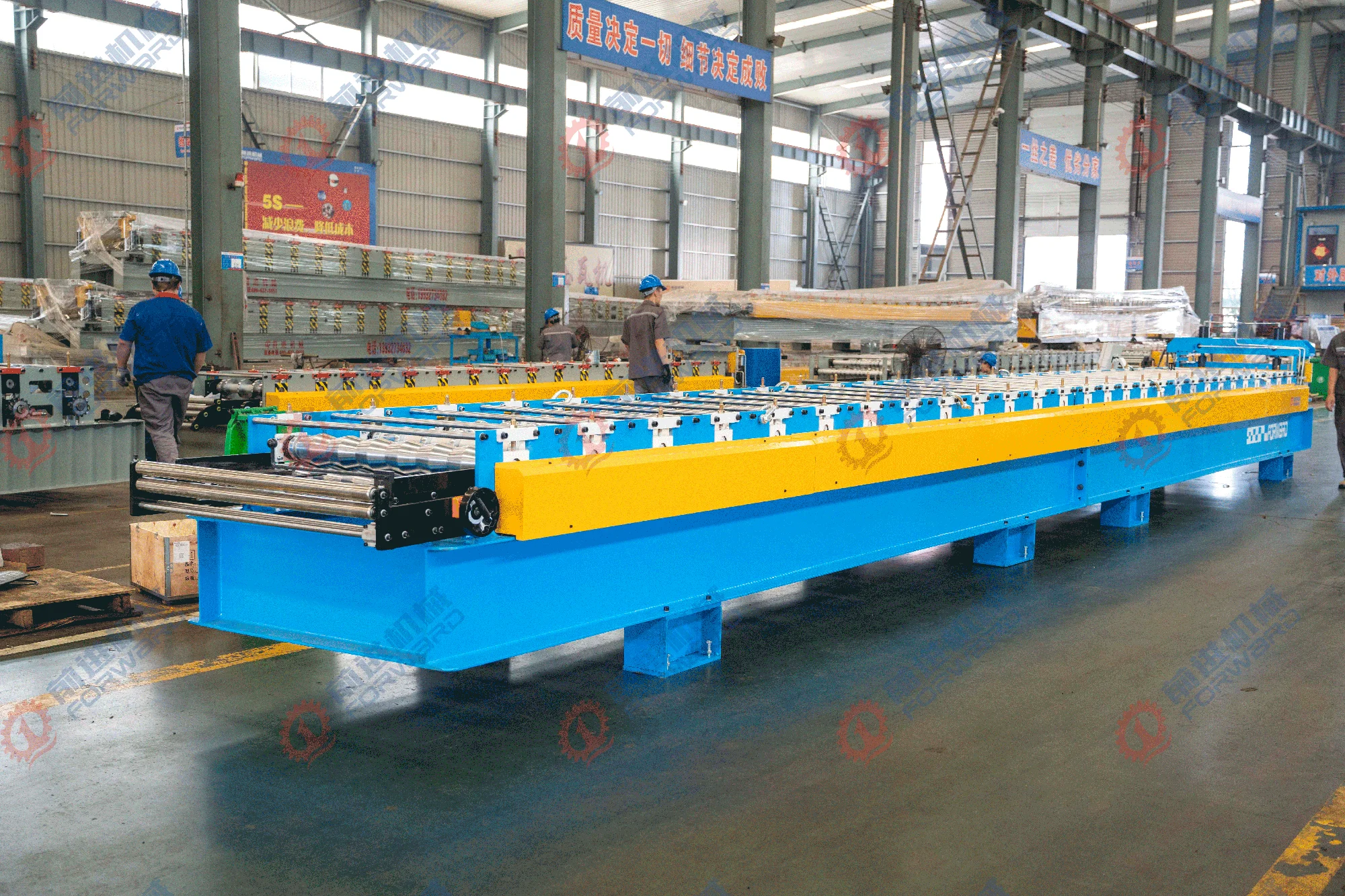

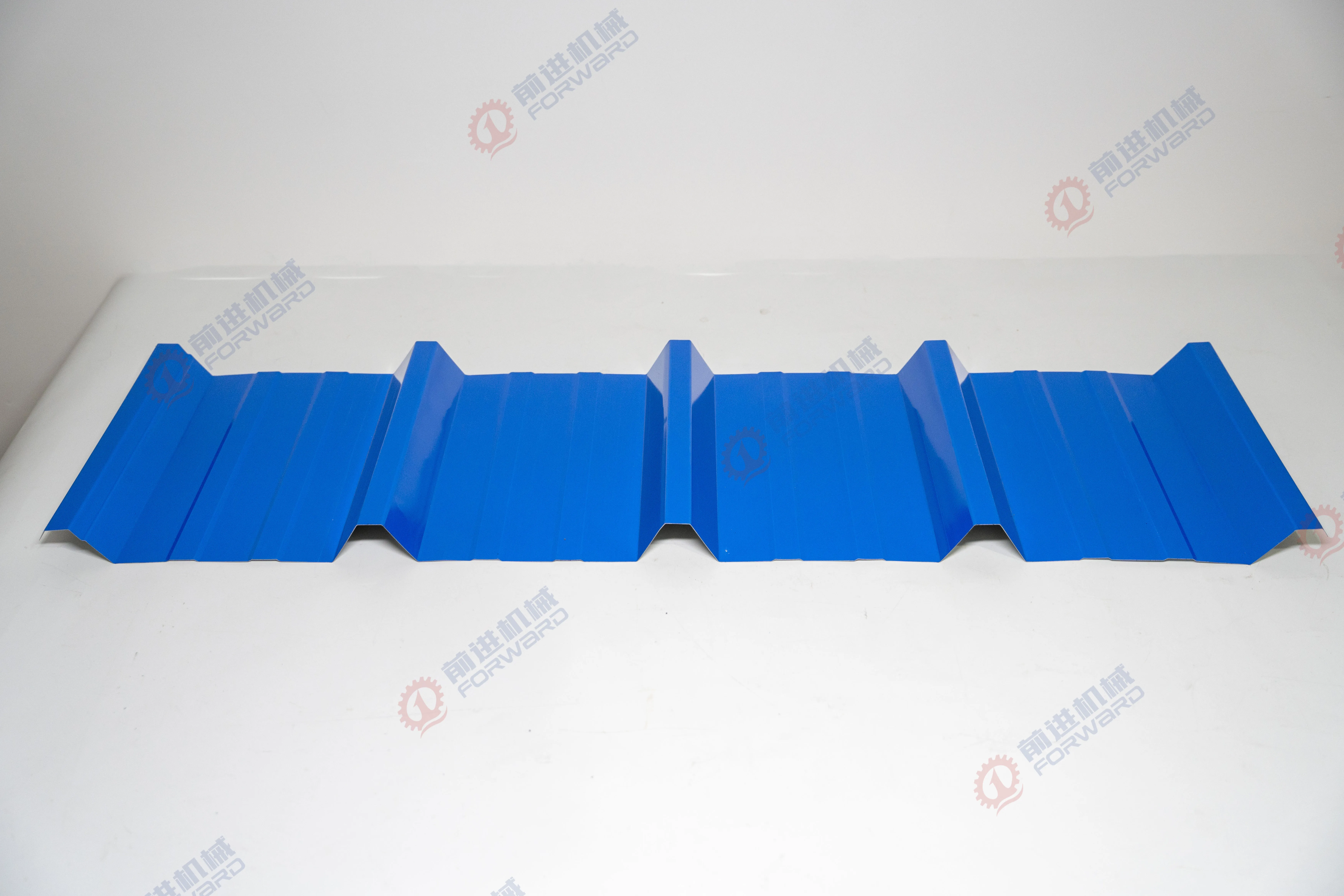

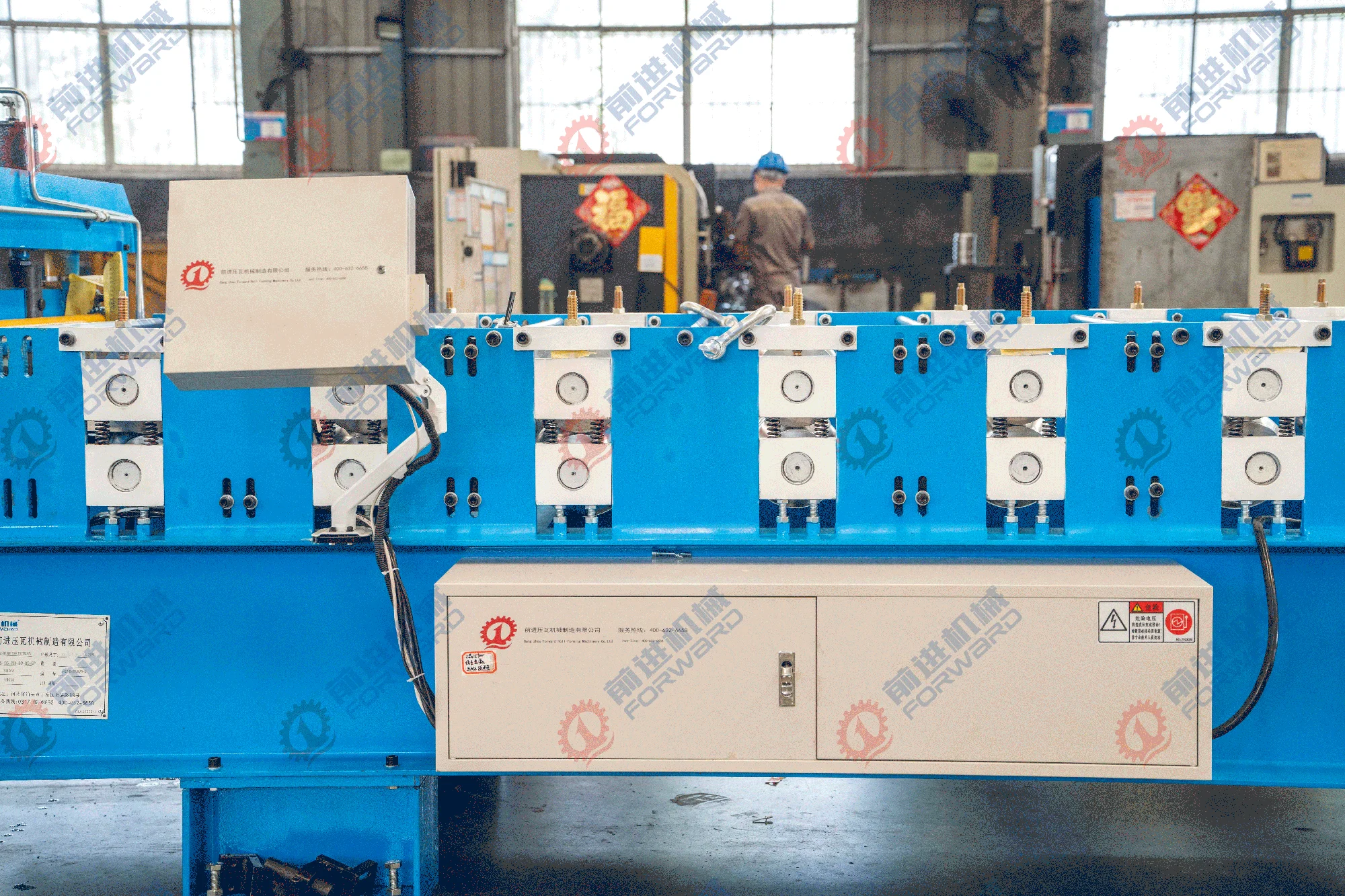

FORWARD TR4 and TR6 Metal Color Steel Roof Panel Machine Double Layer Roll Forming Machine
- Category: >>>
- Supplier: Cangzhou Forward Roll Forming Machinery Manufacturing Co. Ltd.
Share on (1601200914802):
Product Overview
Description
No. | Iron Sheet Making/Press/Rolling Machine | ||
1 | Suitable material | PPGI/Aluminium sheet/galvanized sheet/various sheet plates | |
2 | Thickness of coil sheet | 0.15mm | |
3 | Coil width | 1000mm | |
4 | Material of main frame | 350H steel | |
5 | Diameter of Soild shaft | 70mm, high grade 45# steel | |
6 | Roller | Quenched and tempered treatment, hard chrome coated 0.05-0.07mm | |
7 | Thickness of middle plate | 16mm | |
8 | Forming station | 16stations | |
9 | Drive type | By chain(1.0 inch) link bearing model 6210 | |
10 | Power of main motor | 5.5kw with Cycloidal reducer | |
11 | Power of pump station | 3kw | |
12 | Forming speed | About 12-20m/min | |
13 | Hydraulic cutting | Controlled by PLC | |

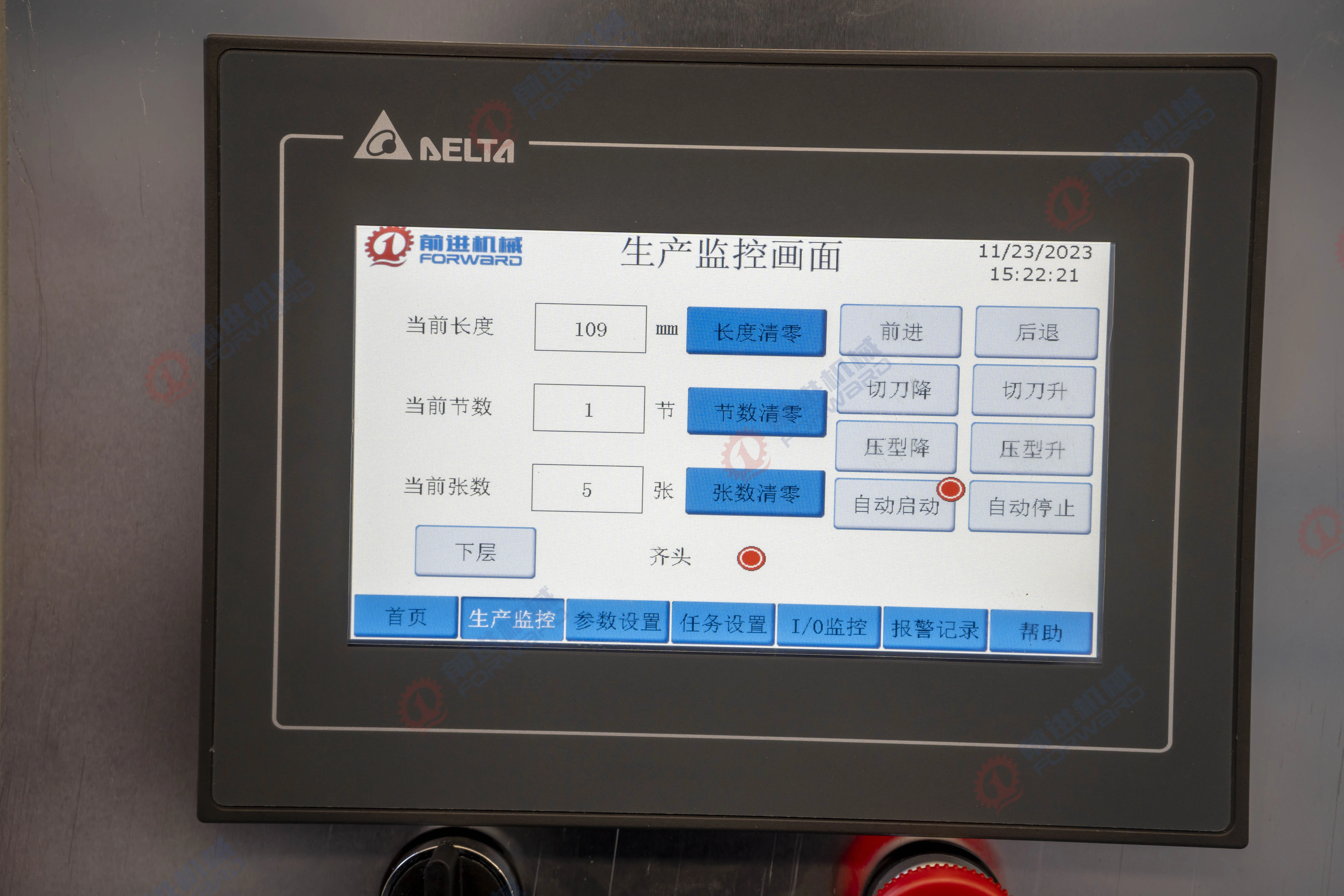

14 | PLC | DELTA(TAIWAN)/Mitsubishi | |
15 | Material of razor blades | Cr 12, quenching 58-62℃ | |
16 | Frequency converter | It has the advantage of slowing down before cutting, to ensure the length accuracy(±1mm, far better than industrial standard ±3mm). | |
