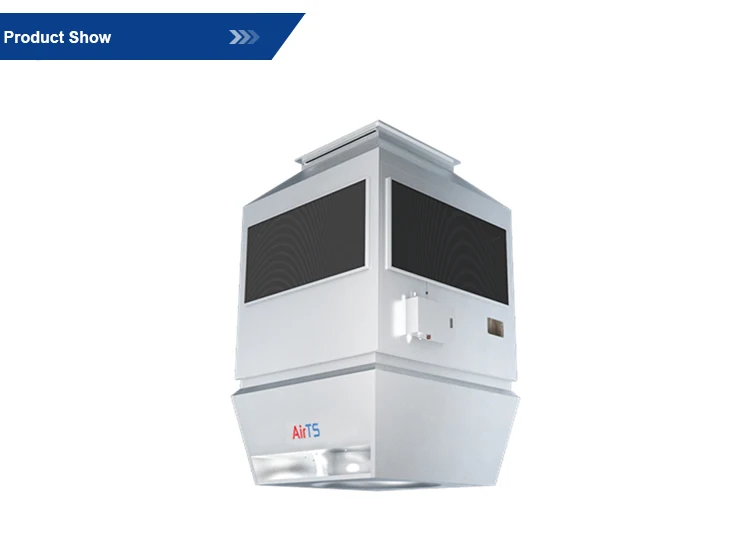

AirTS ductless high and large space cold water chiller type air cooler and heater with chiller For large space HOVAL SYSTEM

Product Overview

Description



Working Principle

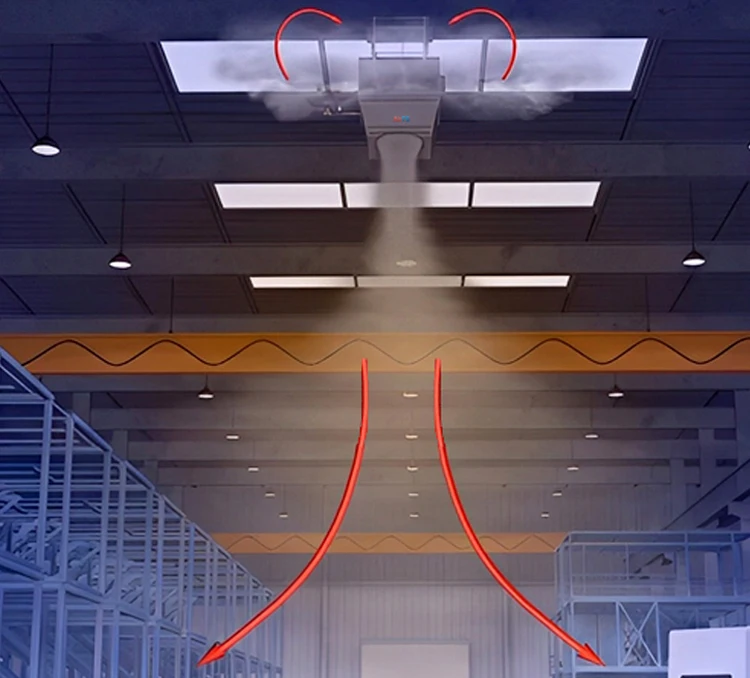

When hot/cold water or stream passes the equipment, the efficient heat exchanger in the equipment is used to achieve rapid heating/cooling of the air.

The large wind pressure axial flow fan installed on the top is used to forcedly press the hot/cold air down. Then the air is subject to pressure boost twice through the silencer sponge and the lower trapezoidal convergence, swirls out from the nozzle through the guide vane and is distributed throughout the space from top to down.





Features

By adjusting wind speed and air outlet angle, it achieves comfortable cooling or heating environment

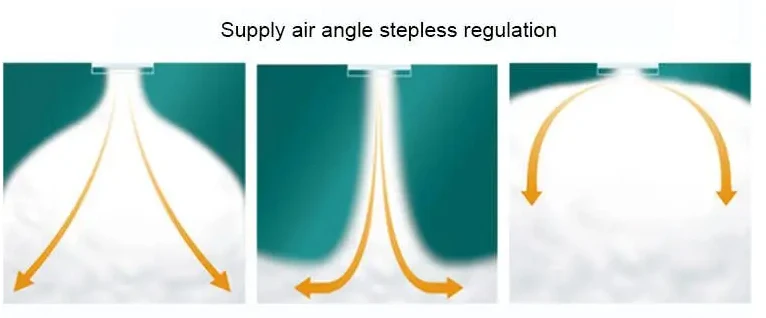

Supply air angle stepless regulation
Utilize axial fan to efficiently recover heat from the top, reducing heat loss from the roof, achieving energy-saving effects
The fan is installed below the air exchanger to control noise level (<60 dB)
The special designed square-shaped type air exchanger prevent the leakage of condensate water
The complex designed air exchanger, 1.5 times exchange area than others, takes significant heating/cooling efficiency
Long air supply distance, high hot/cold air volume

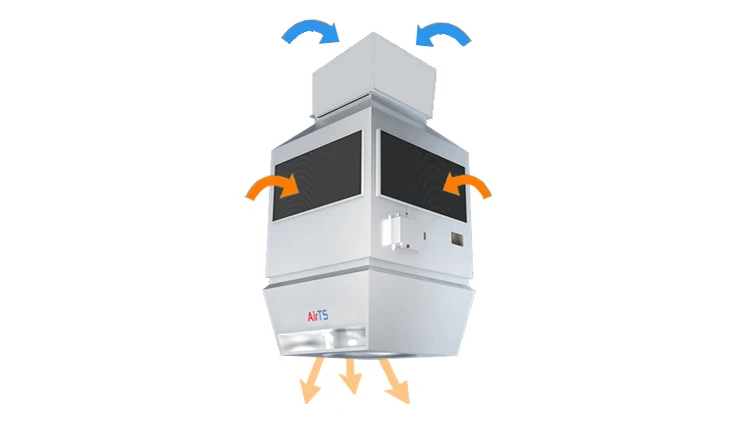

4 sides return air structure, installed on the roof, require smaller installation space
Function: cooling, heating, fresh air supply



Technical Comparison

AirTS top heating units

AirTS top cooling units



High and large space air conditioner lifted on the roof
It achieves heating /cooling air from the air exchanger in the equipment
It distributes the hot /cold air by means of efficient air distributor, which eliminates the undesirable indoor temp layers
Comfortable heating / cooling environment without wind feeling sense



Bottom heating unit

In high large space with great depth, using radiator can allow natural air convection as hot air rises
It can only radiate into small area with the range less than 5m. The heat rising to the roof will be dissipated and the temp cannot be achieved effectively in the middle area.
Radiator heating requires high requirements for supply water temp.

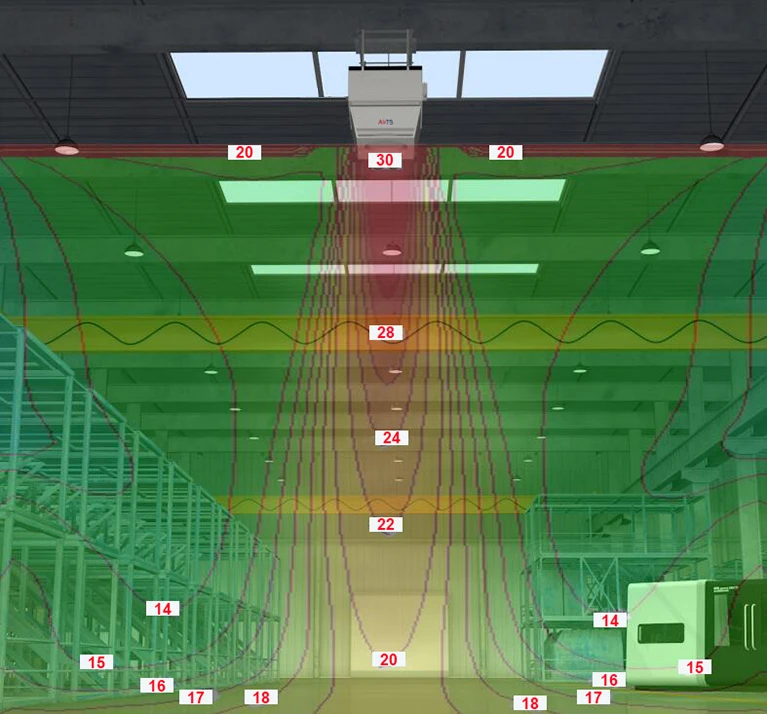

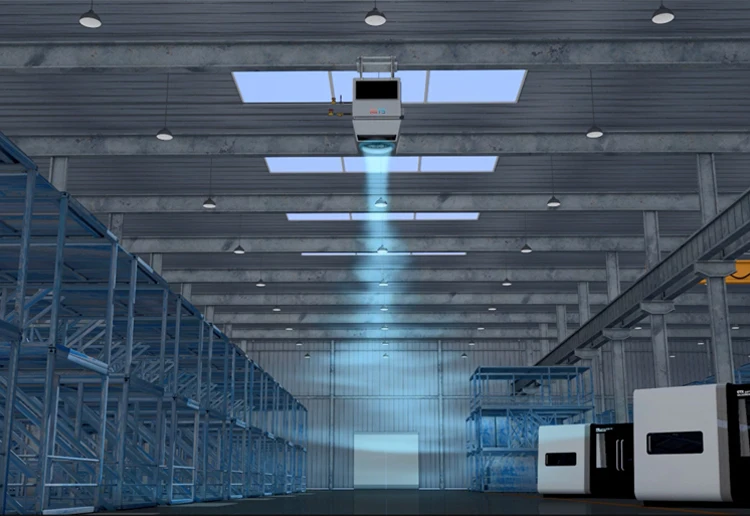

AirTS units temp field

Our heating units forcedly and quickly send the hot air down, make the temp in the working area rise rapidly.

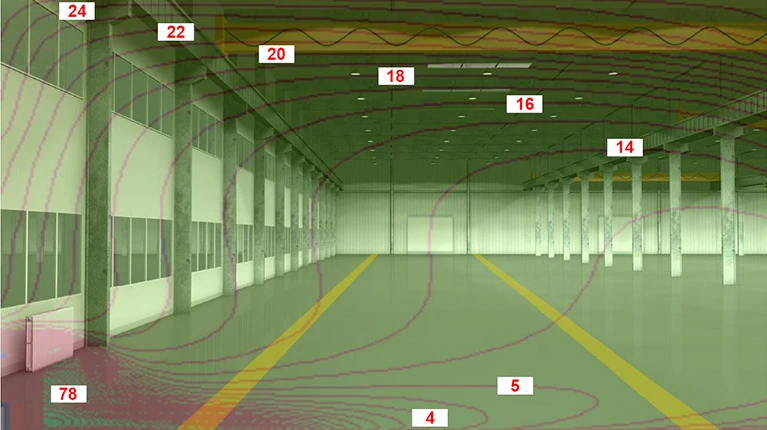

Radiator heating temp field

It can be seen from the radiator heating temp field image that the heat is mainly gathered on the roof and the temperature is low in the lower working area.

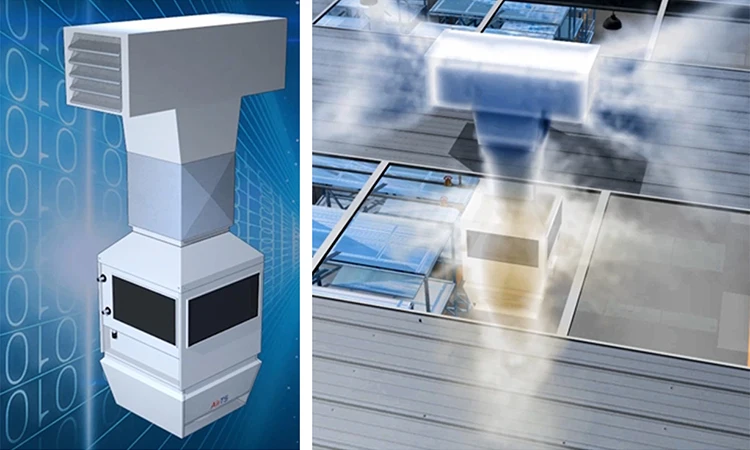

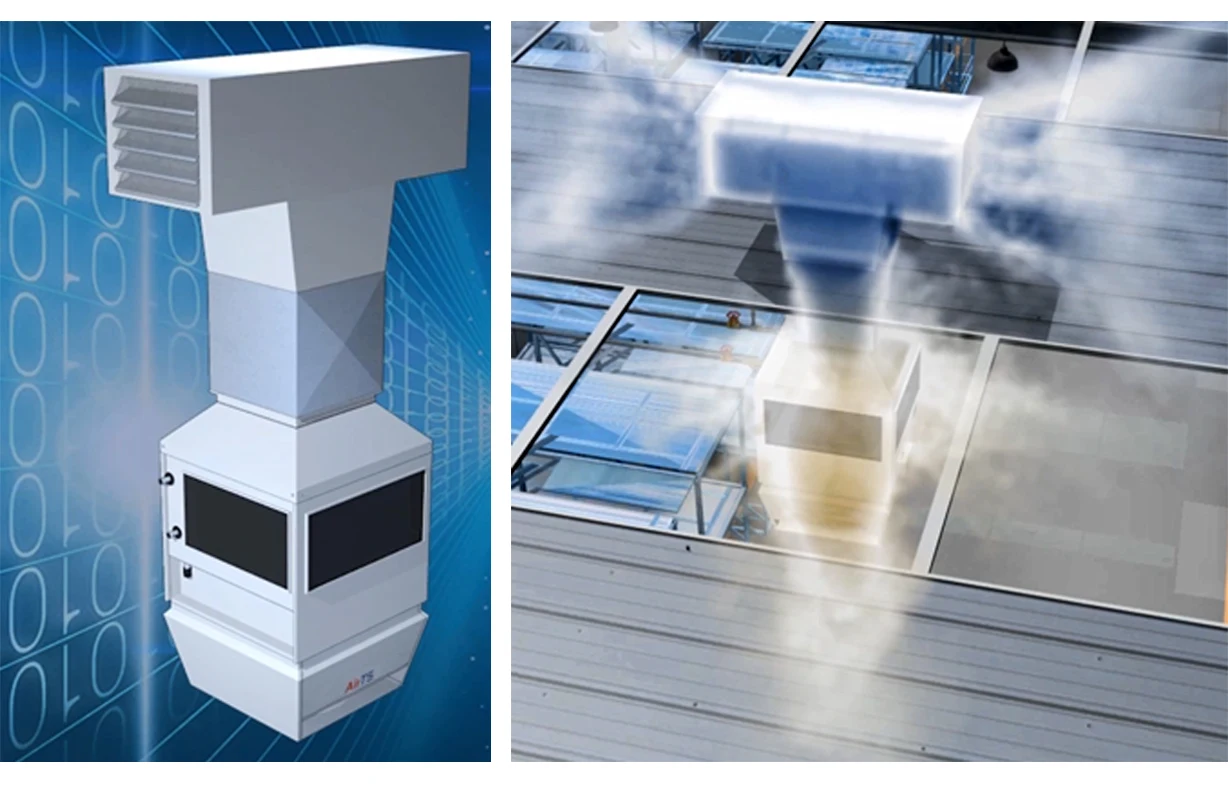

Fresh Air Heating and Cooling Unit
Model		AirTS-FK-I	AirTS-FK-II
Rotating speed of fan	r/min	0~900	0~860
Standard circulating air volume	m³/h	0~6900	0~10100
Voltage	V	380±5%	380±5%
Electric power	kW	0~0.85	0~1.80
Current	A	0~1.65	0~3.60
Suitable installation height	m	4~13	4~21
Control mode		VAV stepless regulation	VAV stepless regulation
Noise	dB	<60	<60

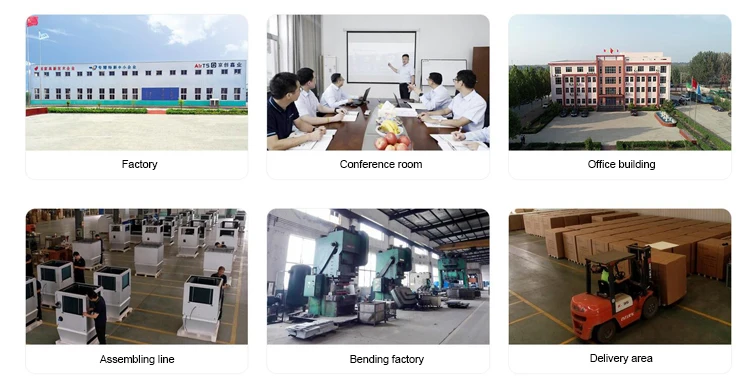

AirTS was established in 2005 as a technology-driven enterprise that integrates researchand development, manufacturing, sales, and technical services for energy-savingequipment. We are specialized in providing comprehensive solutions for system design, implementation, operation, and maintenance of energy-saving projects.

AirTS product line primarily consists of energy-efficient air conditioning systems specifically designed for high and large space, encompassing heating units, heating and cooling units, gas heating units, gas radiation units, VRF air conditioners, hot air curtain units, industrial HVLS fans, industrial control systems, and other products tailored for large spaces. These solutions effectively resolve diverse requirements such as heating, cooling, ventilation, humidification, dehumidification, dust removal, and
automation control in buildings ranging from 4 to 30 meters in height.

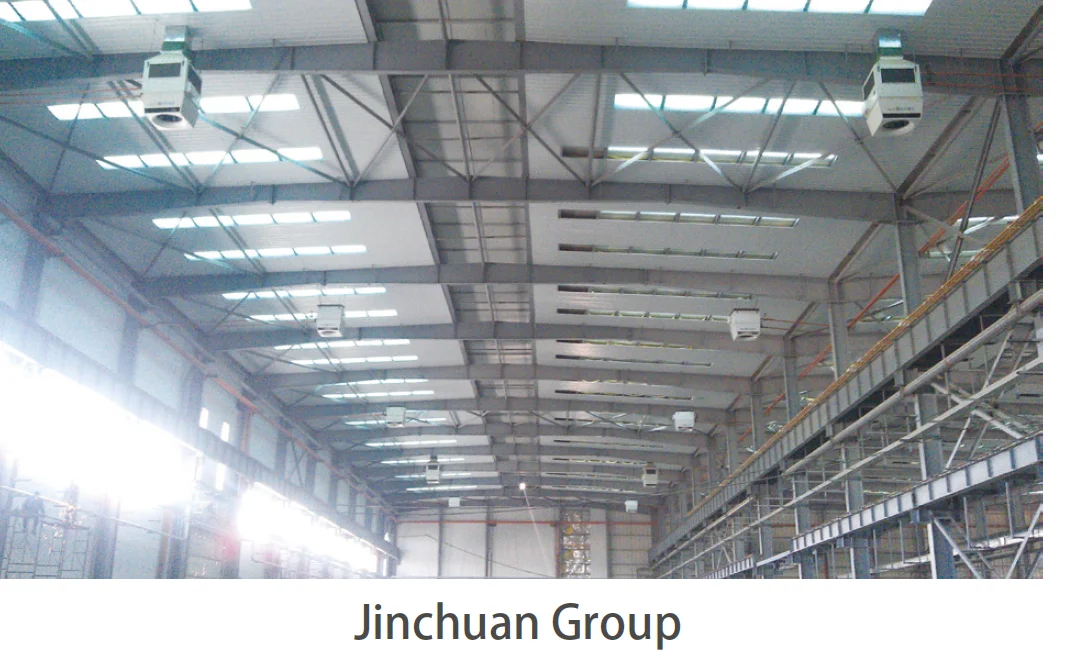

AirTS has collaborated with over 1600 well-known customers, with numerous application cases in the world's top 500 companies.
