Huchuan IQF quick freezing tunnel frozen strawberry banana machinery
- Category: >>>
- Supplier: Shandong Huchuan Intelligent Equipment Co. Ltd.
Share on (1601201470250):
Product Overview
Description
Product Description

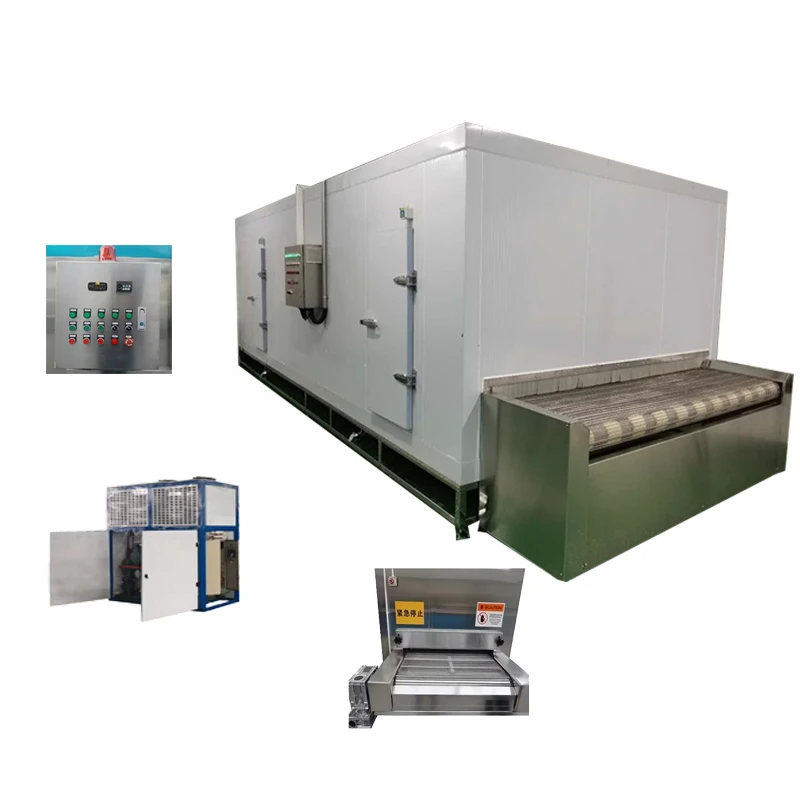

The shape of the tunnel freezer is a rectangular tunnel, in which cold air circulates and food is quickly frozen when passing through the tunnel.
The device has simple structure, fast freezing speed, can realize continuous production, and is suitable for assembly line processing. The food can be frozen within 60 minutes, and the center temperature can reach below -18°C. Incoming temperature/outgoingtemperature: +15°C/-18°C. The equipment is designed and manufactured in accordance with HACCP requirements to ensure food hygiene and safety.
The device has simple structure, fast freezing speed, can realize continuous production, and is suitable for assembly line processing. The food can be frozen within 60 minutes, and the center temperature can reach below -18°C. Incoming temperature/outgoingtemperature: +15°C/-18°C. The equipment is designed and manufactured in accordance with HACCP requirements to ensure food hygiene and safety.
Applicable products
1. Aquatic products: raw shrimp, shrimp, fish meat, shells, etc.;
2. Meat: poultry meat, cut meat, etc.;
3. Noodles: dumplings, steamed stuffed buns, glutinous rice balls, spring rolls, etc.;
4. Conditioning food: marinated products, prepared dishes, etc.
2. Meat: poultry meat, cut meat, etc.;
3. Noodles: dumplings, steamed stuffed buns, glutinous rice balls, spring rolls, etc.;
4. Conditioning food: marinated products, prepared dishes, etc.
Specification
Mode | Capacity | Size | Voltage | Material |
SD-100 | 100kg/h | 7*1.5*2.1 m | 380V/50Hz | SUS304 |
SD-300 | 300kg/h | 12*2.3*2.3m | 380V/50Hz | SUS304 |
SD-500 | 500kg/h | 13.5*3*2.5m | 380V/50Hz | SUS304 |
SD-1000 | 1000kg/h | 21.5*3*2.5m | 380V/50Hz | SUS304 |
SD-2000 | 2000kg/h | 29.2*4.1*2.5m | 380V/50Hz | SUS304 |
Product Categories
Mesh Belt Tunnel Quick Freezer
The mesh belt tunnel quick freezer is suitable for quick-freezing processing of seafood, poultry meat, vegetables, fruits, pasta,dairy products and other foods. The freezing amount can be 100Kg/h--2000Kg/h. Structural features:
1. Simple structure, convenient operation and long service life.
2. The conveying mesh belt is made of high-strength SUS304 stainless steel mesh, which is safer to use, and the frozen products will not leave traces directly on the surface of the mesh belt. Mesh belt width can be selected upon request.
3. According to the production requirements, the combination of single and double mesh belts can be selected.
4. The thermal insulation storage body is made of double-sided SUS304 stainless steel polyurethane storage board, with inspection doors, double-layer sealing devices and heating devices to prevent freezing.
5. The air guide device in the warehouse adopts high-efficiency and low-noise axial flow fan and thermal fluctuation technology, and the freezing efficiency is increased by about 15%-30%.
6. Use water to wash the cream to ensure cleanliness. The evaporator is made of aluminum alloy material, aluminum tube and aluminum fins, which is easy to clean. The design of variable blade distance can effectively prevent frost blocking and prolong the time of frost flushing. The unique liquid supply method makes the heat exchange more sufficient and the effect more obvious.
7. The imported frequency converter realizes inorganic speed regulation, and the freezing time can be adjusted continuously according to the needs, which can adapt to various freezing processes.
8. Stainless steel electric control box, stable quality, safe and reliable, easy to operate. The control system is equipped with a special alarm device and an emergency button to ensure the safe operation of the equipment.
High-efficiency large-pitch aluminum finned tubegroup, panel bracket stainless steel
Food grade 304 stainlesssteel large roller chainconveyor belt; frequencyconversion stepless speedregulation
Reducer:Cast ironcasing, a well-knowndomestic brand inChina
Circuit Breaker: SchneiderAC Contactor: SchneiderInverter: MitsubishiRelay: Weidmüller
Product Performance Characteristics
1. The "heat fluctuation" blowing method is adopted, and the freezing speed is fast;
2. Rapid freezing at -35°C;
3. It is made of 304 stainless steel spring wire, and the surface is flat; the imported frequency converter is used to realize stepless speed regulation;
4. The cooling fan adopts variable blade pitch, and the frosting interval is long to ensure the continuity of production;
5. The warehouse body is made of polyurethane foam, double-sided 304 stainless steel, good heat preservation effect, hygienic and easy to clean.
2. Rapid freezing at -35°C;
3. It is made of 304 stainless steel spring wire, and the surface is flat; the imported frequency converter is used to realize stepless speed regulation;
4. The cooling fan adopts variable blade pitch, and the frosting interval is long to ensure the continuity of production;
5. The warehouse body is made of polyurethane foam, double-sided 304 stainless steel, good heat preservation effect, hygienic and easy to clean.
Company Profile
Shandong Huchuan Intelligent Co. Ltd.
Huchuan Intalllgent le a nrofeeelonal comnany Intanratinn ED anulnmant tachnolony daelan manufacturinn Inetallation and commissioning. The company has many professional senior engineers, 120 FD equlpment manufacturing and englneering technicians. 15 varlous management personnel. and more then 20 after-sales teams.provides vacuum freeze-drying plant for deep processing and researching of fruits and vegetables, mushrooms, aquatic products, dairy products, beverages, health products foods, pet foods,
specimens,etc. Brings considerable economic benefits and direct convenience to people's lives.
We have a top R& D department to regulate a standardized process.We provide OEM/ODM and purchasing agency service to overseas clients.The company's after-sales service: Positive and sincere, customer satisfaction first.Regular visits, user interests first; quick arrival is effective, support equipment is normal; service quality is first, and service
specimens,etc. Brings considerable economic benefits and direct convenience to people's lives.
We have a top R& D department to regulate a standardized process.We provide OEM/ODM and purchasing agency service to overseas clients.The company's after-sales service: Positive and sincere, customer satisfaction first.Regular visits, user interests first; quick arrival is effective, support equipment is normal; service quality is first, and service
Why Choose Us
At present, the company's research and development team has more than 60 people, and can provide customers with product customization services. Has a number of patented technologies. The equipment is energy-saving, high-quality, high-efficiency, and stable, and has been favored by many domestic and foreign catering, fishery, and medical industries.
CUSTOMER SERVICE CASES
1. Standard wooden case.
2. Completely IQF machine
3. Machine come into use, customer only need prepare power for the machine.
4. All required components for install the machine will be provided.
2. Completely IQF machine
3. Machine come into use, customer only need prepare power for the machine.
4. All required components for install the machine will be provided.
