VMC1580 High Precision 4 axis/5 axis CNC Milling Machine New Condition Vertical Type with Fanuc Control System
- Category: >>>
- Supplier: Shandong Mainland Cnc Equipment Co. Ltd
Share on (1601201631969):
Product Overview
Description
Products Performance
High quality resin sand
Taiwan spindle
Taiwan ball screw and locking nut
Taiwan pressure cylinder
Japanese NSK bearing germany R+W coupling
Automatic lubrication system
Chip conveyor at optional
Taiwan spindle
Taiwan ball screw and locking nut
Taiwan pressure cylinder
Japanese NSK bearing germany R+W coupling
Automatic lubrication system
Chip conveyor at optional
Application:
This VMC is suitable for mechanical processing and mold making .And it can asapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling ,tapping ,boring ,etc.
This VMC is suitable for mechanical processing and mold making .And it can asapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling ,tapping ,boring ,etc.

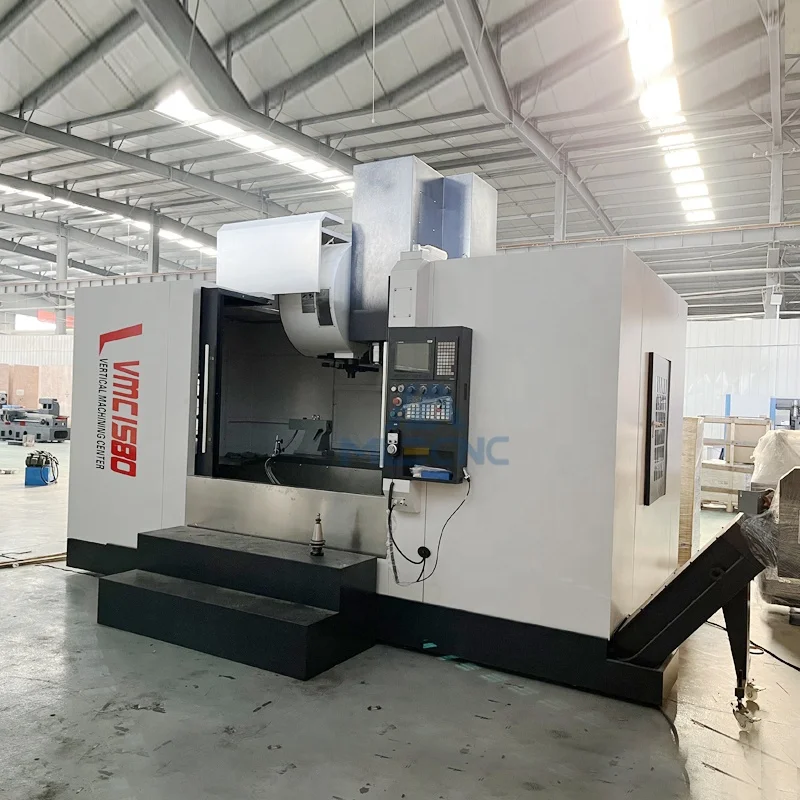

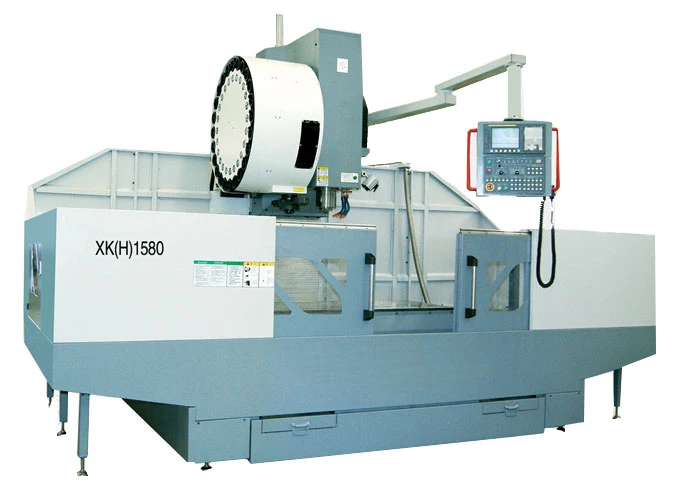

Machine Photos
Product Paramenters
Specifications | Units | VMC1580 |
Table size | mm | 1700x800 |
X axis travel | mm | 1500 |
Y axis travel | mm | 800 |
Z axis travel | mm | 700 |
Max. worktable load | kg | 1500 |
T slot(number-width-pitch) | 5-22x135 | |
Max. spindle speed | rpm | 6000(Optional:8000) |
Spindle taper | mm | BT50 |
Main motor power | kw | 15/18.5 |
X/Y/Z rapid traverse speed | m/min | 15/15/12 |
Cutting feed speed | mm/min | 1-5000 |
Guide rail type | Linear rail | |
Distance from spindle axis to column surface | mm | 810 |
Distance between spindle nose and worktable surface | mm | 170-840 |
Positioning accuracy | mm | ±0.01 |
Repeat positioning accuracy | mm | ±0.0075 |
Tool magazine | Arm 24 | |
Max. tool diameter | mm | φ112 (Adjacent)/ φ200(Apart) |
Max.tool weight | kg | 18 |
Machine weight | kg | 13000 |
Overall dimension | mm | 4300x3200x3100 |
Standard Accessories
STANDARD ACCESSORIES
- X/Y/Z Axis servo motor torque 22/22/22 NM
- Linear guides (roller type) : Taiwan Hiwin, made in Taiwan
- Ball screw: Taiwan Hiwin, made in Taiwan
- Bearing: Japan NTN or NSK, made in Japan
- Automatic lubrication system: Japan
- Pressure cylinder: Taiwan
- Electrical components: Schneider, Siemens
- Workbench T-Slot (number and size) 5x18x95mm

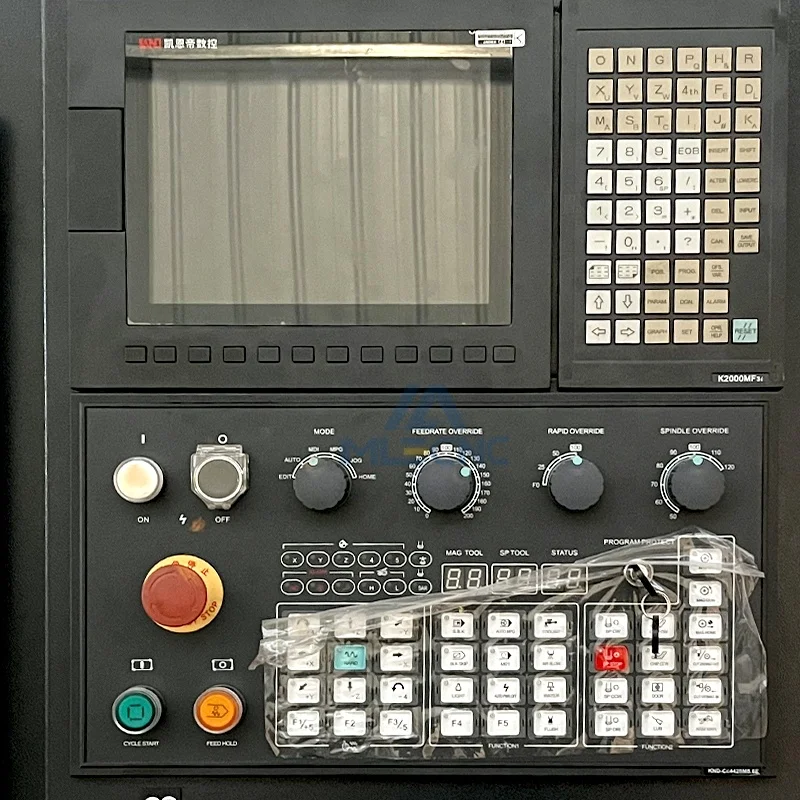

- The controller GSK25I with GSK drives and motors
- Spindle brand is VOLIS or VYUCHENG, all from Taiwan
- oil cooler for spindle, the brand name: Diort, it's from Taiwan, watt capacity 20L.
- Mass balance for Z aixs
- X/Y/Z Axis servo motor torque 22/22/22 NM
- Linear guides (roller type) : Taiwan Hiwin, made in Taiwan
- Ball screw: Taiwan Hiwin, made in Taiwan
- Bearing: Japan NTN or NSK, made in Japan
- Automatic lubrication system: Japan
- Pressure cylinder: Taiwan
- Electrical components: Schneider, Siemens
- Workbench T-Slot (number and size) 5x18x95mm
- The controller GSK25I with GSK drives and motors
- Spindle brand is VOLIS or VYUCHENG, all from Taiwan
- oil cooler for spindle, the brand name: Diort, it's from Taiwan, watt capacity 20L.
- Mass balance for Z aixs
OPTIONAL ACCESSORIES
- Siemens 808D ADAVANCE
- Fanuc 0i MF
- Chip conveyor
- Spindle belt type 10000 rpm
- Spindle direct type 12000 rpm
- Spindle taper BT50 speed 6000 rpm

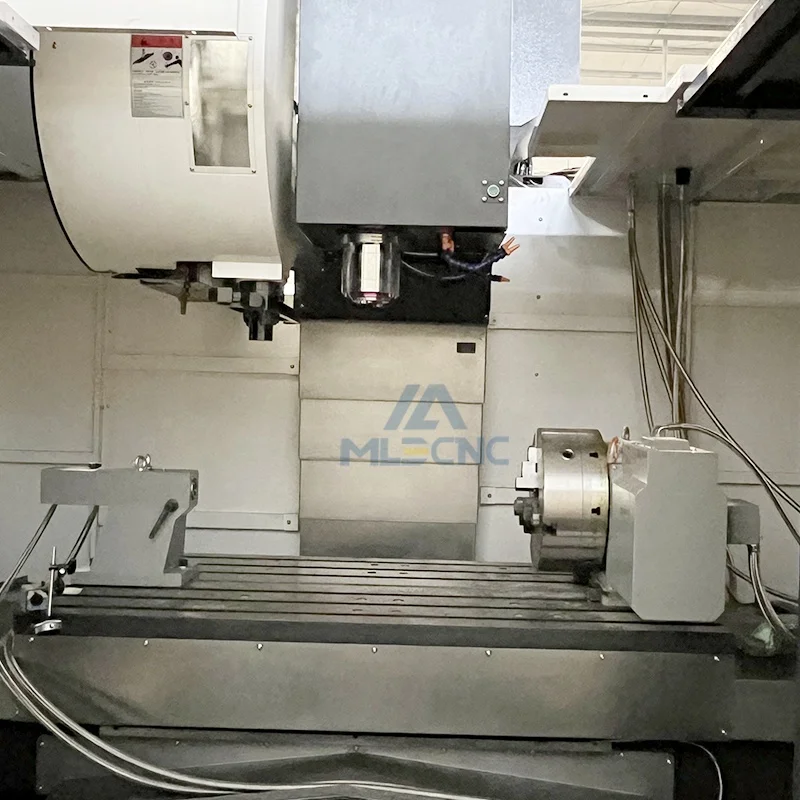

- 4axis 250mm/320mm
- 16pcs armless Taiwan OKADA tool changer
- 24pcs arm type Taiwan OKADA tool changer
- Fanuc 0i MF
- Chip conveyor
- Spindle belt type 10000 rpm
- Spindle direct type 12000 rpm
- Spindle taper BT50 speed 6000 rpm
- 4axis 250mm/320mm
- 16pcs armless Taiwan OKADA tool changer
- 24pcs arm type Taiwan OKADA tool changer
