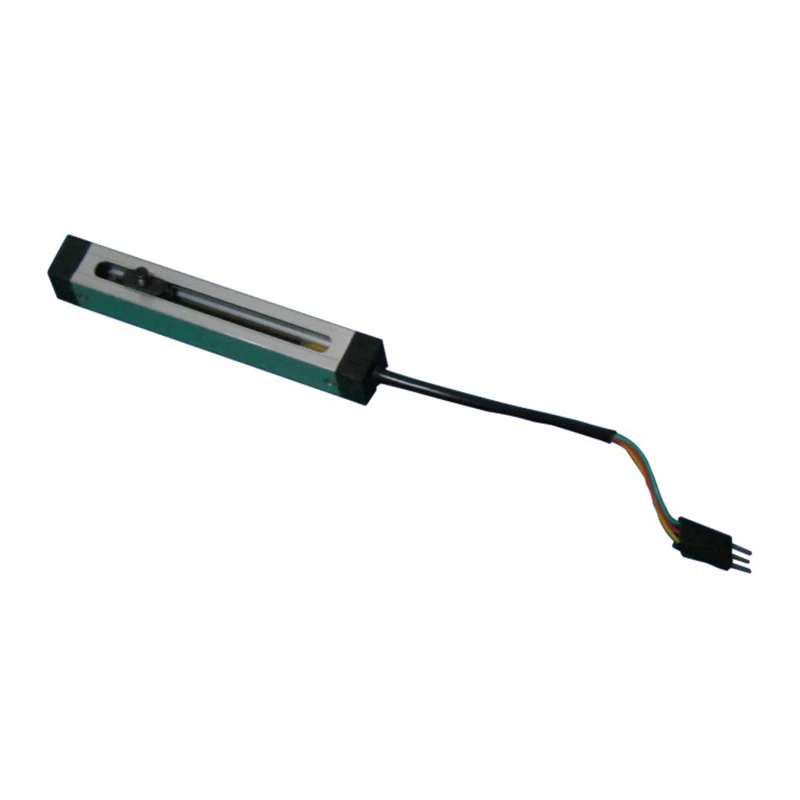

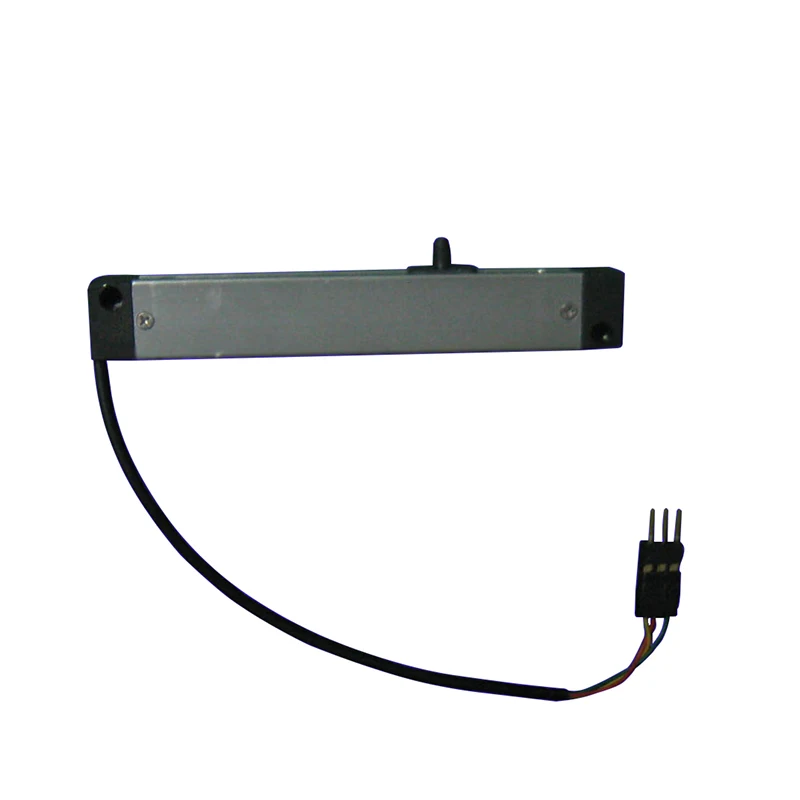

MIRAN mini type slider type KSF 5mm~120MM miniature linear potentiometer length measuring sensor
- Category: >>>
- Supplier: Hubei Miran Technology Co. Ltd.
Share on (1601201723806):
Product Overview
Description
Product Desription
KSF is a micro slider type sensor ,square housing,which is based on the potentiometer principle.
It is the best choice for small rooms.Widely used for micro control system.Such as servo control valve position detection and control,Medical Equipment,Leather Machinery,Clamping control,IT equipment,Paper machinery,textil machinery,Ship steering system and so on.
Main Feature
1.miniature self return type linear displacement transducer,simple installation.
2. Adopting advanced components in electric parts and operation parts.
3. High linear precision output, repeatability precision.
4. Variety of output signal: 4-20mA/ 0-5V/0-10V /RS485
It is the best choice for small rooms.Widely used for micro control system.Such as servo control valve position detection and control,Medical Equipment,Leather Machinery,Clamping control,IT equipment,Paper machinery,textil machinery,Ship steering system and so on.
Main Feature
1.miniature self return type linear displacement transducer,simple installation.
2. Adopting advanced components in electric parts and operation parts.
3. High linear precision output, repeatability precision.
4. Variety of output signal: 4-20mA/ 0-5V/0-10V /RS485
Application
KSf is a minitype, slider type linear position sensor, Such as servo control valve position detection and control,Medical Equipment,Leather Machinery,Clamping control,IT equipment,Paper machinery,textile machinery,Ship steering system and so on.
Standard Specifications | 5mm,10mm,15mm,20mm,25mm,30mm,35mm,50mm,60mm,70mm,120mm | ||||||||
Linear Precision (±%FS) | ±0.1% | ||||||||
Resistance (±10%) | 5KΩ | ||||||||
Mechanical stroke | range+3mm | ||||||||
Resolution | Infinite | ||||||||
Repeatability Precision | 0.01mm | ||||||||
Temperature Coefficient | ≤1.5ppm/℃ | ||||||||
Input Voltage | (4ΚΩ~5ΚΩ): ≤24VDC; (2ΚΩ~3ΚΩ): ≤12VDC; (1ΚΩ): ≤5VDC | ||||||||
Max. speed | ≤5m/s | ||||||||
Max. return Speed | ≤1m/s | ||||||||
Output signal | standard: 0~100% × input voltage (change with the movement of the rod) | ||||||||
optional: 0-5V/0-10V/4-20mA/RS485 output need an extra module | |||||||||
Sensitivity | 1 | ||||||||
Temperature Drift | infinitesimal | ||||||||
Load Characteristic | ≥10mA | ||||||||
Material for transducer case | Anodised aluminium | ||||||||
Material for pull shaft | Stainless steel | ||||||||
Protection level | IP65 | ||||||||
Very long life | >100*1000000 cycles,>2*1000000 m | ||||||||
Useful electrical stroke(mm) | 5 10 15 20 25 30 50 55 60 75 100 | ||||||||
About us
As a leading position sensor manufacturer in china ,Miran has the faith to keep our customer in the lead .Miran is approved by ISO9001-2008,CE,CCC,Rohscertifitications.Also we are very proud of the following.
2. Stong capability in Research &Design . we spend million dollars every year for developing new tech and new products. we welcome OEM&ODM projects,design and produce tailor to the customer's request
3. Promise high quality after strict tests .every product will go through vibration test ,low and high temperature test ,electromagnetic interference regulatory test ,endurance test and explosion proof test .
4.Excellent sales&after-sales service .we are headquartered in shenzhen ,and have branches all over china.we guarantee life-long for all products .we can offer you the competitive perfect products .
Q1: What's the payment term?
A: We accept T/T (Bank Transfer), Western Union, Paypal, Alipay, Wechat pay.
Q2: Can I have a sample products for testing?
A: Yes you can buy sample product.
Q3: What's the MOQ?
A: MOQ: 1 pc
Q4: Can you custom-made products for customer?
A: Yes, we offer OEM Customized Products, like logo, extend sensor length, stroke length, custom lines, connectors.
Q5: What's the lead time?
A: 3-5 days for standard products. Customized commodity please confirm with suppliers.
Q6: How to send the products ?
A: By express, like DHL, FedEx, TNT, UPS etc.
A: We accept T/T (Bank Transfer), Western Union, Paypal, Alipay, Wechat pay.
Q2: Can I have a sample products for testing?
A: Yes you can buy sample product.
Q3: What's the MOQ?
A: MOQ: 1 pc
Q4: Can you custom-made products for customer?
A: Yes, we offer OEM Customized Products, like logo, extend sensor length, stroke length, custom lines, connectors.
Q5: What's the lead time?
A: 3-5 days for standard products. Customized commodity please confirm with suppliers.
Q6: How to send the products ?
A: By express, like DHL, FedEx, TNT, UPS etc.
