High Quality Omega Drywall Hat Profile Light Steel Keel Roll Forming Machine
- Category: >>>
- Supplier: Jiangyin Bangnuo Machinery Co. Ltd.
Share on (1601201979916):
Product Overview
Description
Product Description
Working speed | 10-15 m/min（Shear time is not included） | ||||||
Pressed plate thickness | |||||||
Pressed plate thickness | 0.4-0.6mm | ||||||
Control mode | Panasonic PLC | ||||||
Discharging rack | 1T manual decoiler | ||||||
Number of molding passes | 10 channels | ||||||
Roll material | After finishing, the surface of 45# steel is chrome plated. | ||||||
Shaft material and diameter | 45# Steel finishing，Shaft diameter is￠56mm | ||||||
Main engine power | 4.5kw | ||||||
Power of hydraulic station | 4kw | ||||||
Hydraulic pressure | 12Mpa | ||||||
Cutting mode | Shear after forming | ||||||
Scissors material | Cr12Mov， quench HRC 58-62℃ | ||||||
Voltage | 380V, 50HZ,3 phase （According to customer requirements can be adjusted） | ||||||
Length tolerance | 3m±1.5mm | ||||||
Transmission mode | 1.0 inch single row chain | ||||||
Equipment form | Guide pillar structure | ||||||
Equipment color | Company color | ||||||
Equipment size | L*W*H— 4.5m*1.5m*1.2m | ||||||
Date of delivery | 80 days | ||||||
Payment method | 30% advance charge，70% pay off on delivery | ||||||
3T manual decoiler | ||
Width of feeding | 300mm | |
Dimensions | 1700mm*1000mm*800mm | |
Bound of expand &fight | 420mm-510mm | |
Capability | 3000 Kg | |
Way of feeding | manual | |
Color | blue | |
Forming Section | |
Thickness range | 0.4-0.7mm GI sheet |
Main motor power | 7.5kw, AC motor, side motor to save space |
Roll station | about 8stations +1 station of rectify |
Shaft diameter | ￠56mm |
Roller material | chrome plated surface |
Machine roll forming speed | 10-15m/min |
Transmission | by chain, one inch |
Hydraulic station | |
Hydraulic power | 3kw |
Working pressure | 12Mpa adjustable |
Solenoid valve | 1 group |
Hydraulic oil | 46# hydraulic oil |
Color | Blue (or base on customer request) |
Quantity | 1 |
Control cabinet | ||
Programmable setting of profile length and quantity | ||
Automatic stopping of the equipment after completion of the cutting program will be provided. | ||
Language | English and Chinese | |
Voltage, Frequency, Phase | 380 V, 50 Hz, 3Phase | |
Control panel | Button-type switch and touch screen | |
Unit of length | millimeter | |
PLC brand | Panasonic | |
manual out table | ||
Frame | welding by square tube | |
Size | 1.5m long*1m wide*1m high | |
Two out tables with support rolle | ||
Quantity | 2units | |

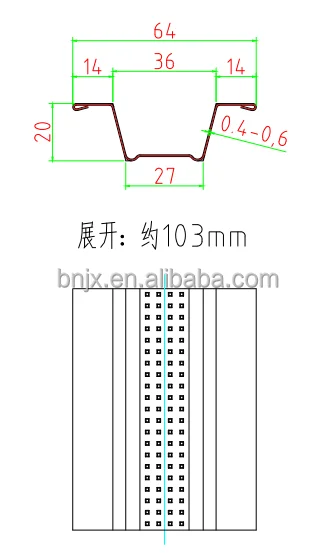

Drawing layout
Equipment Flowsheet
De-coiler→feeding→roll forming→rectify→post cutting →output table
