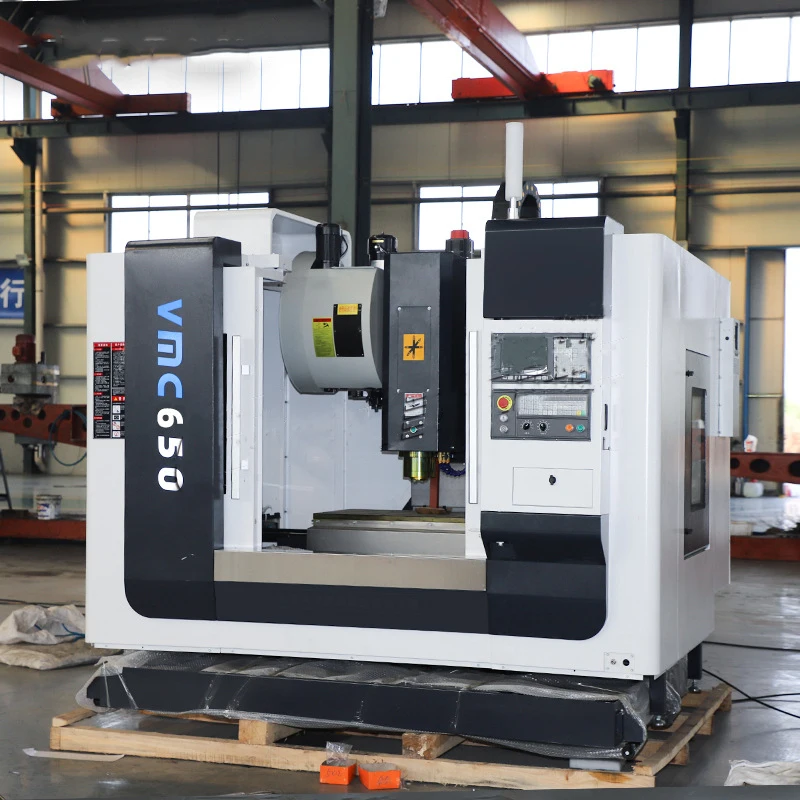

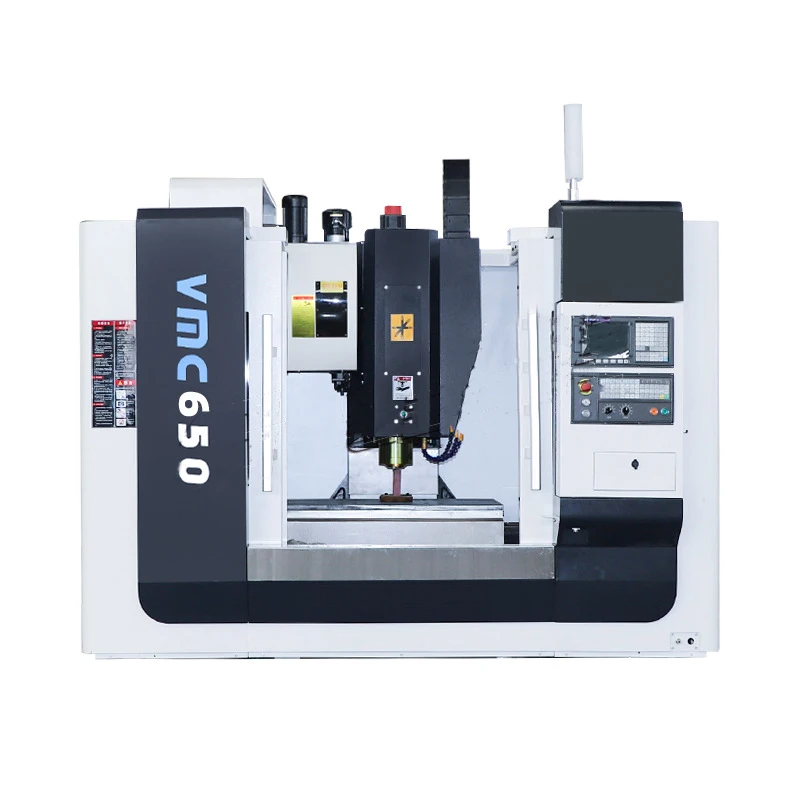

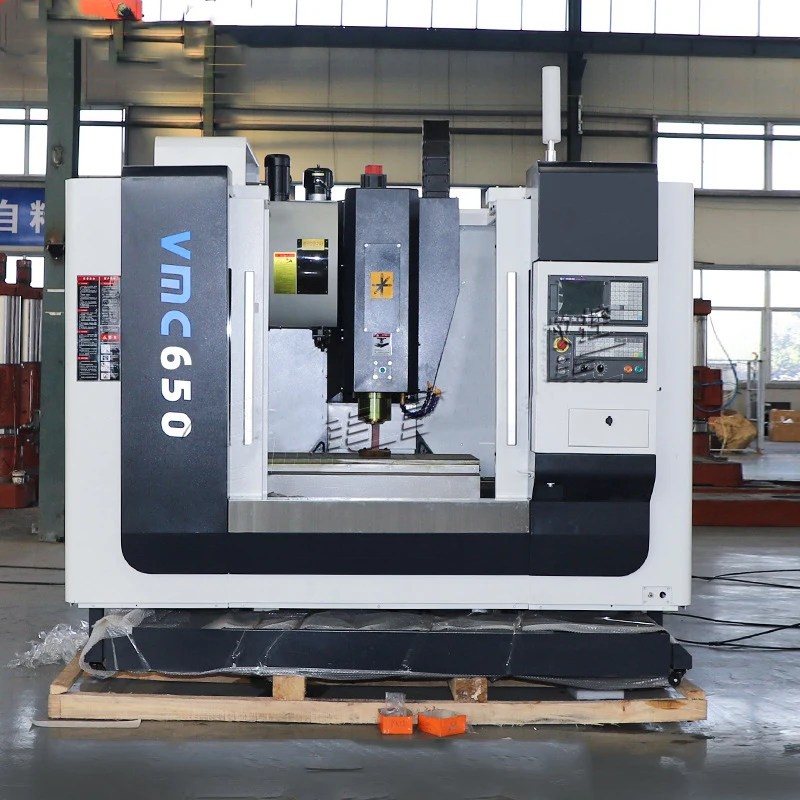

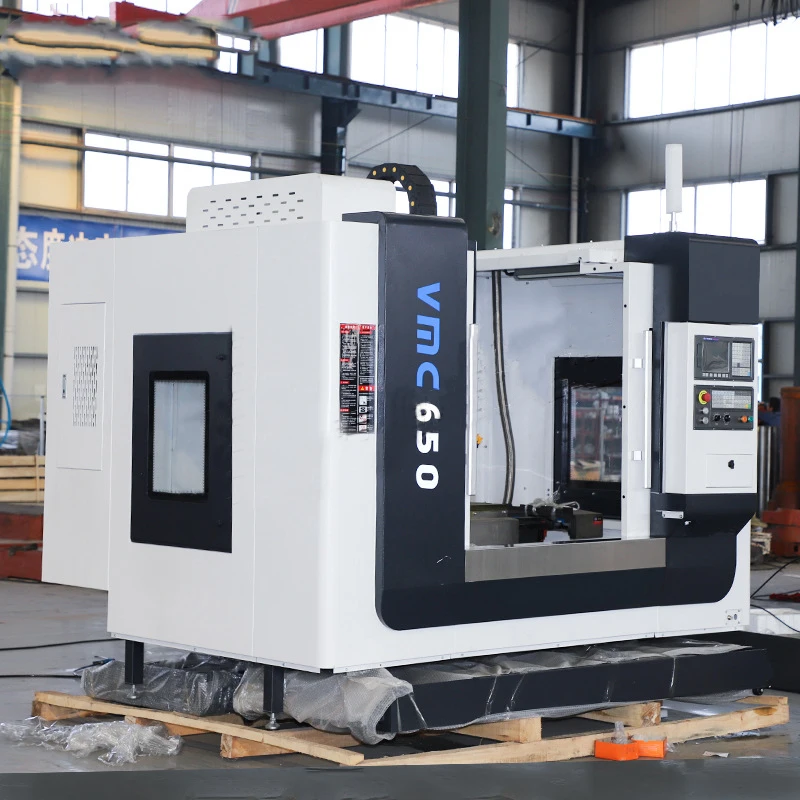

High precision Automatic VMC c650 Vertical Cnc Machining Cnc Machining Center Taiwan Cnc 3 Axis Milling Machine for Sale
- Category: >>>
- Supplier: Almaco Machine Tool Co. Ltd.
Share on (1601202077435):
Product Overview
Description
Recommend Products
Products Description
Brief introduction

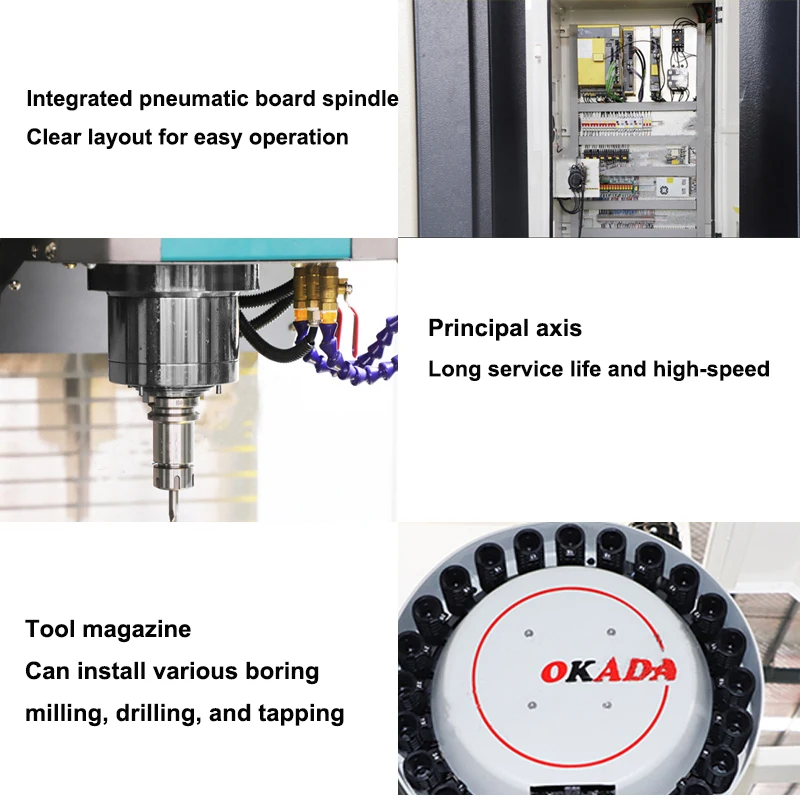

CNC machining center is a kind of CNC machine tool with complete functions. It concentrates the functions of milling, boring, drilling, tapping and cutting threads on one equipment, so that it has a variety of technological means. The machining center is equipped with a tool magazine, in which different numbers of various tools or inspection tools are stored, which are automatically selected and replaced by the program in the process of machining.
⭐ Use 3D-CAD and finite element analysis to delevlop high-rigidity machine tool structure
⭐ X.Y.Z three axles all adopt precise linear rolling guide rail(THK or HIWI) Less noise,low resistance,high speed,high precision
⭐High rigidity,high precision,big hole diameter spindle design,adopyt the precise slide angle ball bearing support
Specification
Machine Type | VMC640 | |
Working table | Working table's size | 800x420mm |
Working table's maximum bearing capability | 400kg | |
T-nuten | 3/18 | |
Travel | X axle travel | 600mm |
Y axle travel | 420mm | |
Z axle rtravel | 500mm | |
Working table to spindle's face | 80-580mm | |
The distance from Spindle's center to vertical guide rail | 550mm | |
Spindle | Spindle's rotary speed | 8000m/min |
Spindle's specification | BT40-Φ120 | |
BT40-Φ150(optional) | ||
Spindle Motor | 5.5/7(Fanuc) kw | |
Feed speed | Fast-moving speed | 18m/min |
Feed speed | 5m/min | |
Feed motor | X.Y:1.6 Z:3kw | |
Auto cutter-change device | Tool shank model | MSA BT40 |
Blind rivet type | MSA P40T-1 | |
ATC type(optional) | bamboo split 16 cutters | |
Machine tool's size | Appearance size | 2650x2000x2235mm |
Weight | 4.5T | |
Drive requirement | Pressed air | 0.6Mpa |
Air consumption | 500L/min | |
Electric power requirement | 15KVA |
