Ningbo HJF1300 Injection Molding Machine Professional Local Manufacturer plastic clothes hanger making machine

Product Overview

Description

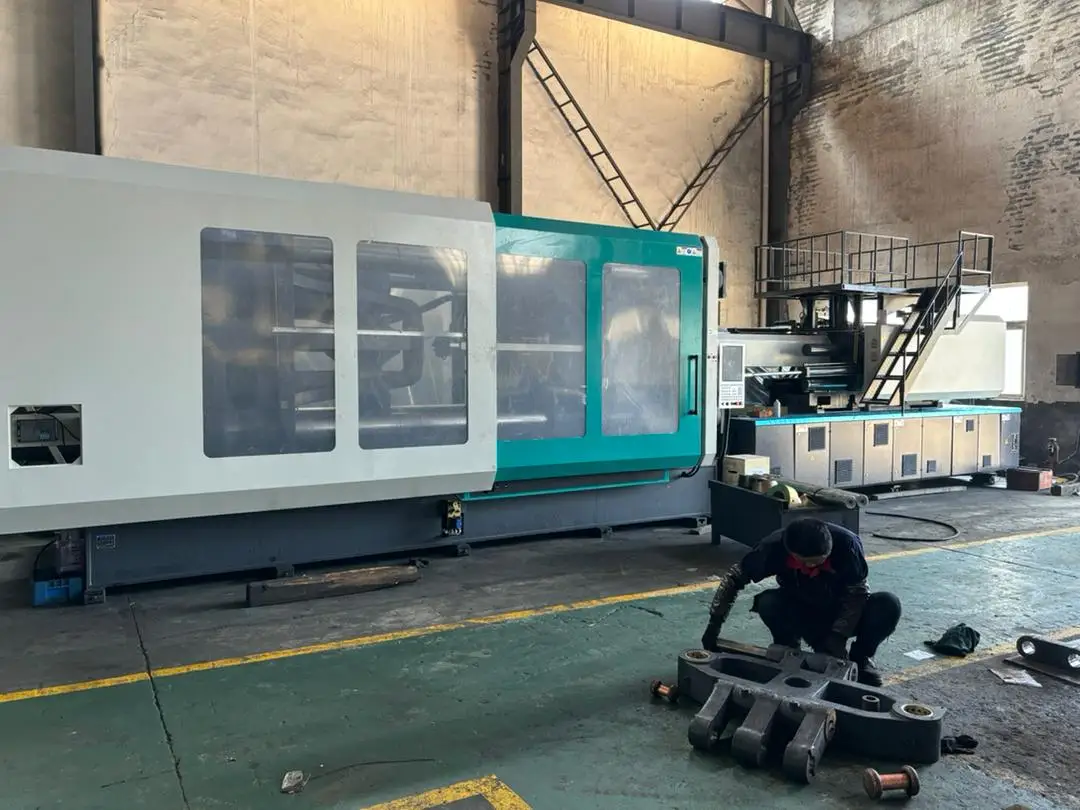

Injection Molding Machine HJF1300



Adjustment Unit
Automatic Mold Height Adjustment Saves the time and cost during the mold changing.
Clamping Unit
The plates were designed using FEM software,ensuring a stable and rigid clamping system.Five point inward moving double toggle system ensures high rigidity and precision for mold clamping and also reducing stress and Strain effects.

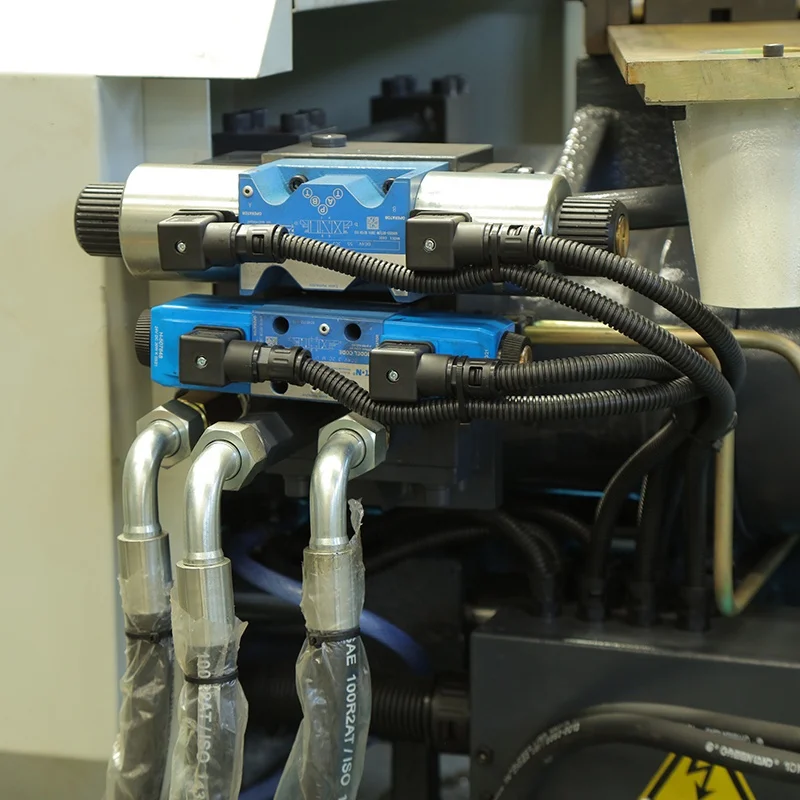

Hydraulic Unit
The hydraulic system using the world famous pump and control valve can control the machine running precisely,ensuring the precision,reliability and durability of whole machine.
Injection Unit
Dual-pillar supporting and dual-cylinder injection balance devices ensure the stress on screw balanced during injection.
Specific screw and barrel designs are available for processing different material requirements.
Electronically Controlled Unit
1.CPU controller and display are independent and reliable.
2.A larger color LCD screen enhances clear display and supports multi-language compatibility.
3.The control system also supports remote monitor.In the event of a control problems,the machine can be connected to internet through a special interface.Inject service can realize remote fault diagnosis and maintenance.
4.A screen saver function extends the LCD life.
5.Ultra bright LED is provided for input and output point inspection.Proving convenient indication of the machine’s operation and machine service
6.A data hardware lock is provided to prevent unauthorized people from effecting the machines performance.
7.Closed Loop PID barrel temperature control.

8.Dust and waterproof control cabinets provide a neat and tidy enclosure all electrical control components.





SPECIFICATION		HJF1300
Screw Type		A	B	C	D
Screw Diameter	Mm	100	110	120	130
Screw L/D Ration	L/D	23	22	20	18.6
Shot Size(Theoretical)	cm3	4553	5514	6556	7694
Injection Weight(PS)	g	4097	4958	5900	6925
Injection Rate	g/s	590	720	867	948
Injection Pressure	MPa	211	174	146	125
Screw Speed	rpm	100
Clamping Force	KN	13000
Opening stroke	Mm	1300
Space Between Tie Bars	mm	1260*1160
Max.Mold Height	mm	1300
Min.Mold Height	mm	500
Ejector Stroke	mm	360
Ejector Tonnage	KN	215
Max.Pump Pressure	MPa	16
Pump Motor Power	KW	55+55
Heater power	KW	59
Machine Dimension(L*W*H)	M	12.1*2.9*3.2
Machine weight	T	53
Oil Tank Capacity	L	2206

Haijiang Machinery Main configuration



Standard machinery

PLC	TECHMATION (TAIWAN)
Vane Pump	Albert (USA)
Directional Valve	Yuken(JAPAN)/Tokimec(JAPAN)/Vickers(USA)
Proportional Valve	HNC (TAIWAN)
Electric Motor	Qianlima (CHINA )
Contactor	Schneider(France)
Plasticizing Oil Motor	STF(CHINA)
Air Breaker	LS (KOREA)
Thermal Overload Relay	LS (KOREA)/Schneider(France)
Limit Switches	Omoron (JAPAN )
Liner Position Sensors  (Electric Ruler)	Minor (China)
Lubrication Pump	ChaoRun(China)



Servo machinery

PLC	PORCHESON (TAIWAN)
Directional Valve	Yuken(JAPAN)/Tokimec(JAPAN)/Vickers(USA)
Air Breaker	LS (KOREA)
SSR(solid state relay)	Fotek(TAIWAN)
Plasticizing Oil Motor	STF(China)
Limit Switches	Omoron (JAPAN )
Gear Pump	SUMITOMO (JAPAN)
Servo Driver	DELTA (TAIWAN)
Servo Sensor	ASHCROFT(GERMAN)
Servo Motor	Albert(USA)/Phase(ITALY)
