item | value |
Model Number | PR-100mm |
Type | Linear Displacement Sensor |
Place of Origin | China(mainland) |
Brand Name | WANSUNNG |
Usage | Measurement of the displacement |
Theory | Principle of potentiometer |
Output | Resistance |

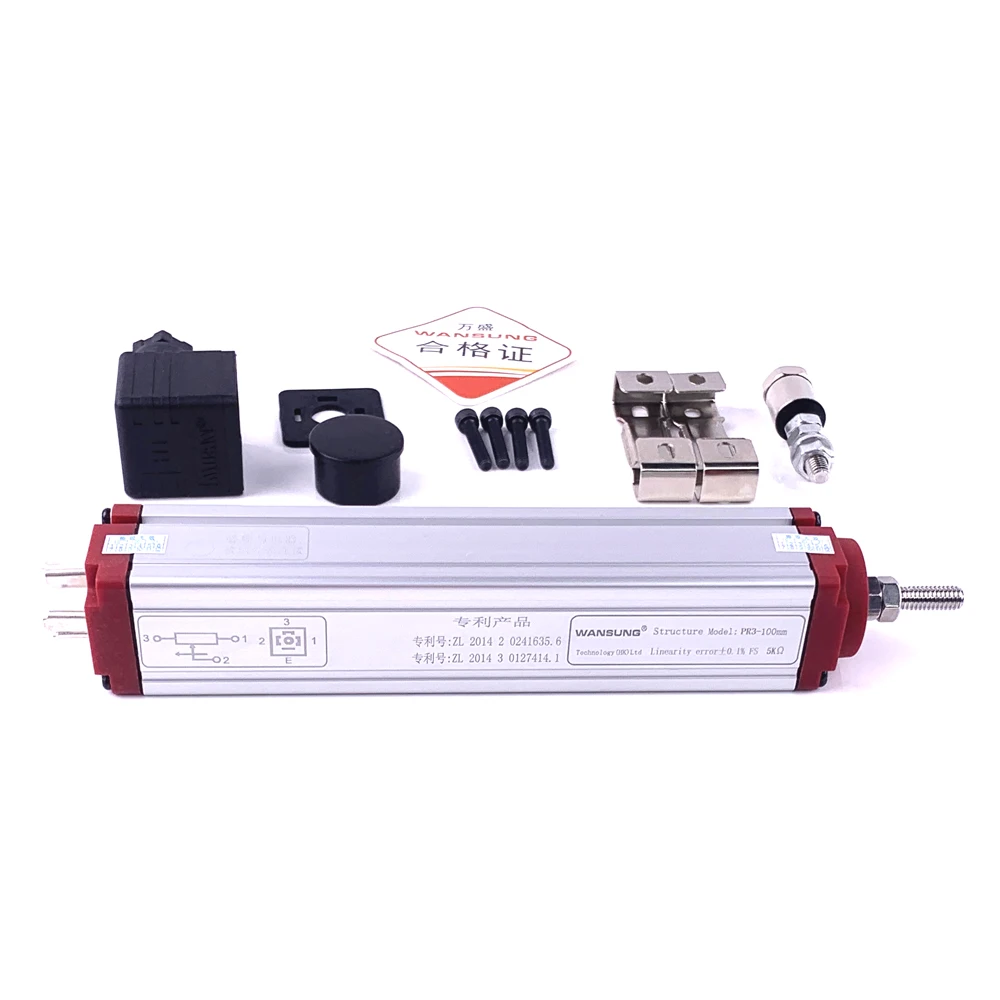

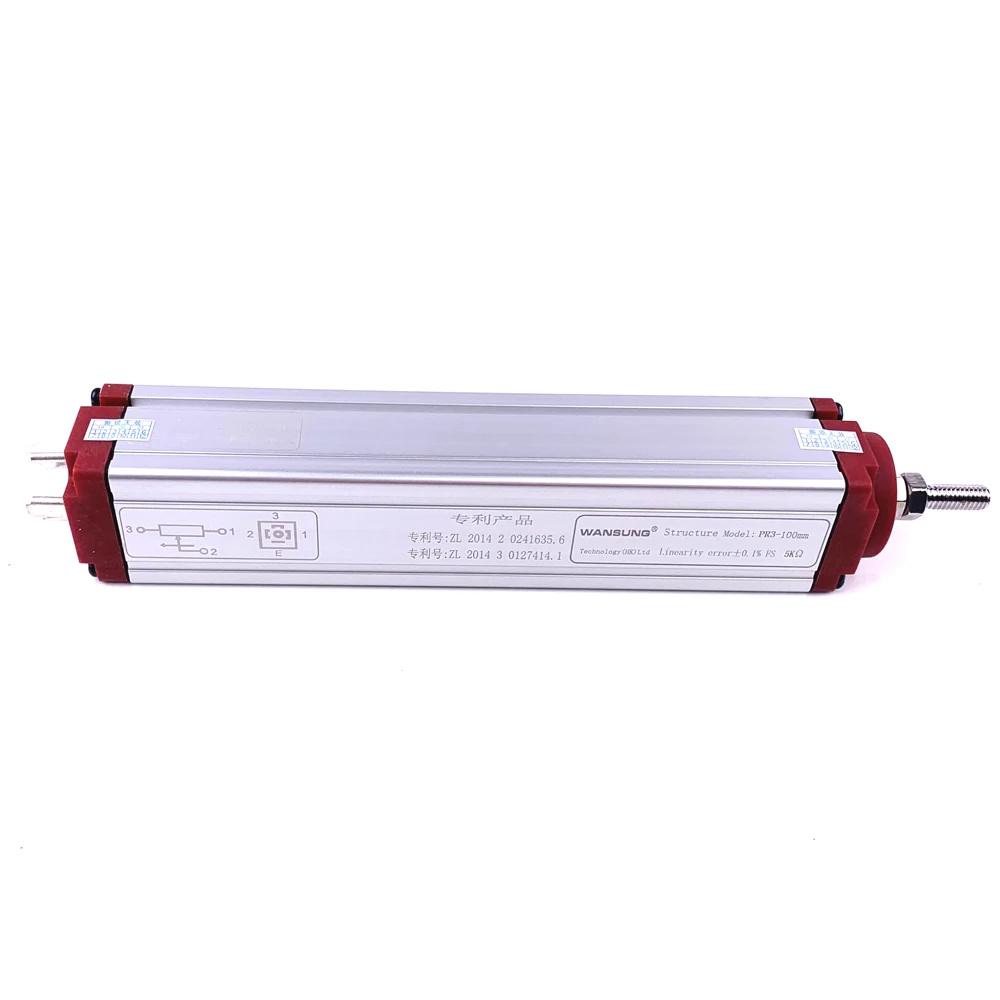

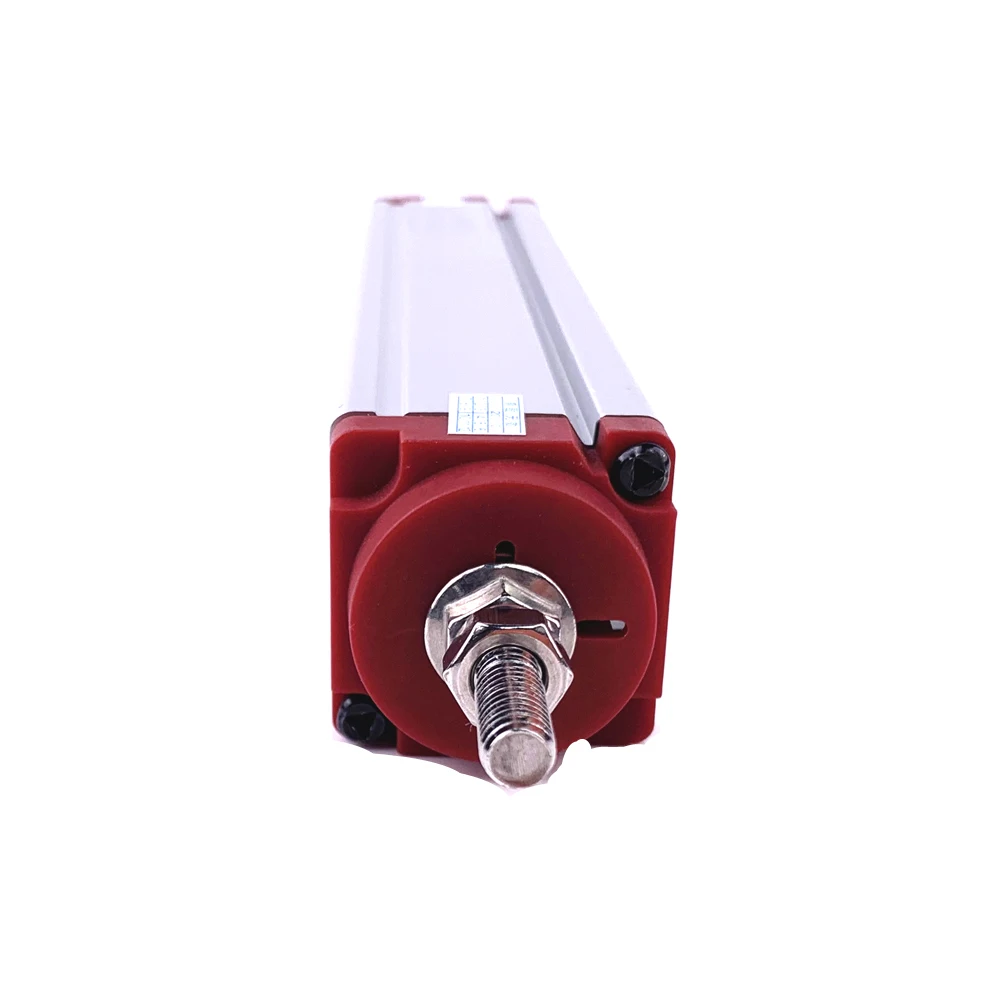

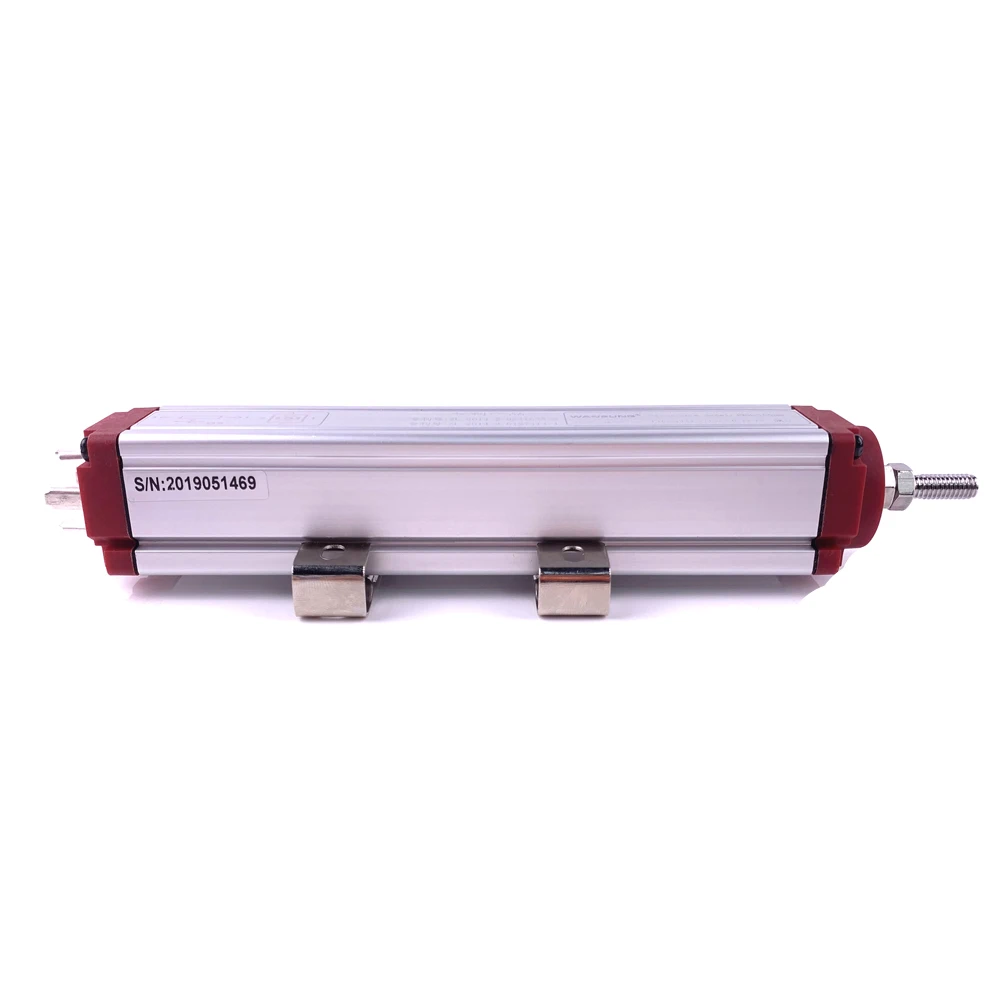

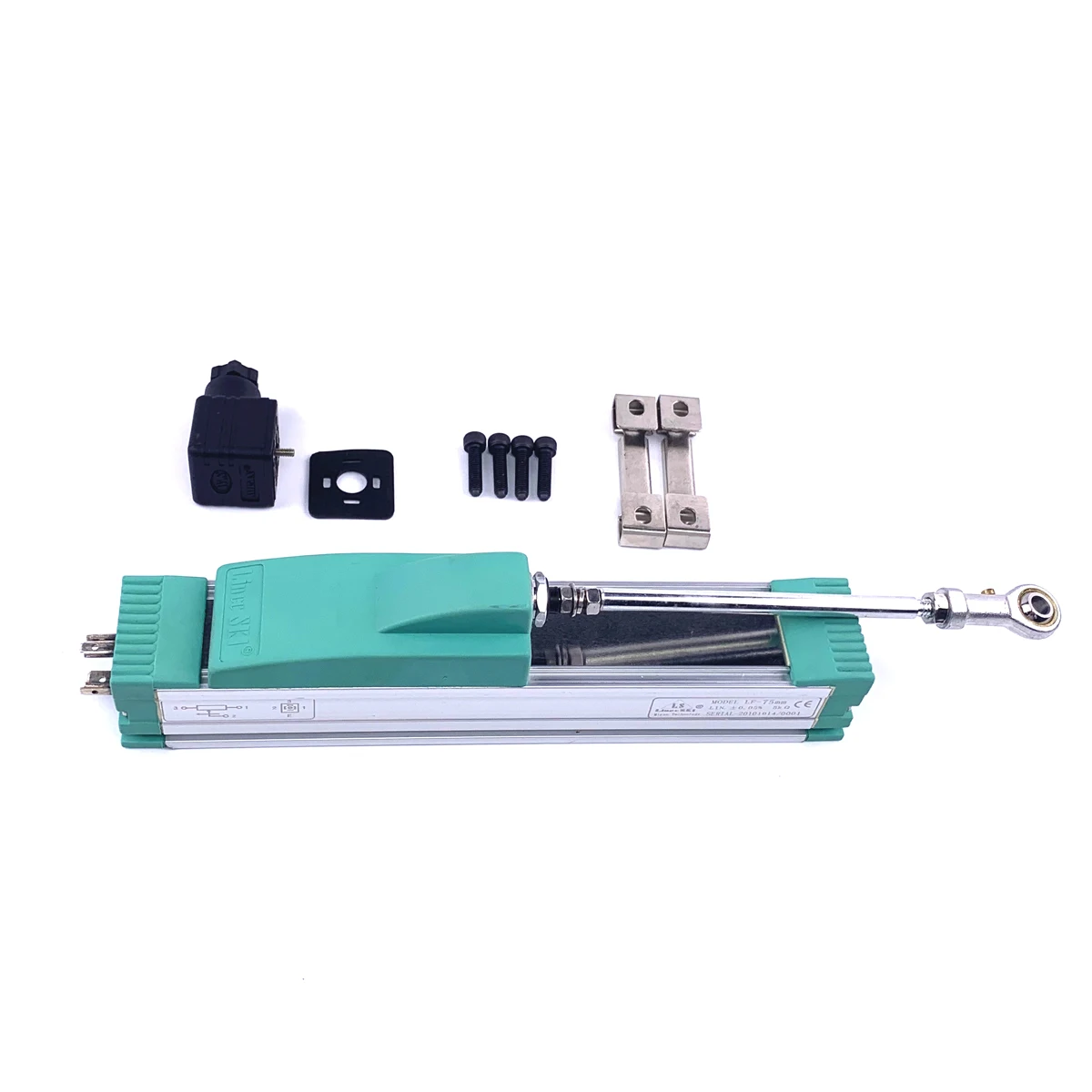

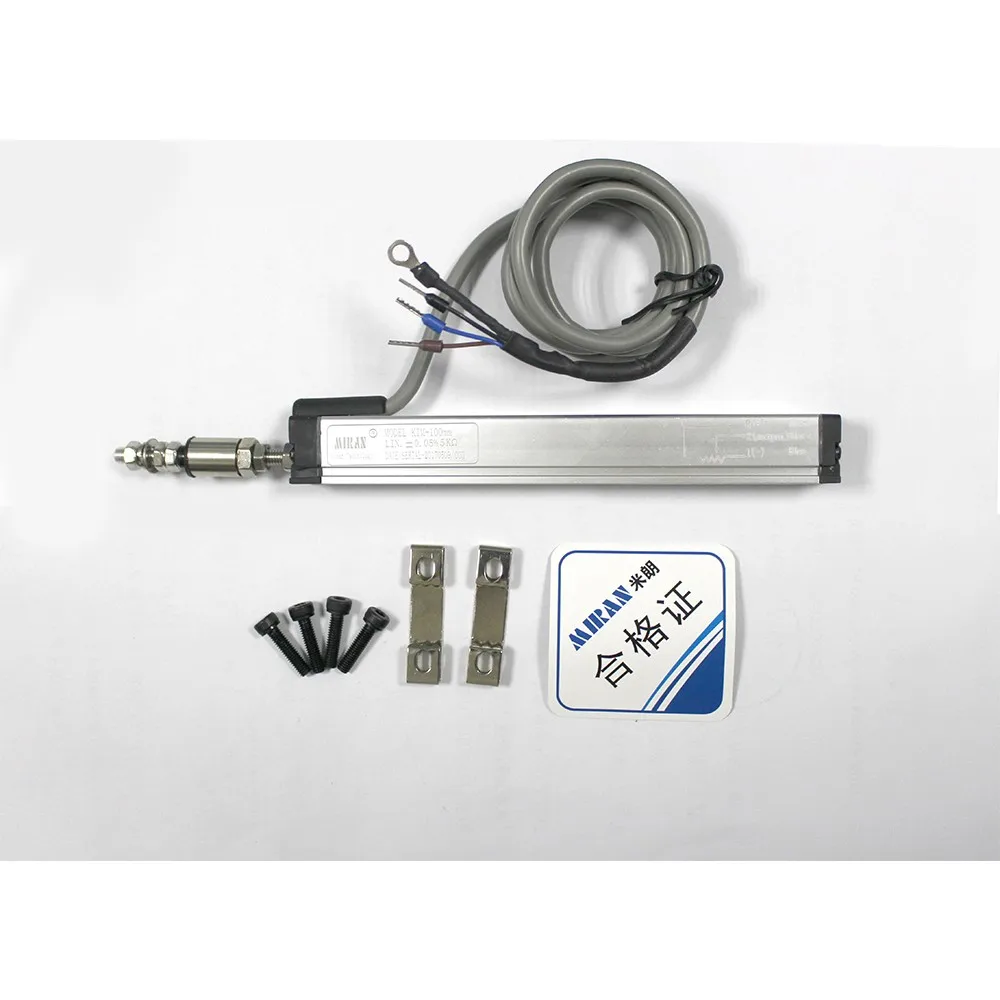

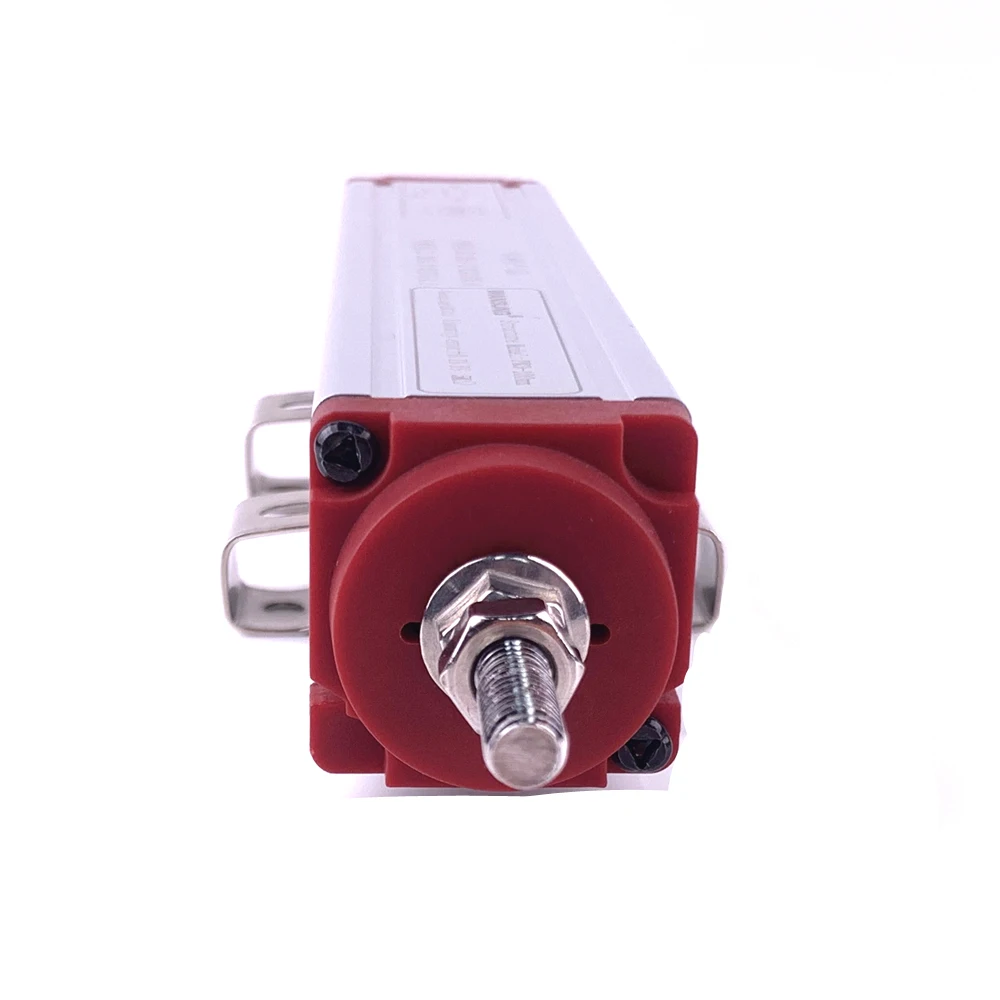

Description | Rod Type Displacement Sensor |
Linear Precision (±%FS) | ±0.1%FS~0.5%FS |
Resistance (±20%) | 5k |
Effective Stroke | range+7mm |
Resolution | Infinite |
Repeatability Precision | 0.01mm |
Max Speed | 10m/S |
Recommended Current | ≤1mA |
Temperature Range | -60℃~+150℃ |
Output | 0~100% ^input voltage (change with the movement of the draw bar) |
Very long life | >100*1000000 cycles,>25*1000000 m |
