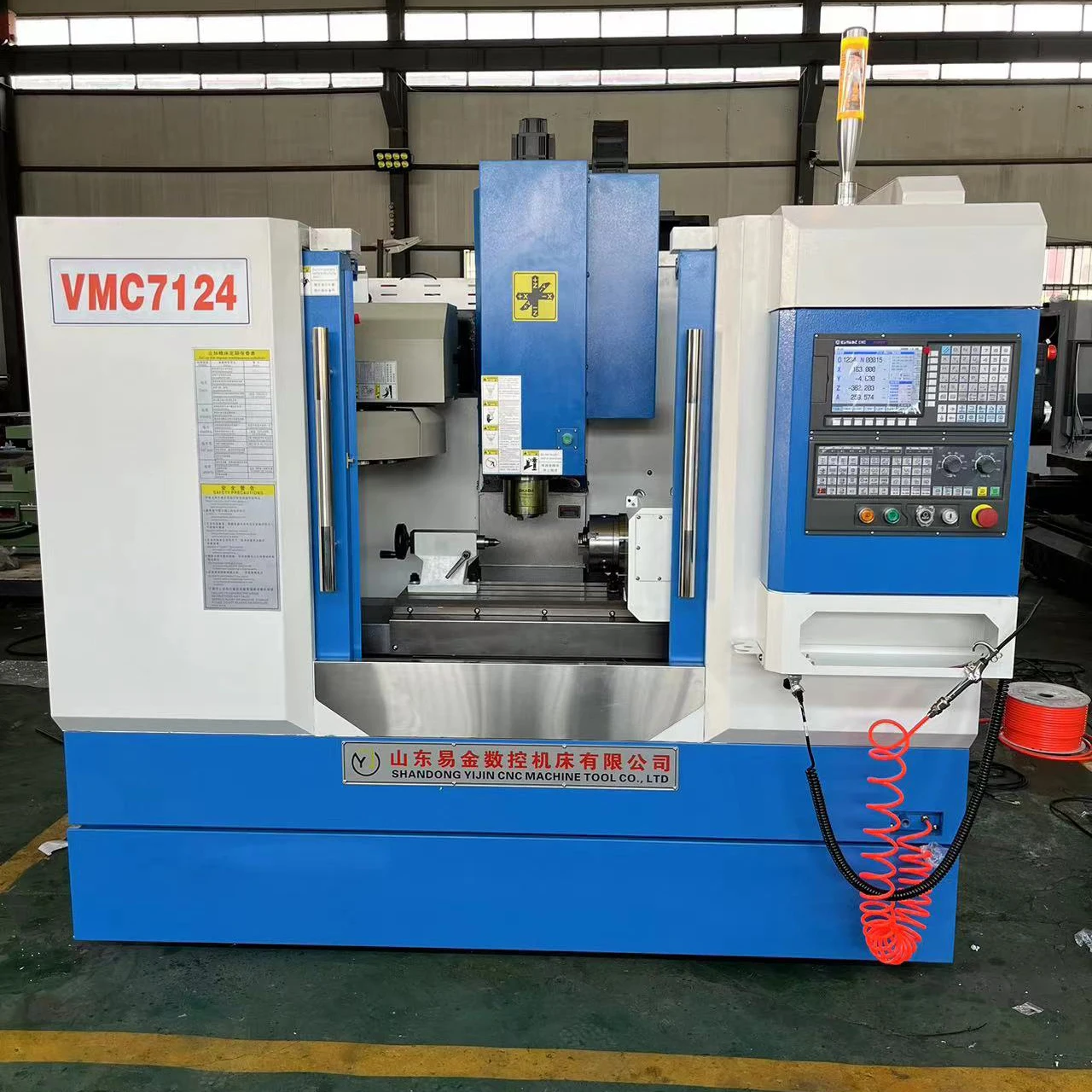

A new type of VMC7124 CNC end mill with attractive prices, mini vertical machining center for metal cutting
- Category: >>>
- Supplier: Shandong Yijin Cnc Machine Tool Co. Ltd.
Share on (1601203408399):
Product Overview
Description
Product Description
Detailed configuration
The vertical machining center can be applied to many fields such as mechanical processing and mould manufacturing, canadapt from
roughing to finishing processing requirements, has the characteristics of high precision, high efficiency, is widelyused in
aerospace, military industry, mould, automobile, internal combustion engines, textile machinery, chemical machinery processing,
oil, electronics and other industries.
roughing to finishing processing requirements, has the characteristics of high precision, high efficiency, is widelyused in
aerospace, military industry, mould, automobile, internal combustion engines, textile machinery, chemical machinery processing,
oil, electronics and other industries.
Product Introduction and Usage

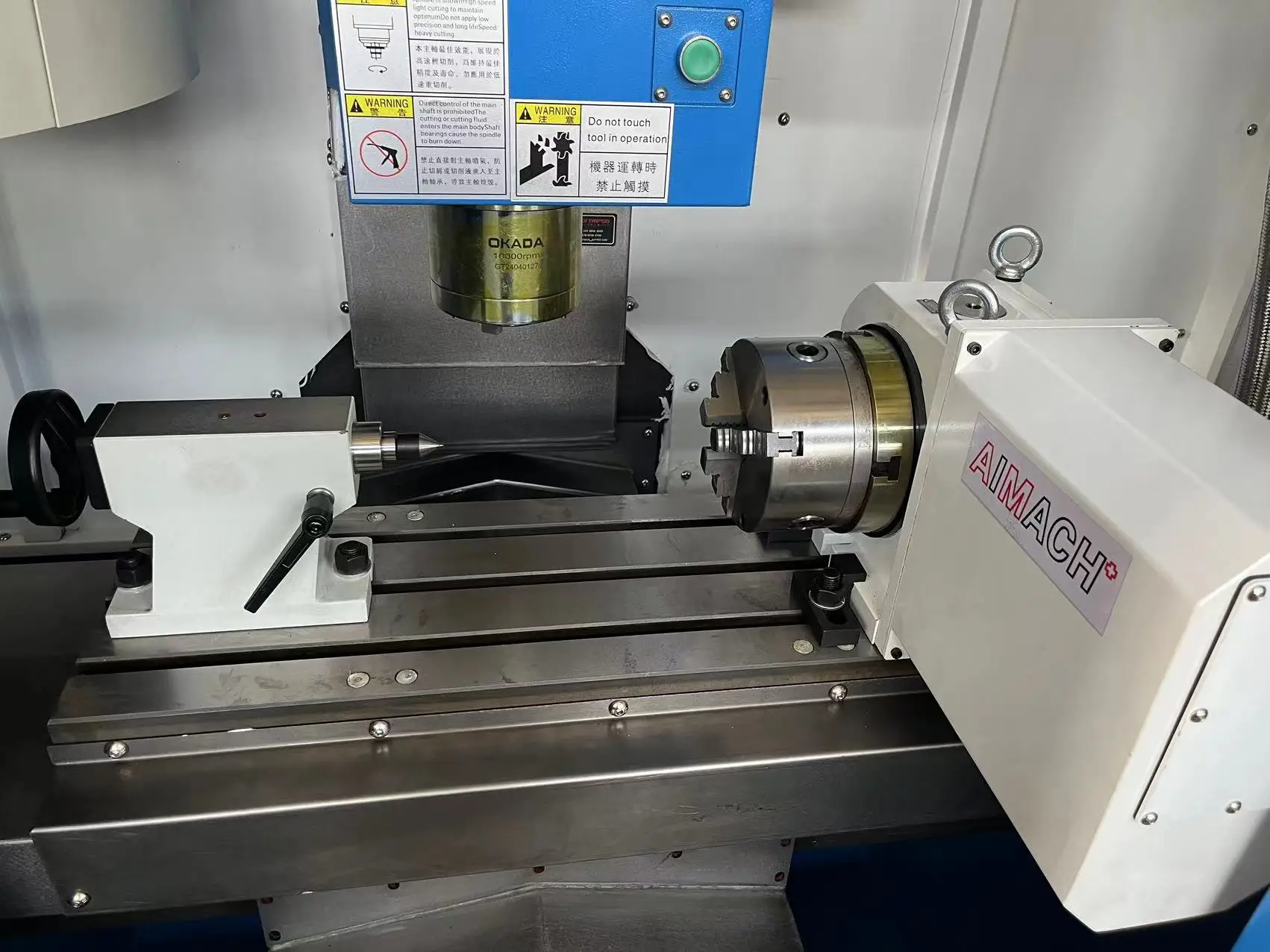

This product is an X, Y, and Z three-axis servo direct control vertical machining center, all of which are steel ball rolling linear guides. The guide rail has a large load, wide span, high accuracy, compact and reasonable structure and external dimensions, and the main shaft is driven by a servo motor through a synchronous belt. It can achieve one-time clamping of complex parts such as various discs, plates, shells, cams, molds, etc. It can complete various processes such as drilling, milling, boring, expanding, reaming, rigid tapping, etc. It is suitable for the production of multiple varieties, small and medium-sized batch products, and can meet the processing requirements for complex and high-precision parts. It can be equipped with a fourth rotation axis to meet the processing requirements of special parts.
01

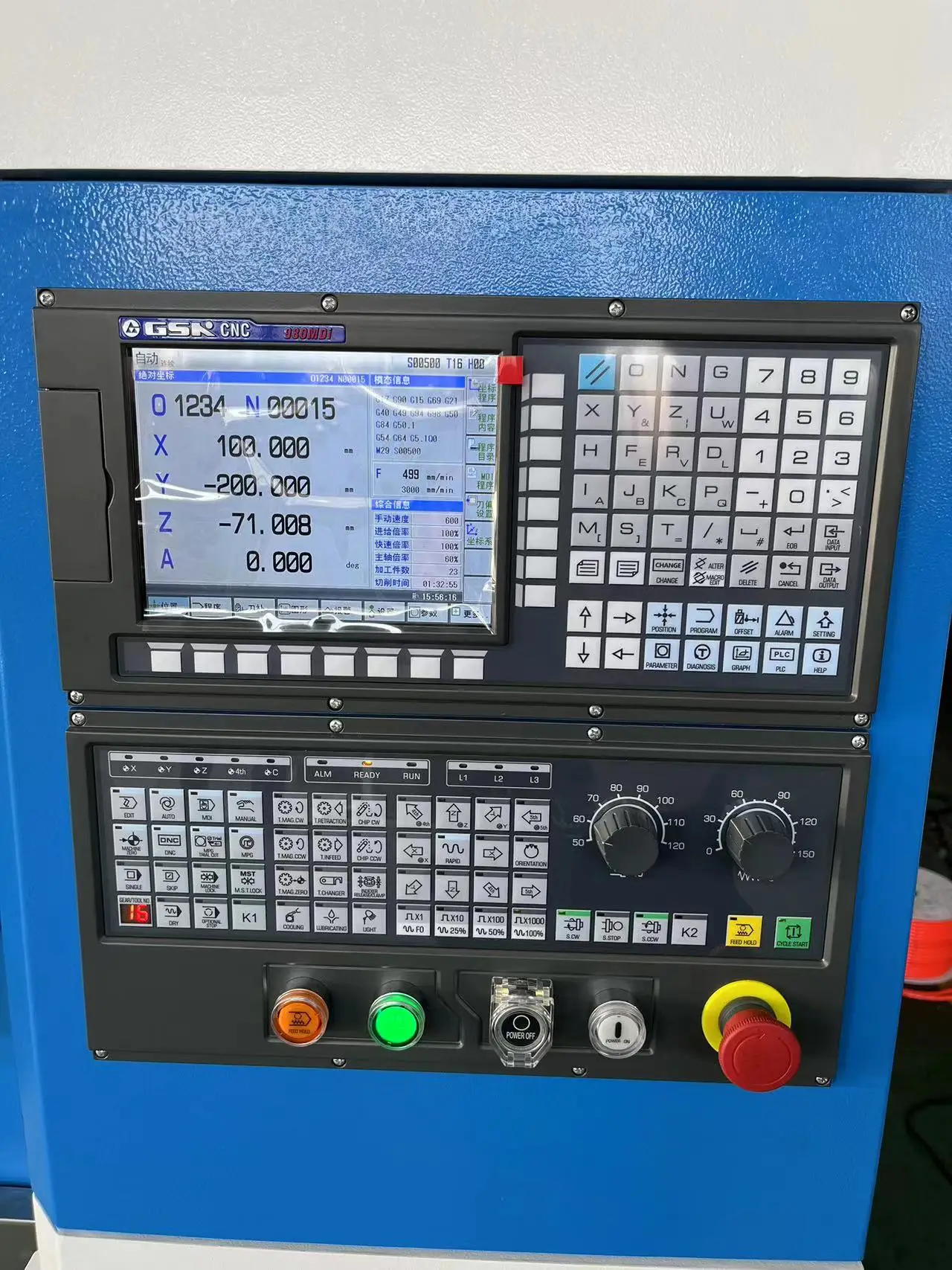

The system has complete and reliable interlocking, safety protection, fault diagnosis and alarm functions, and is equipped with a USB/RS232 standard communication interface. It can be programmed and stored with a computer, and can achieve DNC processing (depending on the system).
02
The main basic components such as the base, sliding seat, workbench, column, and spindle box are made of high-strength cast iron; The base is a box structure, and the compact and reasonable symmetrical reinforcement structure ensures the high rigidity and bending and shock absorption performance of the foundation components.
03

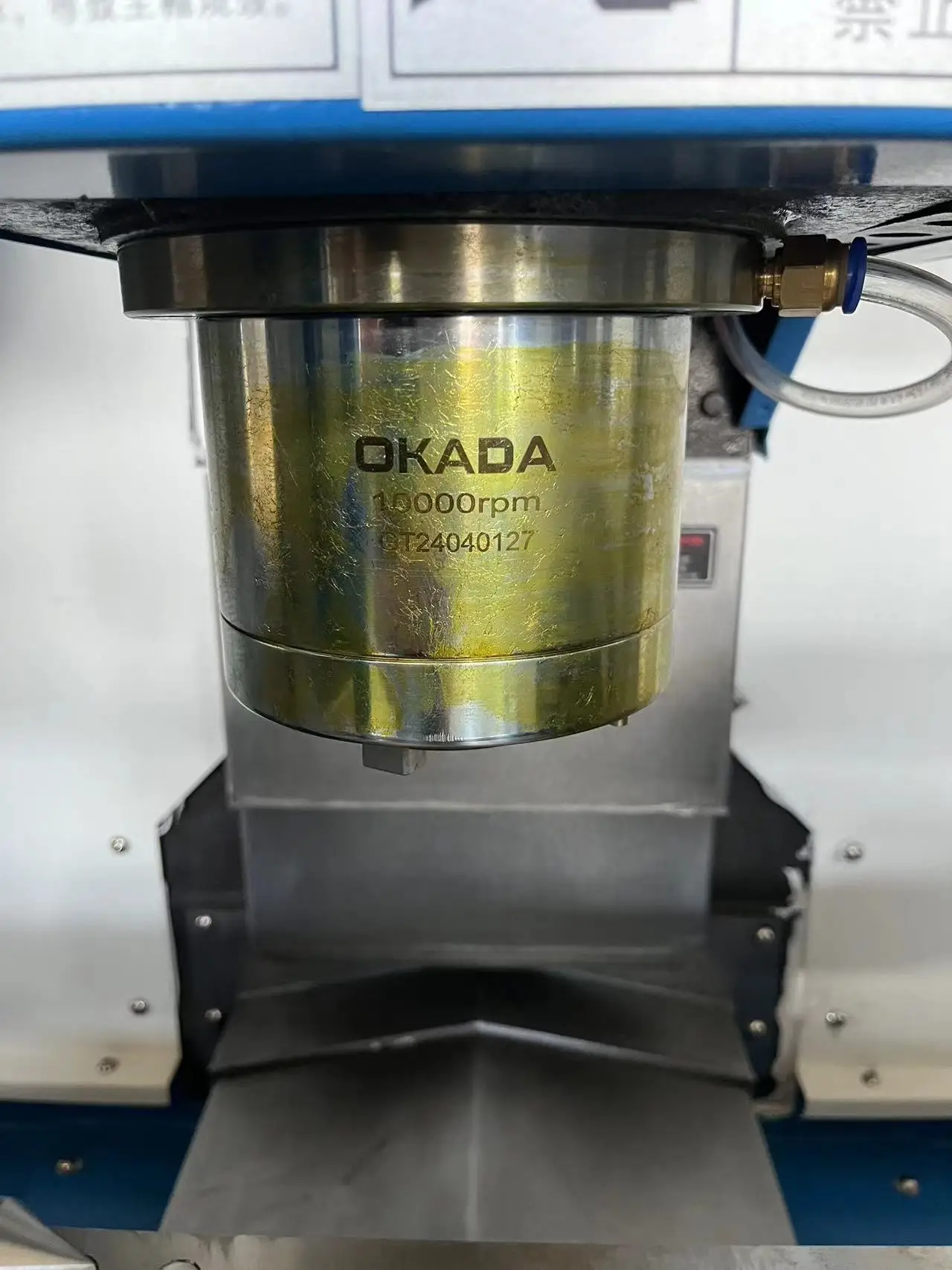

The spindle adopts a central blowing structure, which quickly cleans the inner cone of the spindle with central high-pressure gas when the spindle is loosened, ensuring the accuracy and lifespan of the tool clamping. Product Paramenters
Product name | VMC7124 |
Table area | 1000*240mm |
X-axis travel | 450mm |
Y-axis travel | 300mm |
Z-axis travel | 400mm |
Distance from spindle nose to table | 100--420mm |
Distance from spindle center to column | 300mm |
Rapid traverse of X/Y/Z-axis | 8/8/6m/min |
Cutting federate | 40-4000mm/min |
Spindle motor power | 3Kw |
Spindle speed | 8000rpm |

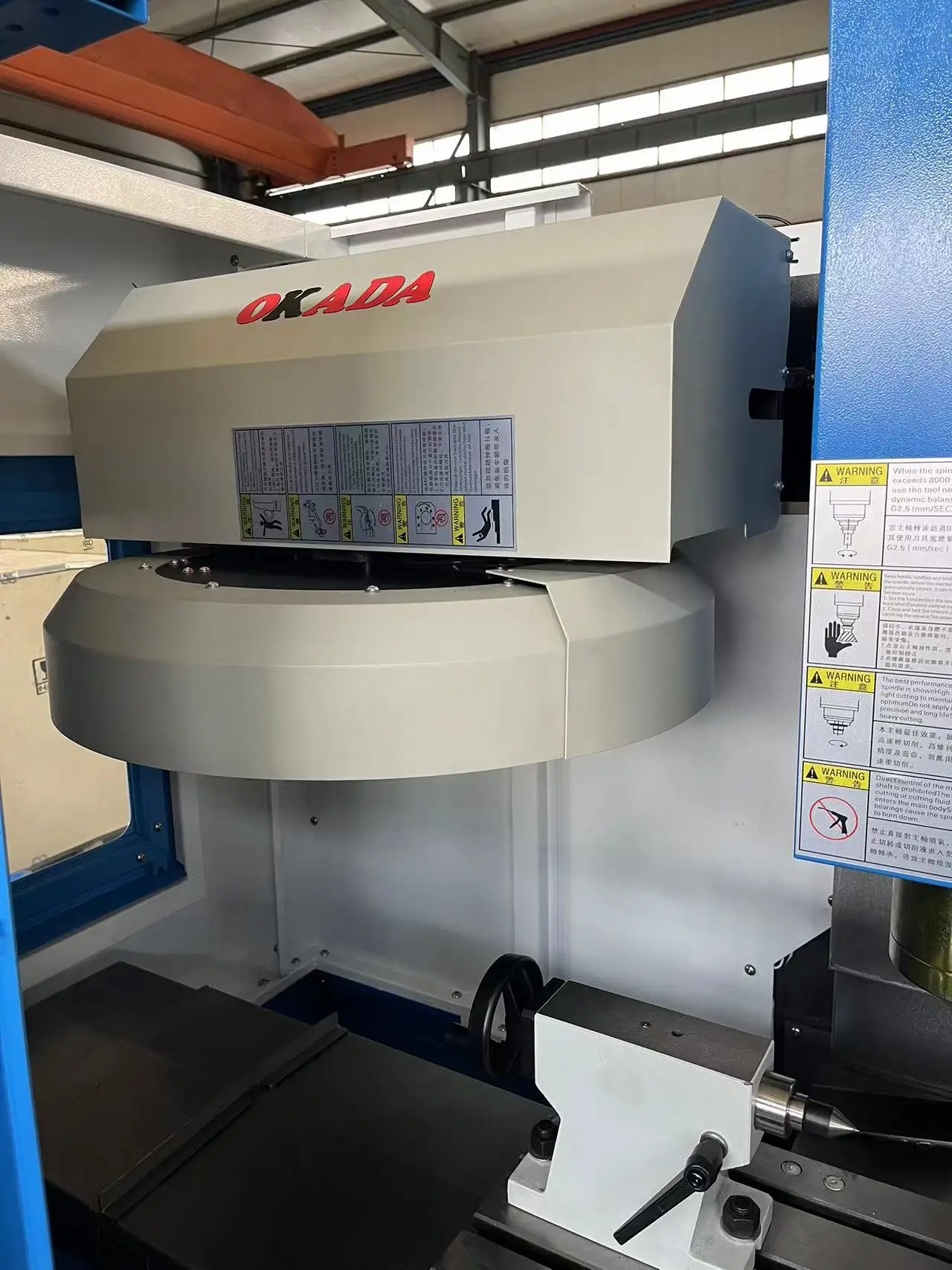

Tool magazine capacity | 24T |
Machine dimensions(LxWxH) | 2300*1700*2300mm |
Machine weight | 1500Kg |
Positioning accuracy | ±0.15 |
Repeated positioning accuracy | ±0.01 |
Spindle Motor Power(kW) | 7.5-11 |
Max. Table Load(kg) | 800kg |
Feed Speed(mm/min) | |
Rapid Feed Speed(m/min) | 36/1 |
Min. Time of Tool Change(s) | 2 |
Tool Magazine Capacity | 24 |
Key Selling Points | Automatic |
Warranty | 1 Year |
Brand Name | shandongyijin |
Voltage | 220V/380V |
Applicable Industries | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Retail, Printing Shops, Construction works , Energy & Mining, Other |
Showroom Location | None |
Marketing Type | New Product 2023 |
Machinery Test Report | Provided |
Video outgoing-inspection | Provided |
Warranty of core components | 1 Year |
Core Components | Engine |
Exhibition
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
About Us
Products can be customized with multiple models. Welcome to visit the company and invite you to join the recruitment agency
FAQ
1. who are we?
We are based in Shandong, China, start from 2022,sell to Domestic Market(00.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
CNC Machining Center, CNC Lathe, CNC Milling Machine, Gantry Machining Center.
4. why should you buy from us not from other suppliers?
Our main products include 5 series, including CNC machining centers,horizontalCNCmachining centers, CNC inclined test lathes, CNC gantry machining centers, CNC vertical lathes, and more than 50 specifications.
5. what services can we provide?
Accepted Delivery Terms: null；
Accepted Payment Currency:null;
Accepted Payment Type: null;
Language Spoken:null
We are based in Shandong, China, start from 2022,sell to Domestic Market(00.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
CNC Machining Center, CNC Lathe, CNC Milling Machine, Gantry Machining Center.
4. why should you buy from us not from other suppliers?
Our main products include 5 series, including CNC machining centers,horizontalCNCmachining centers, CNC inclined test lathes, CNC gantry machining centers, CNC vertical lathes, and more than 50 specifications.
5. what services can we provide?
Accepted Delivery Terms: null；
Accepted Payment Currency:null;
Accepted Payment Type: null;
Language Spoken:null
