Product Overview
Description
Product Description
The machine adopts frequency converter and the whole system was controlled by PLC, which can be operated in man-machine interface. It is an ideal and popular packing equipment with high automation, easy for operation, advanced technology, full purpose, long durability and in accordance with GMP requirement. The products have passed the provincial science and technology appraisal.
Feaure：
1. Main transmission part adopts parallel axis and bevel wheel speed reducer, with novel structure, stable running, low noise and long service life.
2. Heat-sealing station fixed, forming, pressing and cutting spare parts can move freely to adjust the distance and easy to
change moulds.
3. Manipulator towing, adjustable travel range, it can be suited for blister packing of various sizes.
4. Flat plate structure can pack special shape products, such as: elliptic shape, square shape, triangle shape etc.
2. Heat-sealing station fixed, forming, pressing and cutting spare parts can move freely to adjust the distance and easy to
change moulds.
3. Manipulator towing, adjustable travel range, it can be suited for blister packing of various sizes.
4. Flat plate structure can pack special shape products, such as: elliptic shape, square shape, triangle shape etc.
Model | DPP-150 | DPP-150B |
Cutting Time(t/min) | 6-50 | Al-AL 6-25 Al-plastic 6-50 Paper-plastic 6-50 |
Production Capacity | 20000-110000 | Al-Al ≤45000 Al-plastic ≤110000 |
Max Forming Area And Depth(mm) | 130×130×14 (can design to be 25mm) | Al-Al 130×130×14 Al-plastic 130×130×26 |
Travel Range (mm) | 40-120 (Can be customized) | 40-140 (Can be customized) |
Standard Plate (mm) | 80×57(Can be customized) | 80×57(Can be customized) |
Total Power | 380V/220V 50Hz 3.6kw | 380V/220V 50Hz 3.6kw |
Main Motor Power (kw) | 0.75 | 0.75 |
Forming Aluminum (mm) | 0.1-0.15×150 | |
PVC Sheet (mm) | 0.15-0.5×150 | 0.15-0.5×150 |
PTP Aluminum Foil (mm) | 0.02-0.035×150 | 0.02-0.035×150 |
Dialysis Paper (mm) | 50-100g×150 | 50-100g×150 |
Mould Cooling | Tap Water or Circulating Water | Tap Water or Circulating Water |
Overall Dimensions (mm) | 2300×560×1410（L×W×H） | 2300×560×1410（L×W×H） |

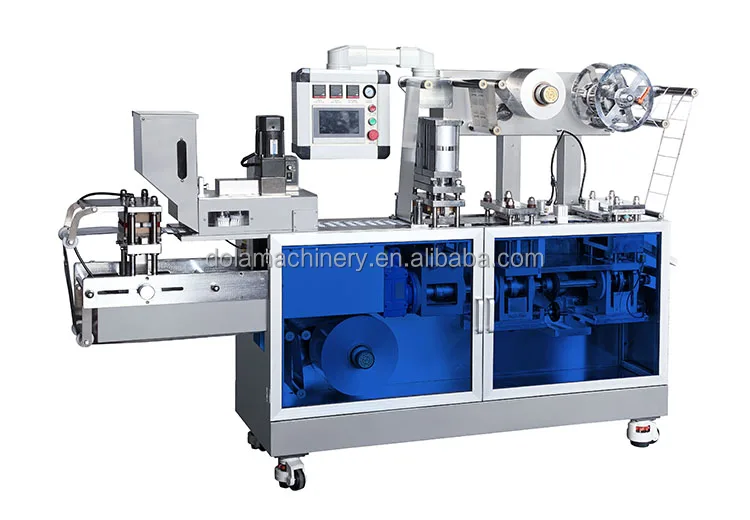

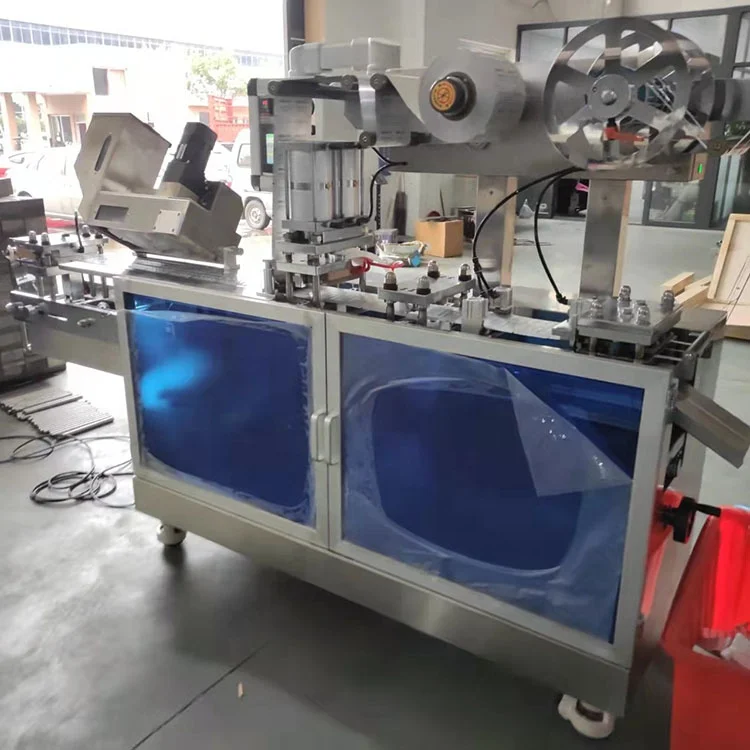

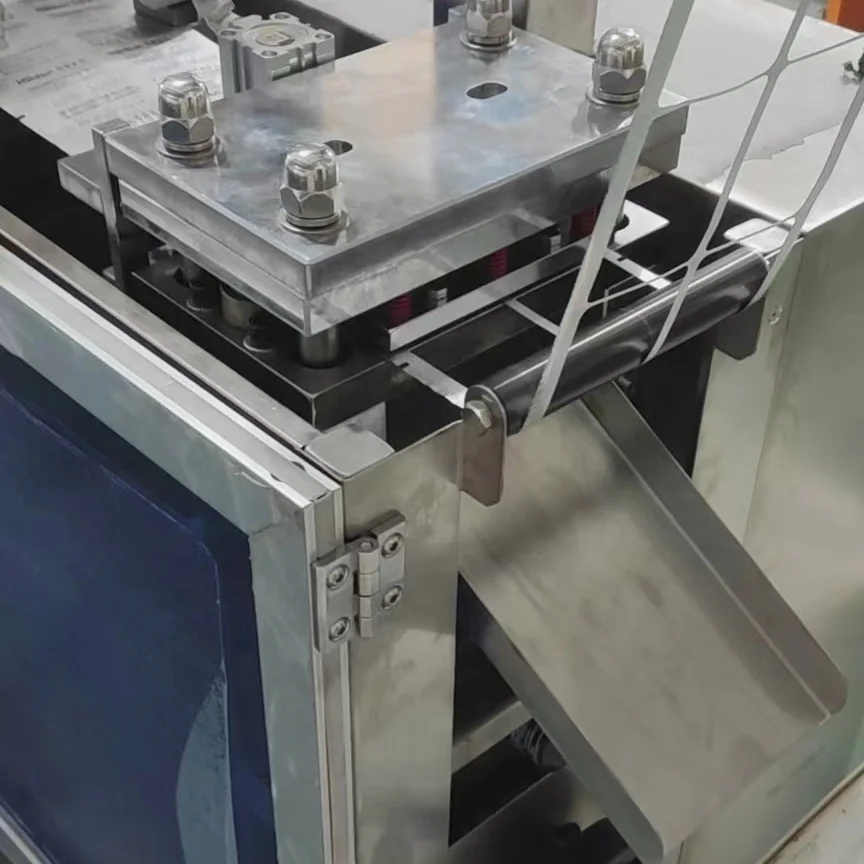

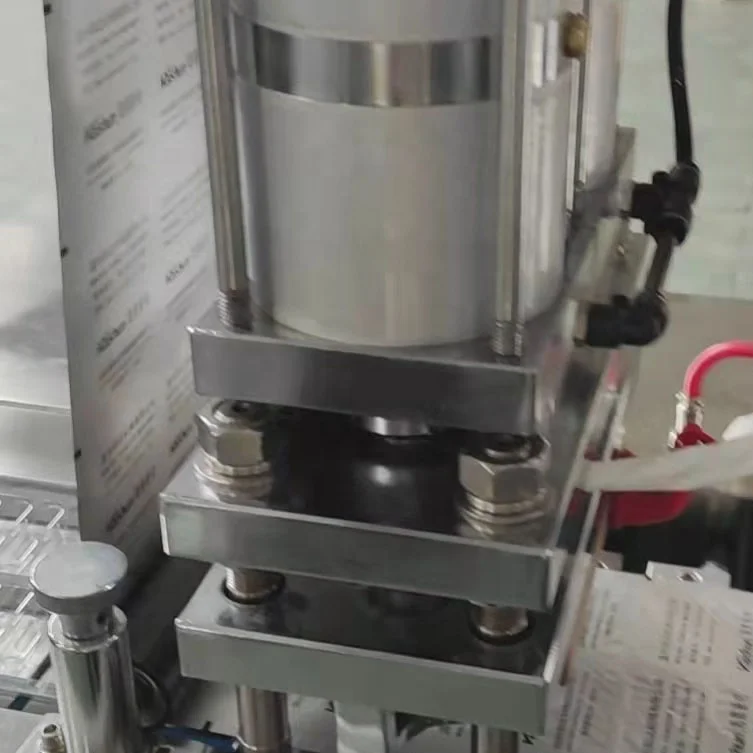

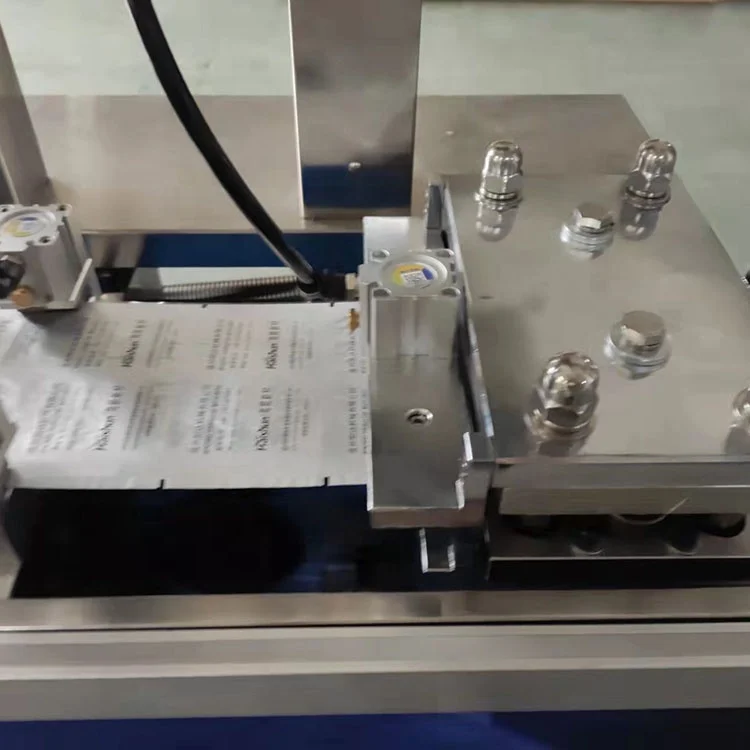

Machine Photos

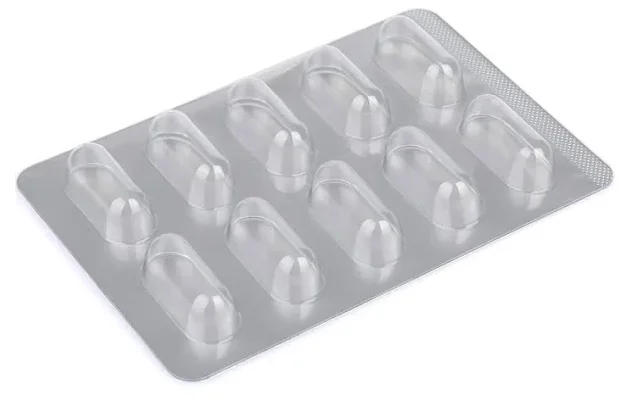

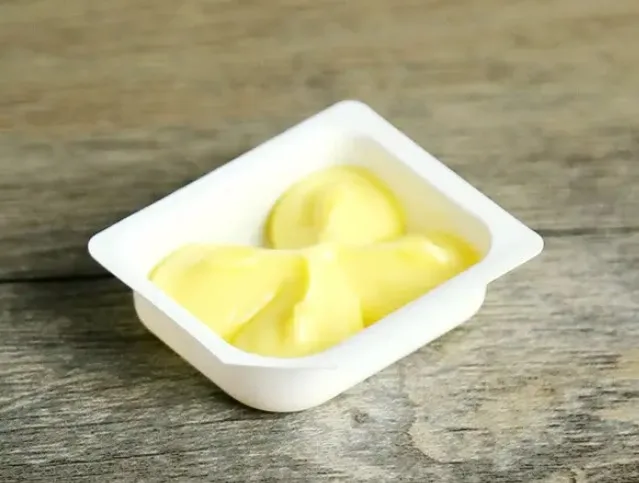

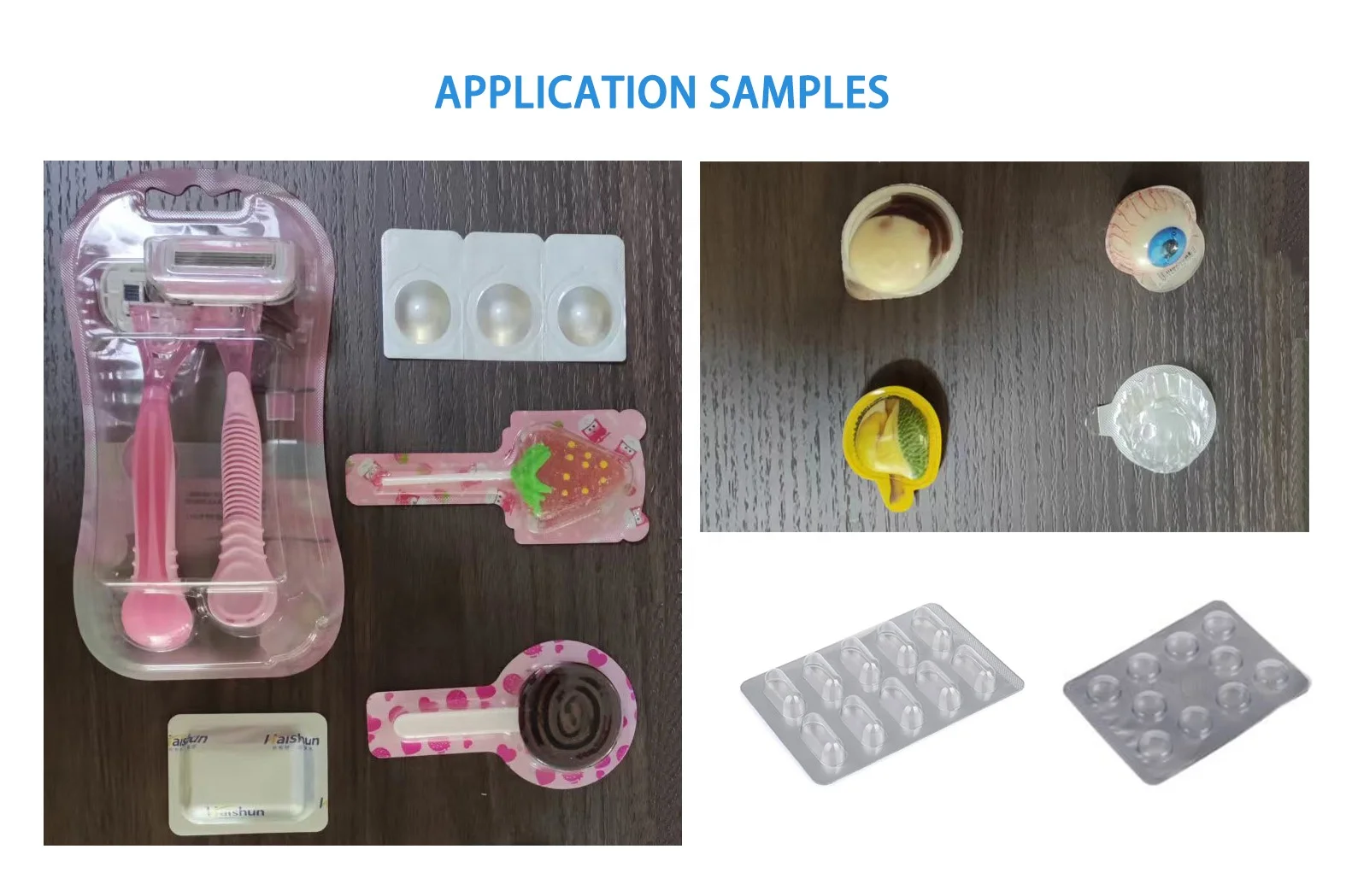

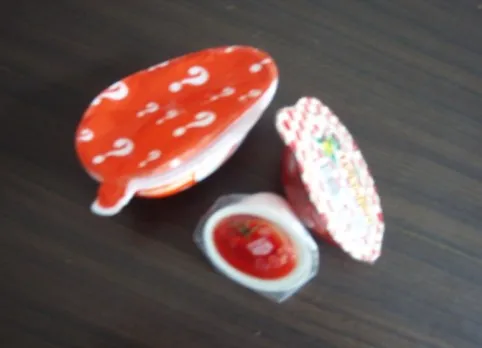

Application Samples

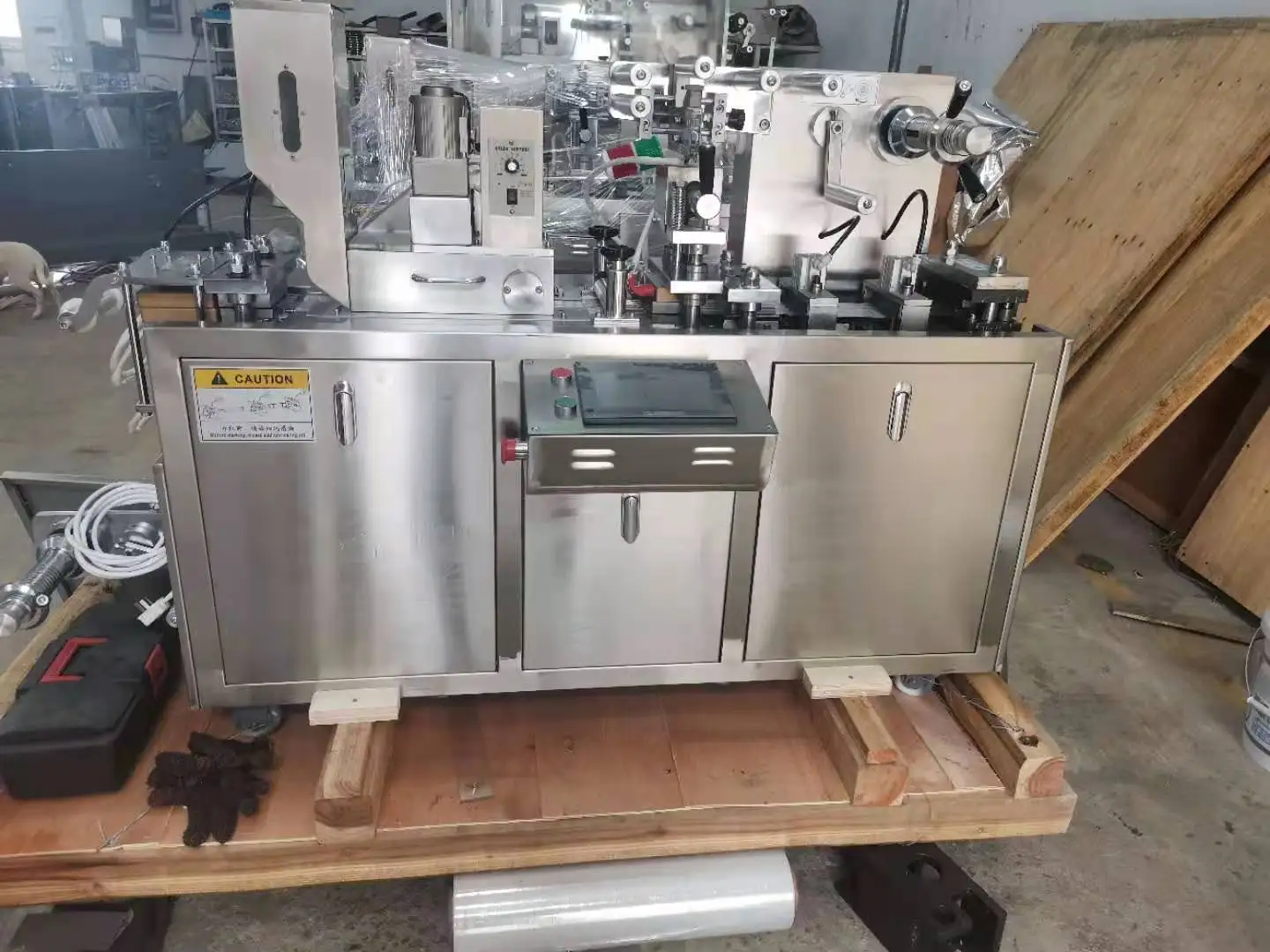

Packaging&Delivery

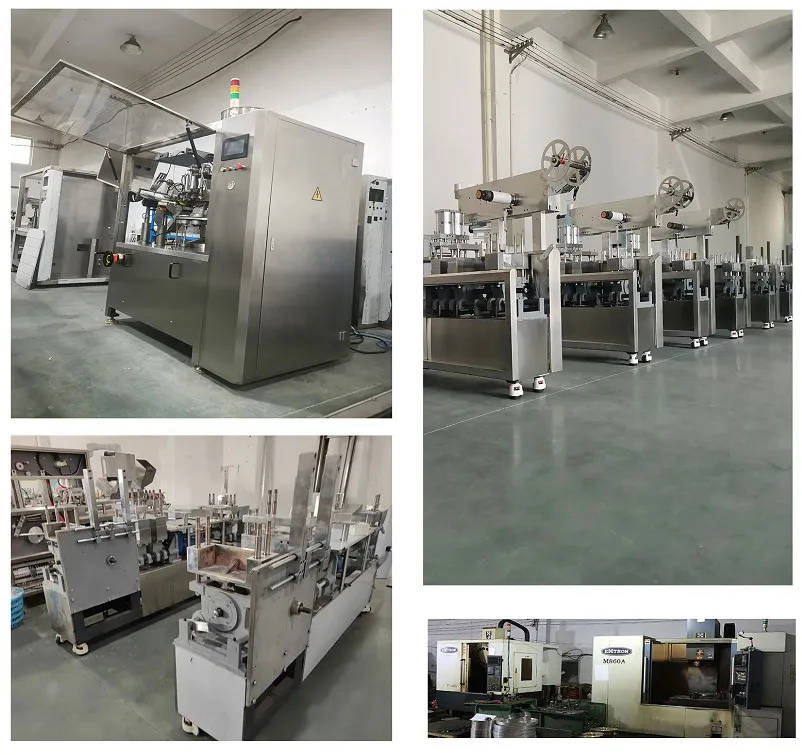

Workshop
Certificates
Exhibition & Customers
FAQ
Q: How can I trust you for the first-time business?
A: We can send you our business license and certificates. You can choose Alibaba Trade Assurance Service for transaction to protect your payment and assure our service for you.
Q: How about after-sale service and warranty period?
A: We offer 1 year warranty. Technical support is 24/7. Our professional technician can visit your factory.
Q: How to contact you?
A: Please leave message and click "send" to send us inquiries.
