Product Overview
Description
Why Choose US？
International Engineering Team
Strong laboratory R&D capability

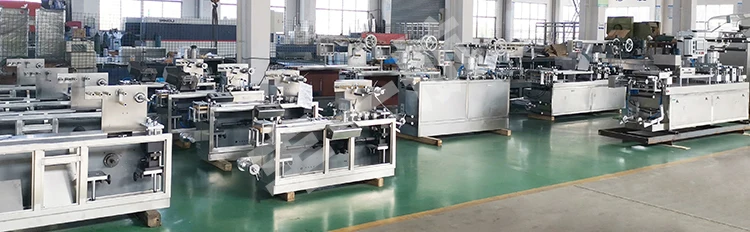

Factory area：30000+㎡ Workshop area：20000+㎡
One-stop turnkey solution
Diversified product line
Exported to 60+countries and regions
24/7 professional technical support, exclusive on-site engineer service
Diversified product line
Exported to 60+countries and regions
24/7 professional technical support, exclusive on-site engineer service
Product Description

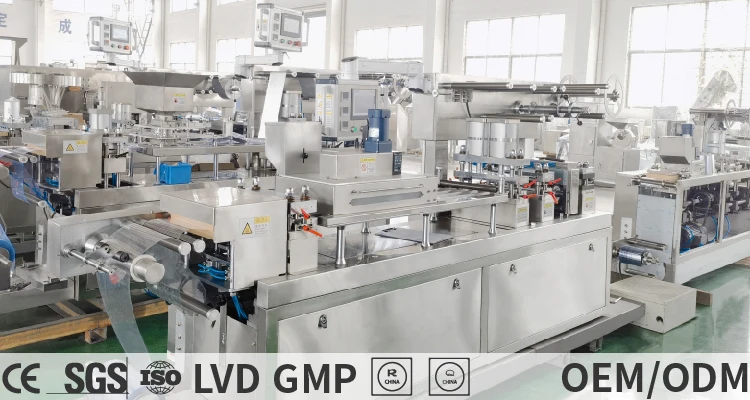

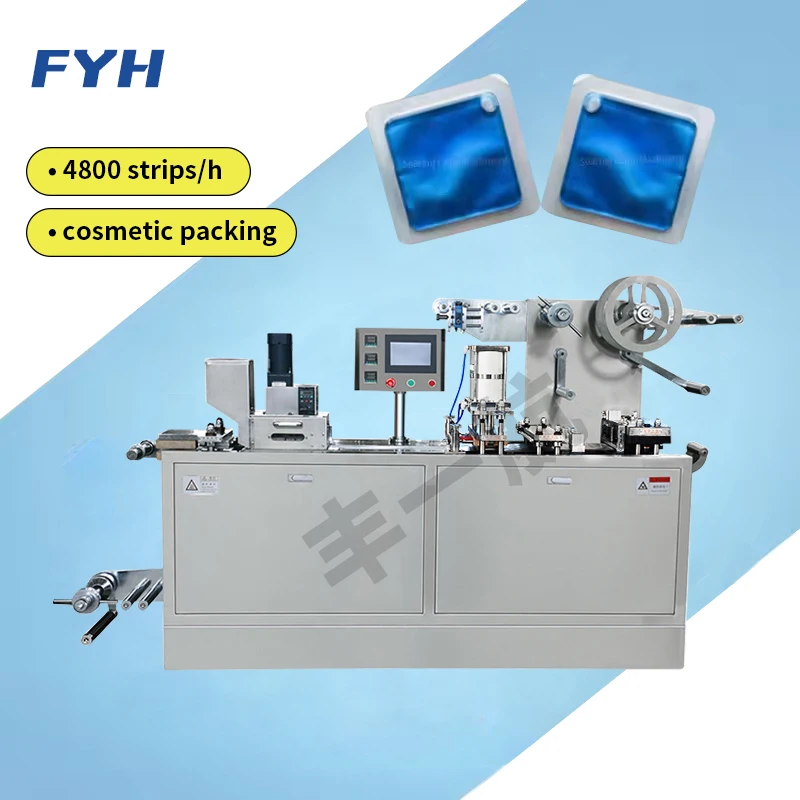

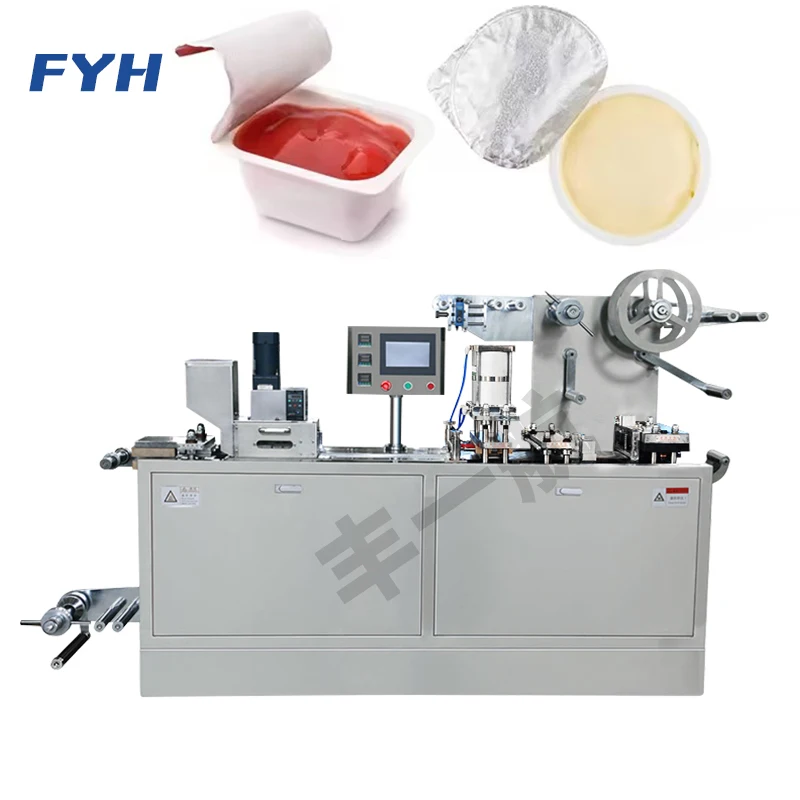

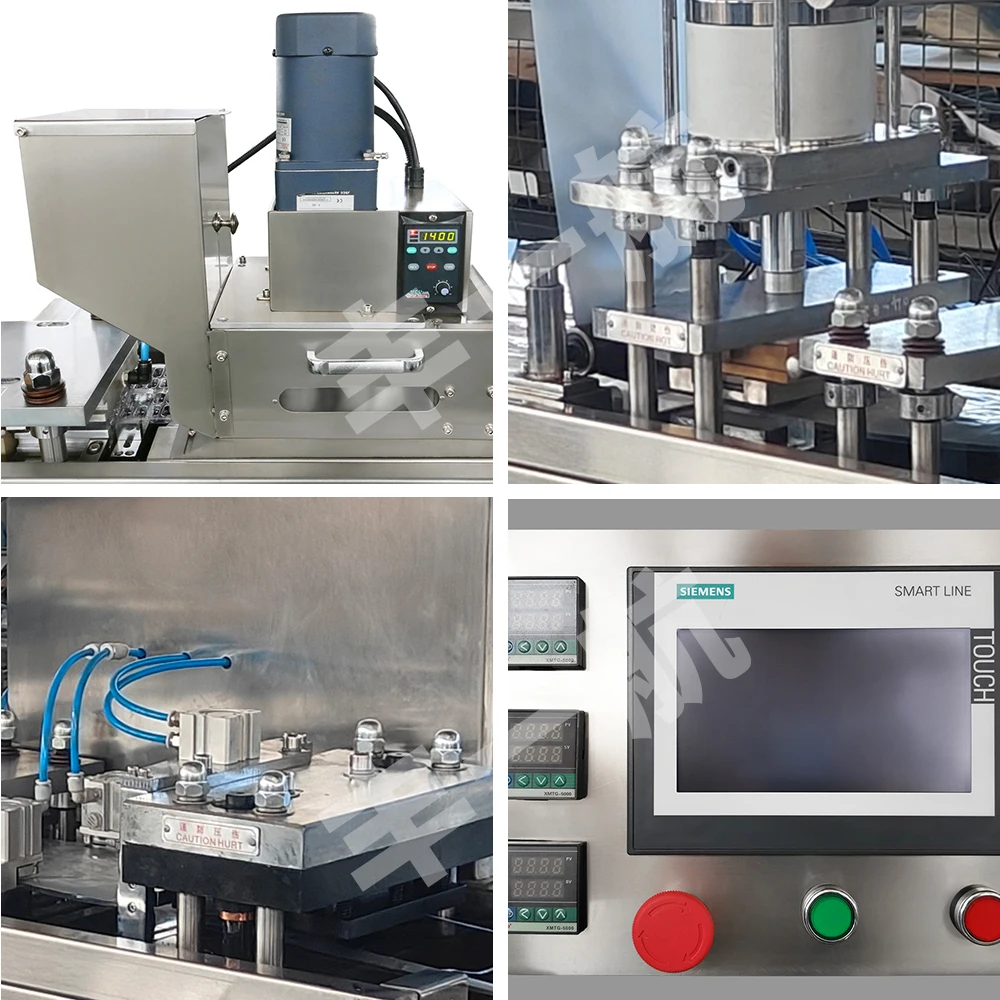

DPB140/150 Flat-plate Blister Packaging Machine is a device used for manufacturing packaging for food and other small items. It features a flat structure with one or multiple molds for creating plastic film packaging. The machine works by placing the plastic film and the product into the mold and then sealing the plastic film through heat sealing or compression, creating a tightly sealed package. This packaging method effectively protects the product from external contamination and damage while providing clear visibility. The Flat-plate Blister Packaging Machine is commonly utilized in the food industry and retail sector, offering efficient, consistent, and reliable packaging solutions that enhance production efficiency and product quality.
Cutting Frequency (times/min) | 20-40 |
Capacity(strip/h) | 4800 （depends on user's package size） |
Max shaping areas and depth (mm) | 130*100*26 |
Stroke (mm) | 20-120 (can be manufactured as user's requirements) |
Standard Sheet (mm) | 80×57 (can be manufactured as user's requirements) |
Air Pressure (Mpa) | 0.4-0.6 |
Total power | 380V/220V 50Hz 3.2kw |
Main motor power | 1.5 KW |
PVC hard pieces (mm) | 0.15-0.5*140 |
PTP Aluminum Foil (mm) | 0.02-0.035*140 |
Dialysis Paper (mm) | 50-100g*140 |

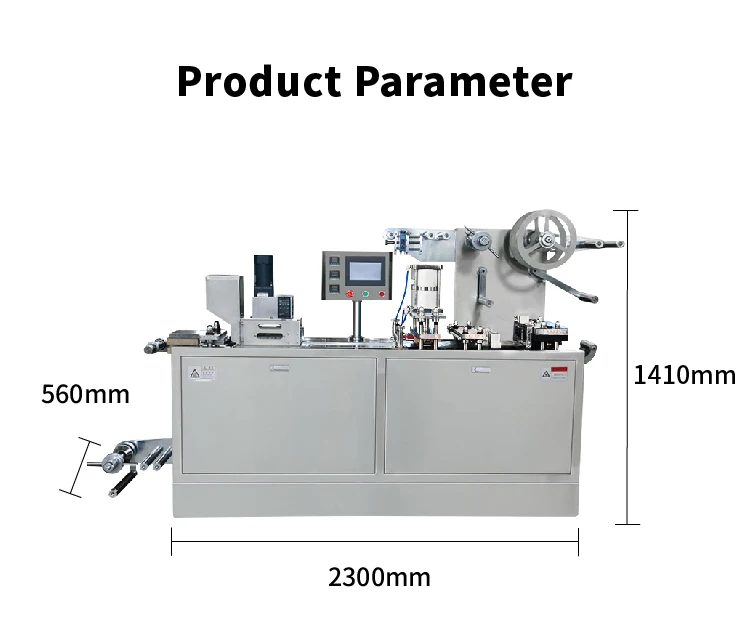

Overall Dimensions (mm) | 2300*560*1410 |
Weight (kg) | 800 |
FAQ
What is the DPB-140/150 Flat-plate Blister Packaging Machine?
Answer: The DPB-140/150 Flat-plate Blister Packaging Machine is an advanced packaging machine designed for creating blister packs for various products, including food items, and consumer goods.
What types of products can be packaged using the DPB-140/150 Blister Packaging Machine?
Answer: The DPB-140/150 Blister Packaging Machine can package solid products such as candies, batteries, and other small items that require individual packaging in blister packs.
How does the DPB-140/150 Blister Packaging Machine work?
Answer: The machine forms blister packs by heating and molding plastic film or aluminum foil to create individual pockets. It fills the pockets with products and seals them with a backing material, ensuring secure and tamper-proof packaging.
What are the key features of the DPB-140/150 Blister Packaging Machine?

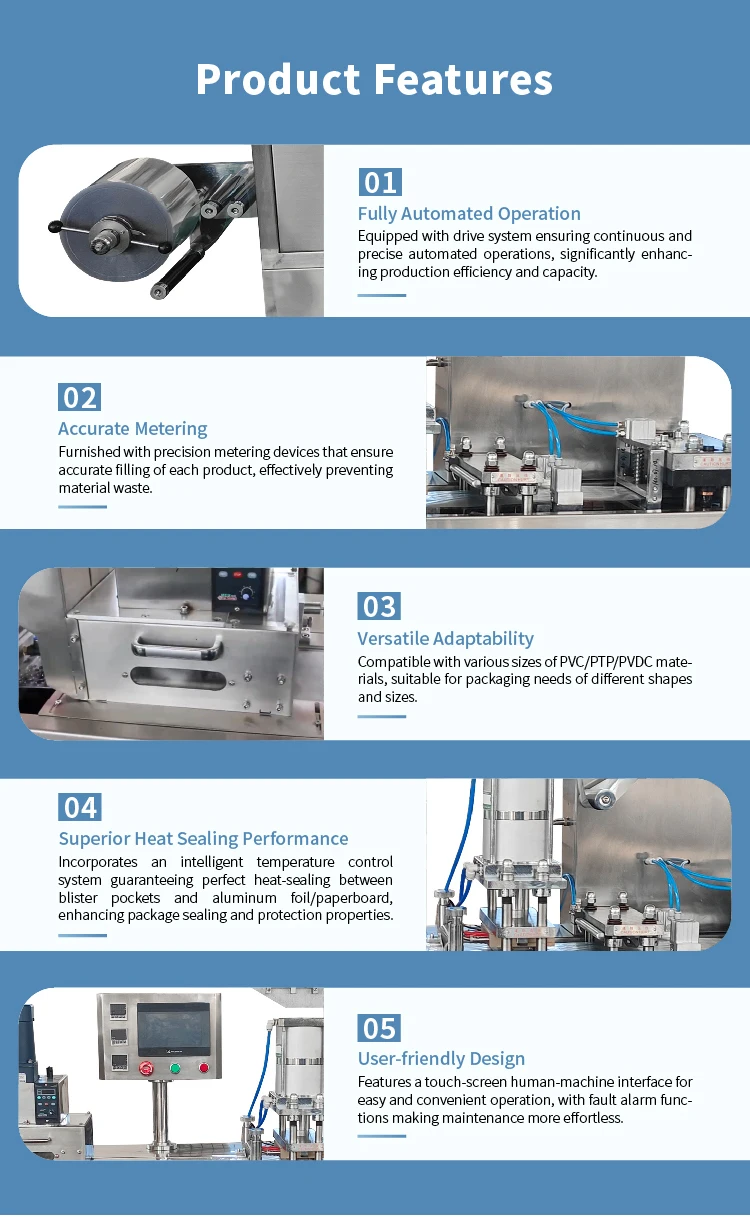

Answer: The key features of the DPB-140/150 Blister Packaging Machine include automatic feeding, precise temperature and sealing controls, adjustable blister pack sizes, high-speed operation, quick changeover of molds, user-friendly interface, and advanced quality control systems.
What is the production capacity of the DPB-140/150 Blister Packaging Machine?
Answer: The production capacity of the DPB-140/150 Blister Packaging Machine depends on several factors, including the size of the blister packs, product specifications, and operator efficiency. However, it is designed for high-speed packaging, catering to large-scale production requirements.
Can the DPB-140/150 Blister Packaging Machine handle various blister pack sizes?
Answer: Yes, the DPB-140/150 Blister Packaging Machine is designed to accommodate a wide range of blister pack sizes. It offers flexibility in adjusting the dimensions of the pockets to meet specific product requirements.
Does the machine offer quality control features?
Answer: Yes, the DPB-140/150 Blister Packaging Machine often incorporates advanced quality control features, including vision inspection systems, rejection of defective packs, precise sealing controls, and monitoring of packaging parameters. These features ensure high-quality packaging and minimize errors.
Is technical support available for the DPB-140/150 Blister Packaging Machine?
Answer: Yes, reliable technical support is typically available for the DPB-140/150 Blister Packaging Machine. Manufacturers provide assistance with installation, training, maintenance, and spare parts availability to ensure smooth operation and minimize downtime.
Can the DPB-140/150 Blister Packaging Machine be integrated with other packaging equipment?

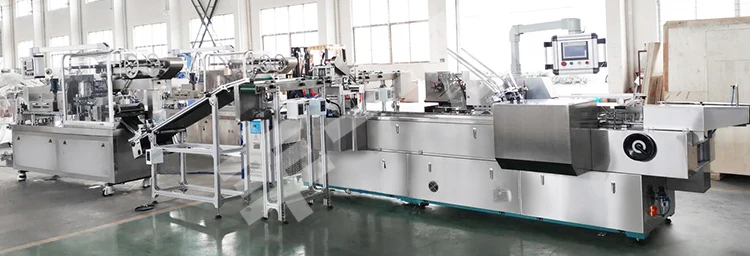

Answer: Yes, the DPB-140/150 Blister Packaging Machine can be integrated with other packaging equipment, such as cartoners or labeling systems, to create a complete packaging line. This integration enhances overall efficiency, reduces manual handling, and streamlines the packaging process.
Answer: The DPB-140/150 Flat-plate Blister Packaging Machine is an advanced packaging machine designed for creating blister packs for various products, including food items, and consumer goods.
What types of products can be packaged using the DPB-140/150 Blister Packaging Machine?
Answer: The DPB-140/150 Blister Packaging Machine can package solid products such as candies, batteries, and other small items that require individual packaging in blister packs.
How does the DPB-140/150 Blister Packaging Machine work?
Answer: The machine forms blister packs by heating and molding plastic film or aluminum foil to create individual pockets. It fills the pockets with products and seals them with a backing material, ensuring secure and tamper-proof packaging.
What are the key features of the DPB-140/150 Blister Packaging Machine?
Answer: The key features of the DPB-140/150 Blister Packaging Machine include automatic feeding, precise temperature and sealing controls, adjustable blister pack sizes, high-speed operation, quick changeover of molds, user-friendly interface, and advanced quality control systems.
What is the production capacity of the DPB-140/150 Blister Packaging Machine?
Answer: The production capacity of the DPB-140/150 Blister Packaging Machine depends on several factors, including the size of the blister packs, product specifications, and operator efficiency. However, it is designed for high-speed packaging, catering to large-scale production requirements.
Can the DPB-140/150 Blister Packaging Machine handle various blister pack sizes?
Answer: Yes, the DPB-140/150 Blister Packaging Machine is designed to accommodate a wide range of blister pack sizes. It offers flexibility in adjusting the dimensions of the pockets to meet specific product requirements.
Does the machine offer quality control features?
Answer: Yes, the DPB-140/150 Blister Packaging Machine often incorporates advanced quality control features, including vision inspection systems, rejection of defective packs, precise sealing controls, and monitoring of packaging parameters. These features ensure high-quality packaging and minimize errors.
Is technical support available for the DPB-140/150 Blister Packaging Machine?
Answer: Yes, reliable technical support is typically available for the DPB-140/150 Blister Packaging Machine. Manufacturers provide assistance with installation, training, maintenance, and spare parts availability to ensure smooth operation and minimize downtime.
Can the DPB-140/150 Blister Packaging Machine be integrated with other packaging equipment?
Answer: Yes, the DPB-140/150 Blister Packaging Machine can be integrated with other packaging equipment, such as cartoners or labeling systems, to create a complete packaging line. This integration enhances overall efficiency, reduces manual handling, and streamlines the packaging process.
