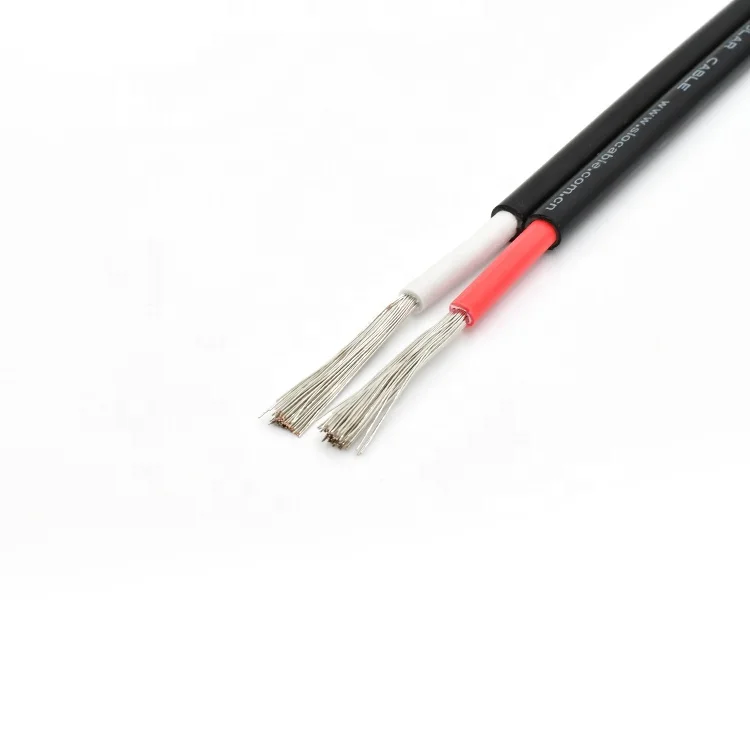

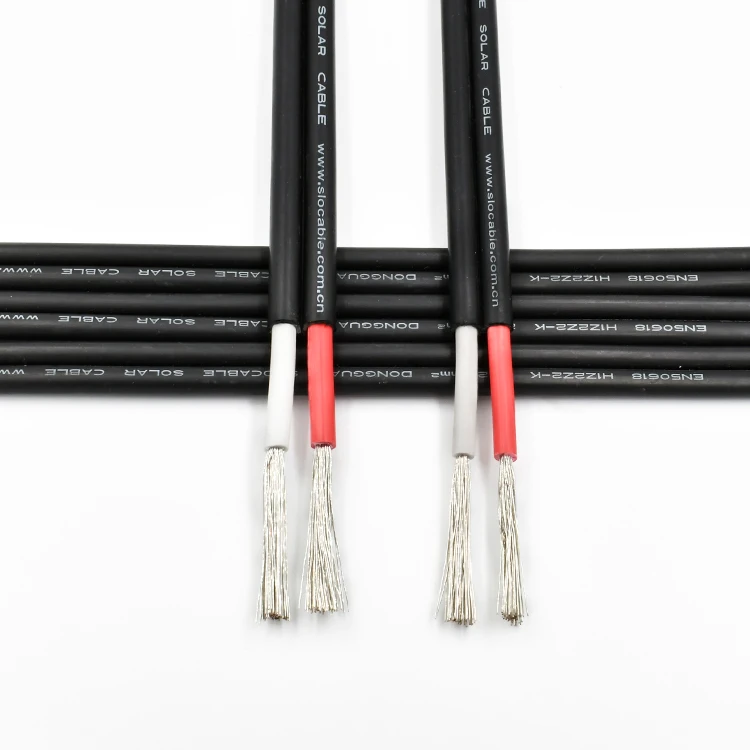

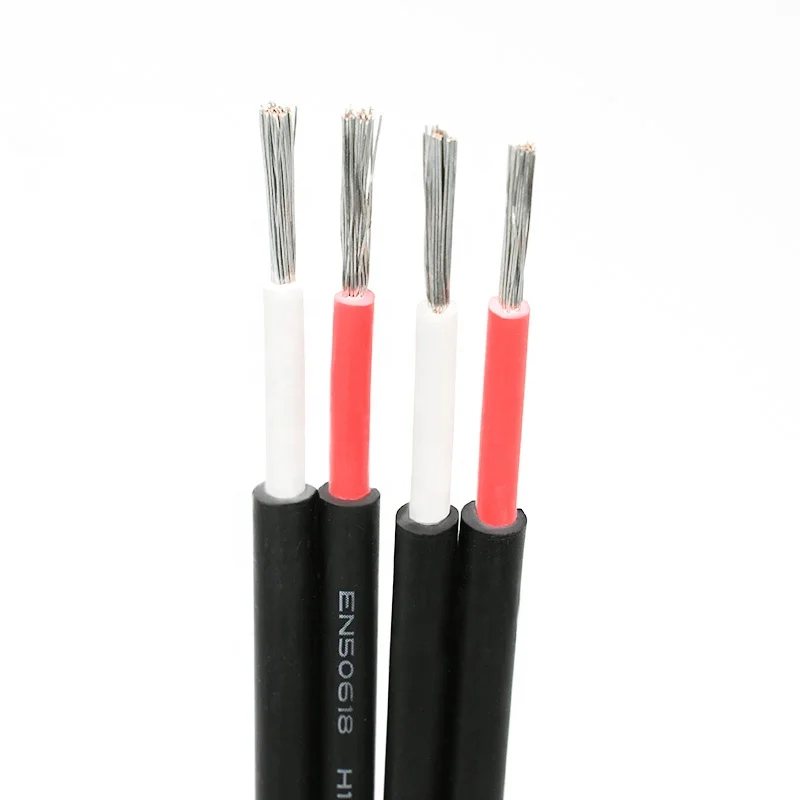

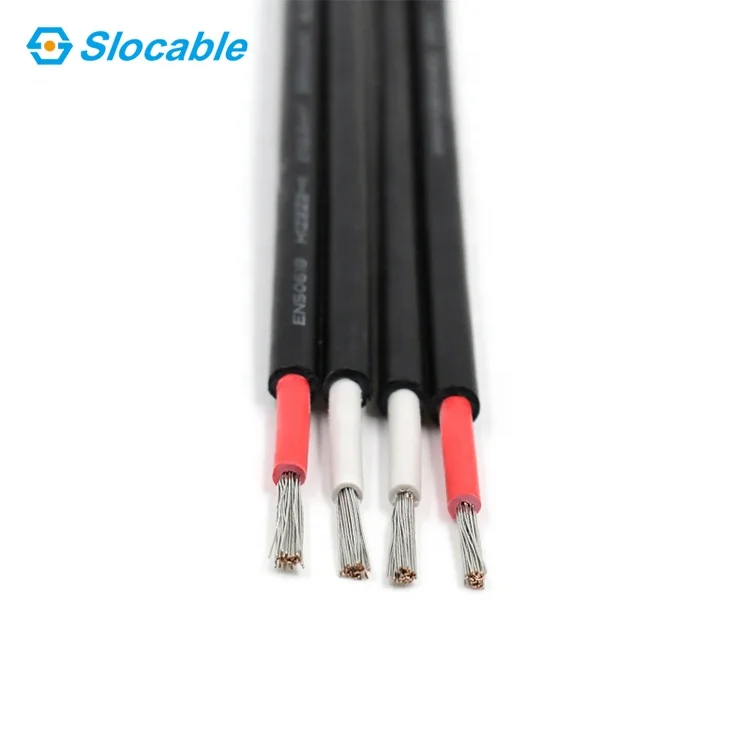

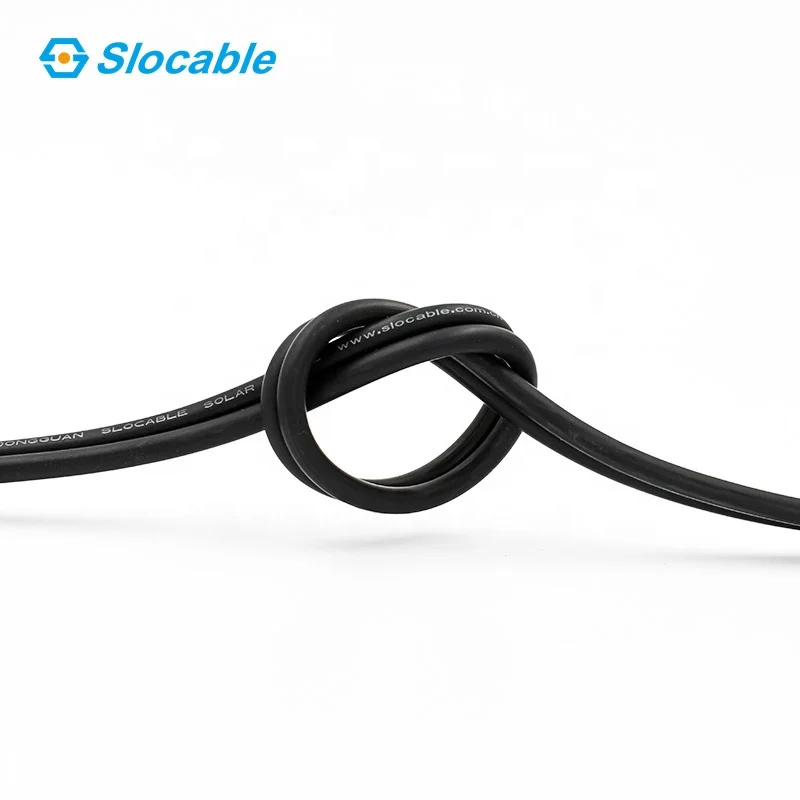

Dual Wall Insulation 10awg Enameled Copper Wire 6mm2 xlpe/xlpo Cable Price Oil Resist PV DC Solar Wire Cable
- Category: >>>
- Supplier: Dongguan Slocable Photovoltaic Technology Co. Ltd.
Share on (1601203802935):
Product Overview
Description
Products Description
Specifications | Cross Section | Conductor Diameter | External Diameter | Max DC Resistance | Rated Current |
2x2.5mm² | 2.5mm² | 2mm | 5.1x2mm±0.2 | 8.21Ω/km | 30A |
2x4.0mm² | 4.0mm² | 2.5mm | 5.6x2mm±0.2 | 5.09Ω/km | 50A |
2x6.0mm² | 6.0mm² | 3.2mm | 6.3x2mm±0.2 | 3.39Ω/km | 70A |
2x10.0mm² | 10.0mm² | 4mm | 7.2x2mm±0.2 | 1.95Ω/km | 95A |
2x16.0mm² | 16.0mm² | 5.5mm | 8.5x2mm±0.2 | 1.24Ω/km | 132A |
Advantage of PV Cable
· Dual wall insulation. Electron beam cross-linked.
· Resistance to UV, water, ozone, fluids, salt, general weathering.
· Dual wall insulation. Electron beam cross-linked.
· Resistance to UV, water, ozone, fluids, salt, general weathering.
· Halogen free, flame, retardant, low toxicity.
· Flexibility and stripping performance.
· TUV, CE, IEC approved.
· High voltage and high current carrying capacity.
· Resistance to abrasion.
· Flexibility and stripping performance.
· TUV, CE, IEC approved.
· High voltage and high current carrying capacity.
· Resistance to abrasion.

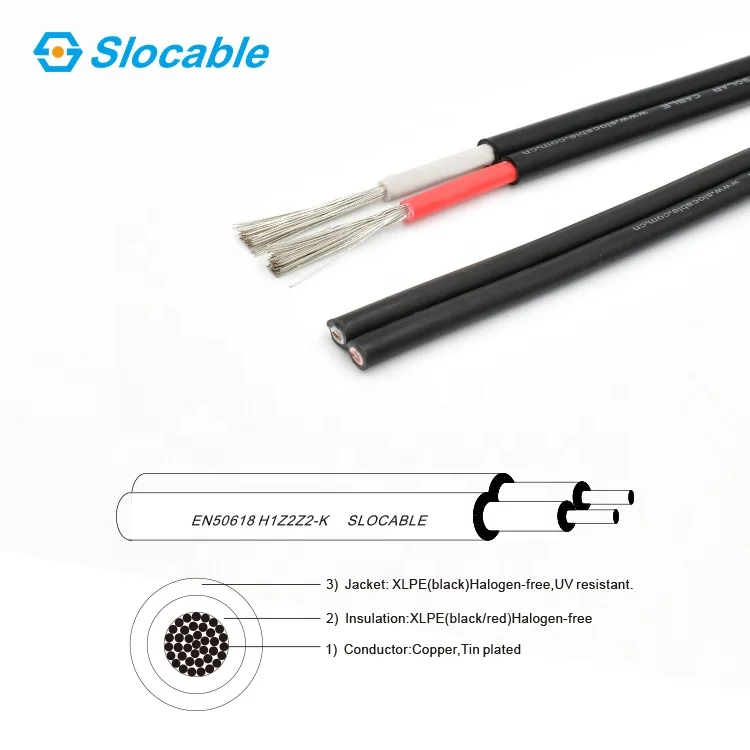

Technical Data
Conductor: 99.99% copper, tinned | UV resistance: EN60811-501 |
Insulation material: XLPE(XLPO) | High voltage and High current |
Double walls insulation | Temperature range: -40°C ~ +85°C |
Halogen-free material: EN50525-1 | Color: Black/Red/Blue/Brown/Grey/Yellow |
OEM & ODM can be accepted | Smallest permissible bending radius: 5 x D |
Flame test: EN60332-1-2 | Smoke density: EN61034-2 |
Ozone resistance: EN50396 | Oil resistance: EN60811 |
Details Images

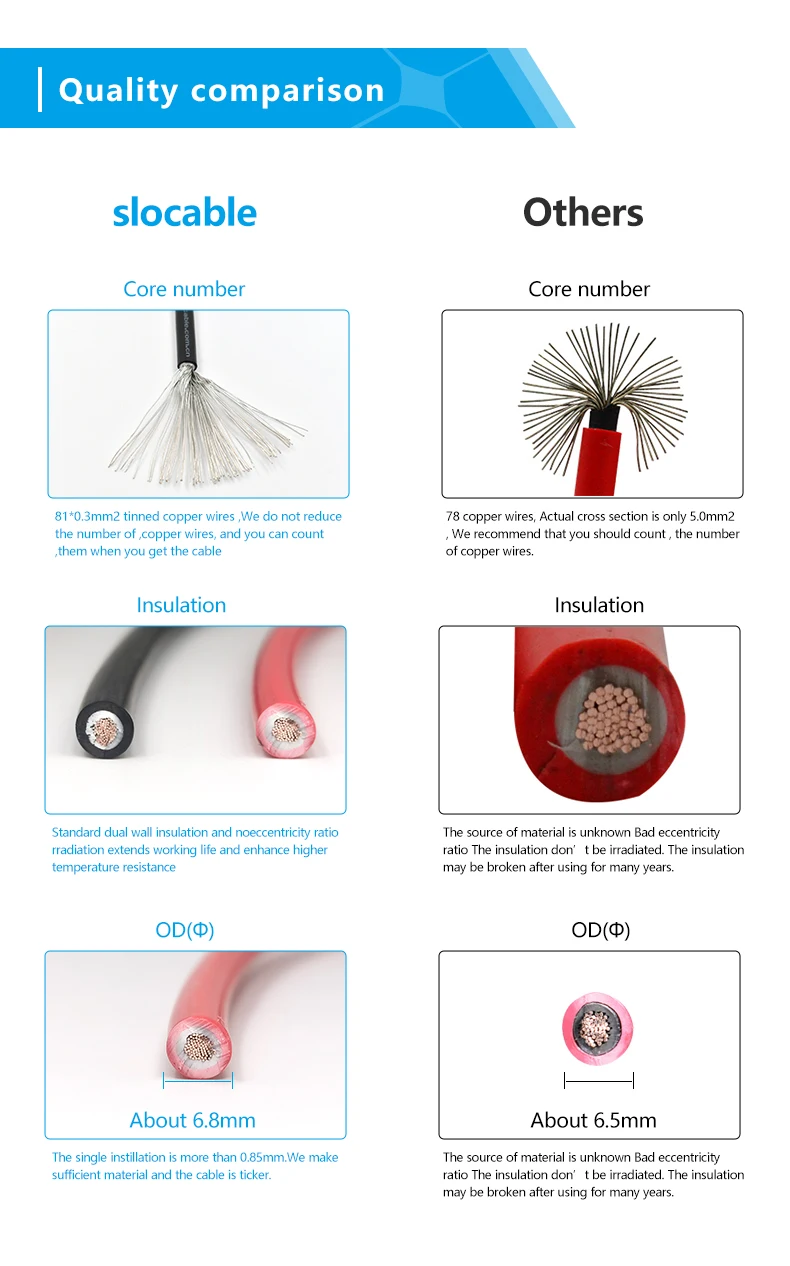

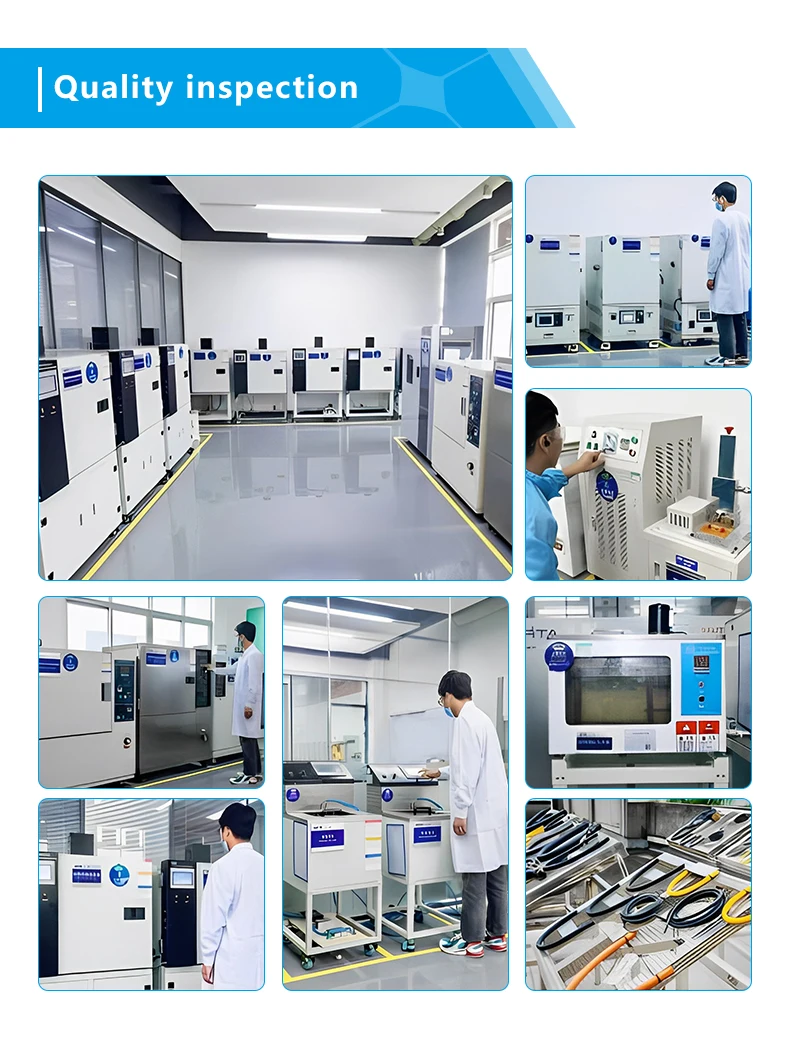

Quality Comparison
Hot Selling

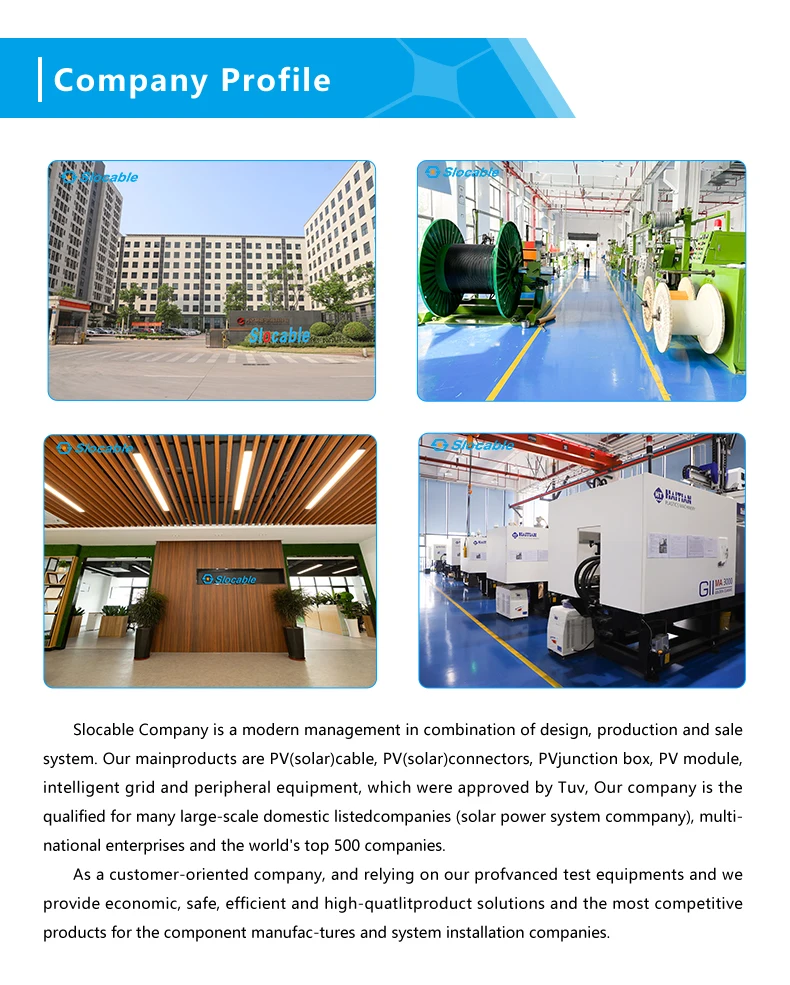

Company Profile
Exhibition & Visitation

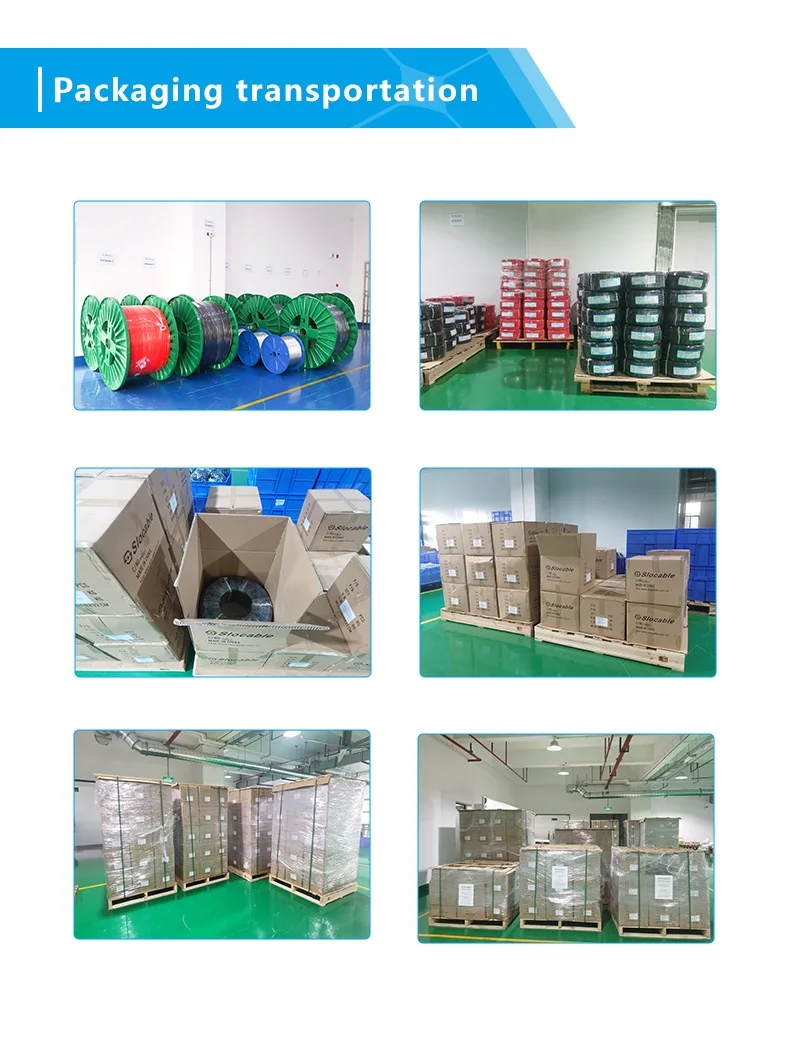

Packaging
