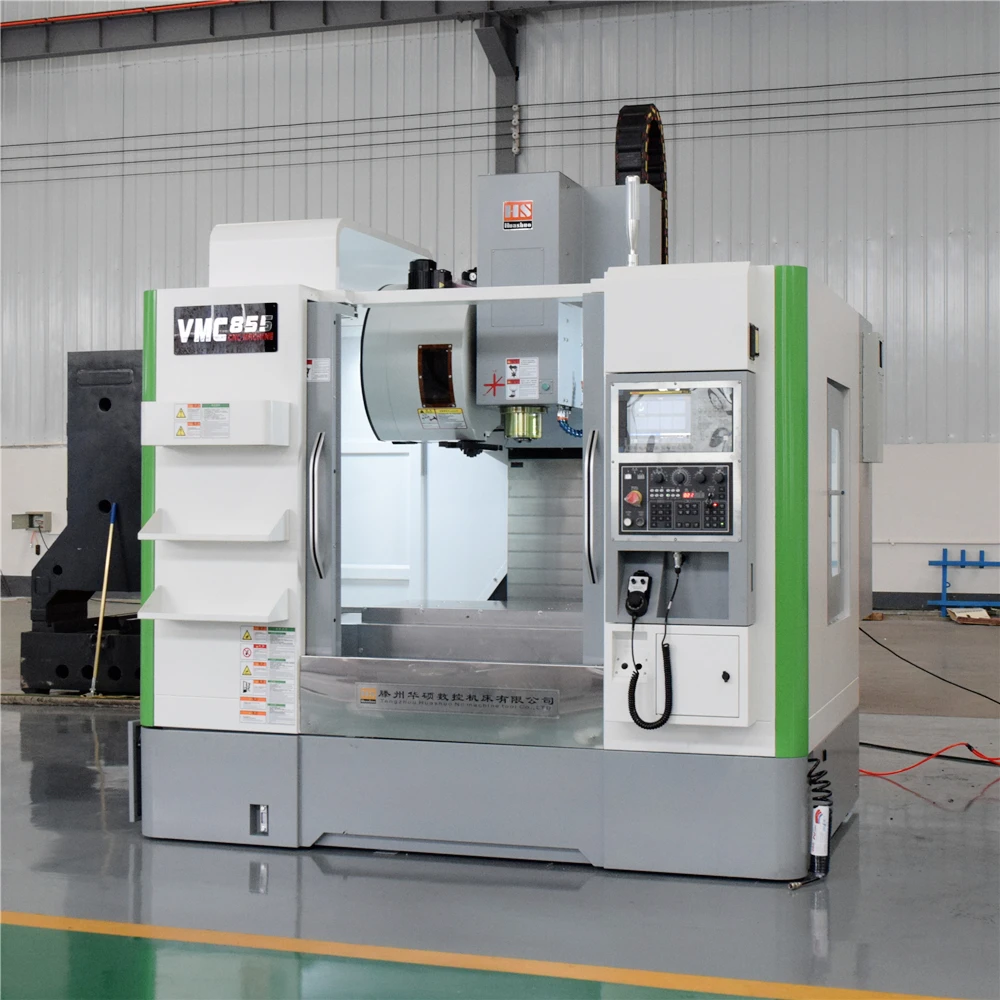

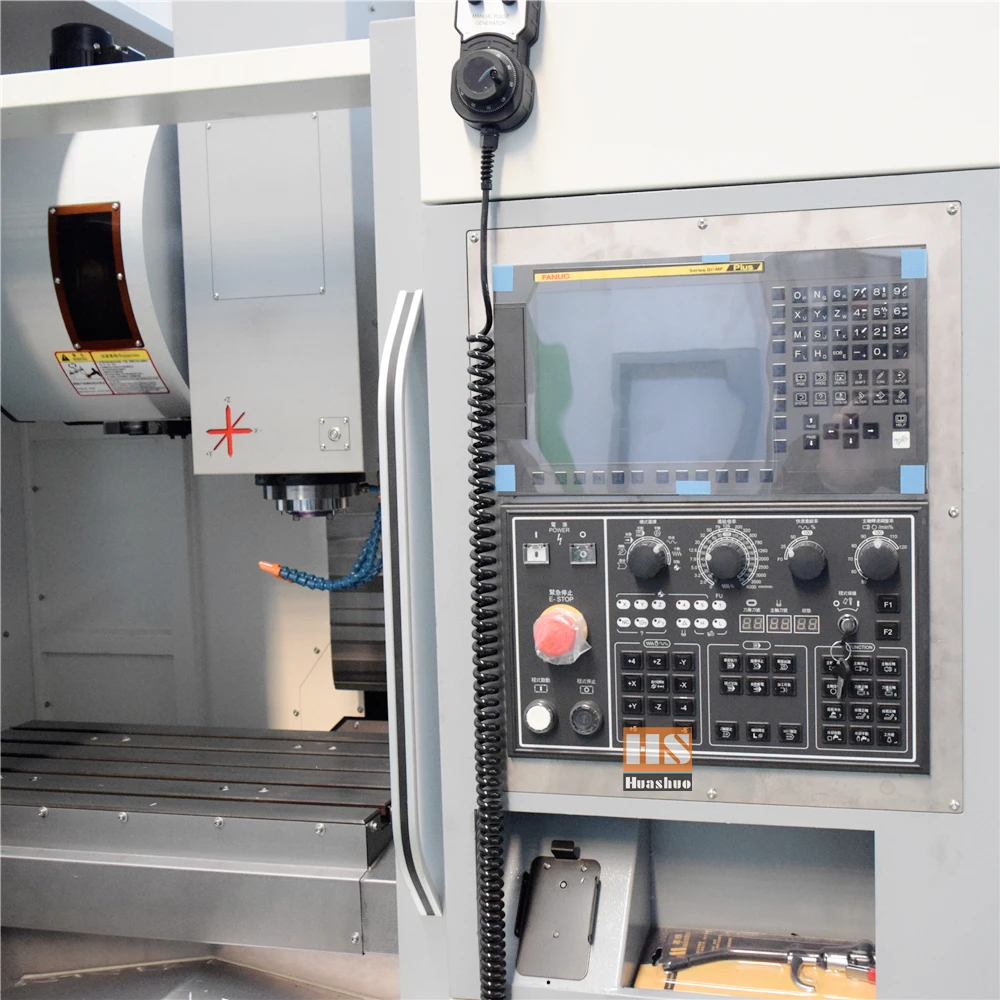

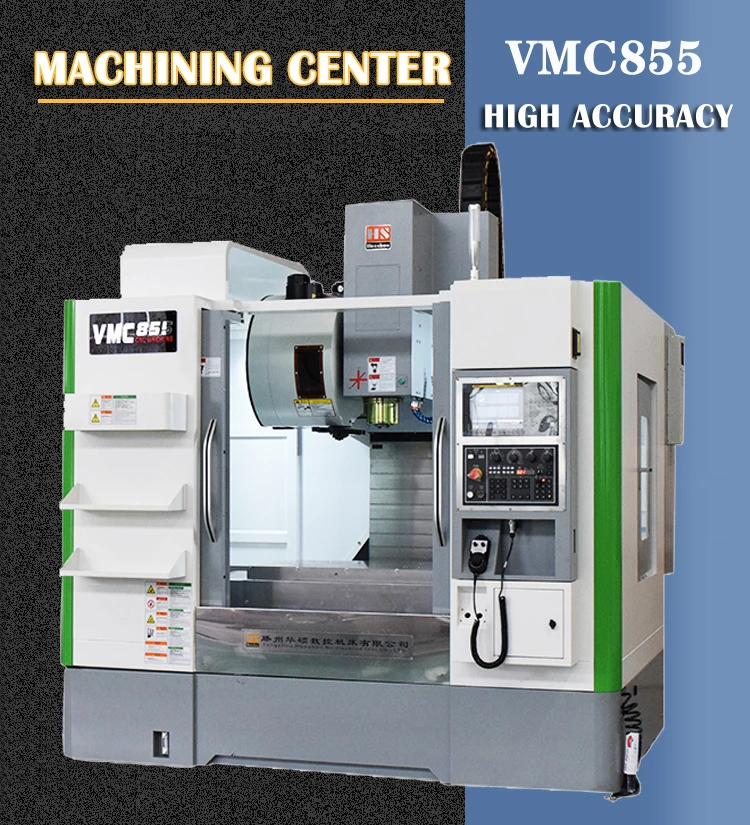

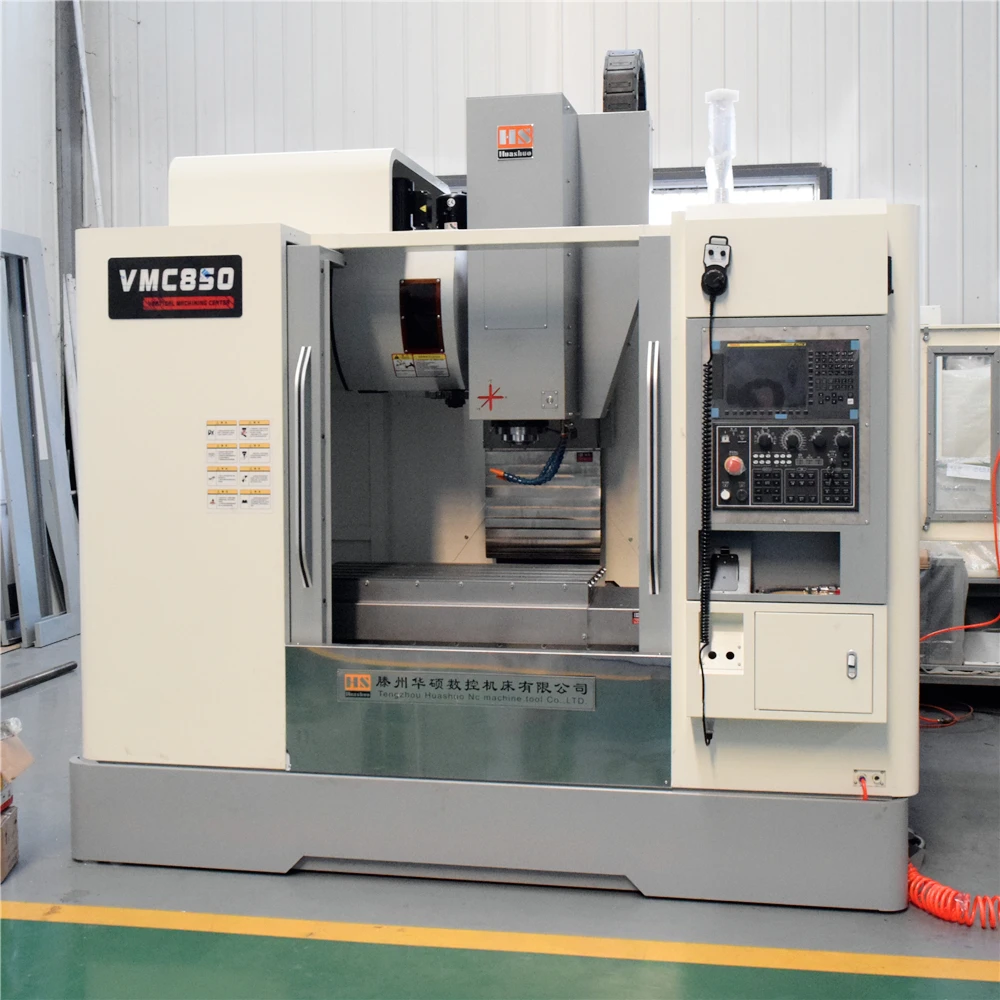

VMC850 cnc vertical milling machining center cnc vertical machining centers gsk cnc controller
- Category: >>>
- Supplier: Tengzhou Huashuo NC Machine Tool Co. Ltd.
Share on (1601204380418):
Product Overview
Description
* Reasons to choose us
1. We are factory direct, you can use the lowest price to buy the best products.
2. The purchase of our products can enjoy a two-year warranty service.
3. We export to more than 30 countries and regions and have rich experience in remote technical support.
4.We have a professional team to provide you with pre-sales selection consultation, technical support in sales, after-sales parts service.
5. Free spare parts with shipping.
6.After sale office in differ country.
* Customer service team
* We have a professional team to provide you with 7*24 hours of service.
R&d team of famous engineers at home and abroad
We have a team of well-known engineers at home and abroad to provide you with product customization services.

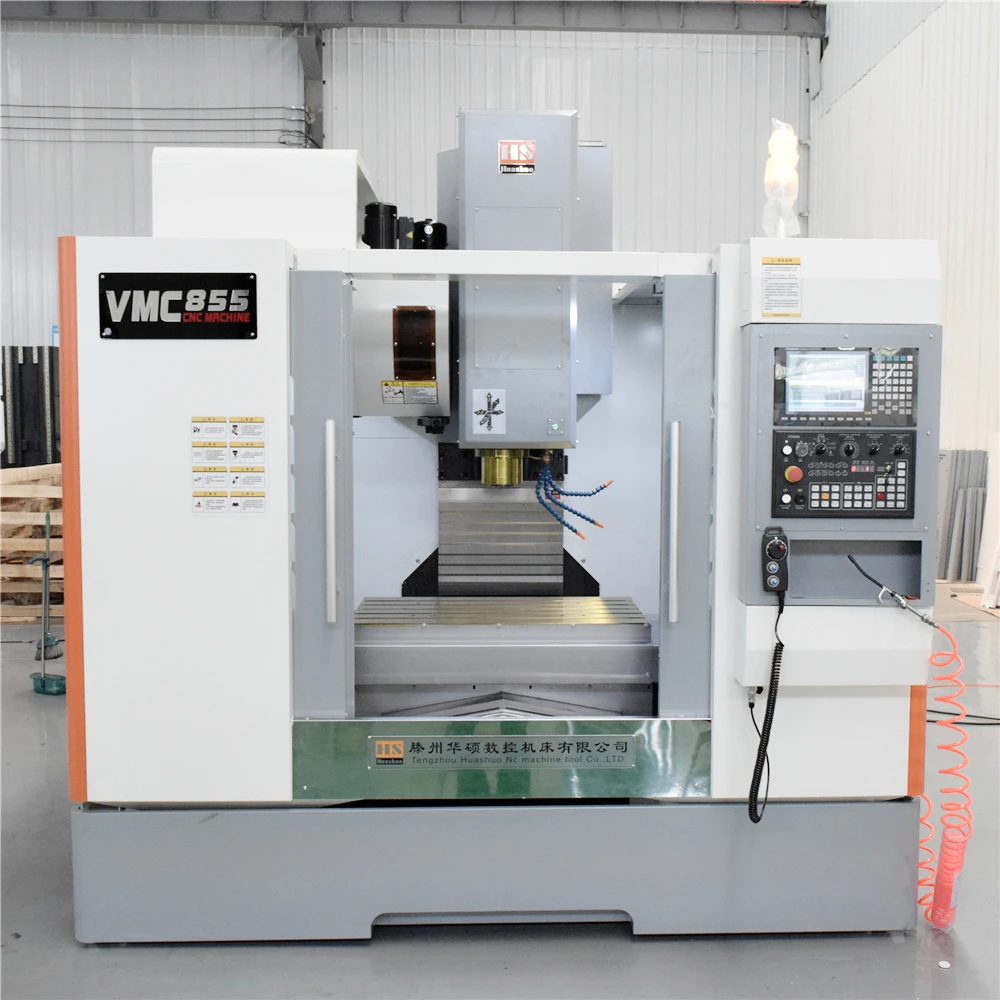

pioject | Content | unit | Vmc855 |

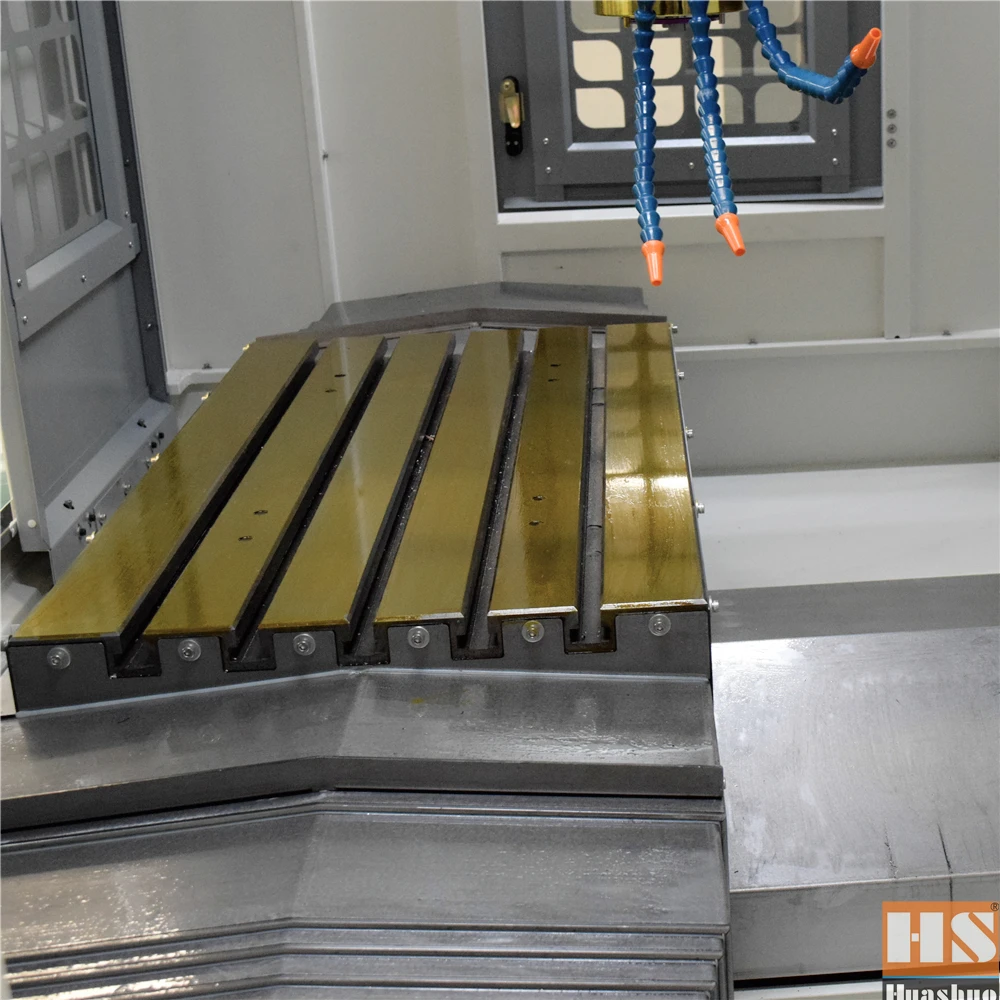

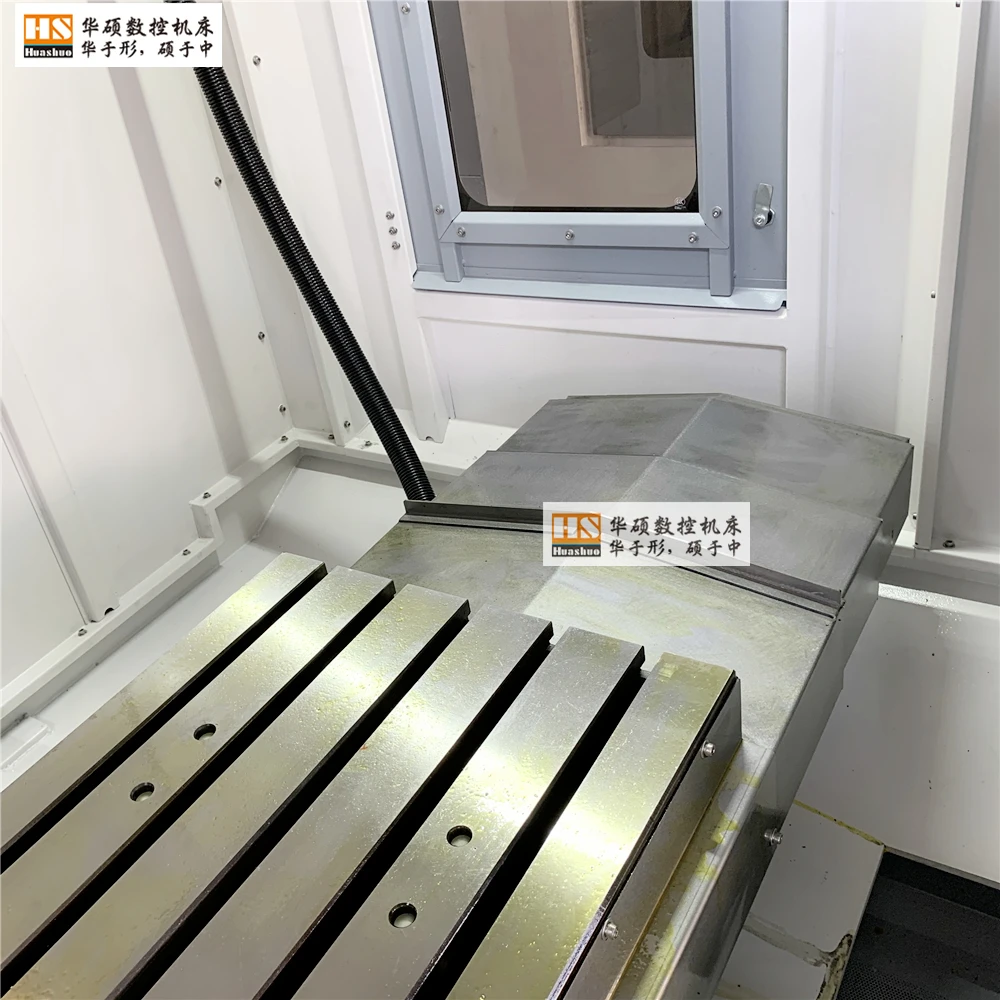

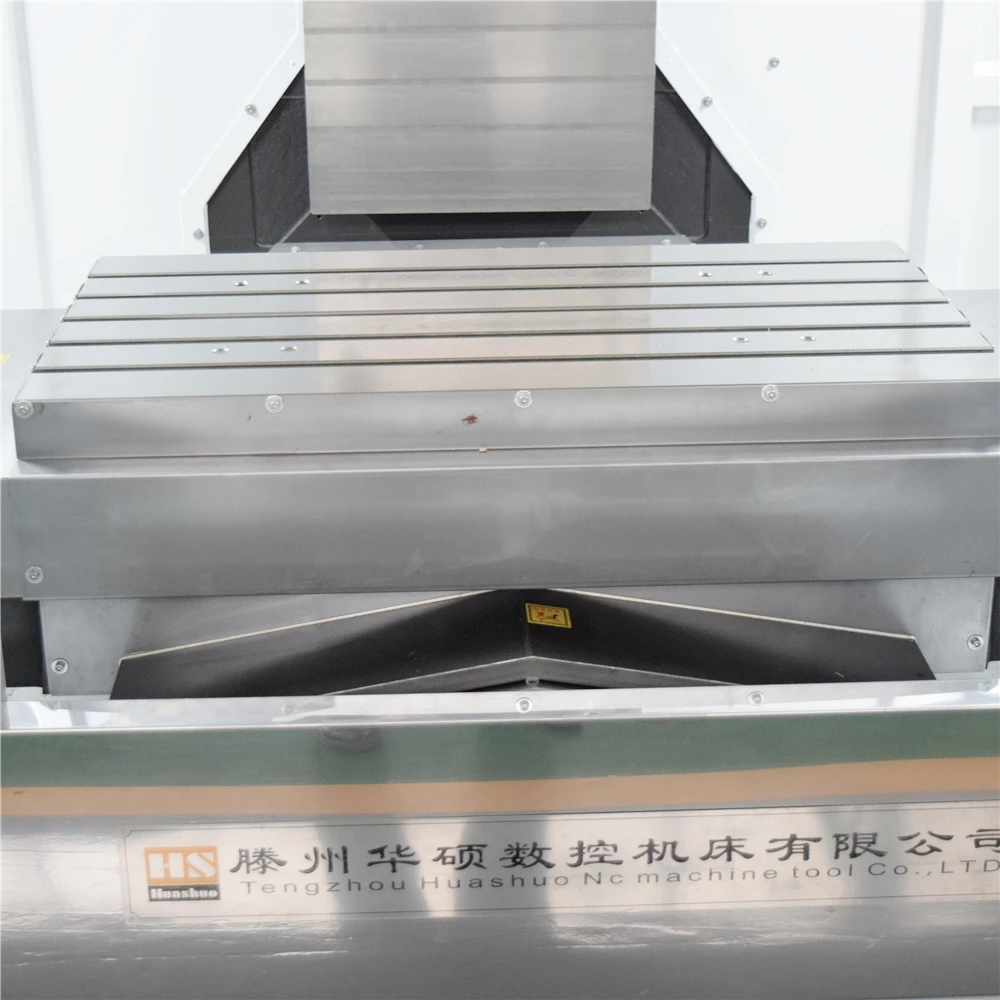

workbench | Workbench area | mm | 1000×550 |
T-shaped groove | mm | 5-18-100 | |
Max capacity | Kg | 800 | |
trip | Moving range X、Y、Z | mm | 800×550×550 |
Distance from spindle nose to workbench | mm | 120-670 | |
Distance from spindle center to column guide rail surface | mm | 550 | |
Feed | Fast moving speed x, y, Z | m/min | 36/34/34/min |
Cutting feed speed x, y, Z | mm/min | 10~10000mm/min | |

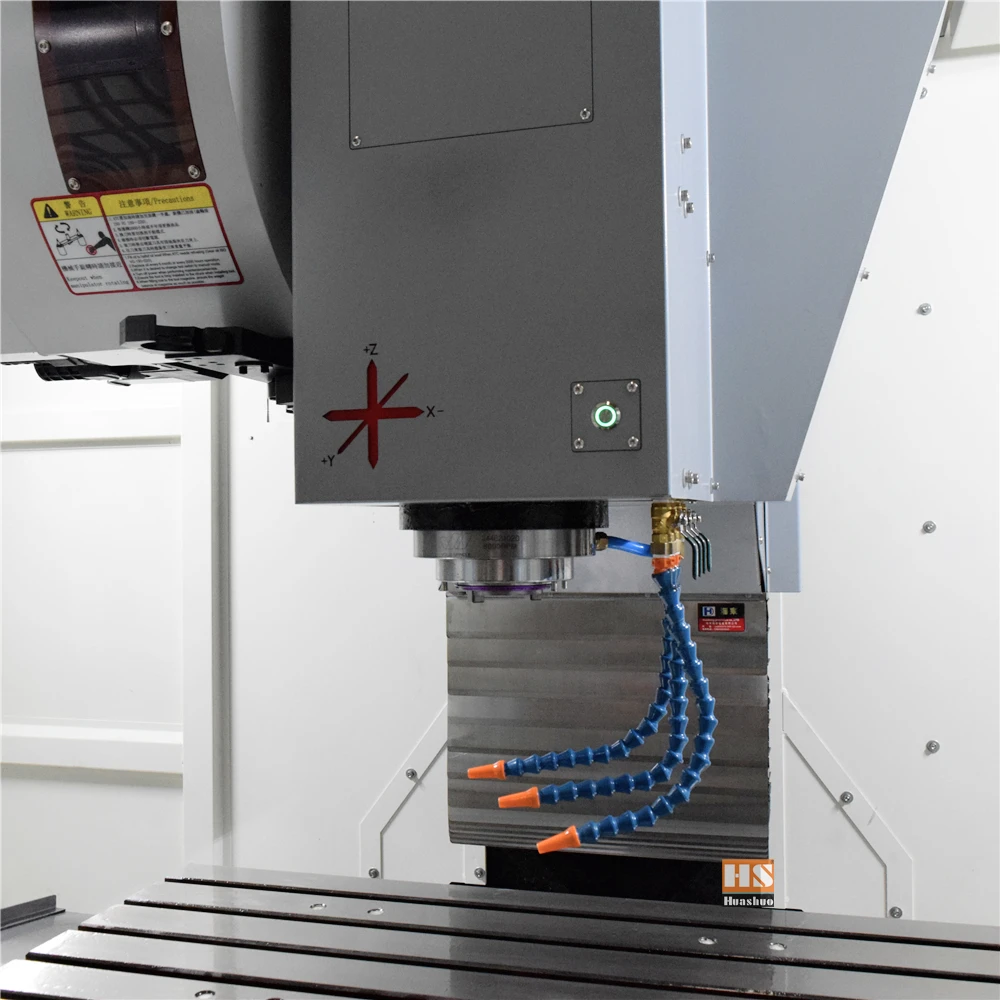

Spindle | Spindle taper hole | BT40 | |
Spindle speed | r/min | 0-8000pm | |
Spindle power | kw | AC servo 7.5-11 | |
Tool magazine | Tool magazine capacity | Bundle | 24 |
Maximum tool weight | kg | 8kg | |
Maximum tool size | mm | φ150×300 | |

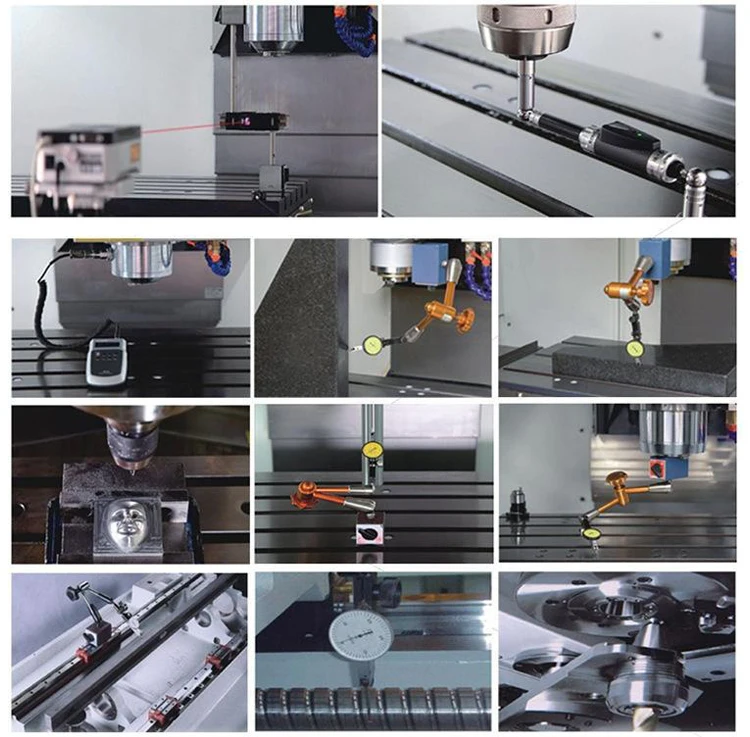

Accuracy | Accuracy positioning accuracy x/y/z | mm | ±0.008 |
Repeat positioning accuracy x/y/z | mm | ±0.005 | |
Dimensions | Overall dimension length width height | mm | 3000*2400*3100 |
weight | KG | 5400 |

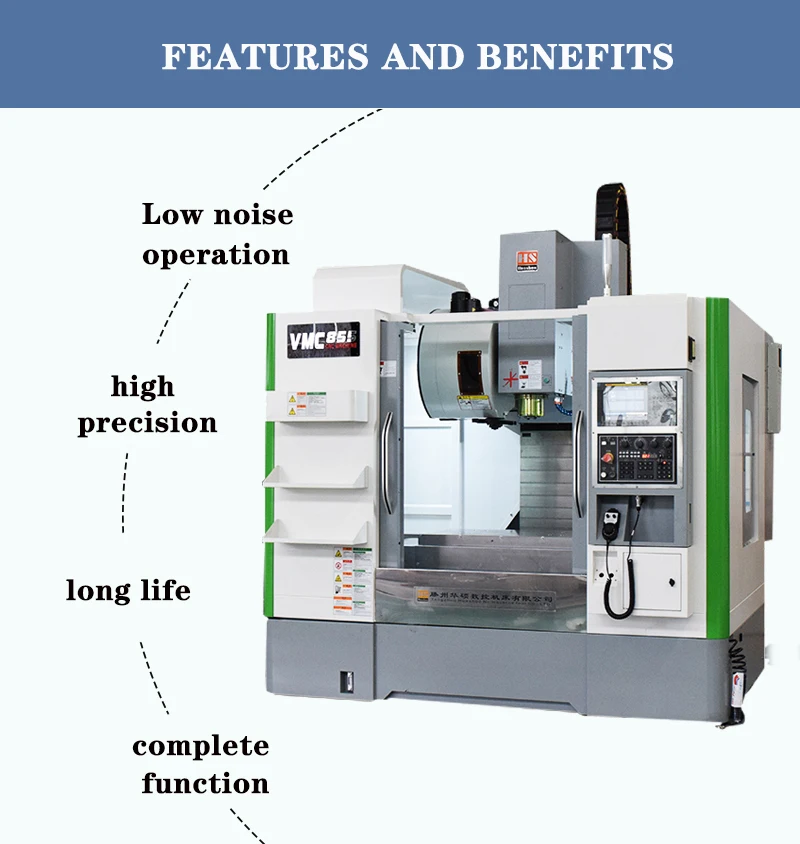

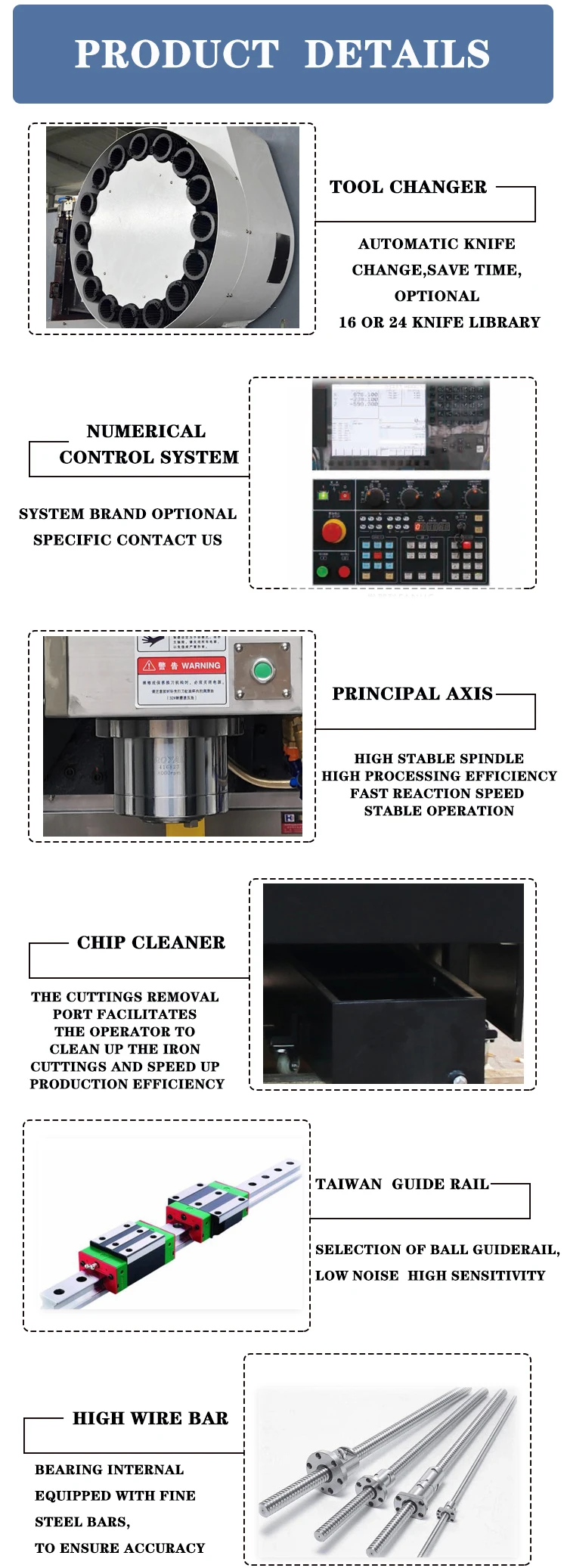

1.Features:
2.High quality resin sand

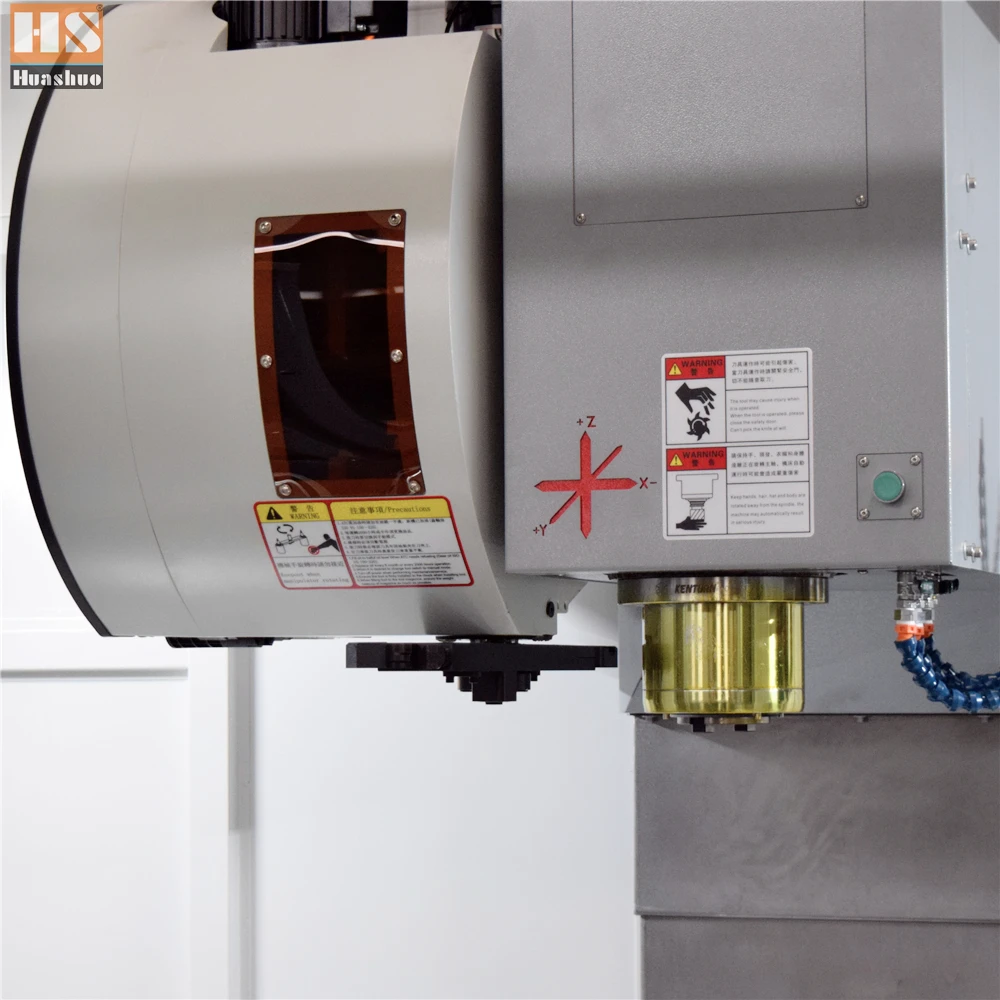

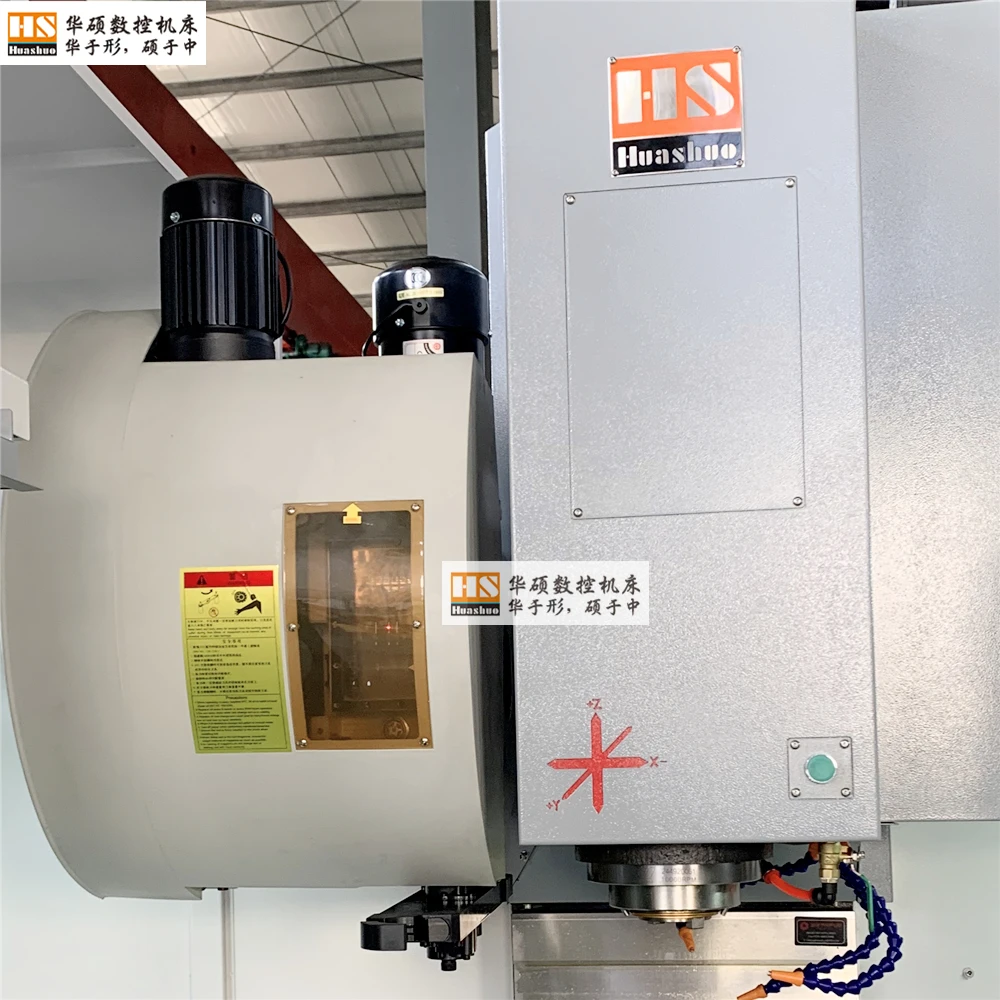

3.Taiwan spindle
4.Taiwan ball screw and locking nut
5.Taiwan pressure cylinder
6.Taiwan linear railway
7.Japanese NSK bearing germany R+W coupling
8.Automatic lubrication system
9.Chip conveyor at optional
2.High quality resin sand
3.Taiwan spindle
4.Taiwan ball screw and locking nut
5.Taiwan pressure cylinder
6.Taiwan linear railway
7.Japanese NSK bearing germany R+W coupling
8.Automatic lubrication system
9.Chip conveyor at optional
10.price favorable
Tengzhou Huashuo CNC Machine Tool Co. Ltd,Products from R & D, manufacturing, sales to after-sales management, strictly implement the ISO9001 quality management system, smooth and efficient production processes, rigorous and meticulous work, to carry out a detailed, precise, advanced testing facilities, to ensure that every product to maintain sustainable high-quality. Continuous innovation, improve efficiency, to provide professional, reliable, high quality, cost-effective products to serve customers worldwide.
FAQ
Q: What time is your work time?
A: We work online 24 hours a day, offer quotes and technical support at any time.
Q: Do you use theTrade Assurance on Alibaba?
A: Yes, all of the order use this. Can guarantee the quality of the product and your payment.
Q: How toget a quote?
A: Please tell us the model you need or send us drawings of the workpiece, then we can recommend the most suitable
products to you. We will give you the best offer within 24 hours.
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer thesample for free charge but do not pay the cost of freight.
Q: How do you ship the goods and how long does it take to arrive?
Weusually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
