HUGEROCK R30B 3 inch waterproof barcode scanner 132K Animal RFID tag handheld industrial Data Collector rugged android pda
- Category: >>>
- Supplier: Shenzhen Soten Technology Company Limited
Share on (1601204705696):
Product Overview
Description

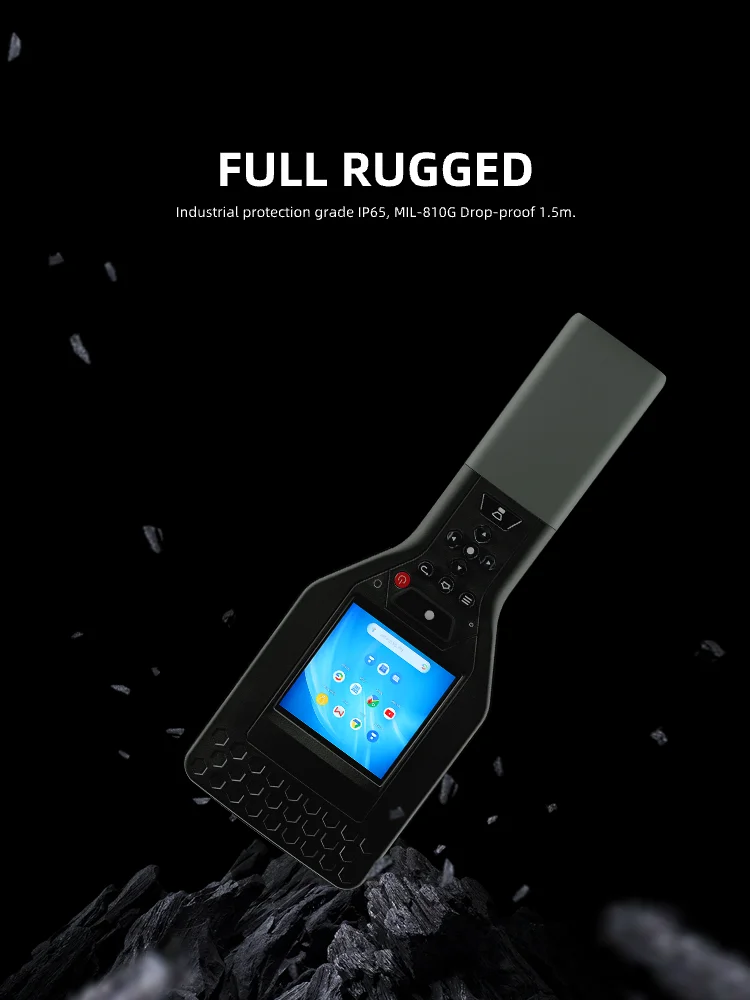

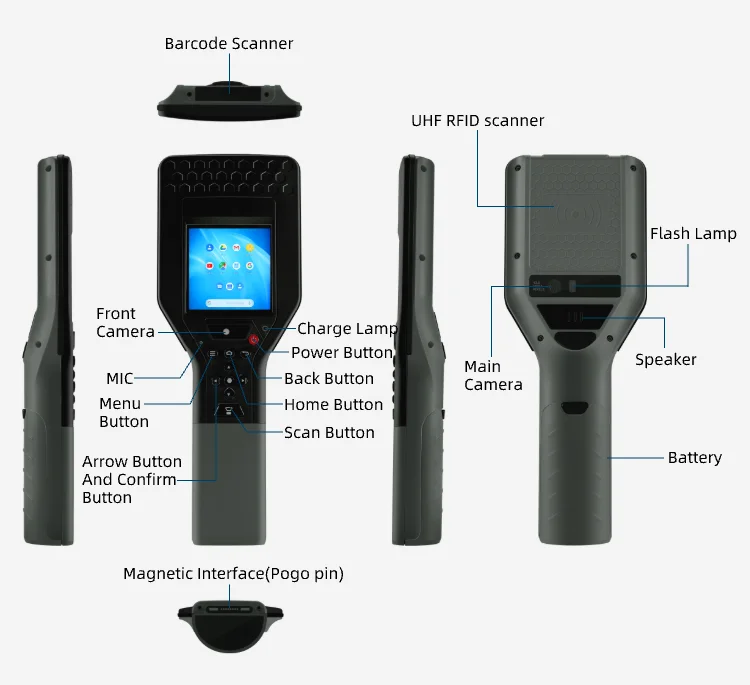

APPEARANCE

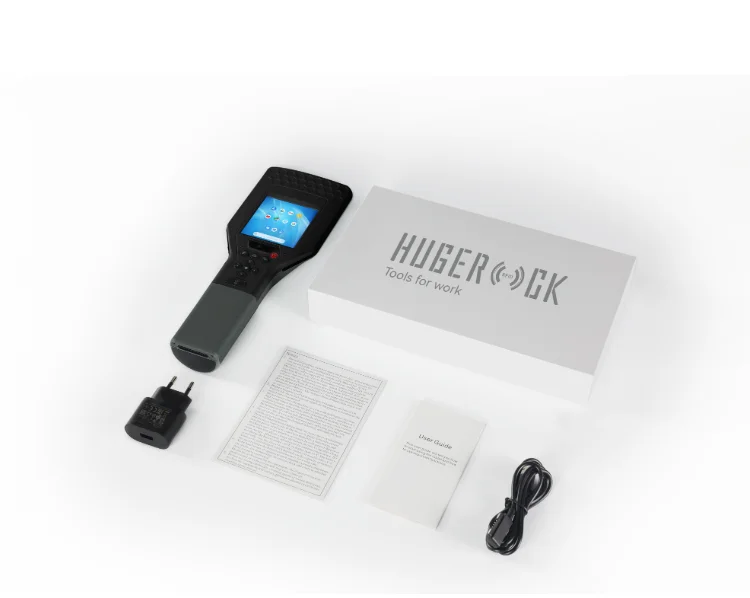

PRODUCT PACKING STANDARD
PRODUCT DETAILS
SPECIFICATION
Hardware | ||

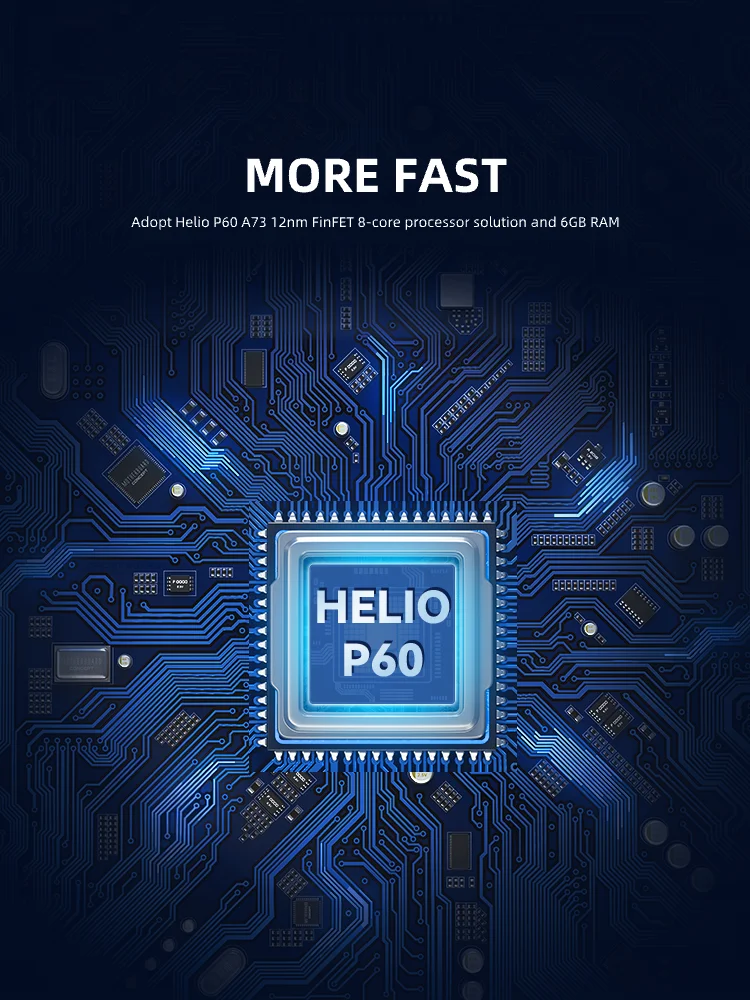

CPU | ARM Cortex A73 Octa-core (2.0GHz) | |
GPU | ARM Mali-G72 MP3 | |
RAM | 6GB | |
Internal Memory | 64GB | |
External Memory | Micro SD card (T-FLASH card), max 256GB | |
Main Camera | 13.0MP(AF) with flash led | |
Sub Camera | 1.0MP | |

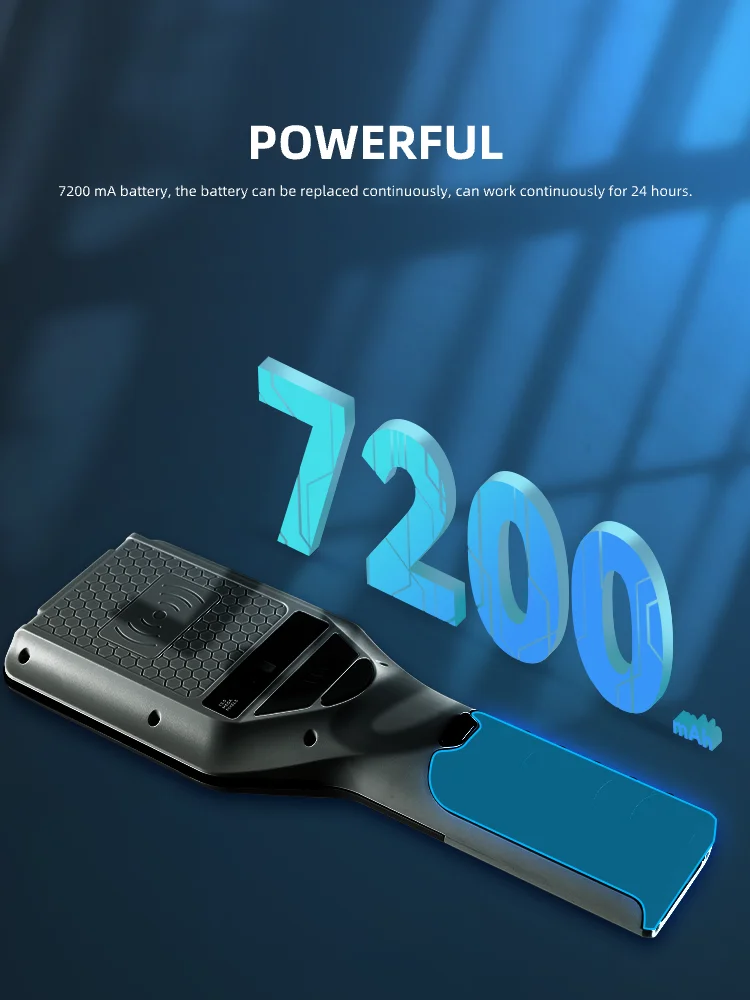

Battery | 7200mAh (Replaceable battery） | |
Display | 3.1inch HD display 720*720 | |
IO/Sensor/Navigation | ||
SIM Card | Micro SIM | |
Data interface | Magnetic interface（Pogo pin）USB&data | |
RFID module | 132K animal tags | |
Gravity sensor | support | |
Motion sensor | support | |
Direction Sensor | support | |
Magnetic Field Sensor | support | |
Gyro sensor | support | |
Rotation Vector | support | |
Light-sensor | support | |
Acceleration sensor | support | |
Charger | 5.0V 2A-10W | |
Navigation | GPS+Beidou+Glonass+AGPS+SBAS （EPO 2.5m） | |
Appearance | ||

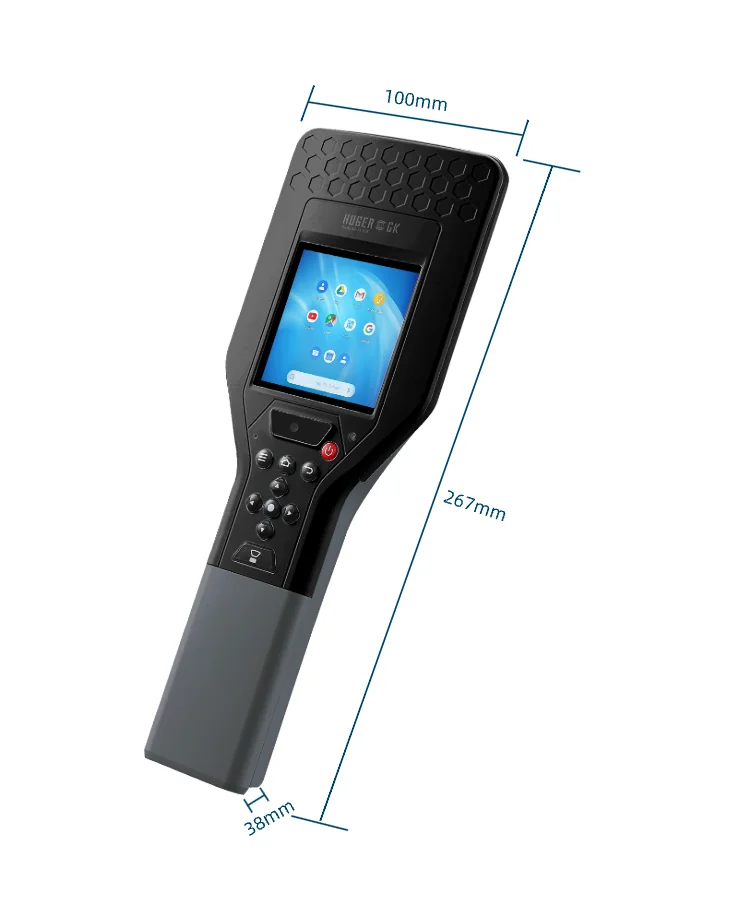

Size | 267*100*38mm（L×W×H） | |
Weight | 447g | |
Color & Material | gray (Metal & ABS) | |
Communications & Networking | ||
Phone Call | GSM /WCDMA/CDMA 1X/VoLTE | |
2G | GSM/CDMA 1X/EDGE/GPRS/WAP | |
2G Band | GSM (B2/3/5/8) | |
3G | WCDMA 3.75G (HSDPA+ 42.2Mbps, HSUPA+ 11.5Mbps) | |
3G Band | WCDMA (B1/2/5/8) | |
4G | FDD: 150Mbps down, 50Mbps UP TDD: 150Mbps downlink, 50Mbps uplink | |
4G Band | TD-LTE (B38/39/40/41); FDD LTE (B1, B2, B3, B4, B5, B7, B8, B12, B17, B20, B28) | |
WI-FI | Dual-band (2.4GHz/5Ghz) single stream 802.11 a/b/g/n/ac | |
BT | 5.0 Low Energy (LE) | |
Industrial & Reliability Design/NFC | ||
Shake-proof | 1-19Hz/1.0mm; 19-200Hz/1.0g | |
Dropproof /IK | MIL-STD-810G/Method516.6/Procedure IV & Touch Panel IK05 | |
Waterproof | Class 5 ( IEC 60529 ) | |
Dustproof | Class 6 ( IEC 60529 ) | |
Operating temperature | -20°C to 55°C | |
Storage Temperature | -40°C to 80°C | |
Reliability | MTBF>5000h; MTTR<0.5 | |
RH | 5% to 95% | |
Operating Altitude | Max: 4,500m (15,000 feet) | |
Certification/OS/Software | ||
Language | English, Spanish, Portuguese(Brazil), Portuguese(Portugal), Italian, German, Dutch, French, Polish,Romanian, Turkish, Russian,Arabic, Indonesian, Malay, Thai, Vietnamese, Hindi, Hebrew, Simplified, Chinese, Chinese Traditional, etc | |
OS | Android 11 | |
Package/Warranty terms | ||
Warranty | 24 months | |
Package | USB cable/Charger 5V 2A/Introduction manual/Screen protector/ Packing box | |
FUNCTION MODULES

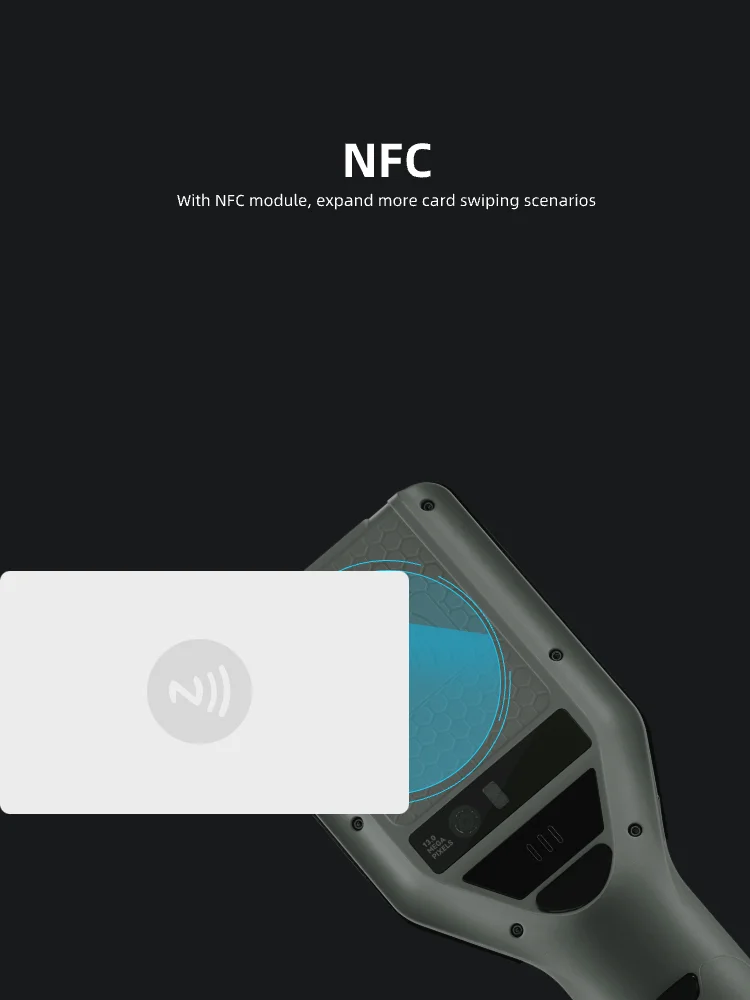

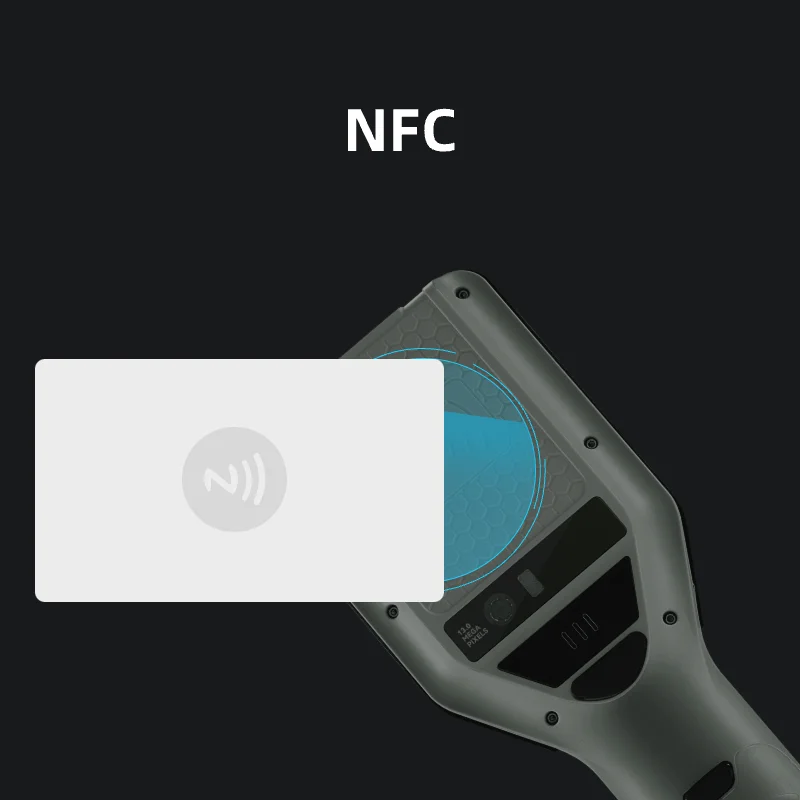

NFC | ||
Protocol standard | ISO14443A/B, ISO15693, NFC | |
Label standard | M1(S50, S70), CPU, NFC | |
Read-write distance | 2-5cm | |

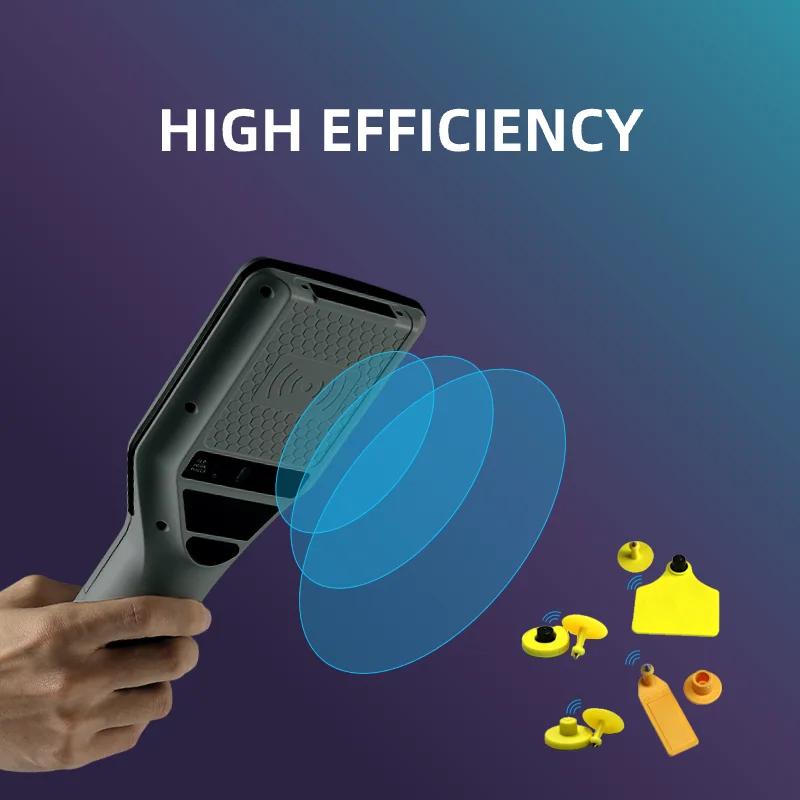

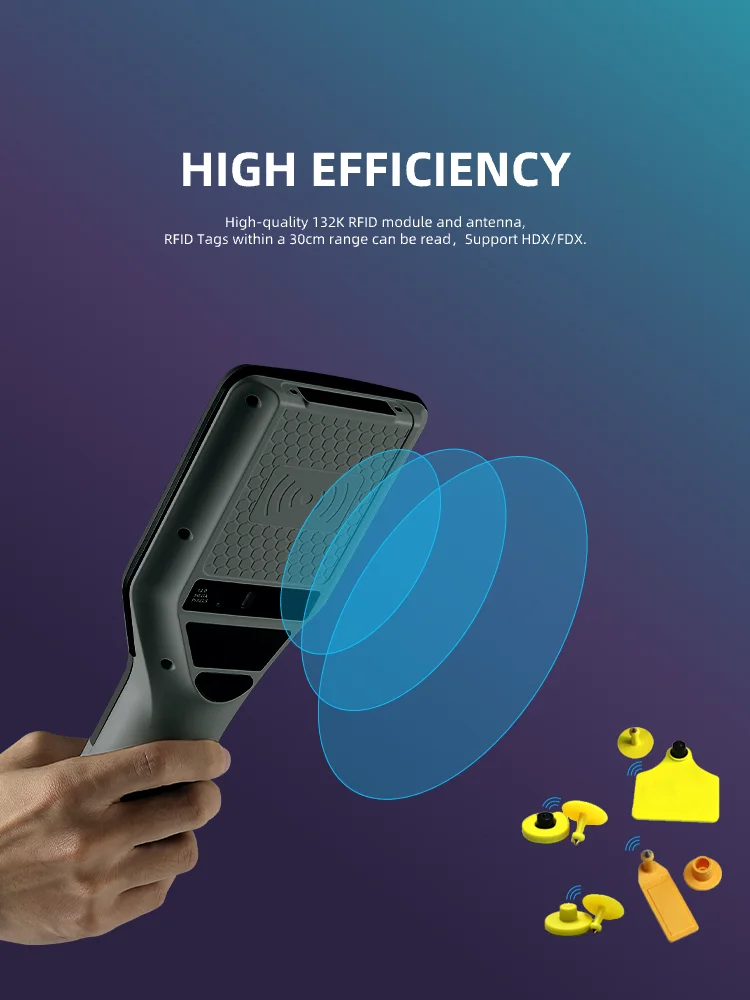

132K LF RFID(support Animal tags) | ||
Operation Frequency | 132 kHz | |
support agreement | ISO11784/5 | |
Read distance | >30cm | |
Working mode | FDX-B/HDX | |

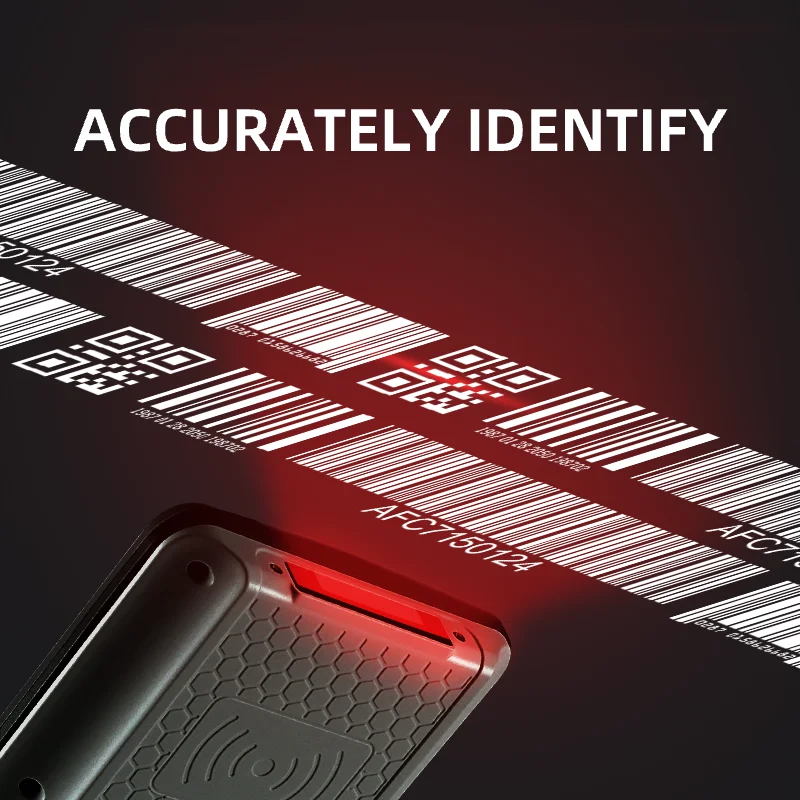

Data Collection | ||
Scanning engine | E20 Barcode module | |
2D | QR Code, Micro QR, Data Matrix, PDF417, Micro PDF417, Aztec, Maxicode, Hanxin code, Dotcode, Composite. | |
1D | Code 128 ( ISBT 128, AIM 128, GSI 128 ), EAN-13, EAN-8, UPC-E, UPC-A, ISBN, ISSN, Code11, Interleaved 2 of 5, Code39, Code93,Code32, Codabar, Matrix 2 of 5, Industrial 25, IATA25, MSI Plessey, GSI DataBar, Plessey, Febraban. | |

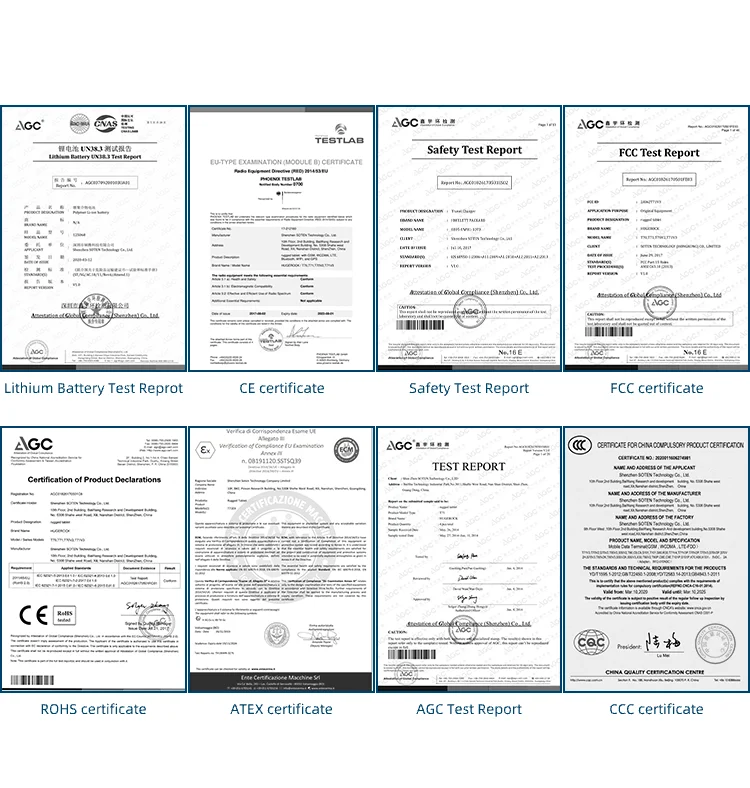

PRODUCT QUALIFICATION
FAQ
Q :Are you manufacturer?
A: Yes, we are manufacturers.All of our products are fully patented, ID/MD design, hardware and
software,mold,assembly are done by our own team.
software,mold,assembly are done by our own team.
Q: Does the handheld can read QR code and common 1d bar codes?
A: Yes, if choose 2d scan version, it can read both 1D common code and 2d codes such as QR, PDF417, Data Matrix, PDF417 code...
Q: Would you provide SDK for me?
A: Yes, we offer free SDK if you order sample.In addition, we also have support engineers to assist you with software
development.ment.
development.ment.
Q: What is the minimum order(MOQ)?
A: We accept one unit for standard products.
Q: Can we get the free sample?
A: Sorry, generally we would not provide the free sample. If the customer confirm the specification and price, they can order the sample firstly for the testing and evaluation.
A: Sorry, generally we would not provide the free sample. If the customer confirm the specification and price, they can order the sample firstly for the testing and evaluation.
Q: Can i choose multiple function into 1 device?
A: We accept T/T (bank transfer), Alibaba online,Western Union 1 Trade Assurance
Q: What's Your Products Warranty?
A: We Offer 24 Months Warranty after shipment sent.
Q: Can I extend the warranty?
A: We offer a deferred warranty for up to 36 Months, and the price for the warranty extension is 10% up..
Q: How long it will take for delivery?
A: For production lead time around 3-10days depend on requirement, and shipping time by DHL/UPS/FEDEX/TNT, delivery time would around 3-5 working days. For some remote place, delivery time maybe a little bit longer.
Q:How to repair the device if any problem ?
A: We will provide technical support online to solve problem; If for the hardware problem , we couldsend the parts or components and teach customer to fit if they have technician or can also send backto us to fix it.
