Product Overview
Description

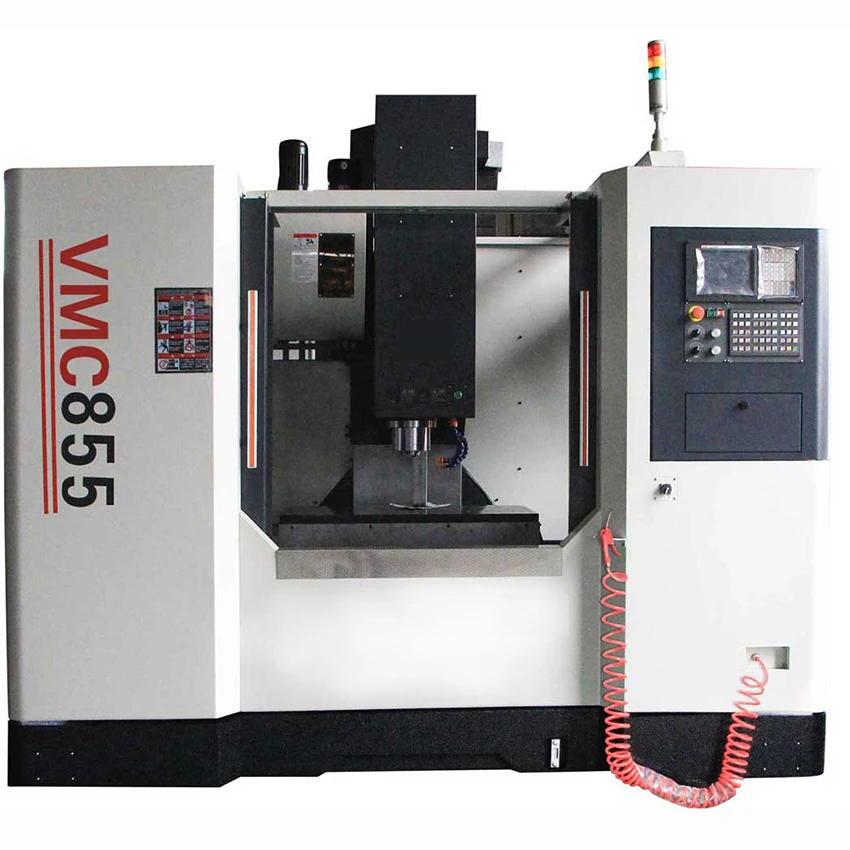

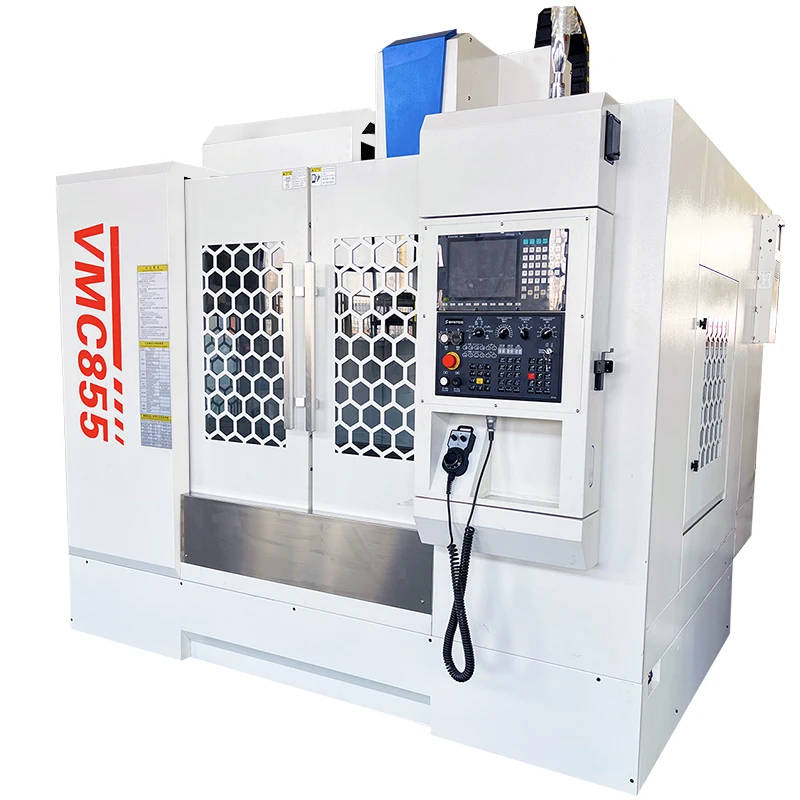

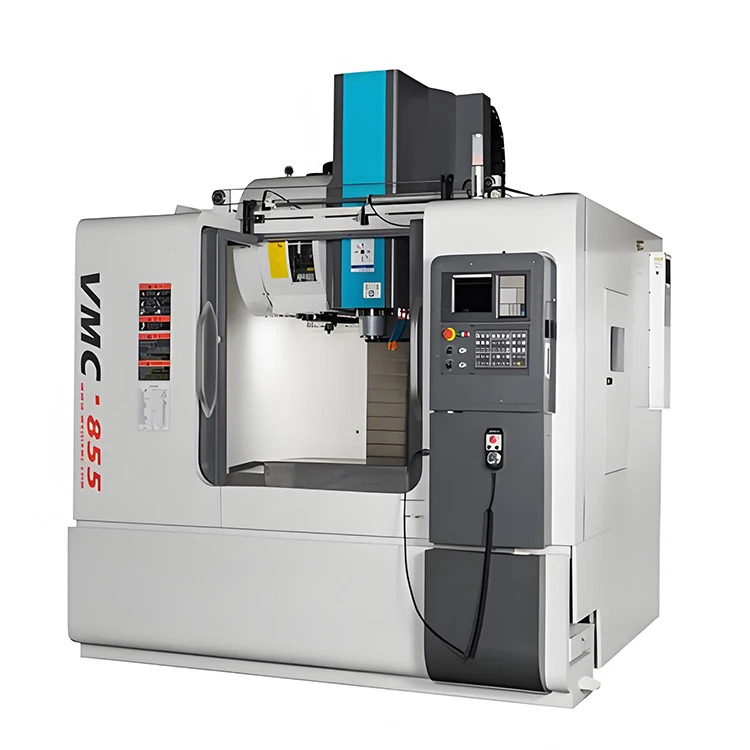

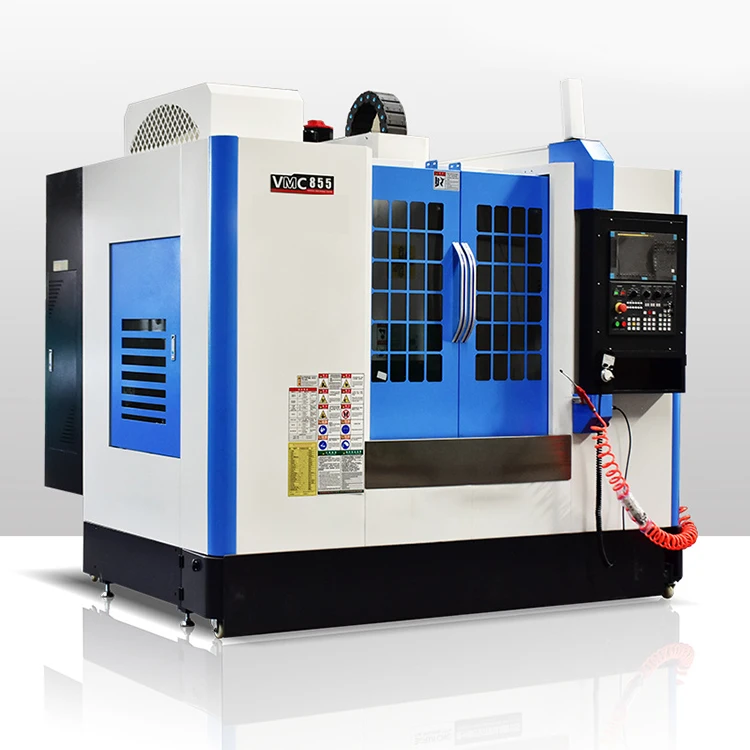

Automatic change tool Drilling Milling Turning machine mini CNC milling machines VMC855 ORG Fanuc CNC milling centre
The body and main components of the machine tool are all made of high-strength cast iron, and the metallographic structure is stable, which ensures the stability of the machine tool during long-term use. The bottom of the column adopts a human-shaped structure, combined with the large box base,which can greatly reduce the vibration of the body during heavy cutting.
Specification | 单位 | VMC7124 | VMC650 | VMC850 | ||
X-axis | mm | 500 | 600 | 800 | ||
Y-axis | mm | 320 | 500 | 500 | ||
Z-axis | mm | 430 | 500 | 500 | ||
Table size | mm | 260*800 | 500*800 | 500*1000 | ||
Max.table load | kg | 200 | 400 | 500 | ||
T-slot | mm | 3-16*75 | 4-14*84 | 5-18*90 | ||
Spindle center ti column surface | mm | 400 | 550 | 570 | ||
Spindle taper | BT40 | |||||
Spindle Speed | rpm | 8000 /10000/12000 | ||||
Spindle motor | kw | 5.5 | 5.5 | 7.5 | ||
XYZ axis rapid traverse | M/ min | 36/36/36 (48/48/48) | 36/36/36 (48/48/48) | 36/36/36 (48/48/48) | ||
XYZ axis cutting feed rate | M/ min | 1--10 | ||||
Magazine type | T | 12 | 24 | |||
Max.Tool length | mm | 300 | ||||
Max.Tool weight | kg | 8 | ||||
Positioning accuracy | mm | 0.005/300 | ||||
Repositioning accuracy | mm | 0.003/300 | ||||
Machine dimensions(L*W*H) | mm | 1650*1390*1950 | 1650*1390*1950 | 2600*2340*2600 | ||
