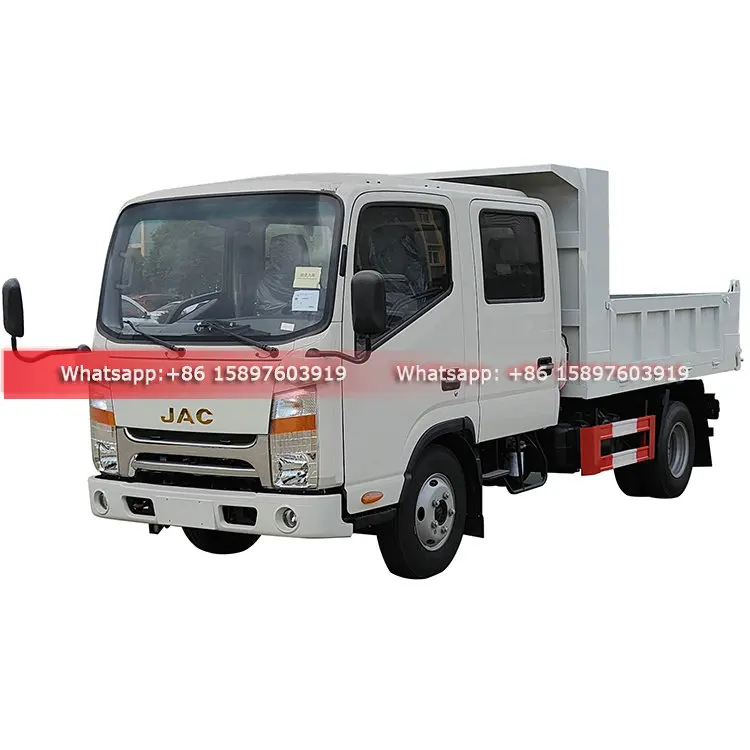

Good Quality JAC Double Row Cabin Mini 2.5Tons Dump Truck for Sales
- Category: >>>
- Supplier: Hubei Runli Special Automobile Co. Ltd.Hubei Ltd.
Share on (1601205058539):
Product Overview
Description
Product Description

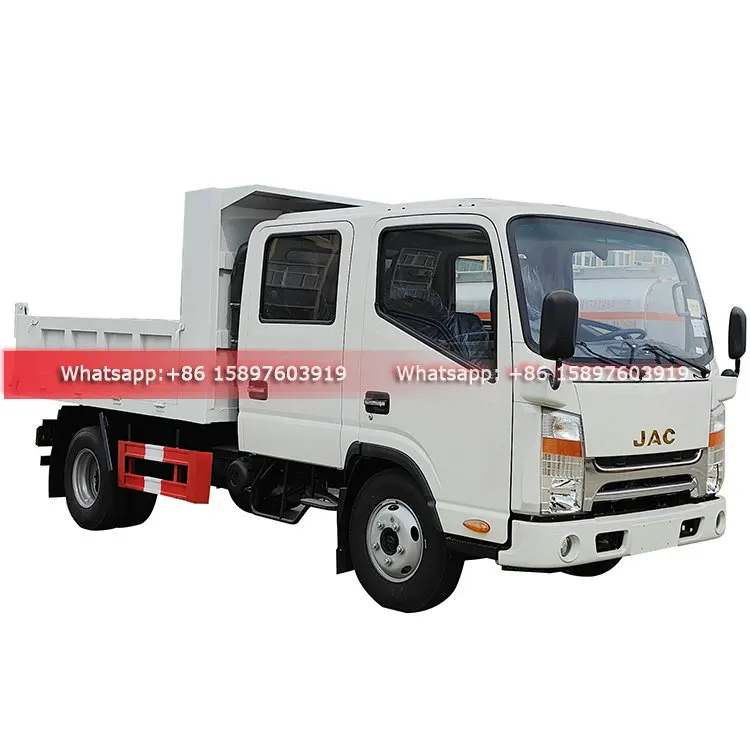

Good Quality JAC Double Row Cabin Mini 2.5Tons Dump Truck for Sales
Specification

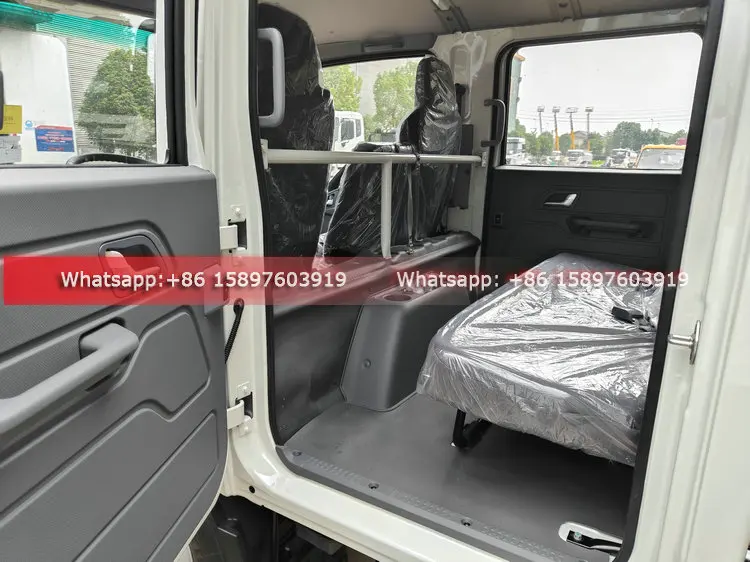

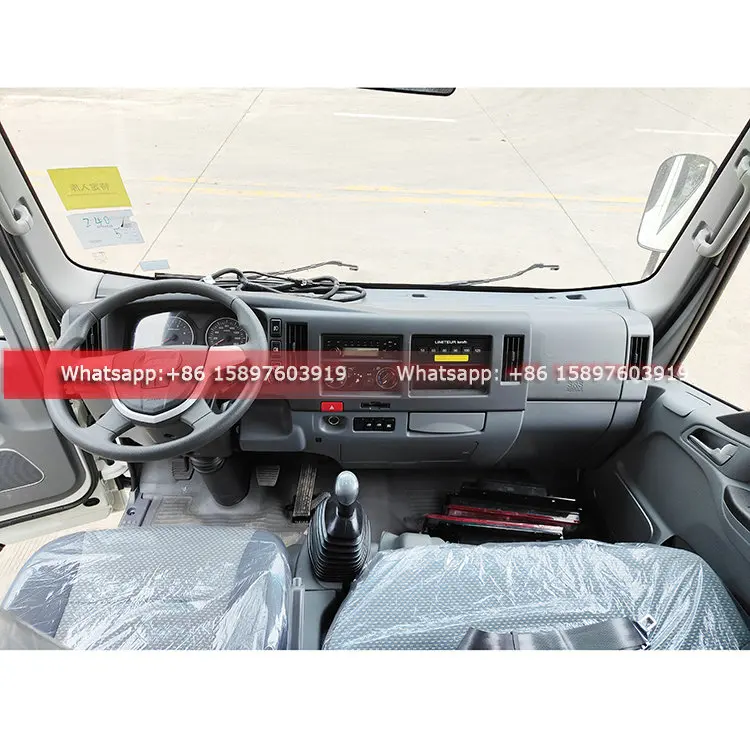

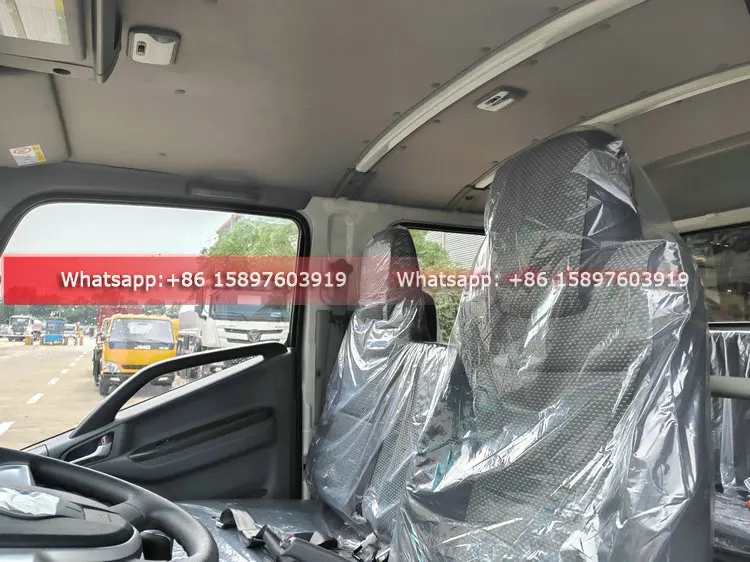

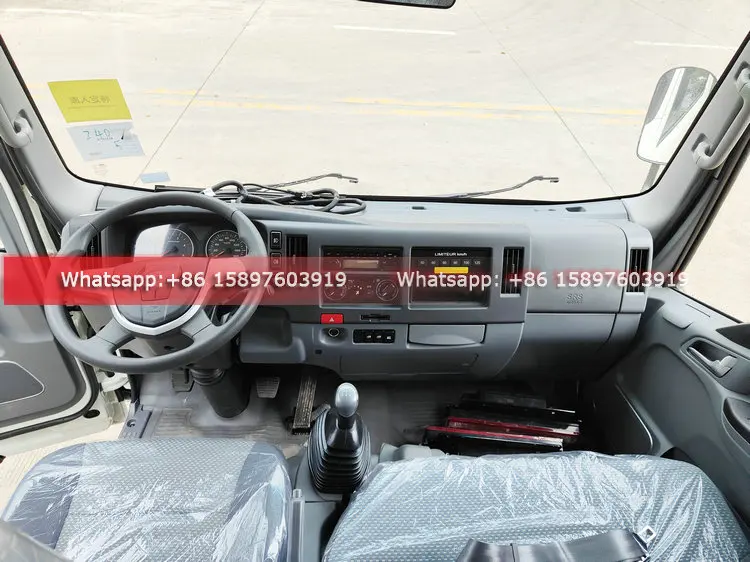

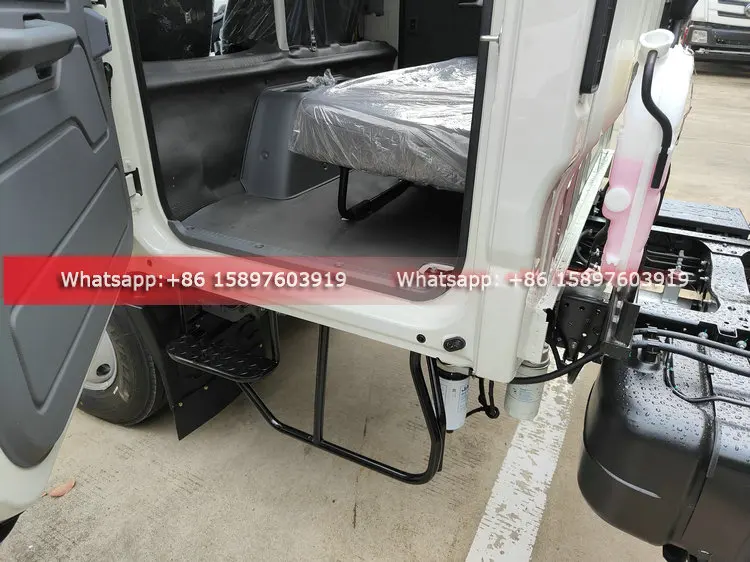

Cabin / Passenger Capacity | Single row seat,1695 mm cabin width, 2 passengers + 1 driver,front lifting,stereo radio/cassette recorder,air conditioner. | ||
Chassis | Model | HFC1050L3K2T-1B | |
Overall dimensions | 5995x1890x2330mm (L*W*H) | ||
G.V.W | 4590 kg | ||
Curb weight | 2525 kg | ||
Rated load | 1835 kg | ||
Design load | 4000 kg | ||
Drive type | 4x2 | ||
F/R suspension | 1105/1530 mm | ||
Wheelbase | 3360 mm | ||
Number of axles | 2 | ||
Axle-load | 1620/2870 kg (one rear driving axle) | ||
Approach/Departure angle | 24/15 ° | ||
Number of leaf spring | 8/4+5 | ||
F/R track | 1440/1425 mm | ||
Tire ( No. & specification) | 6pcs+1pc, 7.00R16 radial tire | ||
Max speed | 98 km/h | ||
Brake system | Hydraulic braking | ||
Steering | Power steering | ||
Transmission | MSB-5M, Mechanical,5 forward + 1 reverse gears | ||

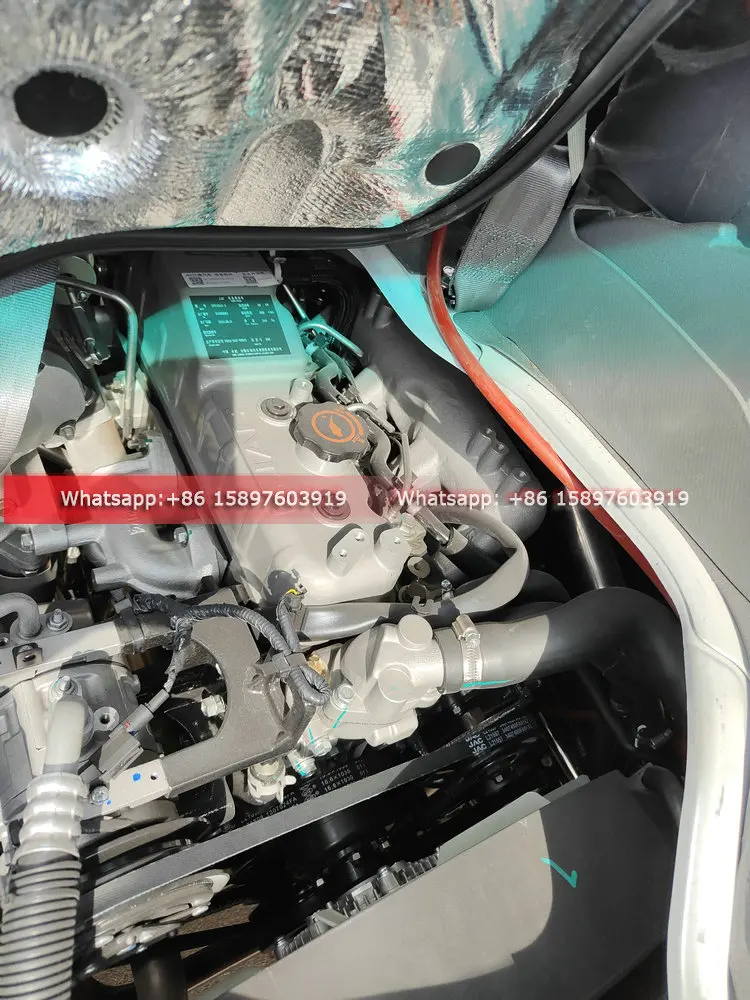

Engine | Engine model | HFC4DA1-1 | |
Type of fuel | Diesel | ||
Power | 68KW(92HP) | ||
Description | In line,water cooled, four strokes,turbo charged,inter direct injection cooled, | ||
Rated revolution | 3600rpm | ||
Max torque | 202N.m@2100-2300 rpm | ||
Exhaust | 2771 ml | ||

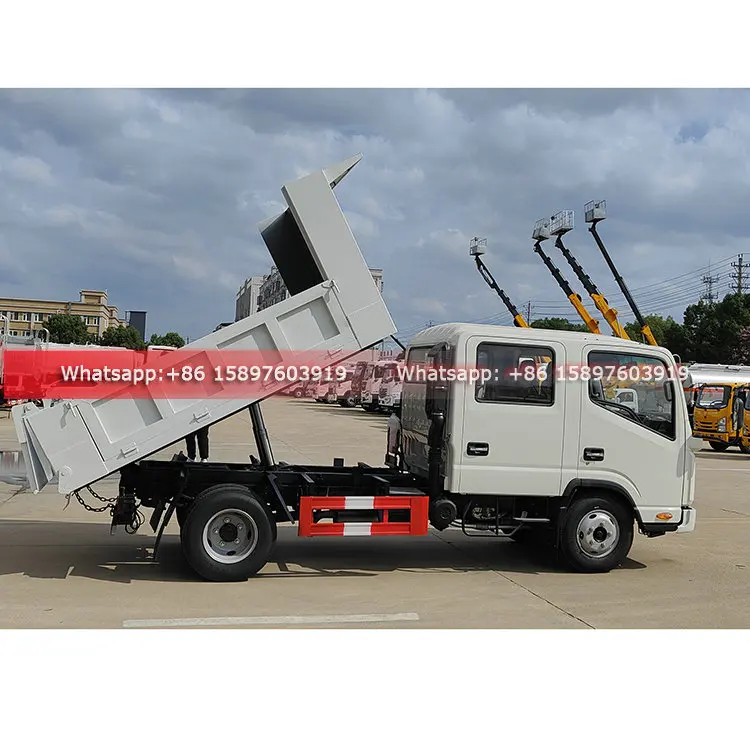

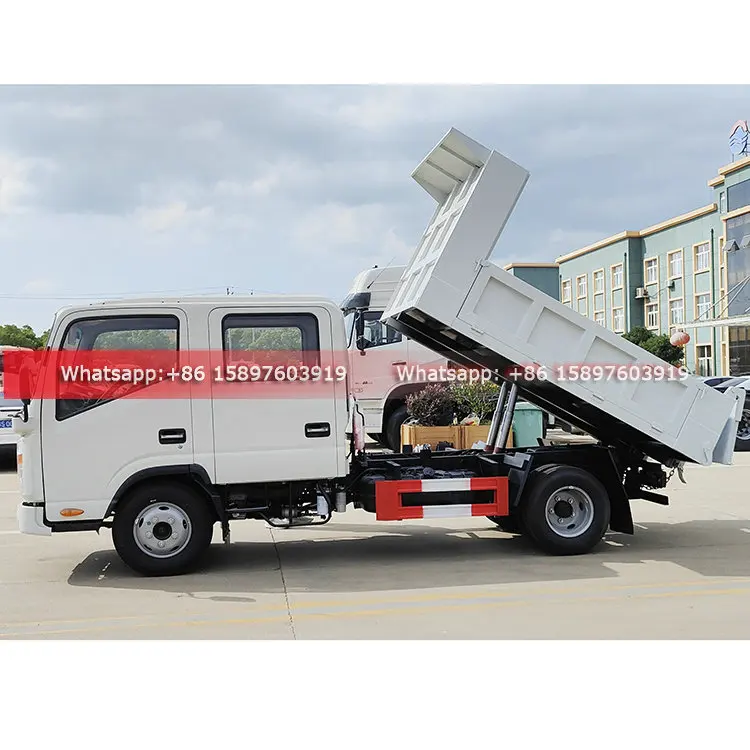

Cargo Body | Dimension | 2800x1790x400 mm (L*W*H) | |
Material | Carbon steel | ||
Thickness of front and rear plate | 3 mm | ||
Thickness of side plate | 2 mm | ||
Thickness of bottom plate | 3 mm | ||
Painting | Description Year | With sand blasting, painted with epoxy paint, finished color | |
Warranty | 1 | ||
Packing & Delivery
By Container
By Bulk Shippment
By RORO
Company Profile

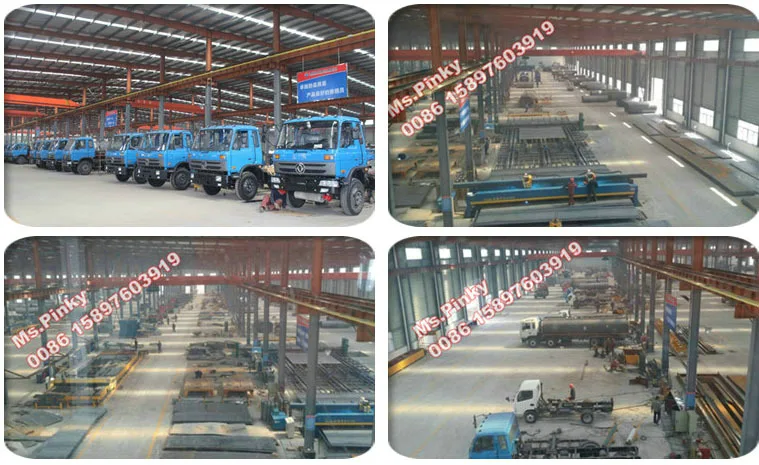

Hubei Runli Special Automobile Co., Ltd. is located in Suizhou City, which is China special automobile industry city. Our company covers an area of more than 166,000 square meters. We focus on the production of special automobile with export rights authorized by the Ministry of Information Industry and Ministry of Commerce. Our company is licensed as the first tanker pressure manufacturer by AQSIQ and is the only private enterprise which gets military quality system certification. Our company is also the "100 key Enterprises in Hubei Province" and "Hubei Province Two Safety Standards Enterprise".
Hubei Runli Special Automobile Co., Ltd. is a special automobile corporation which integrates research, manufacture, and service in one. Our company has 300 types of special vehicles in more than ten series including tank trucks, fire trucks, mobile machinery shops, sprinklers, semi-trailers, pressure vessels, and more.
Our Client:
Our company's products have been exported to different countries and regions, including Central America: the Republic of Costa Rica, Panama Republic, Trinidad and DOPA Republic. South America: the Republic of Columbia, the Republic of Venezuela, the Republic of Ecuador, Peru, the Republic of Bolivia, Chile, the Republic of Paraguay.
Africa: Ethiopia, Angola, Botswana, Burundi, Equatorial Guinea, Togo, Gambia, Republic of the Congo, Djibouti, Guinea, Ghana,Gabon, Zimbabwe, Cameroon, Equatorial Guinea, Kenya and Liberia, Rwanda, Madagascar, Mali, Mozambique, Namibia, Nigeria, Sierra Leone, Somalia, Tanzania, Uganda and Zambia.
Asia: the United Arab Emirates, Philippines, Cambodia, Qatar, Kyrgyzstan, Mongolia, old tart, Turkmenistan, Kazakhstan,
Tajikistan, Georgia, Uzbekistan, Afghanistan, Vietnam, Myanmar, Bangladesh. Papua: Oceania New Guinea, Fiji, Kiribati, Nauru,
etc..
Hubei Runli Special Automobile Co., Ltd. is a special automobile corporation which integrates research, manufacture, and service in one. Our company has 300 types of special vehicles in more than ten series including tank trucks, fire trucks, mobile machinery shops, sprinklers, semi-trailers, pressure vessels, and more.
Our Client:
Our company's products have been exported to different countries and regions, including Central America: the Republic of Costa Rica, Panama Republic, Trinidad and DOPA Republic. South America: the Republic of Columbia, the Republic of Venezuela, the Republic of Ecuador, Peru, the Republic of Bolivia, Chile, the Republic of Paraguay.
Africa: Ethiopia, Angola, Botswana, Burundi, Equatorial Guinea, Togo, Gambia, Republic of the Congo, Djibouti, Guinea, Ghana,Gabon, Zimbabwe, Cameroon, Equatorial Guinea, Kenya and Liberia, Rwanda, Madagascar, Mali, Mozambique, Namibia, Nigeria, Sierra Leone, Somalia, Tanzania, Uganda and Zambia.
Asia: the United Arab Emirates, Philippines, Cambodia, Qatar, Kyrgyzstan, Mongolia, old tart, Turkmenistan, Kazakhstan,
Tajikistan, Georgia, Uzbekistan, Afghanistan, Vietnam, Myanmar, Bangladesh. Papua: Oceania New Guinea, Fiji, Kiribati, Nauru,
etc..
Payment Terms
Our Payment terms and delivery time:
1. TT or LC AT SIGHT 30% down payment, 70% balance paid before shipment,all by T/T or by 100% LC at sight. Min order: 1 units
Delivery time: 15-20days after get the deposit or LC
Packing: nacked package, waxed before delivery by sea.
Documents: B/L, Commercial invoice, Packing list, Certificate of origin etc
Our Bank Information:
BENEFICIARY: HUBEI RUNLI SPECIAL AUTOMOBILE CO., LTD
Address: NO.77, century ave, suizhou city, hubei province
BANK OF BENEFICIARY: BANK OF CHINA, HUBEI BRANCH, SUIZHOU SUB BRANCH
ADDRESS OF BANK: NO.69 LIESHAN ROAD, SUIZHOU, HUBEI, CHINA
ACCOUNT NO.: 20310608092001
SWIFT NO.: BKCHCNBJ600
Beneficiary Name: HUBEI RUNLI SPECIAL AUTOMOBILE CO. LTD.
Registration No. of Business License: 421300000011992
Registration No. of Tax Registration Certificate: 421302682683311
Beneficiary bank: China Construction Bank Corporation
Address of Bank: No.68, Yanhe Avenue,SUIZHOU,HUBEI,CHINA
Swift Code: PCBCCNBJ
Account No.: 42014810500220502473
1. TT or LC AT SIGHT 30% down payment, 70% balance paid before shipment,all by T/T or by 100% LC at sight. Min order: 1 units
Delivery time: 15-20days after get the deposit or LC
Packing: nacked package, waxed before delivery by sea.
Documents: B/L, Commercial invoice, Packing list, Certificate of origin etc
Our Bank Information:
BENEFICIARY: HUBEI RUNLI SPECIAL AUTOMOBILE CO., LTD
Address: NO.77, century ave, suizhou city, hubei province
BANK OF BENEFICIARY: BANK OF CHINA, HUBEI BRANCH, SUIZHOU SUB BRANCH
ADDRESS OF BANK: NO.69 LIESHAN ROAD, SUIZHOU, HUBEI, CHINA
ACCOUNT NO.: 20310608092001
SWIFT NO.: BKCHCNBJ600
Beneficiary Name: HUBEI RUNLI SPECIAL AUTOMOBILE CO. LTD.
Registration No. of Business License: 421300000011992
Registration No. of Tax Registration Certificate: 421302682683311
Beneficiary bank: China Construction Bank Corporation
Address of Bank: No.68, Yanhe Avenue,SUIZHOU,HUBEI,CHINA
Swift Code: PCBCCNBJ
Account No.: 42014810500220502473
