Xincode 1D 2D Desktop Scanner Table Top USB Wired Barcode Scanner Hands Free Barcode Reader QR Code Scanning for Retails Store
- Category: >>>
- Supplier: Foshan Xincode Electronics Technology Co. Ltd.
Share on (1601205997555):
Product Overview
Description
HOT SALES 2022

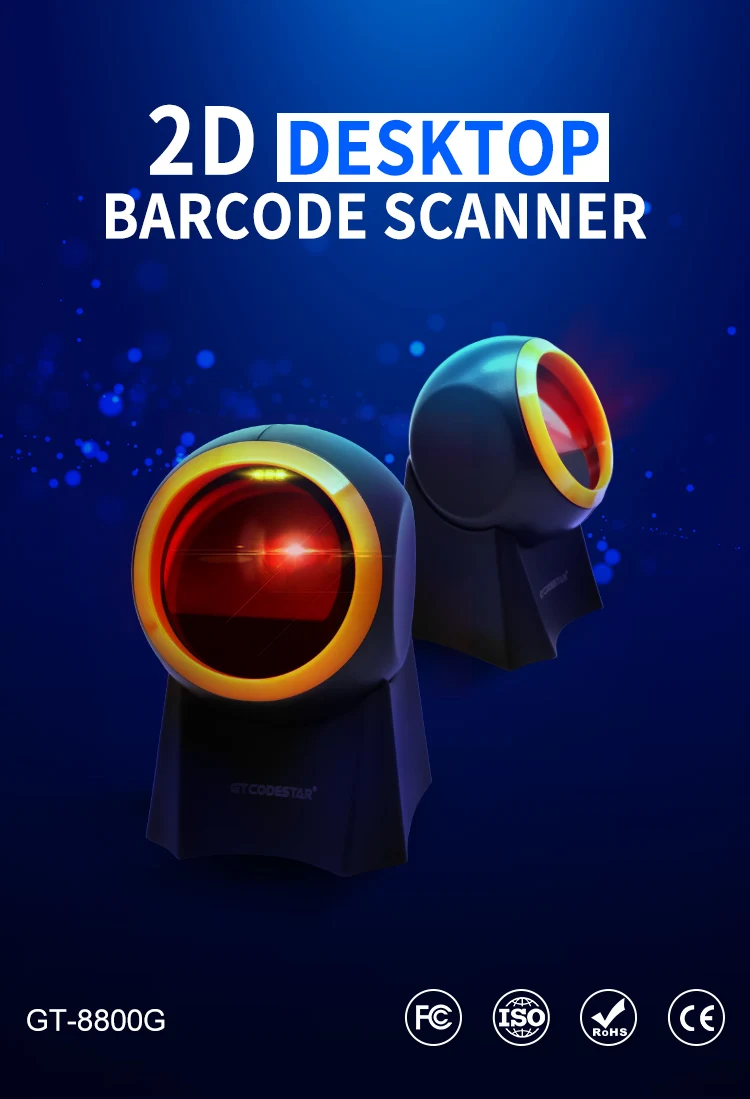

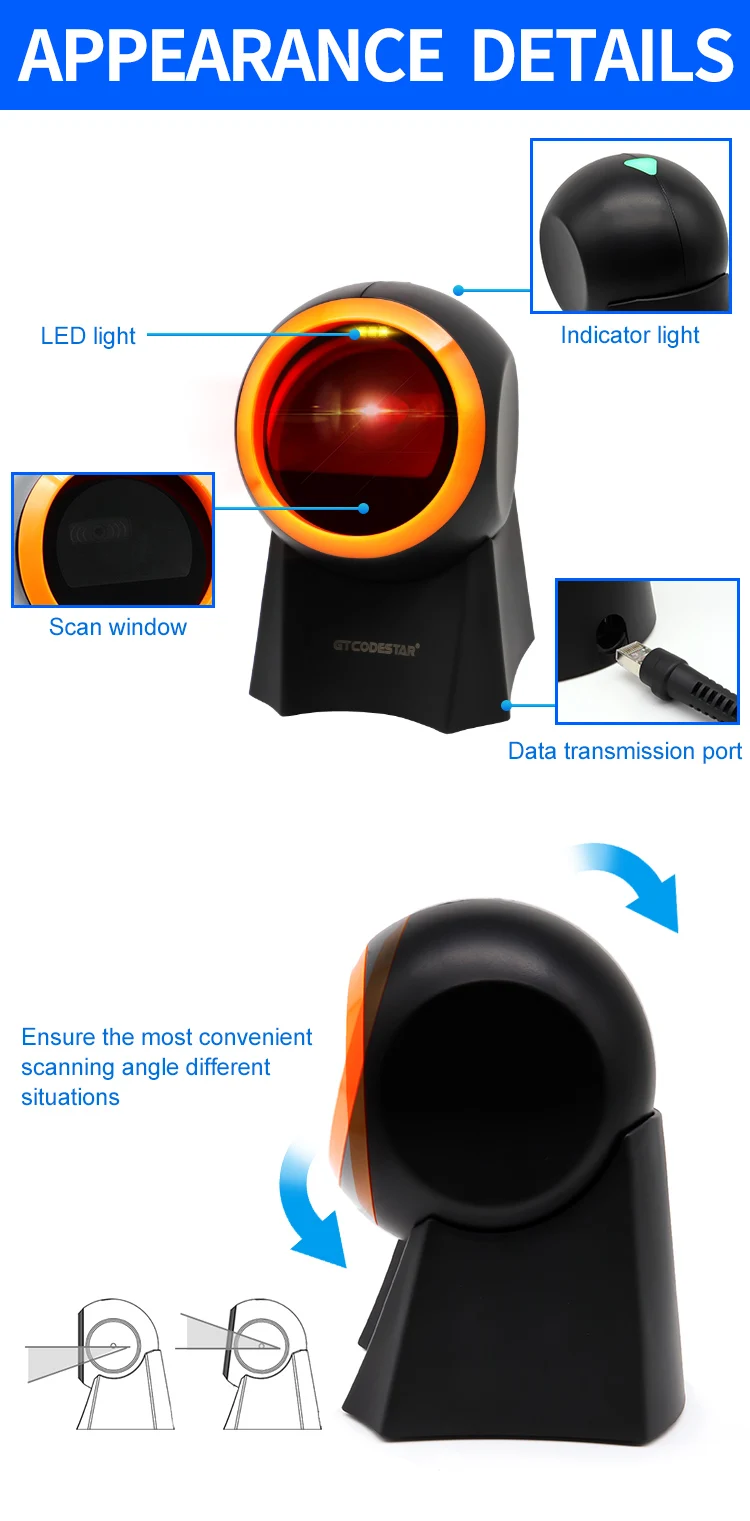

Model: GT-8800G 2D Wired Image Desktop Barcode Scanner
Sensor Planar:CMO Ssensor
Light Source:WhiteLED(lighting
Professor:32bitARMMCU+DSP
Motion tolerance QRCODE:25CM/SEC
Resolution4mil Biterrorrate1/5000000 Reading
Mode:ImageTrigger Mode:Auto-Sensing
PromptMode:Buzzer,IndicatorLight(LED)
Product Description
| Model | GT-8800G | ||||||
| Item | Wired 2D Image Desktop barcode scanner | ||||||
| Physical Parameter | |||||||
| Material | ABS+PC | ||||||
| Power Supply | DC 5V ±5% | ||||||
| Operating Current | 0.18A(Standby);0.25A(Operating);0.32A(Max)[Average] | ||||||
| Power consumption | 0.90W(Standby);1.25W(Operating);1.60W(Max)[Average] | ||||||
| Weight | 308.0g±5g(Without cable) | ||||||

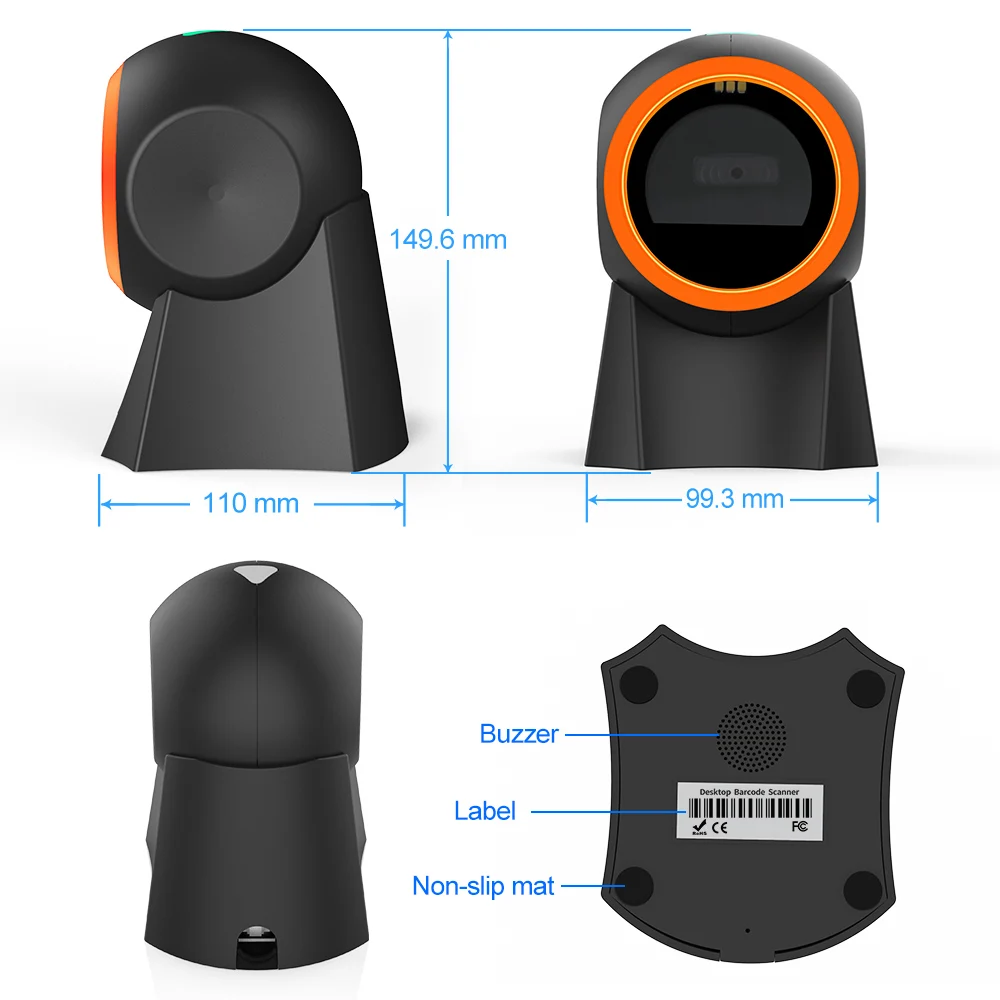

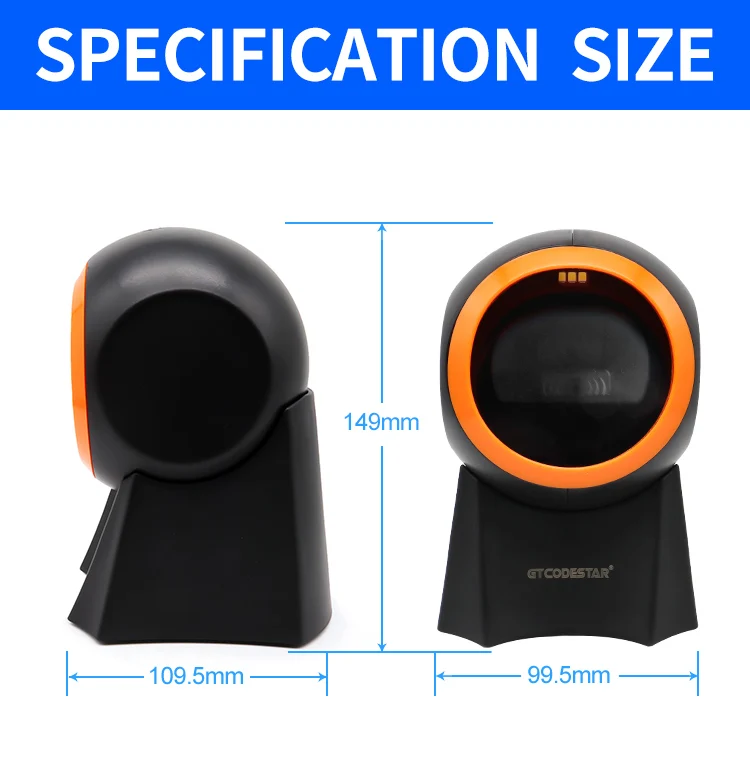

| Size | L * W * H:110.0 * 99.3 * 149.6(unit:mm) | ||||||
| Color | Black and Orange | ||||||
| Performance Parameter | |||||||

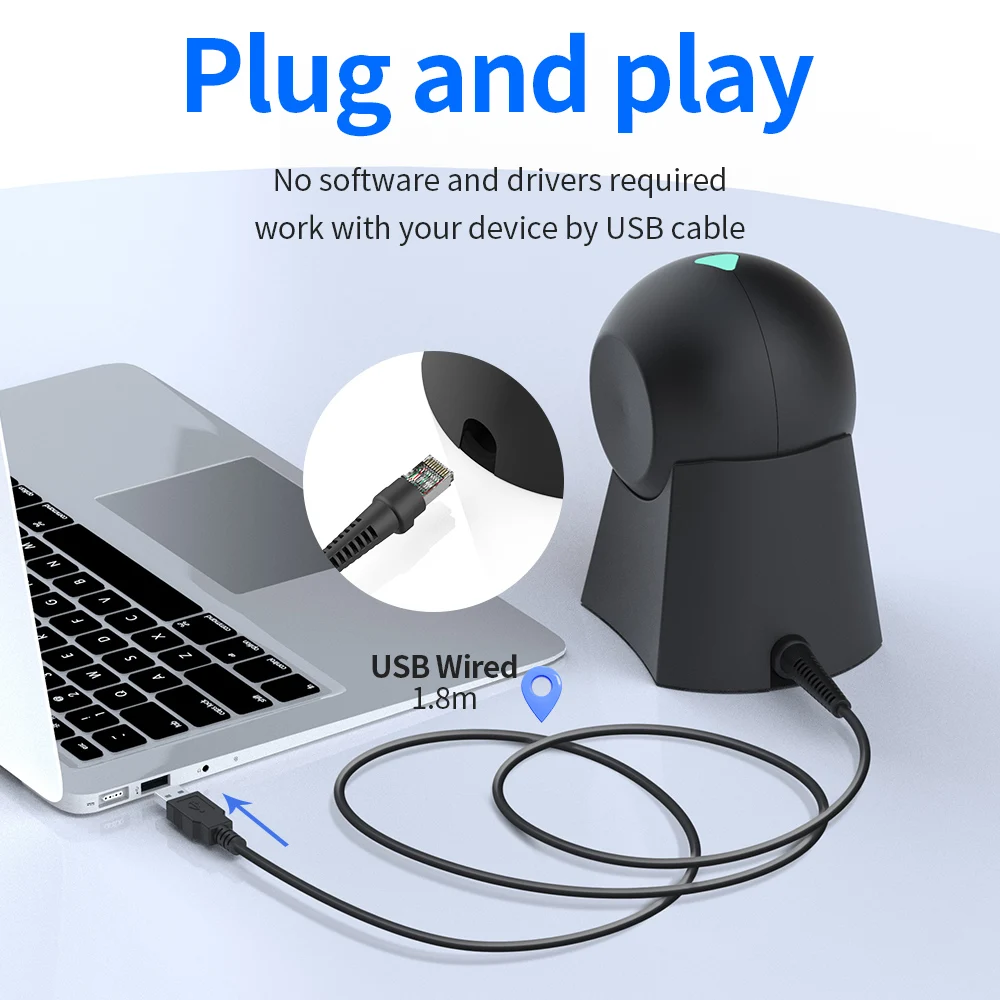

| Interface | USB | ||||||

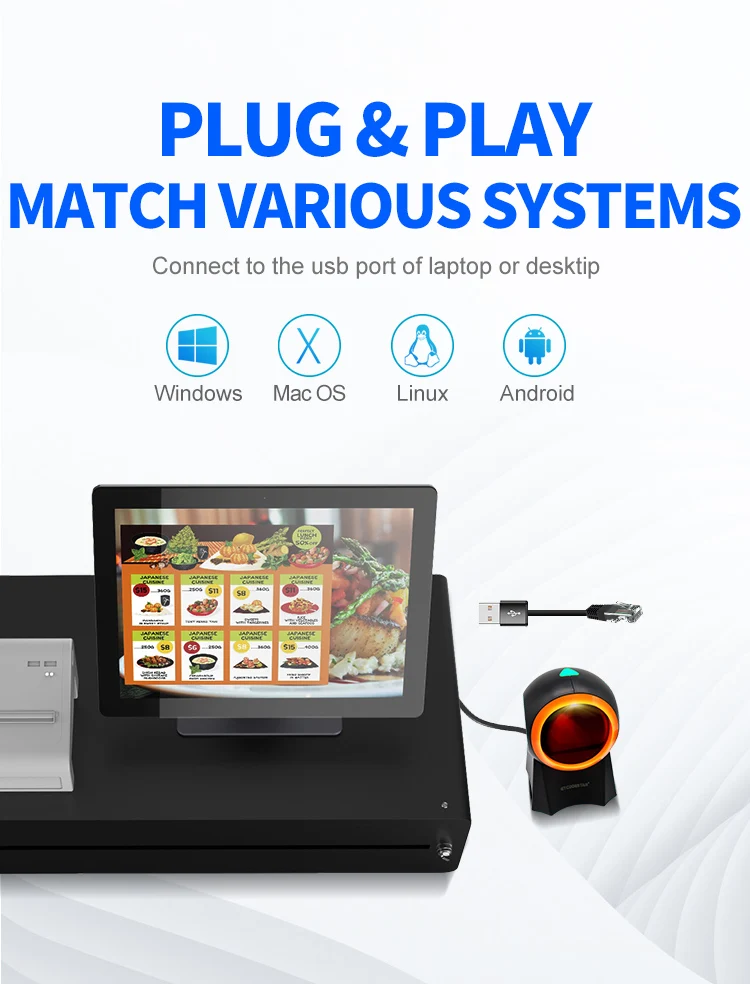

| System supported | Linux,Android,Windows XP,7,8,10,MAC | ||||||
| Language supported | English;Belgium;Finnish;French;German;Italian;Swedish;Danish; Norwegian; Spanish; Portuguese; Turkish Q; Turkish F; Japanese; Russian; Czech; Thai; Ukrainian; Brazilian; Greek; Hungarian; Dutch; Polish; Romanian; Slovakia language; [Support virtual keyboard] | ||||||
| Sensor | Planar CMOS sensor 480 * 640 | ||||||
| Light Source | White LED Light | ||||||
| Processor | 32-bit ARM MCU + DSP | ||||||
| Motion Tolerance | 35cm/sec[10mil QR] | ||||||
| Resolution | Code39 ≥5mil | ||||||
| Error Rate | 1/5000000 | ||||||
| Reading Mode | Image | ||||||

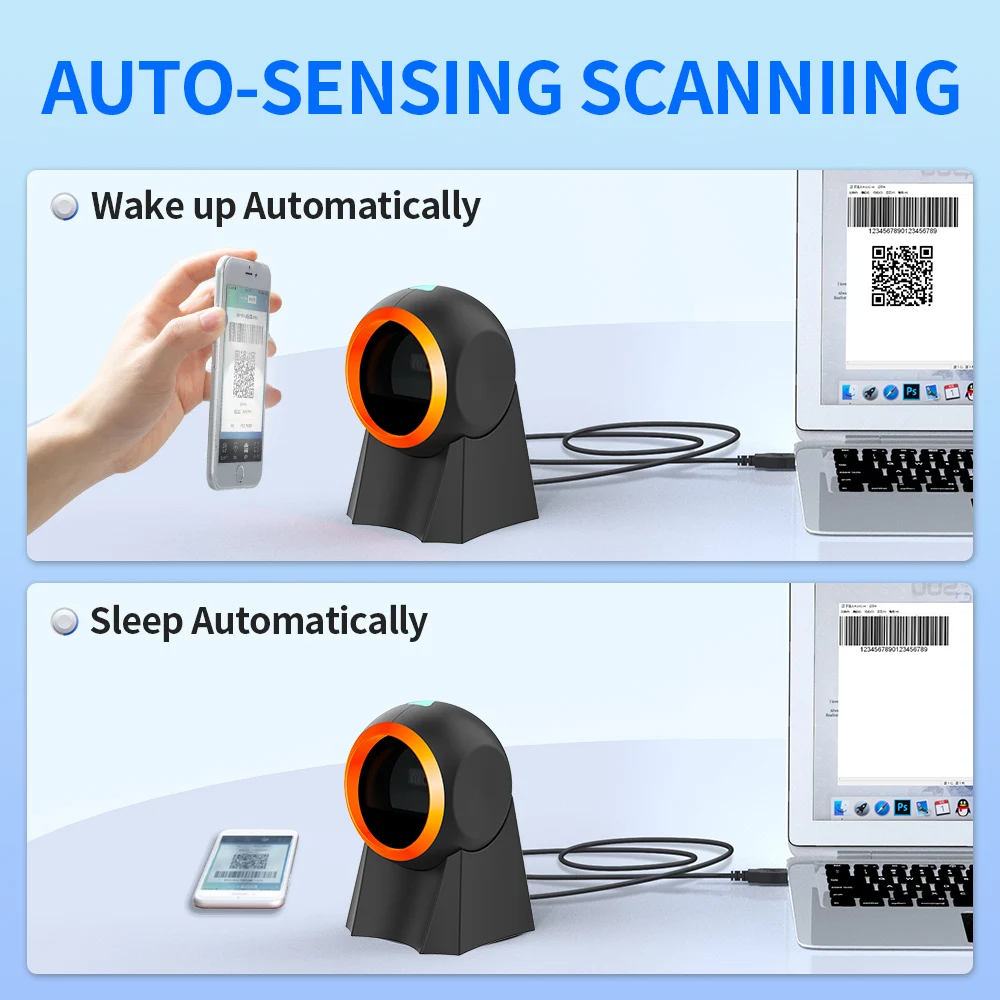

| Triggle Mode | Auto-sensing | ||||||
| Prompt Mode | Buzzer+Indicator Light(LED) | ||||||
| Scanning Angle | Rotation 360°, elevation ± 55°, deflection ± 55° | ||||||
| Invoice Code supported | Support | ||||||
| Print Contrast | ≥30% | ||||||

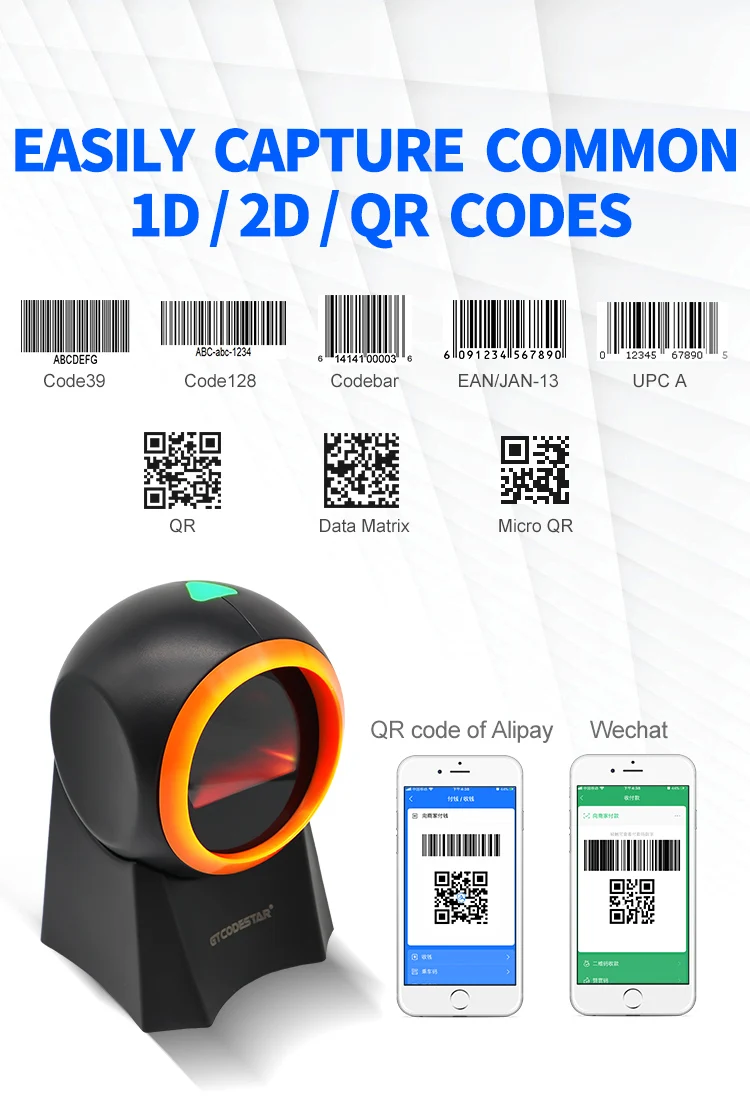

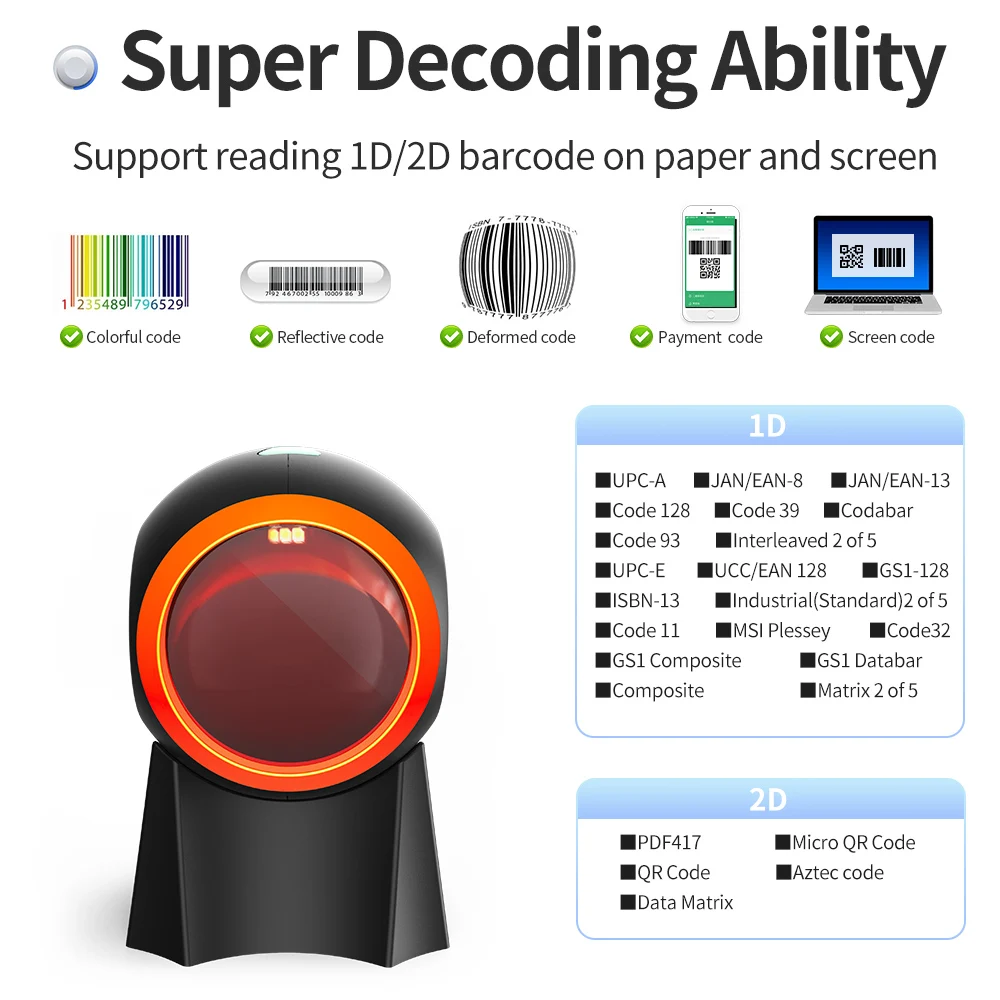

| Decoding Capability | 1D | UPC-A JAN/EAN-8 JAN/EAN-13 Code 128 Code 39 Codabar Code 93 Interleaved 2 of 5 UPC-E UCC/EAN 128 GS1-128 ISBN-13 Industrial(Standard)2 of 5 Code 11 MSI Plessey Code32 GS1 Composite GS1 Databar Composite Matrix 2 of 5 | |||||
| 2D | PDF417 Micro QR Code QR Code Aztec code Data Matrix | ||||||
| Scanning Depth | QR Code 12.50mil(7 bit):0cm - 11cm PDF417 9.17mil(7 bit):0cm -11cm Data Matrix 12.50mil(8 bit):0cm - 7cm Code 128 7.50mil(15 bit):1cm - 10cm EAN13(10mil):3cm - 12cm | ||||||
| Environment Parameter | |||||||
| IP Grade | IP52 | ||||||
| Operating Temp. | 0 to 50℃ / 32 to 122℉ | ||||||
| Storage Temp. | 0 to 50℃ / 32 to 122℉ | ||||||
| Operating Humidity | 20% to 85%(No Condensation) | ||||||
| Storage Humidity | 20% to 85%(No Condensation) | ||||||
| ESD Protection | 15KV air discharge | ||||||
| Shock Resistance | 1.2m free fall on concrete surface | ||||||
| Ambient light | 0→100000Lux | ||||||

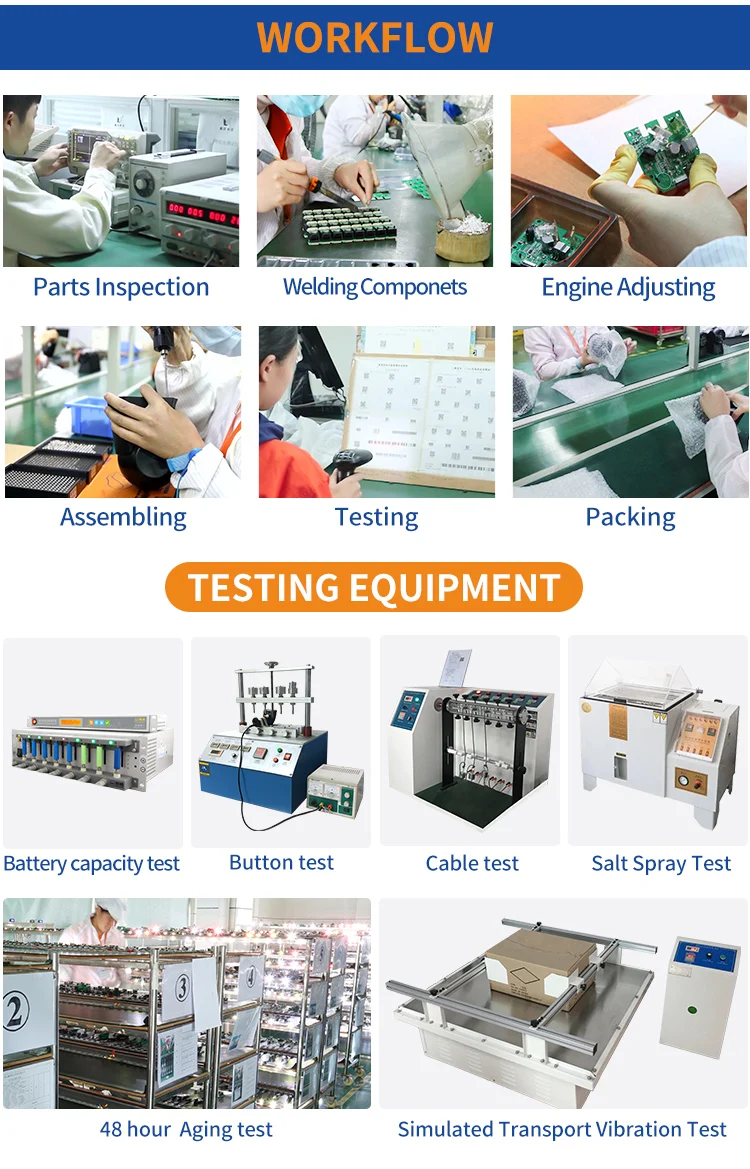

Production Flow
FAQ
Q1:How about the quality?
Professional QC team and testing machine (Engine age testing,wire bending machine,switch life testing,shock resistance testing).All the products pass CE,FCC,ROSH,FDAetc.
Q2: Why so competitive?
With almost 10 years experience,we owned a large domestic market in China.We are the best-seller in China.So large quantity will reduce our raw material cost directly.What's more we have mature technology to save cost.
Q3: How to control the performance stable?
We take the flow line production in the whole processing. Every product will test 4 times at least before it delivery.
Q4:Is OEM or ODM available?
Yes.We are the factory directly.We can make it as your requirement.
Q5:Why customer choose us?
ISO9001&ISO14001 factory with strictly quality control system.Prompt after-sales service.
Q6:How about the factory?
We have more than 200 workers with advanced dust-free plant.We are approved the new high-tech enterprise by the government.Owned many technical and design patents in different professional fields.
Professional QC team and testing machine (Engine age testing,wire bending machine,switch life testing,shock resistance testing).All the products pass CE,FCC,ROSH,FDAetc.
Q2: Why so competitive?
With almost 10 years experience,we owned a large domestic market in China.We are the best-seller in China.So large quantity will reduce our raw material cost directly.What's more we have mature technology to save cost.
Q3: How to control the performance stable?
We take the flow line production in the whole processing. Every product will test 4 times at least before it delivery.
Q4:Is OEM or ODM available?
Yes.We are the factory directly.We can make it as your requirement.
Q5:Why customer choose us?
ISO9001&ISO14001 factory with strictly quality control system.Prompt after-sales service.
Q6:How about the factory?
We have more than 200 workers with advanced dust-free plant.We are approved the new high-tech enterprise by the government.Owned many technical and design patents in different professional fields.
Packaging details
| Carton Size (CM) | G.W.(KG) | PCS/CTN | Box Size(CM) | Item No. |
| 49X31.5X46CM | 9.6~13.8 | 40 | 14X11.4X8.3 | GT-799/GT-770/GT-725 |
| 50x26.5x45CM | 8.8~12.6 | 20 | 21X12.5X9.2 | X-1200/X-1901B/X-6301C/X-1901C/x-6301B/GT-9208 |
| 54.5X30X59CM | 12.55 | 30 | 17.5X14X11.3 | GT-790 |
| 60x45x38.5CM | 14.2~17.5 | 50 | 18X11.5X8.5 | M-3100/X-530/X-760B/X-9700/X-9701/X-9201/GT-1900/X-600/X-660/X-620 |
| 60x45x38.5CM | 14.2~19.4 | 100 | 15X9X5 | X-9700M/X-7200/GT-780 |
