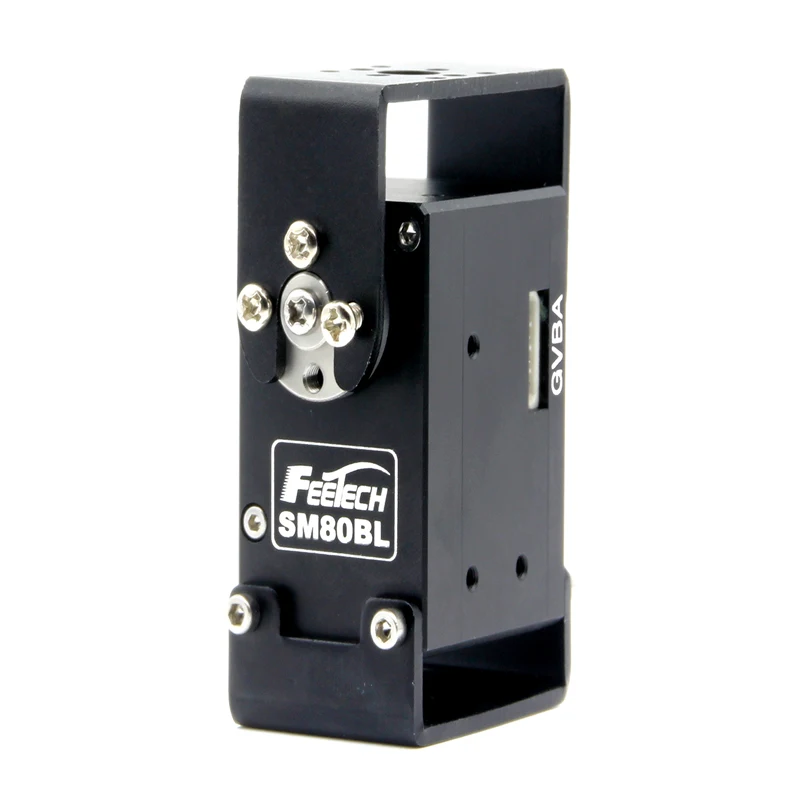

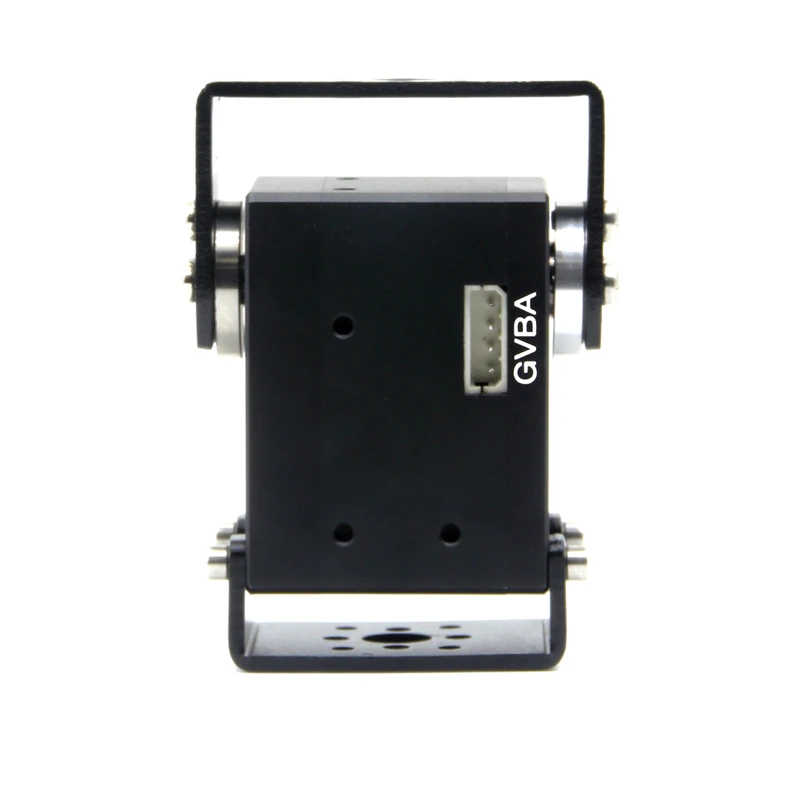

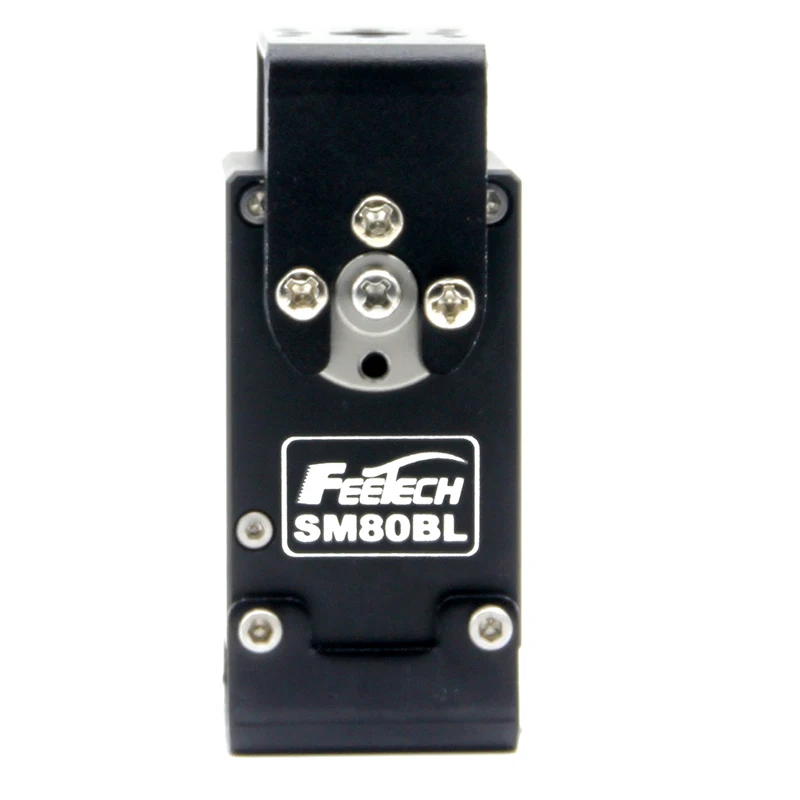

FEETECH SM80BL High torque 80Kg 12V 24V 485 Magnetic encoding servo for RC Robot and industry Project
We offer customized services. Please let us know your requirements
Contact us
Skype: Jenny-fitec
Whats App: 0086 13686413808
WeChat: 0086 13686413808
Contact us
Skype: Jenny-fitec
Whats App: 0086 13686413808
WeChat: 0086 13686413808
Product Model No：SM-80BL-C001
Structure Size：46.5*28.5*34mm
Product Weight：97.5±1g
The Maximum Speed：0.161sec/ 60°@12V(24V is also avaiable)
The Stall Torque：80kg.cm@12V
Feature：
SM-80BL-C001 is 12V serial port smart bus servo(24V is also avaiable)，
all aluminum alloy shell、brushless motor、steel gearbox、
Feetech self researched and developed RS485 control board，12 bit high precision magnetic coding sensor，
external connect stainless steel main servo horn. The stall torque is 80kg.cm，can achieve 0-360 degrees any angle controllable，
multi-turn continuous operation mode，it can realize the function of setting the middle point with one key，
acceleration slow start and slow stop，can feedback position、speed、voltage、current、temperature、load parameters，
thus, overload and over-current protection can be realized.
It is suitable for application in industrial equipment, robot and other industries.
Parameter:
Model:SM-80BL-C001
Product Name:12V 80kg.cm Serial Control RS485 Servo
Storage Temperature Range:-30℃～80℃
Operating Temperature Range:-20℃～80℃
Size:A：46.5mm B：28.5mm C：34mm
Weight:97.5±1g
Gear type:Steel
Limit angle:No limit
Bearing:Ball bearings
Horn gear spline:25T/OD5.9mm
The rocker phantom：0°
Case:Aluminium
Connector wire:40CM
Motor:4 Pole Brushless motor
Operating Voltage Range:12V
Idle current (at stopped):45mA@12V
No load speed:0. 161sec/ 60° （62RPM）@12V
Runnig current(at no load) :\t280mA@12V
Peak stall torque:80kg.cm@12V
Rated current:1475mA@12V
Rated torque:20kg.cm≤@12V
Stall current:5.9A@12V
Command signal:Digital Packet
Protocol Type:Half Duplex Asynchronous Serial Communication
ID range:\t0-253
Communication Speed:38400bps ~ 1 Mbps
Running degree:360°(when 0～4095)
Feedback:
Load, Position,Speed, InputVoltage，Current,Temperature.
Position Sensor Resolution:0.088°(360°/4095)
SM80BL robot servo adopts advanced servo control technology and 32 bit high speed ARM microprocessor, fast response, accurate positioning without jitter. Compared to the traditional RC servo 50Hz control frequency, the SM80BL series robot servo through the control frequency of up to 333Hz, to ensure the accuracy of position control and maintain the stability of the moment.
The SM80BL robot servo uses 12 bits high precision magnetic encoder to measure the position, the servo output shaft may rotate continuously for a whole week, the movement torque output is as high as 80kg.cm.
SM80BL has serial bus interface, the 254 robot servo can form a chain through the bus. Each servo can be set with different node addresses, multiple servo wheels can be unified motion can also be a single independent control.
The communication instruction set of SM80BL is completely open, and the servo communicates with the host computer through the asynchronous serial interface.
The communication instruction set of SM80BL is completely open, and the servo communicates with the host computer through the asynchronous serial interface.
The SM80BL can be set to either the motor mode or the position control mode by sending commands
through the asynchronous serial interface.
In motor mode, SM80BL can be used as DC motor, speed adjustable;
in position control mode, 0-360 degrees and multi circle arbitrary absolute and relative angle can be controlled within this range with accurate position control performance, speed control.
SM80BL robot servo and the founder of the multi - directional installation, user-friendly flexible model.
through the asynchronous serial interface.
In motor mode, SM80BL can be used as DC motor, speed adjustable;
in position control mode, 0-360 degrees and multi circle arbitrary absolute and relative angle can be controlled within this range with accurate position control performance, speed control.
SM80BL robot servo and the founder of the multi - directional installation, user-friendly flexible model.
Specification
item | 12V 24V 80kg RS485 serial bus servo |
Size | A：46.5mm B：28.5mm C：34mm |
Weight | 100g |
Gear Type | Steel Gear (Gear Ratio 353:1 ) |
Limit Angle | No Limiter |
Material | METAL |
Horn gear spline: | 25T (0D5.96mm) |
Horn Type: | Aluminium |
Case Type: | Aluminium |
Wire Length | 150mm ±5 mm |
Motor: | Brushless motor |
Operating Voltage Range: | 12V 24V |
No load speed: | 0. 153sec/ 60degree 65RPM| |
Peak stall torque: | 80kg.cm@12V |
Command signal: | Bus Packet Communication RS485 |
Protocol Type: | Half duplex Asynchronous Serial Communication |
Rated torque: | 26.67kg.cm≤@12V |
ID Range | 0-253 |
Communication Speed: | 38400bps ~ 1 Mbps |
Running degree: | 360°(when 0～4095) |
Feedback: | Load,Position,Speed,Input Voltage,Current,Temperature |
Certificate | CE/ROHS |
Position Sensor Resolution: | 360° (when 0~4095)-CW |
Packing & Delivery

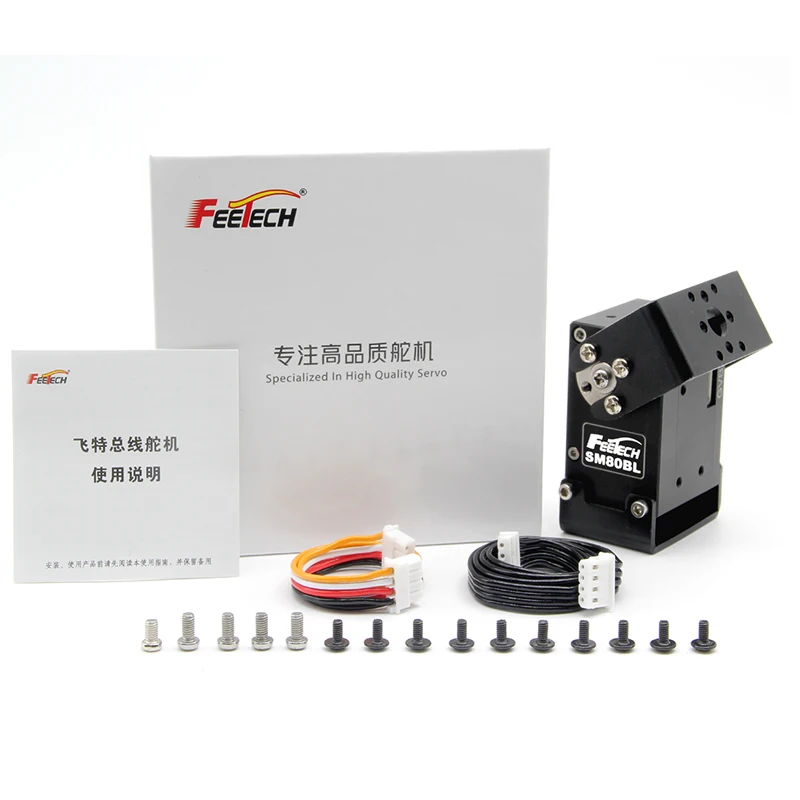

Giftbox
